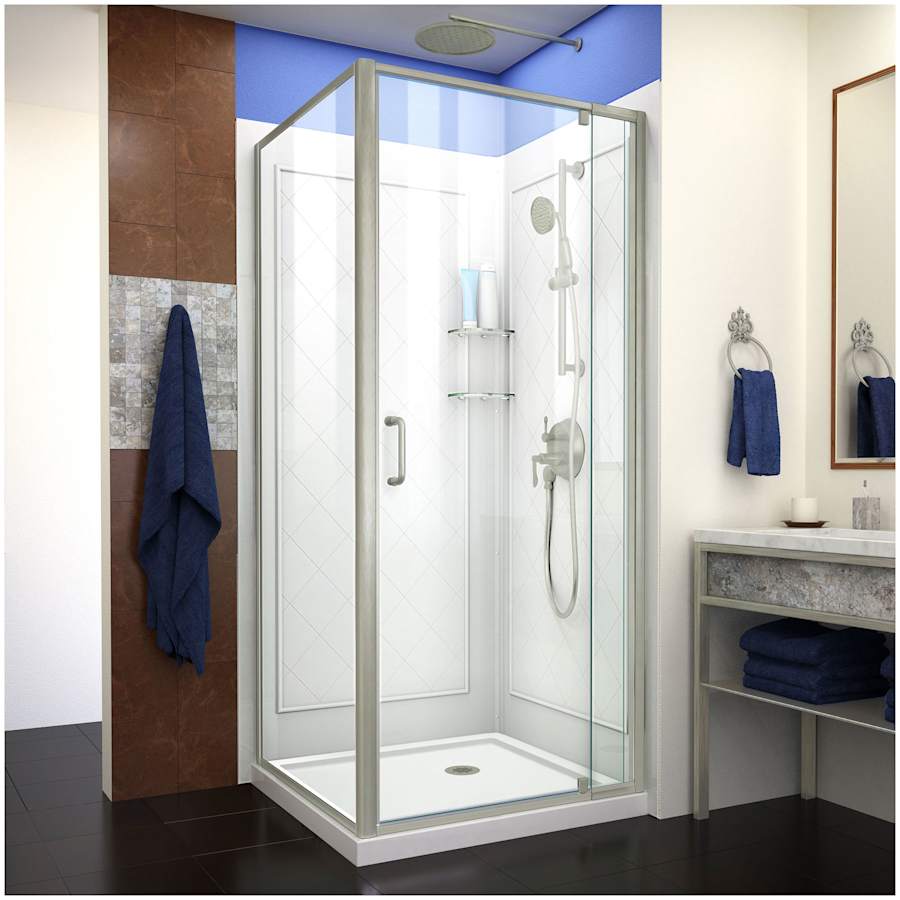

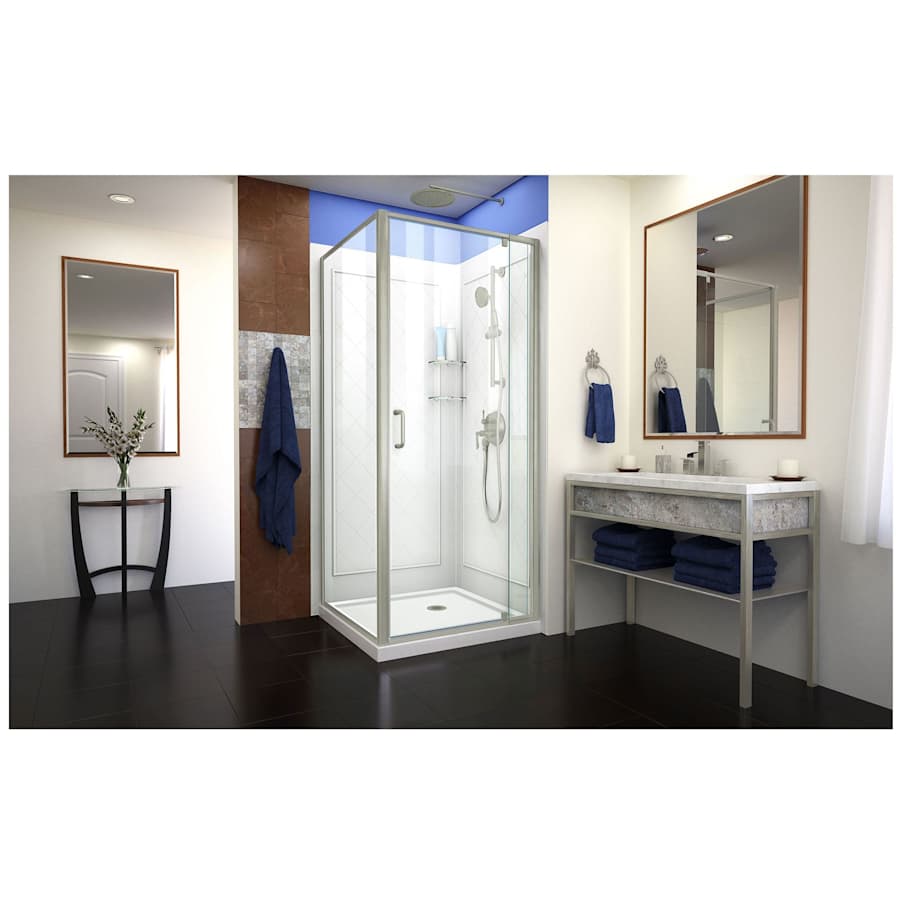

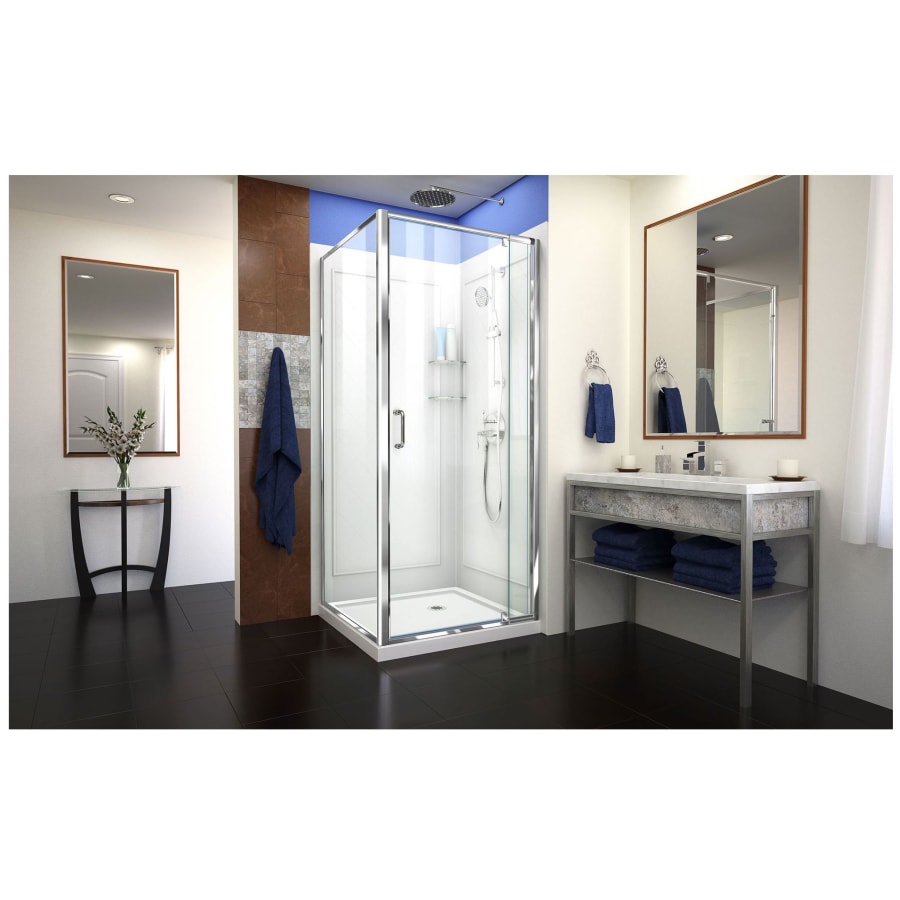

The DreamLine Flex pivot shower enclosure, SlimLine base, and Q-Wall backwall kit offers modern appeal at a budget friendly price point. The versatile Flex model combines cutting-edge pivot hardware, simple installation and dependable performance. Complete your bathroom with the elegant and innovative look of the Flex shower enclosure, SlimLine base, and Q-Wall backwall kit from DreamLine for the complete solution for your shower project.
DreamLine DL-6716-CL Features:
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
Items included: Flex shower door with return panel, 32″ x 32″ Double threshold shower base and QWALL-4 shower backwall kit
Overall Kit Dimensions: 32″ D x 32″ W x 76-3/4″ H
Flex shower door:
30-1/2″ D x 28-7/16 to 32-7/16″ W x 72″ H

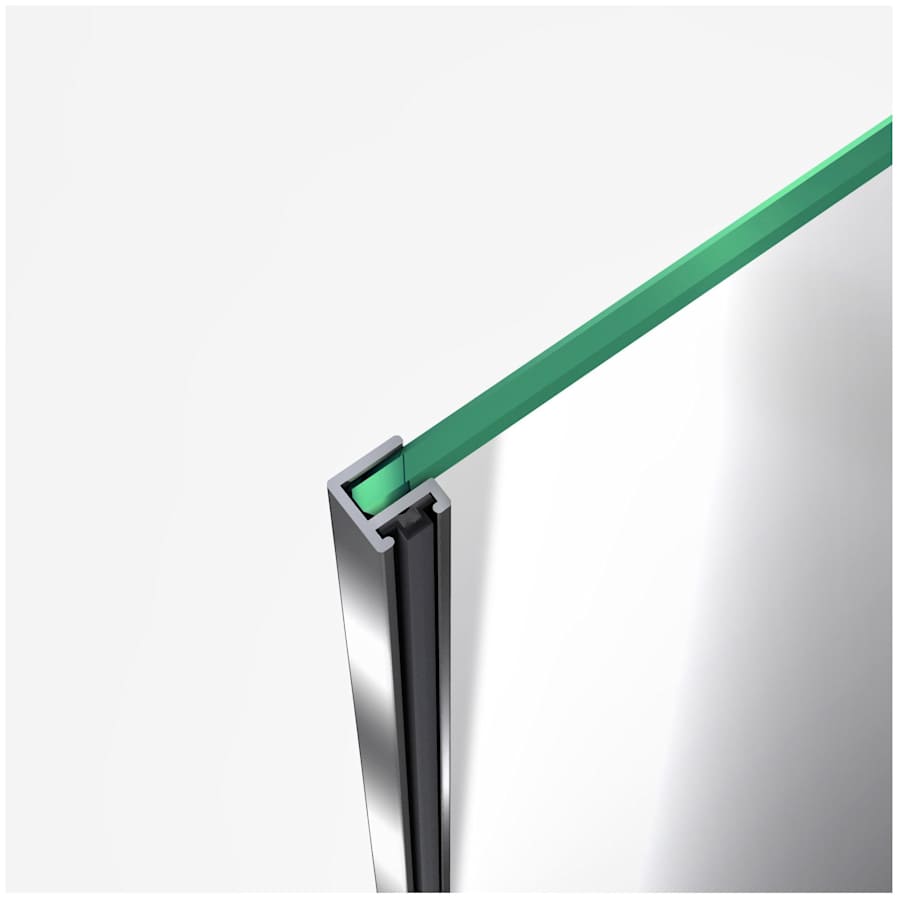

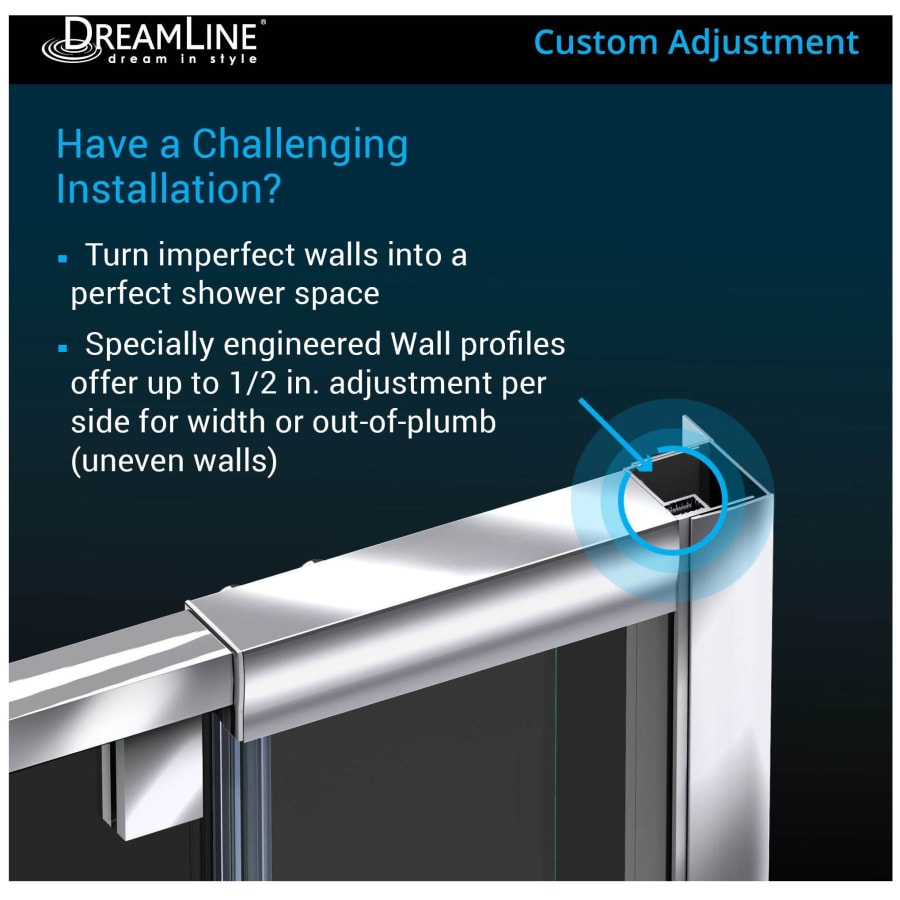

Anodized aluminum wall profile allows a 1″ width (horizontal) or out-of-plumb (vertical) adjustment

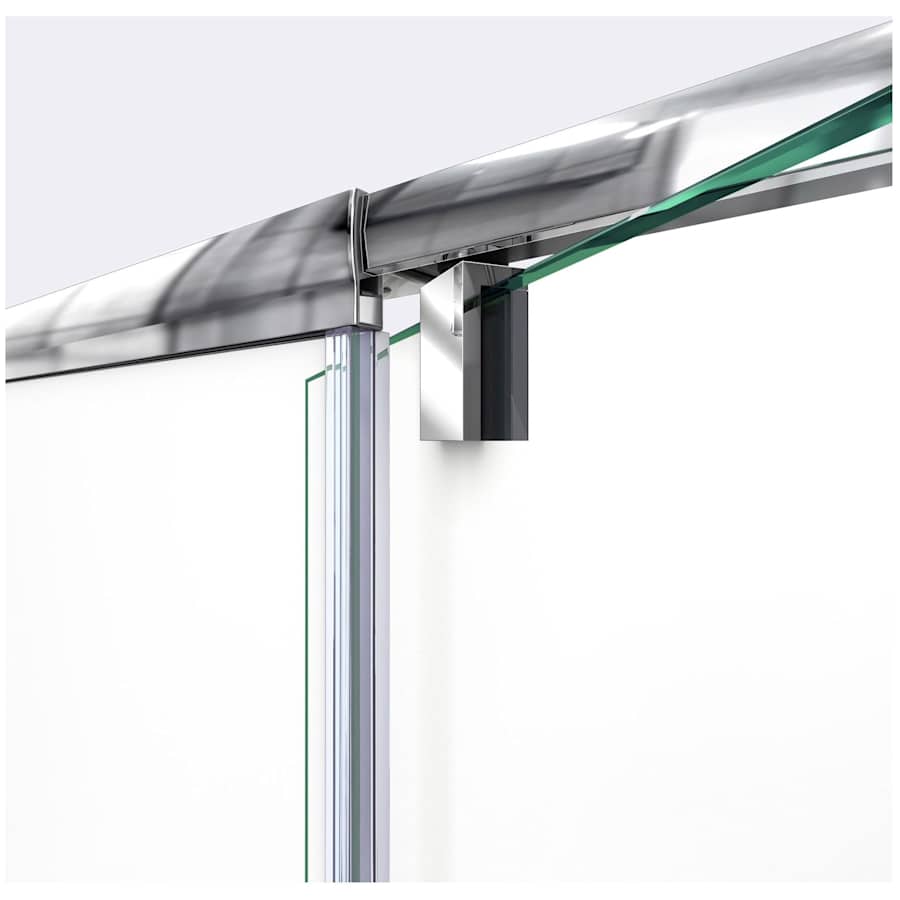

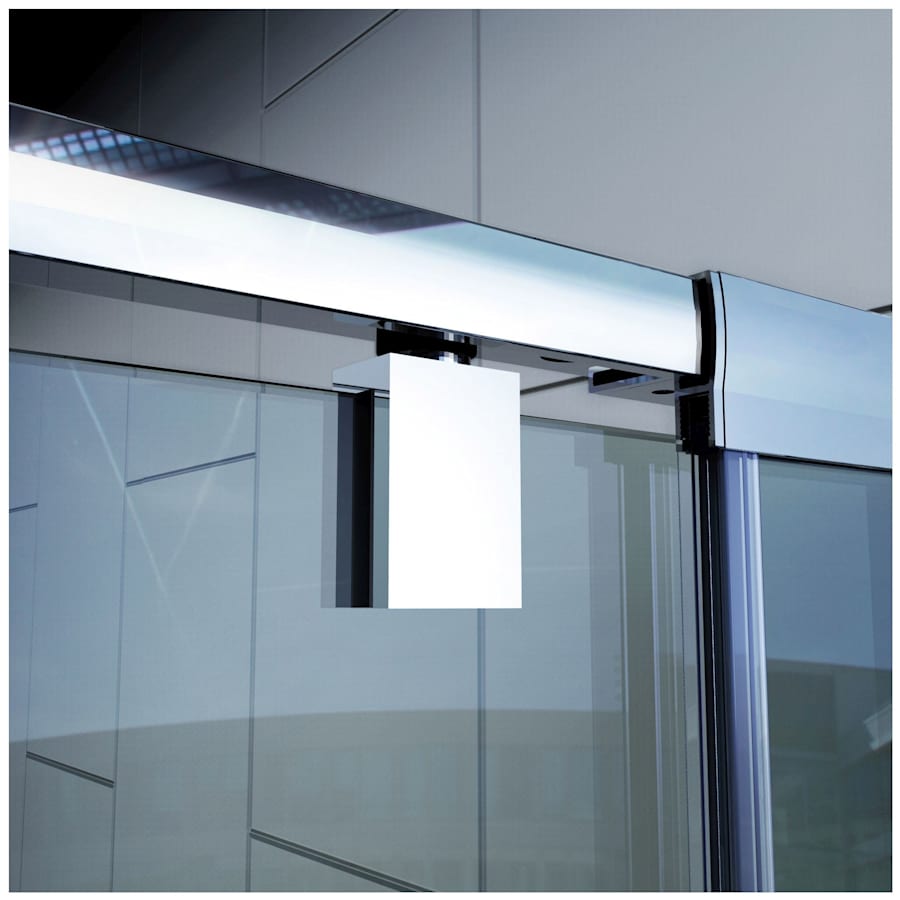

Cutting-edge expandable rails and pivot hardware allows a 3″ width (horizontal) adjustment
Model consists of a single pivot door, one stationary inline panel and one stationary return panel

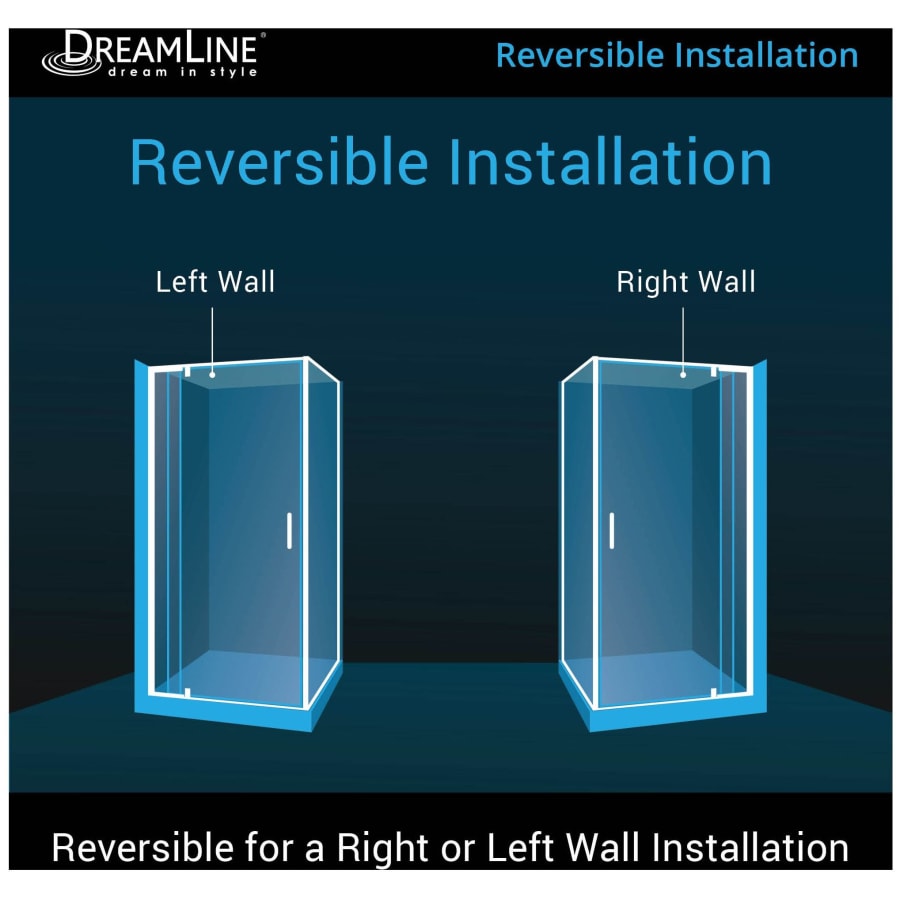

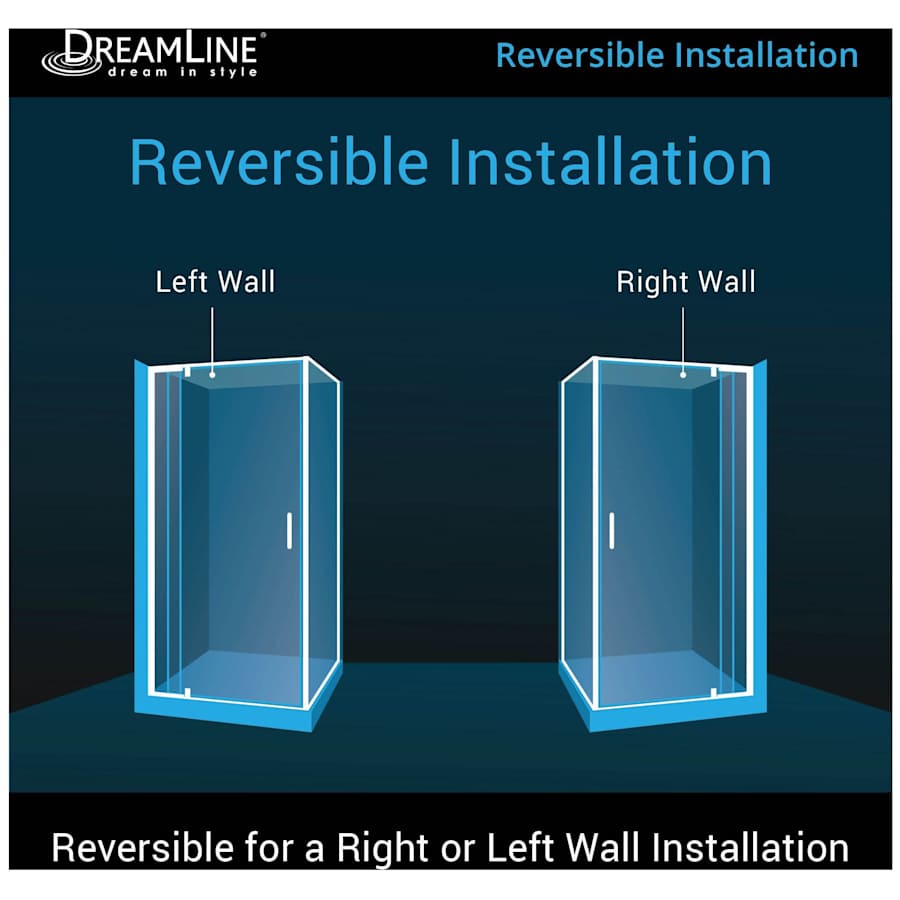

Reversible for right or left door opening installation
1/4″ (6mm) thick clear tempered glass
Door Walk-In: 18-7/8″
Stationary Panel(s): 6-9/16″
Return Panel: 30-1/2″
Magnetic strip for water tight door closure
Professional installation recommended

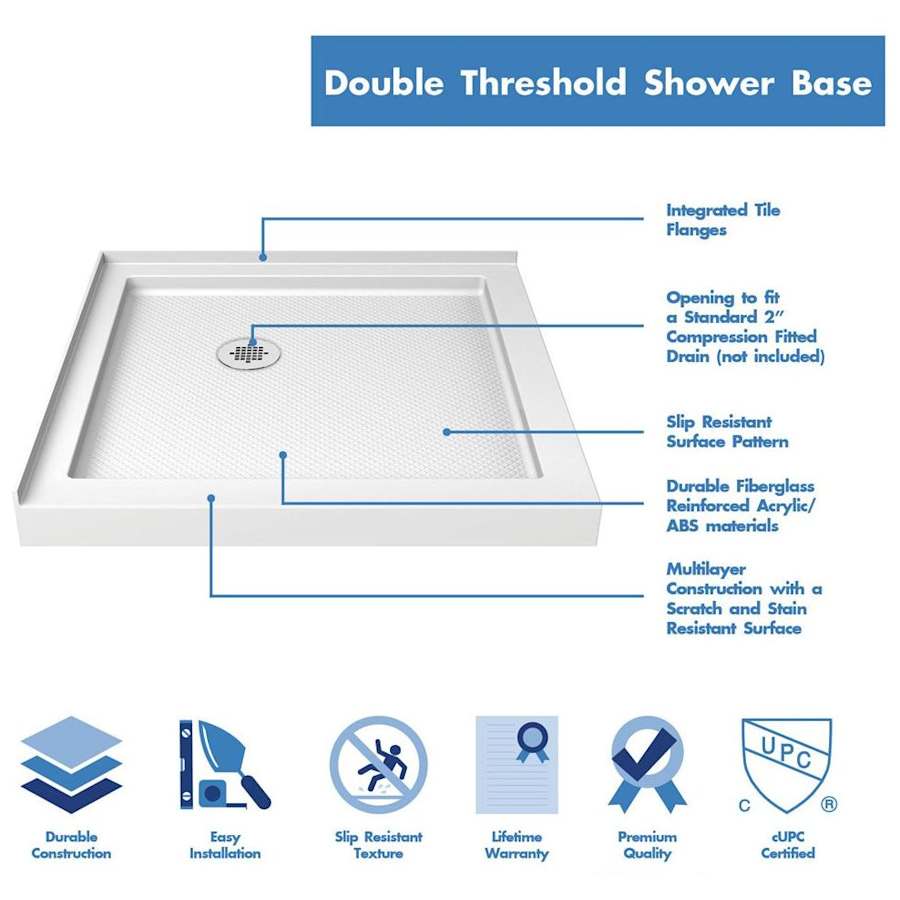

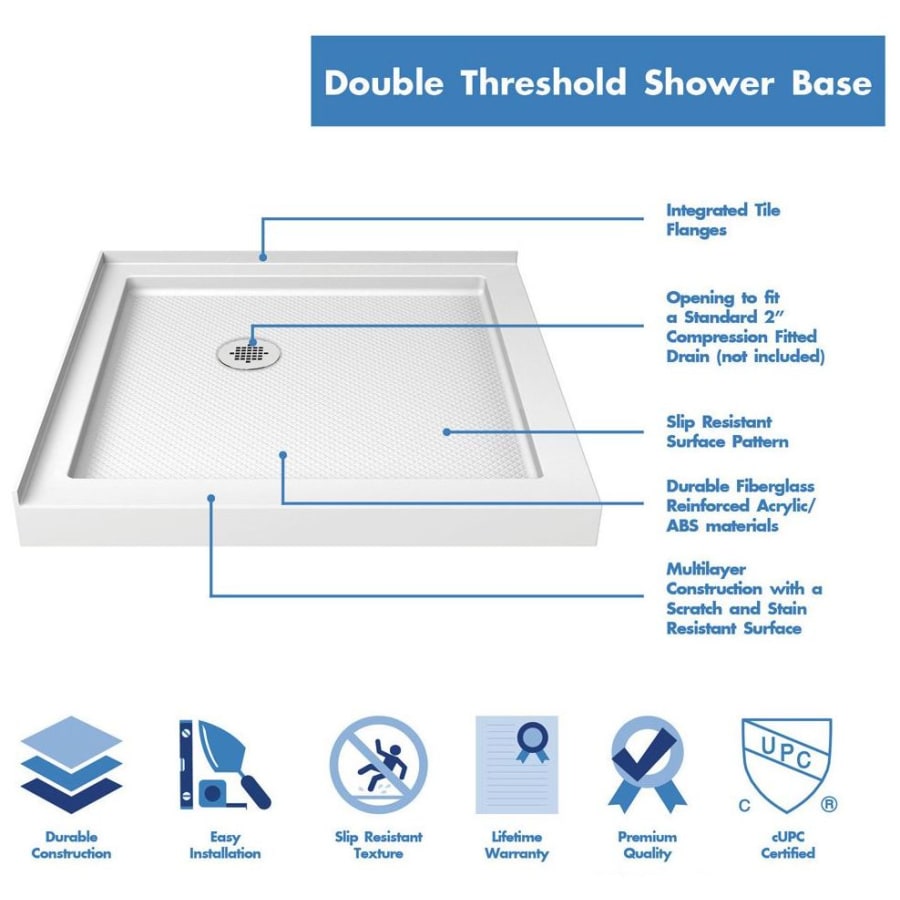

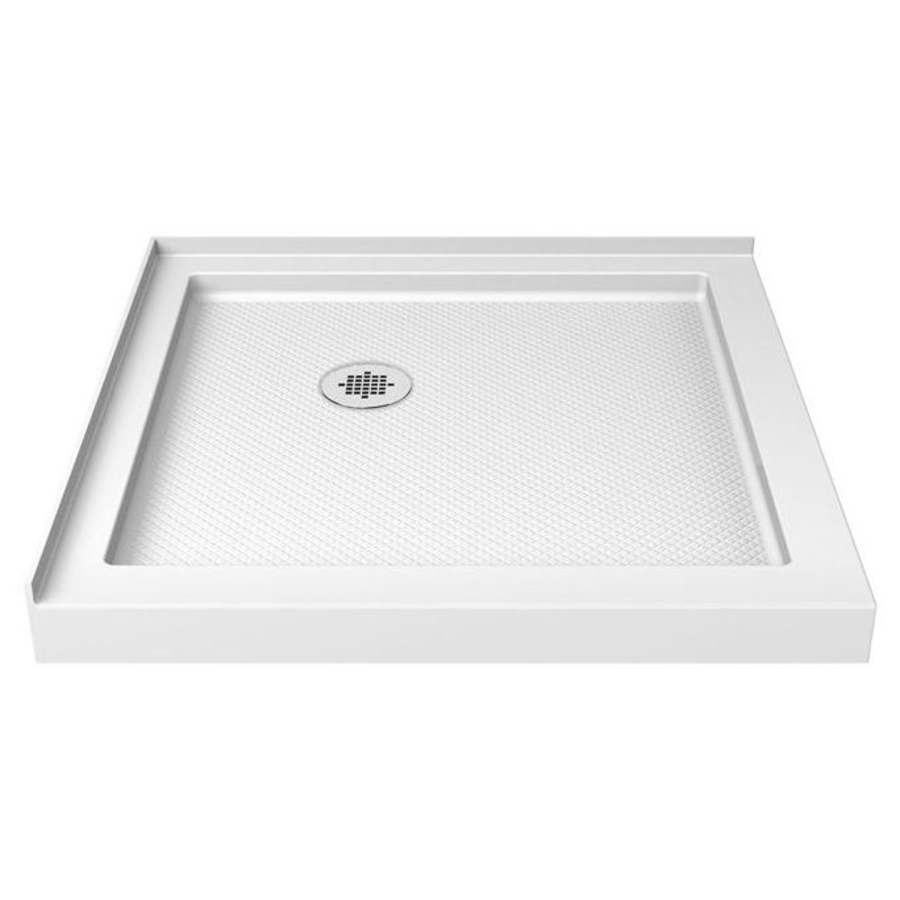

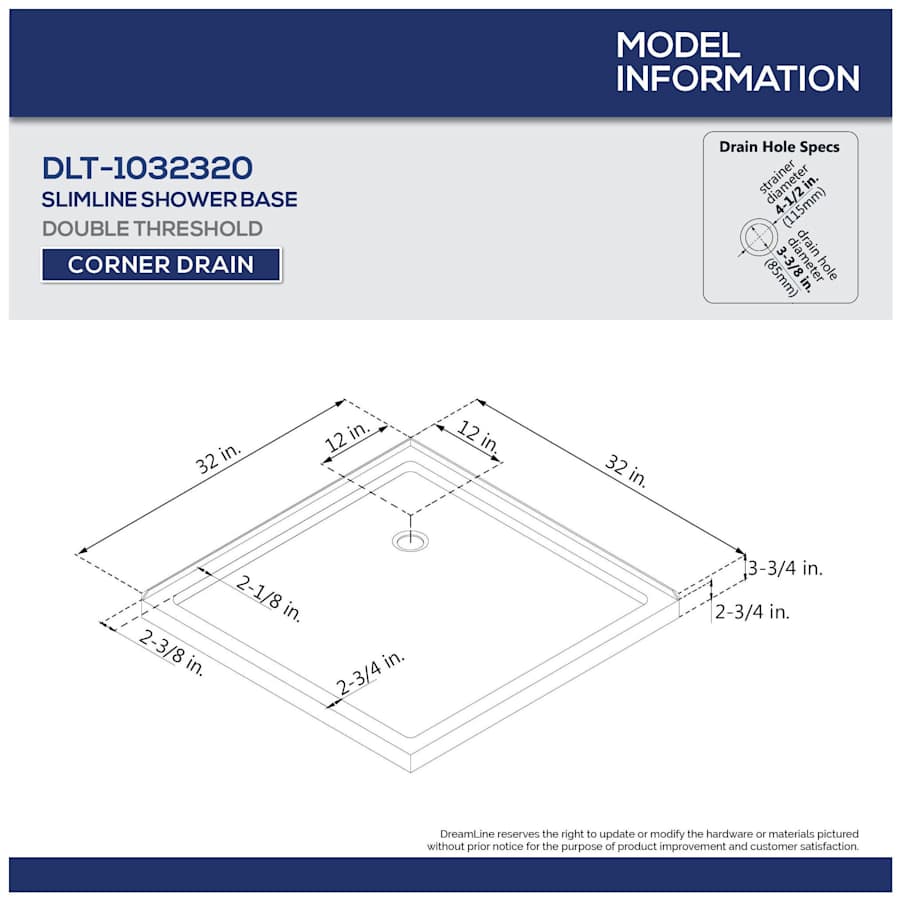

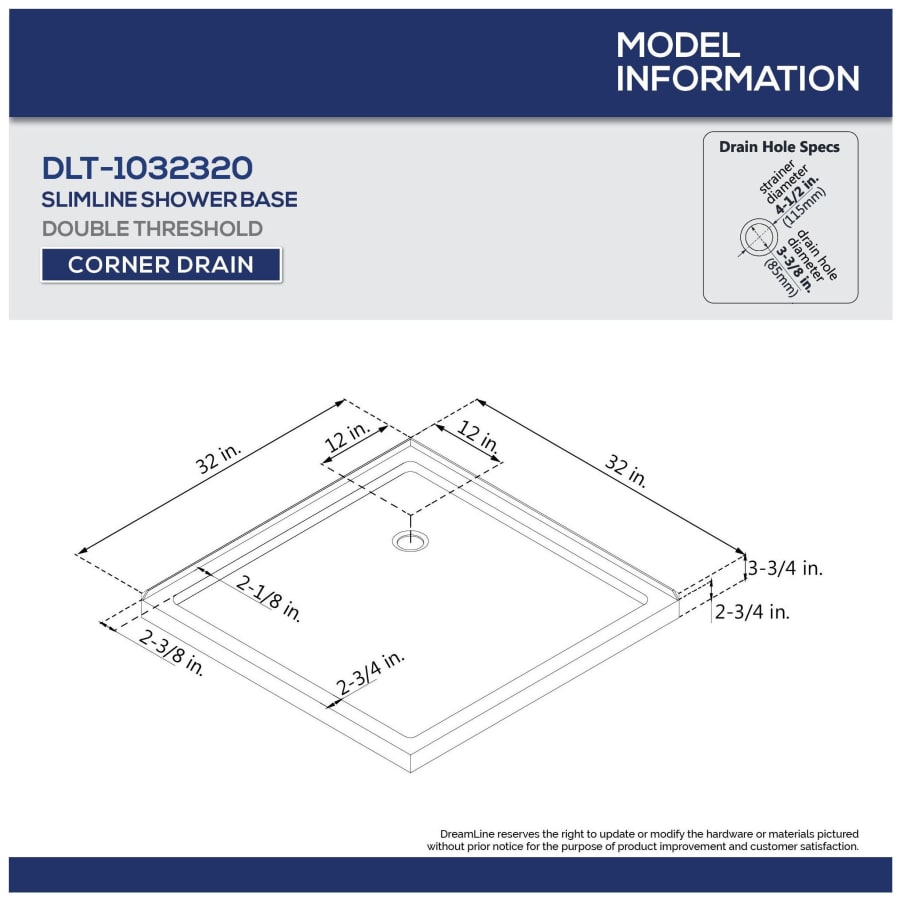

32″ x 32″ Double Threshold Shower Base:
High quality scratch and stain resistant acrylic

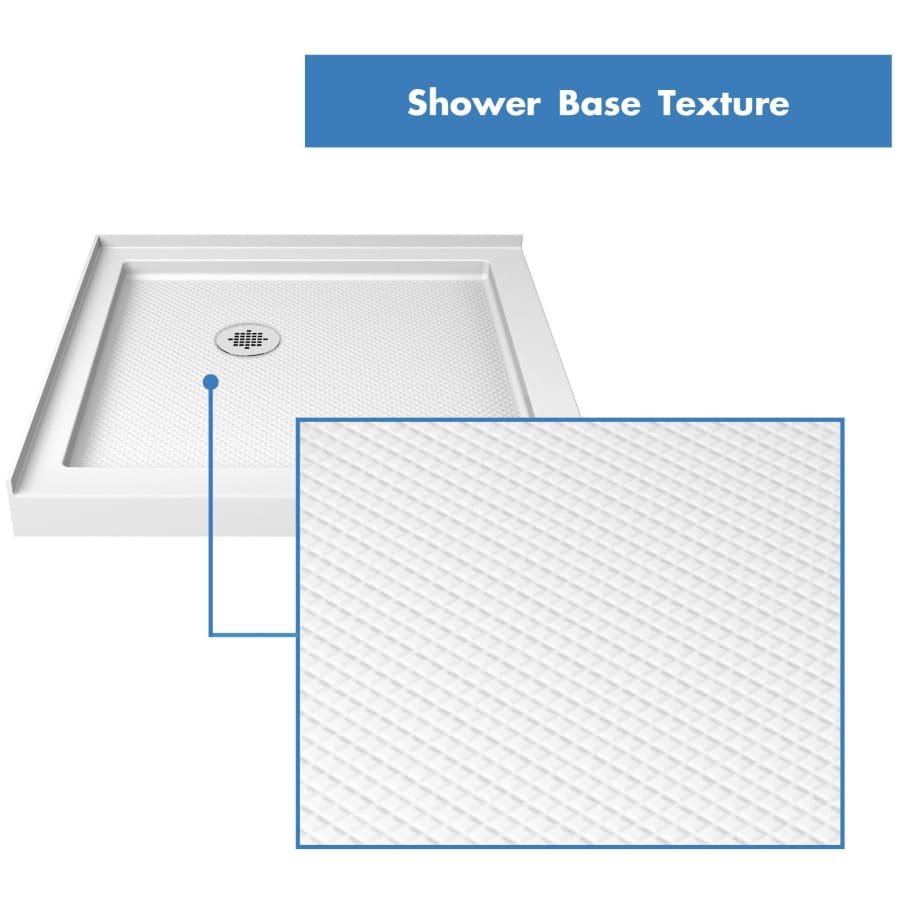

Slip-resistant textured floor for safe showering
Integrated tile flange for easy installation and waterproofing

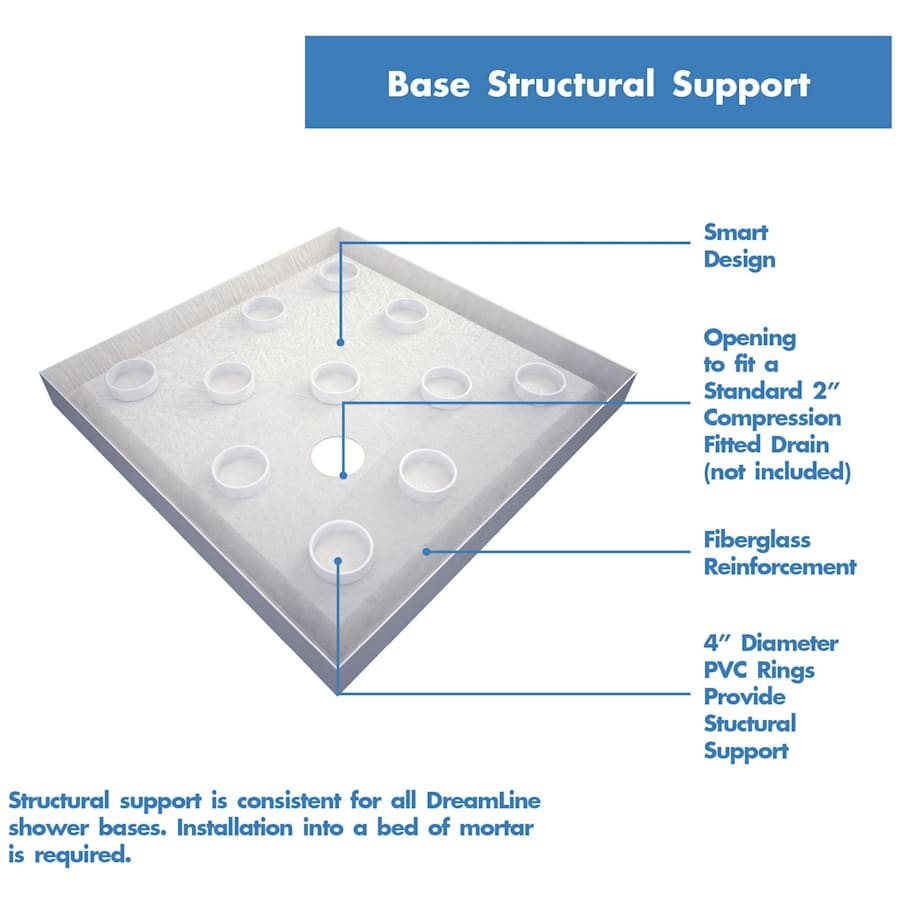

Fiberglass reinforcement for durability
cUPC certified
Drain is not included
Plumbing codes vary by state; DreamLine is not responsible for code compliance

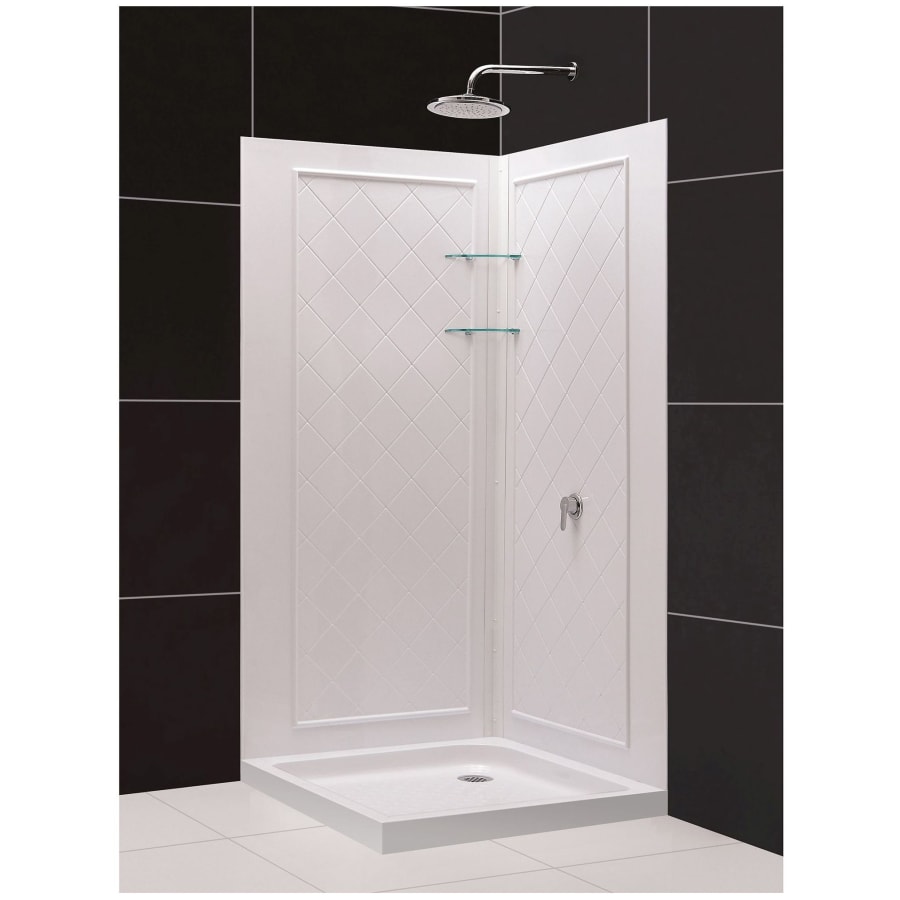

QWALL-4 Shower Backwall Kit:
Color: White
Assembly required
Includes 2 glass corner shelves
Attractive tile pattern
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Flex Collection
Specifications
| Product Weight | 168 lbs. |
| Quantity | 3 |
| Width | 32 in. |
| Height | 76.75 in. |
| Depth | 32 in. |
| Nominal Width | 32 in. |
| Drain Connection | 3.25 in. |
| Glass Thickness | .25 in. |
| Maximum Width | 32.4375 in. |
| Door Width | 18.875 in. |
| Minimum Width | 28.4375 in. |
| Panel Width | 6.5625, 30.5 in. |
| Shower Door Width | 18.875 in. |
| Material | ABS, Acrylic, Aluminum, Tempered Glass |
| Thermostat | Modern |
| Insulation Type | Corner |
| Frame Type | Framed |
| Glass Features | Clear Glass |
| Configuration | Shower Enclosure |
| Slip Resistant | Yes |
| Door Swing | Reversible, Right, Left |
| Number Of Doors | 1 |
| Number Of Shelves | 2 |
| Shape | Square |
| Door Type | Hinged |
| Number Of Curbs | 2 |
| Number of Thresholds | 2 |
| Curb Location | Right |
| Number of Tile Flanges | 2 |
| Approved for Commercial Use | Yes |
| Collection | Flex |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UPC, ANSI |
| Commercial Warranty | 1 Year Limited |
| Drain Assembly Included | No |
| Tile Flange | Yes |
| Base Included | Yes |
| Shower Walls Included | Yes |
| Color | Brushed Nickel, Chrome |
| Color Tone | Nickel Tones, Silver Tones |
