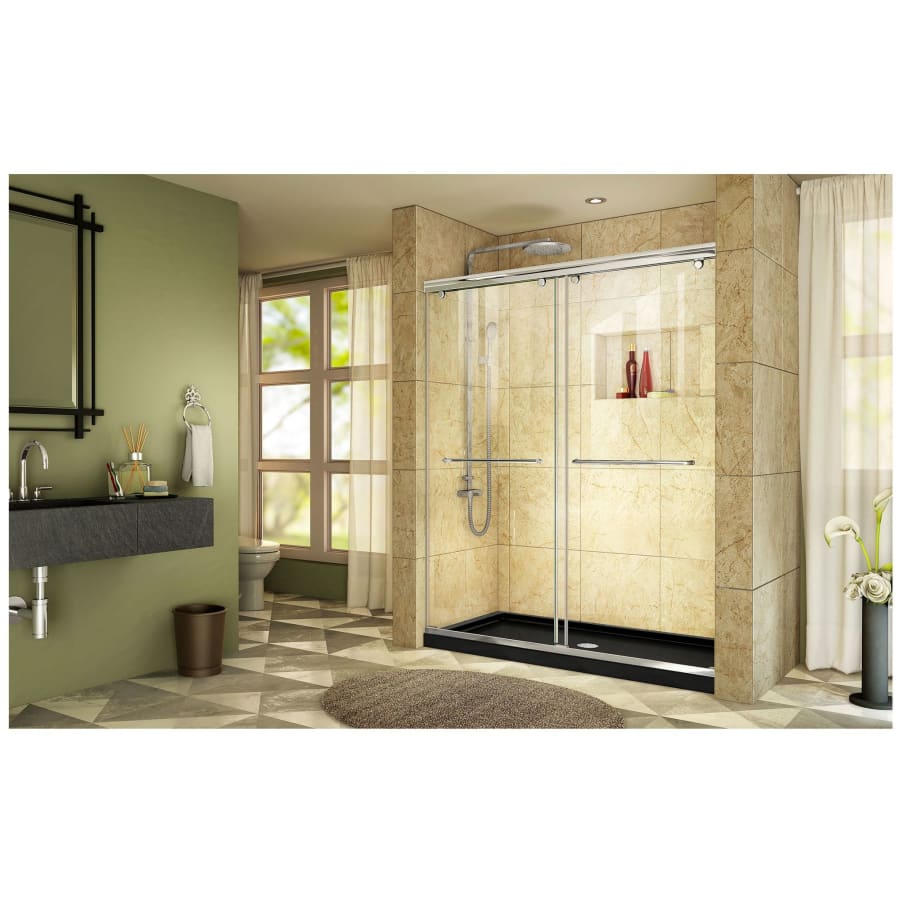

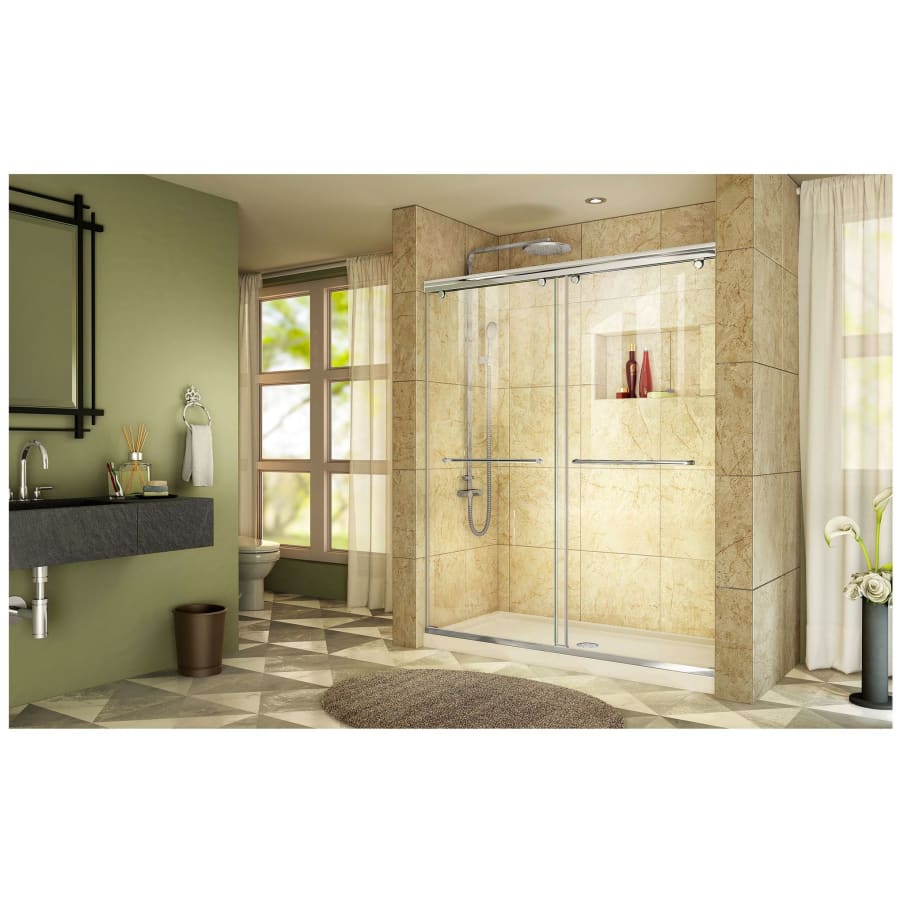

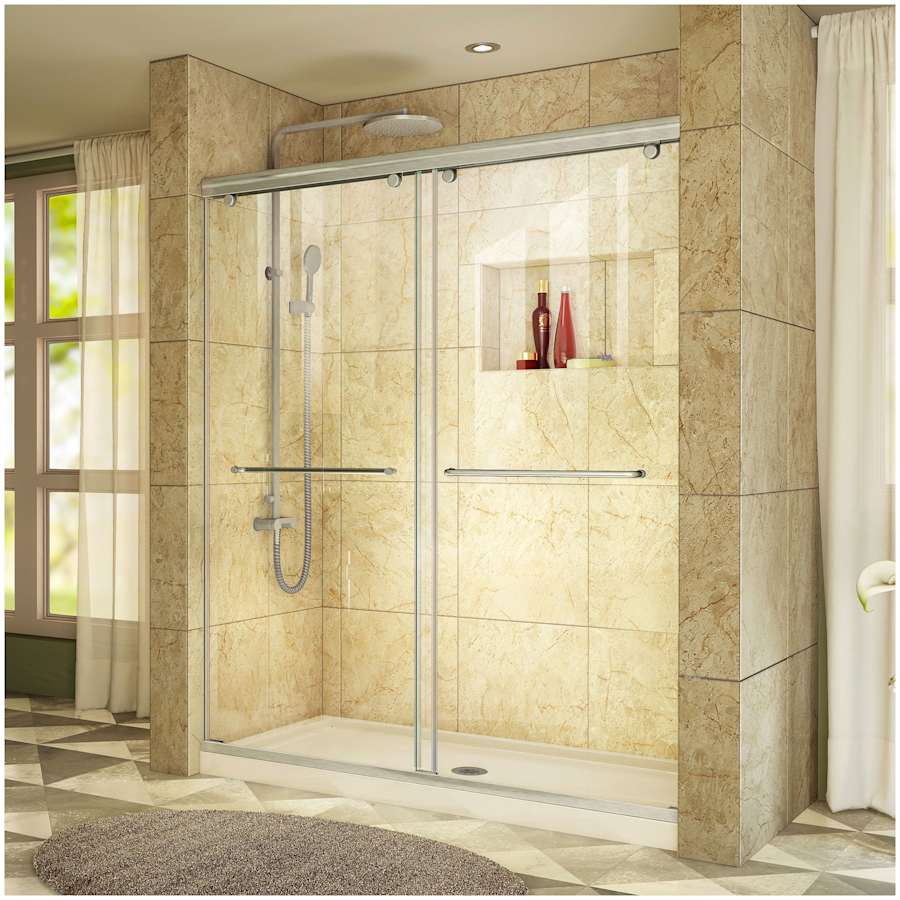

This DreamLine shower kit offers the perfect solution for a bathroom remodel or tub-to-shower conversion project with a Charisma frameless bypass shower door and a coordinating SlimLine shower base. The Charisma has a no wall profile design for the unique combination of a bypass sliding shower door and the beauty of frameless glass. Both frameless doors slide effortlessly across perfectly engineered rails, providing the ability to enter the shower space from either side. The SlimLine shower base completes the picture with a modern low profile design.
DreamLine DL-6941C Features:
Items included: Charisma Shower Door and 32″ x 60″ Single Threshold Shower Base
Overall kit dimensions: 32″ D x 60″ W x 78-3/4″ H
Charisma Shower Door:
This model has no out of plumb (vertical) adjustment
Model Size: 56 – 60″ W x 76″ H
Door walk-in: 25 – 29″
Panel: 30-3/4″

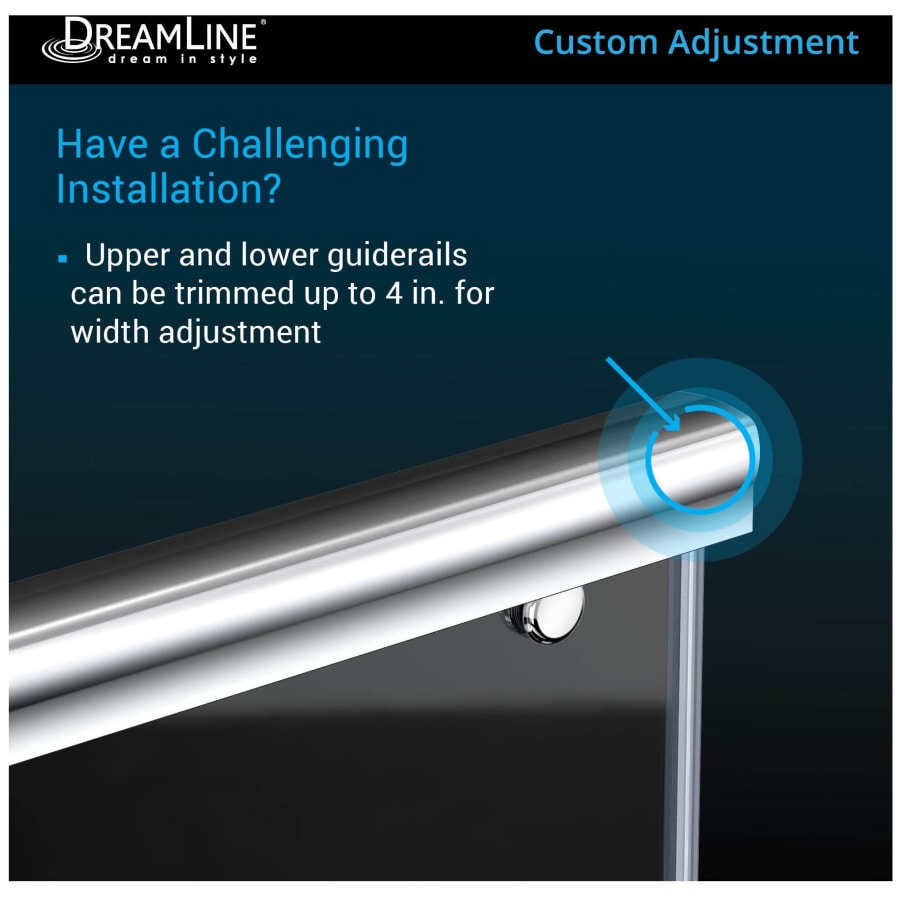

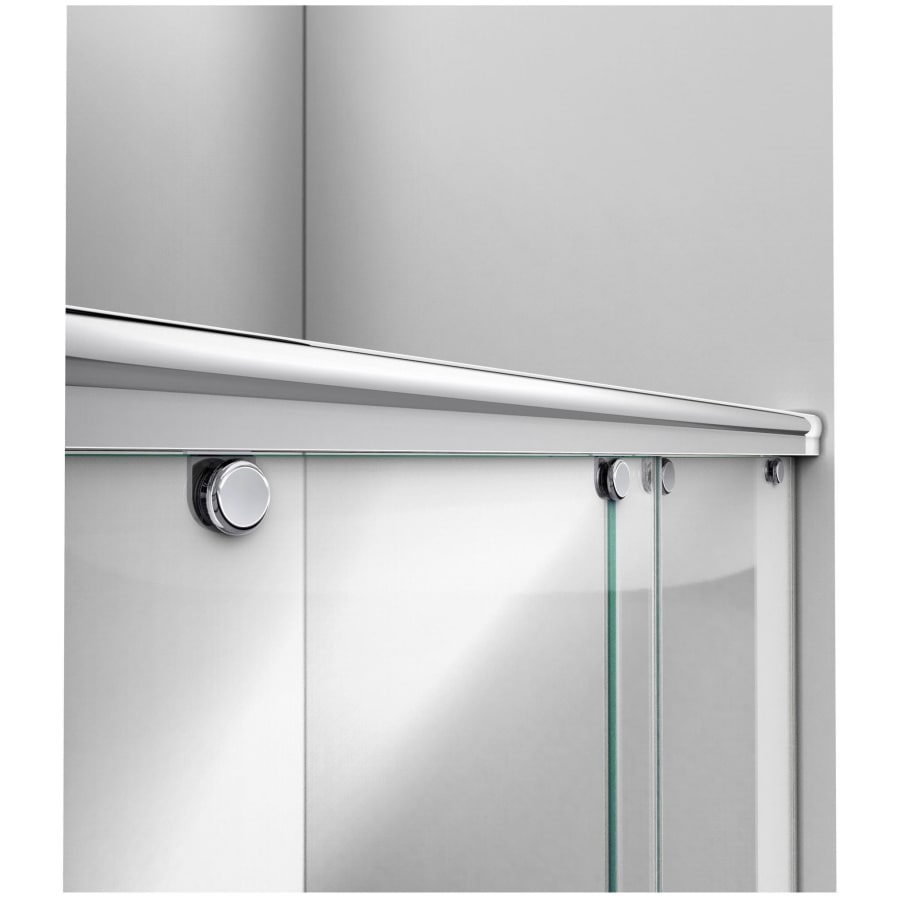

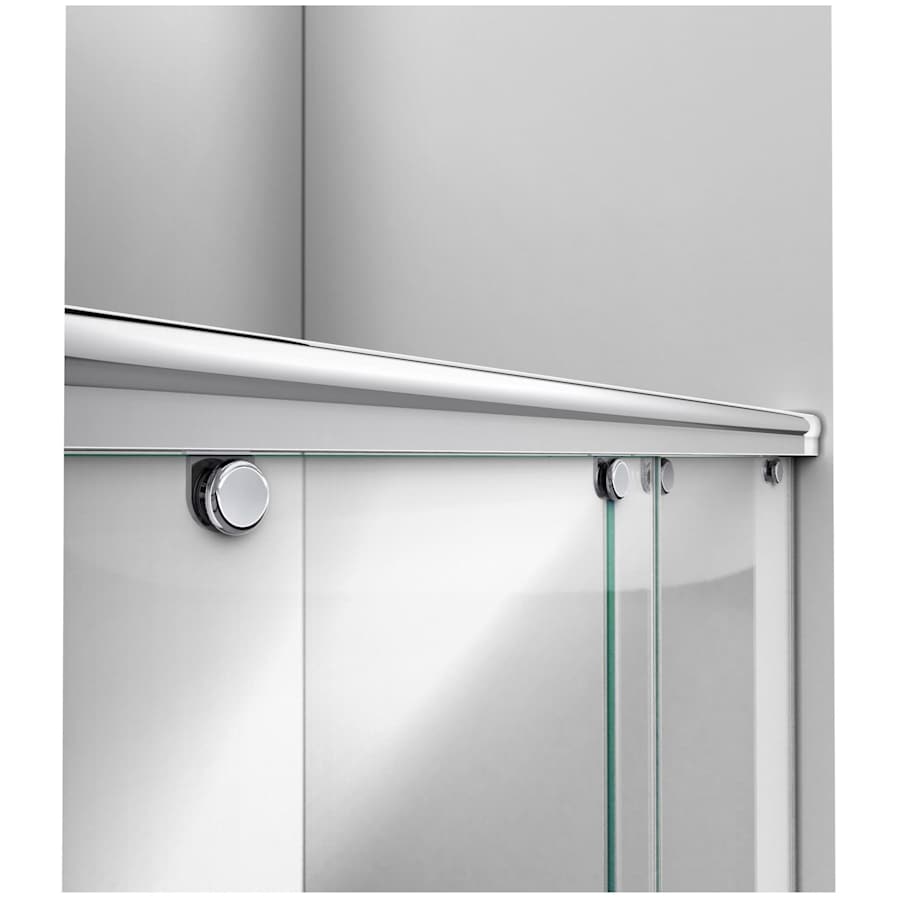

Anodized aluminum top and bottom guiderails can be trimmed 4″ for width (horizontal) adjustment

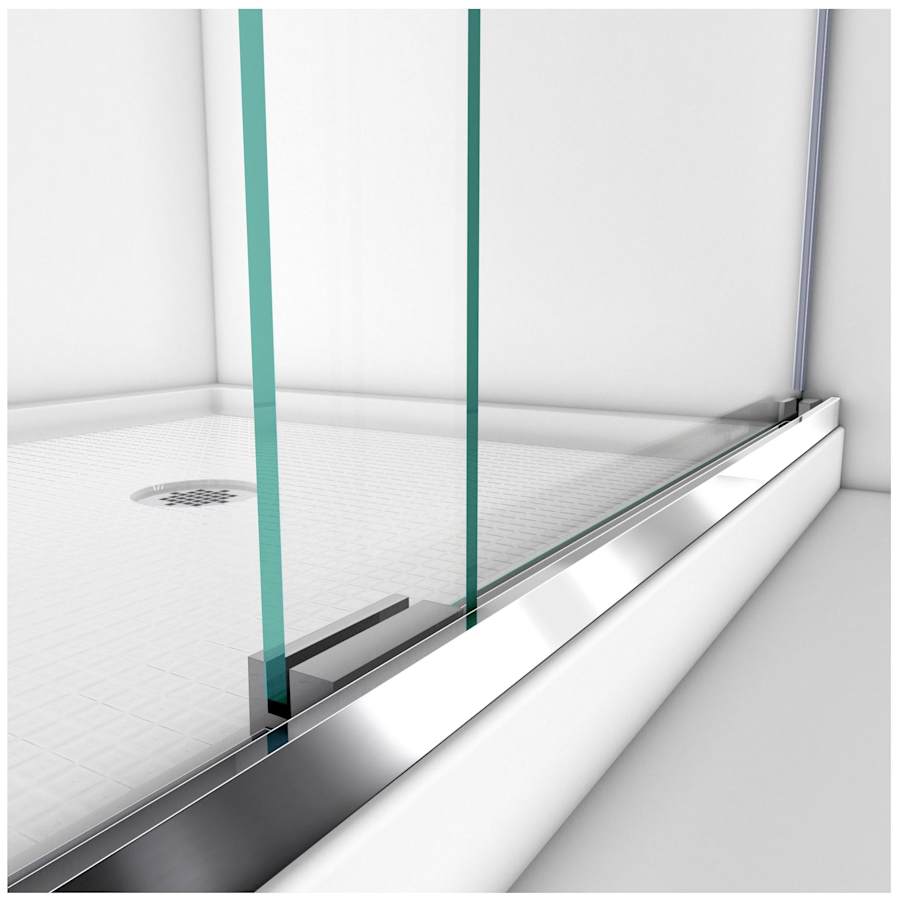

Frameless glass design

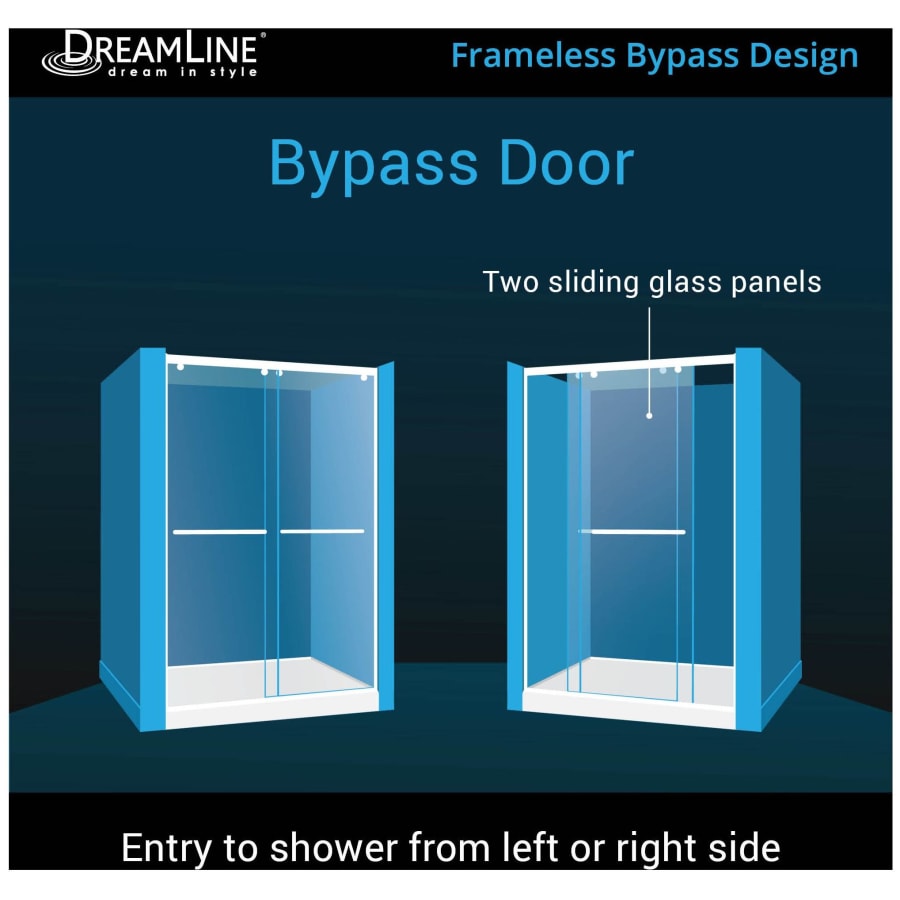

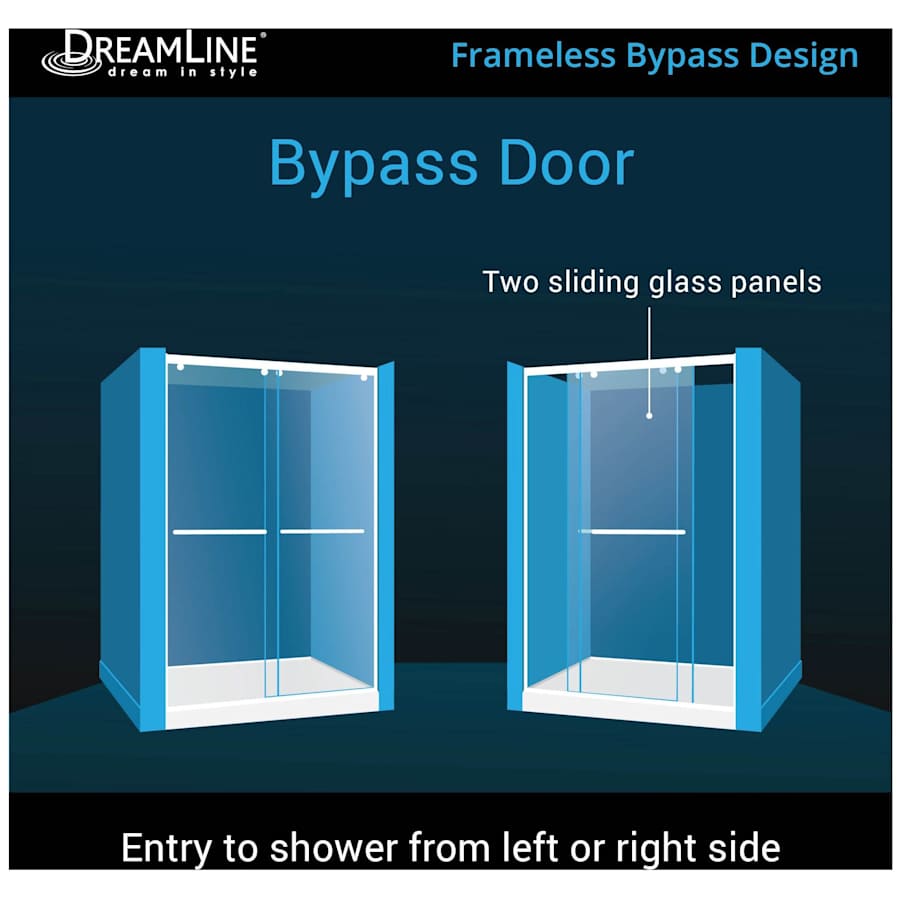

Double sliding panel (bypass) shower door

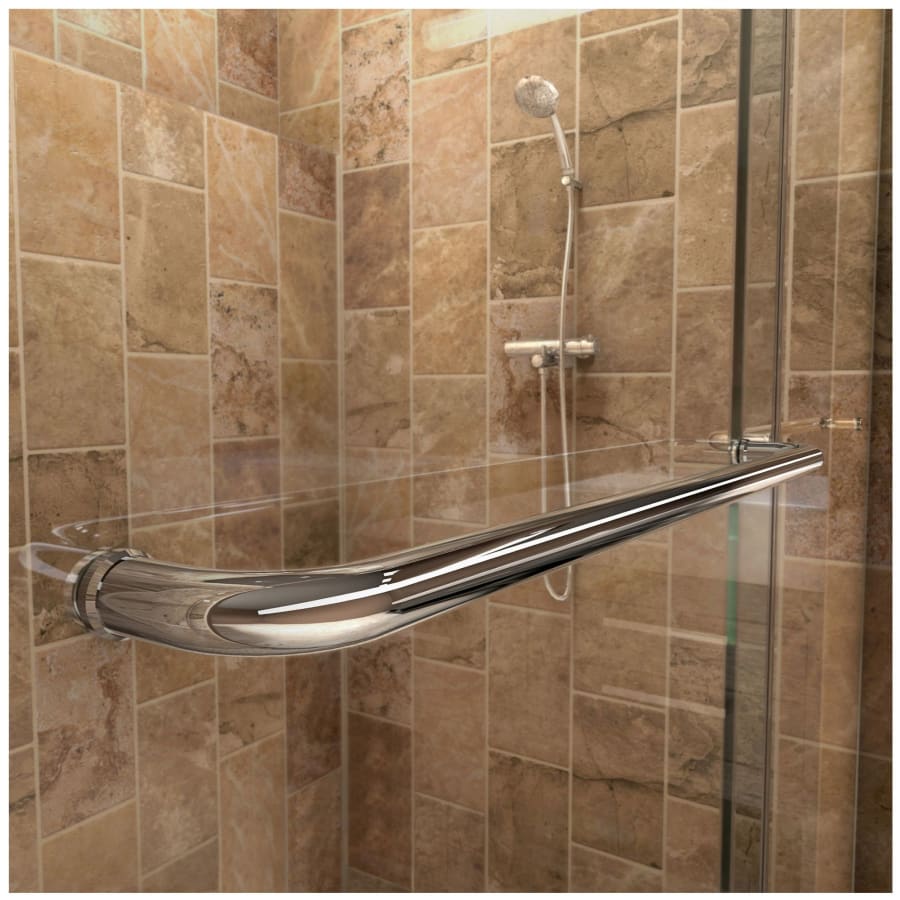

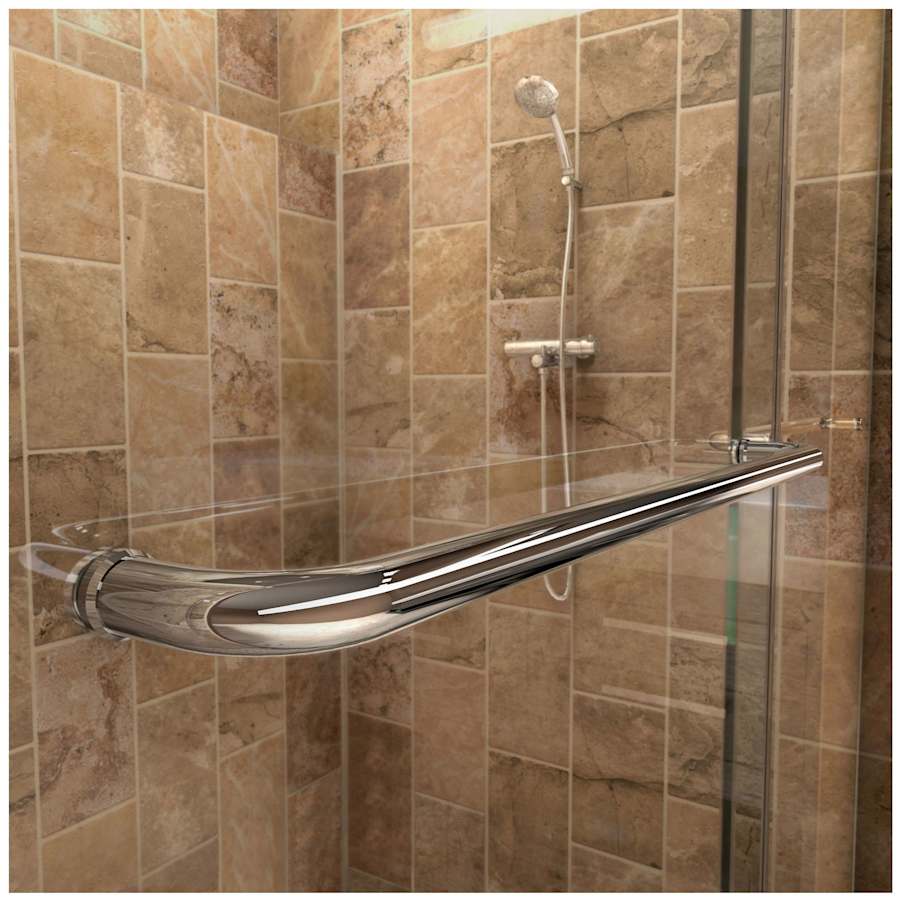

Two convenient towel bars double as handles
5/16″ (8mm) thick clear tempered glass
DreamLine exclusive ClearMax™ protective glass coating
Flooring threshold depth should be a minimum of 2″
Professional installation recommended
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, back walls, etc.)

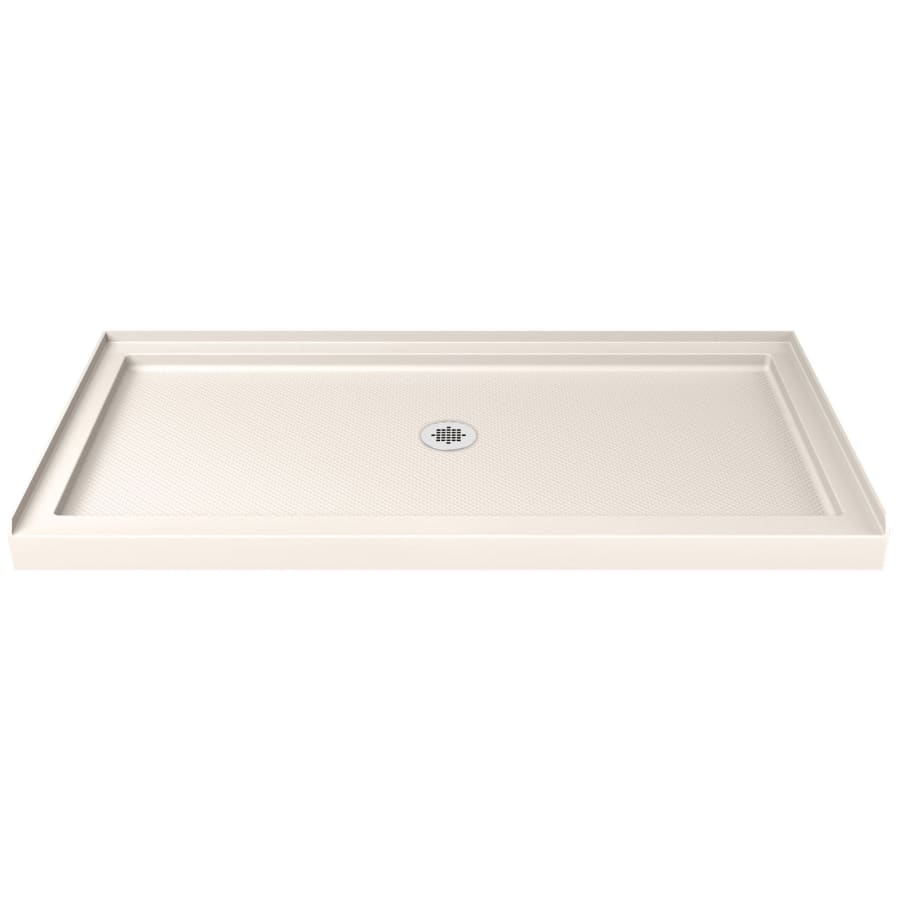

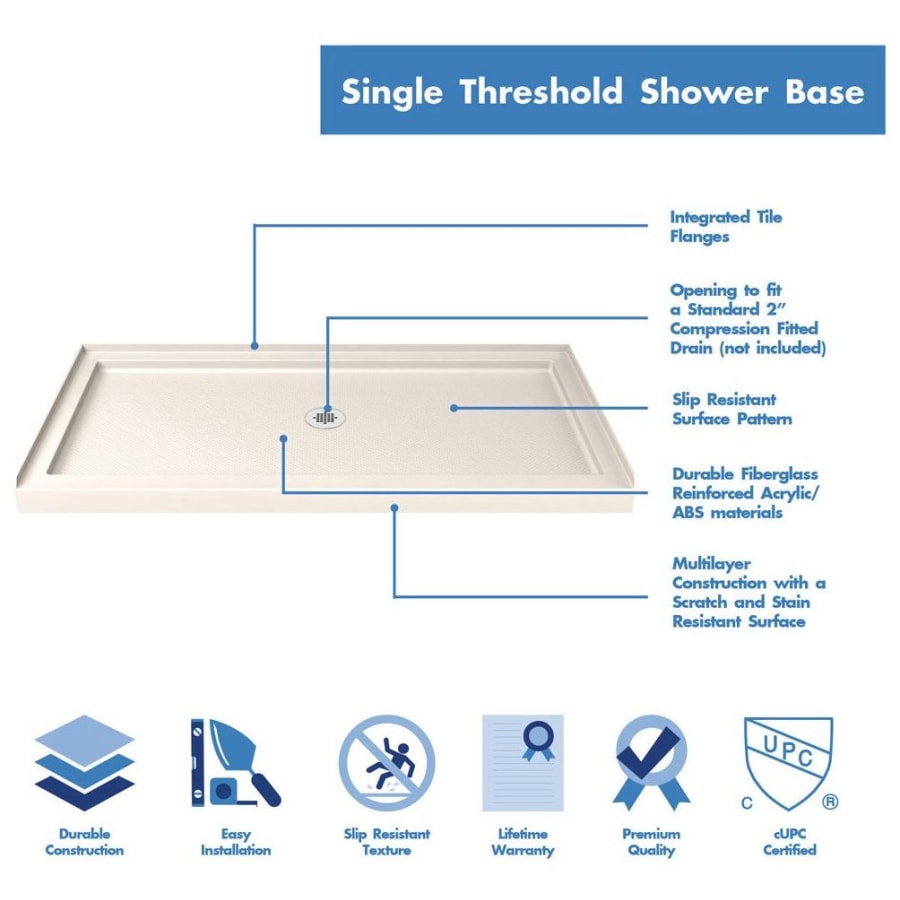

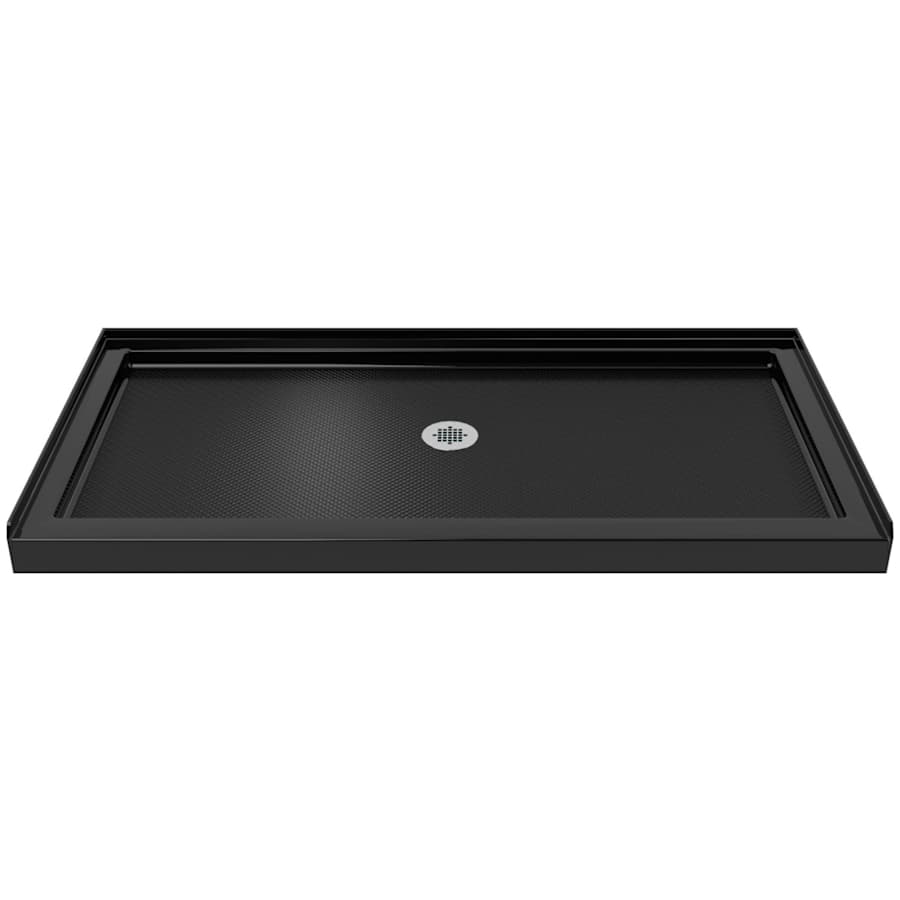

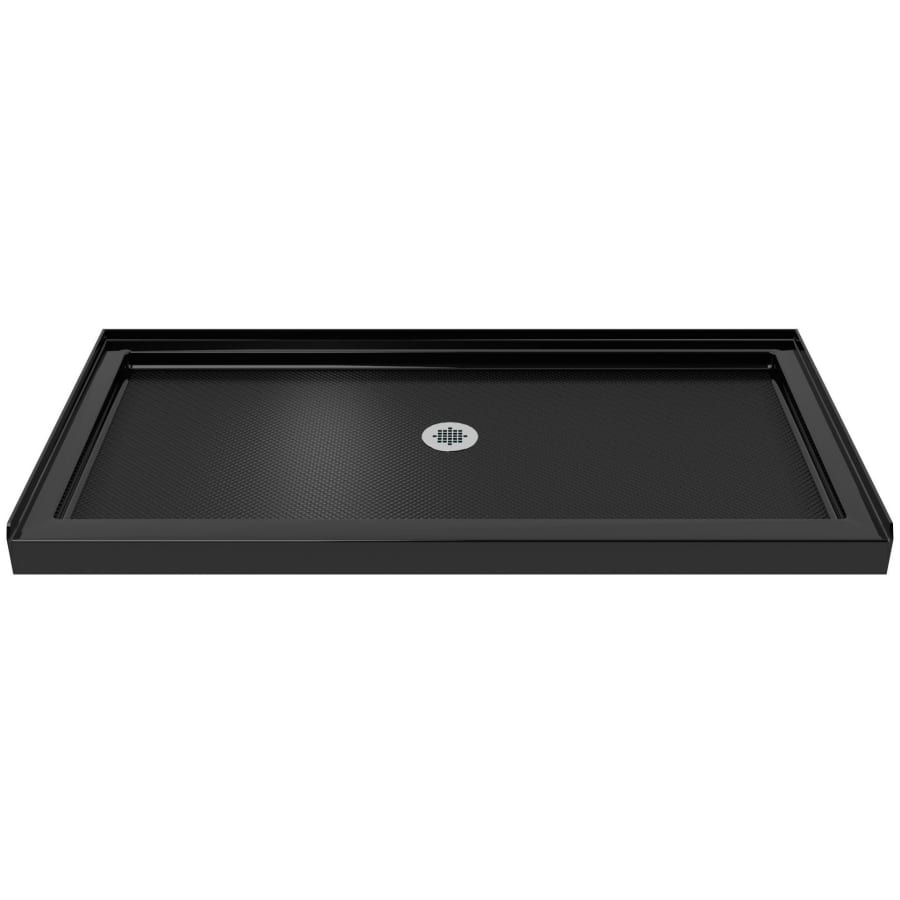

32″ x 60″ Single Threshold Shower Base:
High quality scratch and stain resistant acrylic

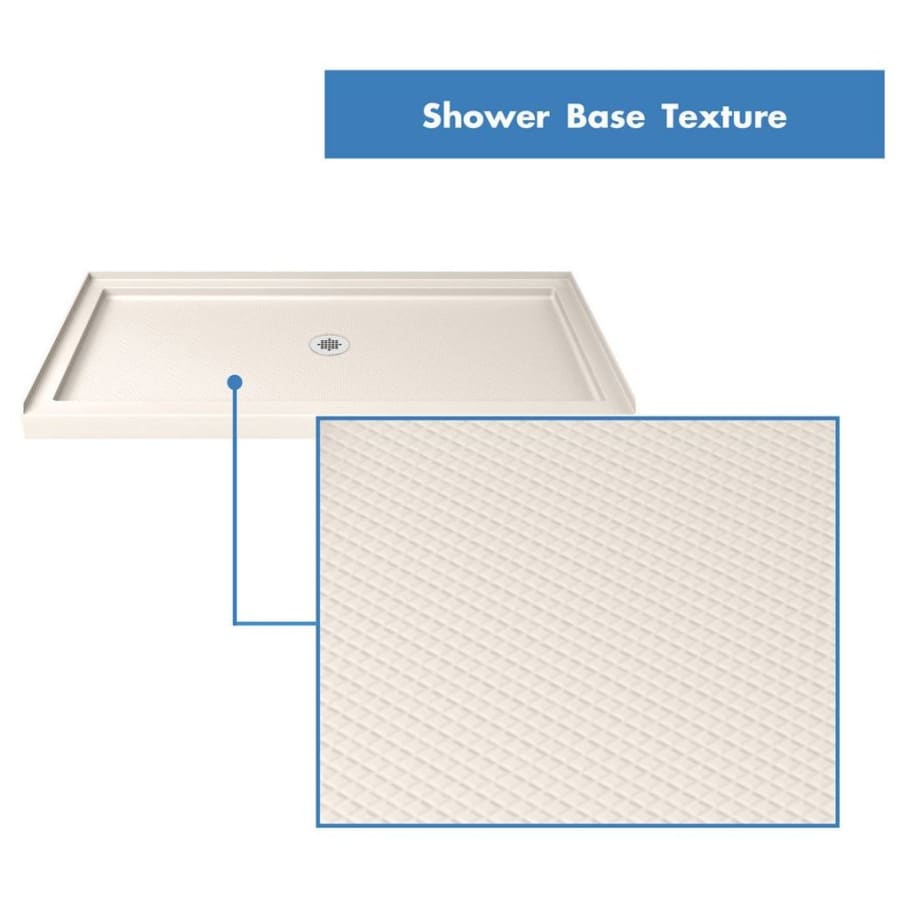

Slip-resistant textured floor for safe showering
Integrated tile flange for easy installation and waterproofing

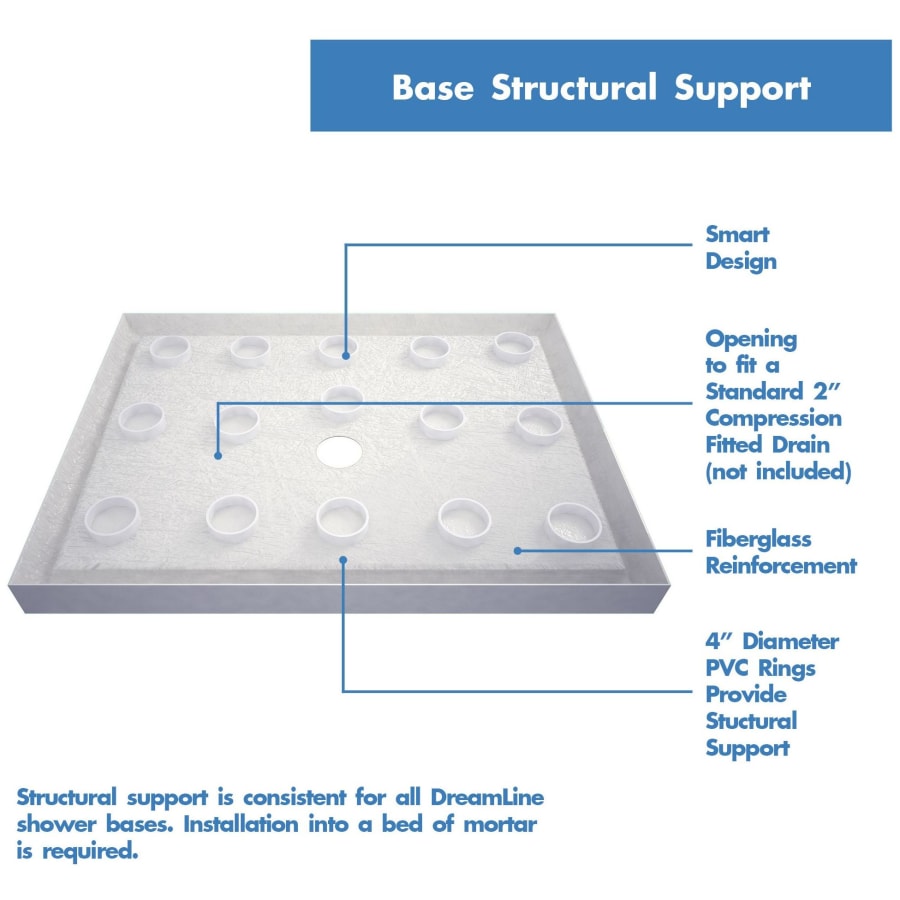

Fiberglass reinforcement for durability
cUPC certified
Drain is not included

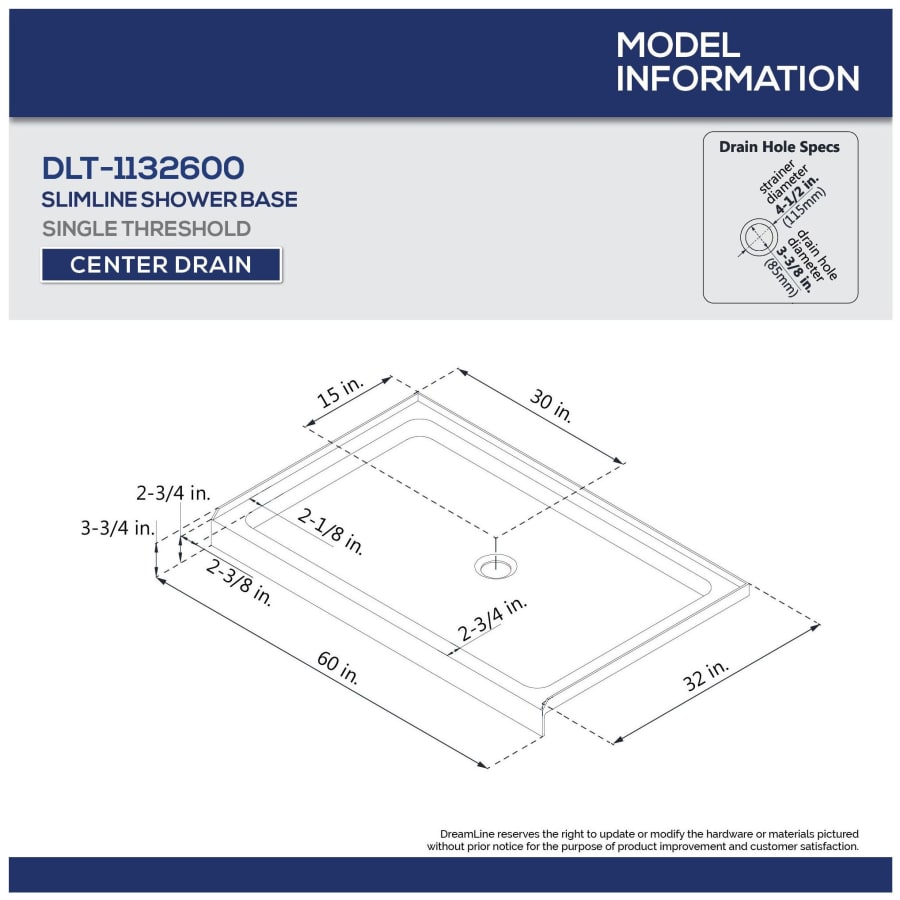

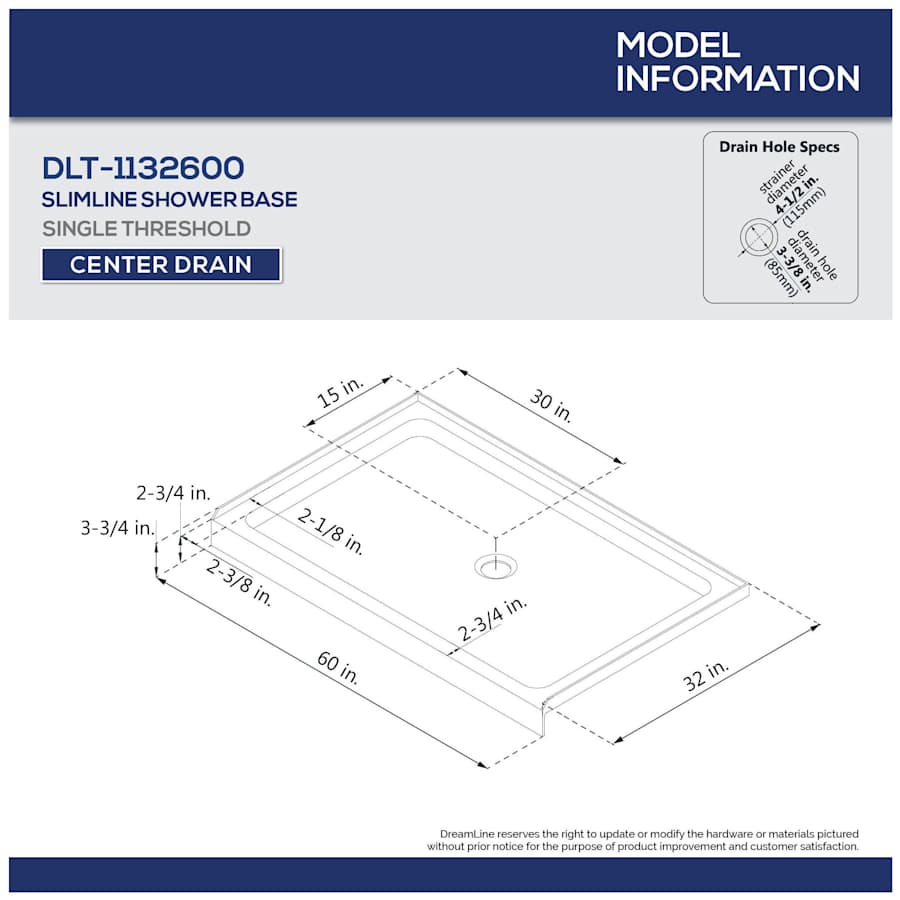

Center drain configuration. Drain centered on width only. Please be sure to consult technical drawing for exact drain location
Limited lifetime manufacturer warranty
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Charisma Collection
Specifications
| Height | 78.75 in. |
| Width | 60 in. |
| Depth | 32 in. |
| Nominal Width | 60 in. |
| Base Width | 32 in. |
| Door Width | 28.75 in. |
| Glass Thickness | .3125 in. |
| Maximum Width | 60 in. |
| Minimum Width | 56 in. |
| Panel Width | 30.75 in. |
| Shower Door Width | 25, 26, 27, 28, 29 in. |
| Bar Length | 60 in. |
| Glass Features | Clear Glass |
| Material | ABS, Acrylic, Aluminum, Tempered Glass |
| Thermostat | Modern |
| Insulation Type | Three Wall Alcove |
| Drain Placement | Center |
| Shape | Rectangular |
| Door Swing | Right, Reversible, Left |
| Frame Type | Frameless |
| Number Of Doors | 2 |
| Configuration | Shower Door |
| Curb Location | Front |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Door Type | Bypass |
| Number of Tile Flanges | 3 |
| Certifications | UPC, ANSI |
| Collection | Charisma |
| Approved for Commercial Use | Yes |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Commercial Warranty | 1 Year Limited |
| Drain Assembly Included | No |
| Tile Flange | Yes |
| Base Included | Yes |
| Color | Brushed Nickel with Biscuit Base |
| Color Tone | Nickel Tones |
