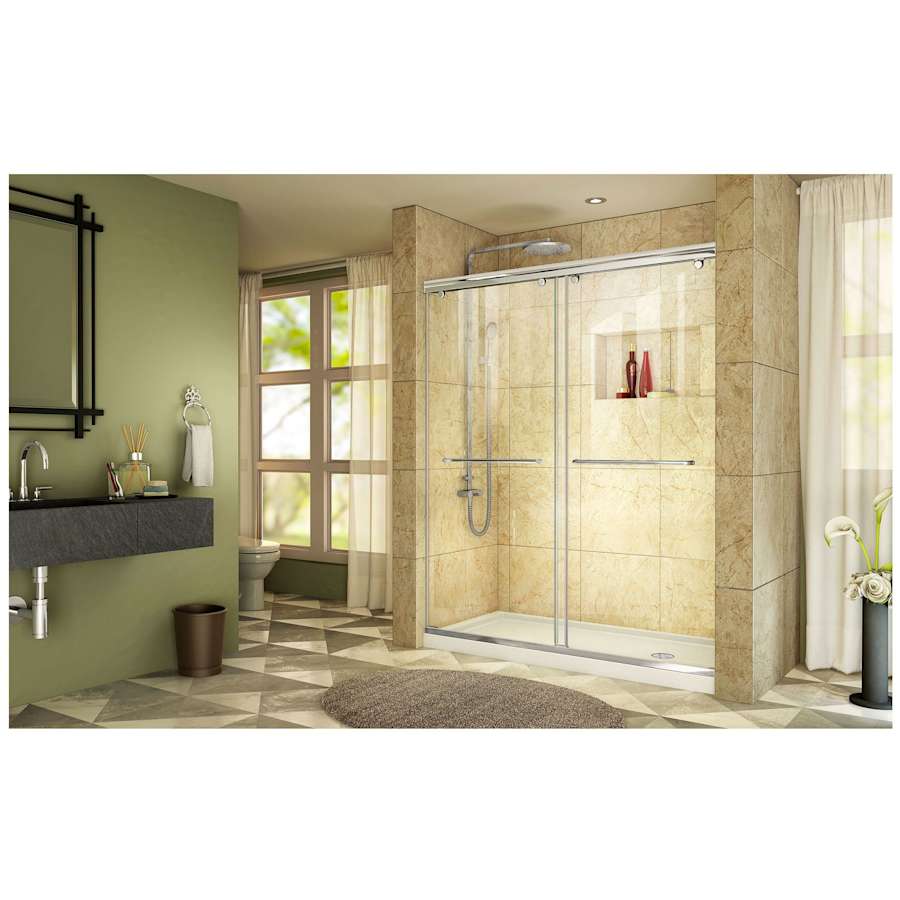

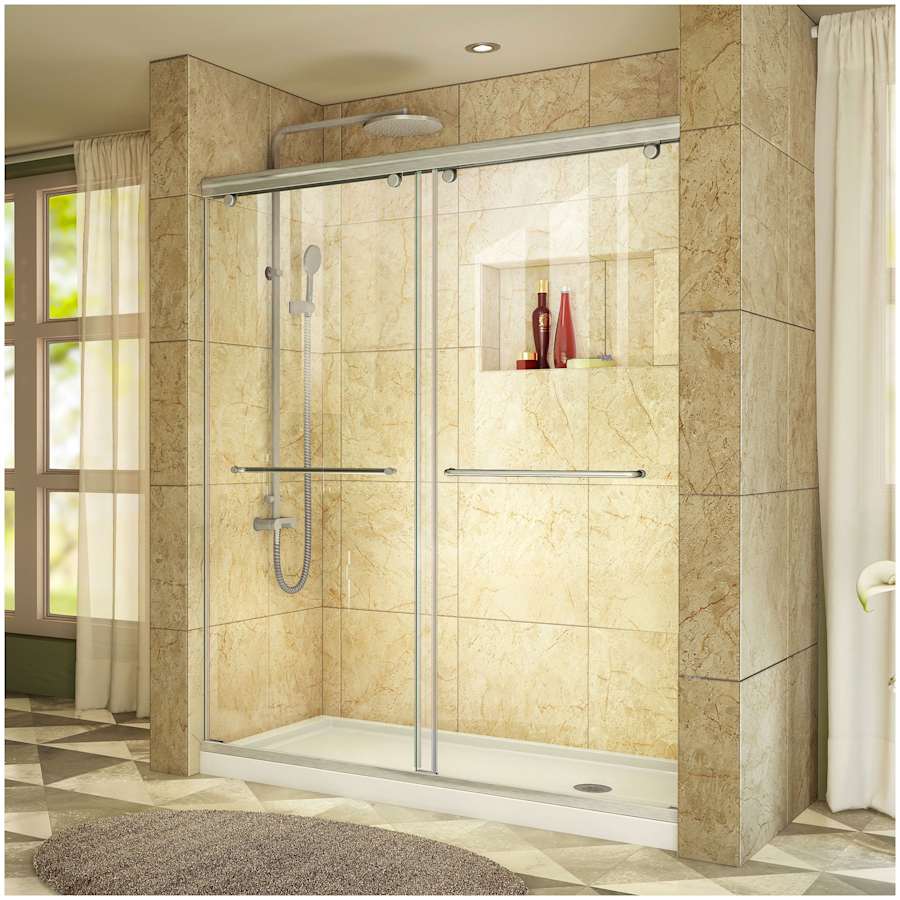

This DreamLine shower kit offers the perfect solution for a bathroom remodel or tub-to-shower conversion project with a Charisma frameless bypass shower door and a coordinating SlimLine shower base. The Charisma has a no wall profile design for the unique combination of a bypass sliding shower door and the beauty of frameless glass. Both frameless doors slide effortlessly across perfectly engineered rails, providing the ability to enter the shower space from either side. The SlimLine shower base completes the picture with a modern low profile design.
DreamLine DL-6941R-CL Features:
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
Items included: Charisma Shower Door and 32″ x 60″ Single Threshold Shower Base
Overall Kit Dimensions: 32″ D x 60″ W x 74-3/4″ H
Charisma Shower Door:
This model has no out of plumb (vertical) adjustment
56 – 60″ W x 72″ H
Door Walk-In: 25 – 29″
Panel: 30-3/4″

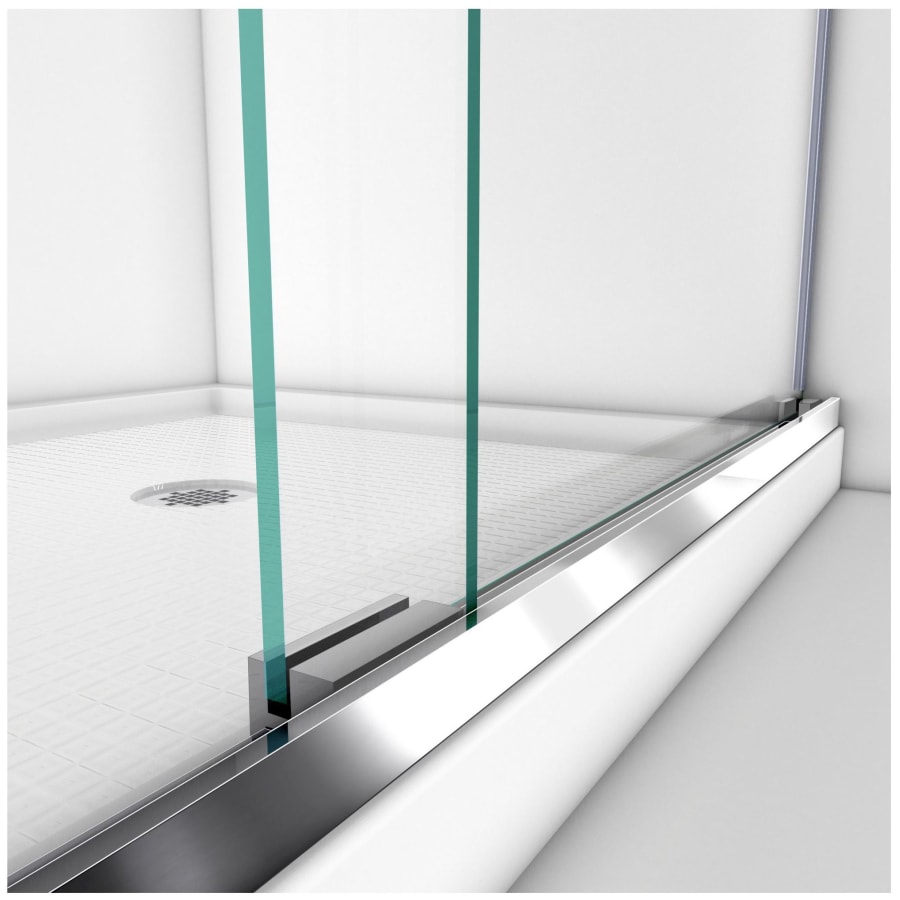

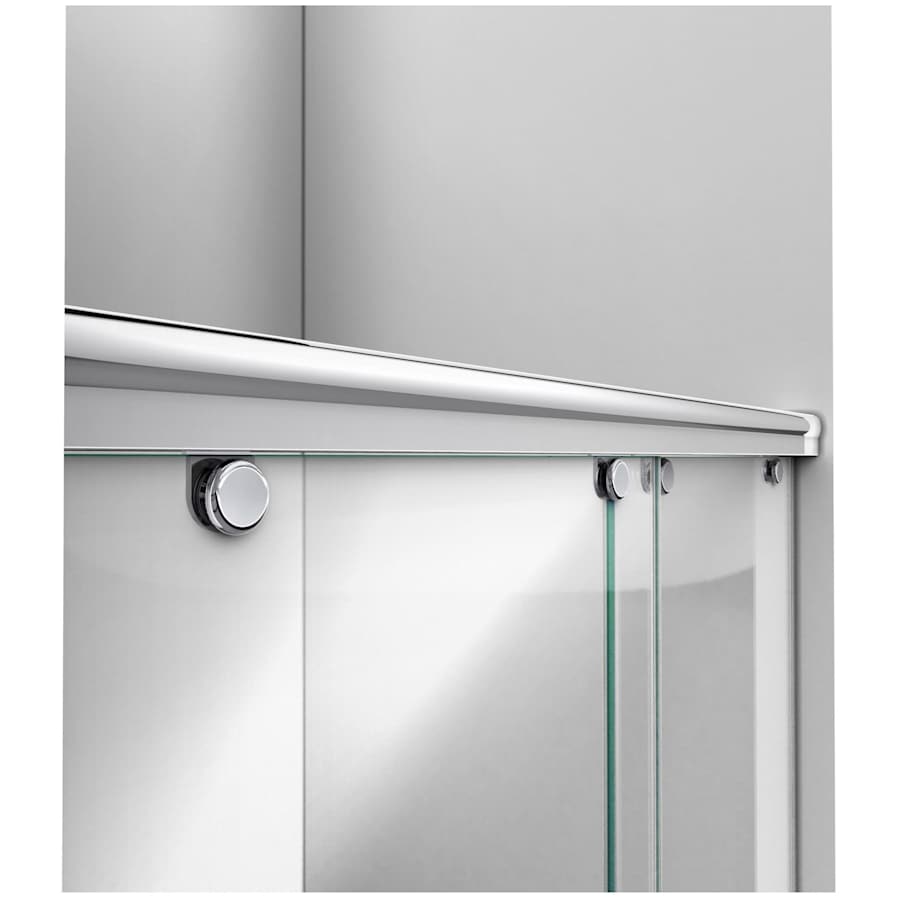

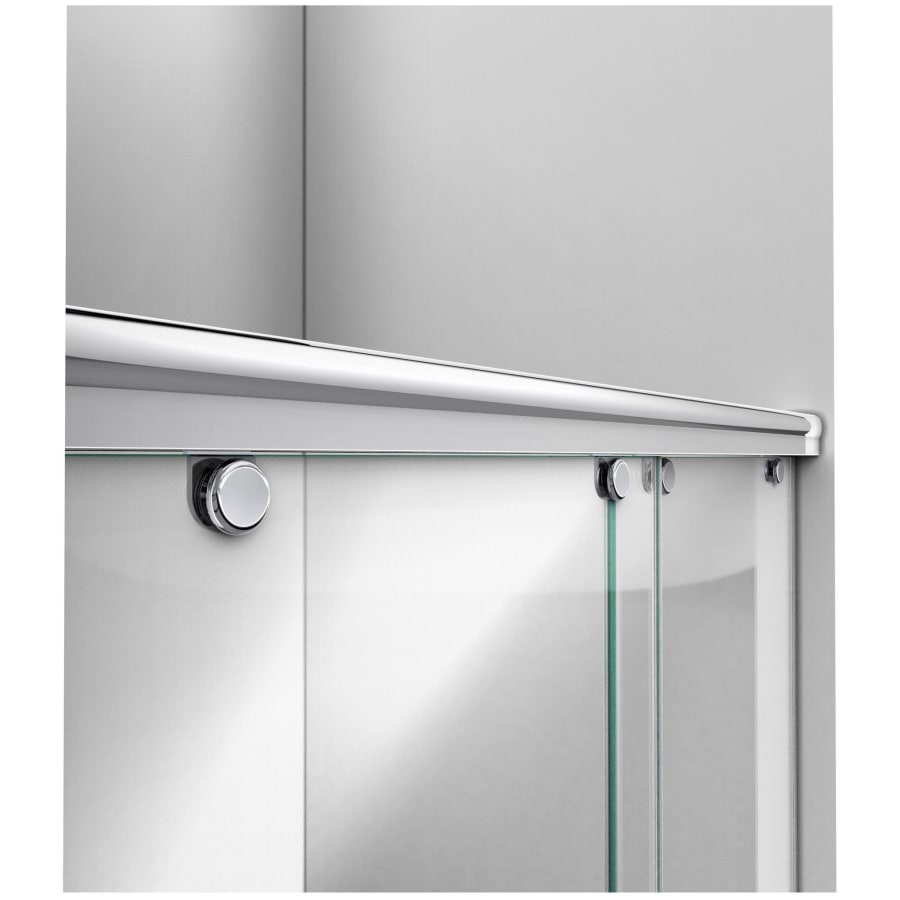

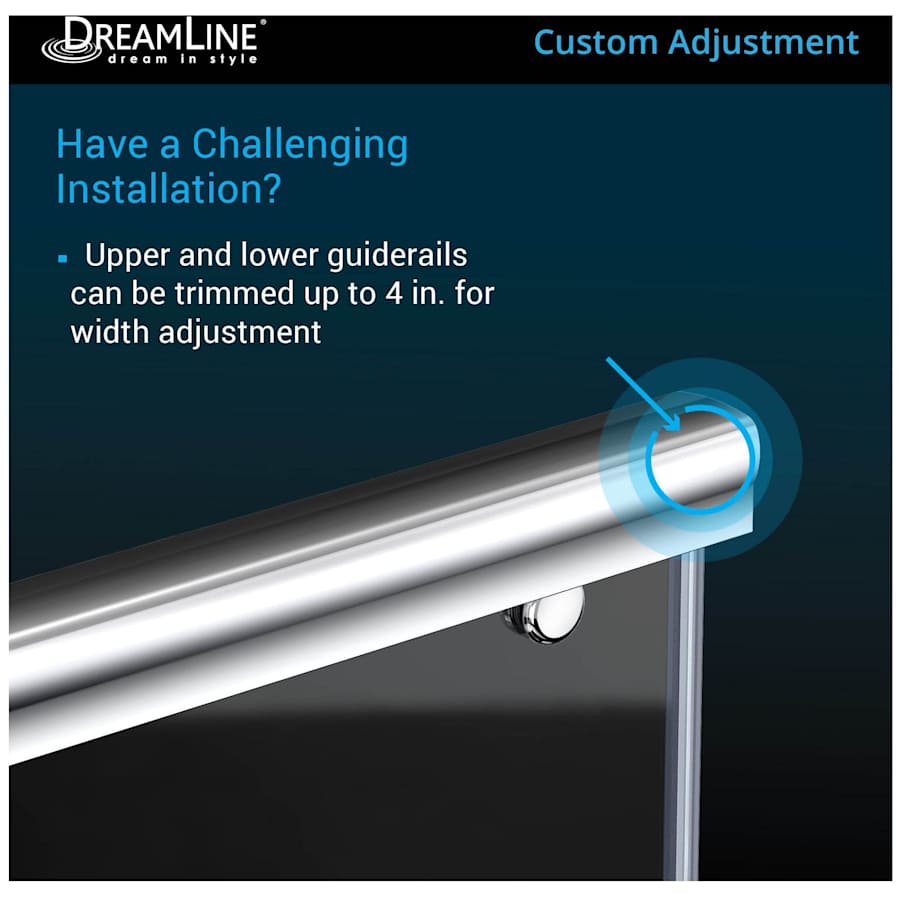

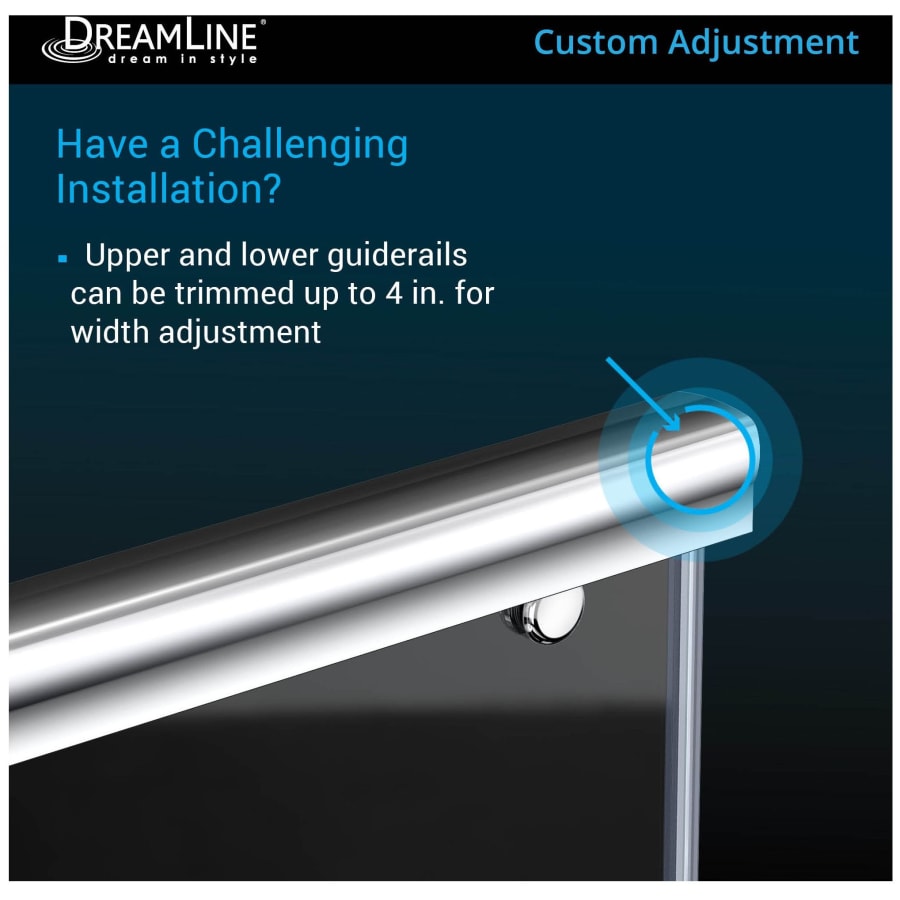

Anodized aluminum top and bottom guiderails can be trimmed 4″ for width (horizontal) adjustment
Frameless glass design

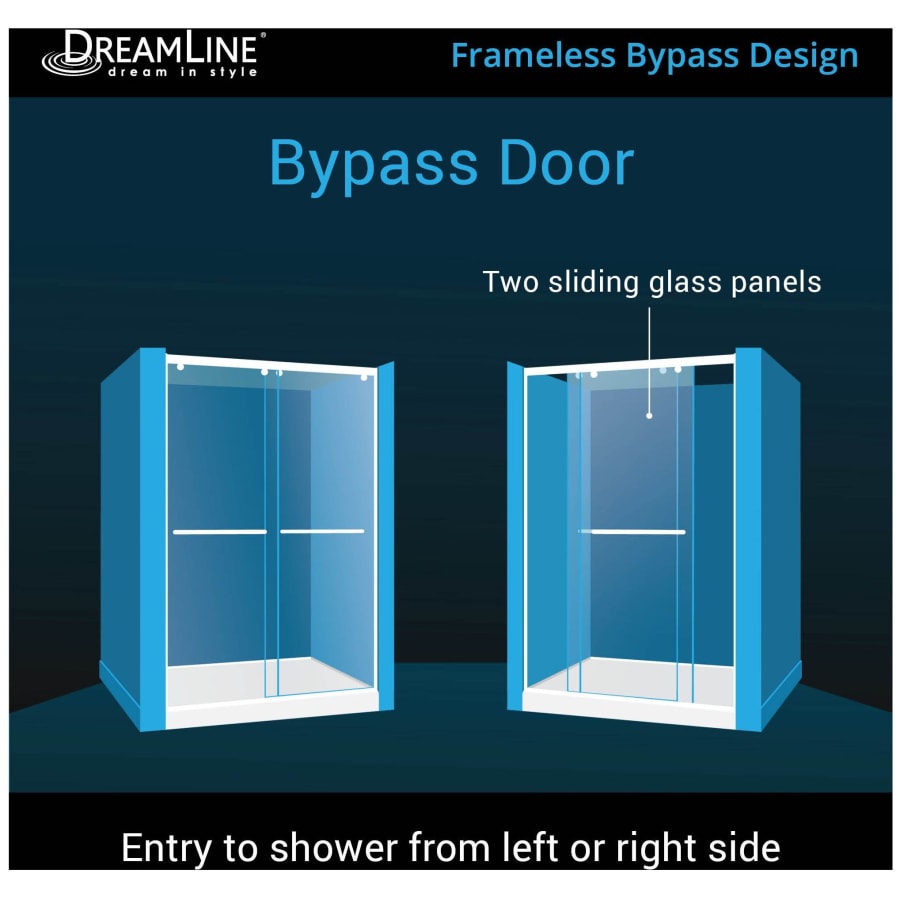

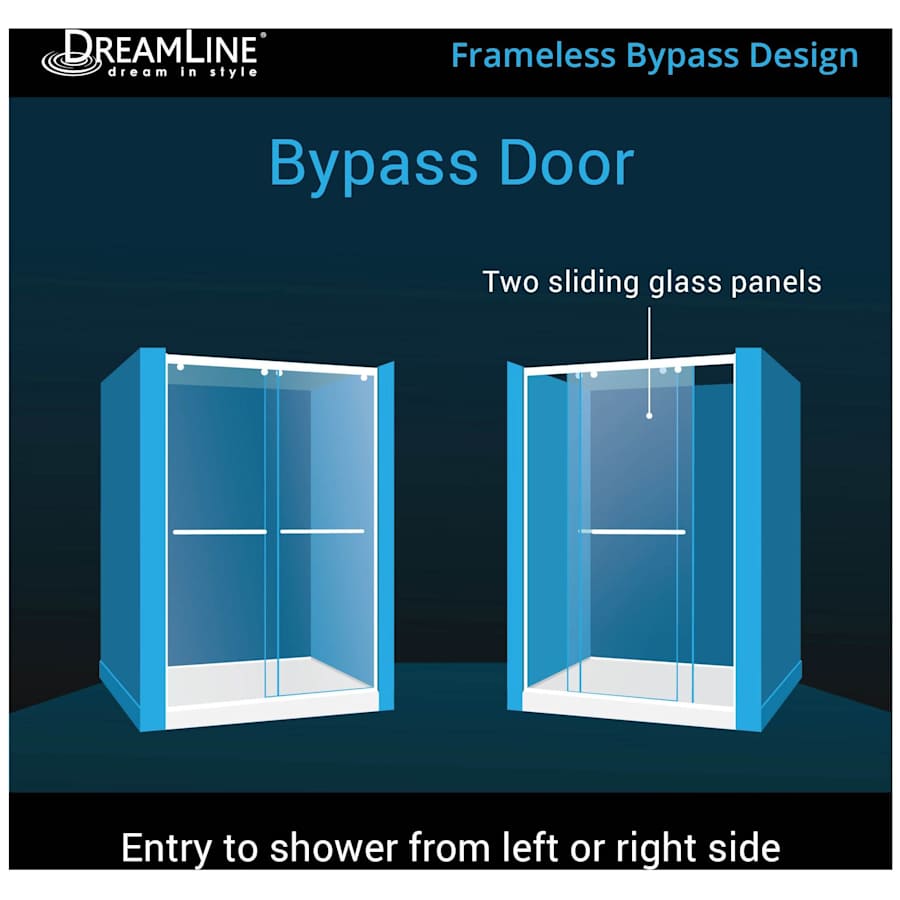

Double sliding panel (bypass) shower door

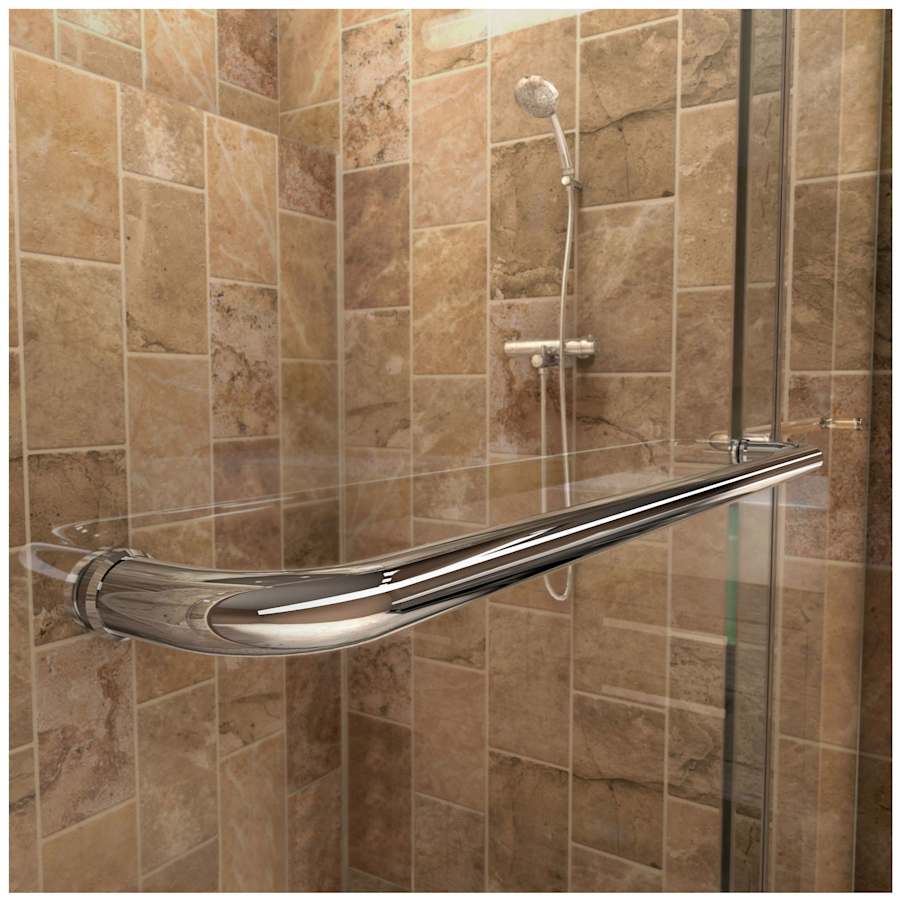

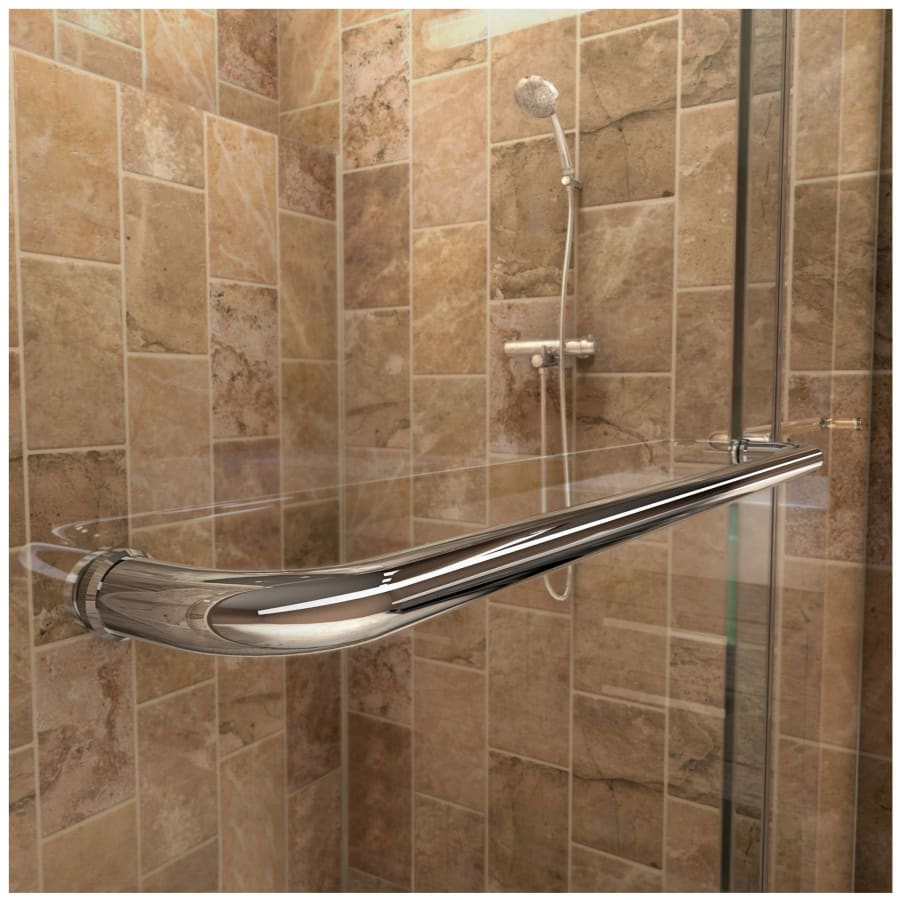

Two convenient towel bars double as handles
5/16″ (8mm) thick clear tempered glass
Professional installation recommended

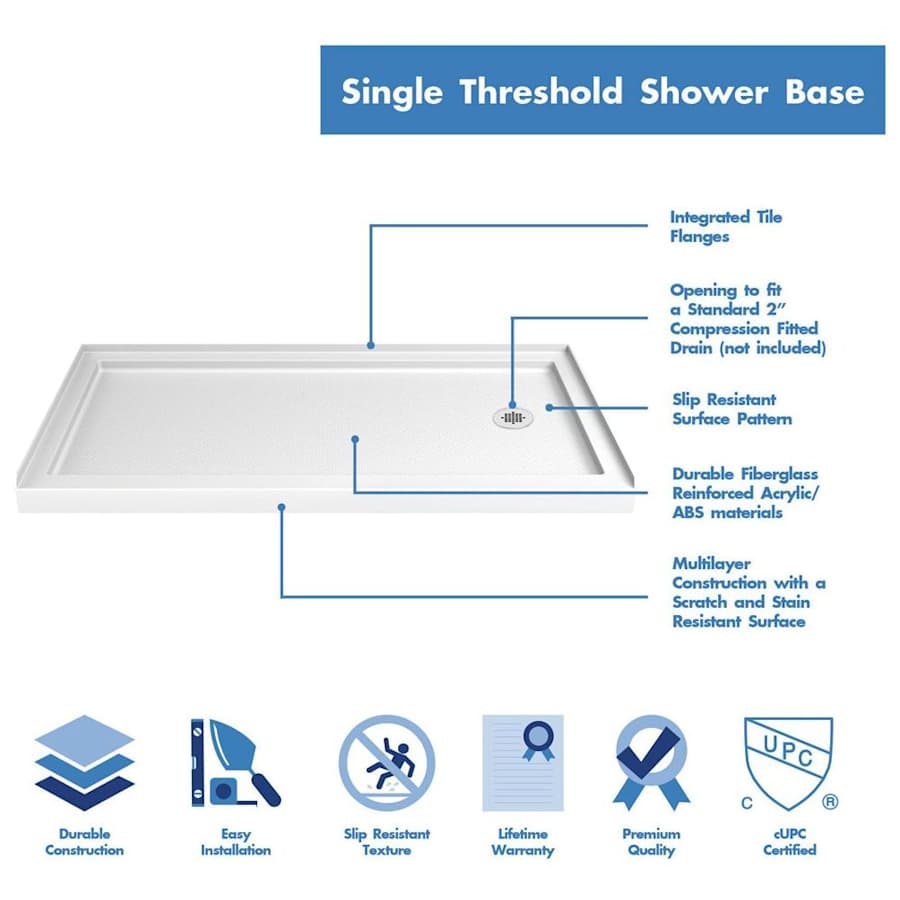

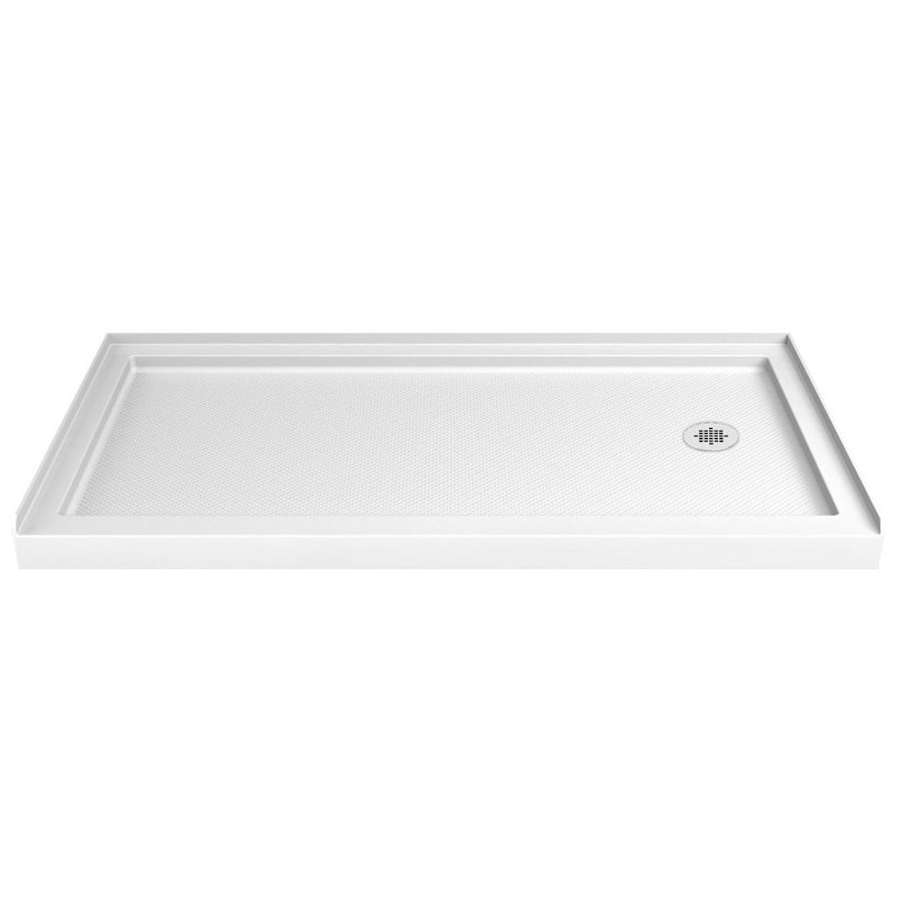

32″ x 60″ Single Threshold Shower Base:
High quality scratch and stain resistant acrylic

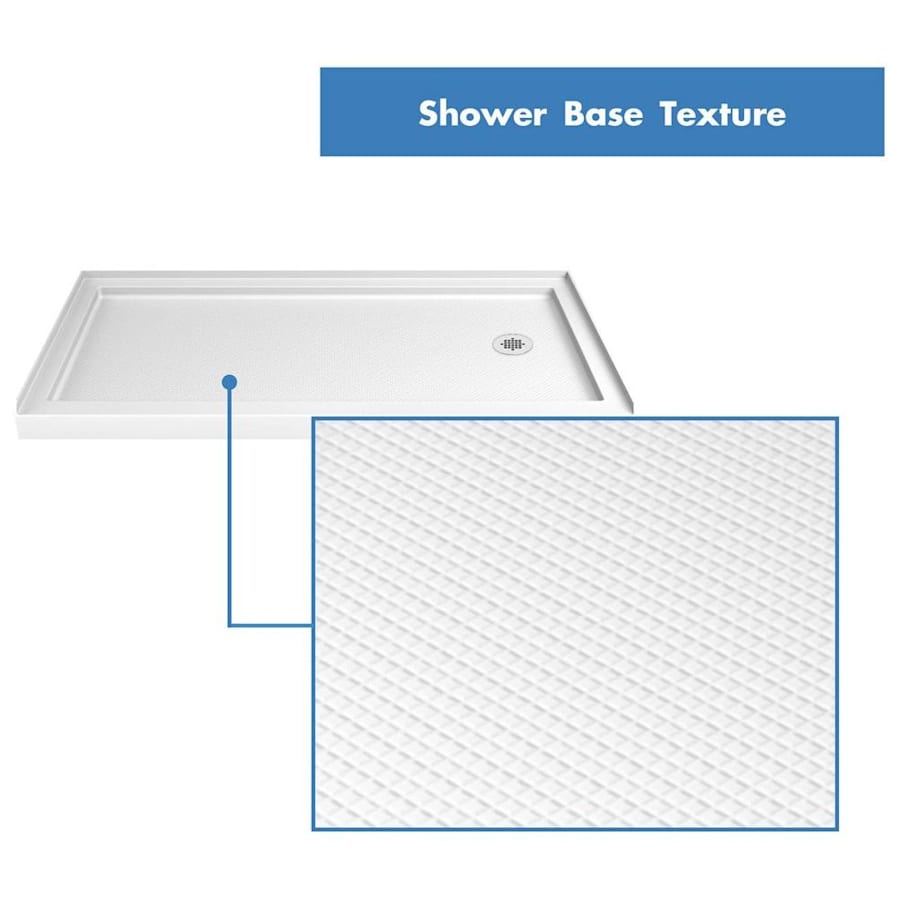

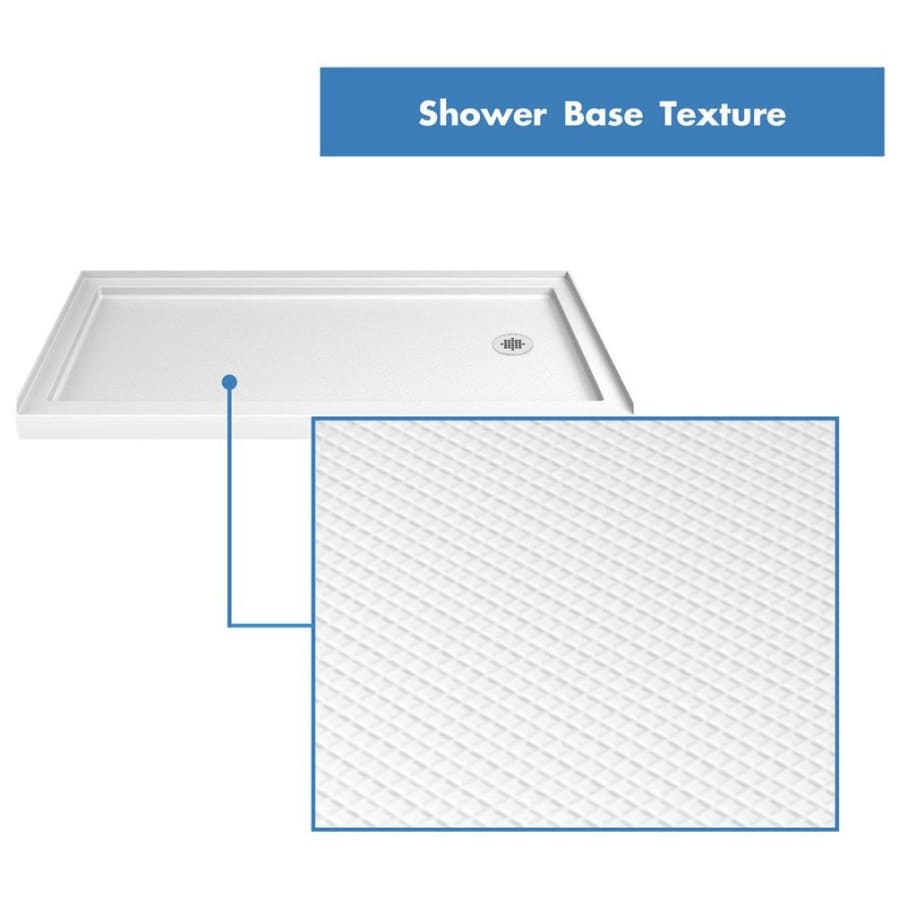

Slip-resistant textured floor for safe showering
Integrated tile flange for easy installation and waterproofing

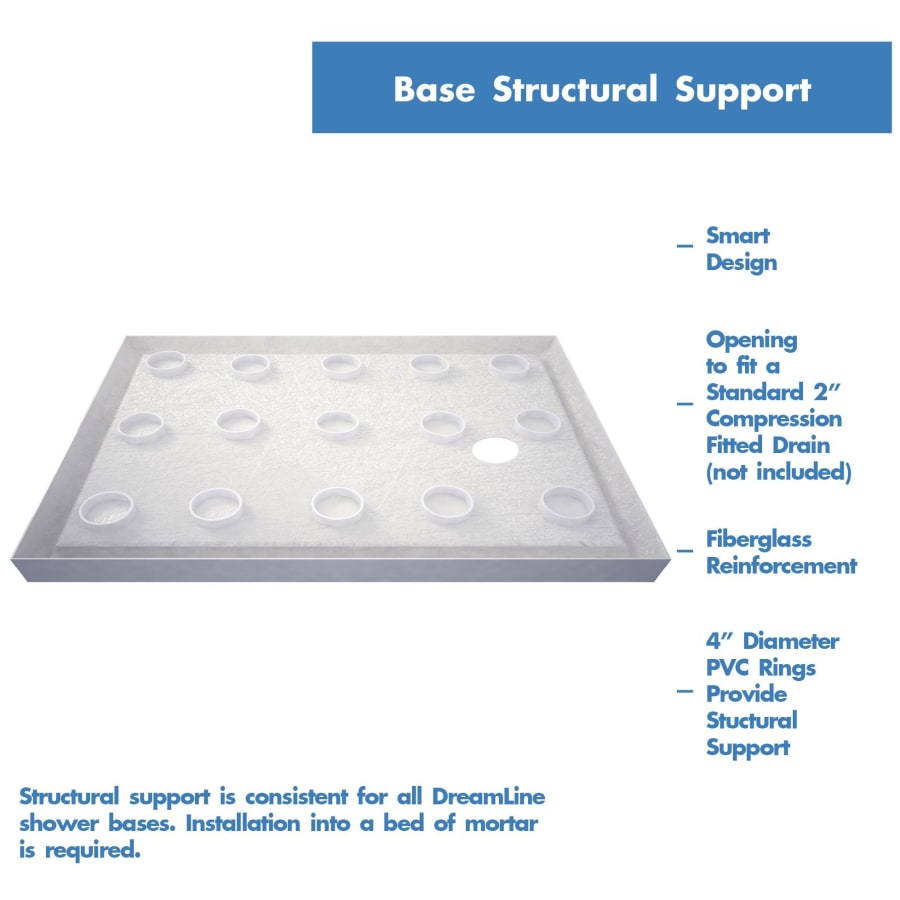

Fiberglass reinforcement for durability
cUPC certified
Drain is not included

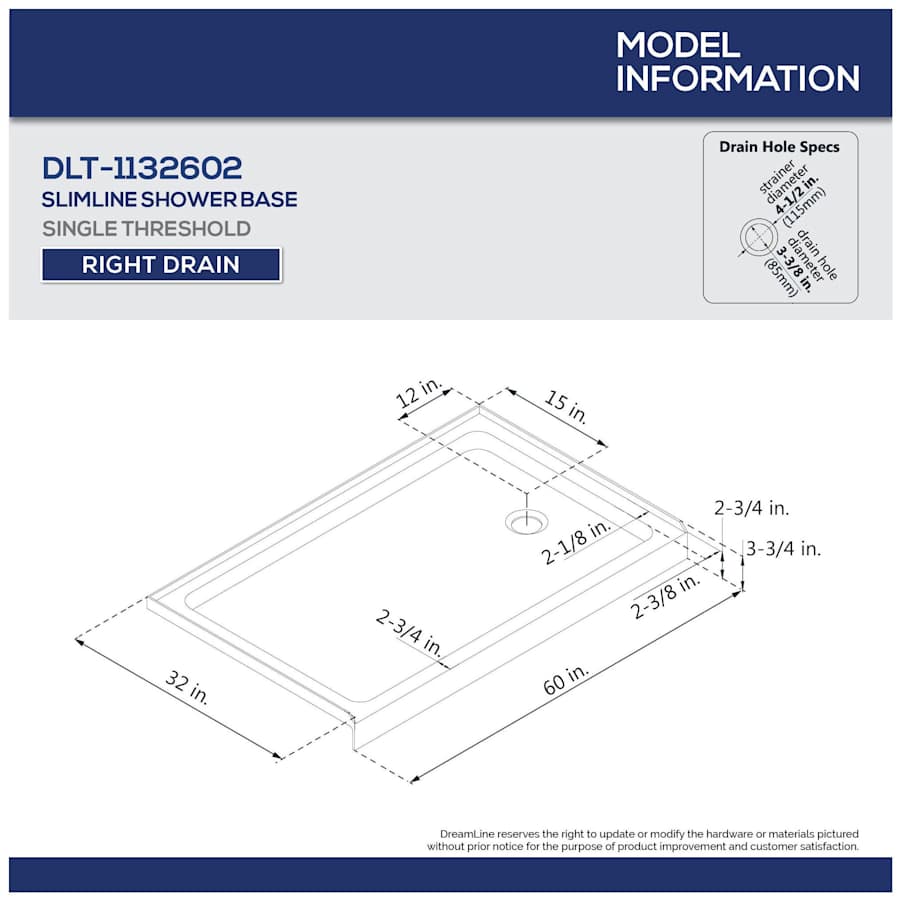

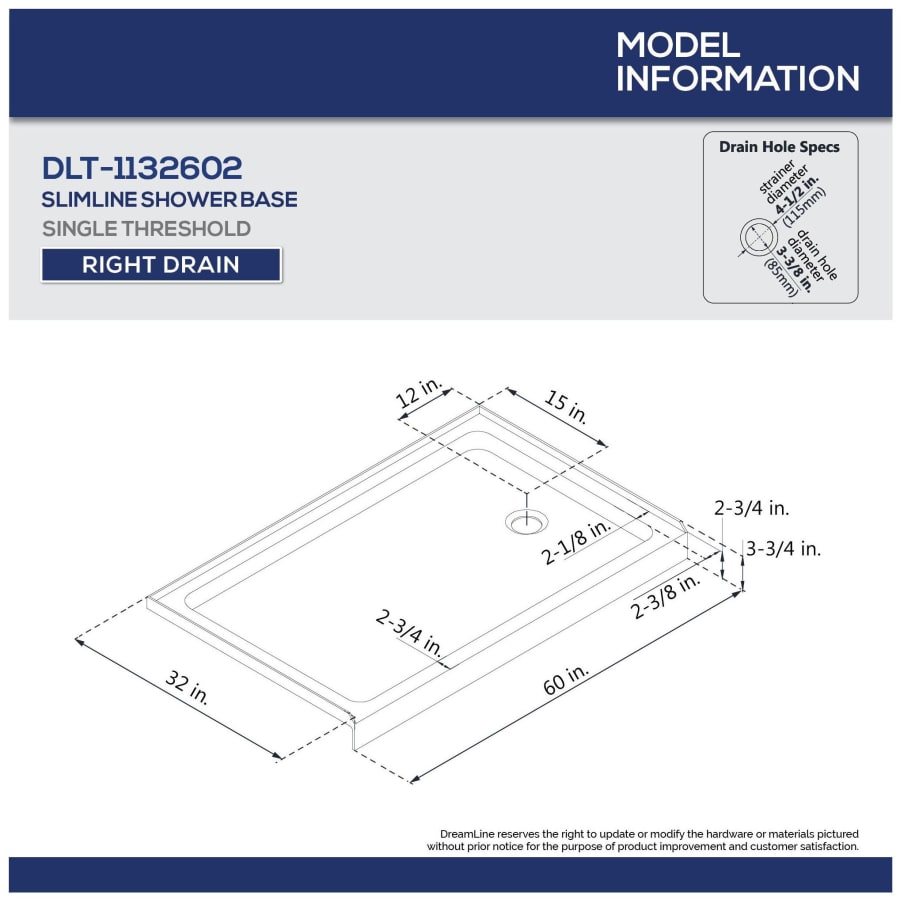

Right drain configuration. Please review the technical drawing for exact drain location
Limited lifetime manufacturer warranty
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Charisma Collection
Specifications
| Height | 78.75 in. |
| Width | 60 in. |
| Depth | 32 in. |
| Nominal Width | 60 in. |
| Drain Connection | 3.25 in. |
| Product Weight | 186 lbs. |
| Door Width | 30 in. |
| Glass Thickness | 0.3125 in. |
| Maximum Width | 60 in. |
| Minimum Width | 60 in. |
| Panel Width | 30.75 in. |
| Shower Door Width | 29 in. |
| Base Width | 32 in. |
| Walk Through | 25, 29 in. |
| Bar Length | 60 in. |
| Glass Features | Clear Glass |
| Thermostat | Traditional |
| Material | ABS, Acrylic, Aluminum, Tempered Glass |
| Drain Placement | Right |
| Insulation Type | Three Wall Alcove |
| Configuration | Shower Door |
| Curb Location | Front |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Number of Tile Flanges | 3 |
| Shape | Rectangular |
| Slip Resistant | Yes |
| Door Type | Bypass |
| Frame Type | Frameless |
| Number Of Doors | 2 |
| Collection | Charisma |
| Country Of Origin | China |
| Approved for Commercial Use | Yes |
| Certifications | UPC, ANSI |
| Manufacturer Warranty | Limited Lifetime |
| Commercial Warranty | 1 Year Limited |
| Drain Assembly Included | No |
| Tile Flange | Yes |
| Base Included | Yes |
| Towel Bar Included | Yes |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
