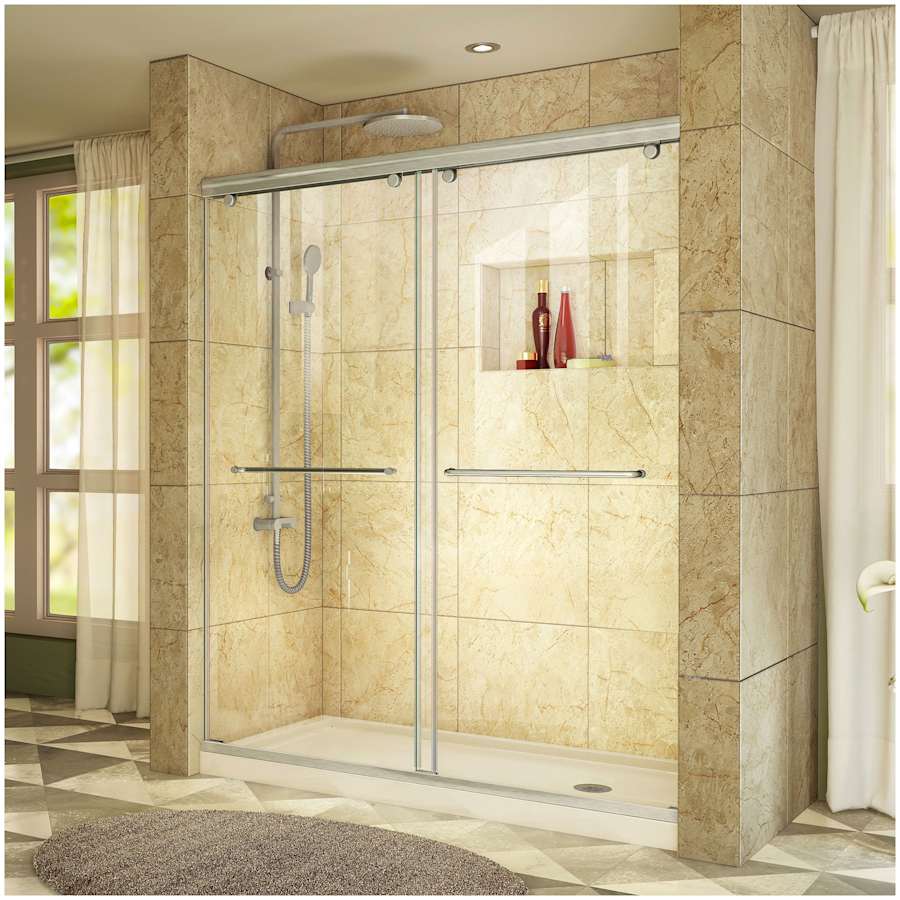

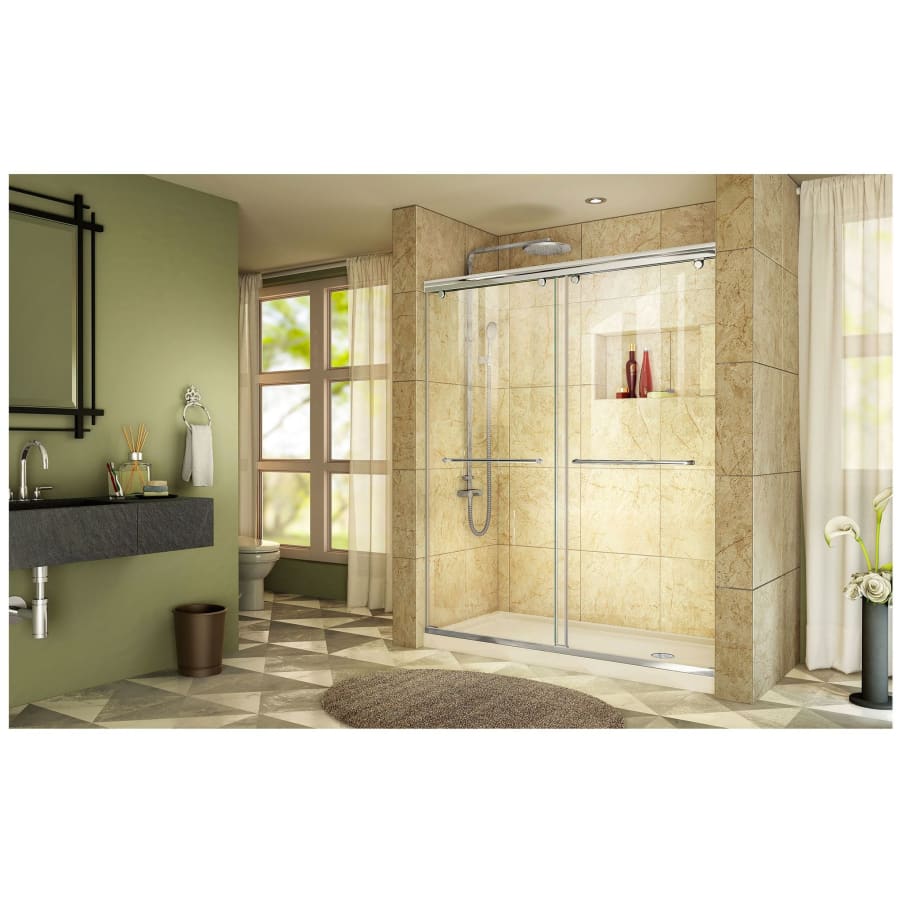

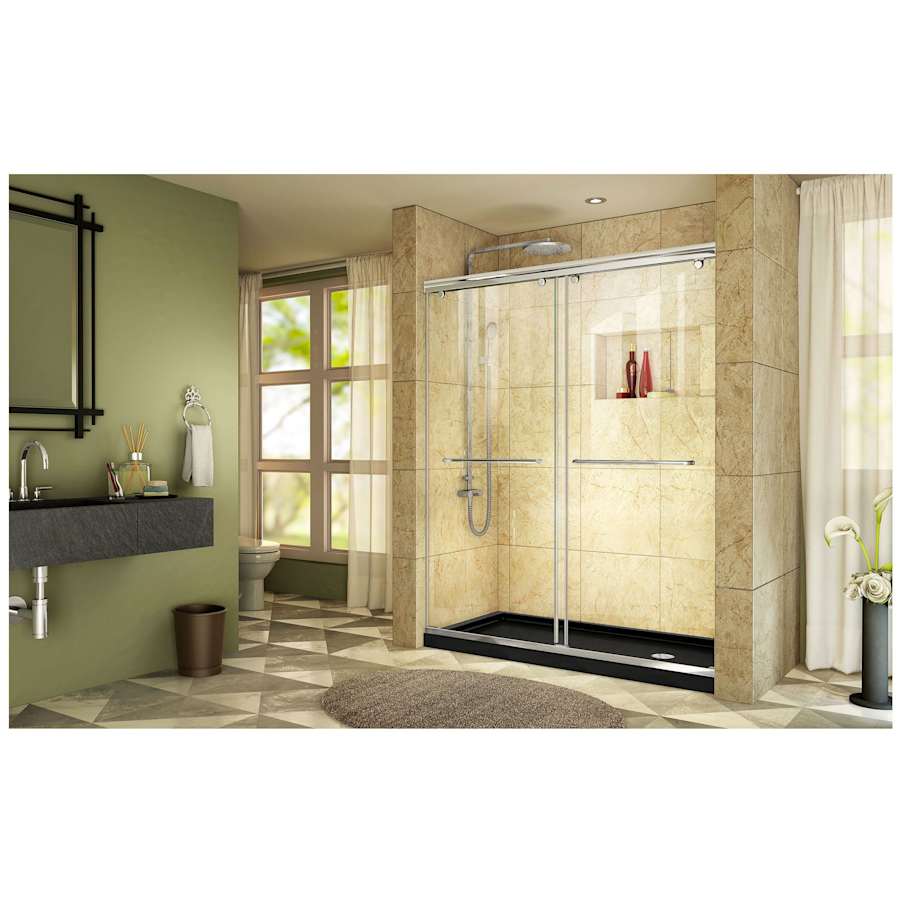

This DreamLine shower kit offers the perfect solution for a bathroom remodel or tub-to-shower conversion project with a Charisma frameless bypass shower door and a coordinating SlimLine shower base. The Charisma has a no wall profile design for the unique combination of a bypass sliding shower door and the beauty of frameless glass. Both frameless doors slide effortlessly across perfectly engineered rails, providing the ability to enter the shower space from either side. The SlimLine shower base completes the picture with a modern low profile design.
DreamLine DL-6943R Features:
Items included: Charisma Shower Door and 36″ x 60″ Single Threshold Shower Base
Overall kit dimensions: 36″ D x 60″ W x 78-3/4″ H
Charisma Shower Door:
This model has no out of plumb (vertical) adjustment
Model Size: 56 – 60″ W x 76″ H
Door walk-in: 25 – 29″
Panel: 30-3/4″

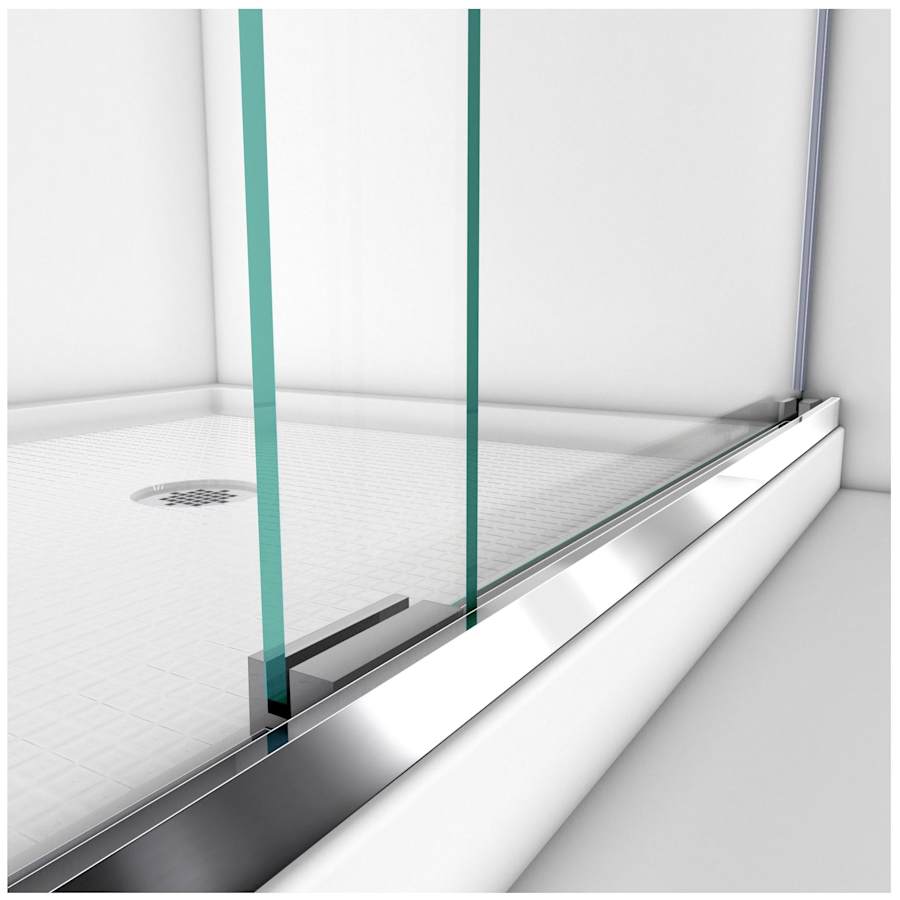

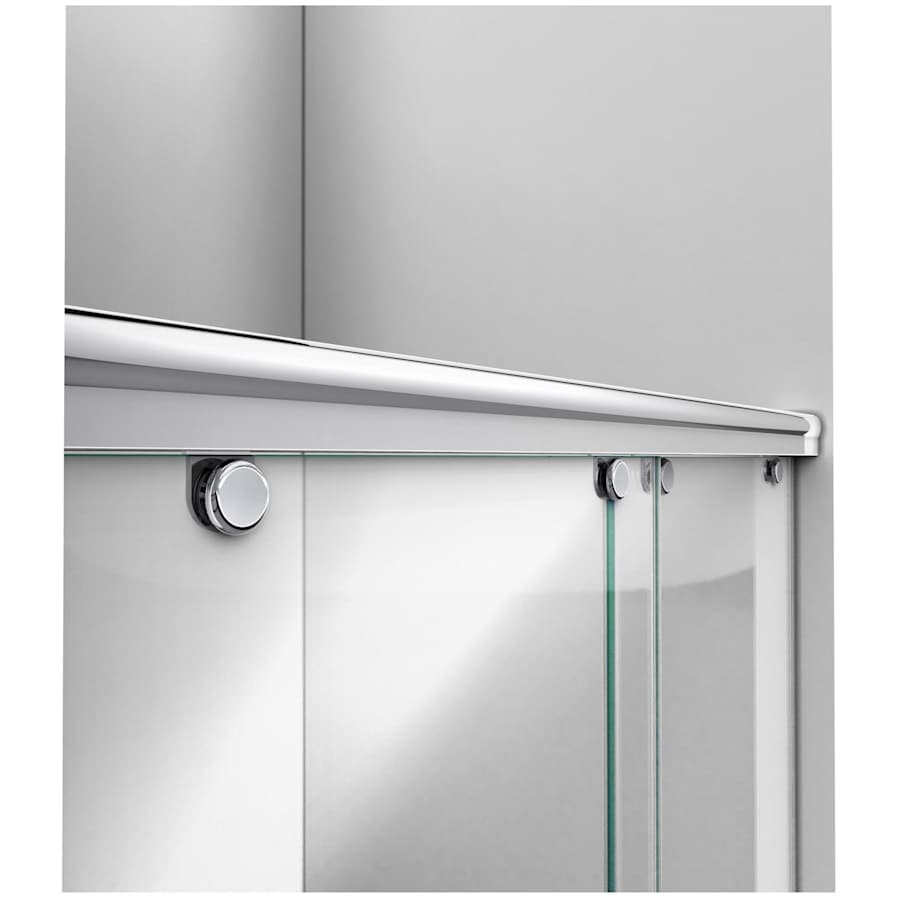

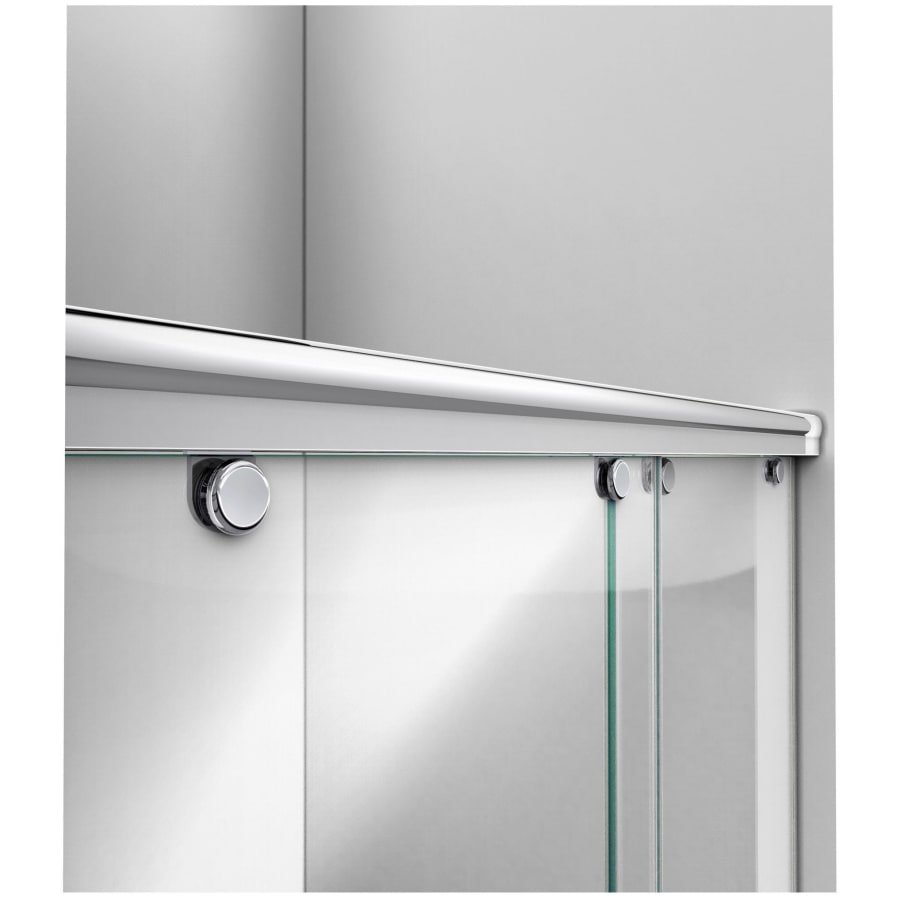

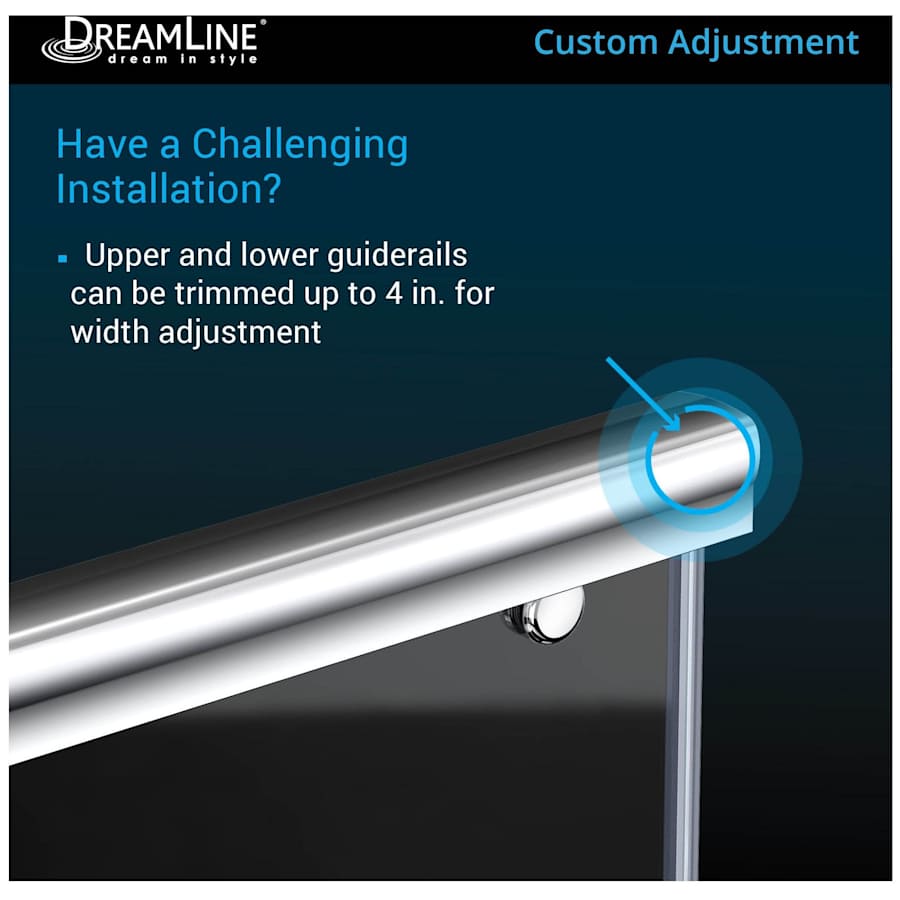

Anodized aluminum top and bottom guiderails can be trimmed 4″ for width (horizontal) adjustment
Frameless glass design

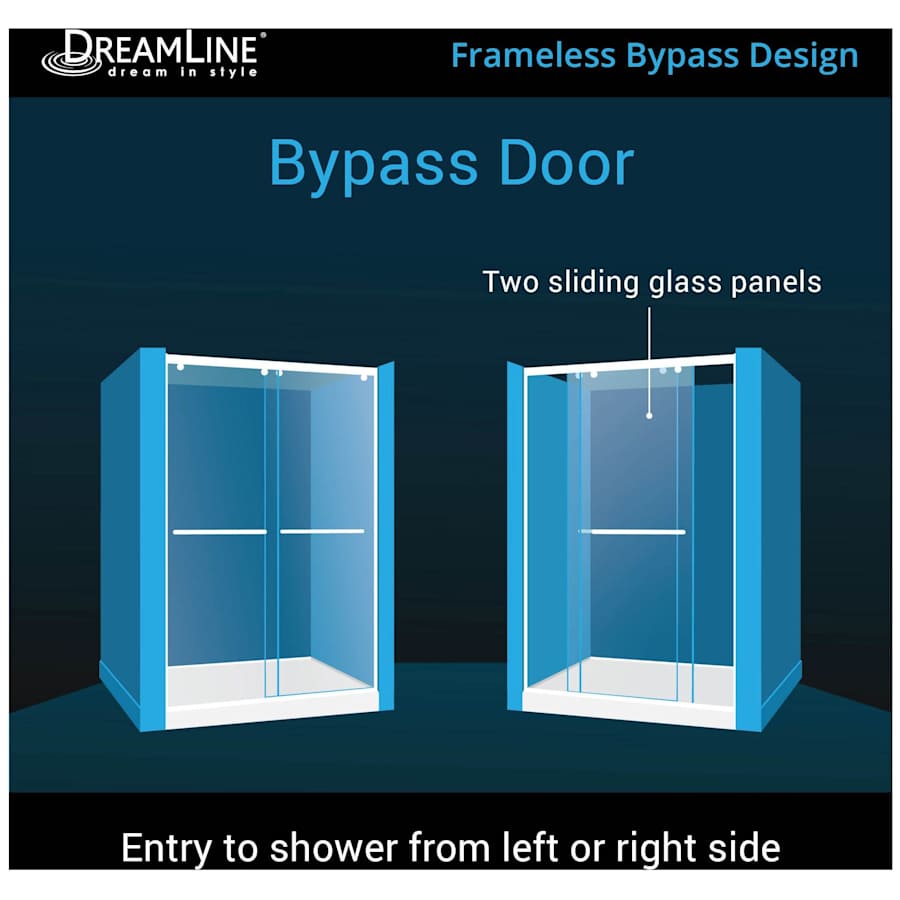

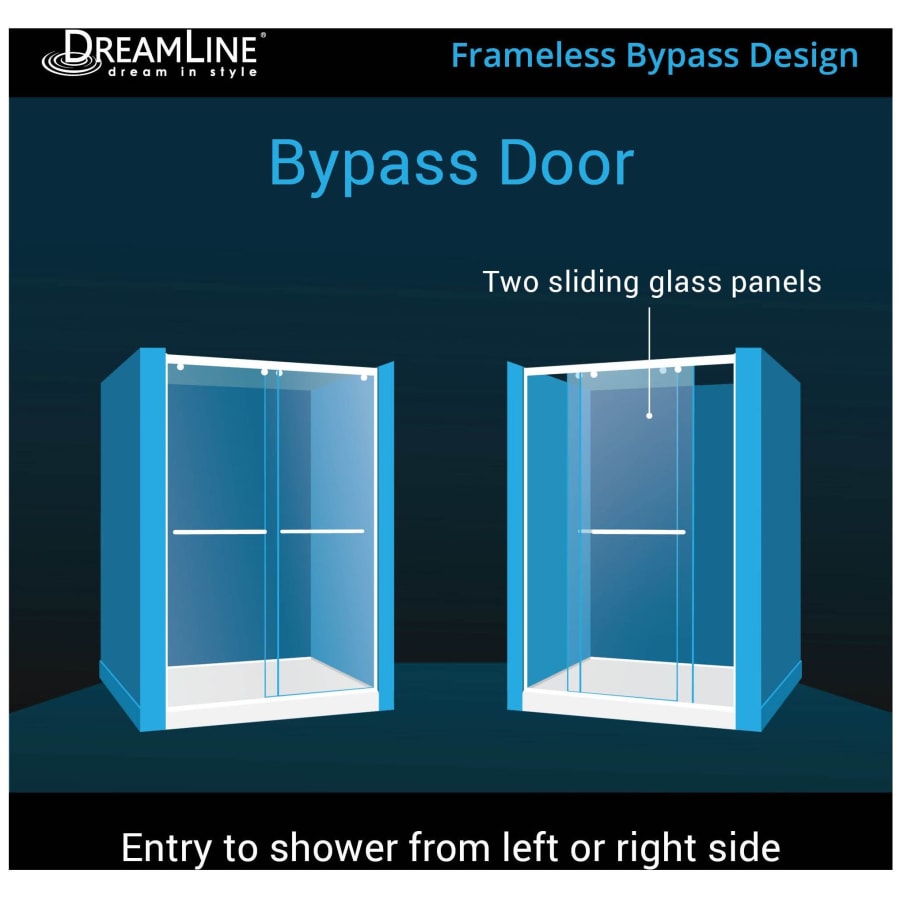

Double sliding panel (bypass) shower door

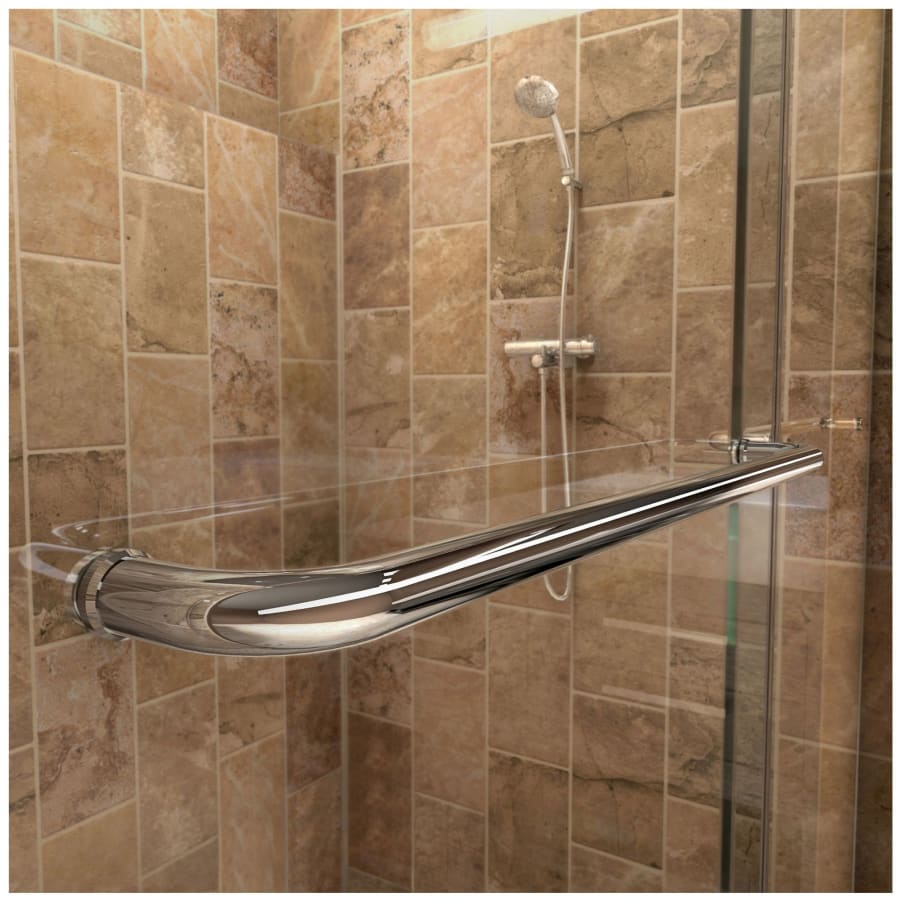

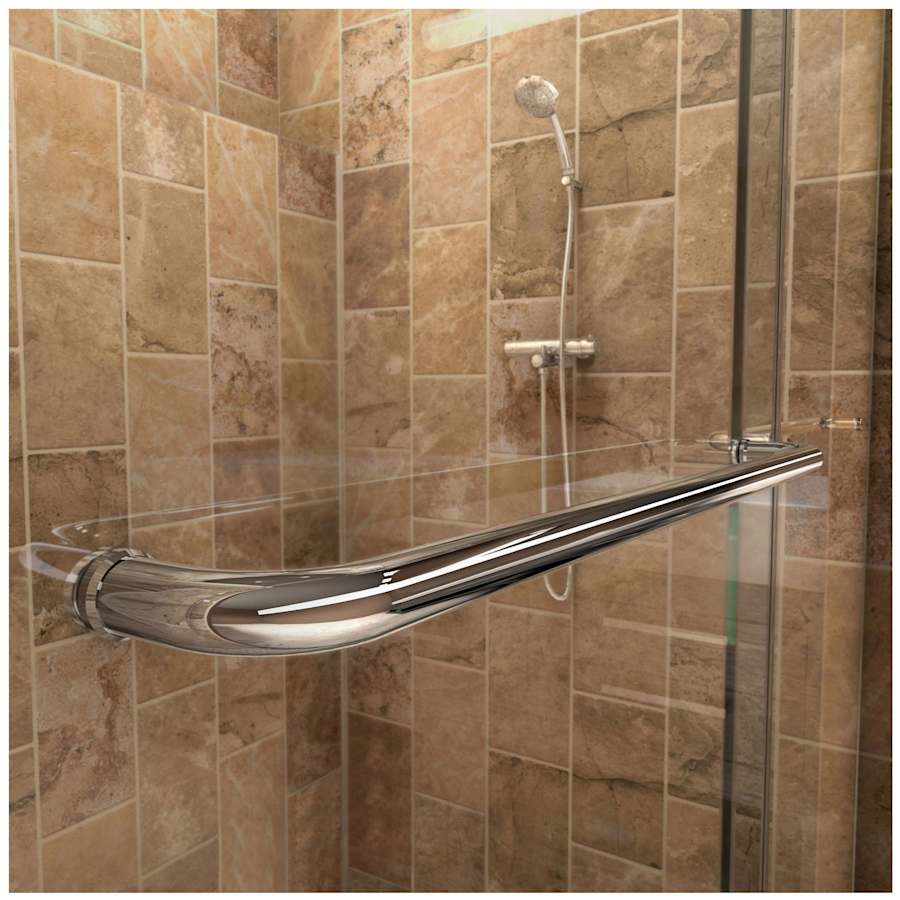

Two convenient towel bars double as handles
5/16″ (8mm) thick clear tempered glass
DreamLine exclusive ClearMax™ protective glass coating
Flooring threshold depth should be a minimum of 2″
Professional installation recommended
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, back walls, etc.)

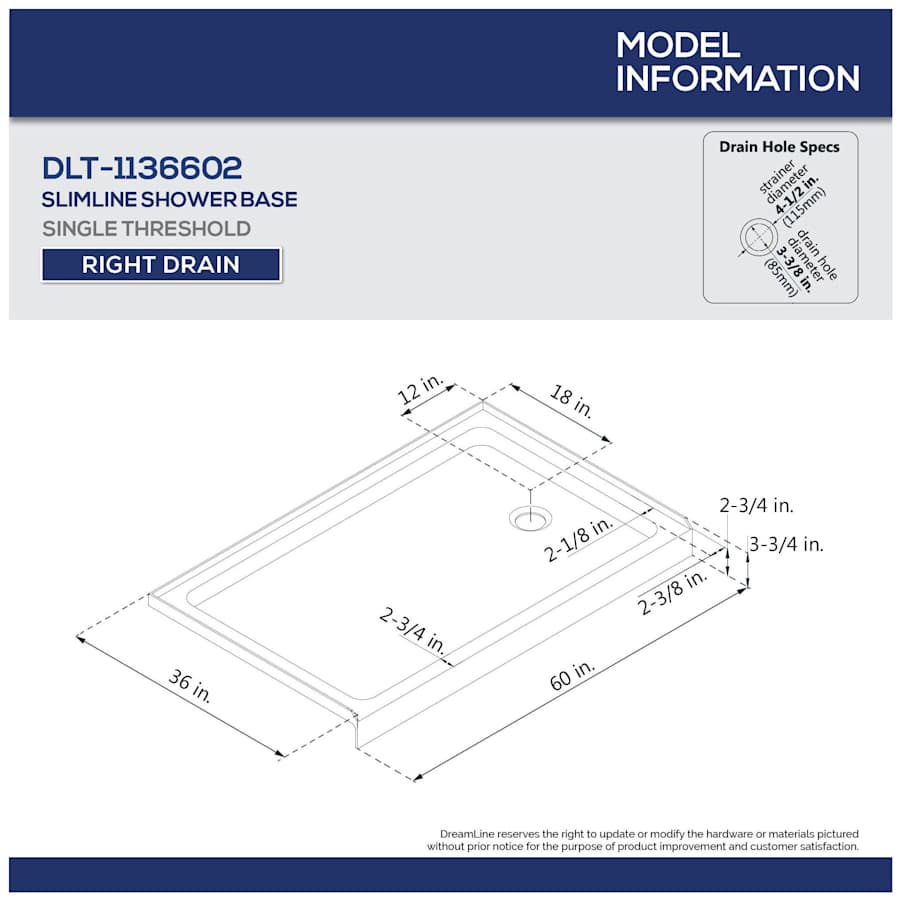

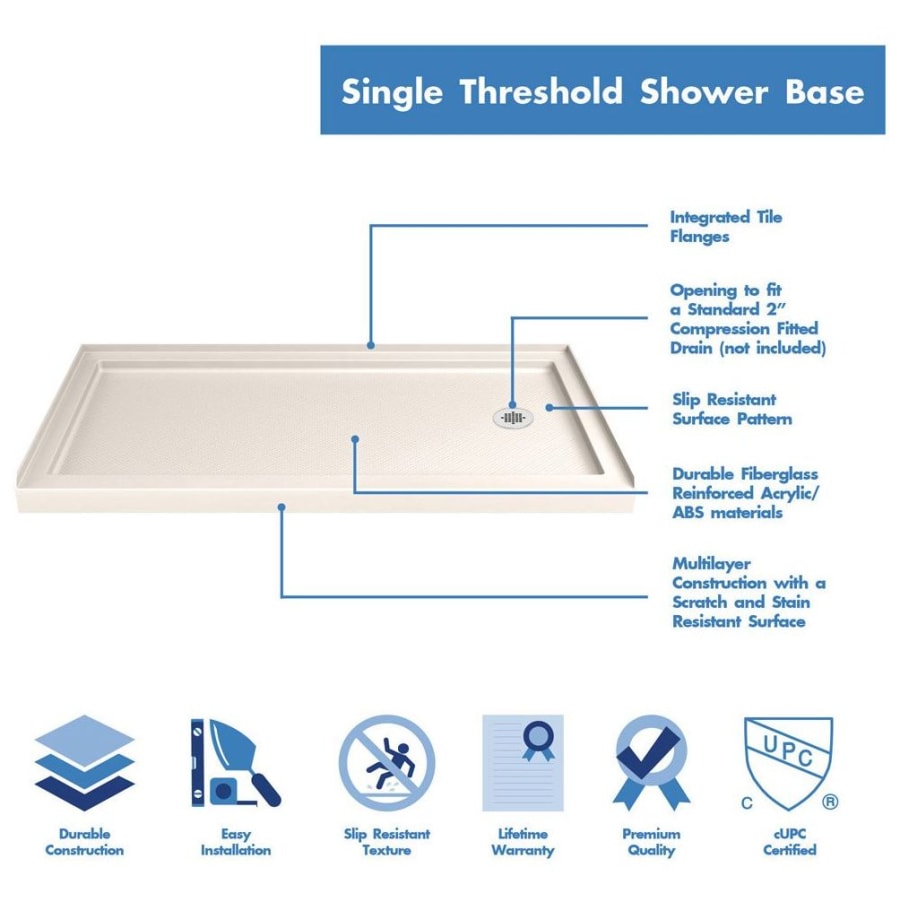

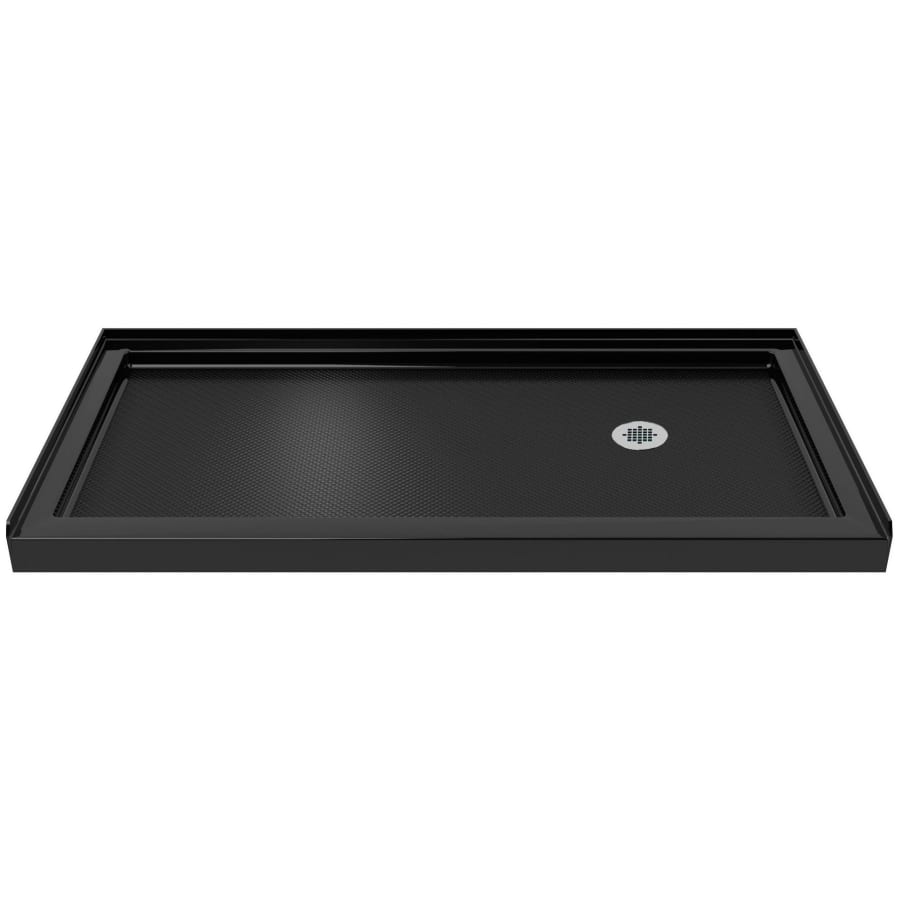

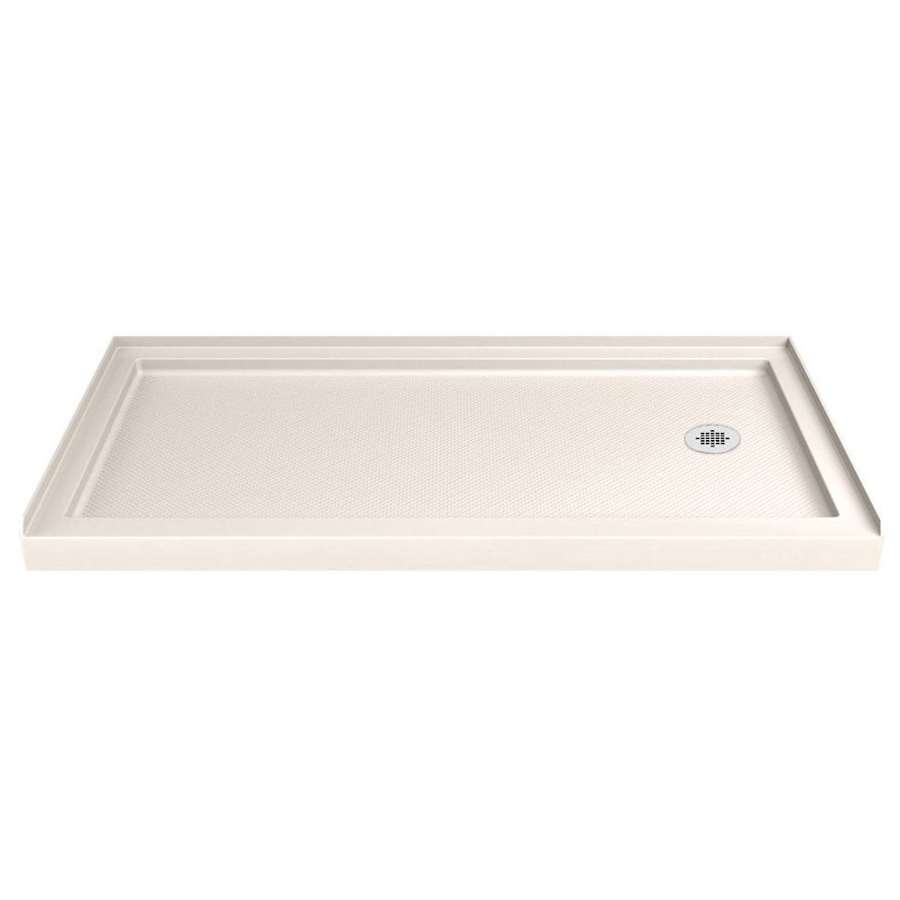

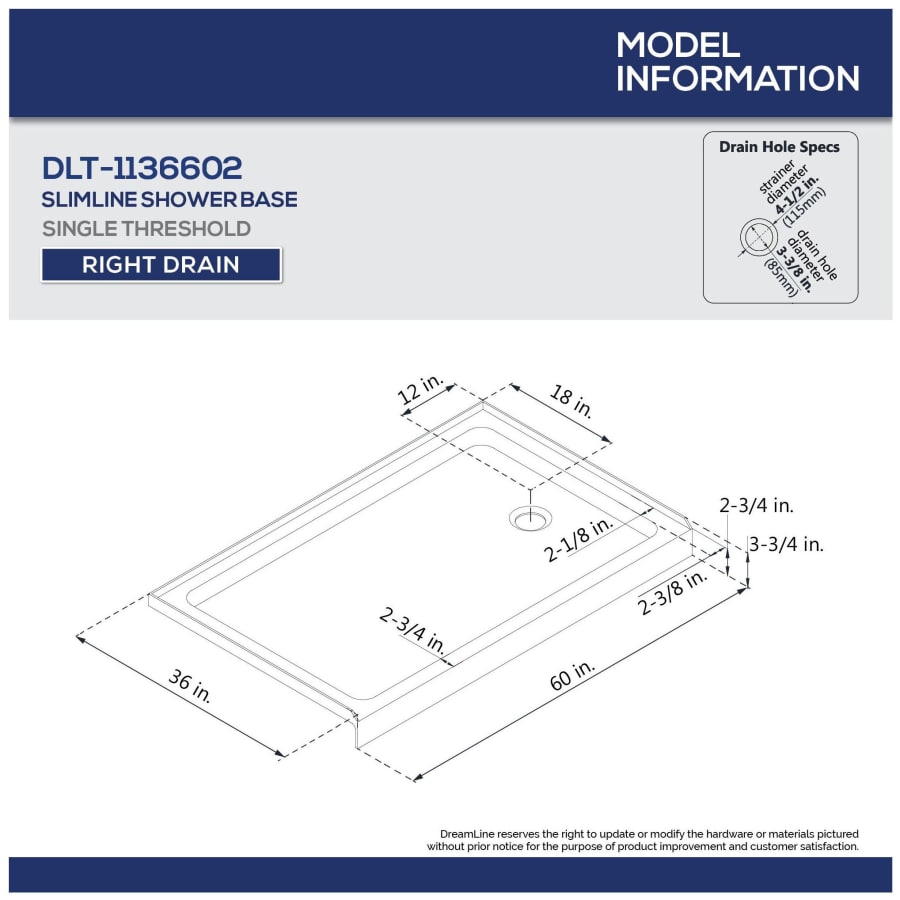

36″ x 60″ Single Threshold Shower Base:
High quality scratch and stain resistant acrylic

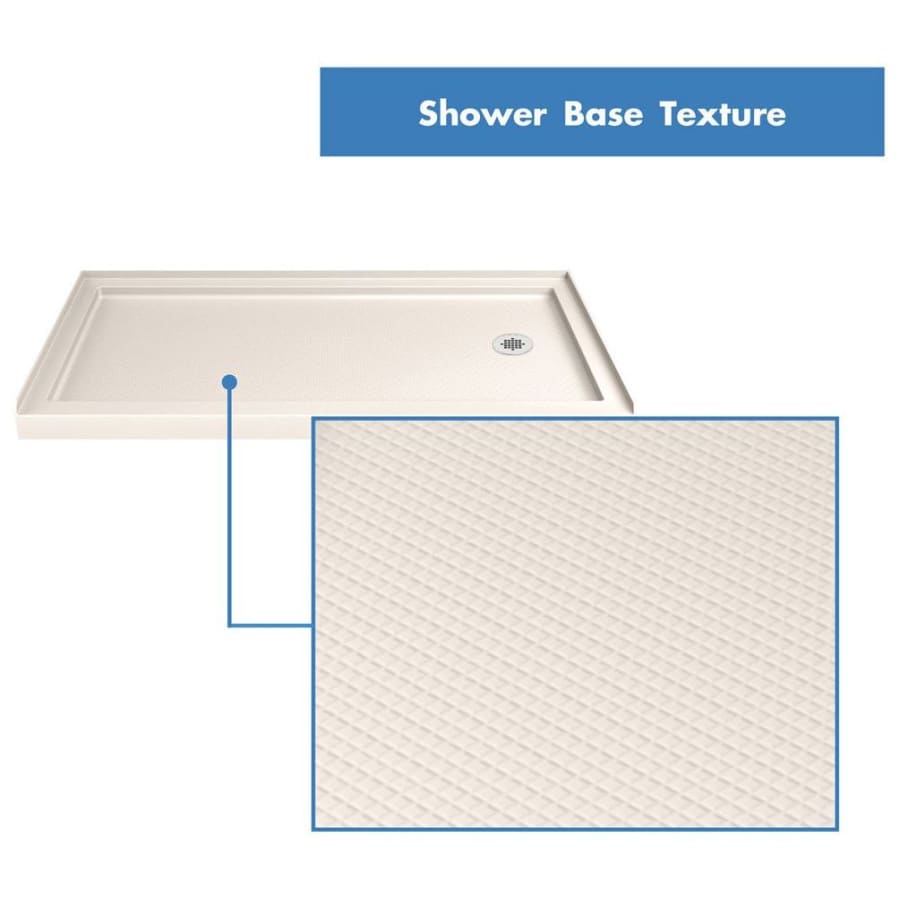

Slip-resistant textured floor for safe showering
Integrated tile flange for easy installation and waterproofing

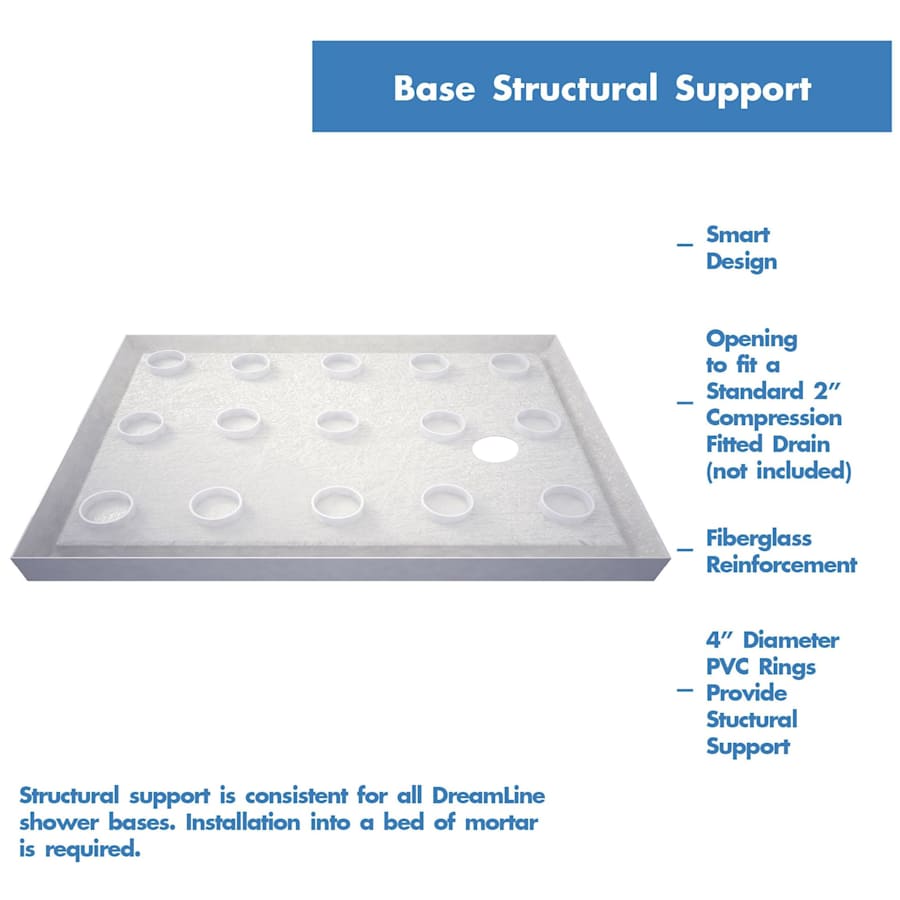

Fiberglass reinforcement for durability
cUPC certified
Drain is not included
Right drain configuration
Limited lifetime manufacturer warranty
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Charisma Collection
Specifications
| Height | 78.75 in. |
| Width | 60 in. |
| Depth | 36 in. |
| Nominal Width | 60 in. |
| Door Width | 28.75 in. |
| Glass Thickness | .3125 in. |
| Maximum Width | 60 in. |
| Minimum Width | 56 in. |
| Panel Width | 30.75 in. |
| Shower Door Width | 25, 26, 27, 28, 29 in. |
| Base Width | 36 in. |
| Bar Length | 60 in. |
| Glass Features | Clear Glass |
| Thermostat | Modern |
| Material | ABS, Acrylic, Aluminum, Tempered Glass |
| Drain Placement | Right |
| Insulation Type | Three Wall Alcove |
| Configuration | Shower Door |
| Curb Location | Front |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Number of Tile Flanges | 3 |
| Shape | Rectangular |
| Door Swing | Right, Left, Reversible |
| Door Type | Bypass |
| Frame Type | Frameless |
| Number Of Doors | 2 |
| Collection | Charisma |
| Country Of Origin | China |
| Approved for Commercial Use | Yes |
| Certifications | UPC, ANSI |
| Manufacturer Warranty | Limited Lifetime |
| Commercial Warranty | 1 Year Limited |
| Drain Assembly Included | No |
| Tile Flange | Yes |
| Base Included | Yes |
| Color | Brushed Nickel with Biscuit Base |
| Color Tone | Nickel Tones |
