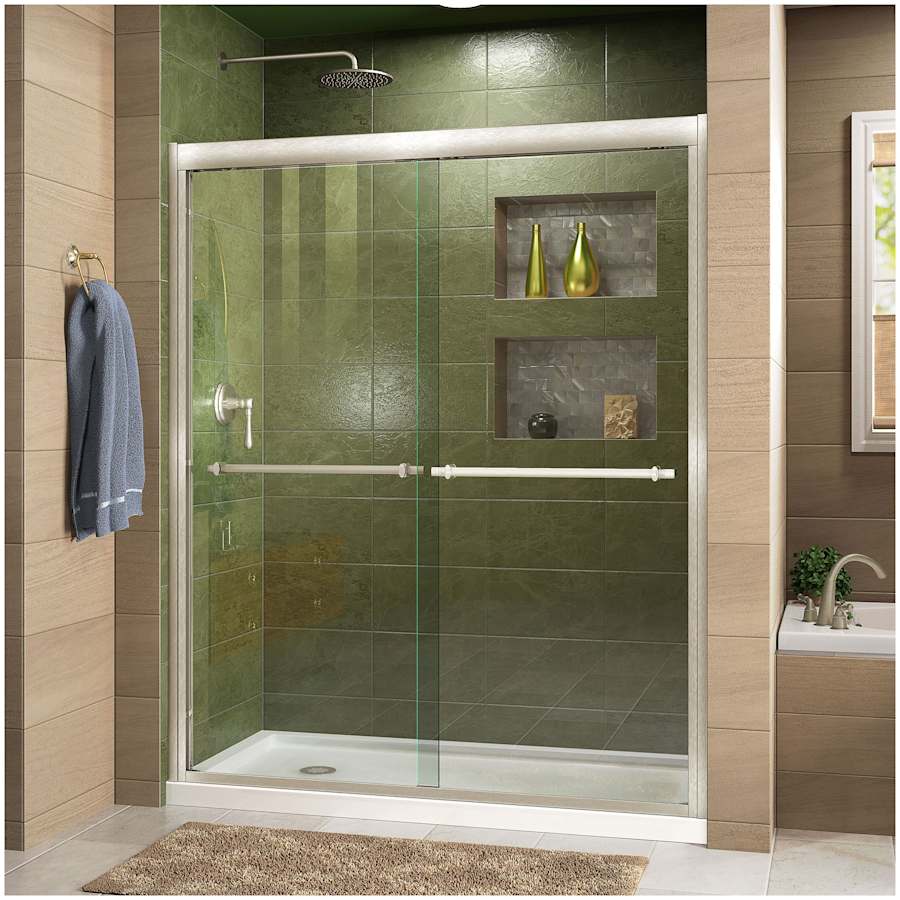

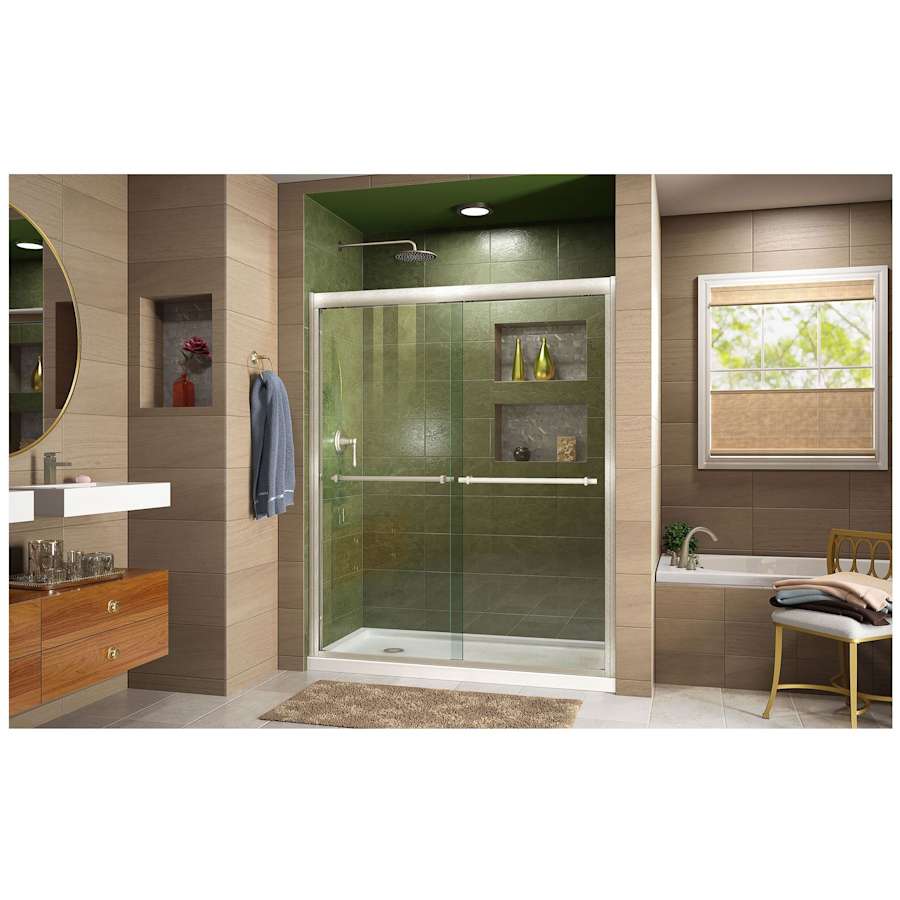

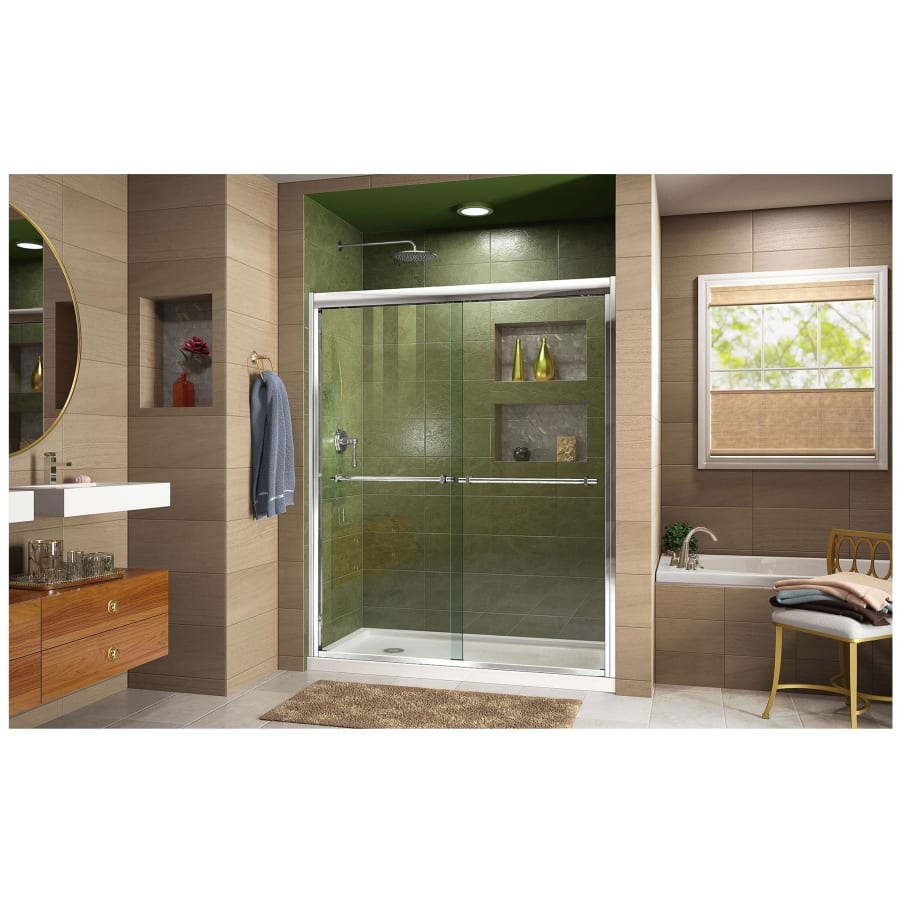

The DreamLine Duet sliding bypass shower or tub door has a sleek, elegant design that will complement both classic and modern bathroom decors. The Duet features semi-frameless glass and smooth gliding rollers for a touch of traditional style, and offers a clean, streamlined appearance. DreamLine has the ultimate solution for your shower project. Glass is treated with DreamLine exclusive ClearMax water repellant and stain resistant coating for superior protection and easy maintenance.
DreamLine DL-6950L-CL Features:
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
Items included: Duet Shower Door and 30″ x 60″ Single Threshold Shower Base
Overall Kit Dimensions: 30″ D x 60″ W x 74-3/4″ H
Duet Shower Door:
56 – 60″ W x 72″ H

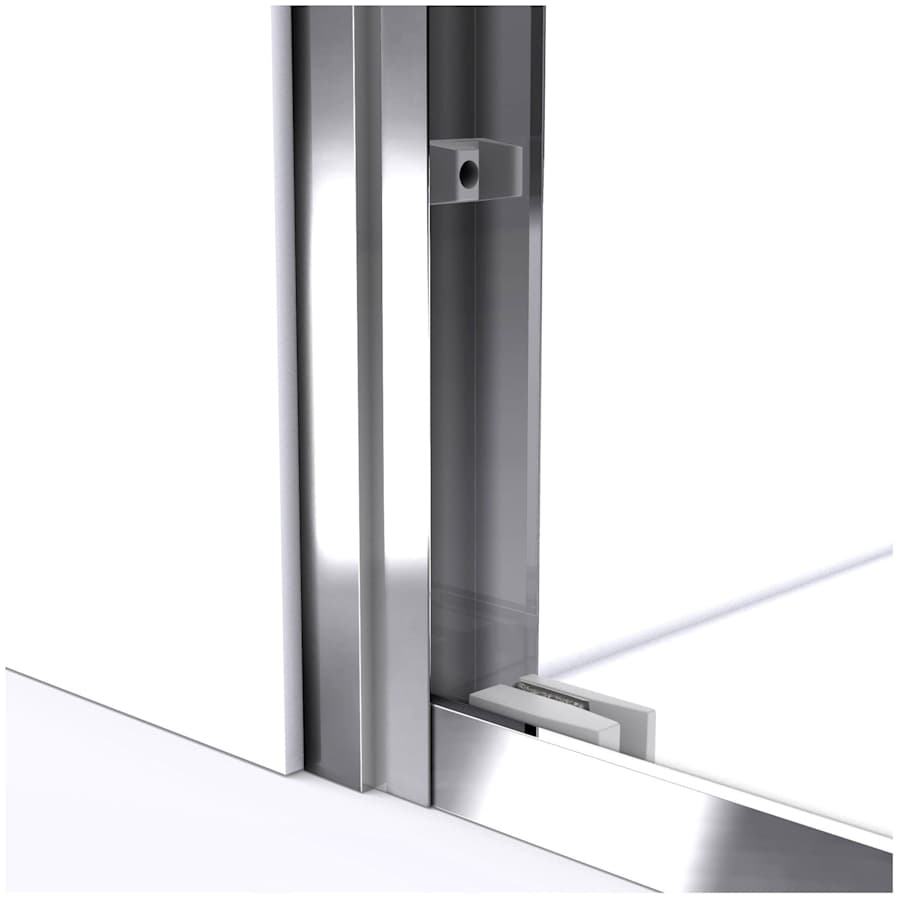

Anodized aluminum wall profiles allows a 1/2″ out-of-plumb (vertical) adjustment on each side
Top and bottom guiderails can be trimmed 4″ for width (horizontal) adjustment within the model size

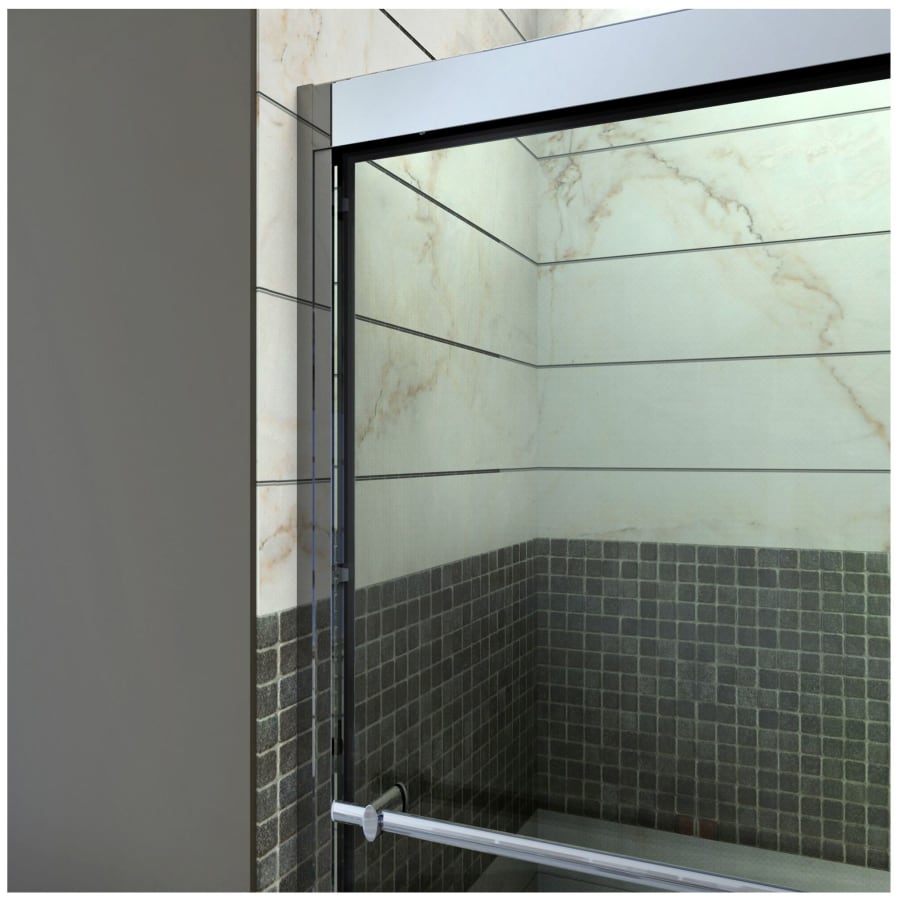

Frameless glass design
Double sliding panel (bypass) shower door

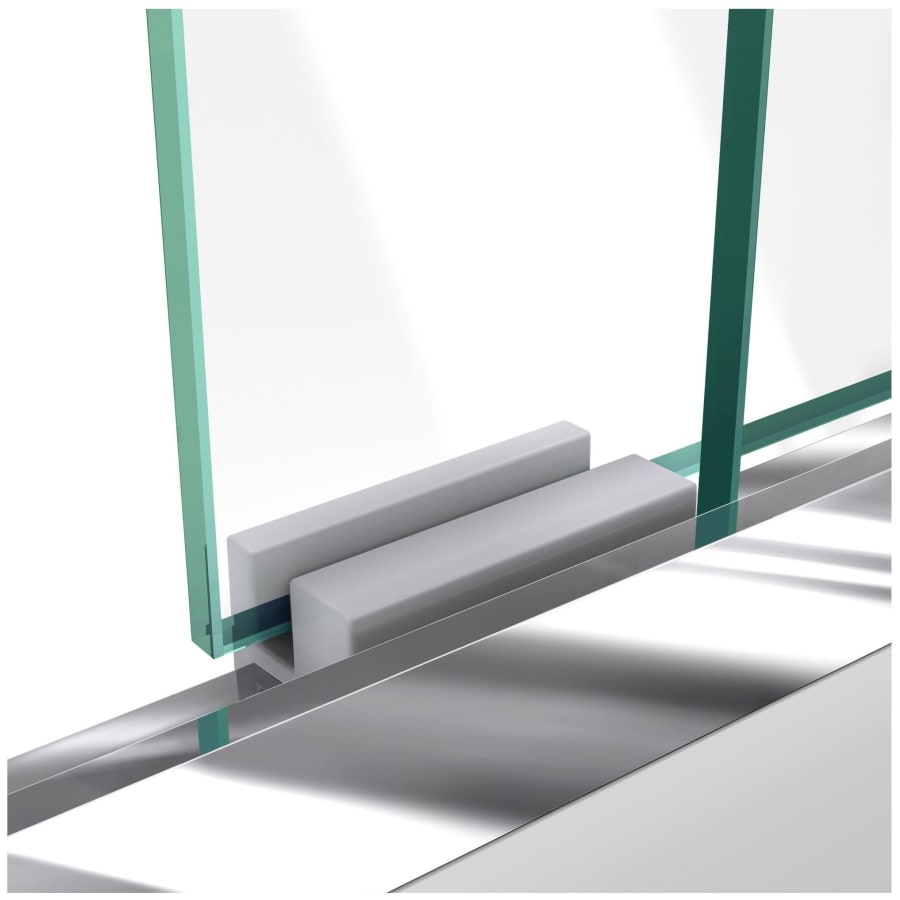

5/16″ (8mm) thick clear tempered glass

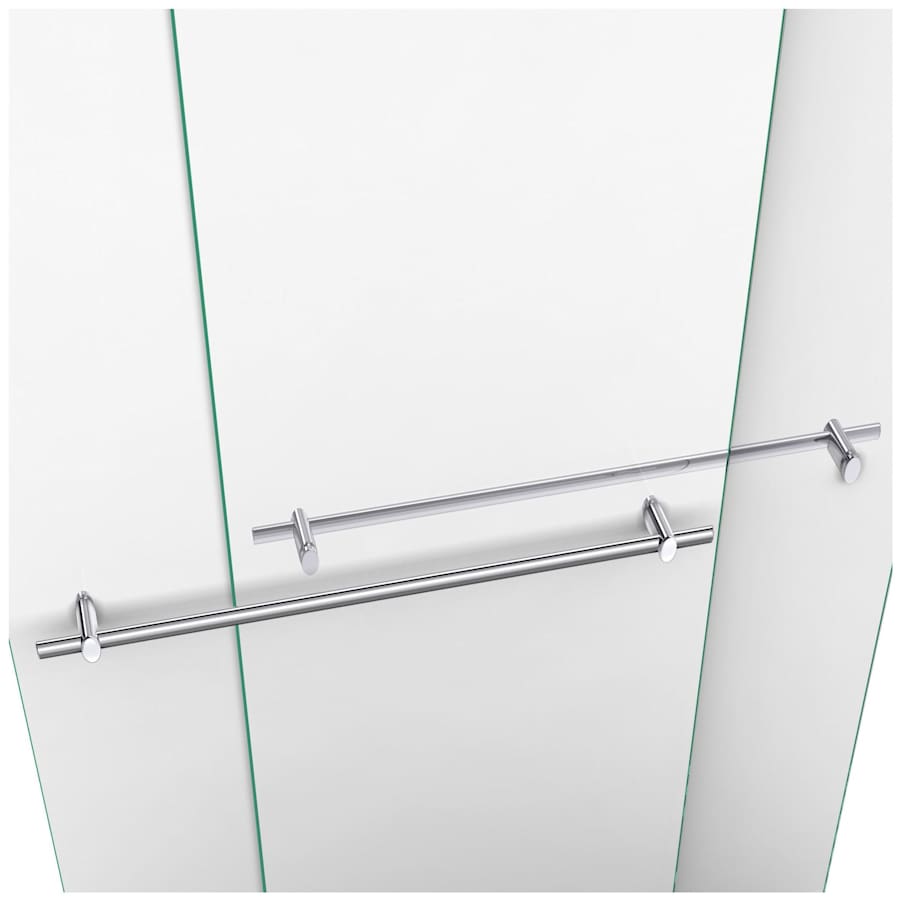

Two convenient towel bars double as handles on each panel
Door Walk-In: 22 – 26″
Professional installation recommended

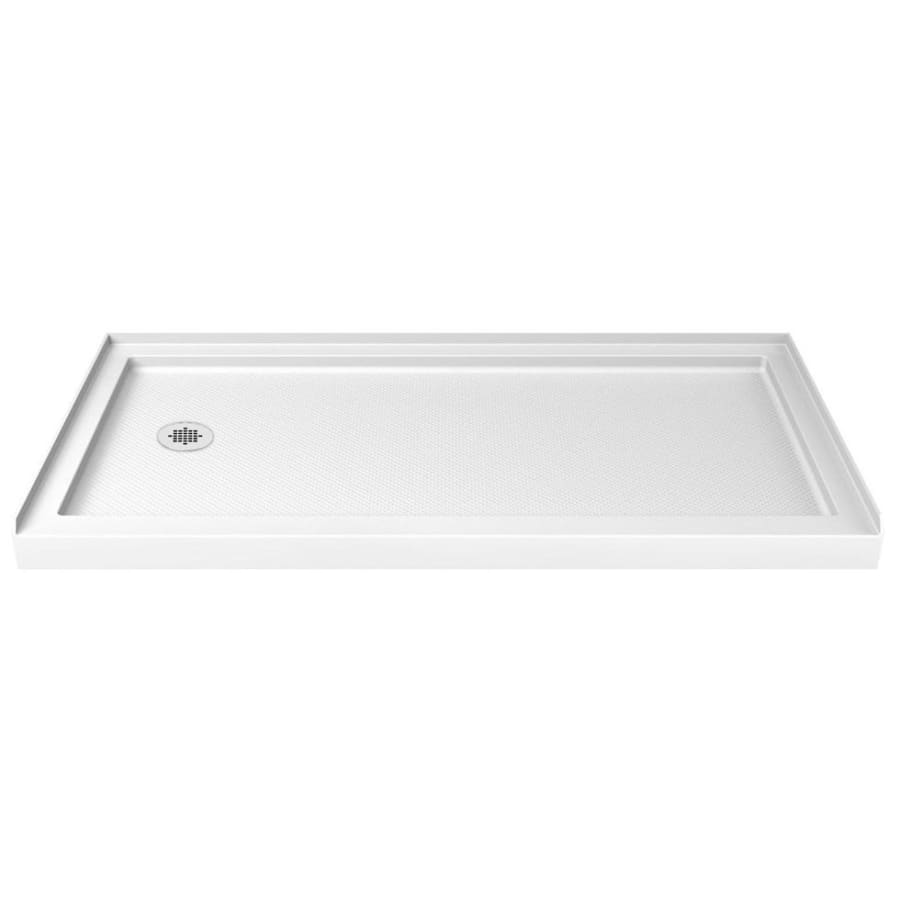

30″ x 60″ Single Threshold Shower Base:
High quality scratch and stain resistant acrylic

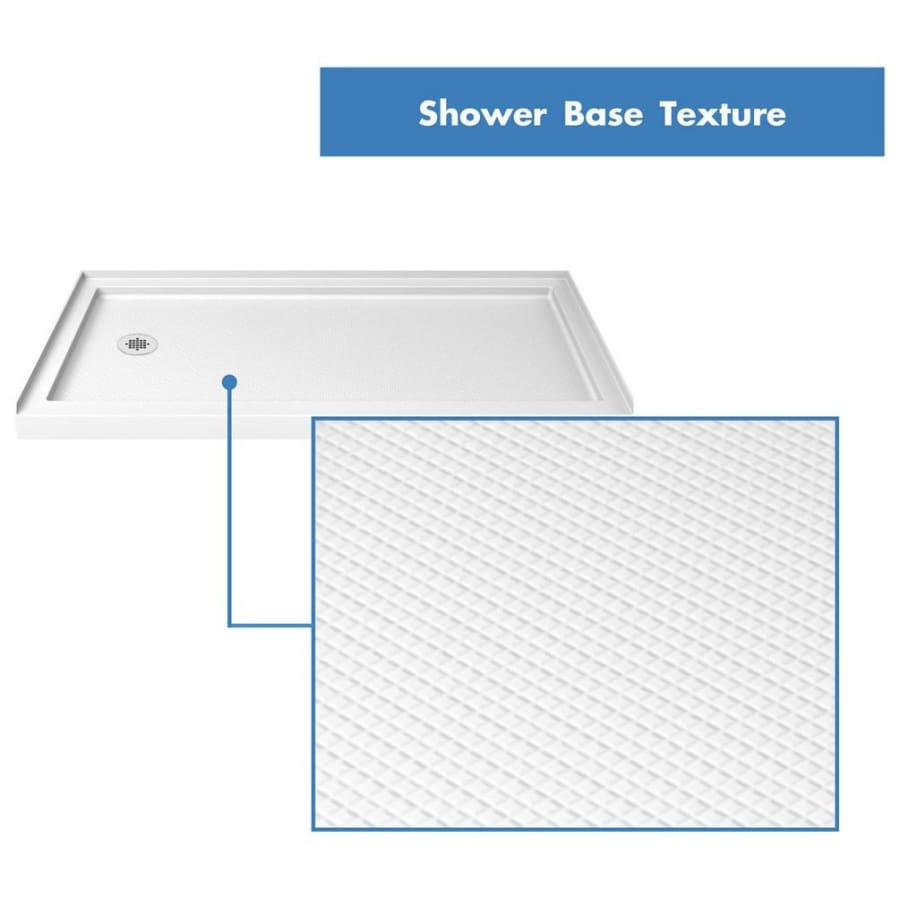

Slip-resistant textured floor for safe showering
Integrated tile flange for easy installation and waterproofing

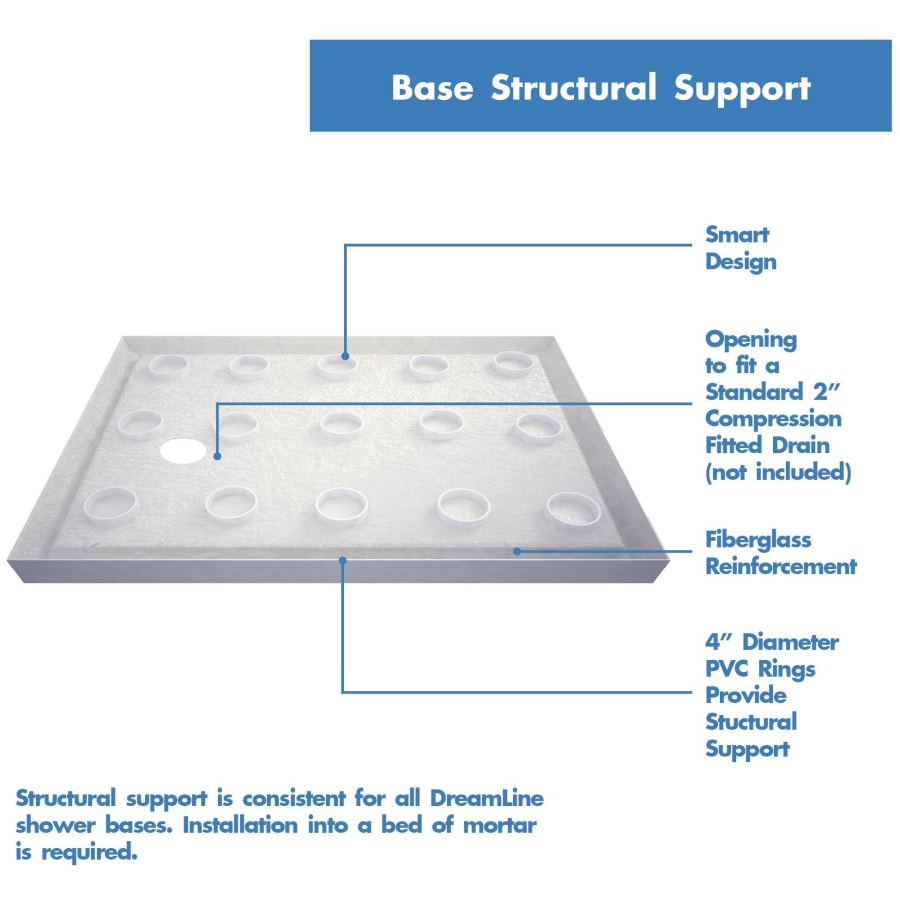

Fiberglass reinforcement for durability
cUPC certified
Drain is not included

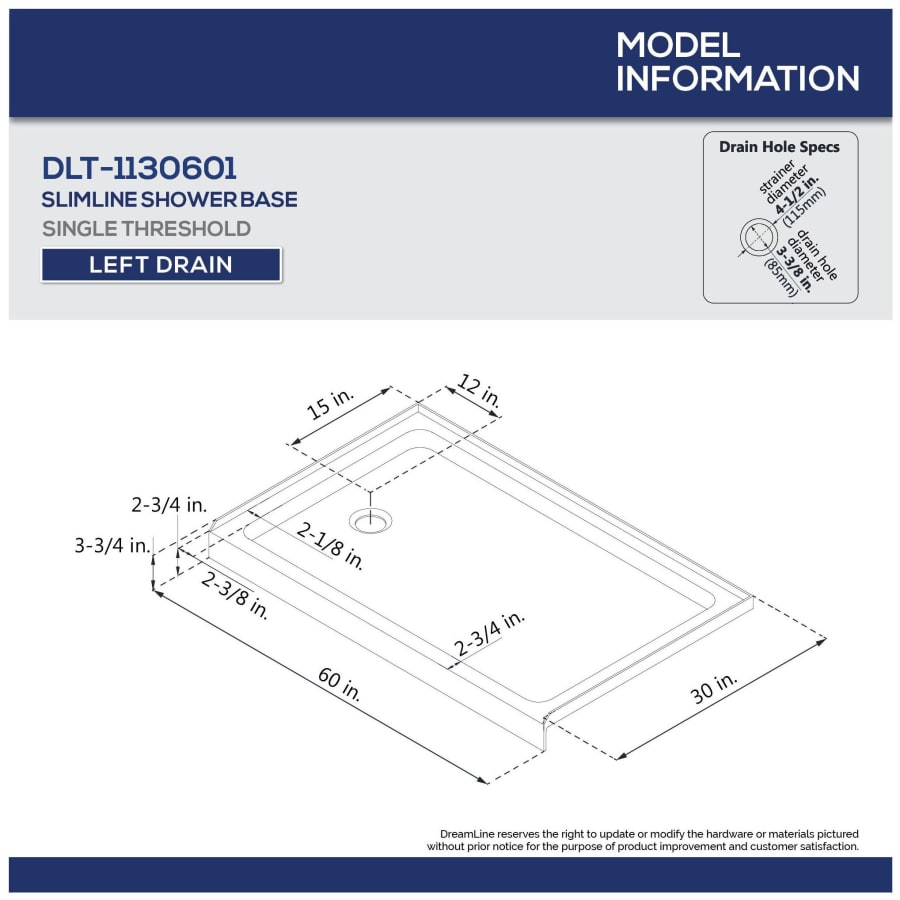

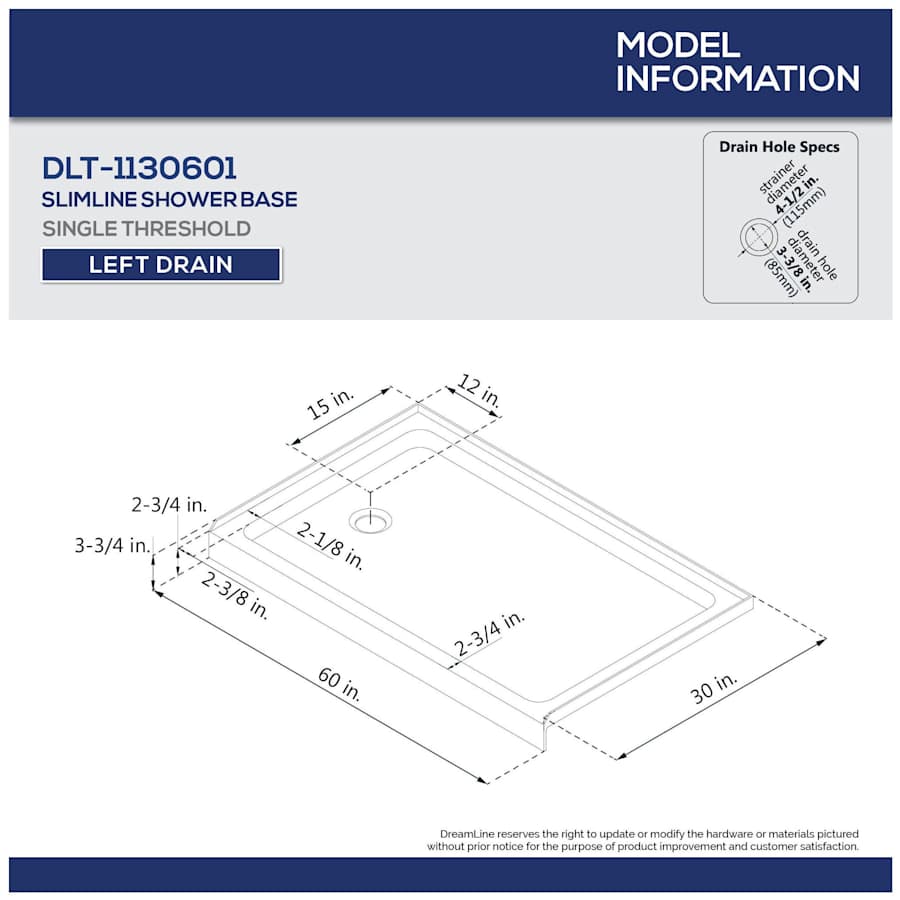

Left drain configuration. Please review the technical drawing for exact drain location
Limited lifetime manufacturer warranty
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Duet Collection
Specifications
| Height | 74.75 in. |
| Product Weight | 185 lbs. |
| Width | 60 in. |
| Depth | 30 in. |
| Nominal Width | 60 in. |
| Drain Connection | 3.25 in. |
| Door Width | 26 in. |
| Glass Thickness | .3125 in. |
| Maximum Width | 60 in. |
| Minimum Width | 56 in. |
| Shower Door Width | 26 in. |
| Base Width | 30 in. |
| Bar Length | 60 in. |
| Thermostat | Modern |
| Glass Features | Clear Glass |
| Material | ABS, Acrylic, Aluminum, Tempered Glass |
| Insulation Type | Three Wall Alcove |
| Drain Placement | Left |
| Curb Location | Front |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Number of Tile Flanges | 3 |
| Slip Resistant | Yes |
| Configuration | Shower Door |
| Shape | Rectangular |
| Door Type | Bypass |
| Frame Type | Framed |
| Number Of Doors | 2 |
| Collection | Duet |
| Certifications | UPC, ANSI |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | Yes |
| Country Of Origin | China |
| Commercial Warranty | 1 Year Limited |
| Drain Assembly Included | No |
| Tile Flange | Yes |
| Base Included | Yes |
| Towel Bar Included | Yes |
| Color | Brushed Nickel, Chrome |
