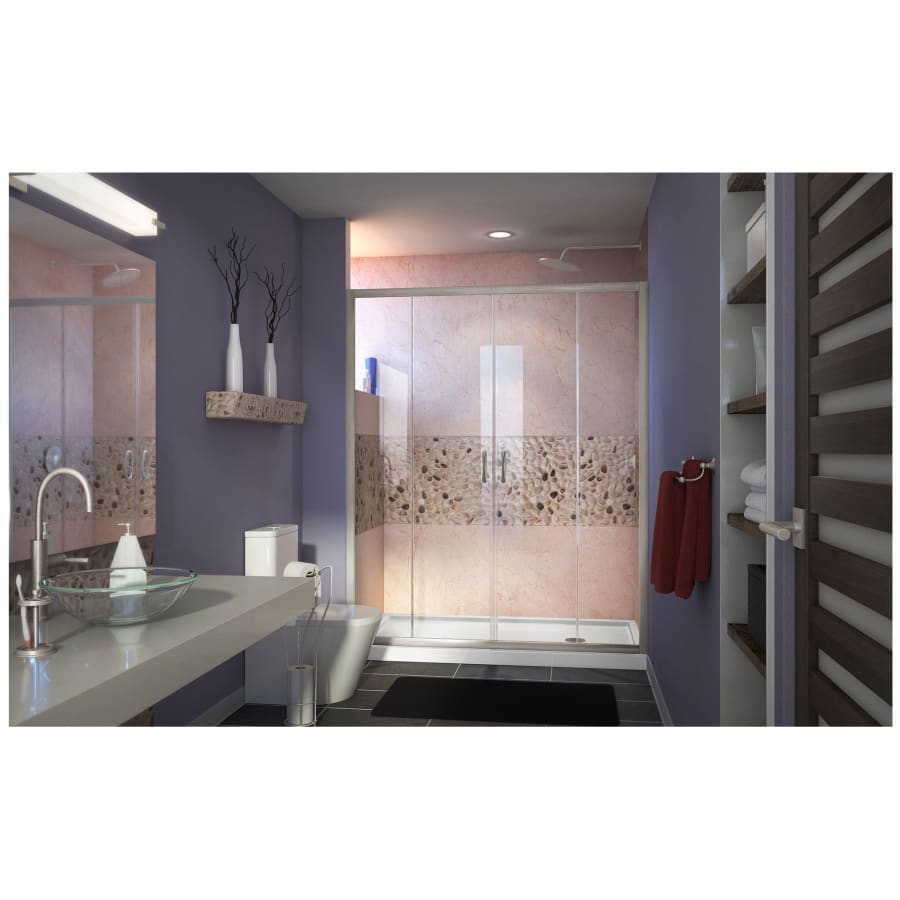

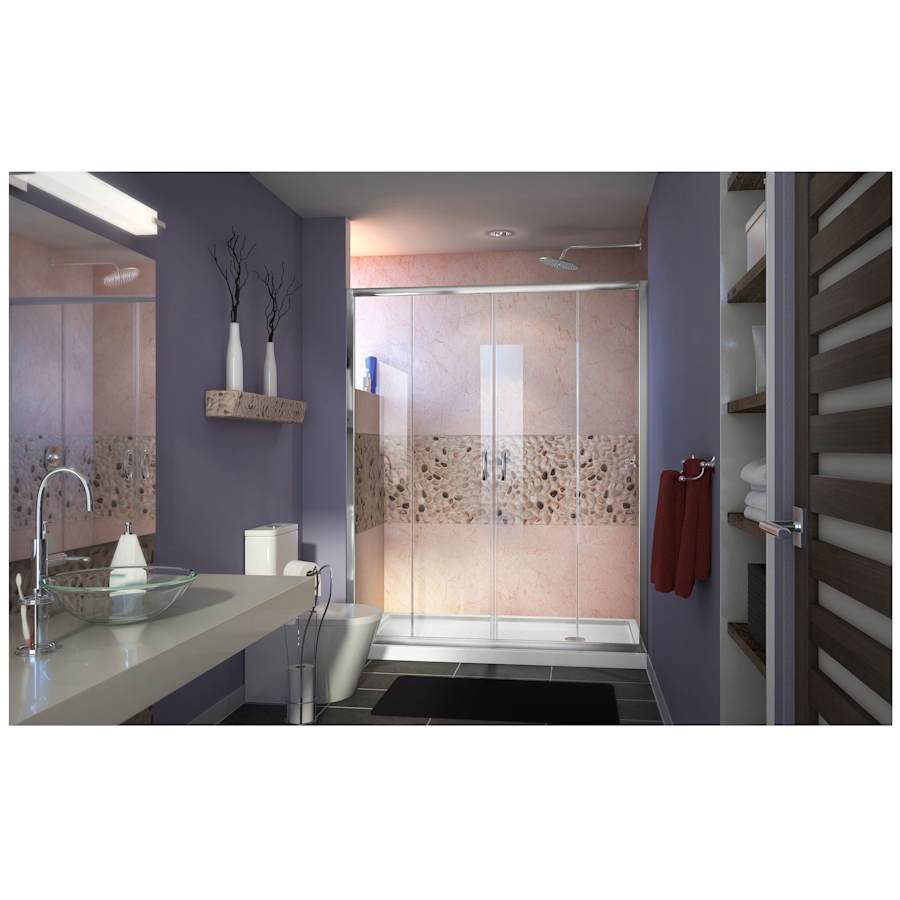

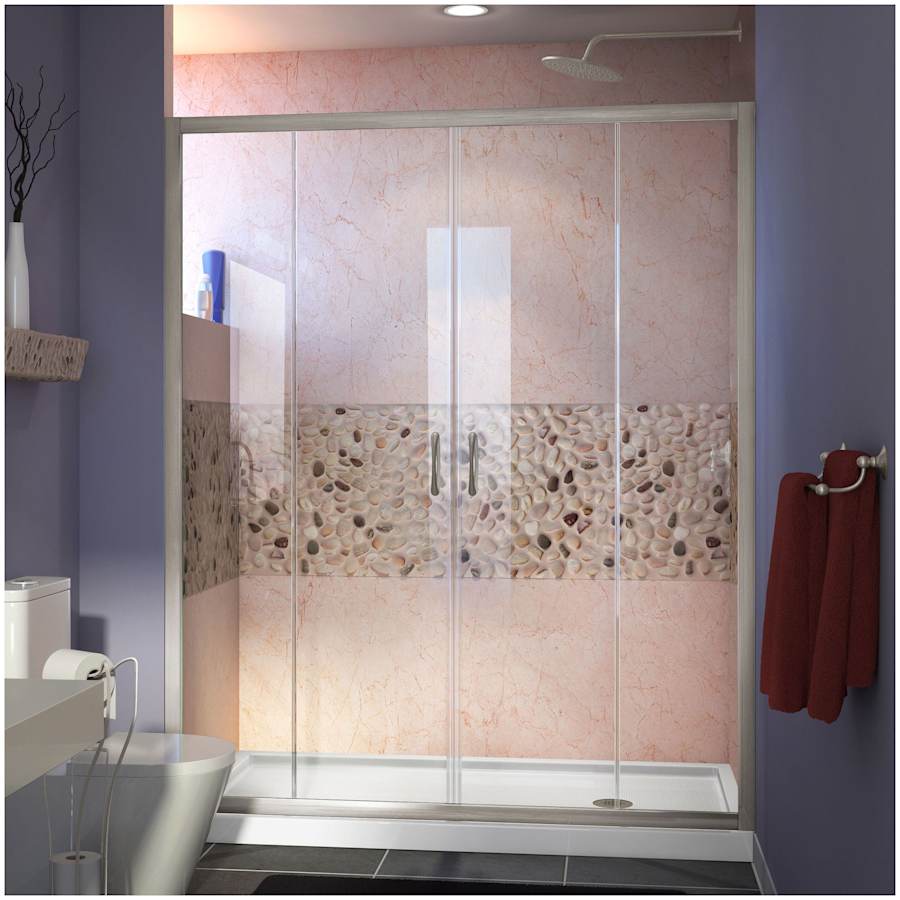

The DreamLine Visions shower or tub door offers breathtaking style for your shower area. Visions features a unique design with two stationary glass panels and two sliding glass panels that open to create an ample center point of entry. Fast release wheels make cleaning the glass and track a cinch.
DreamLine DL-6962R-CL Features:
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
Items included: Visions Shower Door and 34″ x 60″ Single Threshold Shower Base
Overall Kit Dimensions: 34″ D x 60″ W x 74-3/4″ H
Visions Shower Door:
56 – 60″ W x 72″ H

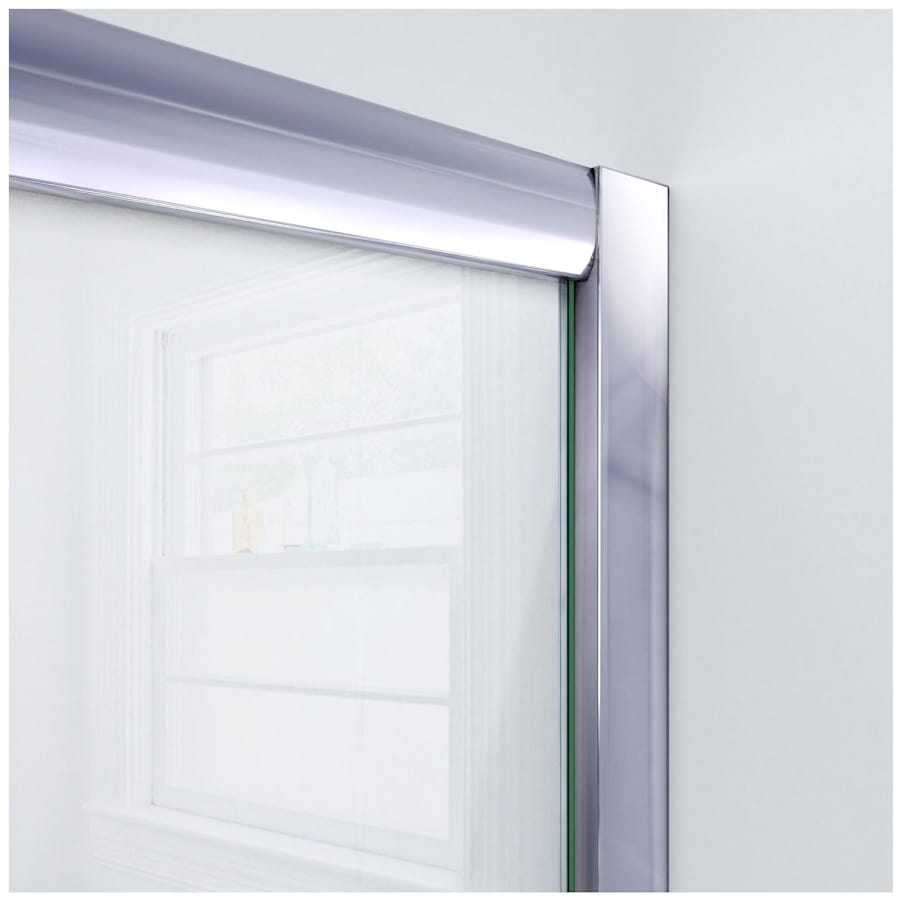

Frameless glass design

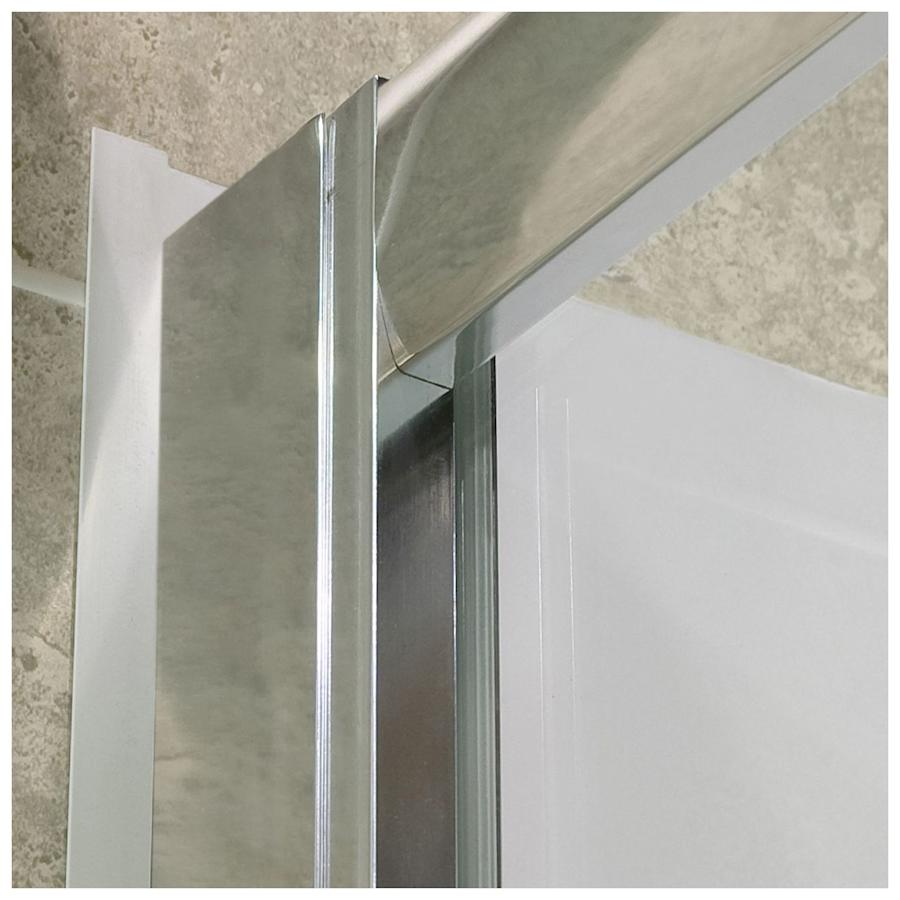

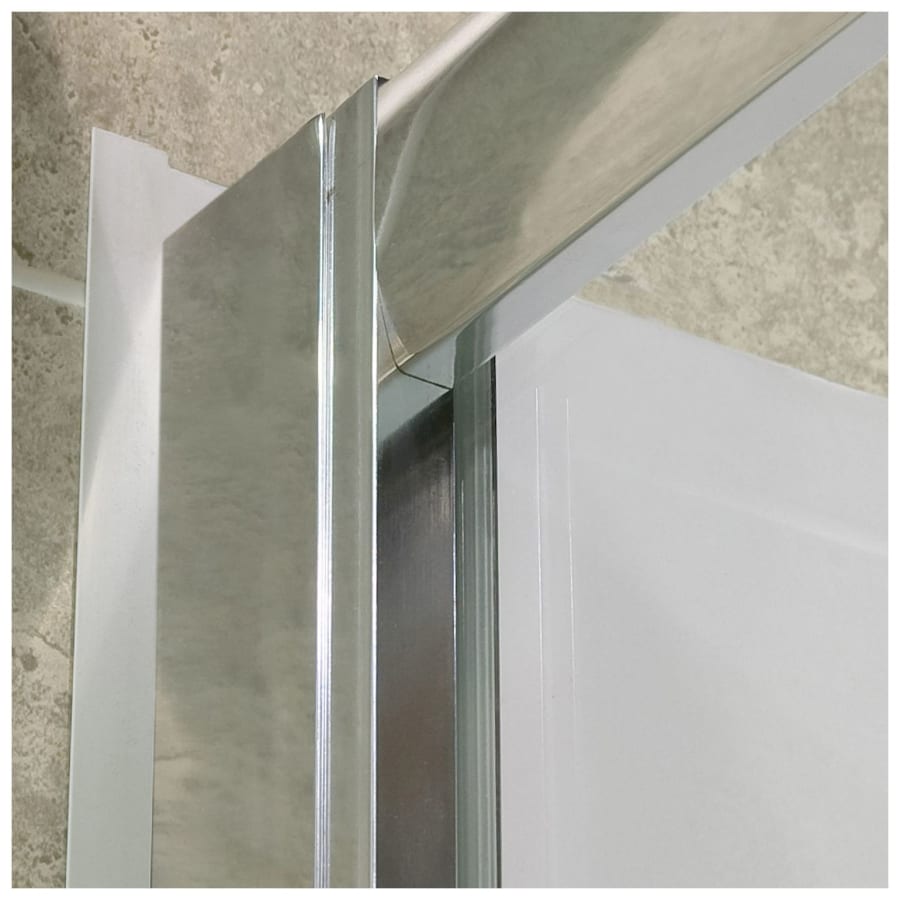

Anodized aluminum wall profiles allow up to 1″ out-of-plumb (vertical) adjustment on each side

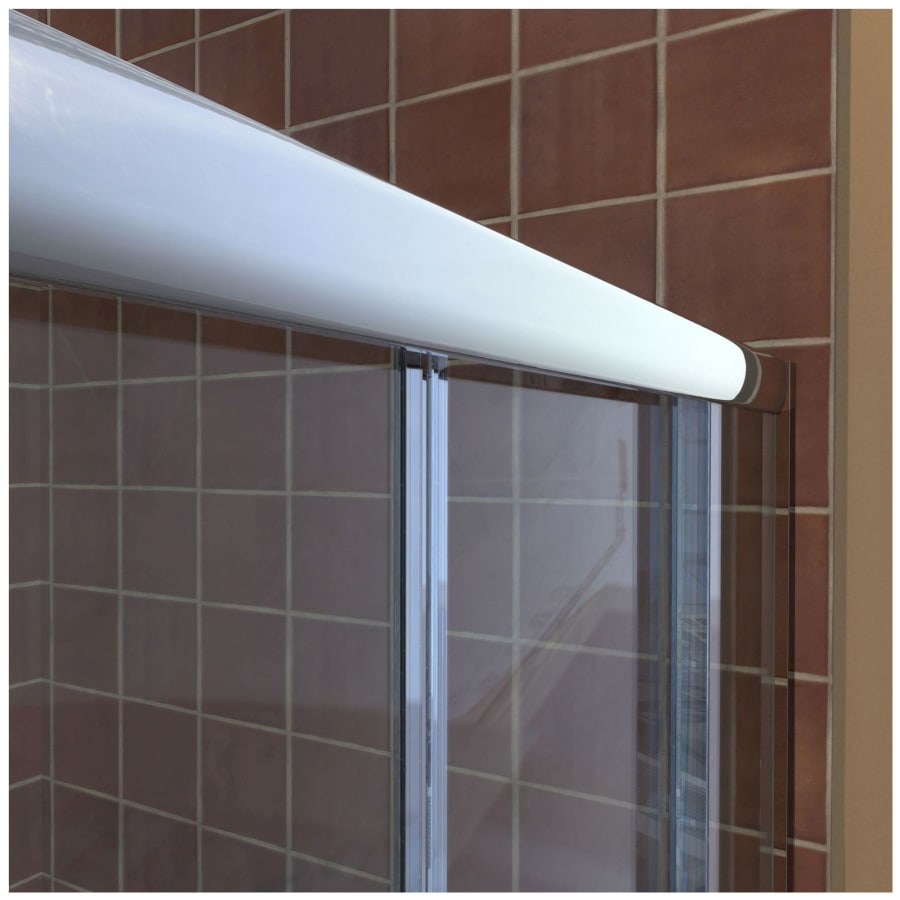

Anodized aluminum top and bottom guiderails can be trimmed 4″ for width (horizontal) adjustment
Two sliding panels flanked by two stationary panels create a center walk-in opening
1/4″ (6mm) thick clear tempered glass
Door Walk-In: 22 – 26″
Stationary Panel: Two 12-3/4″ panels
Professional installation recommended
Limited lifetime manufacturer warranty

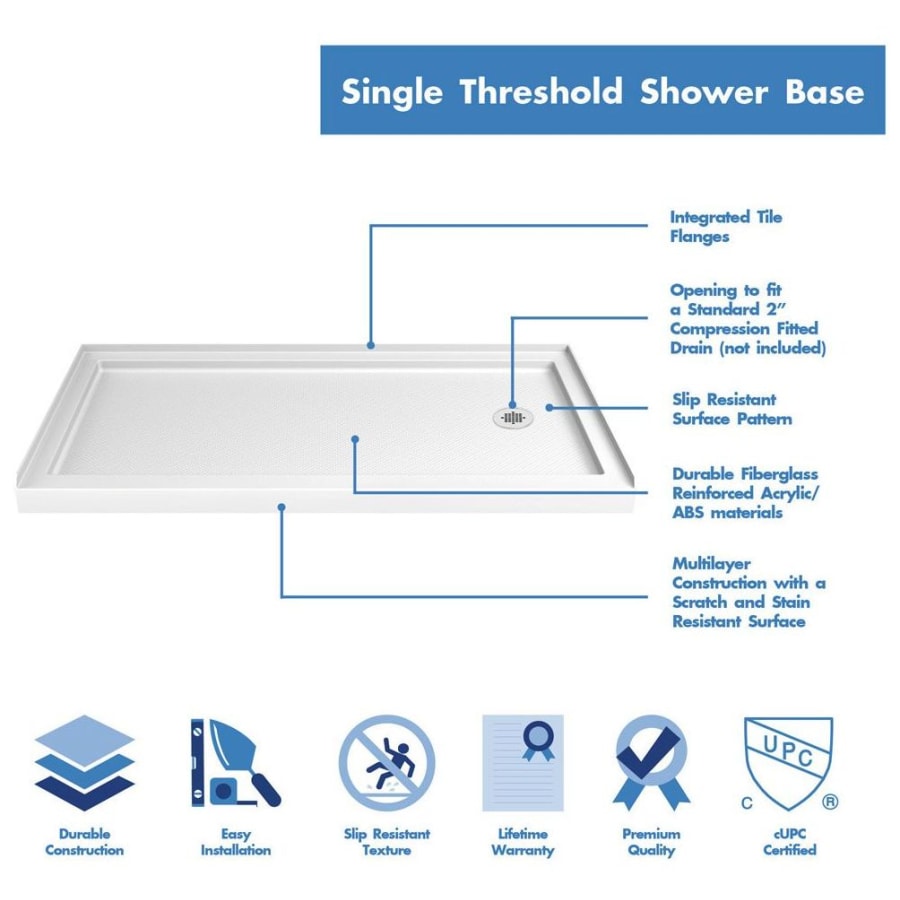

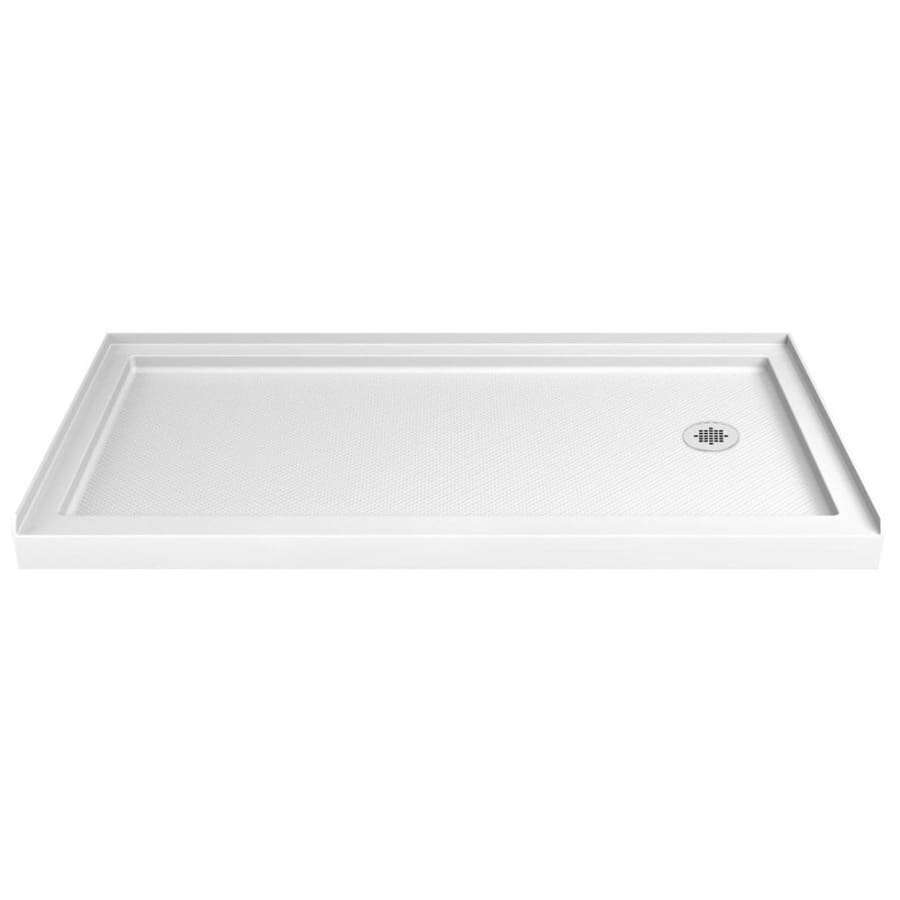

34″ x 60″ Single Threshold Shower Base:
High quality scratch and stain resistant acrylic

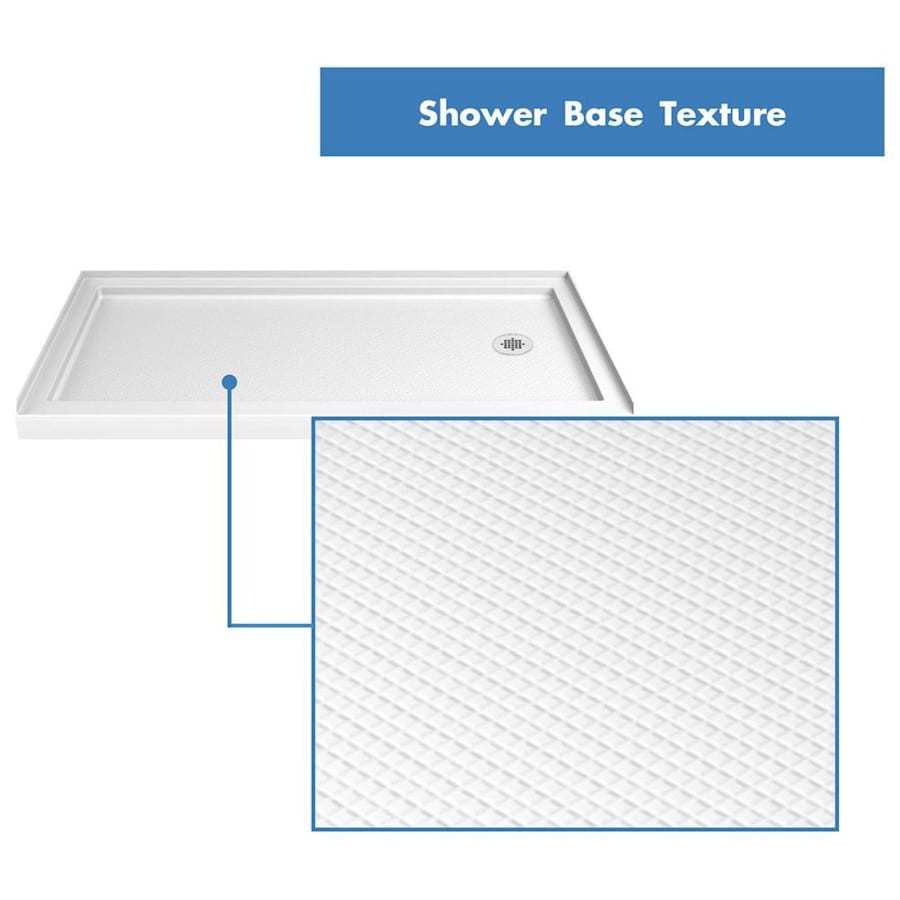

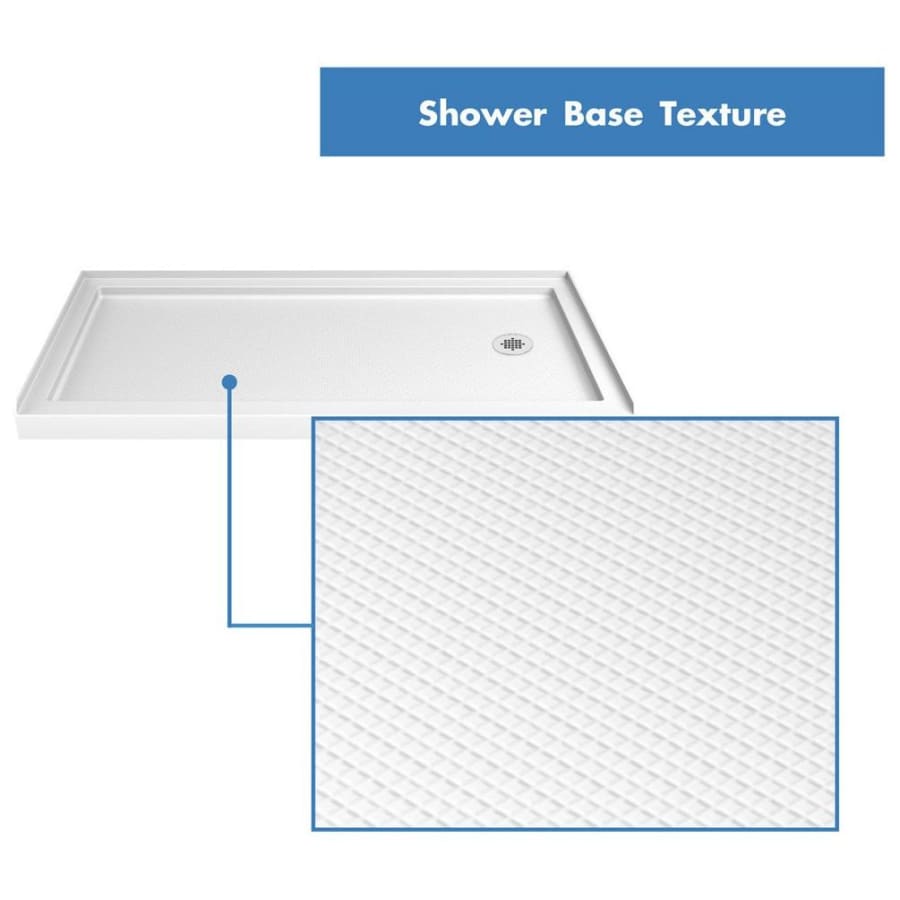

Slip-resistant textured floor for safe showering
Integrated tile flange for easy installation and waterproofing

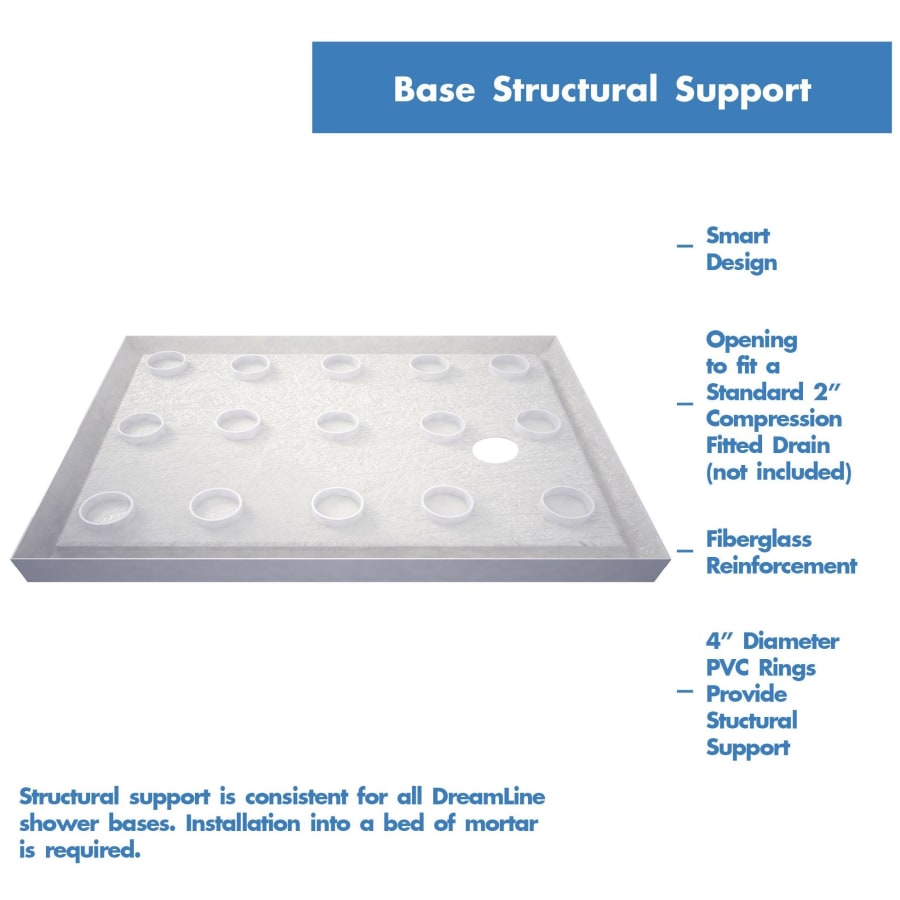

Fiberglass reinforcement for durability
cUPC certified
Drain is not included

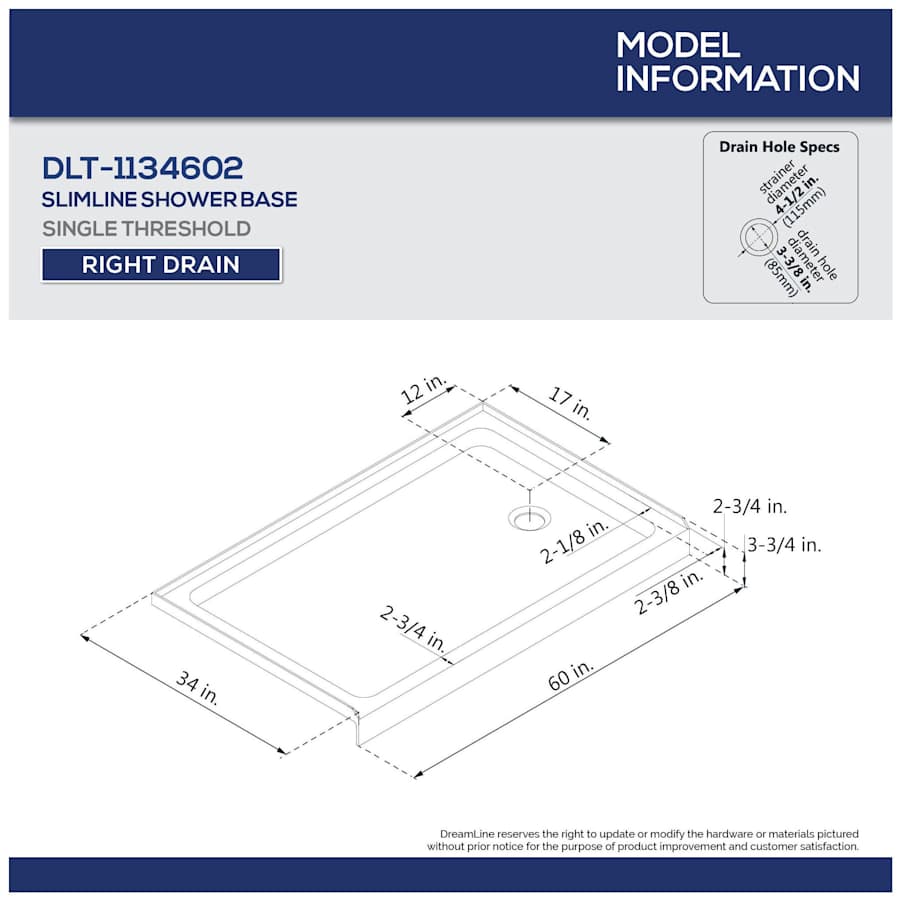

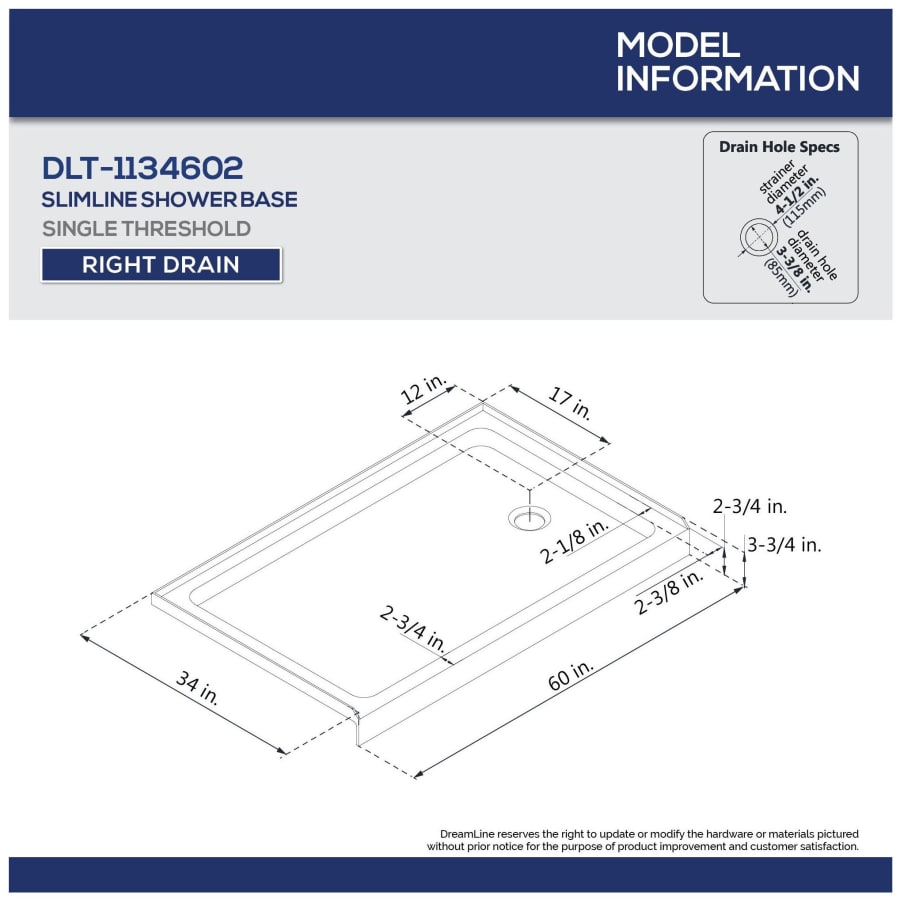

Right drain configuration. Please review the technical drawing for exact drain location
Limited lifetime manufacturer warranty
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Visions Collection
Specifications
| Height | 74.75 in. |
| Width | 60 in. |
| Depth | 34 in. |
| Nominal Width | 60 in. |
| Drain Connection | 3.25 in. |
| Product Weight | 150 lbs. |
| Door Width | 26 in. |
| Glass Thickness | .25 in. |
| Maximum Width | 60 in. |
| Minimum Width | 56 in. |
| Panel Width | 12.75 in. |
| Shower Door Width | 26 in. |
| Base Width | 34 in. |
| Bar Length | 60 in. |
| Glass Features | Clear Glass |
| Thermostat | Modern |
| Material | ABS, Acrylic, Aluminum, Tempered Glass |
| Drain Placement | Right |
| Insulation Type | Three Wall Alcove |
| Configuration | Shower Door |
| Curb Location | Front |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Number of Tile Flanges | 3 |
| Shape | Rectangular |
| Slip Resistant | Yes |
| Door Type | Sliding |
| Frame Type | Framed |
| Number Of Doors | 2 |
| Collection | Visions |
| Country Of Origin | China |
| Approved for Commercial Use | Yes |
| Certifications | UPC, ANSI |
| Manufacturer Warranty | Limited Lifetime |
| Commercial Warranty | 1 Year Limited |
| Drain Assembly Included | No |
| Tile Flange | Yes |
| Base Included | Yes |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
