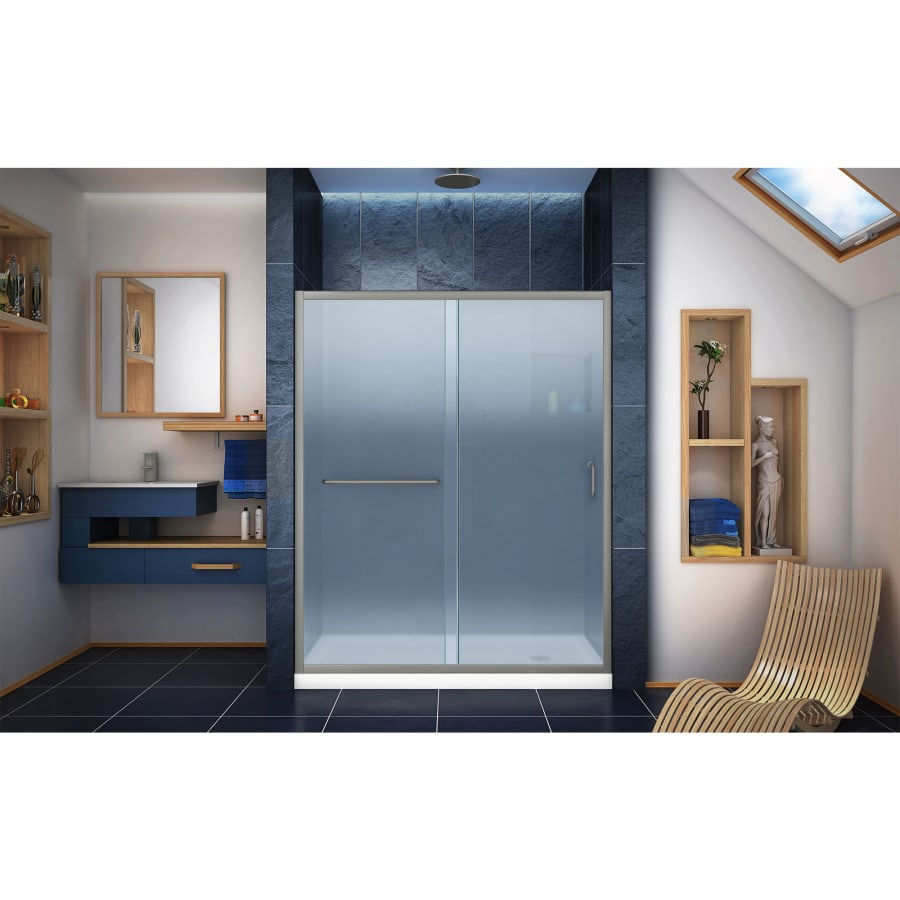

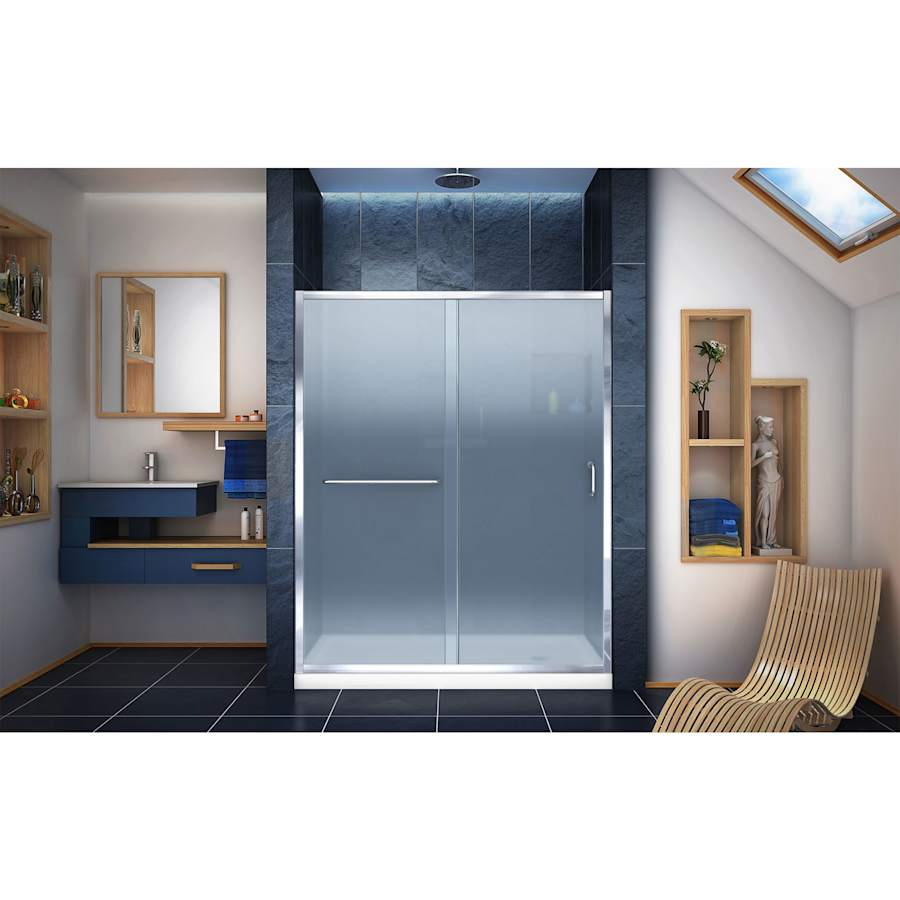

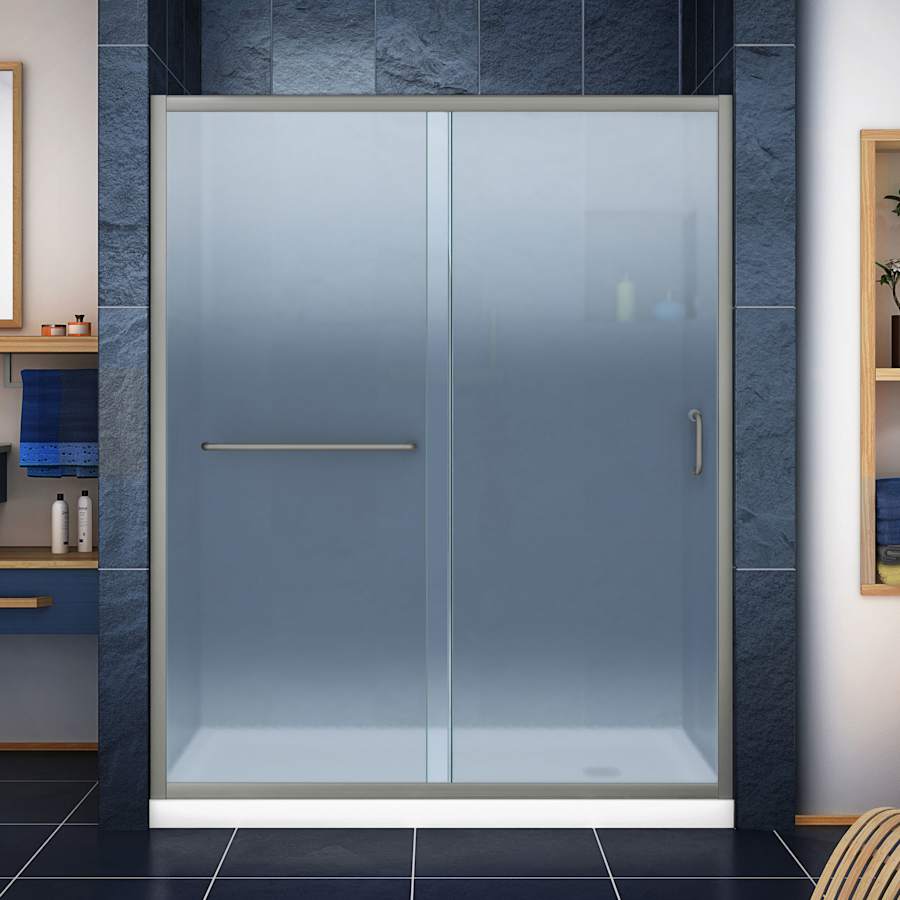

The DreamLine Infinity-Z sliding shower or tub door offers classic style with a modern touch. The Infinity-Z will transform your bathroom with a beautiful balance of functionality, elegance, and sophistication. A variety of finishes and glass options will match any bathroom decor. The SlimLine shower base completes the look with a low profile design for a sleek modern look. Choose the DreamLine Infinity-Z Kit for the ultimate solution to your shower project.
DreamLine DL-6972R-FR Features:
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
Items included: Infinity-Z Shower Door and 34″ x 60″ Single Threshold Shower Base
Overall Kit Dimensions: 34″ D x 60″ W x 74-3/4″ H
Infinity-Z Shower Door:
56 – 60″ W x 72″ H

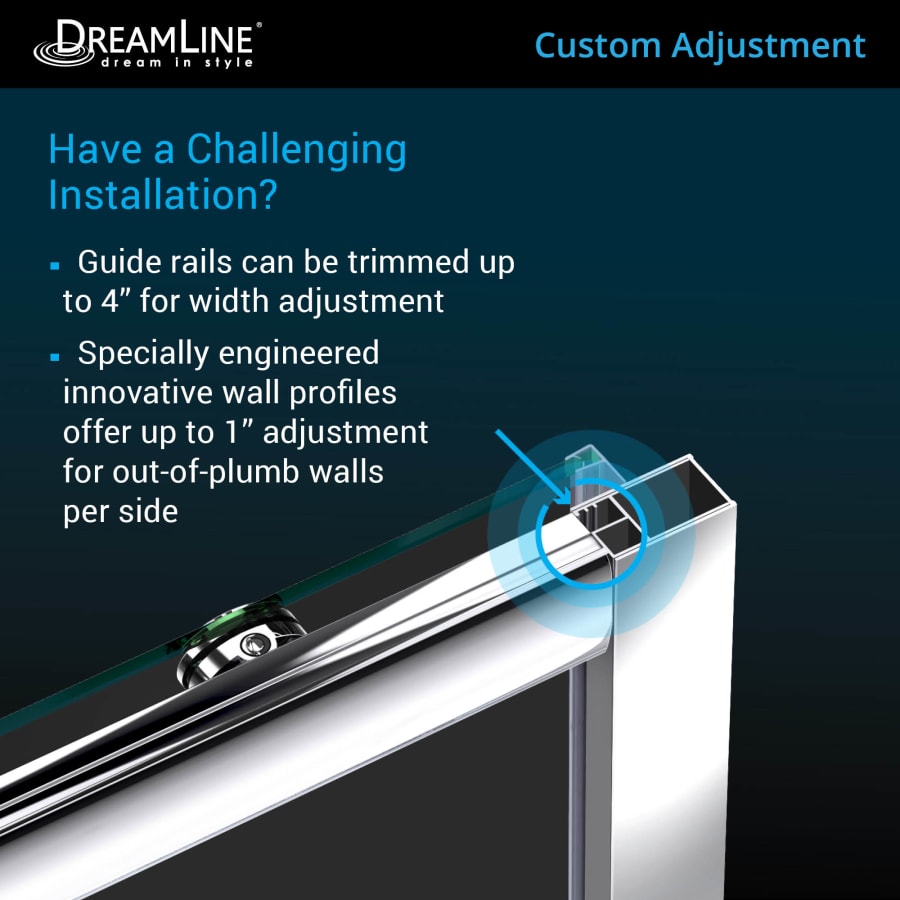

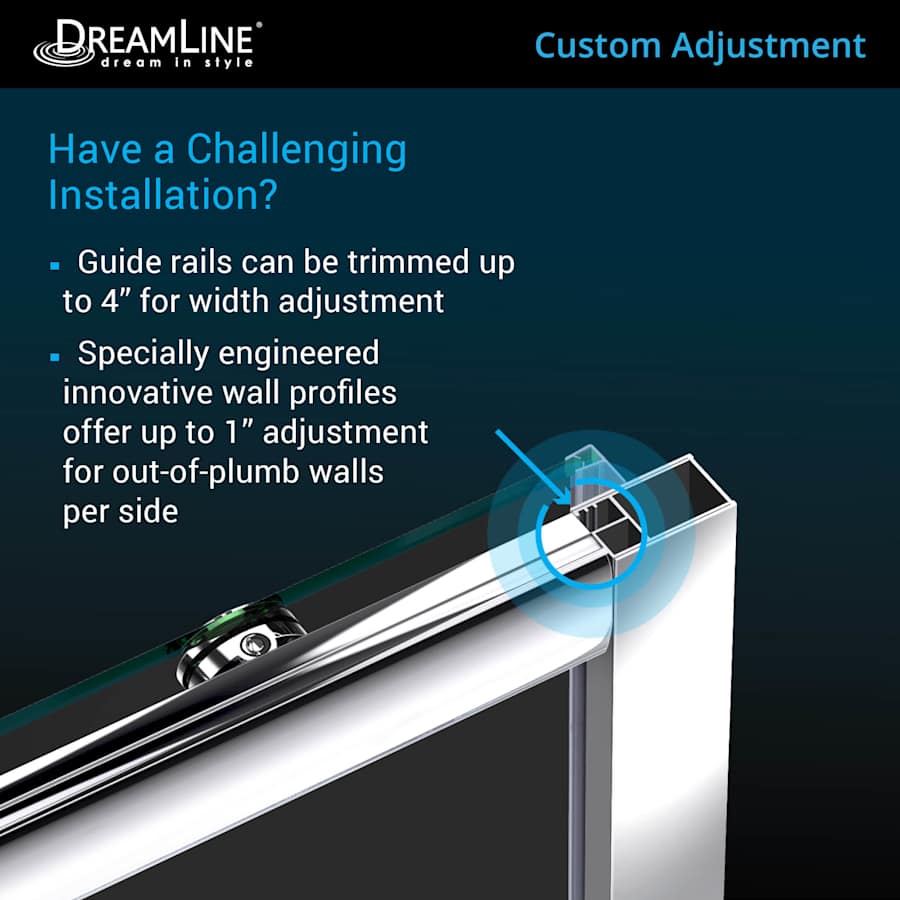

Anodized aluminum wall profiles provide up to 1″ width (horizontal) or out-of-plumb (vertical) adjustment
Frameless glass design
Model consists of single sliding panel and one stationary inline panel

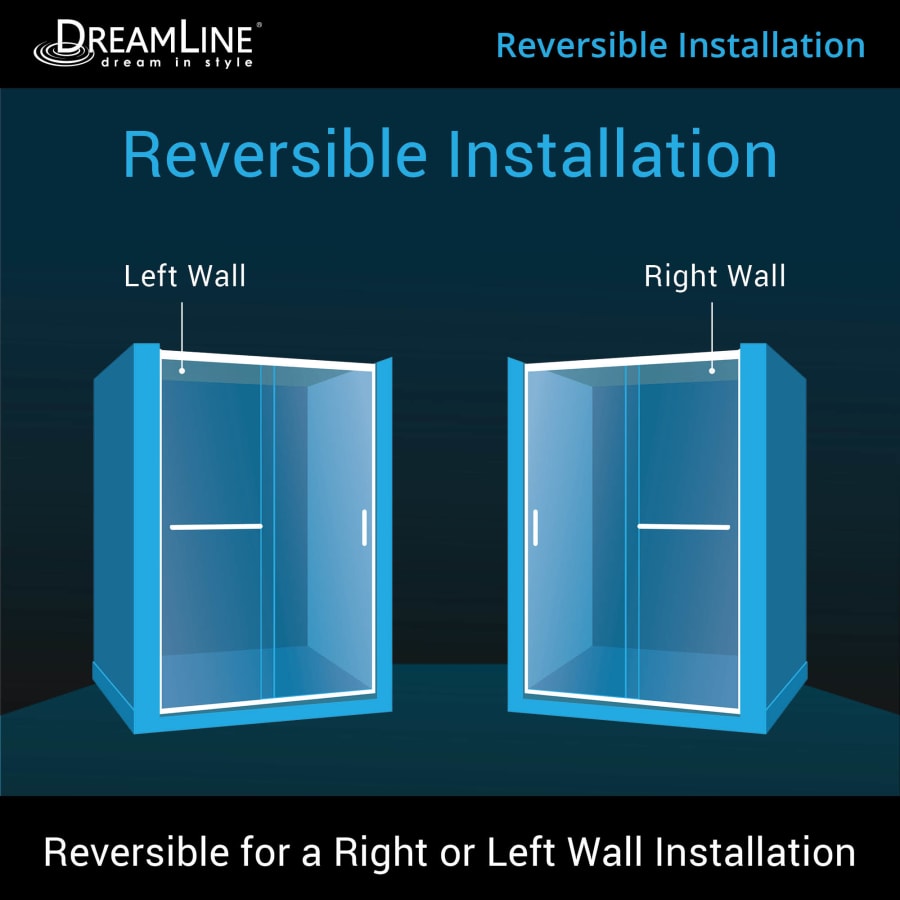

Reversible for right or left door opening installation
1/4″ (6mm) thick frosted tempered glass
Door Walk-In: 21-3/8 – 25-3/8″
Stationary Panel: 27″

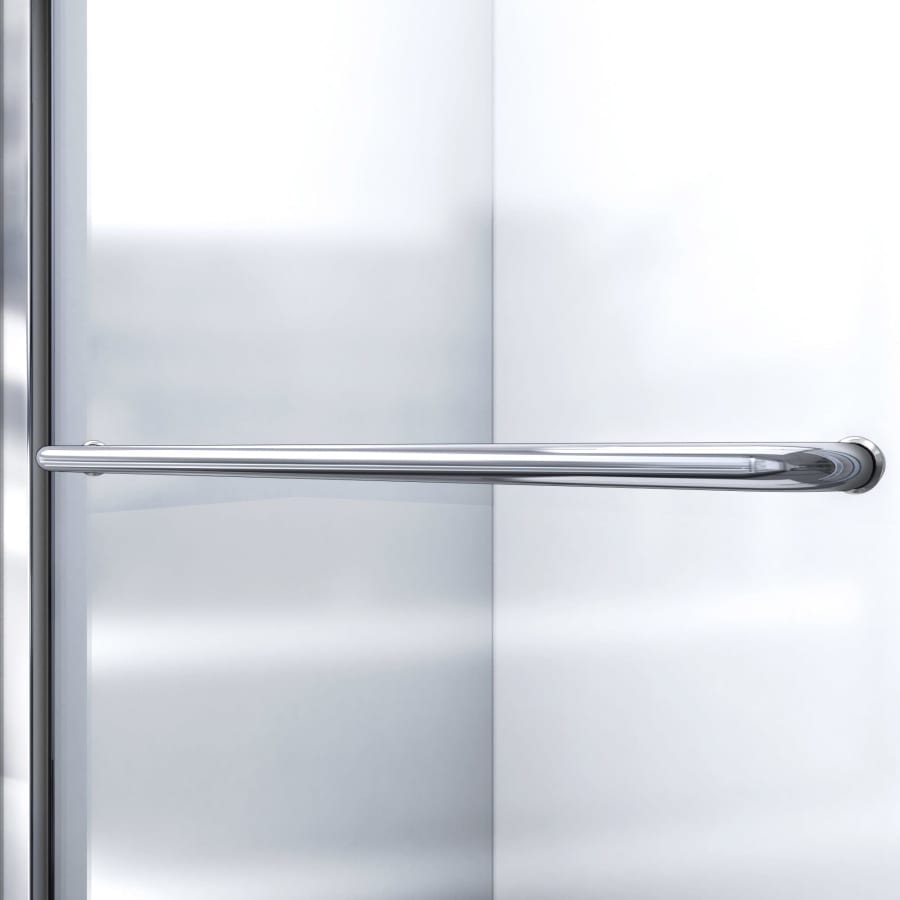

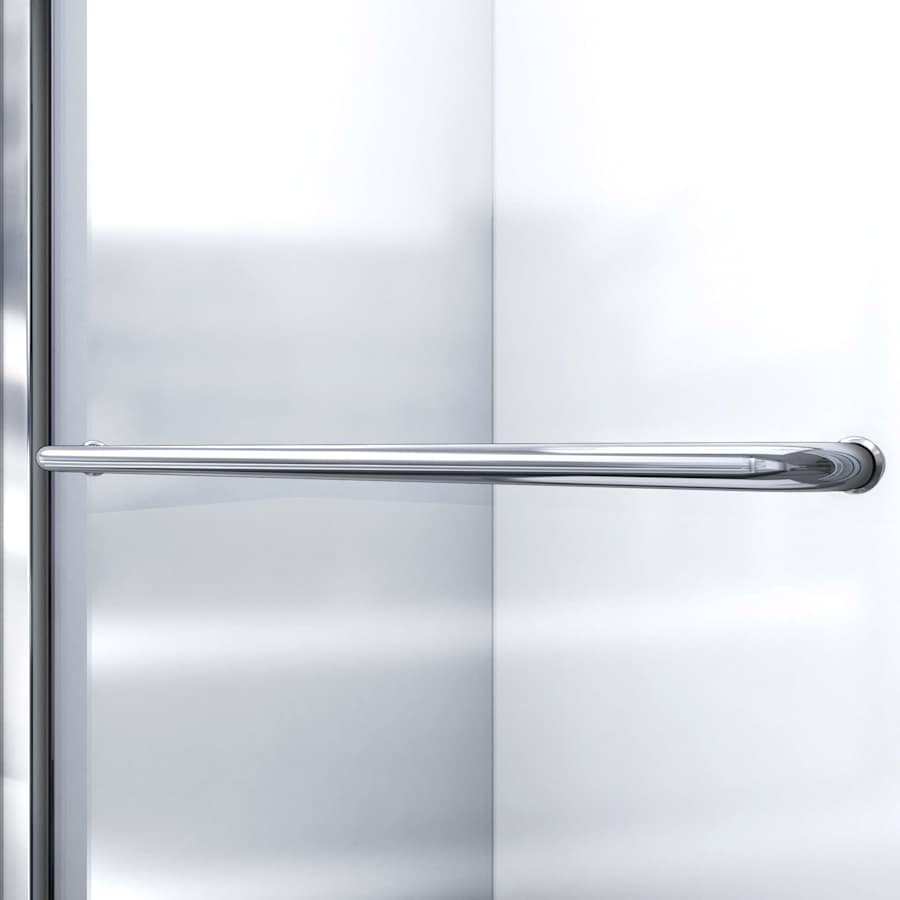

Convenient towel bar on stationary panel
Professional installation required

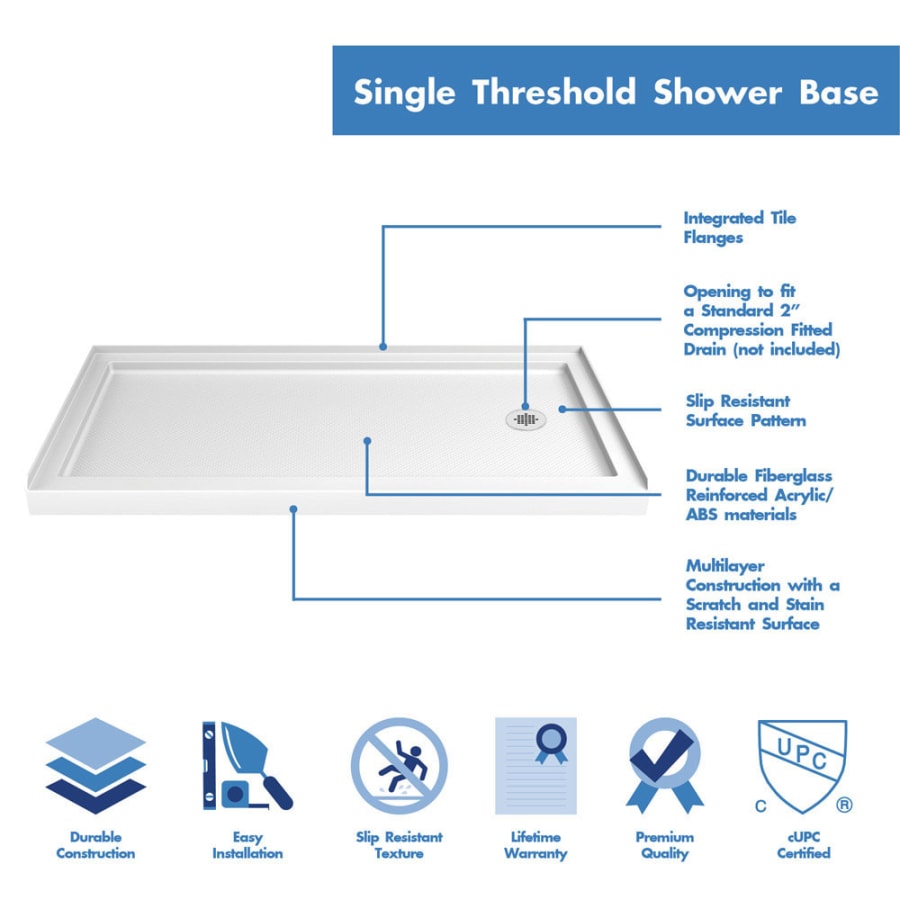

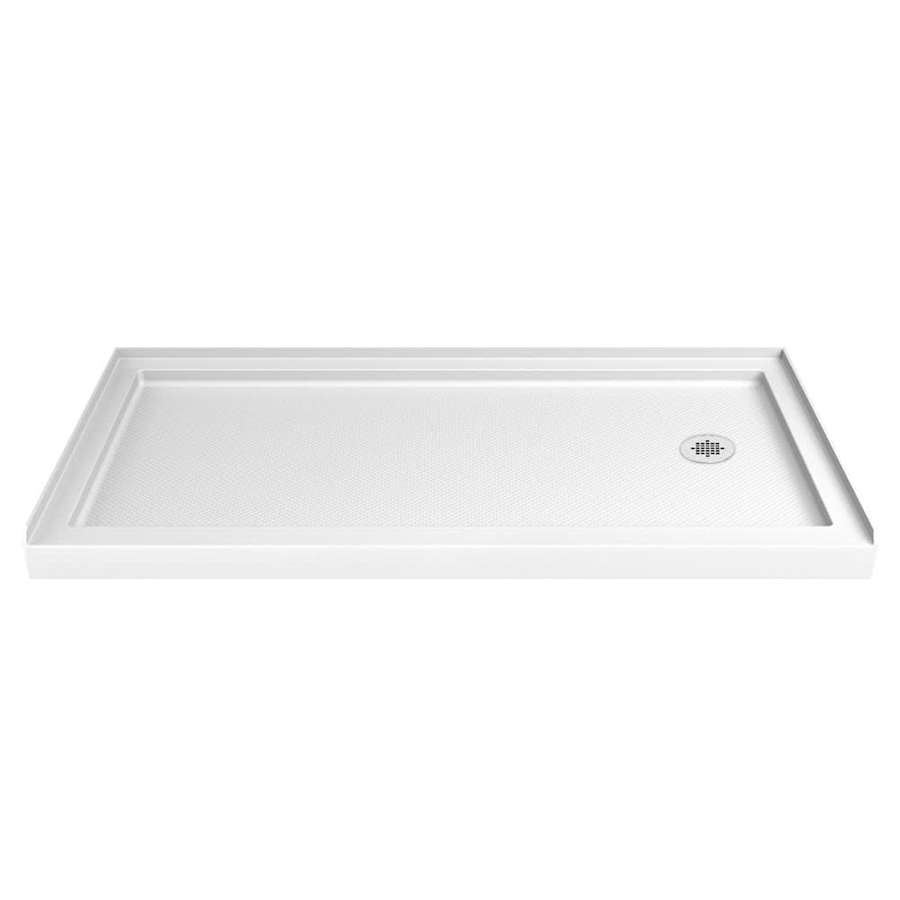

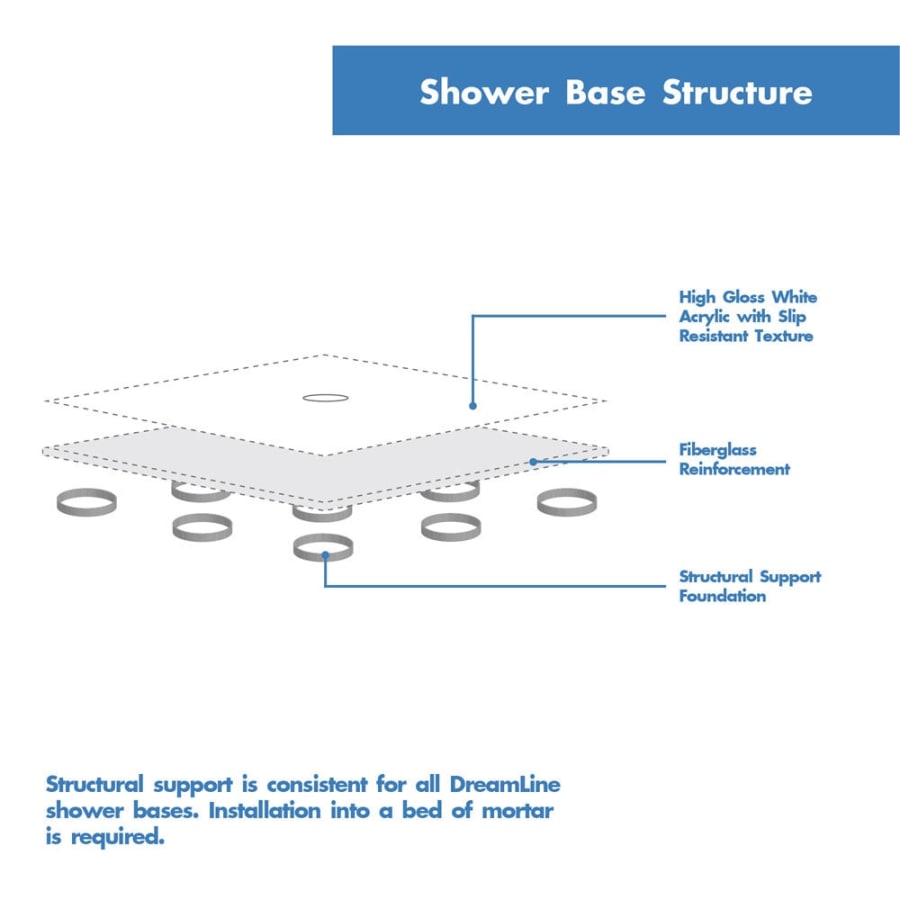

34″ x 60″ Single Threshold Shower Base:
High quality scratch and stain resistant acrylic
Slip-resistant textured floor for safe showering
Integrated tile flange for easy installation and waterproofing

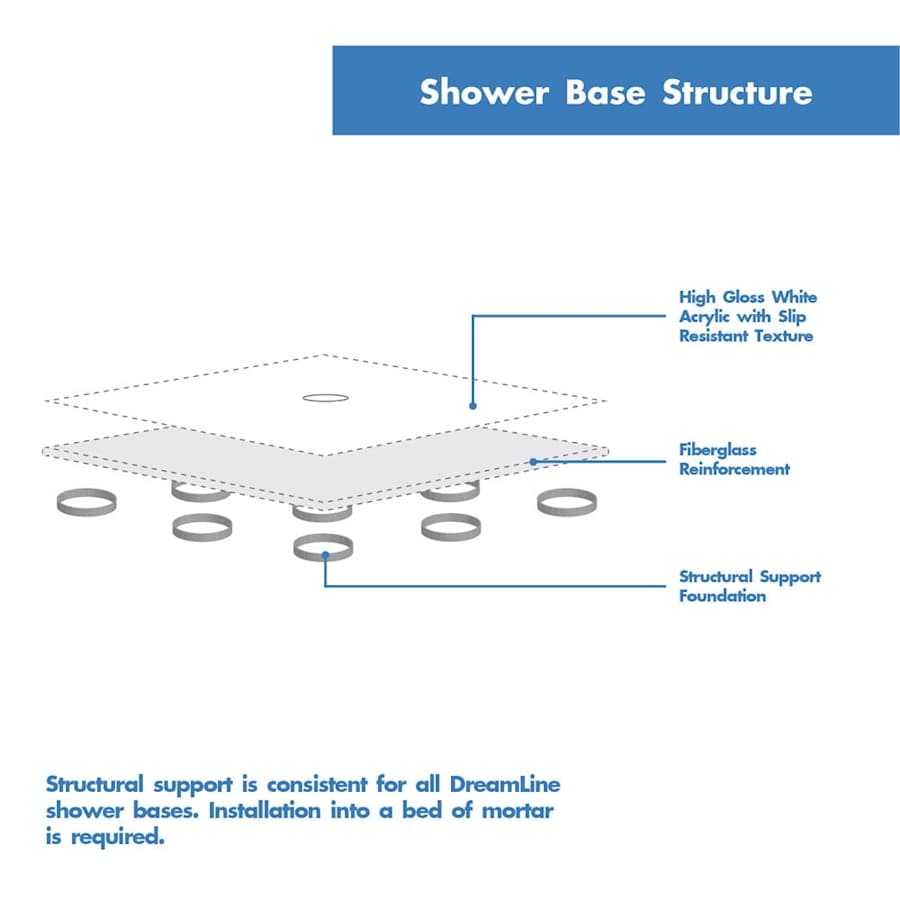

Fiberglass reinforcement for durability
cUPC certified
Drain is not included

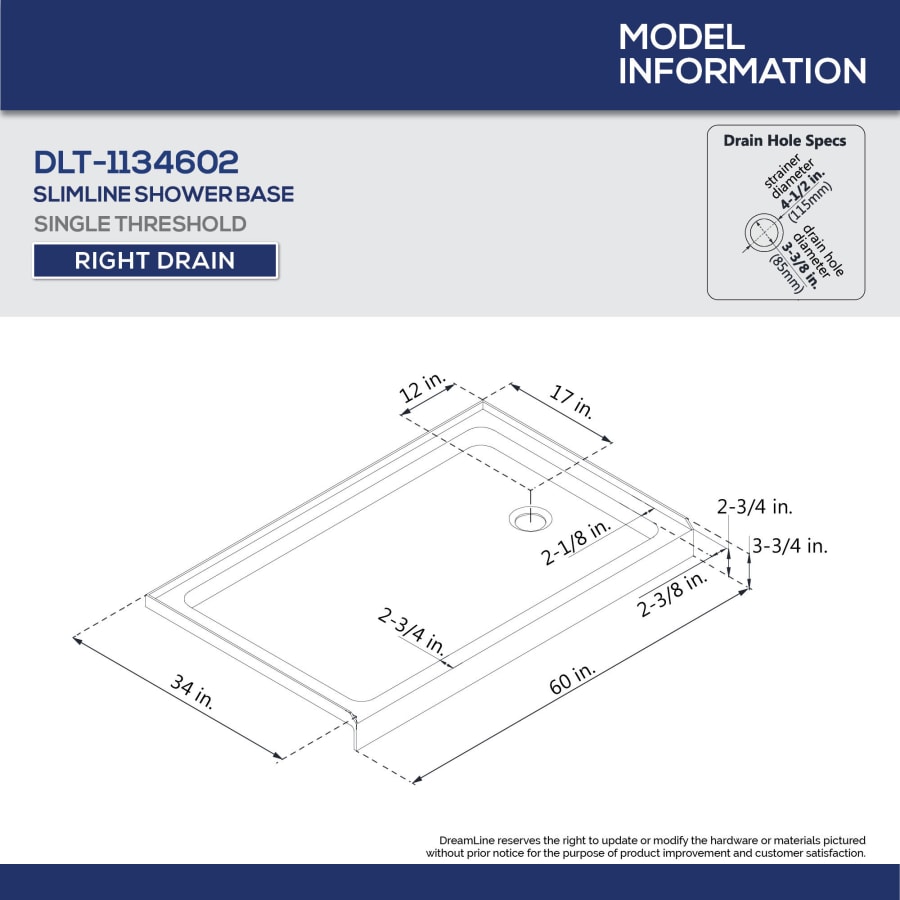

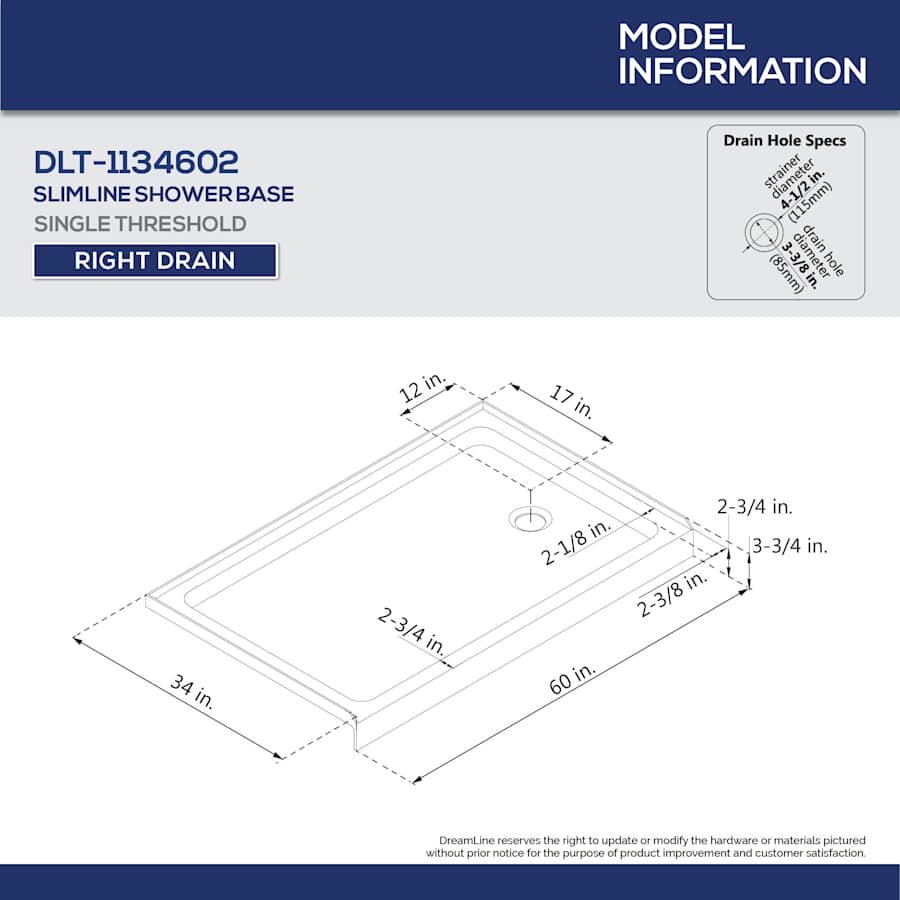

Right drain configuration. Please review the technical drawing for exact drain location
Limited lifetime manufacturer warranty
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Infinity-Z Collection
Specifications
| Product Weight | 150 lbs. |
| Width | 60 in. |
| Base Width | 34 in. |
| Height | 74.75 in. |
| Depth | 34 in. |
| Nominal Width | 60 in. |
| Drain Connection | 3.25 in. |
| Glass Thickness | .25 in. |
| Maximum Width | 60 in. |
| Door Width | 25.375 in. |
| Minimum Width | 56 in. |
| Panel Width | 27 in. |
| Shower Door Width | 25.375 in. |
| Bar Length | 60 in. |
| Material | ABS, Acrylic, Aluminum, Tempered Glass |
| Thermostat | Modern |
| Insulation Type | Three Wall Alcove |
| Frame Type | Framed |
| Glass Features | Frosted Glass |
| Drain Placement | Right |
| Configuration | Shower Door |
| Slip Resistant | Yes |
| Door Swing | Left, Right, Reversible |
| Number Of Doors | 1 |
| Shape | Rectangular |
| Door Type | Sliding |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Curb Location | Front |
| Number of Tile Flanges | 3 |
| Approved for Commercial Use | Yes |
| Collection | Infinity-Z |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UPC, ANSI |
| Commercial Warranty | 1 Year Limited |
| Drain Assembly Included | No |
| Tile Flange | Yes |
| Base Included | Yes |
| Towel Bar Included | Yes |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
