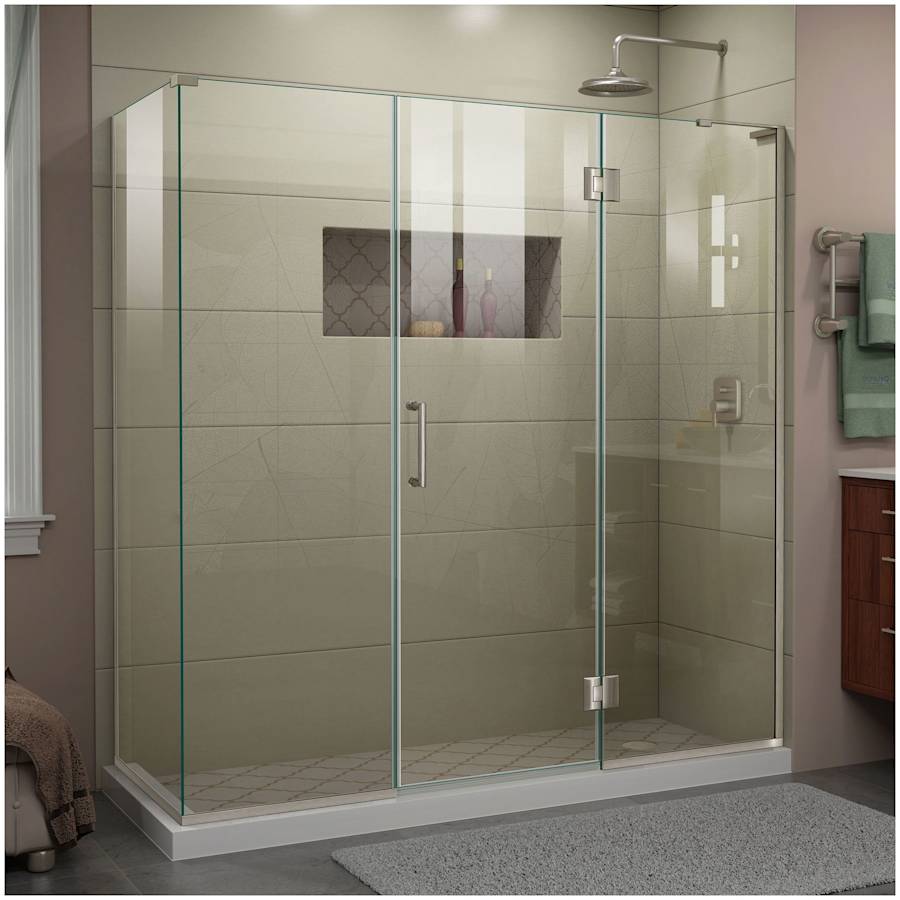

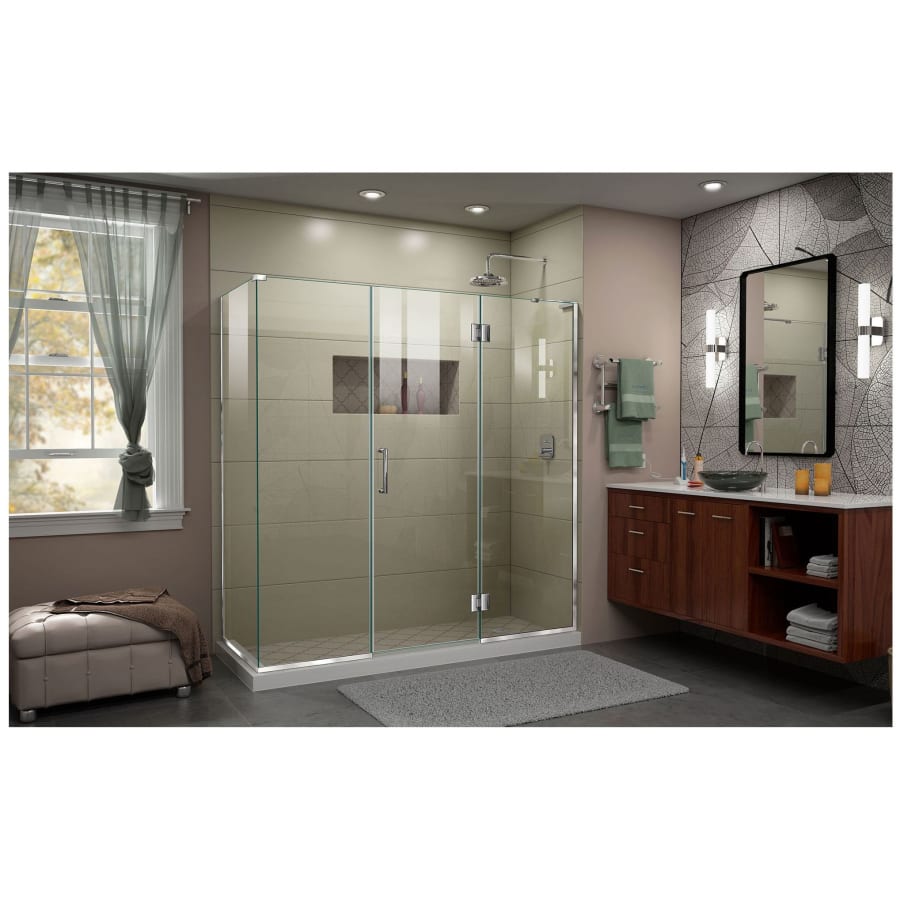

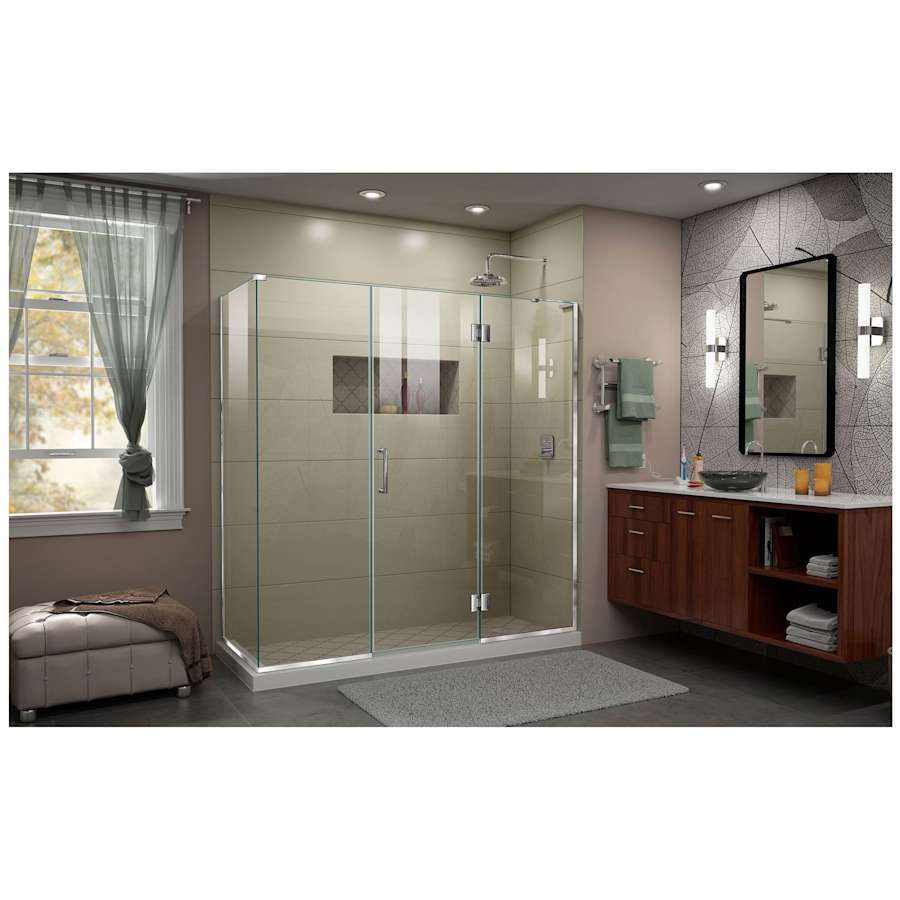

The DreamLine Unidoor-X is a frameless shower door, tub door or enclosure that features a luxurious modern design, complementing the architectural details, tile patterns, and the composition of your bath space. Unidoor-X showcases sleek, clean lines to enhance any shower space, creating a stunning appearance. DreamLine exclusive ClearMax water repellant and stain resistant glass coating adds superior protection from stains and is nearly maintenance-free. Unidoor-X is part of DreamLine Unidoor collection, the most versatile line of shower doors and enclosures on the market.
DreamLine E32422534R Features:

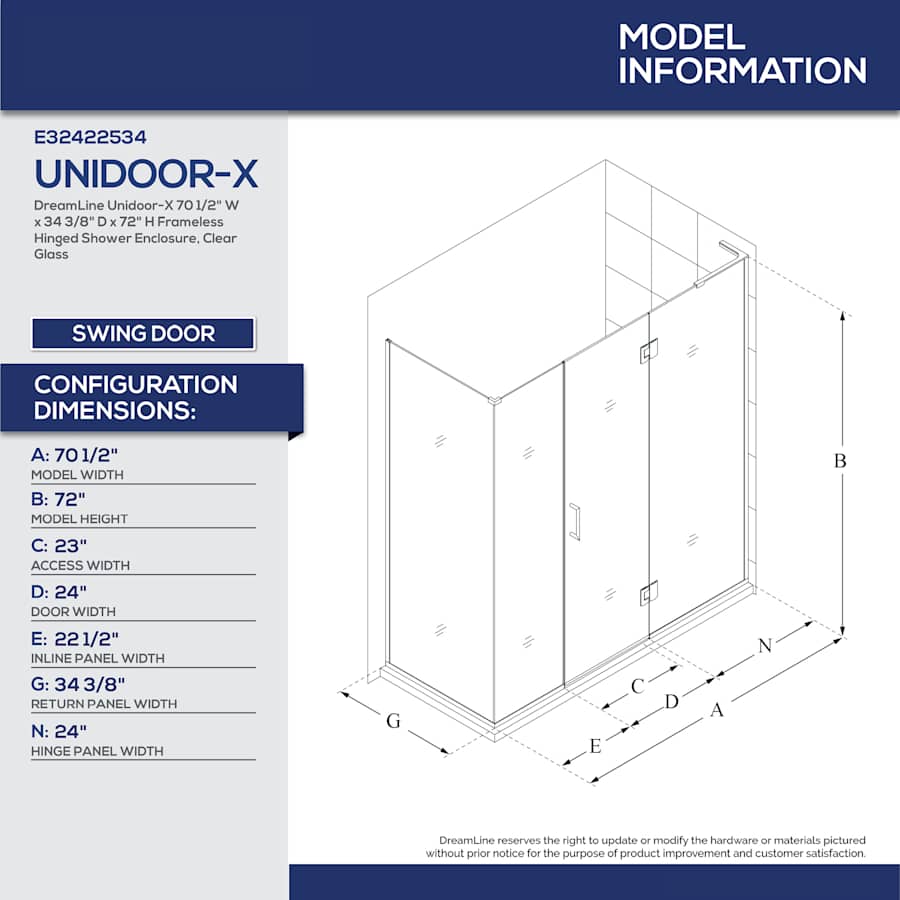

Model Size: 70-1/2″ W x 34-3/8″ D x 72″ H
Walk-In Opening: 23″
Configuration: 24″ hinged panel with attached shower door, 22-1/2″ inline panel, and 34-3/8″ return panel
Hinged and return panels are attached to the wall by 1″ anodized aluminum U-channel
1/2″ width or out-of-plumb adjustment available within U-channel on return panel side
1/4″ out-of-plumb adjustment available within U-channel on hinged panel side
Fully frameless glass design to give an open and airy feel to your shower space

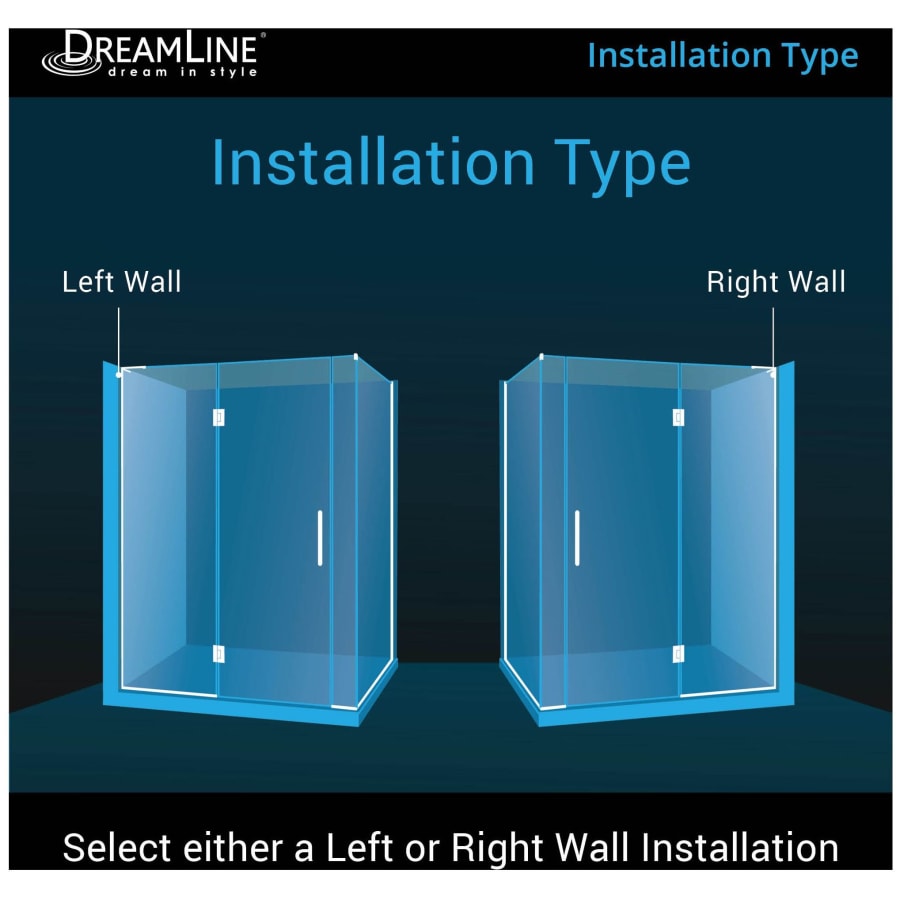

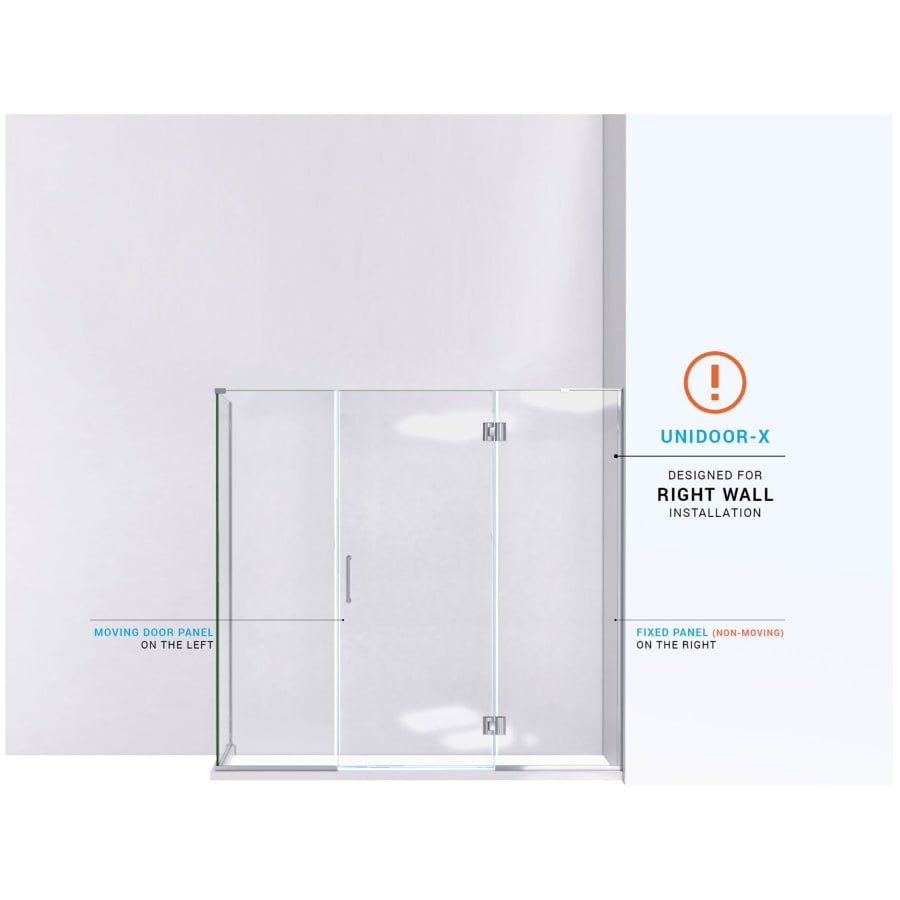

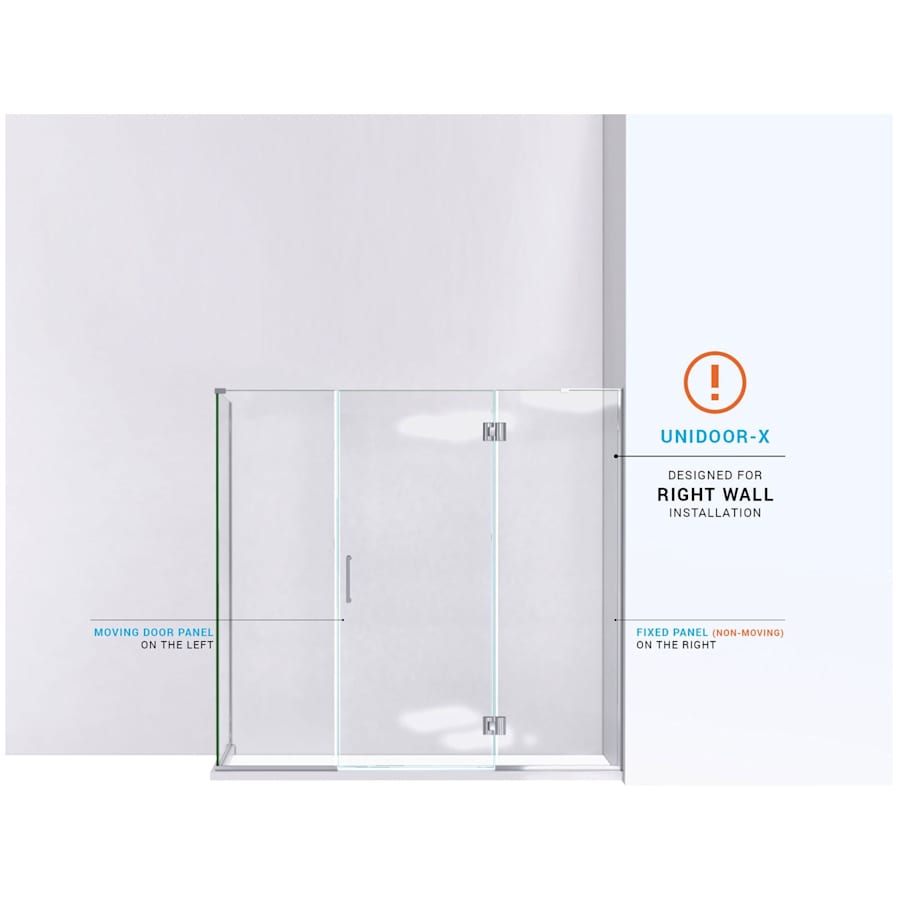

Right door opening to fit your specific layout
Inline panel is attached to the wall by solid brass brackets

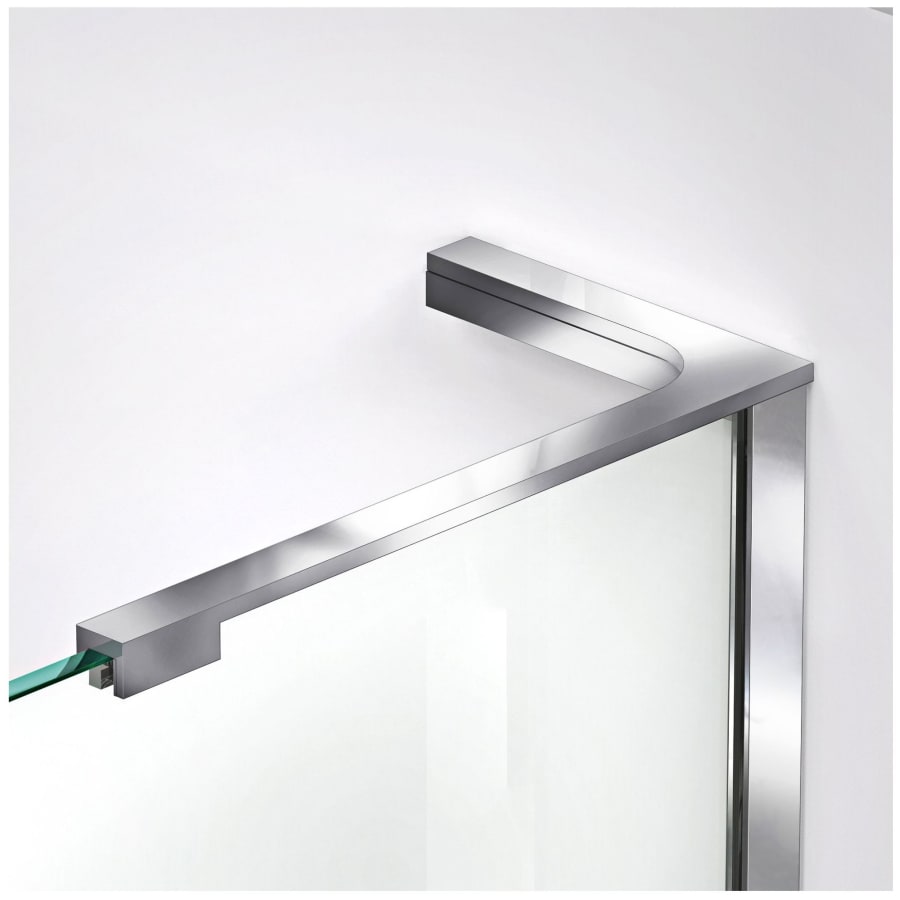

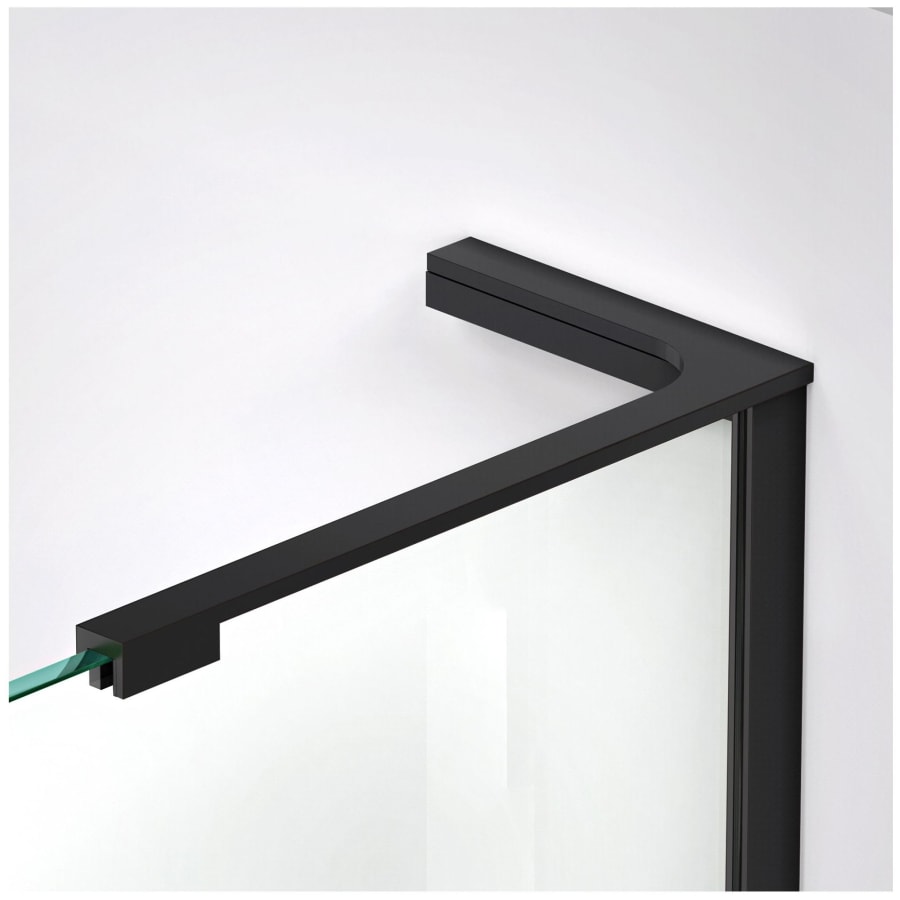

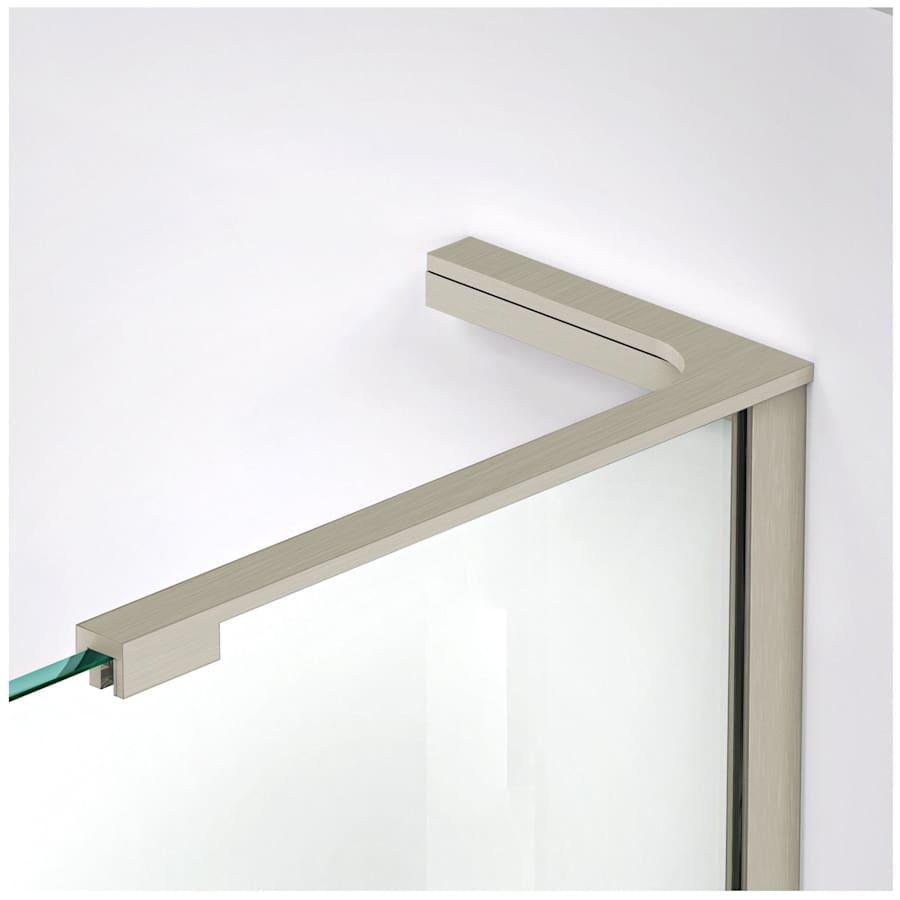

L-Bar support bracket provides an unobstructed, clean look
Solid brass wall-to-glass self-closing hinges
Pictured SlimLine shower base is not included
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, back walls, etc.)
Professional installation recommended, 2 person team necessary for proper installation

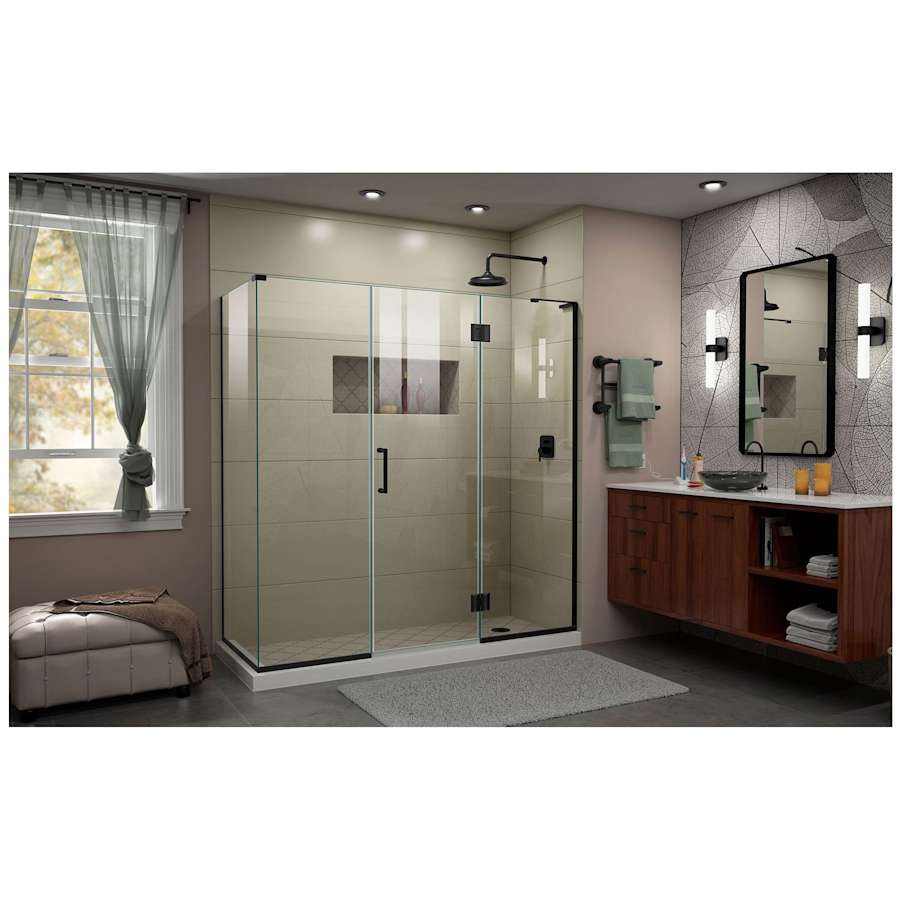

Limited lifetime DreamLine warranty (Oil Rubbed Bronze and Matte Black finishes limited to 1 (one) year warranty)
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Unidoor-X Collection
Specifications
| Height | 72 in. |
| Width | 70.5 in. |
| Depth | 34.375 in. |
| Nominal Width | 70.5 in. |
| Product Weight | 294.98 lbs. |
| Door Width | 23 in. |
| Glass Thickness | .375 in. |
| Maximum Width | 70.5 in. |
| Minimum Width | 70.5 in. |
| Panel Width | 24, 22.5 in. |
| Thermostat | Modern |
| Glass Features | Clear Glass |
| Material | Aluminum, Brass, Tempered Glass |
| Insulation Type | Corner |
| Shape | Rectangular |
| Configuration | Shower Enclosure |
| Door Swing | Right |
| Door Type | Hinged |
| Frame Type | Frameless |
| Number Of Doors | 1 |
| Collection | Unidoor-X |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | Yes |
| Commercial Warranty | 1 Year Limited |
| Installation Hardware Included | Yes |
| Base Included | No |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
