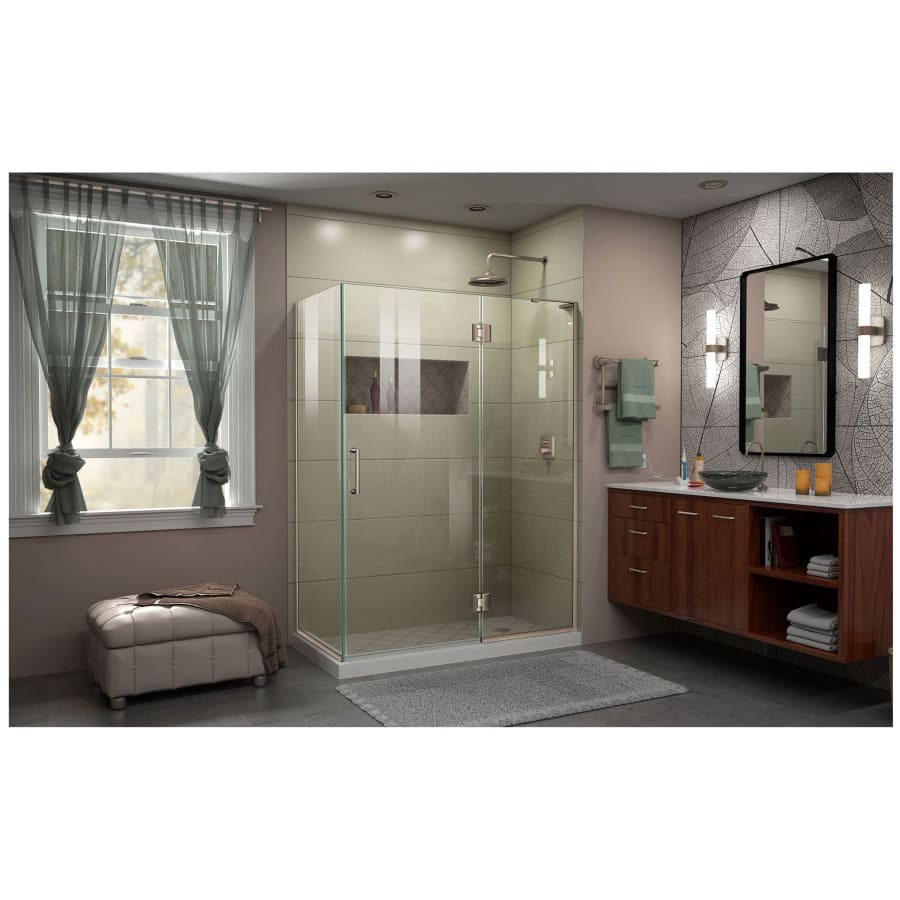

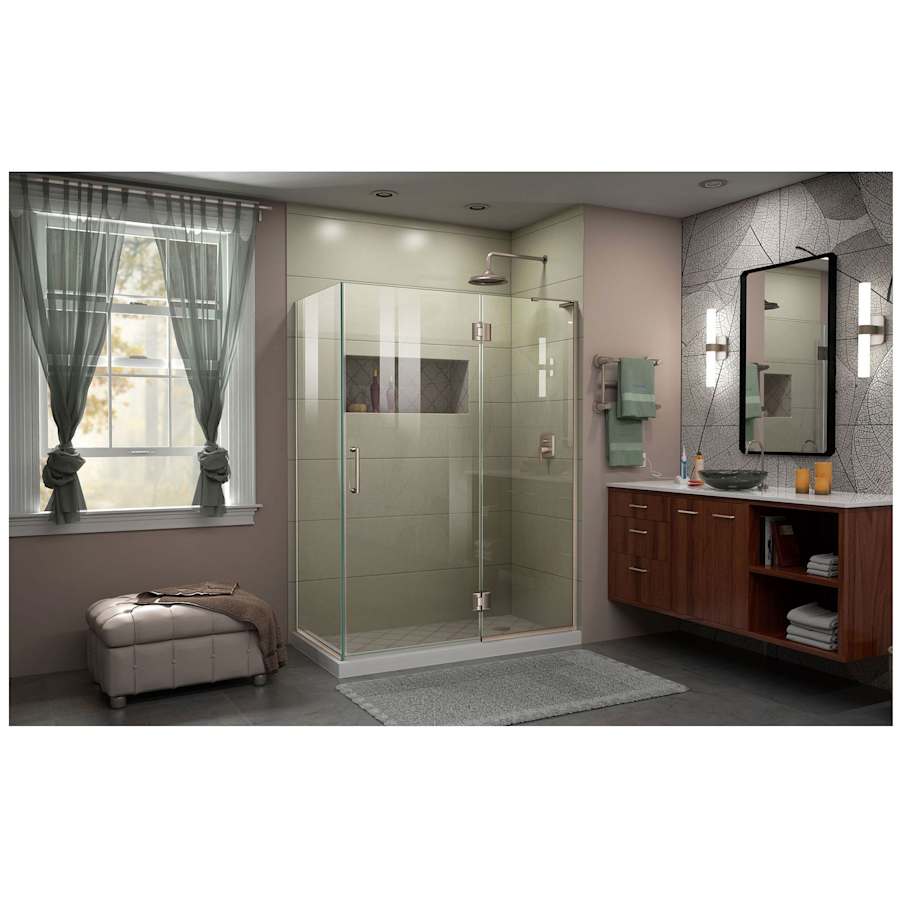

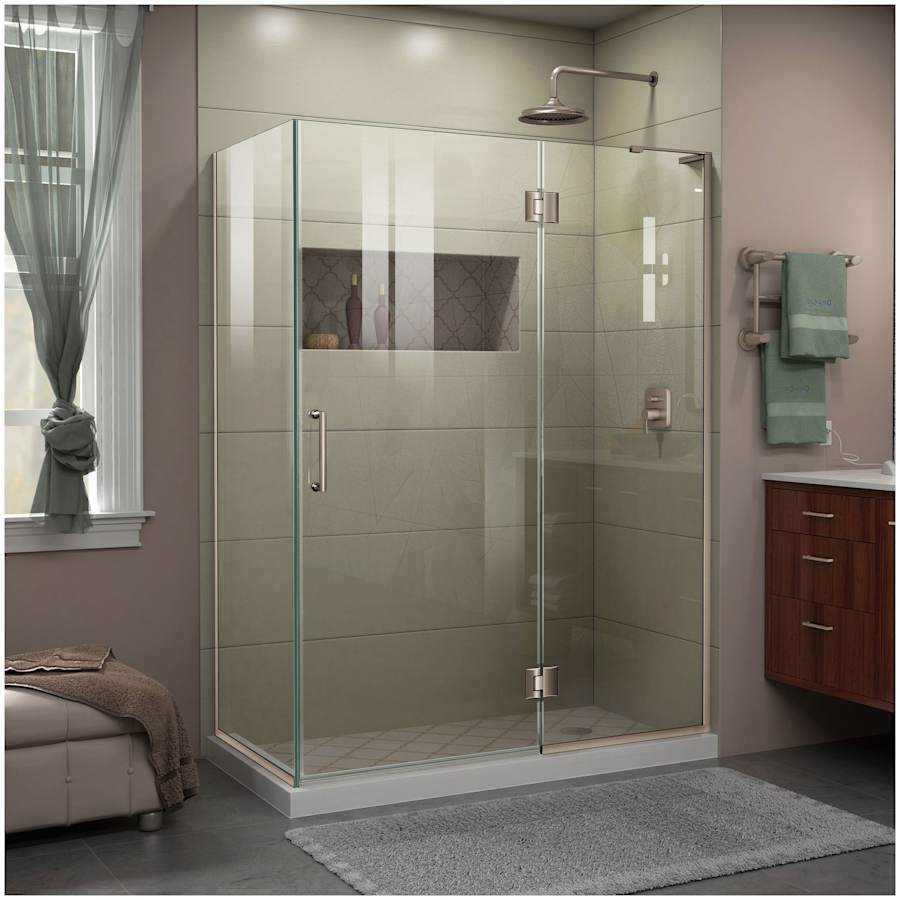

The DreamLine Unidoor-X is a frameless shower door, tub door or enclosure that features a luxurious modern design, complementing the architectural details, tile patterns, and the composition of your bath space. Unidoor-X showcases sleek, clean lines to enhance any shower space, creating a stunning appearance. DreamLine exclusive ClearMax water repellant and stain resistant glass coating adds superior protection from stains and is nearly maintenance-free. Unidoor-X is part of DreamLine Unidoor collection, the most versatile line of shower doors and enclosures on the market.
DreamLine E32434R Features:
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
Premium 3/8″ (10 mm) thick clear tempered glass for a luxurious look
Frameless glass design to give an open and airy feel to your shower space
Solid brass glass-to-glass self-closing hinges
Configuration: Hinged panel with attached shower door and Return Panel

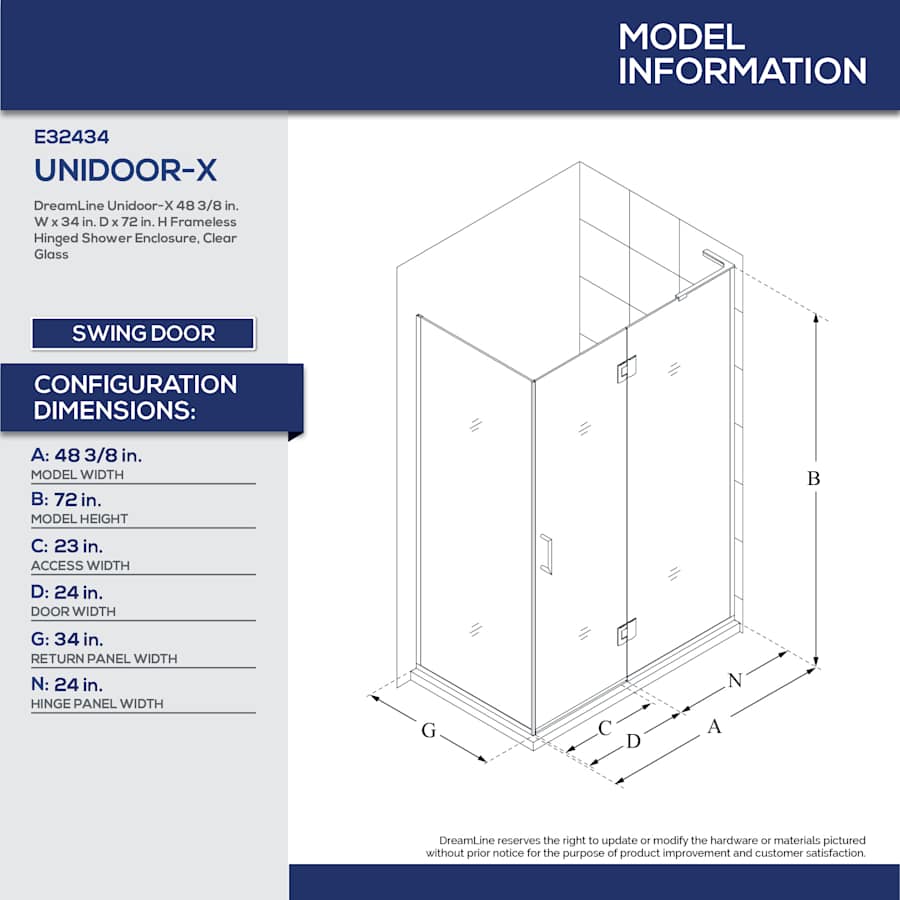

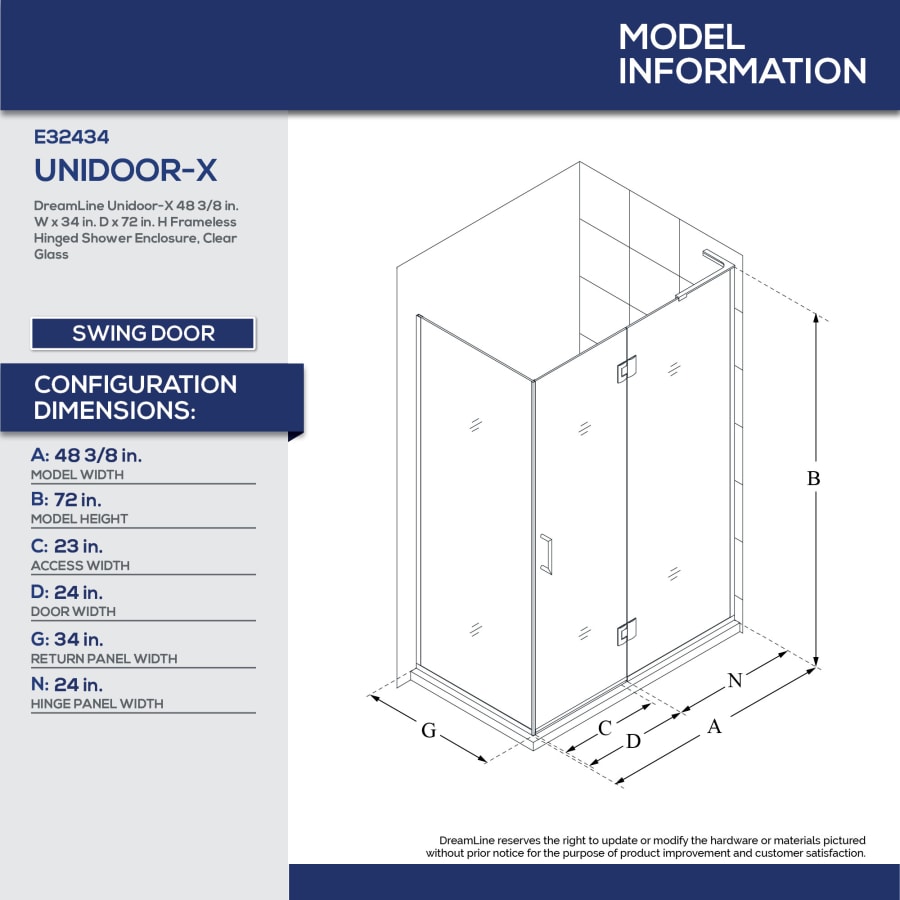

Model Size: 34-3/8″ D x 48″ W x 72″ H
Door Walk-In: 23″
Return Panel: 34″
Hinged Panel: 24″
Hinged and return panels are installed to the wall by 1″ anodized aluminum adjustable U-channel
1/4″ out-of-plumb adjustment available on hinged panel side
1/2″ width or out-of-plumb adjustment available on return panel side

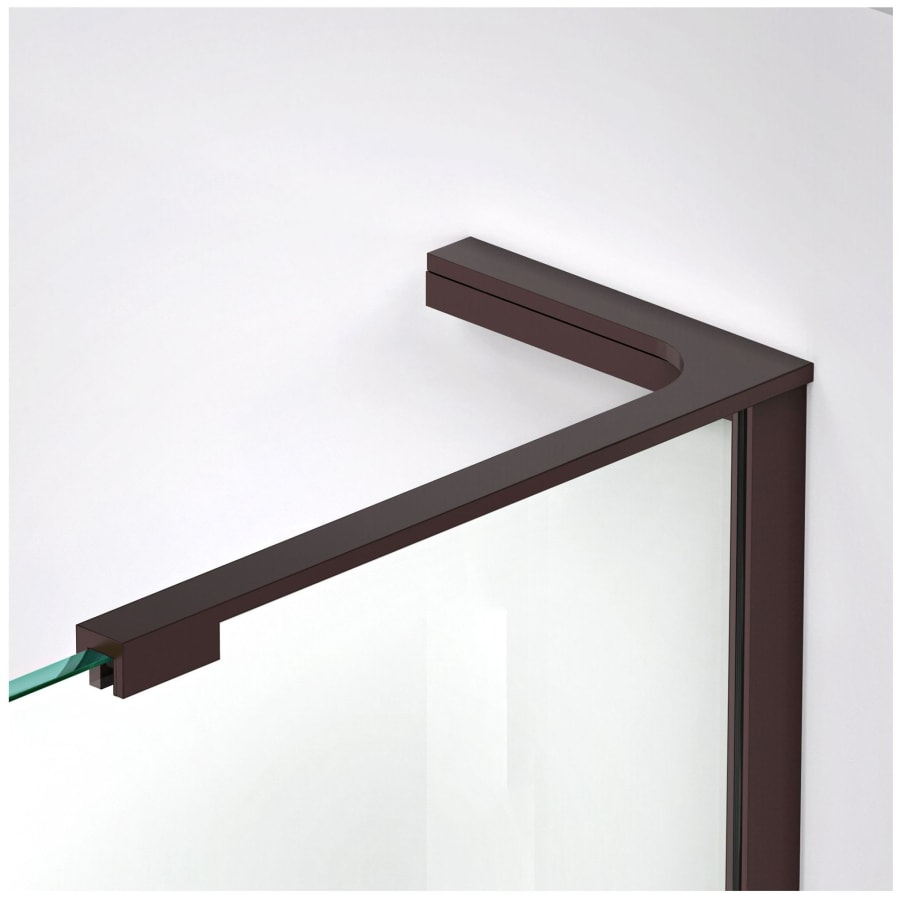

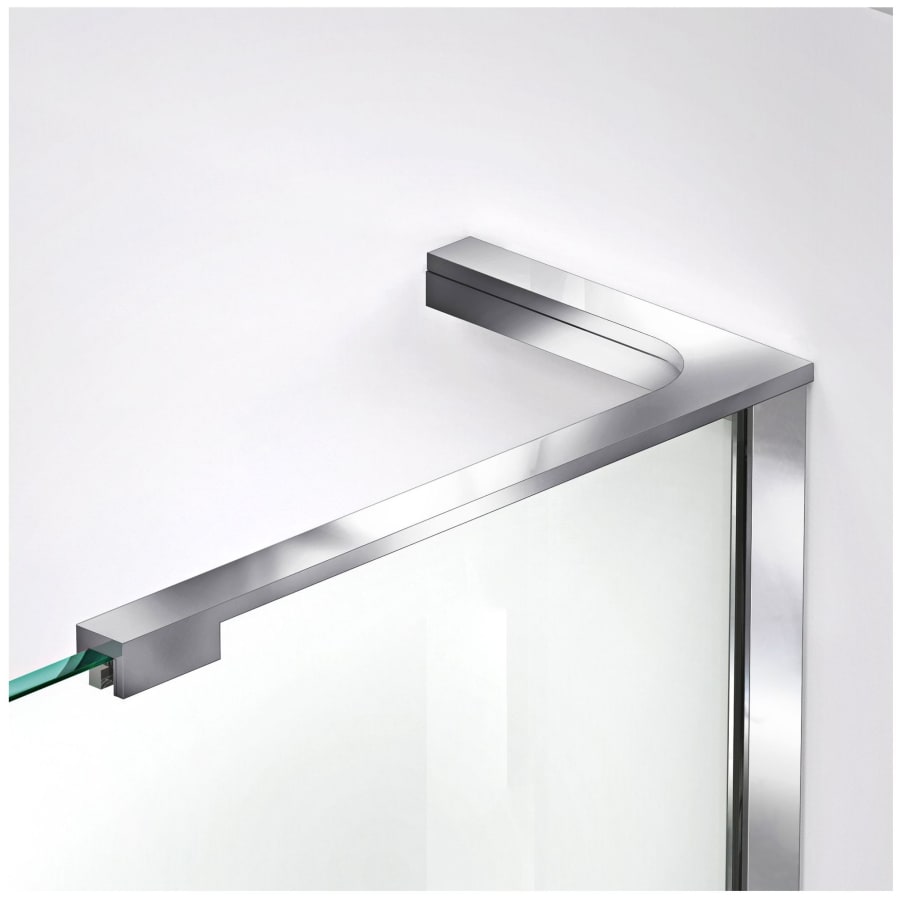

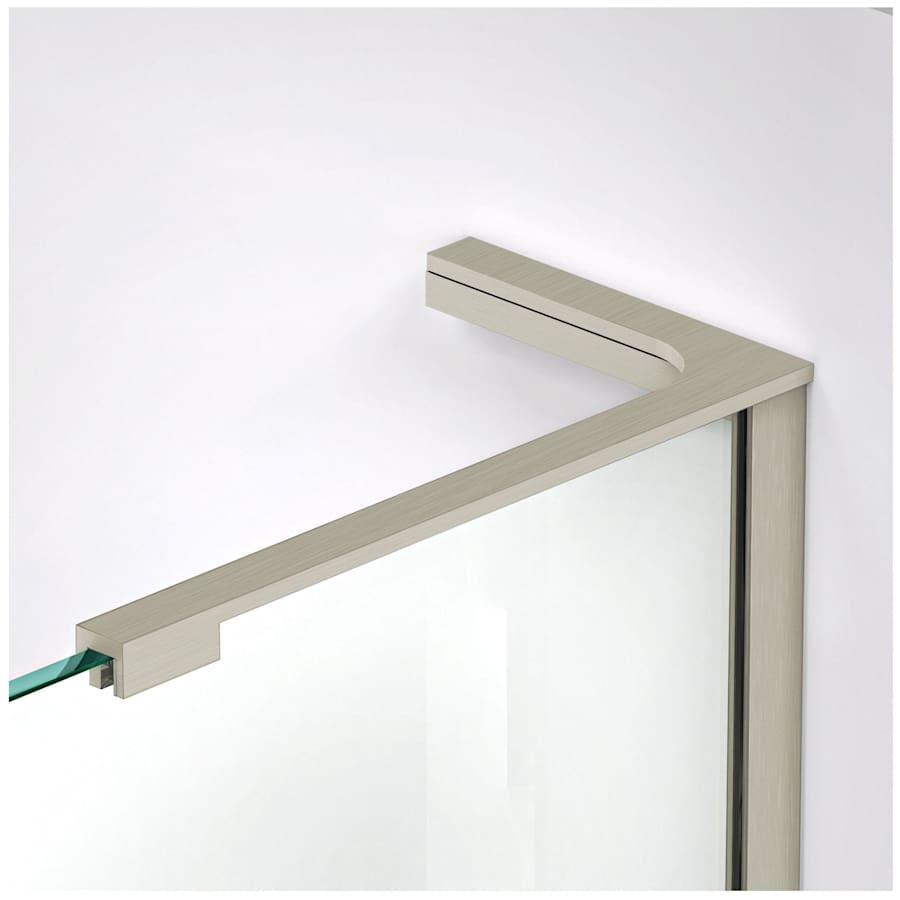

L-shape support bracket provides an unobstructed look

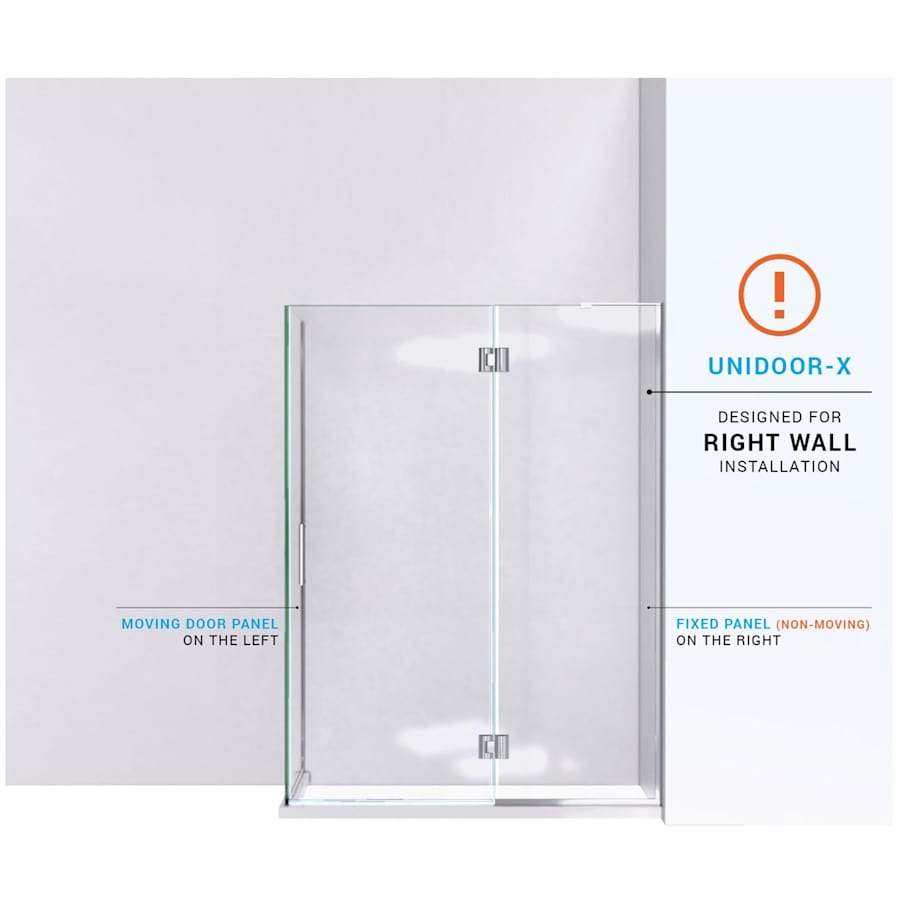

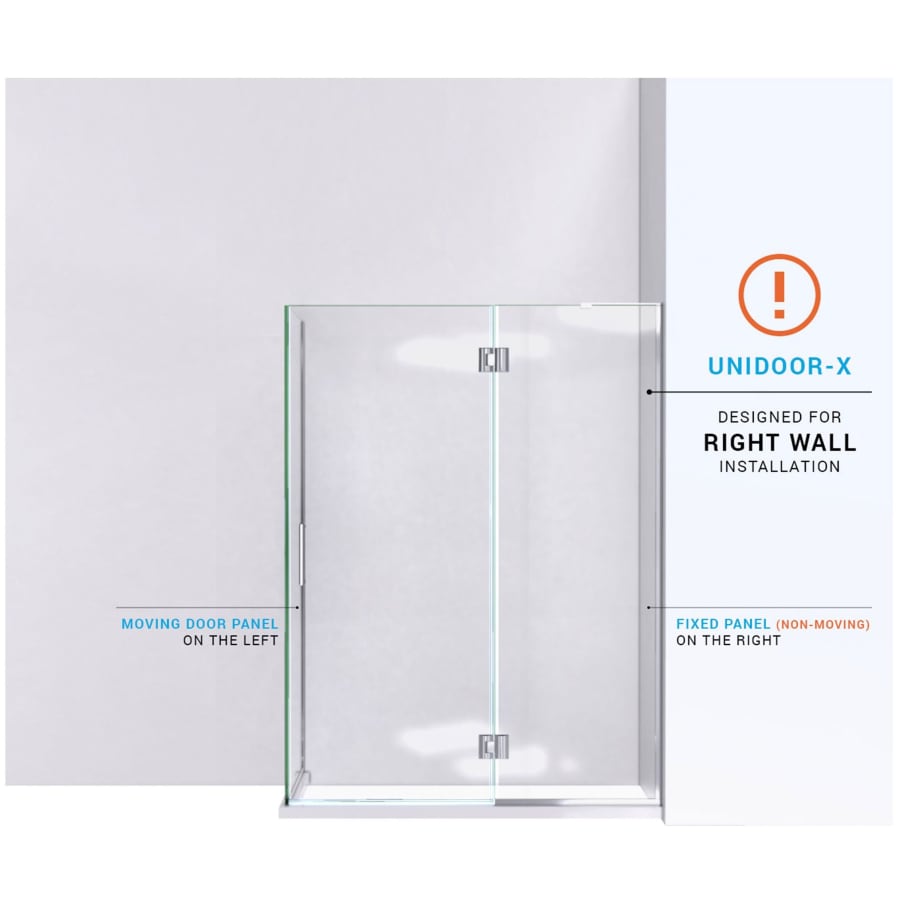

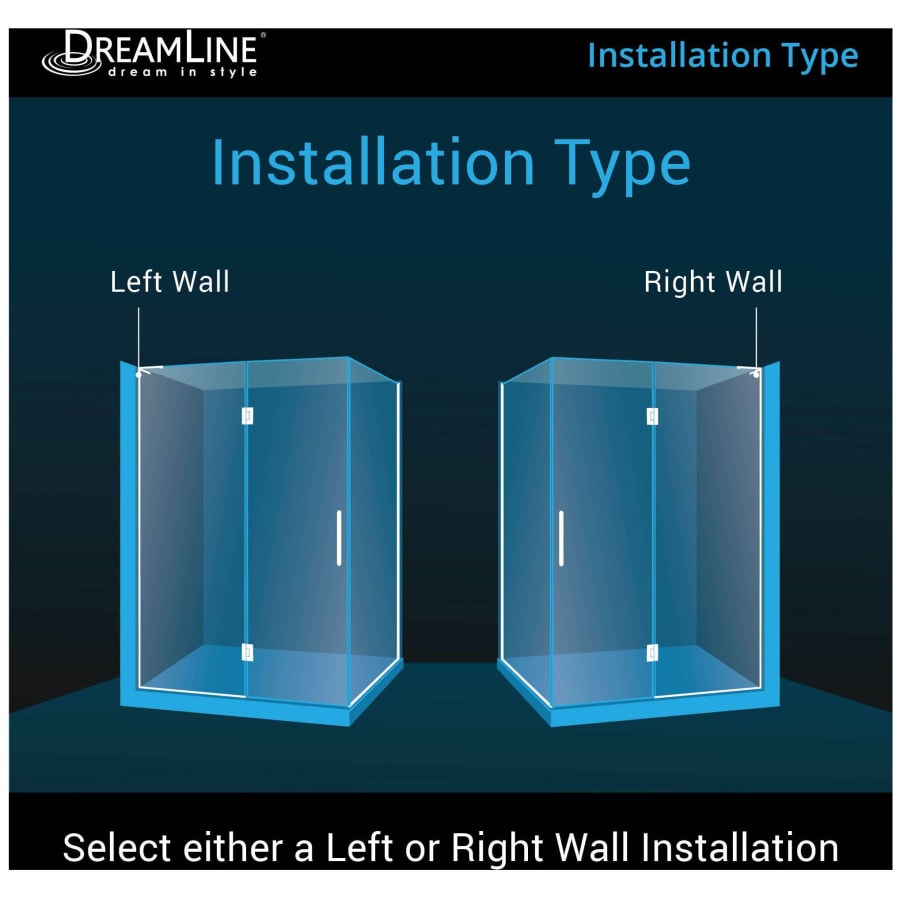

Designed for right-wall bracket installation. Not reversible
Professional installation recommended
Limited lifetime manufacturer warranty

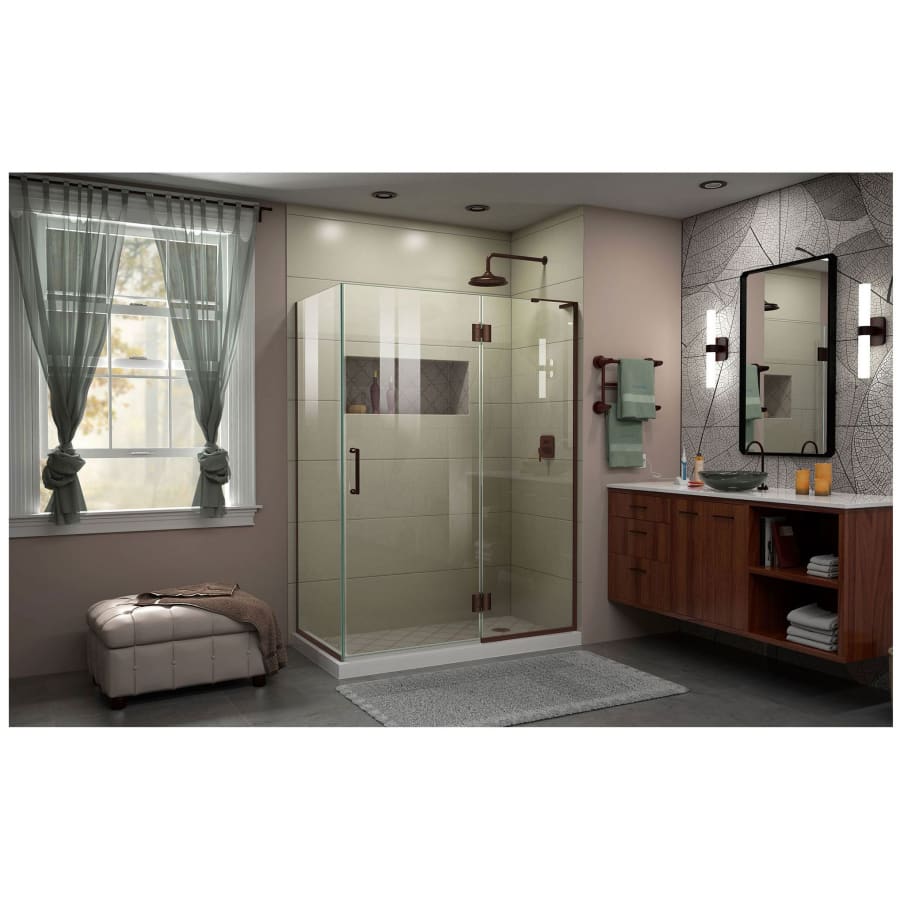

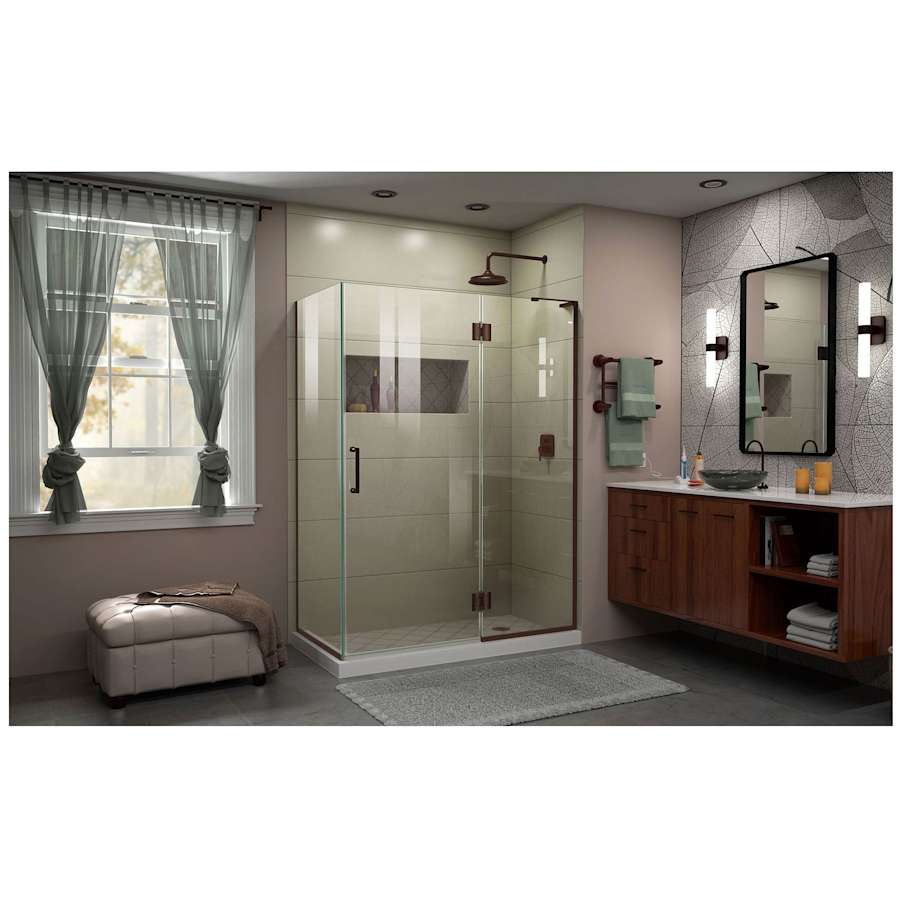

Warranty for any hardware in oil rubbed bronze finish is limited to 1 (one) year
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Unidoor-X Collection
Specifications
| Height | 72 in. |
| Product Weight | 227.74 lbs. |
| Width | 48.375 in. |
| Depth | 34 in. |
| Nominal Width | 48.375 in. |
| Door Width | 23 in. |
| Glass Thickness | .375 in. |
| Maximum Width | 48.375 in. |
| Minimum Width | 48.375 in. |
| Panel Width | 34, 24 in. |
| Shower Door Width | 23 in. |
| Glass Features | Clear Glass |
| Material | Brass, Tempered Glass |
| Thermostat | Modern |
| Insulation Type | Corner |
| Shape | Rectangular |
| Door Swing | Right |
| Frame Type | Frameless |
| Number Of Doors | 1 |
| Configuration | Shower Enclosure |
| Door Type | Hinged |
| Certifications | ANSI |
| Collection | Unidoor-X |
| Approved for Commercial Use | Yes |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Commercial Warranty | 1 Year Limited |
| Installation Hardware Included | Yes |
| Base Included | No |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
