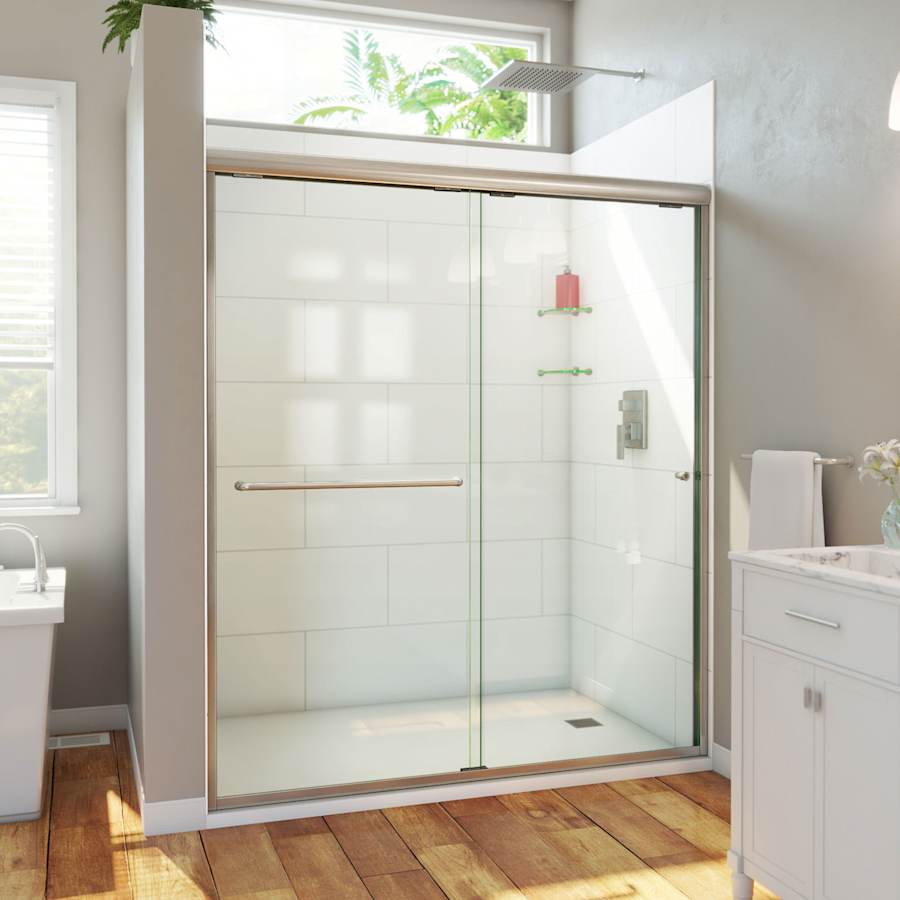

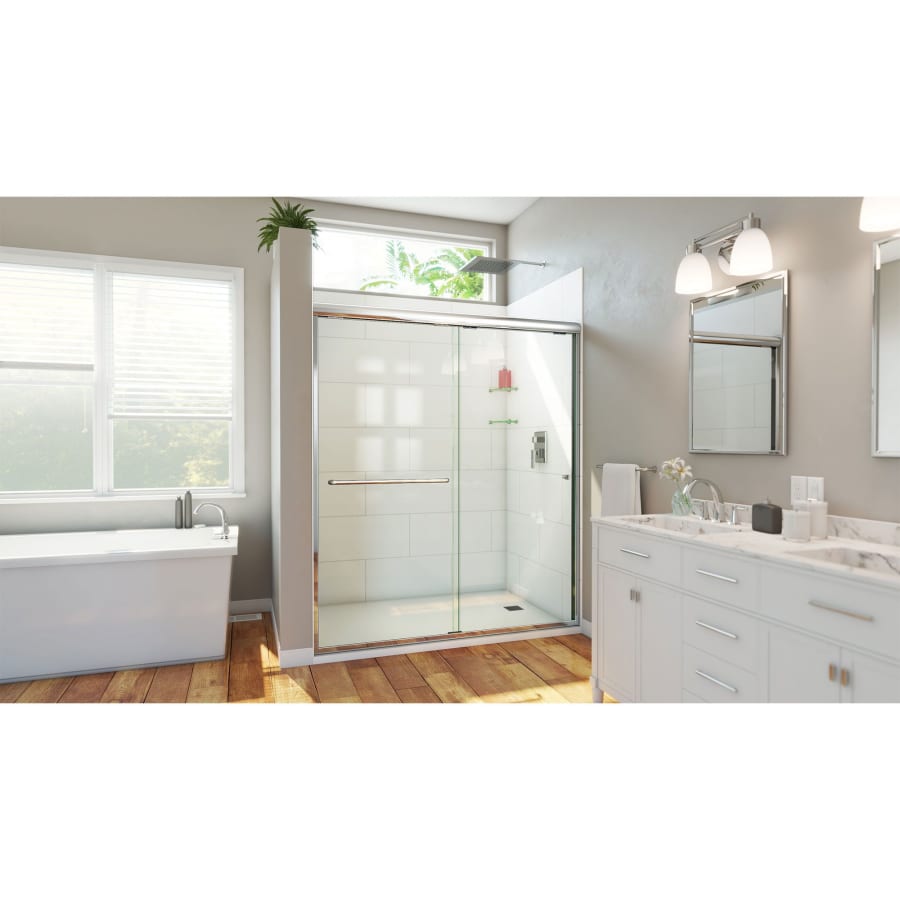

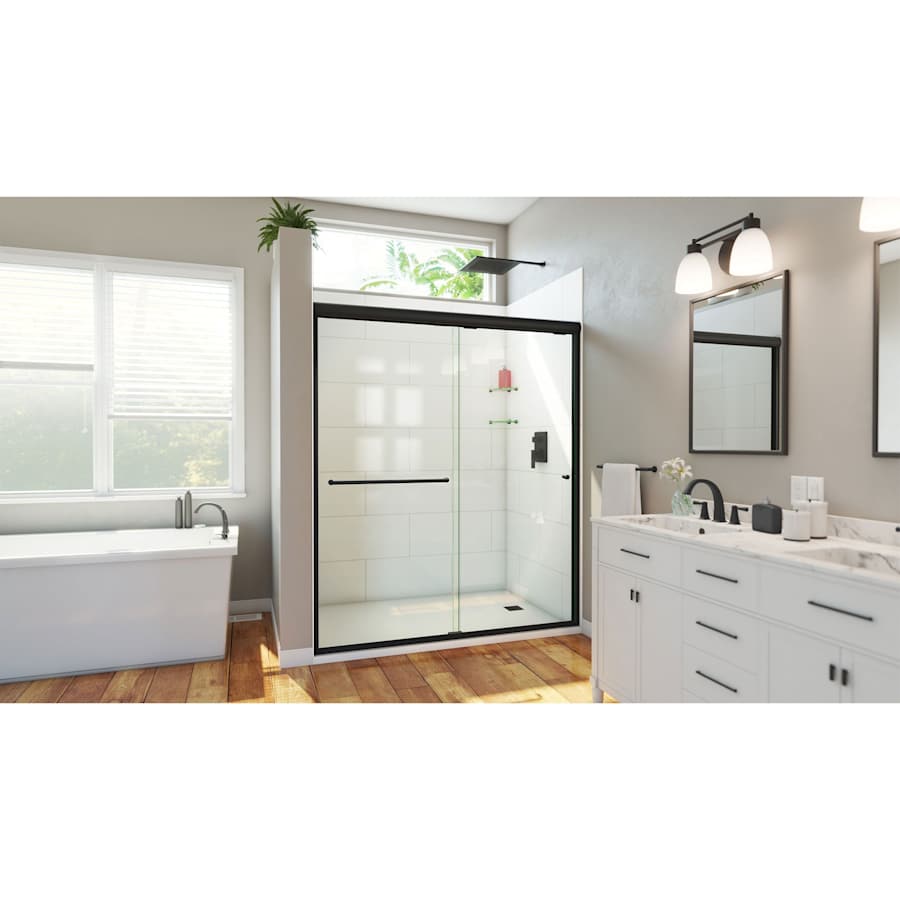

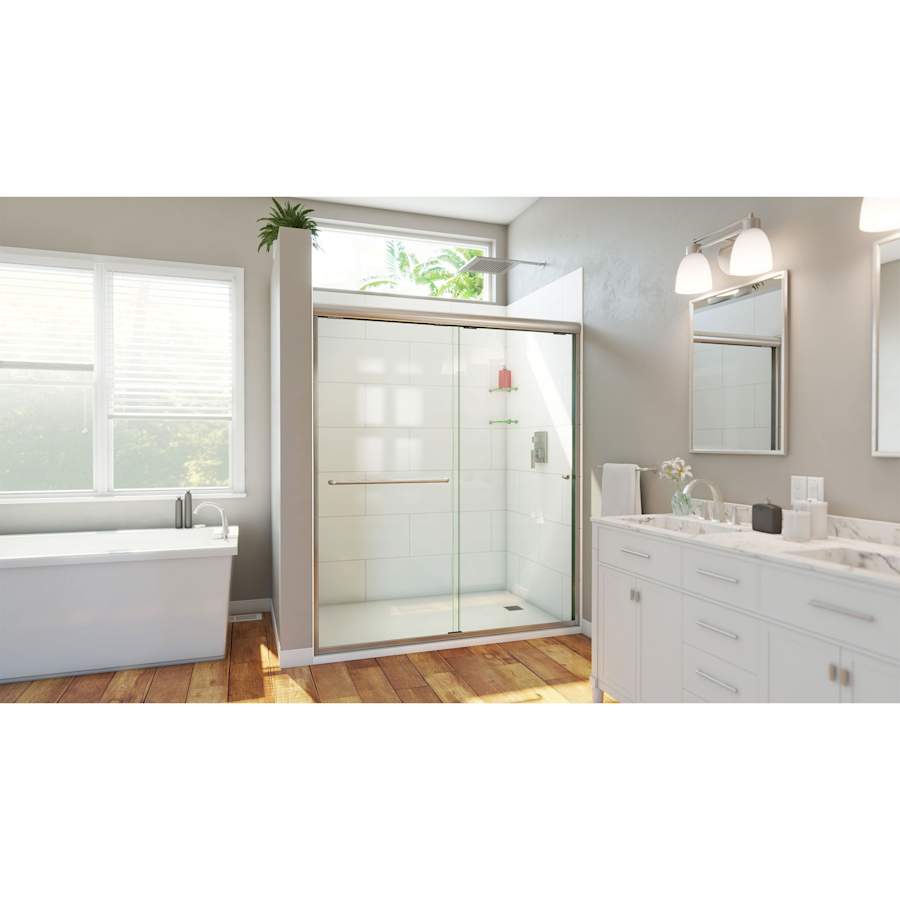

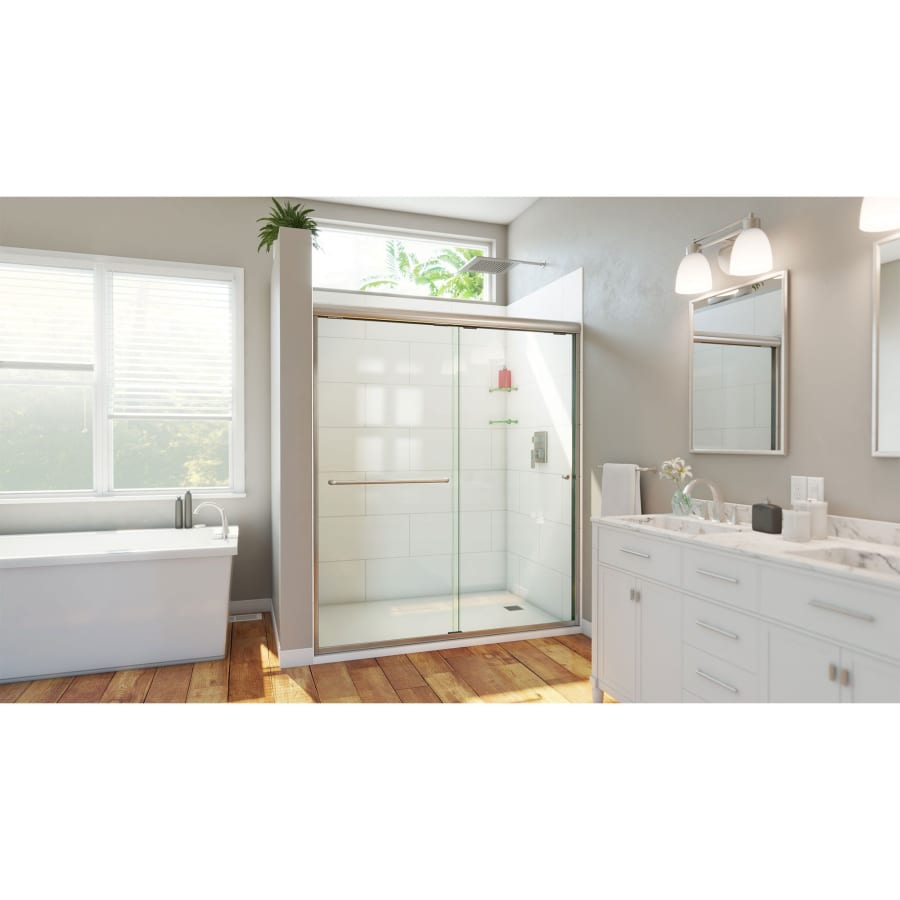

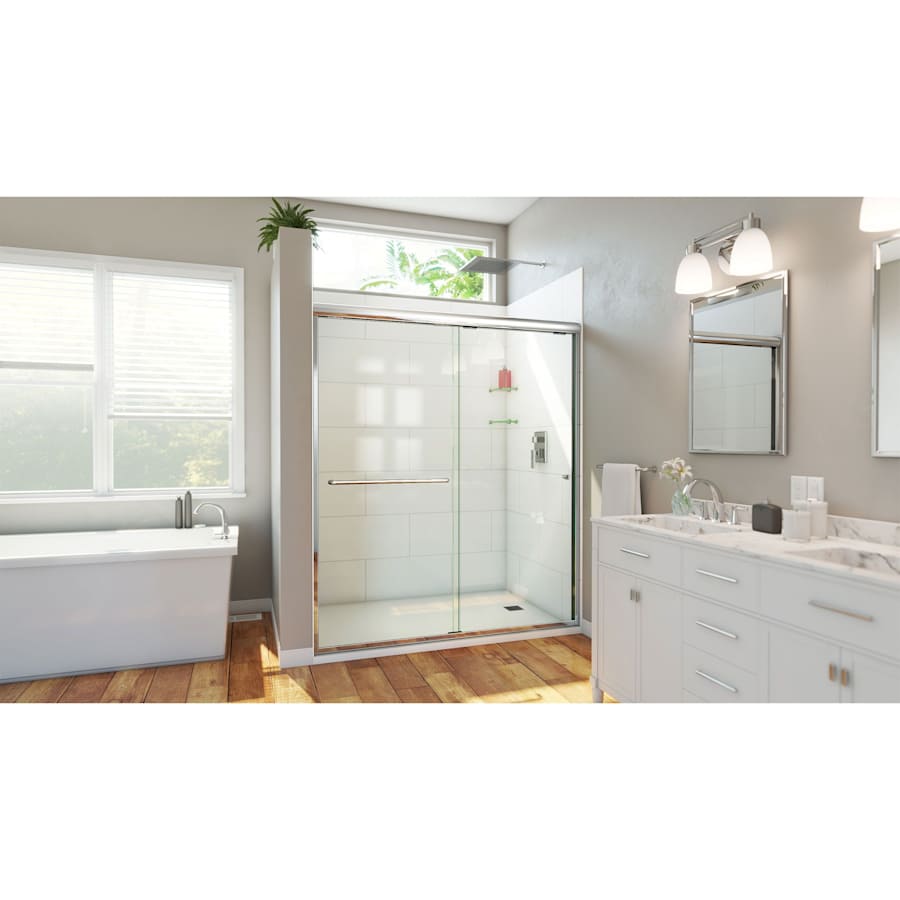

The Alliance Pro HV Collection by DreamLine is an upgraded semi-frameless sliding bypass shower or tub door featuring a sleek, modern design that will complement a wide variety of bathroom styles. The Alliance Pro HV offers unparalleled value with 3/8 in. certified clear tempered glass, smooth gliding rollers, and an integrated towel bar for convenience. Available in widths up to 60 in. and heights up to 76 1/2 in., with various hardware finish options. IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, backwalls, etc.). Drilling into the threshold is optional for installation of this product. Limited Lifetime Manufacturer Warranty. This product is not available with ClearMax protective glass coating. Premium Product Upgrade:
DreamLine SDAH60W700VXX Features:
Model size: 56-60″ W x 70 1/2″ H
Walk-in opening: 24 – 28″
Hardware finish: Chrome
Glass type: Clear
Double sliding bypass configuration allows entry to the shower from left or right side, reversible for a right or left installation

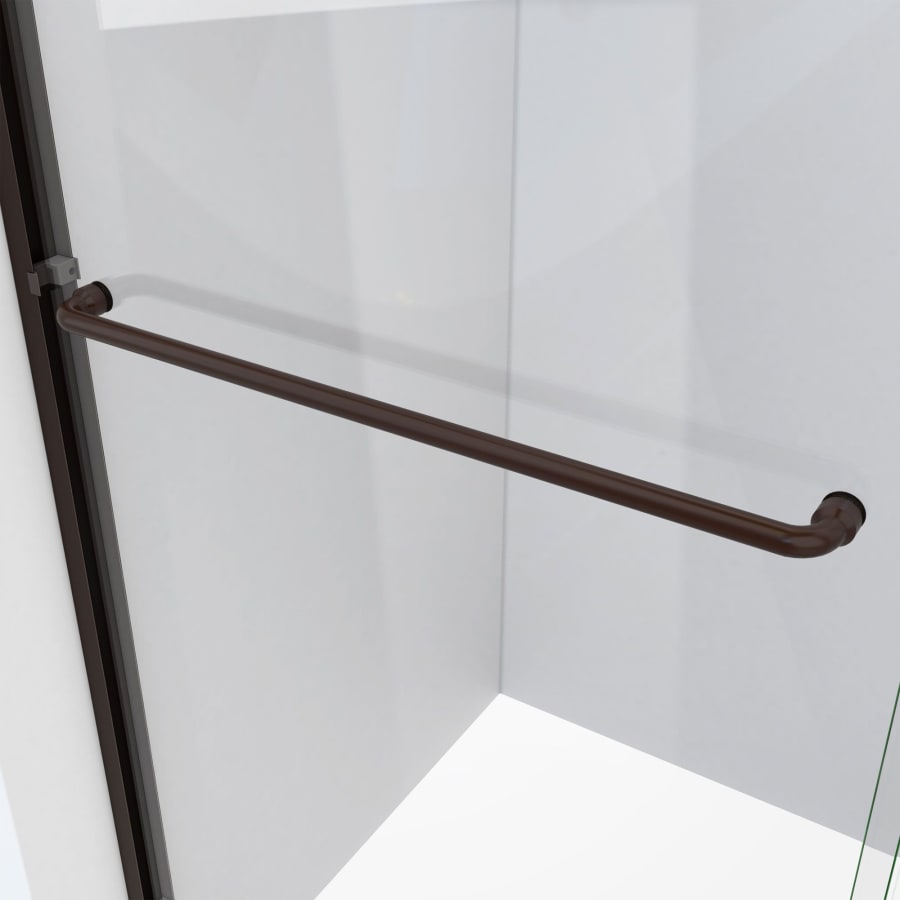

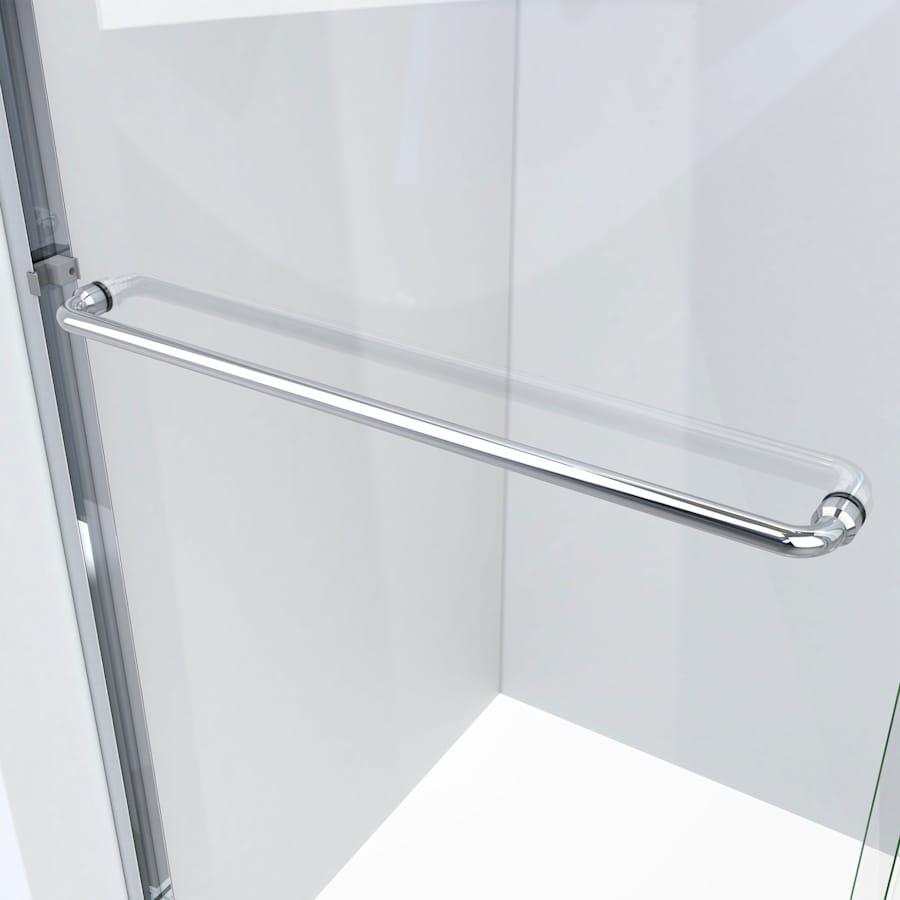

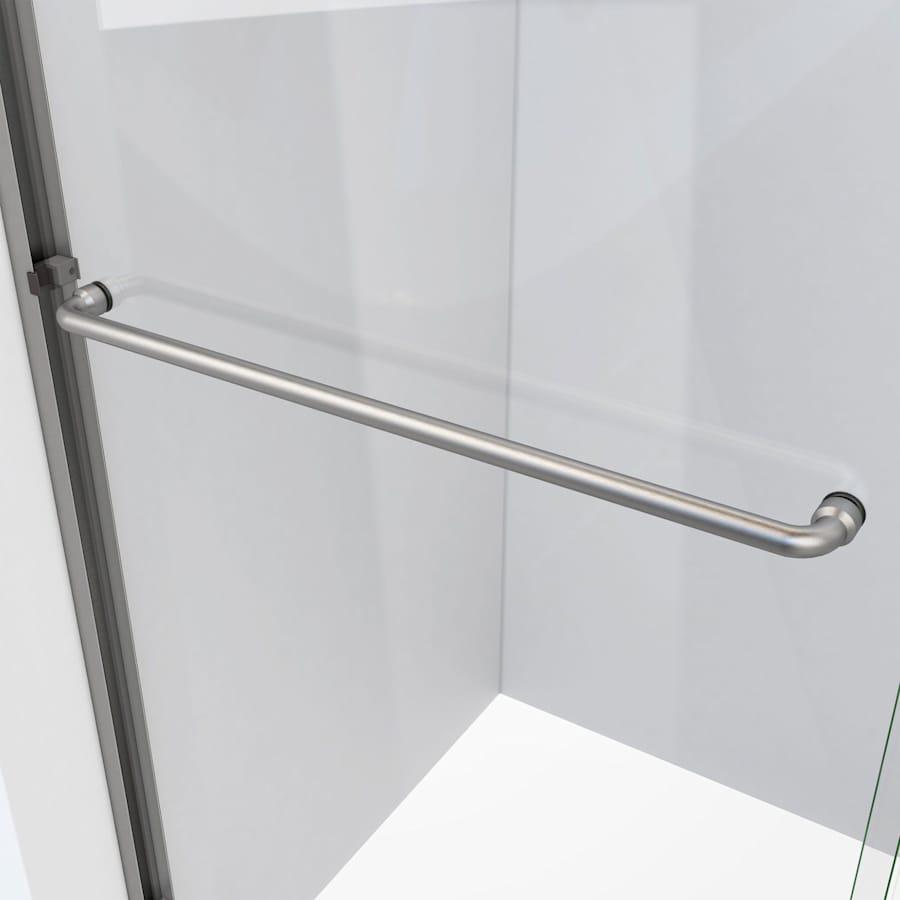

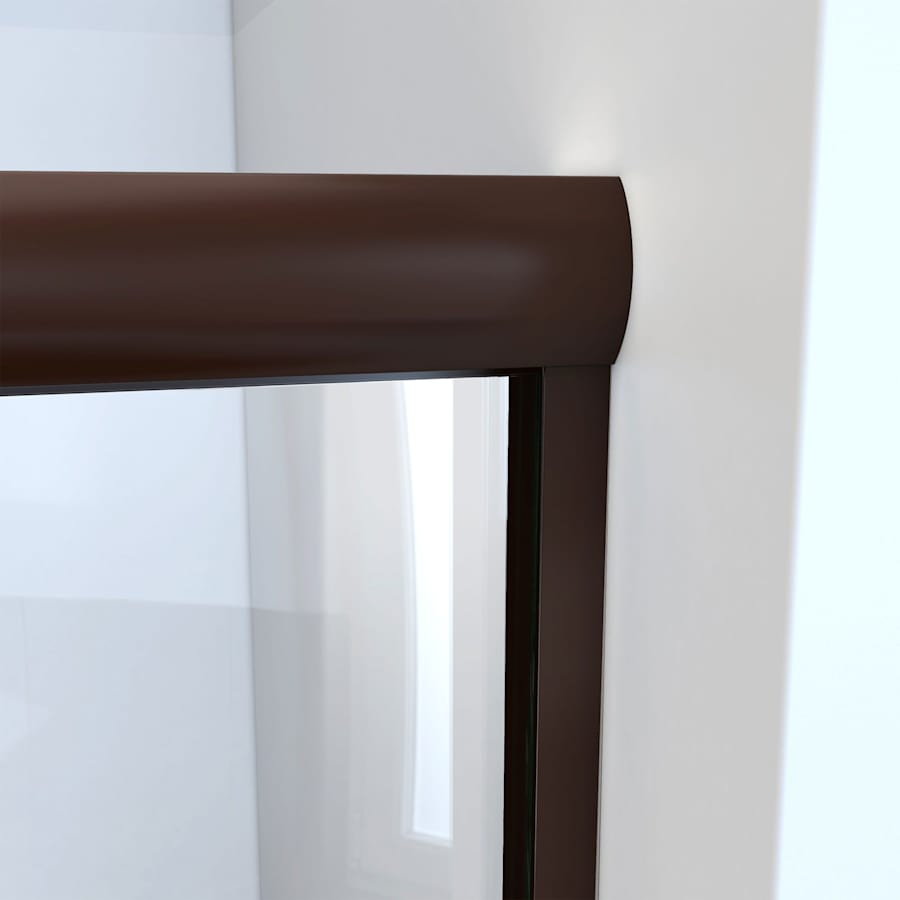

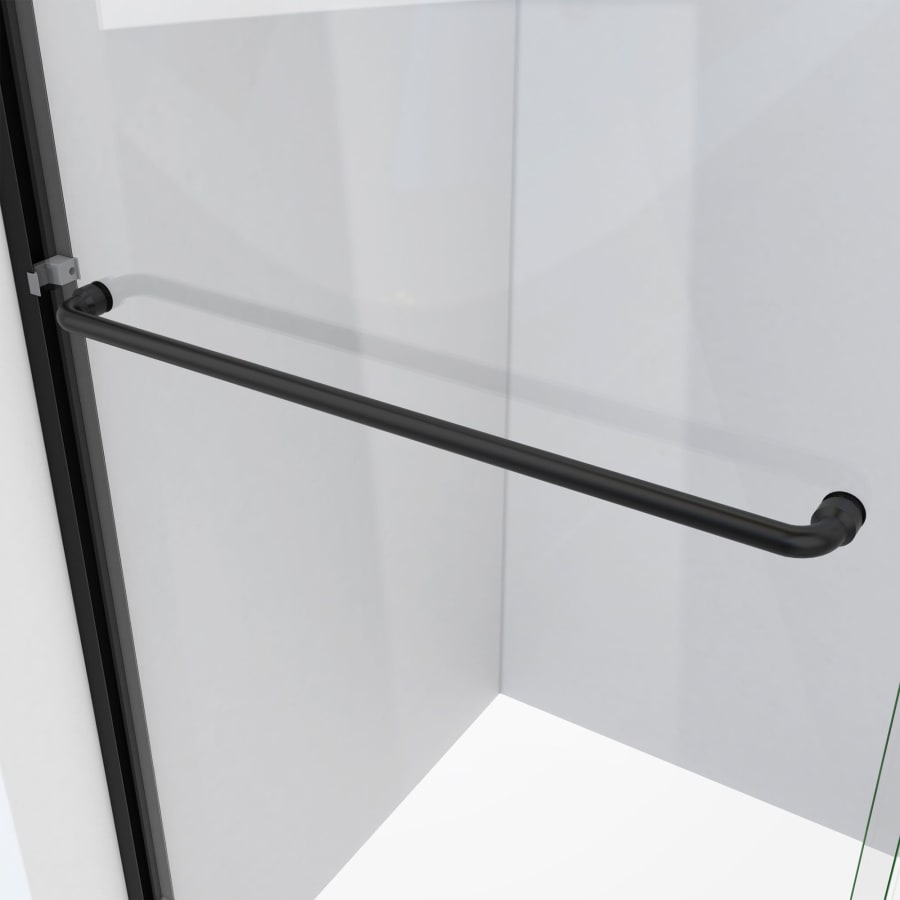

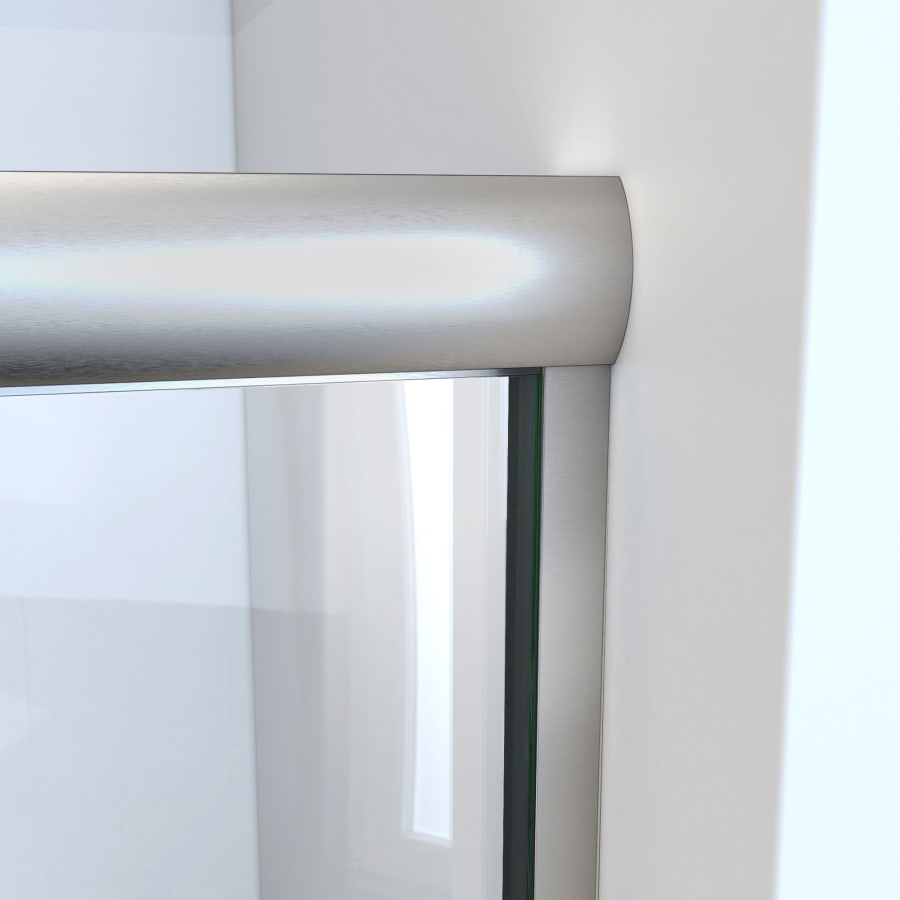

Integrated towel bar for convenience, top and bottom guiderails can be trimmed up to 4 in. for width adjustment

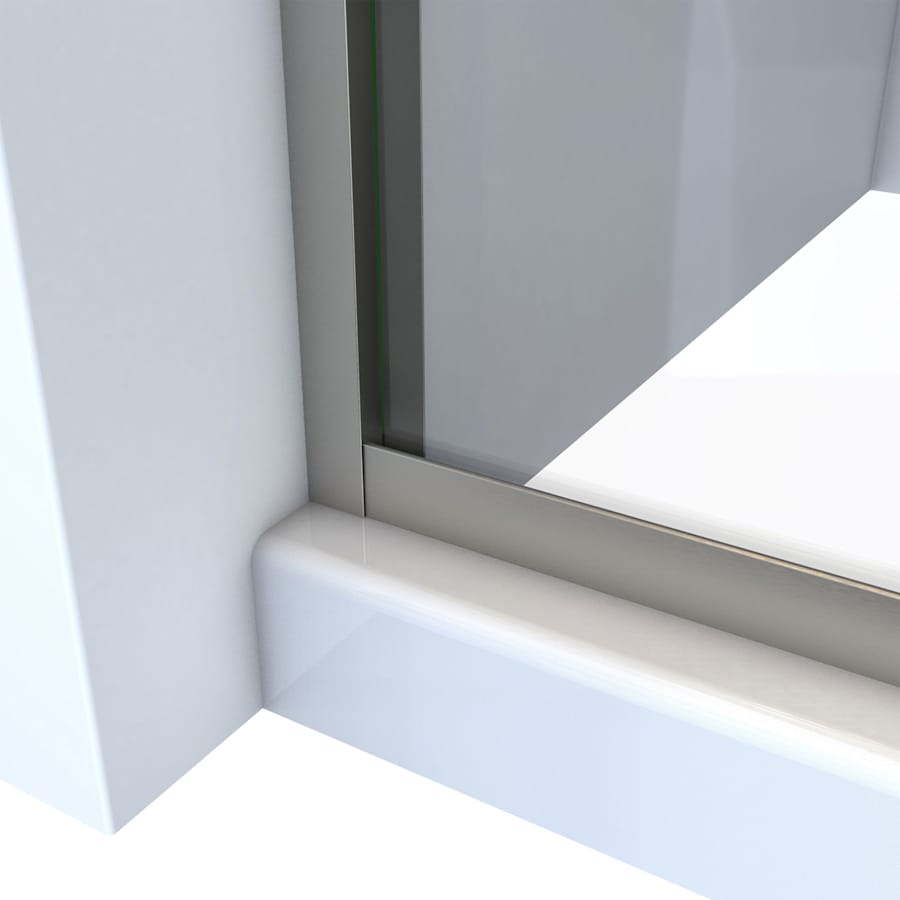

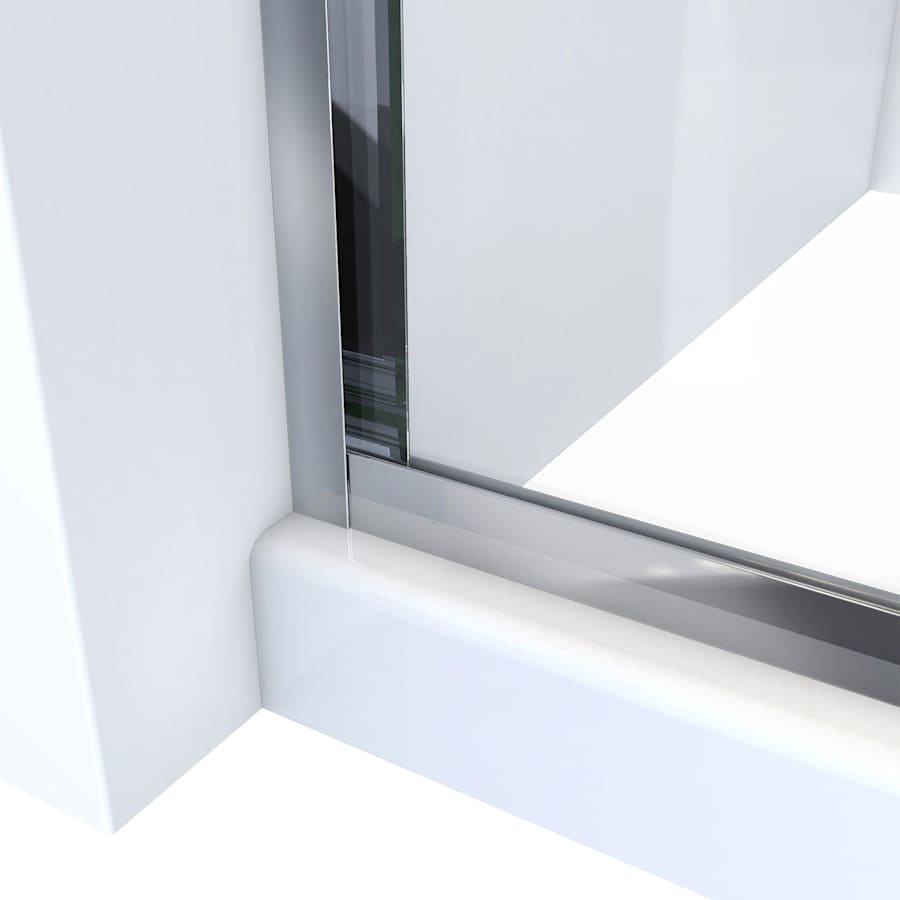

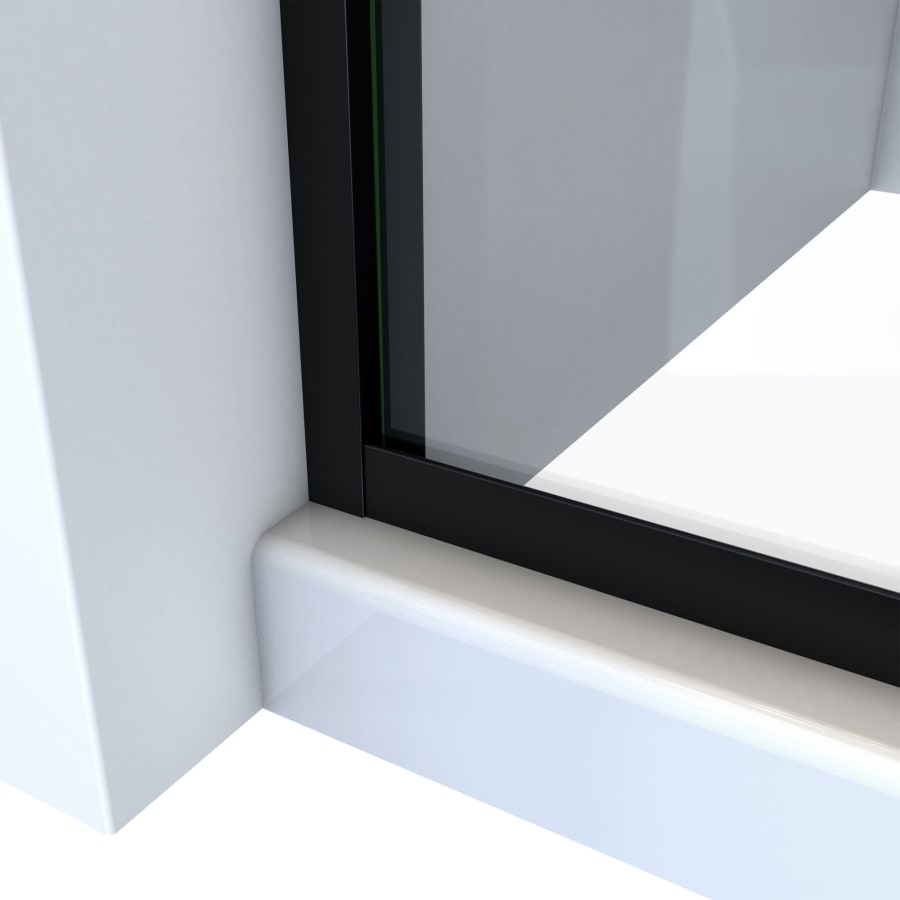

3/8 in. (10 mm) certified tempered glass aluminum water guards accommodate up to 1/4 in. for out-of-plumb (uneven) walls
Minimum threshold depth of 2 in. is required for proper installation, professional installation recommended
DreamLine SDAH60W700VXX Specifications:

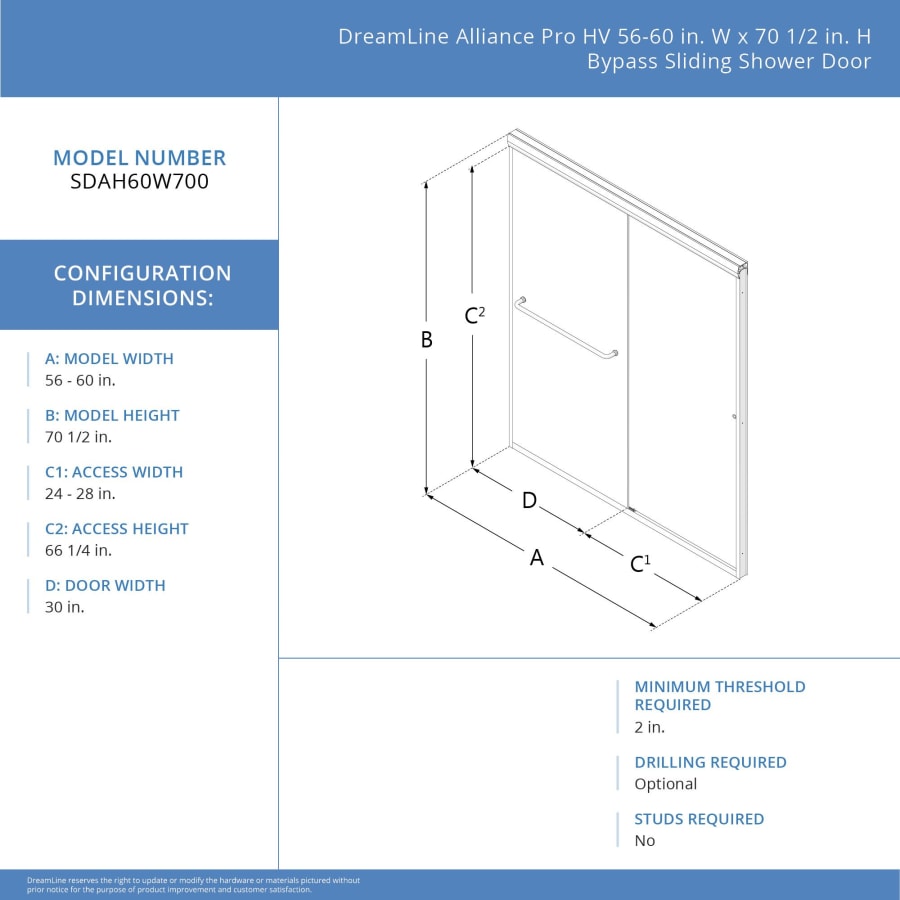

Overall Height: 70-1/2″ (bottom to top of door fixture)
Overall Width: 60″ (left to right of door fixture)
Enclosure Width Range: 56″ to 60″ (range of enclosure sizes door will accommodate)
Maximum Door Opening: 30″ (assuming door is not trimmed)
Door Installation: Reversible
Glass Thickness: 3/8″
Number of Panels: 1
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Alliance Pro HV Collection
Specifications
| Height | 70.5 in. |
| Width | 60 in. |
| Nominal Width | 60 in. |
| Product Weight | 176.4 lbs. |
| Door Width | 30 in. |
| Glass Thickness | 0.38 in. |
| Maximum Width | 60 in. |
| Minimum Width | 56 in. |
| Approved for Commercial Use | Yes |
| Collection | Alliance Pro HV |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| ADA | No |
| Commercial Warranty | 1 Year Limited |
| Installation Hardware Included | Yes |
| Base Included | No |
| Material | Glass |
| Thermostat | Modern |
| Glass Features | Clear Glass |
| Frame Type | Semi Frameless |
| Number Of Doors | 1 |
| Configuration | Shower Door |
| Door Swing | Reversible |
| Door Type | Sliding |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
