DreamLine SHDR-20577210S Features:
Model Size: 57-58 in. W x 72 in. H
Walk-in Opening: 26 in.
Configuration: Shower Door with Inline panel
Premium 3/8 in. (10mm) thick certified tempered glass for an upscale look
DreamLine exclusive ClearMax water and stain resistant glass coating
Frameless glass design to give an open and airy feel to your shower space

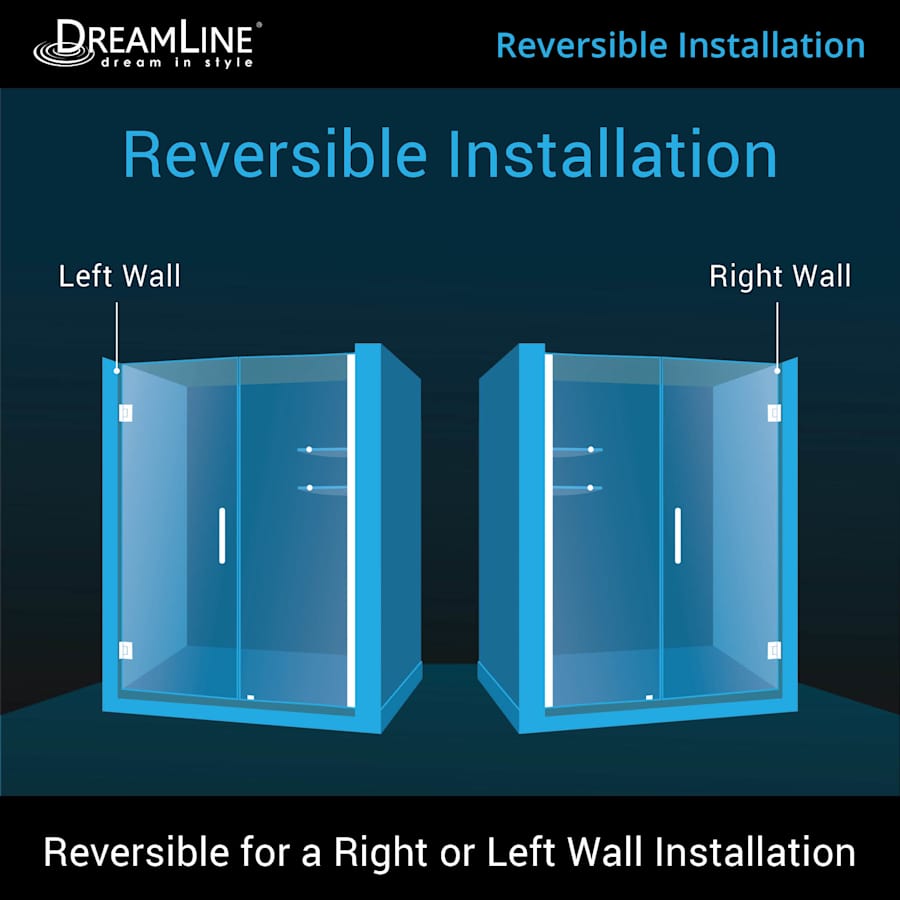

Reversible for a right or left door opening to fit your specific layout

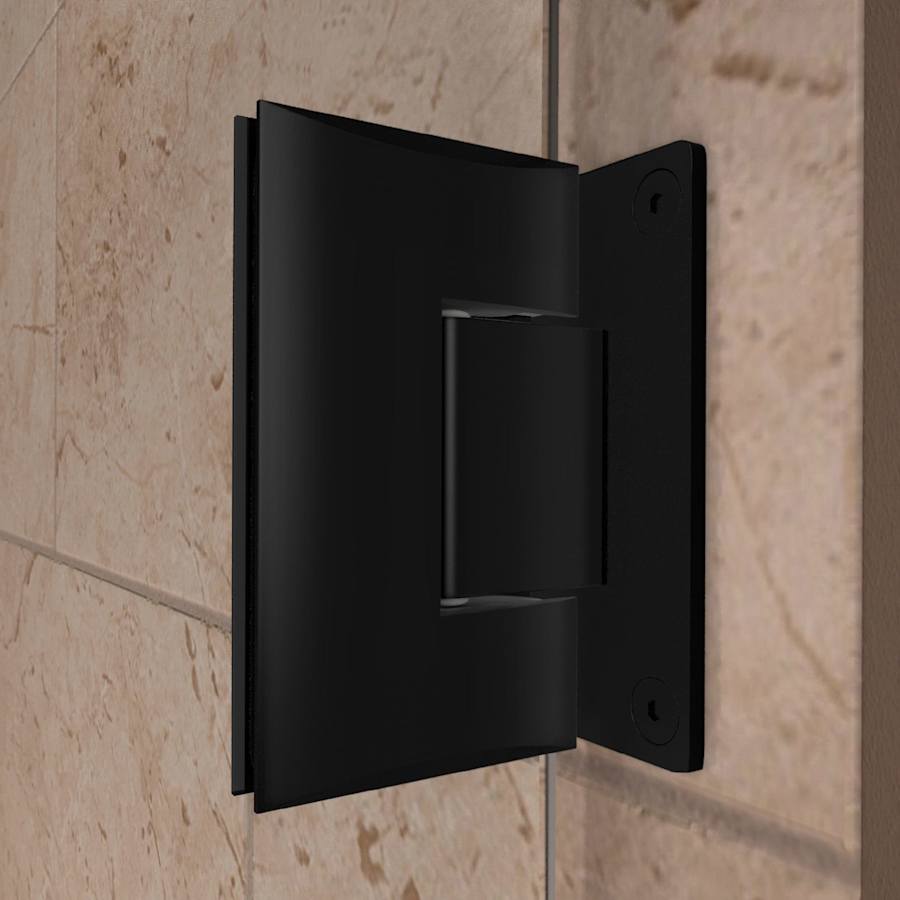

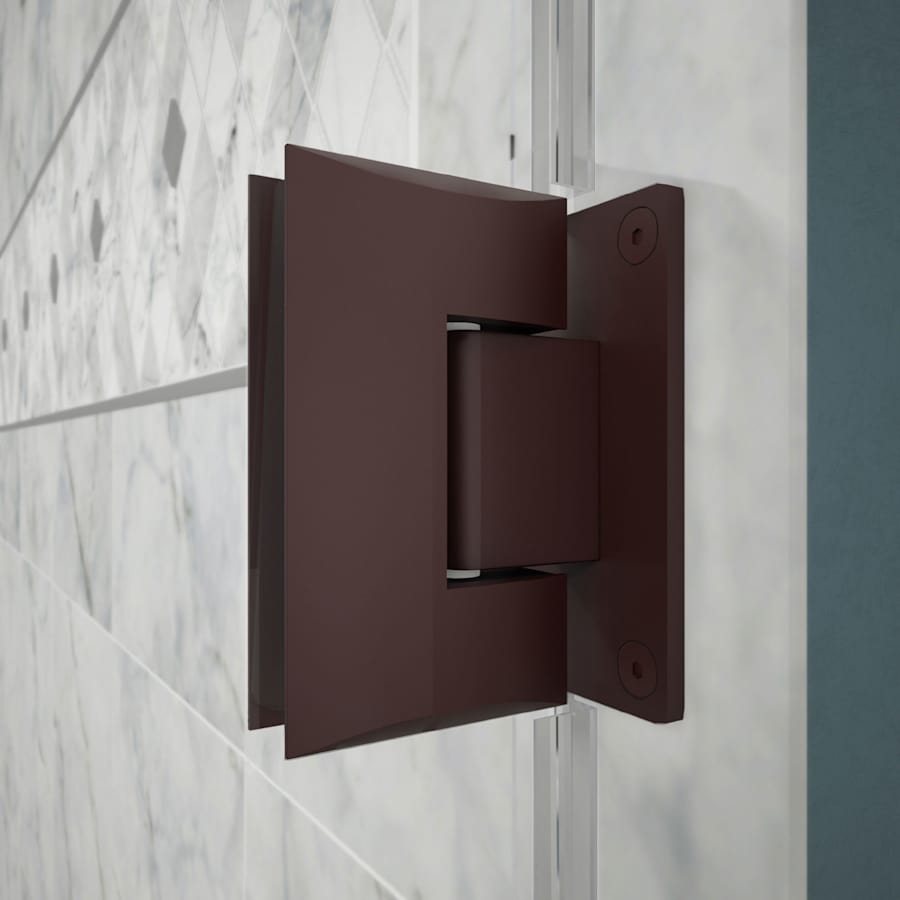

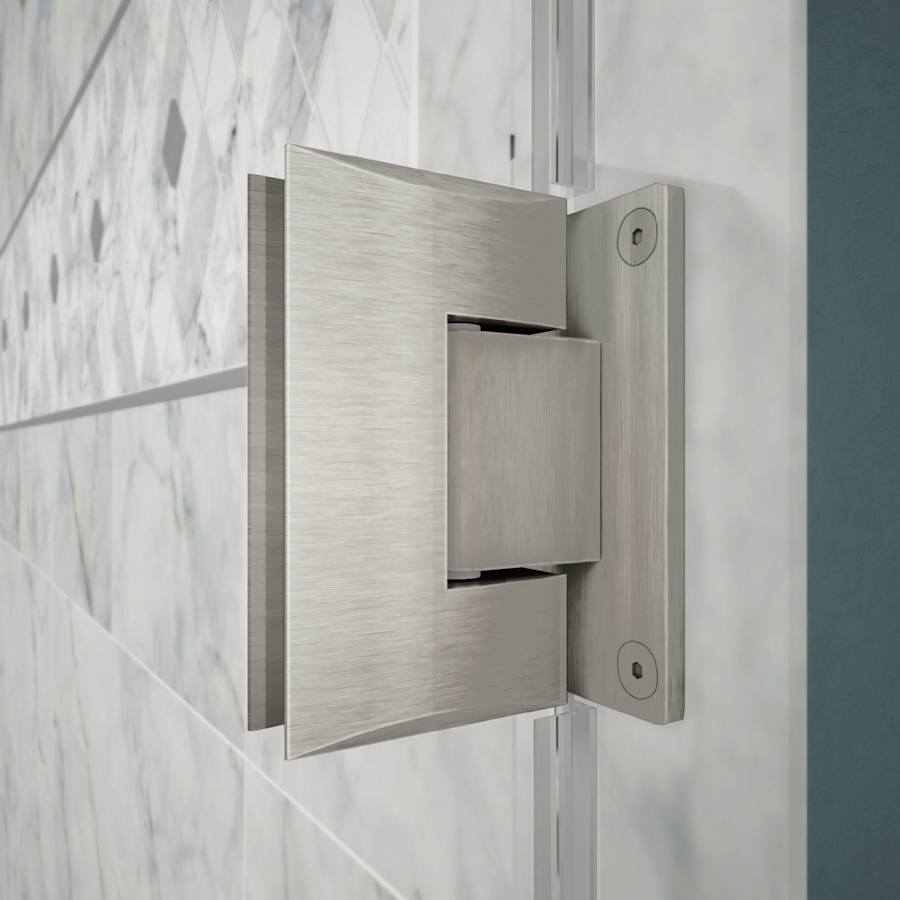

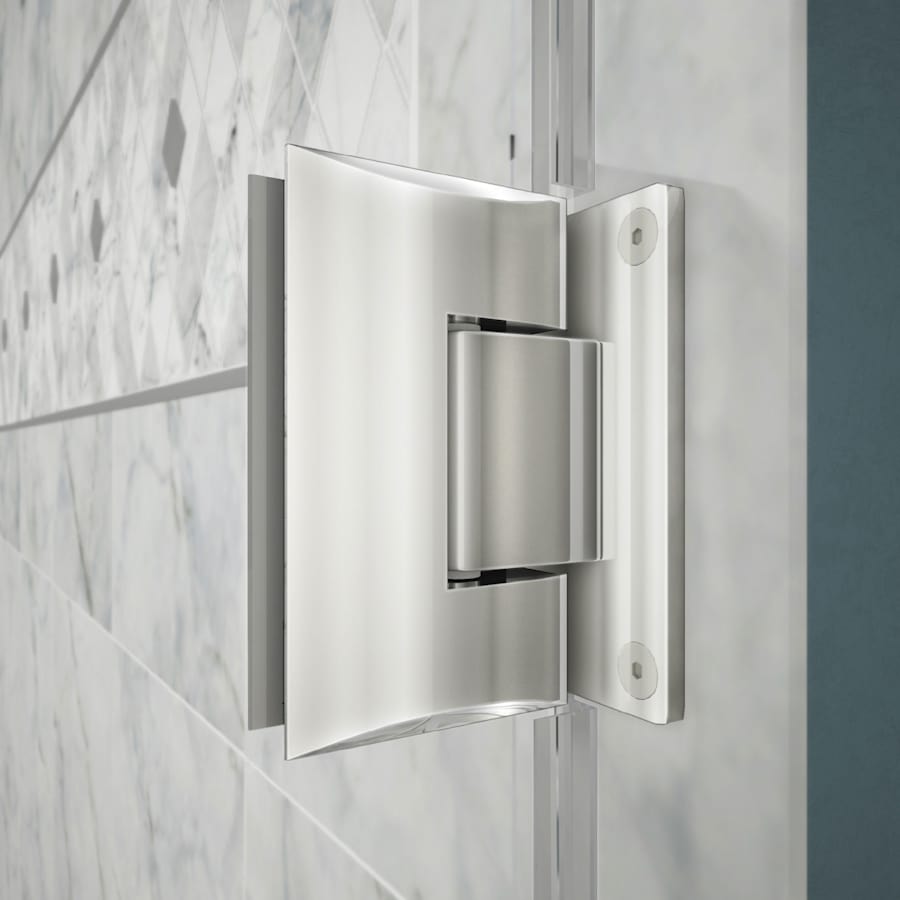

Solid brass wall-to-glass self-closing hinges
Inline panel is attached to the wall by anodized aluminum wall profile

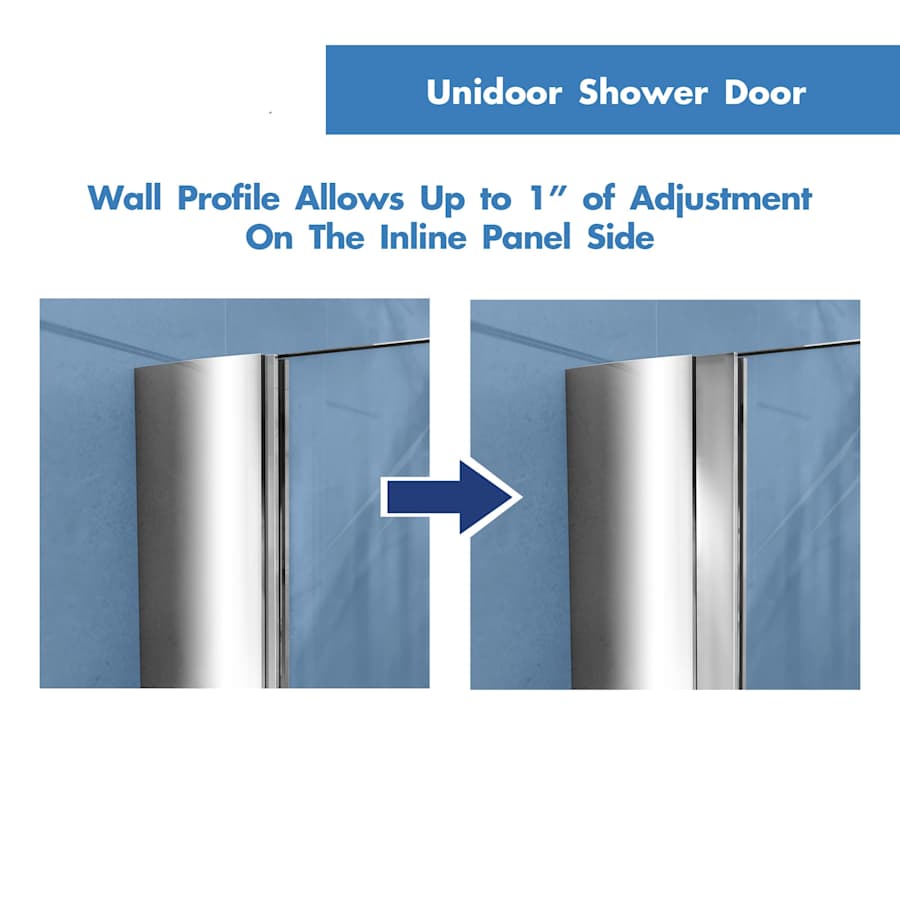

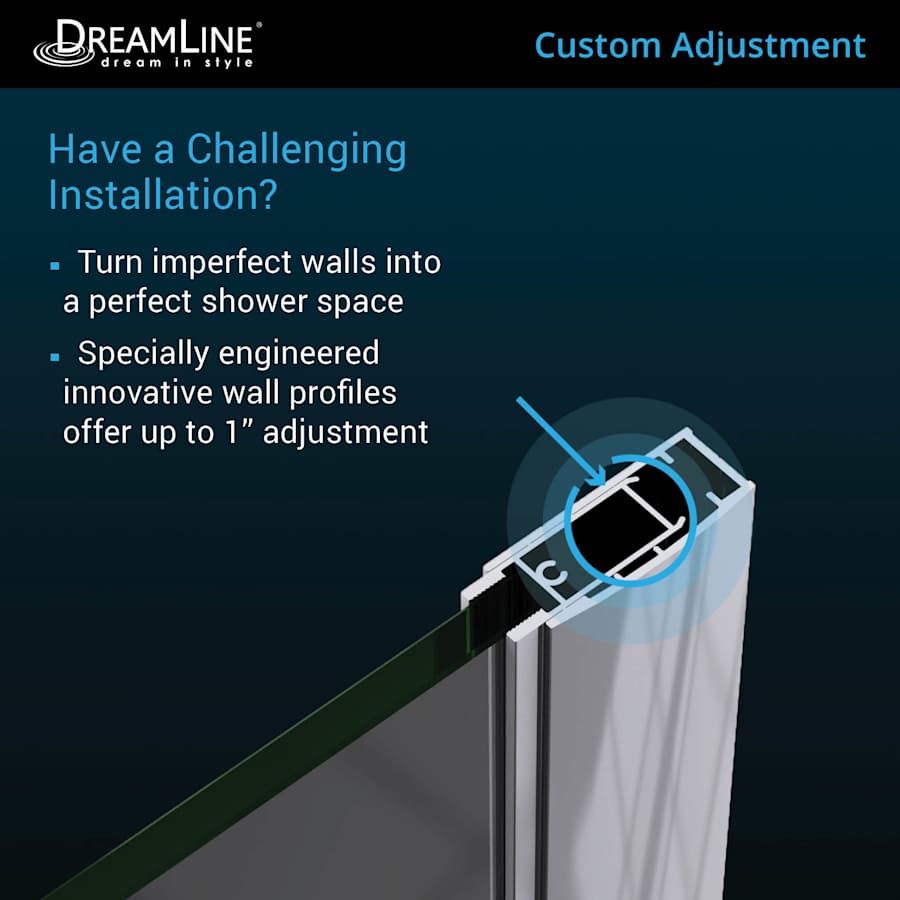

Wall profile allows up to 1 in. of adjustment for width or out-of-plumb (uneven walls)

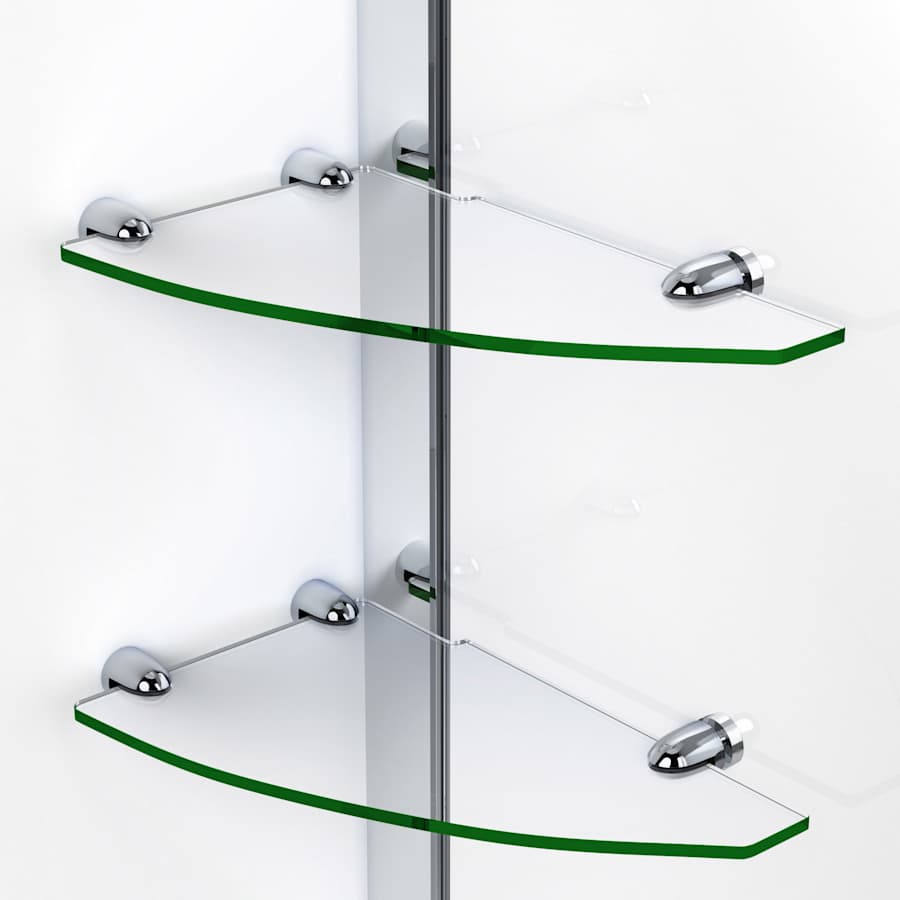

Inline panel requires Glass Shelves for additional stability
Glass Type: Clear
Matches any single threshold SlimLine™ shower base 60 in. W (sold separately)
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, back walls, etc.)
Wall studs or other reinforcement behind finished walls required for hinge installation
Professional installation recommended
Lifetime limited manufacturer warranty, three (3) year all hardware finishes warranty and three (3) year all hardware finishes warranty
DreamLine SHDR-20577210S Specifications:
Overall Height: 72″ (bottom to top of door fixture)
Overall Width: 57, 58″ (left to right of door fixture)
Enclosure Width Range: 57″ to 58″ (range of enclosure sizes door will accommodate)
Maximum Door Opening: 26″ (assuming door is not trimmed)
Opening Direction: Reversible
Glass Thickness: 3/8″
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Unidoor Collection
Specifications
| Height | 72 in. |
| Width | 58 in. |
| Nominal Width | 57, 58 in. |
| Product Weight | 246 lbs. |
| Glass Thickness | 0.375 in. |
| Maximum Width | 58 in. |
| Minimum Width | 57 in. |
| Door Width | 26 in. |
| Shower Door Width | 26 in. |
| Panel Width | 30 in. |
| Insulation Type | Three Wall Alcove |
| Material | Aluminum, Brass, Glass |
| Thermostat | Modern |
| Glass Features | Clear Glass |
| Configuration | Shower Door |
| Frame Type | Frameless |
| Door Swing | Left, Reversible, Right |
| Door Type | Hinged |
| Number Of Doors | 1 |
| Collection | Unidoor |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | ANSI |

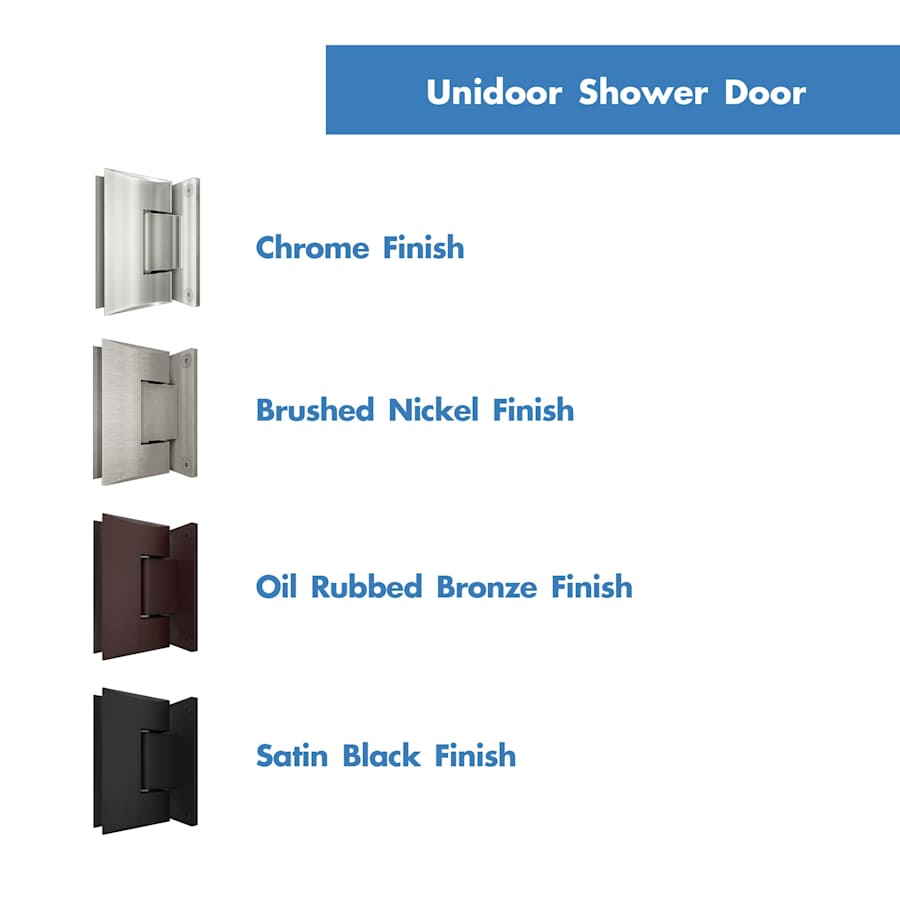

| Color | Brushed Nickel, Chrome, Matte Black, Oil Rubbed Bronze |
| Color Tone | Blacks, Bronze Tones, Nickel Tones, Silver Tones |
