The DreamLine Unidoor Plus is a frameless hinged shower door or enclosure that is perfectly designed for today’s contemporary trends. With modern appeal and sleek clean lines, the Unidoor Plus adds a touch of timeless style to any bathroom space. DreamLine exclusive ClearMax water repellant and stain resistant glass coating adds superior protection from stains and is nearly maintenance-free. Unidoor Plus is part of the DreamLine Unidoor collection, the most versatile line of shower doors and enclosures on the market. Whatever your needs, DreamLine has the ultimate solution for your shower project!
DreamLine SHDR-24243634 Features:

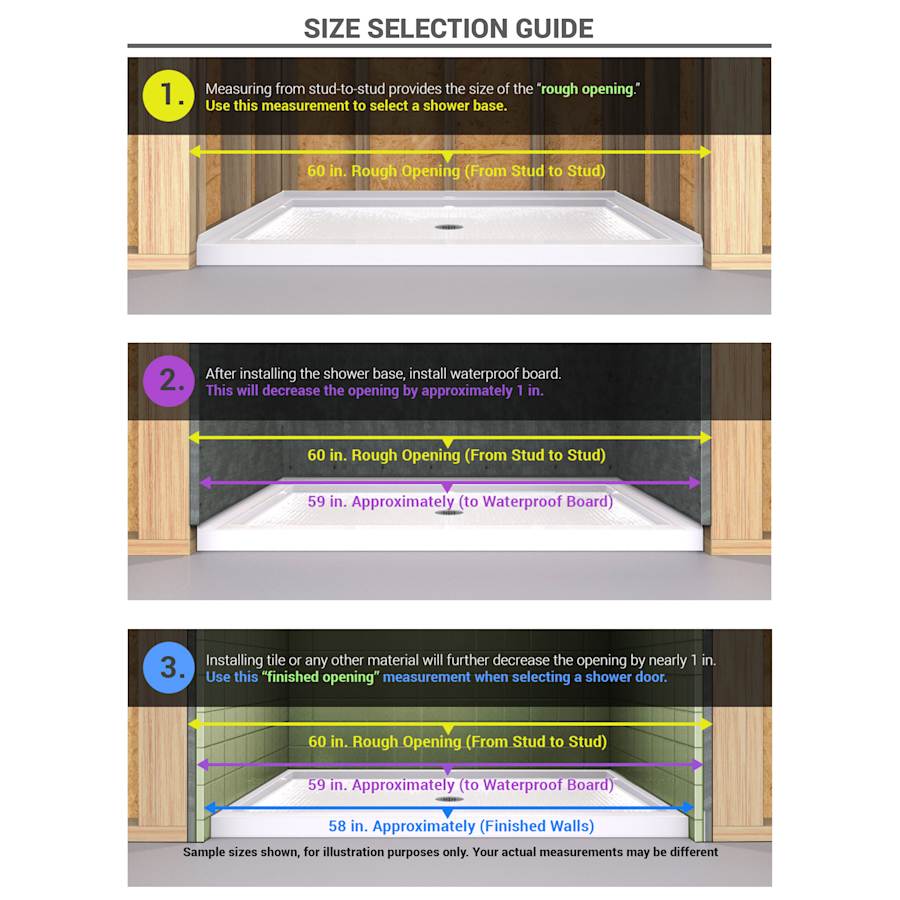

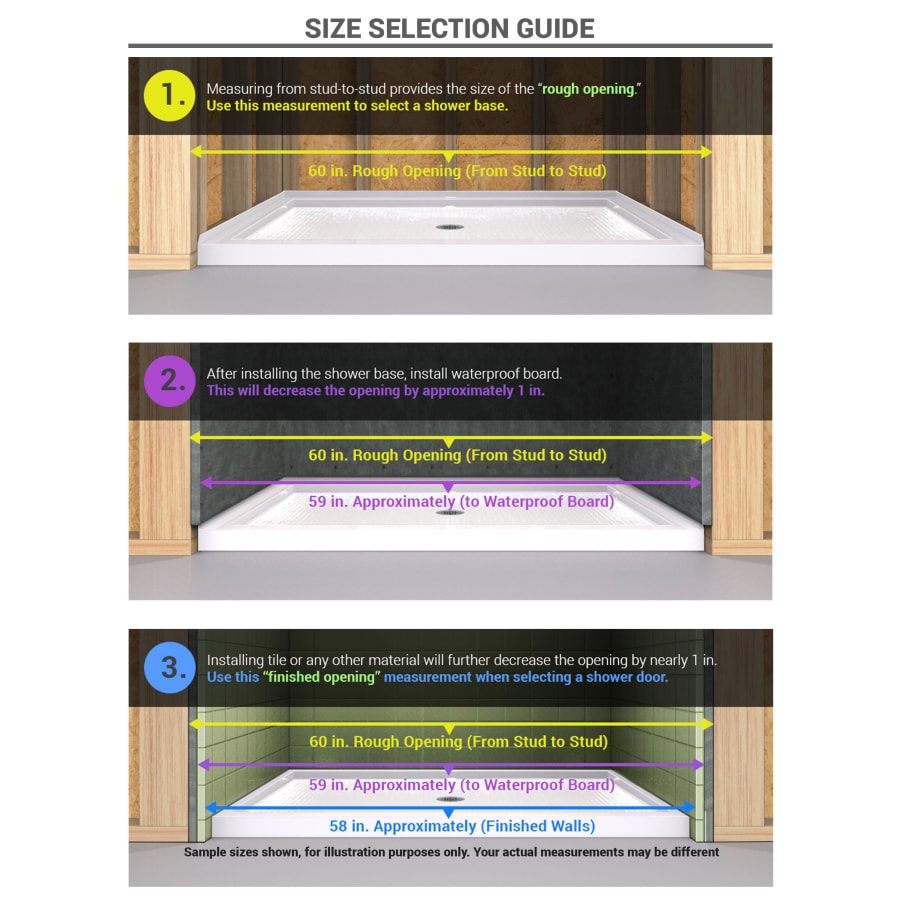

IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
DreamLine exclusive ClearMax™ water repellant and stain resistant protective coating
Premium 3/8″ (10mm) thick clear tempered glass for an upscale look
Frameless glass design to give an open and airy feel to your shower space

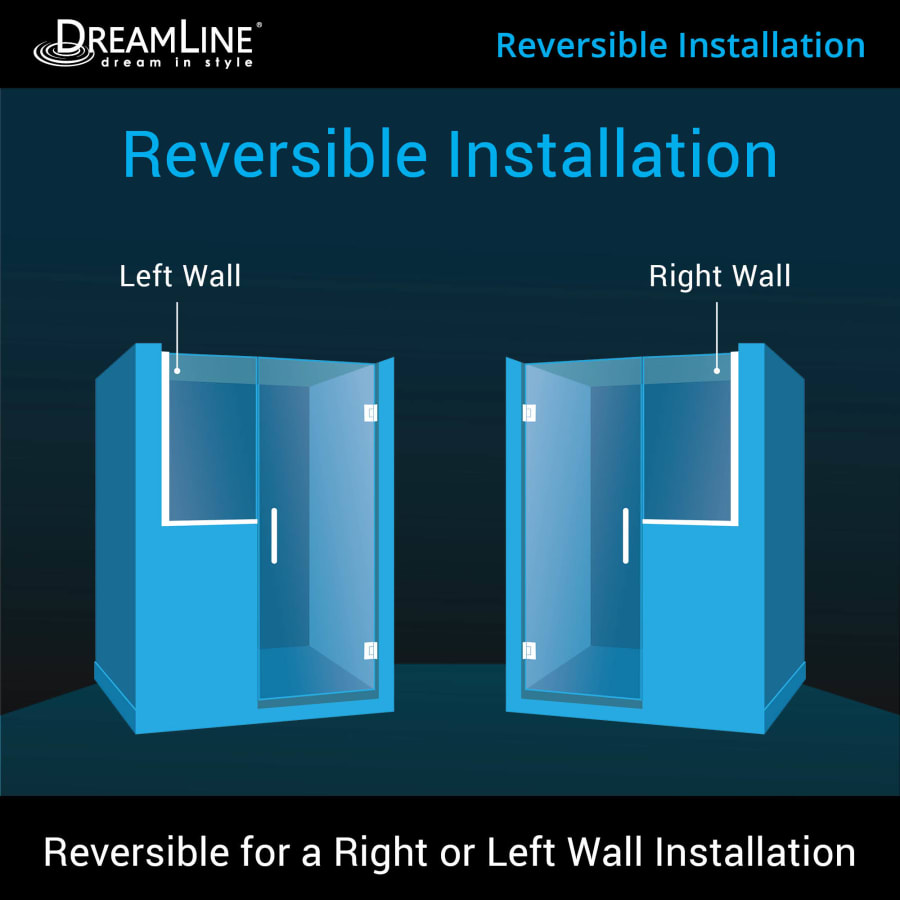

Reversible for left or right wall installation to fit your specific layout
Solid brass wall-to-glass self-closing hinges
Configuration: Shower door with inline buttress panel
Model Size: 60 – 60-1/2″ W x 72″ H
Door Walk-In: 23″
Inline Buttress Panel: 36″ W x 34″ H
Buttress Wall Height: 38″

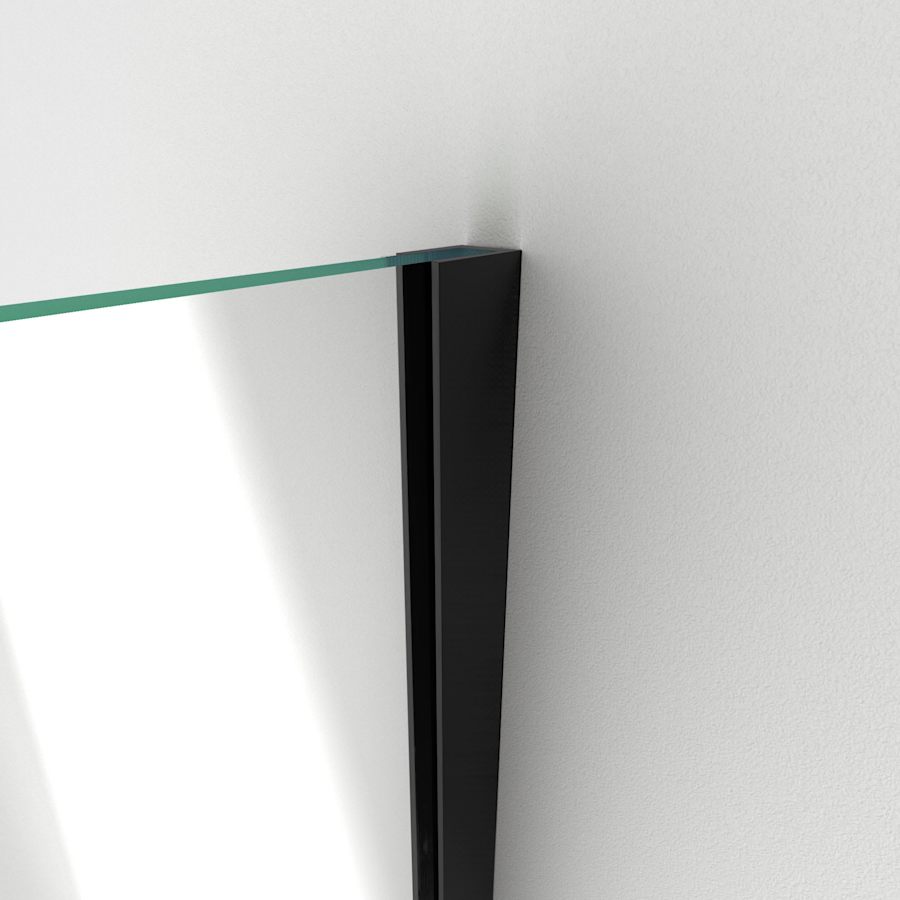

Inline buttress panel is installed to the wall by a 1″ anodized aluminum adjustable U-channel
1/2″ width or out-of-plumb adjustment available on inline buttress panel side
Wall studs or other reinforcement behind finished walls required for hinge installation
Professional installation recommended
Limited lifetime manufacturer warranty
Warranty for any hardware in oil rubbed bronze finish is limited to 1 (one) year
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Unidoor Plus Collection
Specifications
| Height | 72 in. |
| Product Weight | 118.39 lbs. |
| Width | 60.5 in. |
| Nominal Width | 60.5 in. |
| Door Width | 23 in. |
| Glass Thickness | .375 in. |
| Maximum Width | 60.5 in. |
| Minimum Width | 60 in. |
| Panel Width | 36 in. |
| Shower Door Width | 23 in. |
| Insulation Type | Three Wall Alcove |
| Material | Brass, Tempered Glass |
| Thermostat | Modern |
| Glass Features | Clear Glass |
| Configuration | Shower Door |
| Number Of Doors | 1 |
| Curb Location | Front |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Door Swing | Left, Right, Reversible |
| Frame Type | Frameless |
| Shape | Rectangular |
| Door Type | Hinged |
| Approved for Commercial Use | Yes |
| Collection | Unidoor Plus |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | ANSI |
| Commercial Warranty | 1 Year Limited |
| Installation Hardware Included | Yes |
| Base Included | No |
| Color | Brushed Nickel, Chrome, Matte Black, Oil Rubbed Bronze |
| Color Tone | Blacks, Bronze Tones, Nickel Tones, Silver Tones |
