The DreamLine Unidoor Plus is a frameless hinged shower door or enclosure that is perfectly designed for today’s contemporary trends. With modern appeal and sleek clean lines, the Unidoor Plus adds a touch of timeless style to any bathroom space. DreamLine exclusive ClearMax water repellant and stain resistant glass coating adds superior protection from stains and is nearly maintenance-free. Unidoor Plus is part of the DreamLine Unidoor collection, the most versatile line of shower doors and enclosures on the market. Whatever your needs, DreamLine has the ultimate solution for your shower project!
DreamLine SHDR-245857210 Features:
Model Size: 58 1/2 – 59 in. W x 72 in. H
Walk-In Opening: 27 in.
Configuration: Shower Door and Inline Panel
Premium 3/8 in. (10mm) thick certified tempered glass for an upscale look; Glass Type: Clear
DreamLine exclusive ClearMax water and stain resistant glass coating
Frameless glass design to give an open and airy feel to your shower space

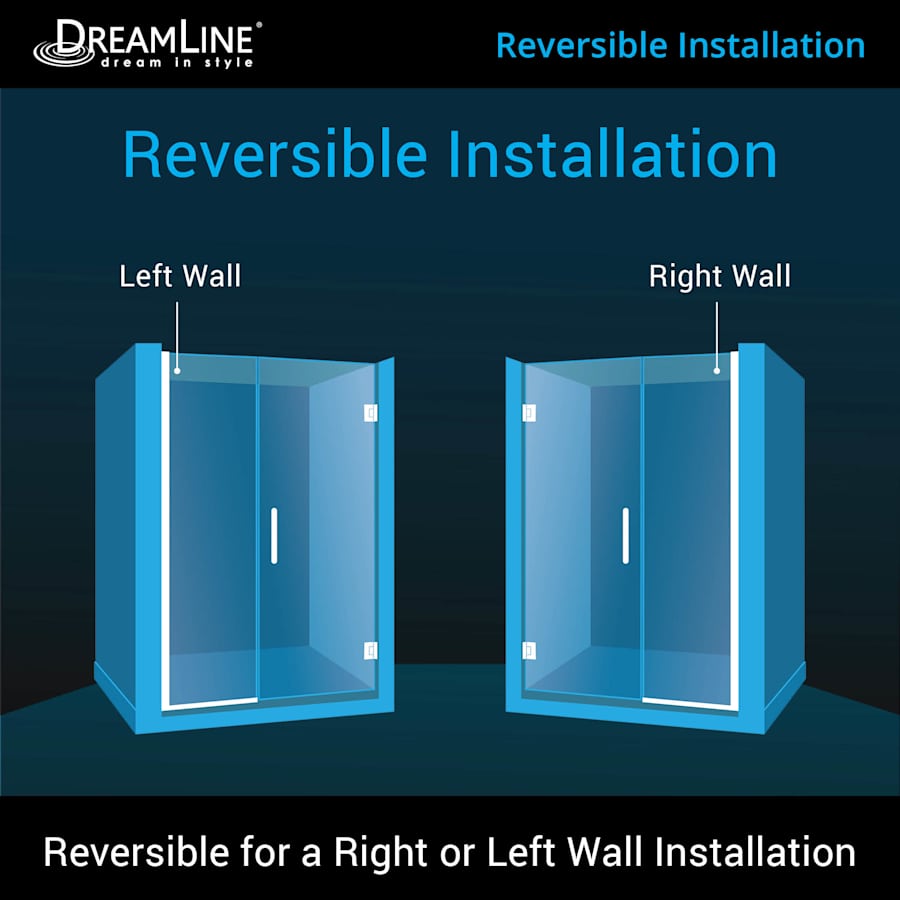

Reversible for a right or left door opening to fit your specific layout
Solid brass wall-to-glass self-closing hinges

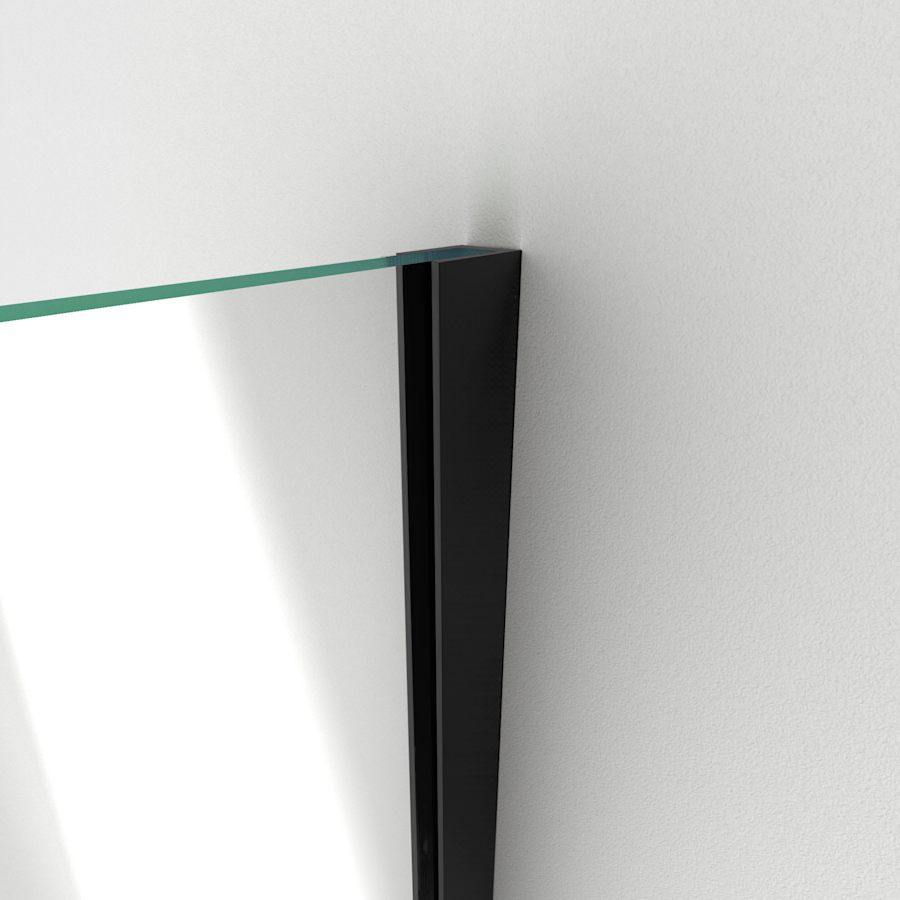

Inline panel is attached to the wall by a 1 in. anodized aluminum U-channel
1/2 in. width or out-of-plumb adjustment available on Inline panel side
Pictured SlimLine shower base is not included

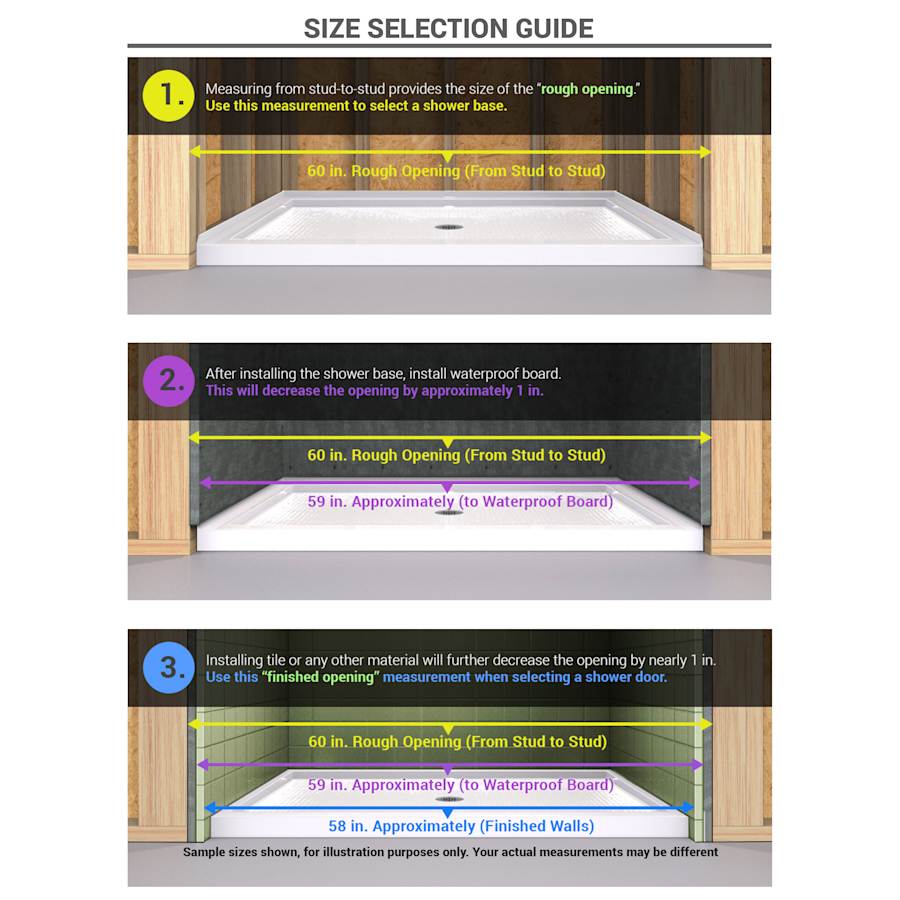

IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, back walls, etc.)
Wall studs or other reinforcement behind finished walls required for hinge installation
Professional installation recommended
Lifetime limited manufacturer warranty, three (3) year all hardware finishes warranty and three (3) year all hardware finishes warranty
DreamLine SHDR-245857210 Specifications:
Overall Height: 72″ (bottom to top of door fixture)
Overall Width: 59″ (left to right of door fixture)
Enclosure Width Range: 58-1/2″ to 59″ (range of enclosure sizes door will accommodate)
Maximum Door Opening: 27″ (assuming door is not trimmed)
Opening Direction: Reversible
Glass Thickness: 3/8″
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Unidoor Plus Collection
Specifications
| Height | 72 in. |
| Width | 59 in. |
| Nominal Width | 59 in. |
| Product Weight | 166.89 lbs. |
| Glass Thickness | 0.375 in. |
| Maximum Width | 59 in. |
| Minimum Width | 58.5 in. |
| Door Width | 27 in. |
| Shower Door Width | 27 in. |
| Panel Width | 30.5, 31 in. |
| Insulation Type | Three Wall Alcove |
| Material | Brass, Tempered Glass |
| Thermostat | Modern |
| Glass Features | Clear Glass |
| Configuration | Shower Door |
| Frame Type | Frameless |
| Shape | Rectangular |
| Door Swing | Left, Reversible, Right |
| Door Type | Hinged |
| Number Of Doors | 1 |
| Number of Thresholds | 1 |
| Number Of Curbs | 1 |
| Curb Location | Front |
| Collection | Unidoor Plus |
| Approved for Commercial Use | Yes |
| Commercial Warranty | 1 Year Limited |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | ANSI |
| Installation Hardware Included | Yes |
| Base Included | No |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
