The DreamLine Unidoor Plus is a frameless hinged shower door or enclosure that is perfectly designed for today’s contemporary trends. With modern appeal and sleek clean lines, the Unidoor Plus adds a touch of timeless style to any bathroom space. DreamLine exclusive ClearMax water repellant and stain resistant glass coating adds superior protection from stains and is nearly maintenance-free. Unidoor Plus is part of the DreamLine Unidoor collection, the most versatile line of shower doors and enclosures on the market. Whatever your needs, DreamLine has the ultimate solution for your shower project!
DreamLine SHDR-245957210 Features:

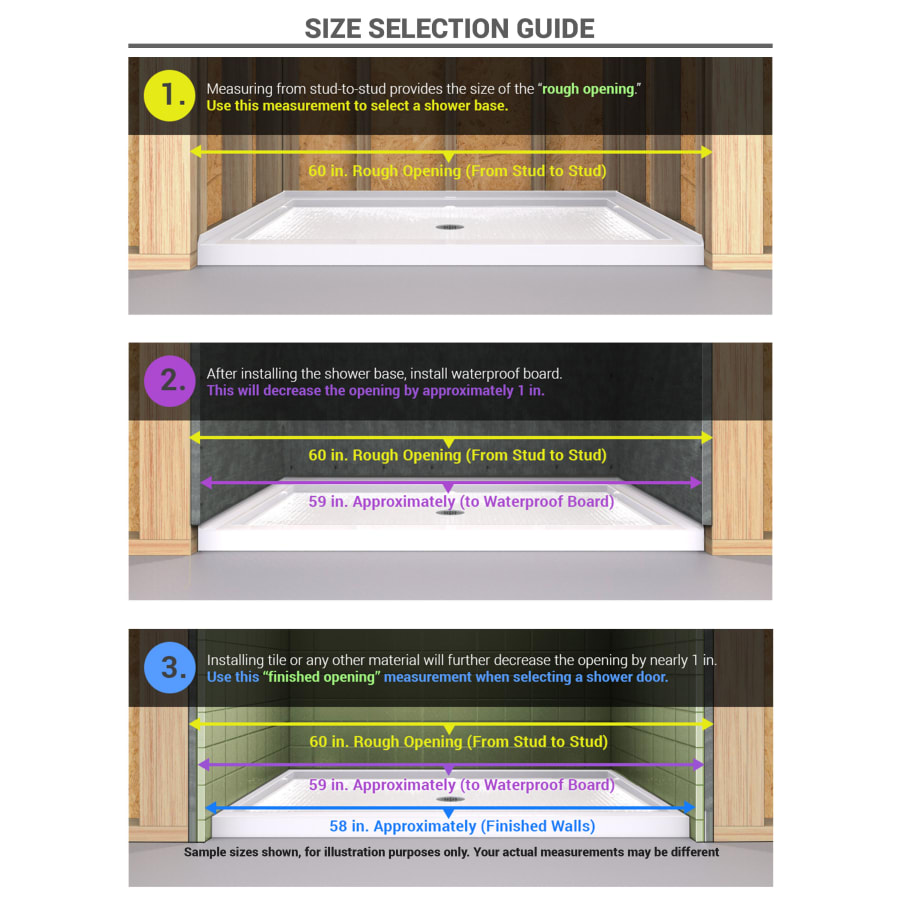

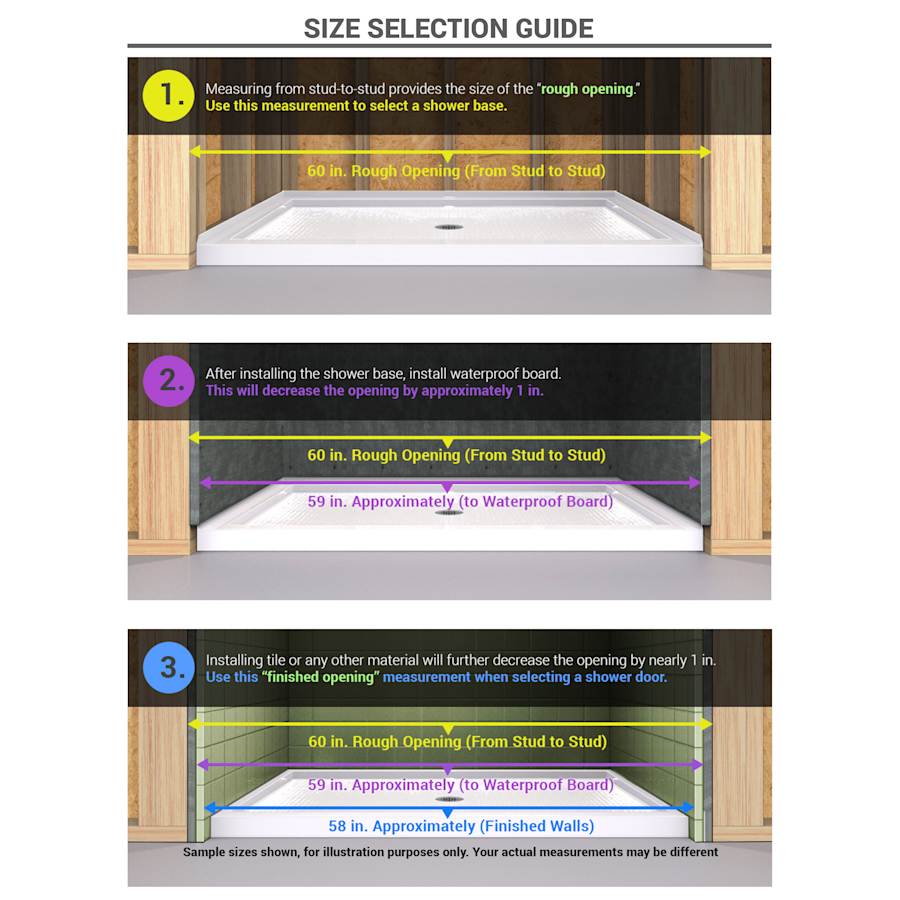

IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
DreamLine exclusive ClearMax™ water repellant and stain resistant protective coating
Model Size: 59-1/2 to 60″ W x 72″ H
Door Walk-In: 28″
Stationary Panel(s): 30-1/2 to 31″

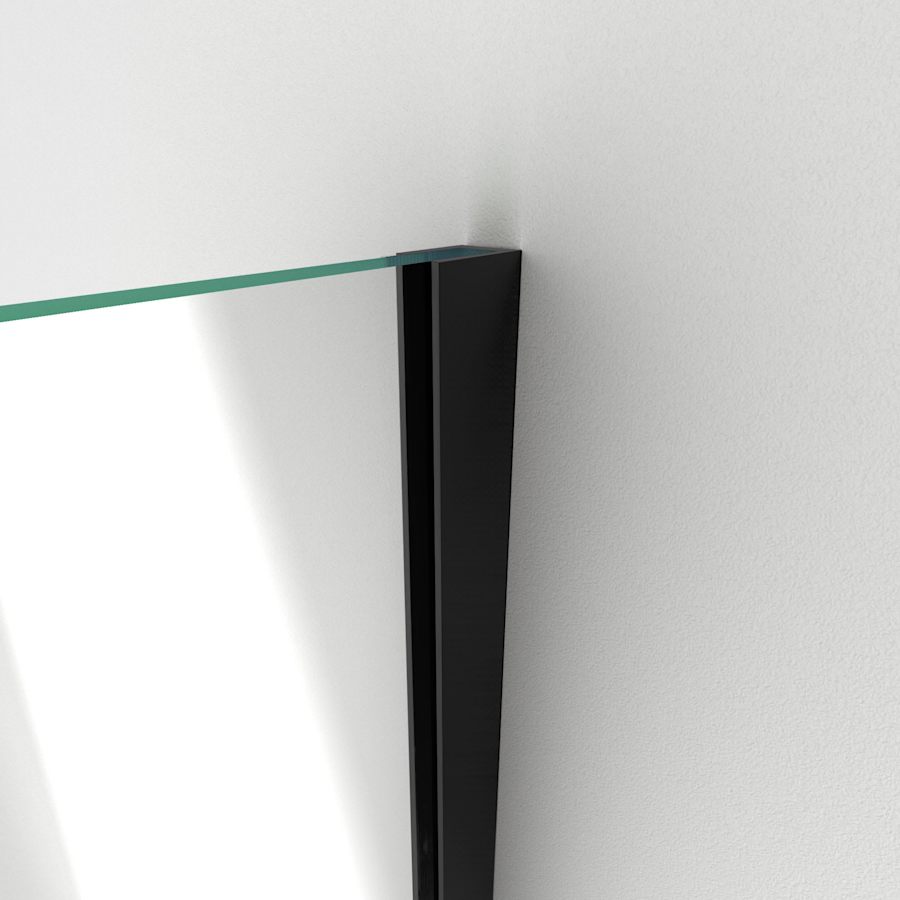

Anodized aluminum U-channel provides up to 1/2″ width (horizontal) or out-of-plumb (vertical) adjustment within the model size
Frameless glass design
Model consists of single hinged door and one stationary inline panel

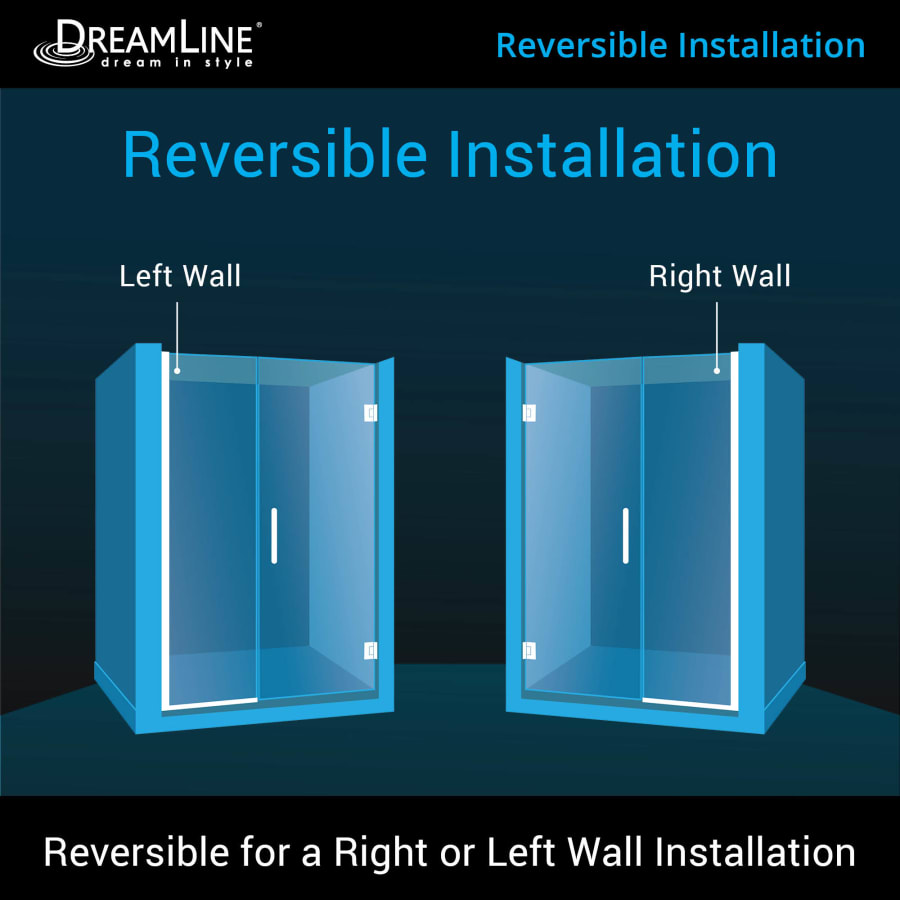

Reversible for a right or left door opening installation
3/8″ (10mm) thick clear tempered glass
Solid brass self-closing hinges (with a 5 degree offset)
Wall studs or other reinforcement behind finished walls required for hinge installation
Professional installation recommended
Shower base is not included
Limited lifetime manufacturer warranty
Warranty for any hardware in oil rubbed bronze finish is limited to 1 (one) year
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Unidoor Plus Collection
Specifications
| Height | 72 in. |
| Width | 60 in. |
| Product Weight | 169.09 lbs. |
| Nominal Width | 60 in. |
| Maximum Width | 60 in. |
| Minimum Width | 59.5 in. |
| Glass Thickness | .375 in. |
| Door Width | 28 in. |
| Panel Width | 30.5, 31 in. |
| Shower Door Width | 28 in. |
| Thermostat | Modern |
| Insulation Type | Three Wall Alcove |
| Material | Brass, Tempered Glass |
| Frame Type | Frameless |
| Configuration | Shower Door |
| Glass Features | Clear Glass |
| Shape | Rectangular |
| Door Swing | Right, Reversible, Left |
| Door Type | Hinged |
| Number Of Doors | 1 |
| Curb Location | Front |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Base Included | No |
| Installation Hardware Included | Yes |
| Approved for Commercial Use | Yes |
| Collection | Unidoor Plus |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Commercial Warranty | 1 Year Limited |
| Certifications | ANSI |
| Color | Brushed Nickel, Chrome, Matte Black, Oil Rubbed Bronze |
| Color Tone | Blacks, Bronze Tones, Nickel Tones, Silver Tones |
