Dreamline SHDR-4146720 Features:
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
DreamLine exclusive ClearMax™ water repellant and stain resistant protective coating
46 – 48 in. W x 72 in. H

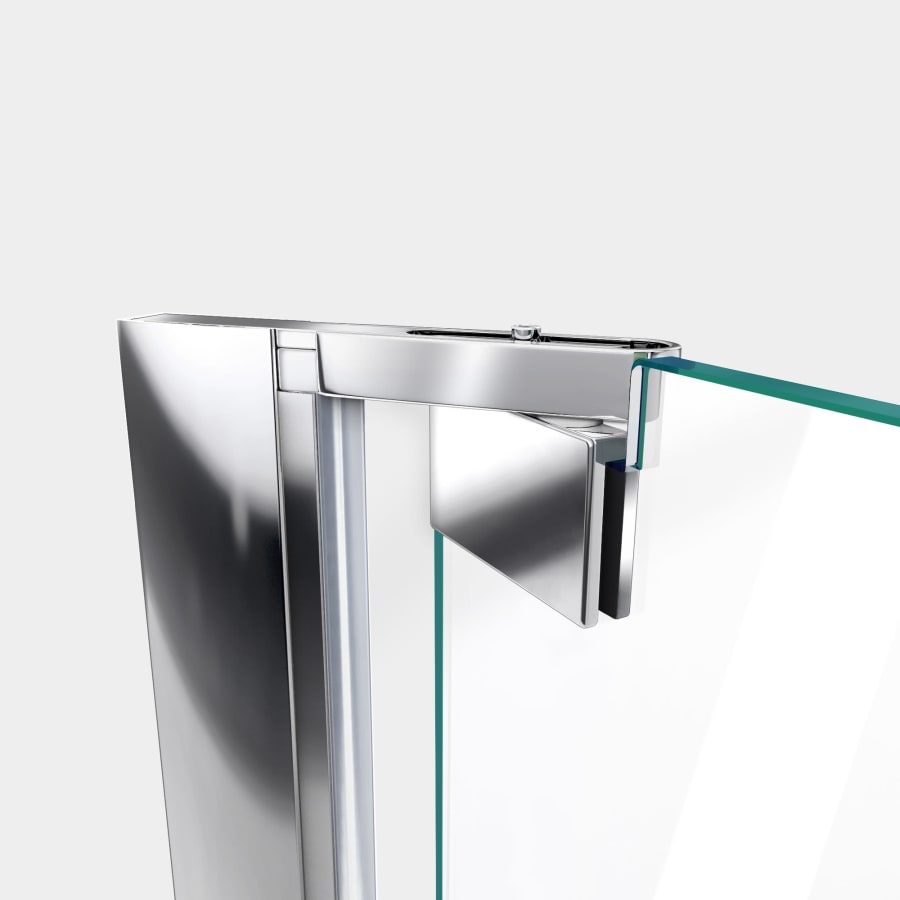

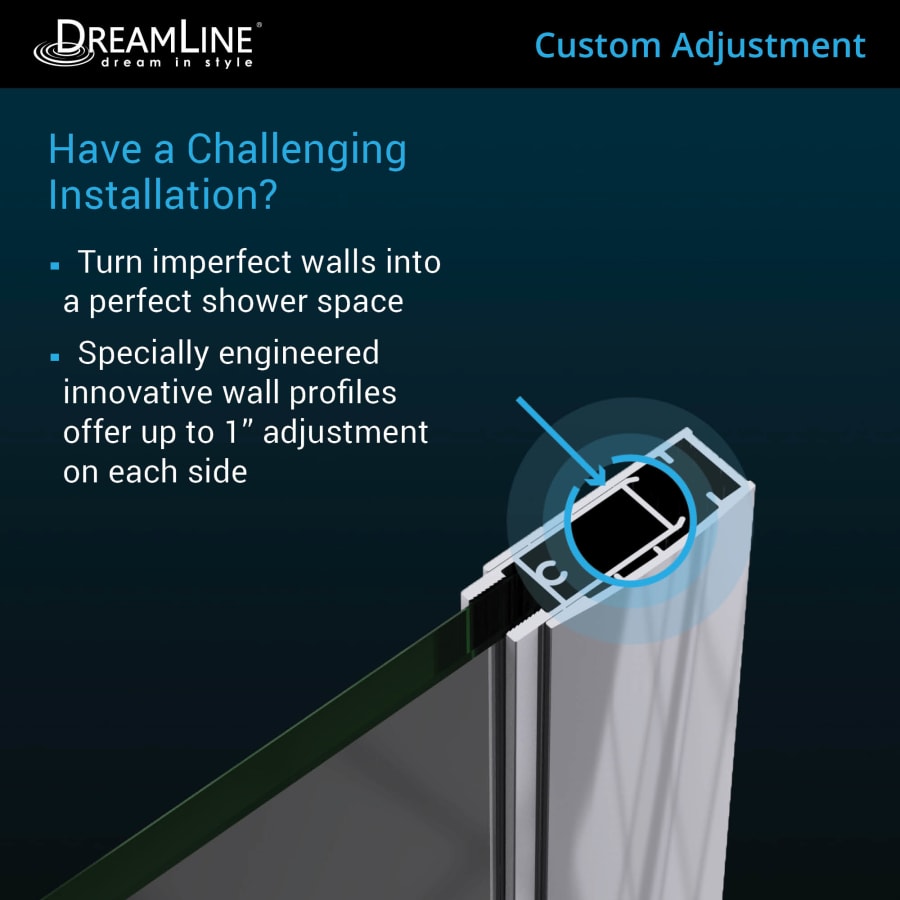

Anodized aluminum wall profiles provides each side up to 1 in. width (horizontal) or out-of-plumb (vertical) adjustment
Frameless glass design

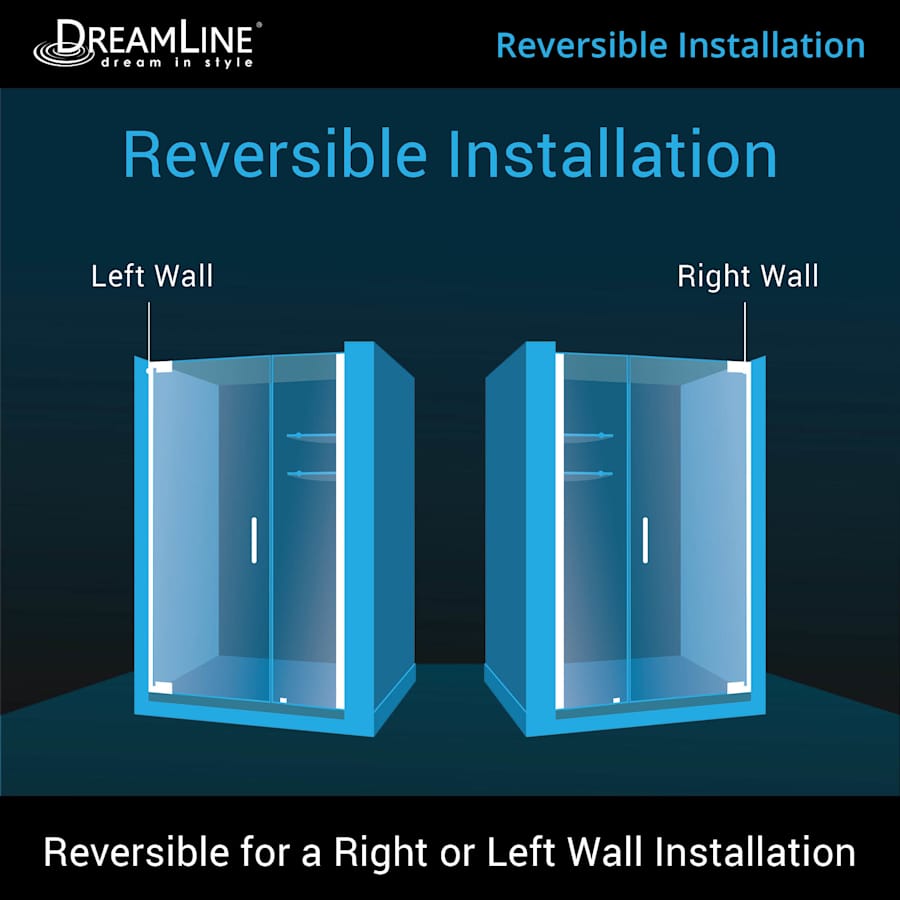

Reversible for right or left door opening installation
3/8 in. (10mm) thick clear tempered glass

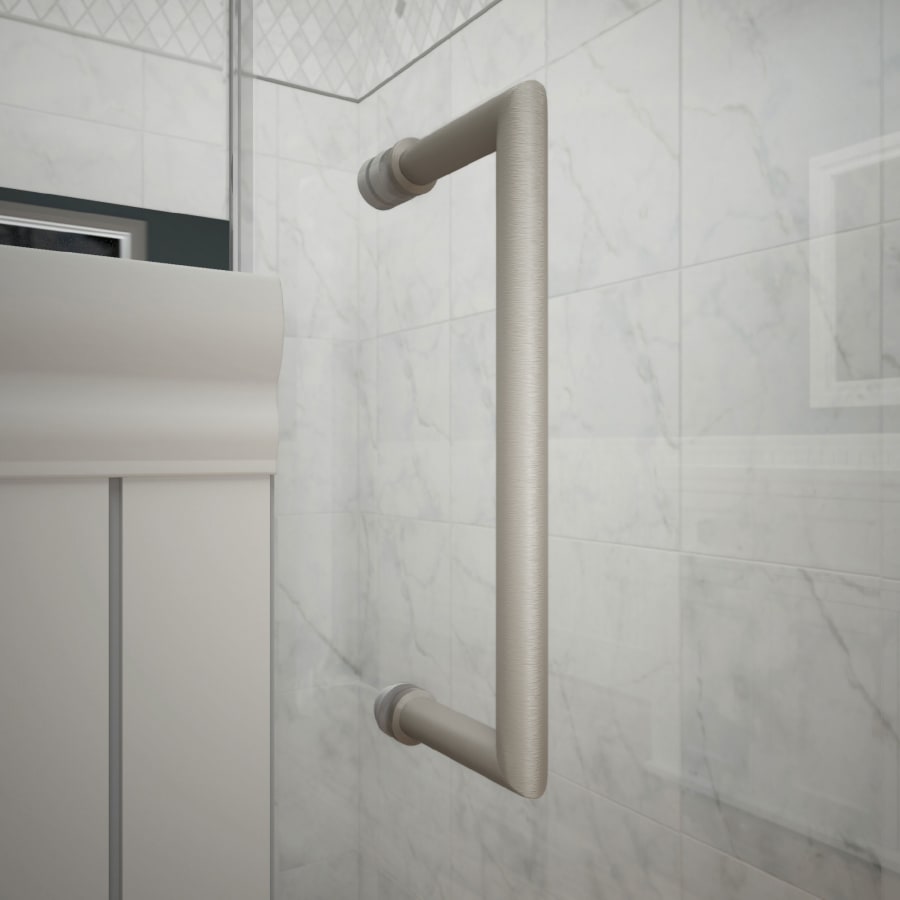

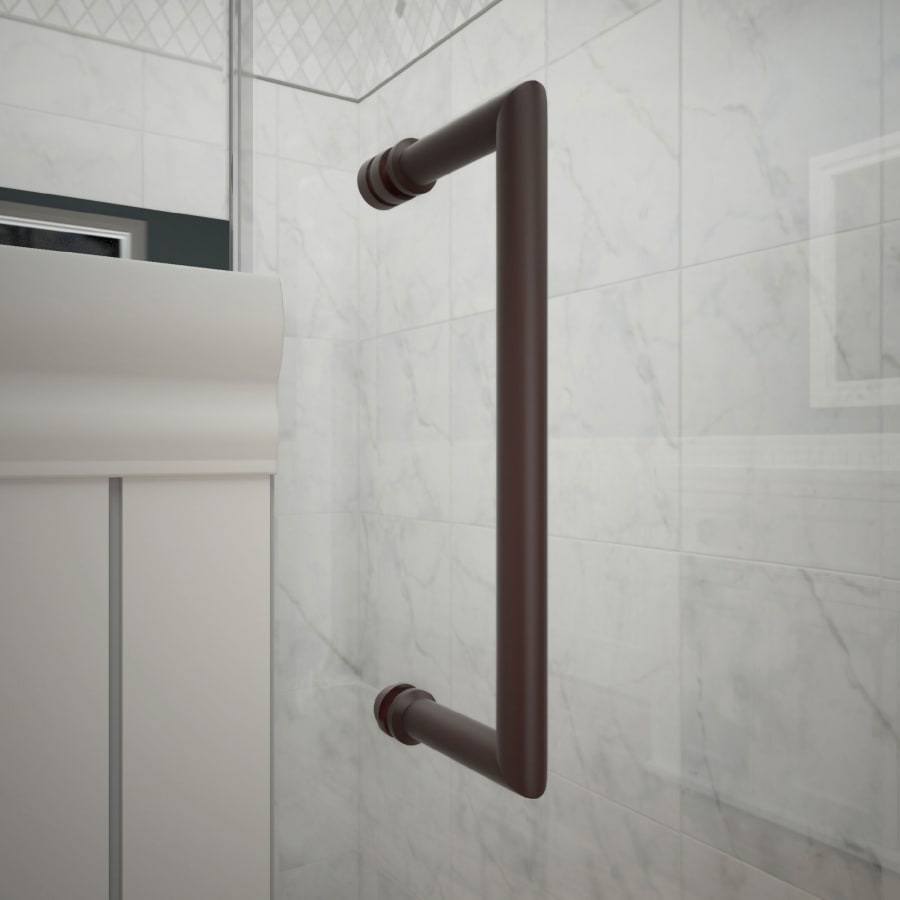

Hardware available in chrome, brushed nickel or oil rubbed bronze finish

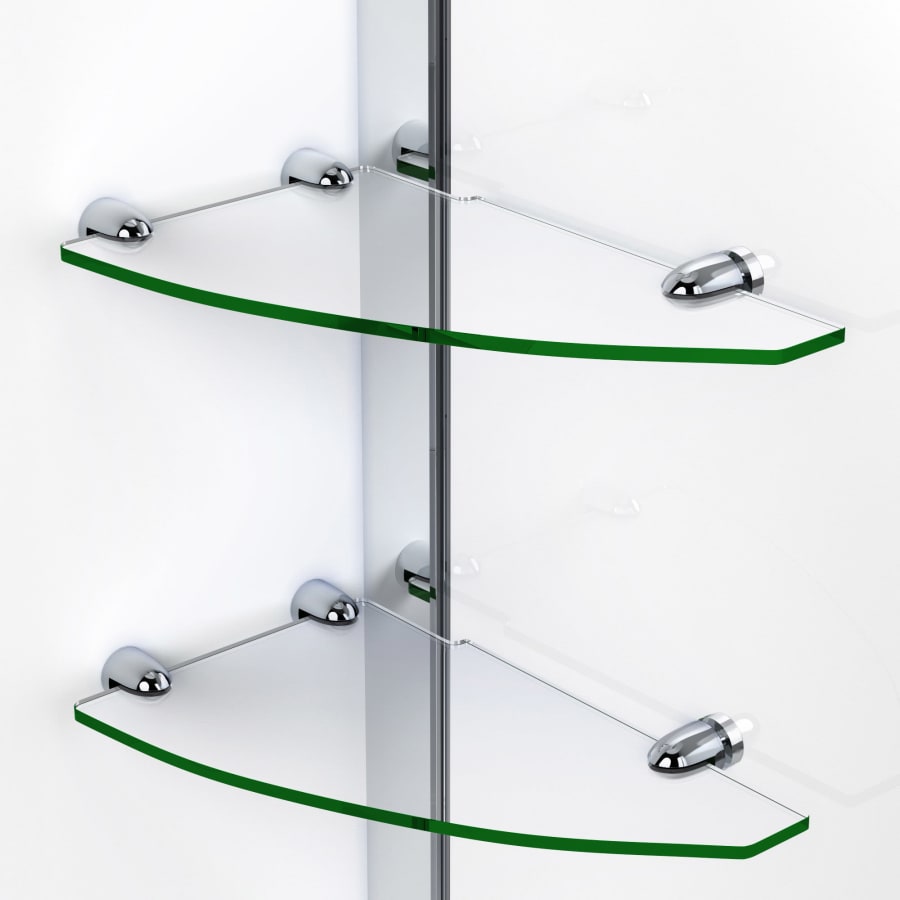

Stationary glass panel with two glass shelves
Door walk-in: 29 1/2 in.
Stationary panel: 12 in.
Professional installation recommended
Optional SlimLine matching shower base sold separately
Limited lifetime manufacturer warranty
Warranty for any hardware in Oil Rubbed Bronze finish is limited to 1 (one) year
Professional installation recommended
Note: DreamLine shower bases will always be larger (approximately 2 in.) than the corresponding DreamLine shower enclosures/doors. Please, take this information under advisement when ordering your shower base and shower enclosure separately
Note: To minimize leakage, install shower head opposite of door opening aimed at tiled walls, fixed shower panel or floor
About Collection:

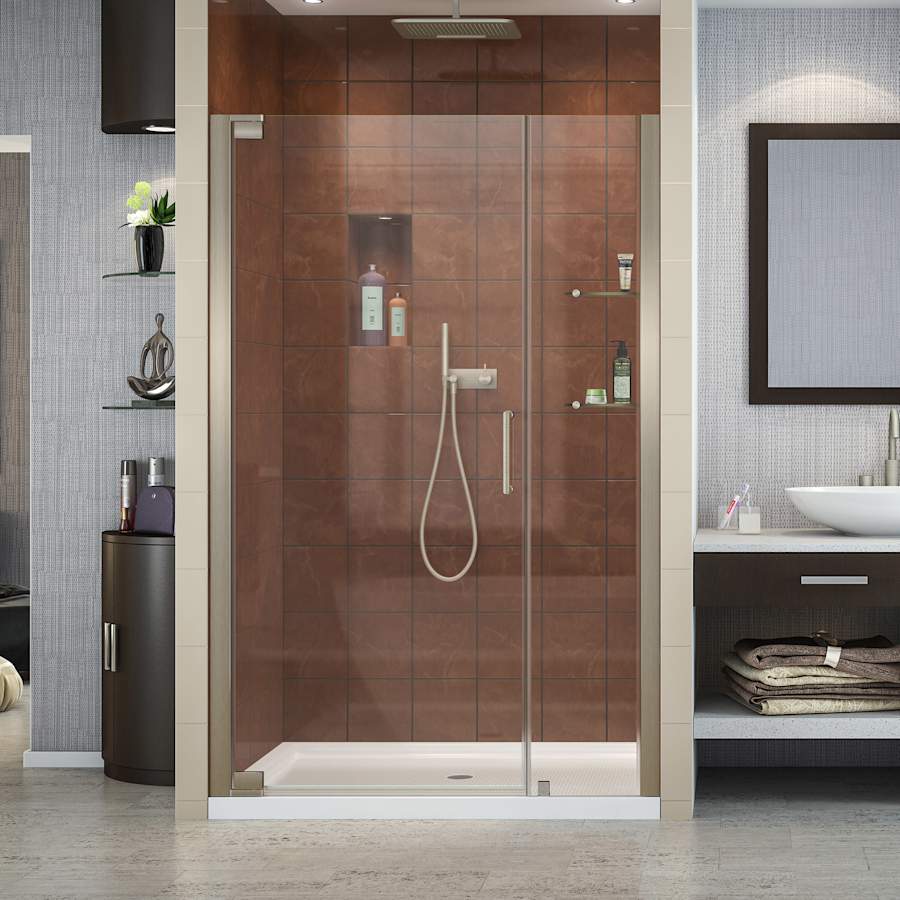

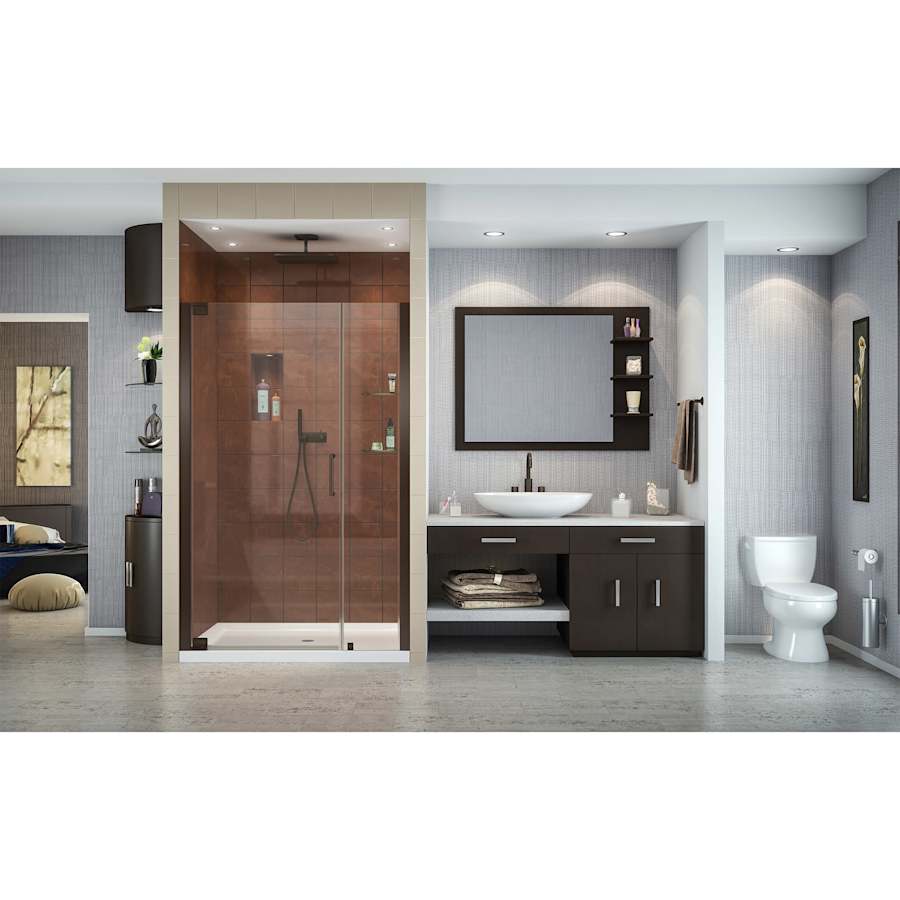

The ELEGANCE shower door from DreamLine® has an elegant pivot system with three hardware finish options to create a classy look enhancing any bathroom style. The ELEGANCE shower door is extremely versatile, with options to fit finished/tiled shower door openings from 25 1/4 in. to 61 3/4 in. wide. Choose the ELEGANCE shower door to complete your bathroom with a splash of luxurious style. DreamLine has the ultimate solution for your shower project.
About DreamLine™:
DreamLine™ is a leading global manufacturer and distributor of high quality shower doors, tub doors, shower enclosures and acrylics shower bases. DreamLine is passionate about smart and visionary design delivering affordable luxury bathroom solutions to the bath and shower marketplace. DreamLine has achieved worldwide accolades for off-the-shelf and custom shower door solutions with sleek modern style and impressive value. DreamLine structures their company`s philosophy to ensure customer satisfaction, exceptional quality and overall excellence in their products and team members. DreamLine has “The Ultimate Shower Door” for any bathroom project.
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Elegance Collection
Specifications
| Height | 72 in. |
| Width | 48 in. |
| Product Weight | 140 lbs. |
| Nominal Width | 46, 47, 48 in. |
| Glass Thickness | .375 in. |
| Maximum Width | 48 in. |
| Minimum Width | 46 in. |
| Shower Door Width | 29.5 in. |
| Door Width | 29.5 in. |
| Panel Width | 12 in. |
| Thermostat | Modern |
| Material | Aluminum, Brass, Glass |
| Insulation Type | Three Wall Alcove |
| Configuration | Shower Door |
| Glass Features | Clear Glass |
| Frame Type | Frameless |
| Door Swing | Reversible |
| Door Type | Pivot, Hinged |
| Number Of Doors | 1 |
| Number Of Shelves | 2 |
| Approved for Commercial Use | Yes |
| Collection | Elegance |
| Manufacturer Warranty | 1 Year Limited Commercial, Limited Lifetime Residential |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
