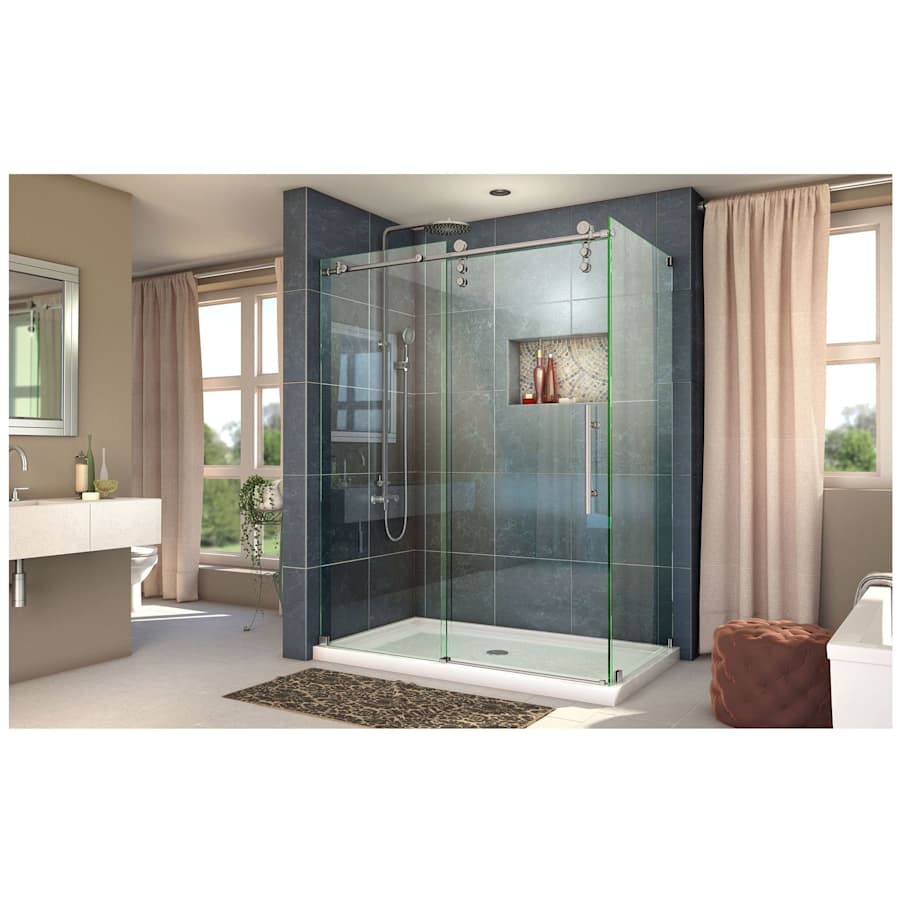

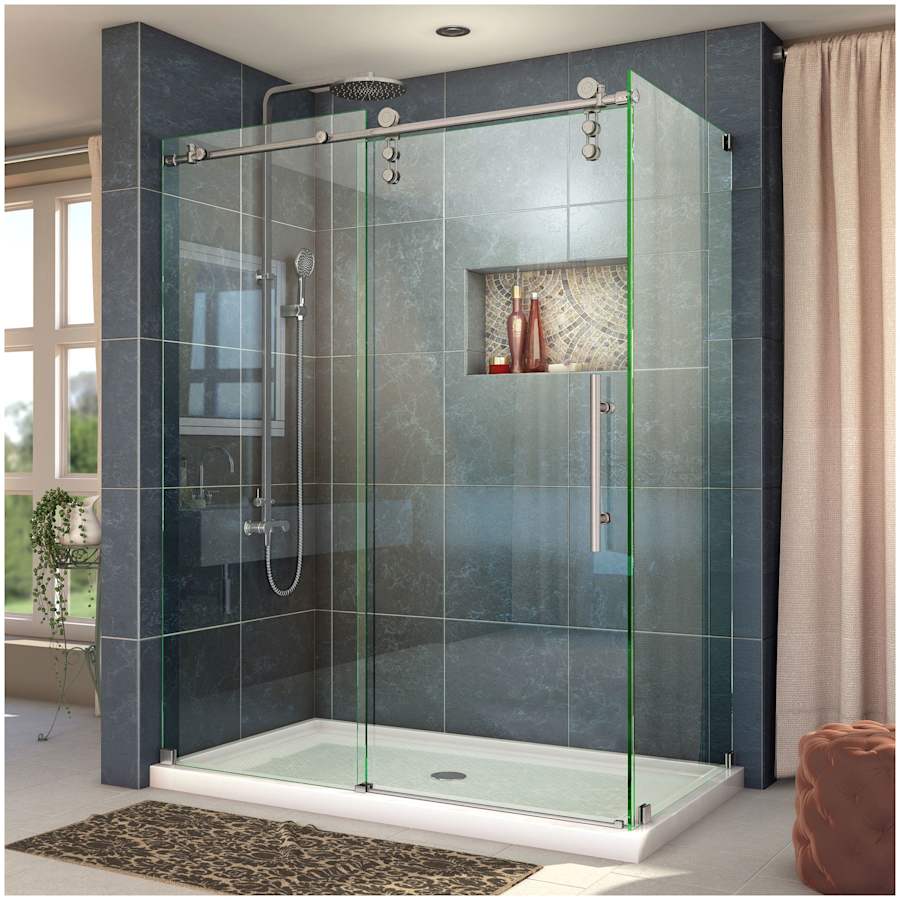

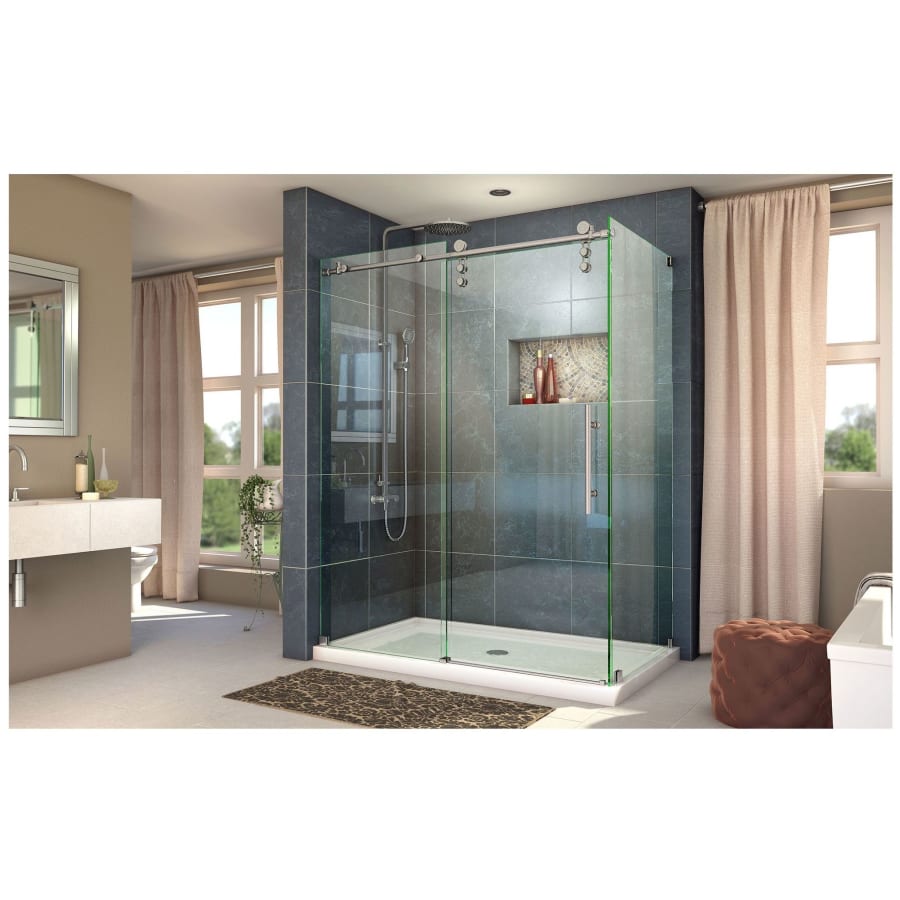

The DreamLine Enigma-Z is a fully frameless sliding shower door, tub door or enclosure is the epitome of sophistication, elegance and modern innovation, with a design that rivals custom glass. The Enigma-Z shines with stainless steel hardware for luxurious style and exceptional quality. Glass is treated with DreamLine exclusive ClearMax water repellant and stain resistant coating for superior protection and easy maintenance. Choose DreamLine for the ultimate solution for your shower project!
DreamLine SHEN-6234600 Features:
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
34 1/2″ D x 56 3/8 to 60 3/8″ W x 76″ H
Stainless steel hardware available in brushed or polished finish
Door walk-in: 32″
Stationary panel: 29 1/8″
Return panel: 34 1/2″
Frameless glass design
Model consists of one sliding door and one stationary inline panel and one stationary return panel

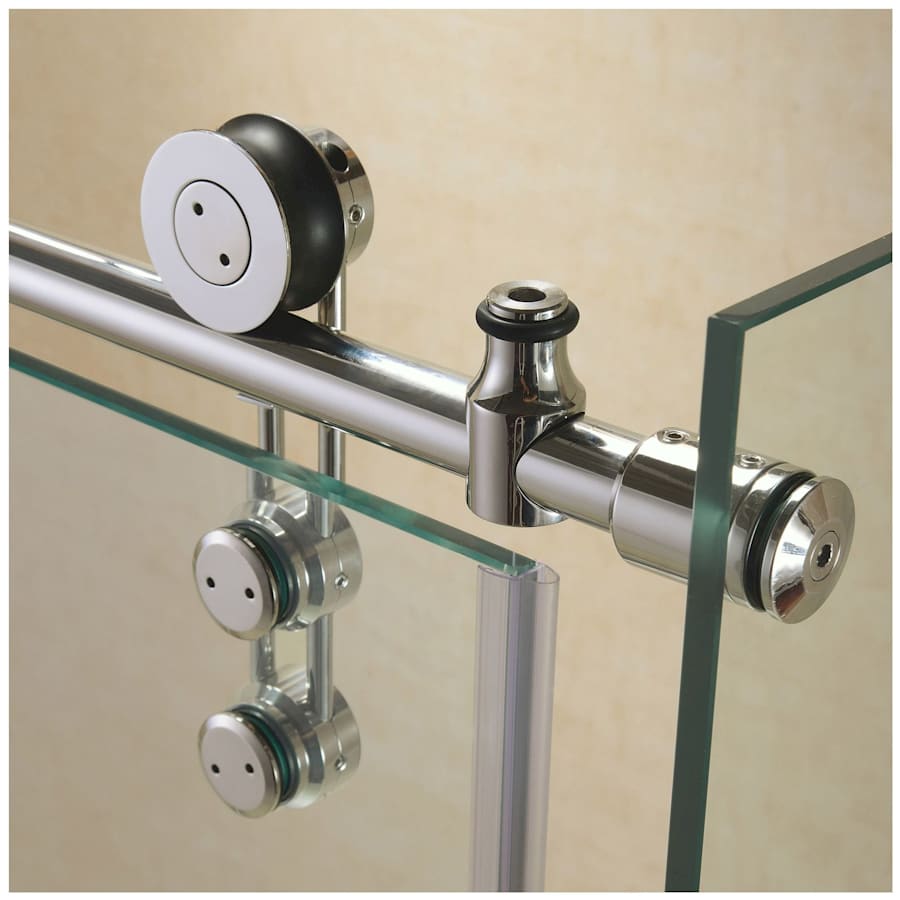

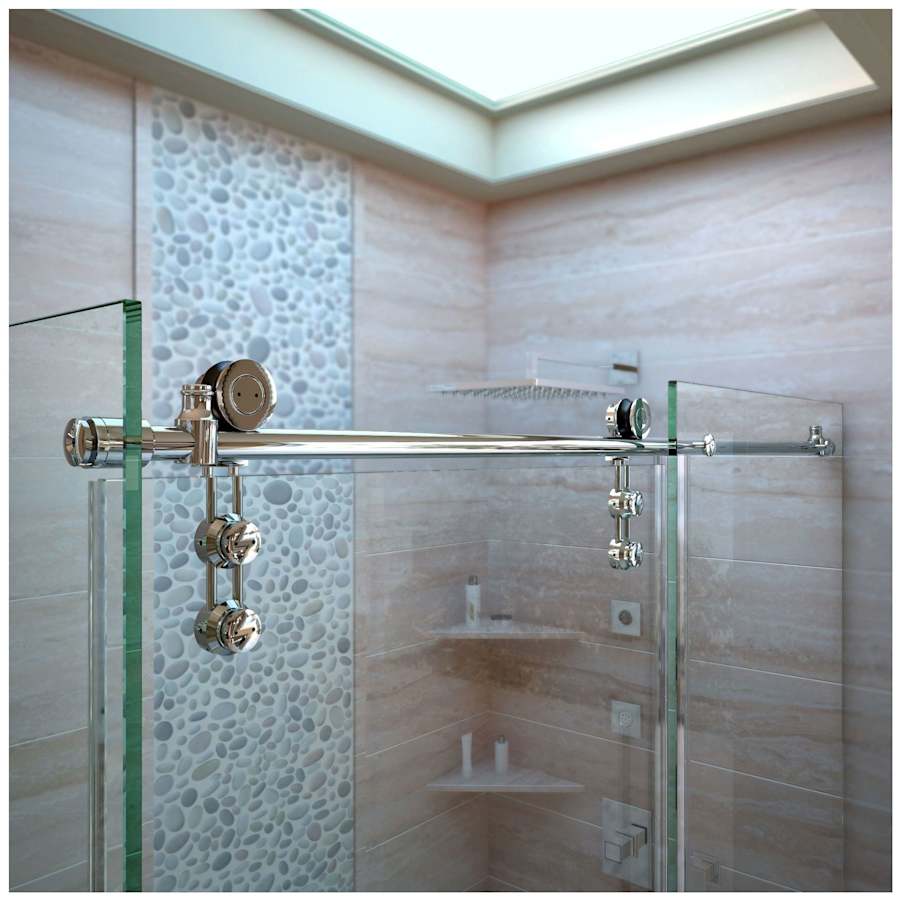

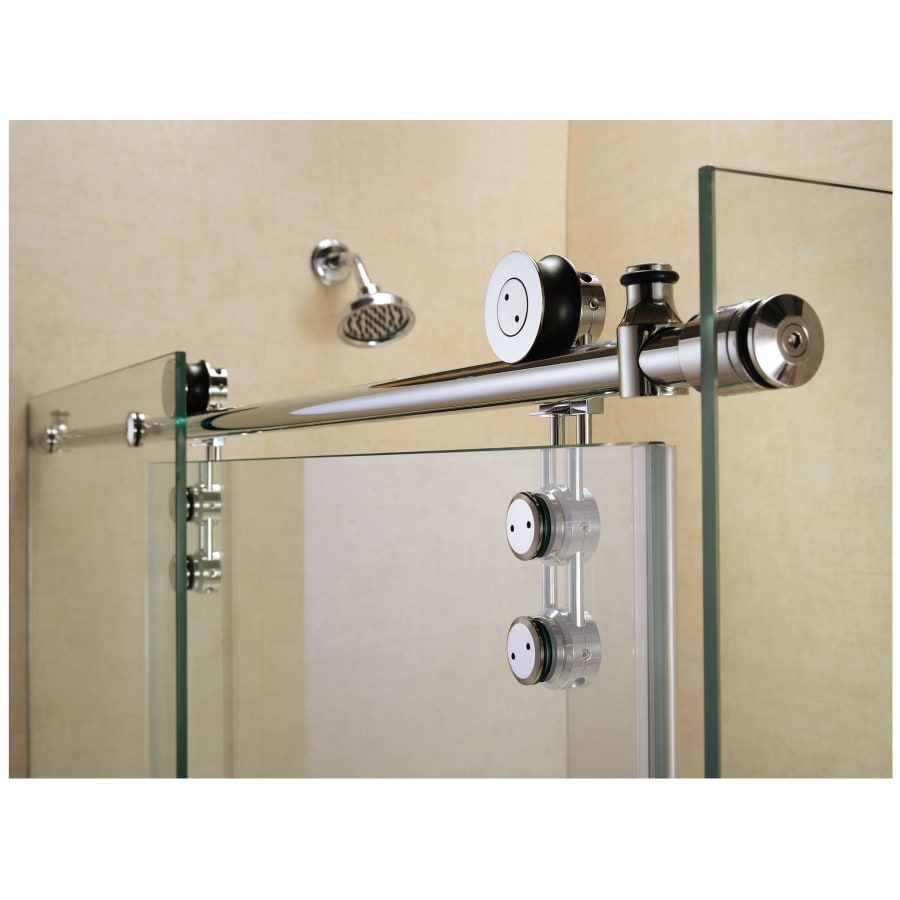

Effortless sliding operation with large wheel assembly on a stainless steel track (bar)
Track (bar) may be shortened up to 4″ for width (horizontal) adjustment
No out of plumb (vertical) adjustment
Reversible for a right or left door opening installation
Premium 3/8″ (10mm) thick clear tempered glass
DreamLine exclusive ClearMax protective anti-lime scale coating

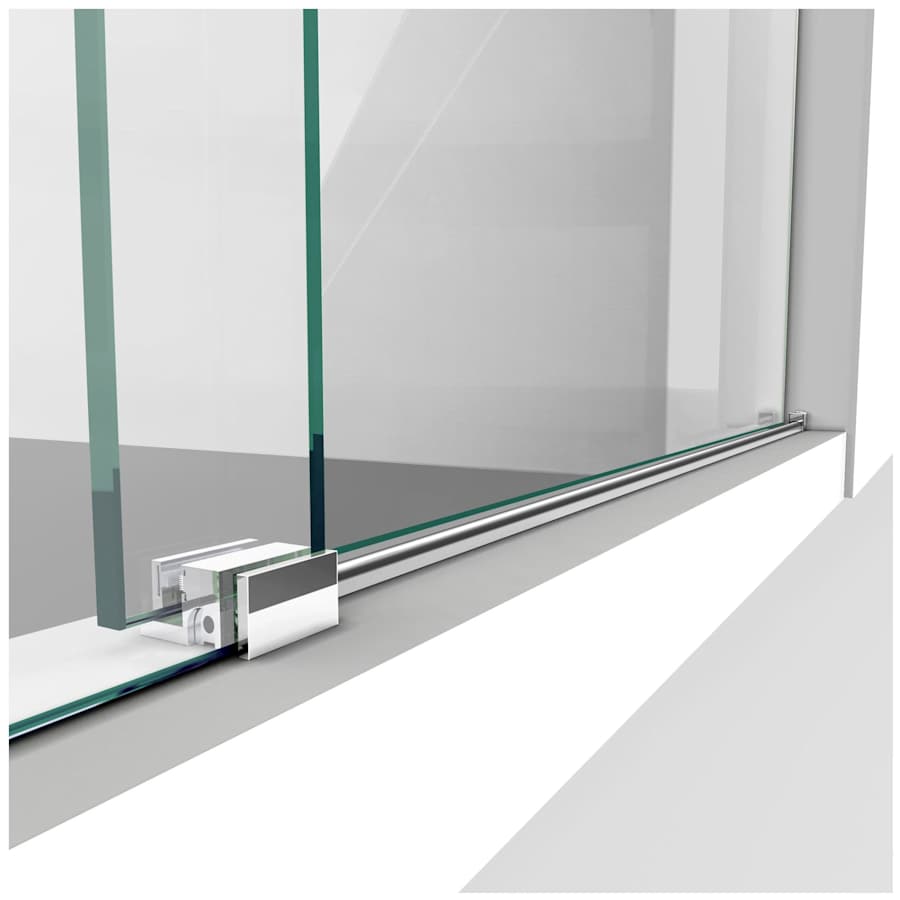

Anti-splash threshold to prevent water spills (requires minimum threshold depth of 2 3/8″)

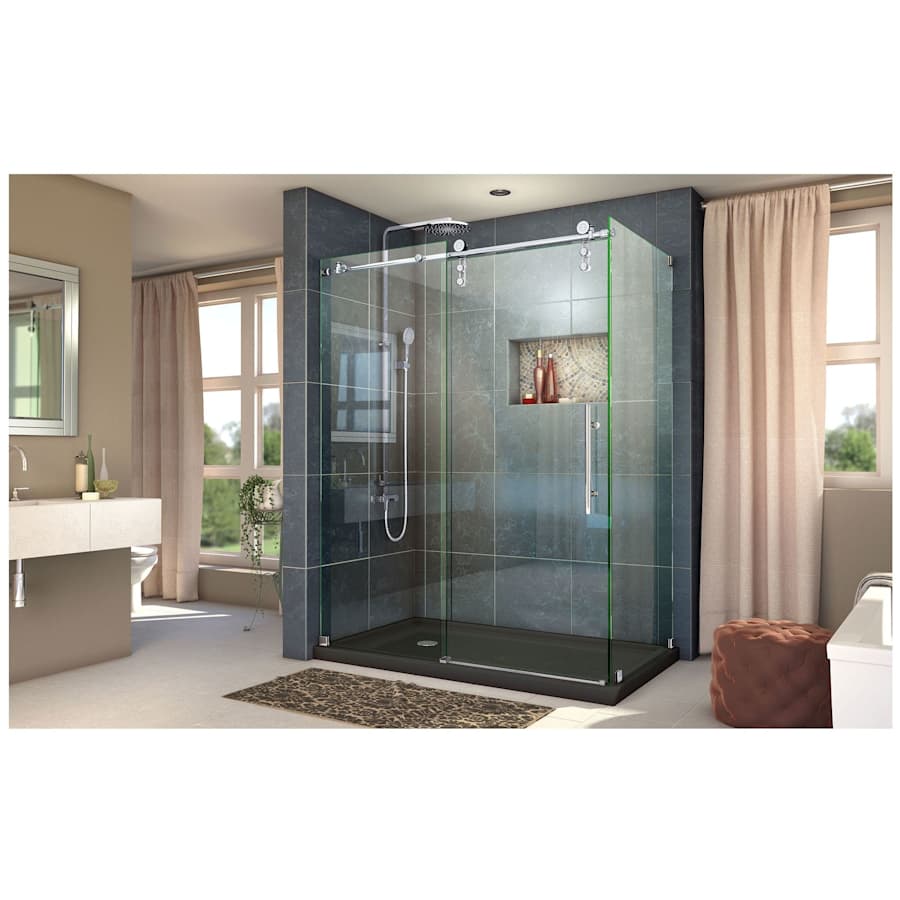

Optional SlimLine matching shower base sold separately
Wall studs or other reinforcement behind finished walls required for installation
Professional installation required
Limited Lifetime Manufacturer Warranty
Note: DreamLine shower bases will always be larger (approximately 2″) than the corresponding DreamLine shower enclosures/doors. Please, take this information under advisement when ordering your shower base and shower enclosure separately
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Enigma-Z Collection
Specifications
| Height | 76 in. |
| Product Weight | 286.16 lbs. |
| Width | 60.375 in. |
| Drain Connection | 3.25 in. |
| Nominal Width | 60.375 in. |
| Depth | 34.5 in. |
| Maximum Width | 60.375 in. |
| Minimum Width | 60.375 in. |
| Glass Thickness | .375 in. |
| Shower Door Width | 32 in. |
| Door Width | 27 in. |
| Panel Width | 34.5, 29.125 in. |
| Installation Hardware Included | Yes |
| Base Included | No |
| Material | Stainless Steel, Tempered Glass |
| Thermostat | Modern |
| Insulation Type | Corner |
| Configuration | Shower Enclosure |
| Glass Features | Clear Glass |
| Shape | Rectangular |
| Frame Type | Frameless |
| Number Of Doors | 1 |
| Door Swing | Reversible |
| Door Type | Sliding |
| Approved for Commercial Use | Yes |
| Commercial Warranty | 1 Year Limited |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Collection | Enigma-Z |
| Color | Brushed Stainless Steel, Polished Stainless Steel |
| Color Tone | Stainless Steel |
