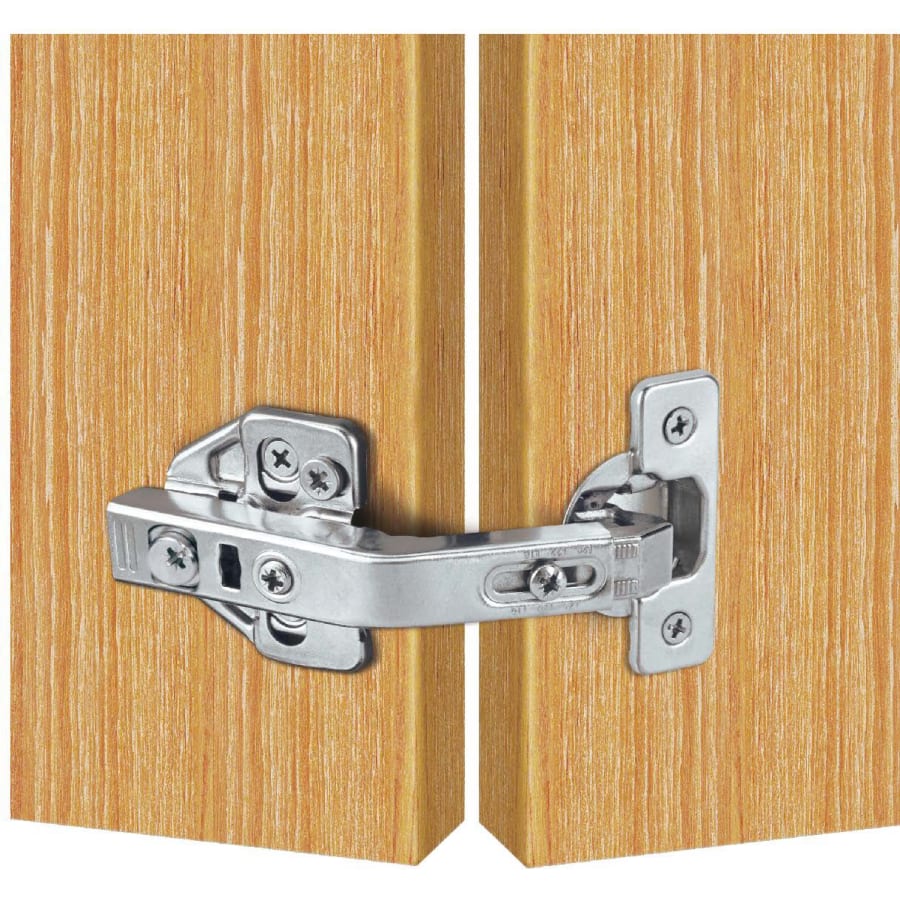

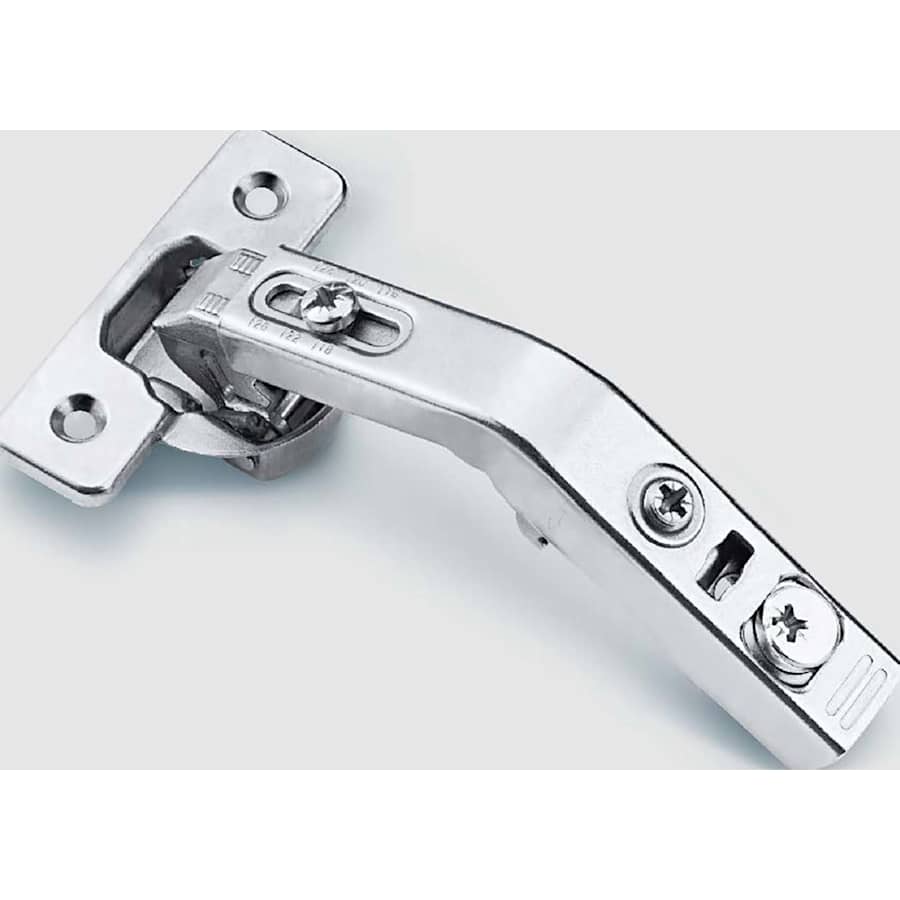

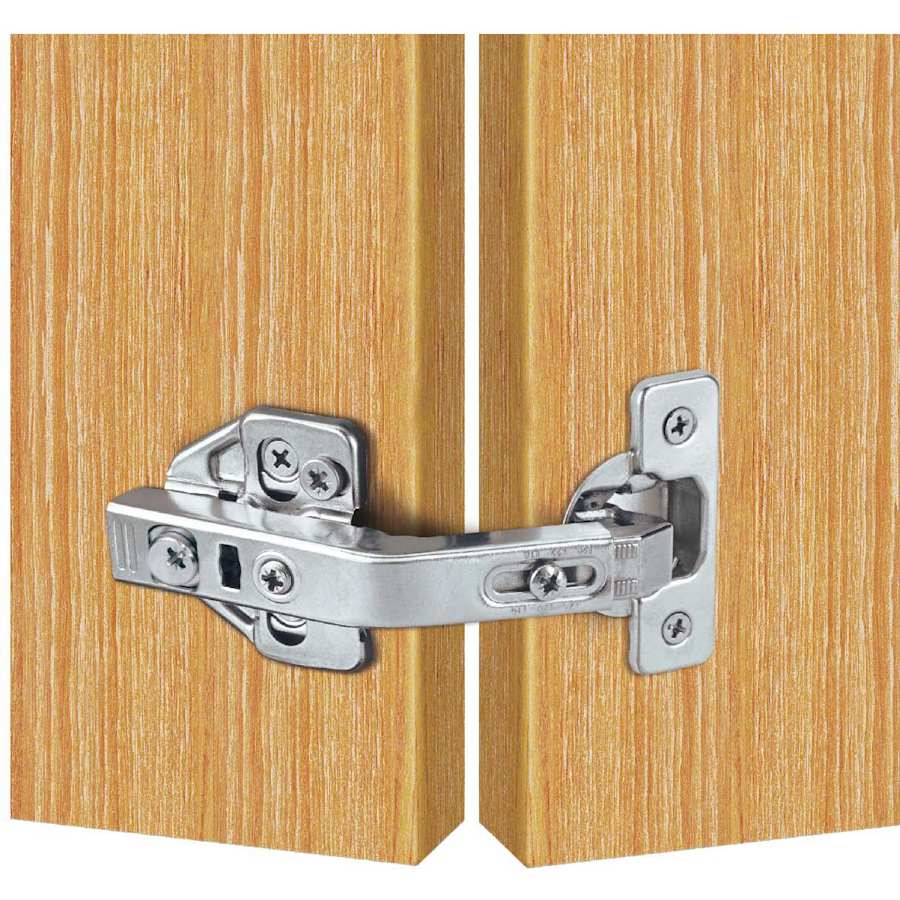

135 Degree Self-closing Doweled Bi-fold Angled Hinge
Features:
Includes a single (1) hinge in each order
Constructed of high quality steel for durability and dependability
Covered by DTC’s limited lifetime manufacturer warranty
Self closing function will allow your cabinet door to close firmly and securely

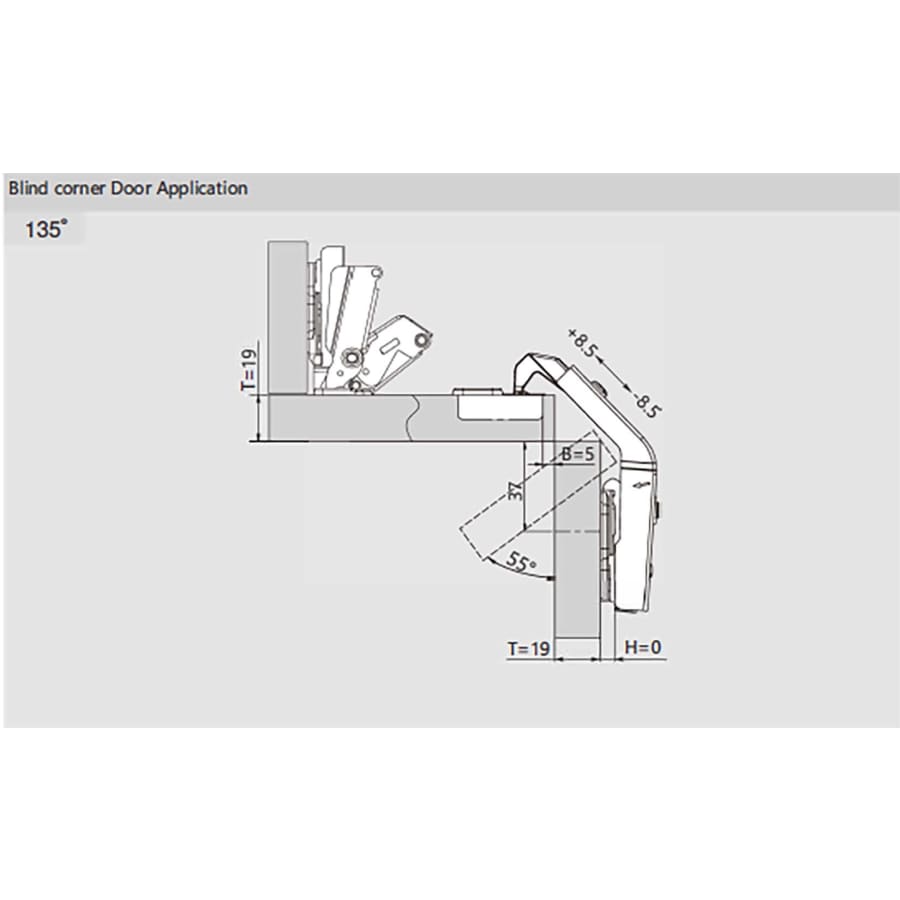

Designed for a 135 degree opening angle
Specifications:
Hinge Mount: Full Overlay
Opening Angle: 135
Material: Steel
Installation Type: Screws

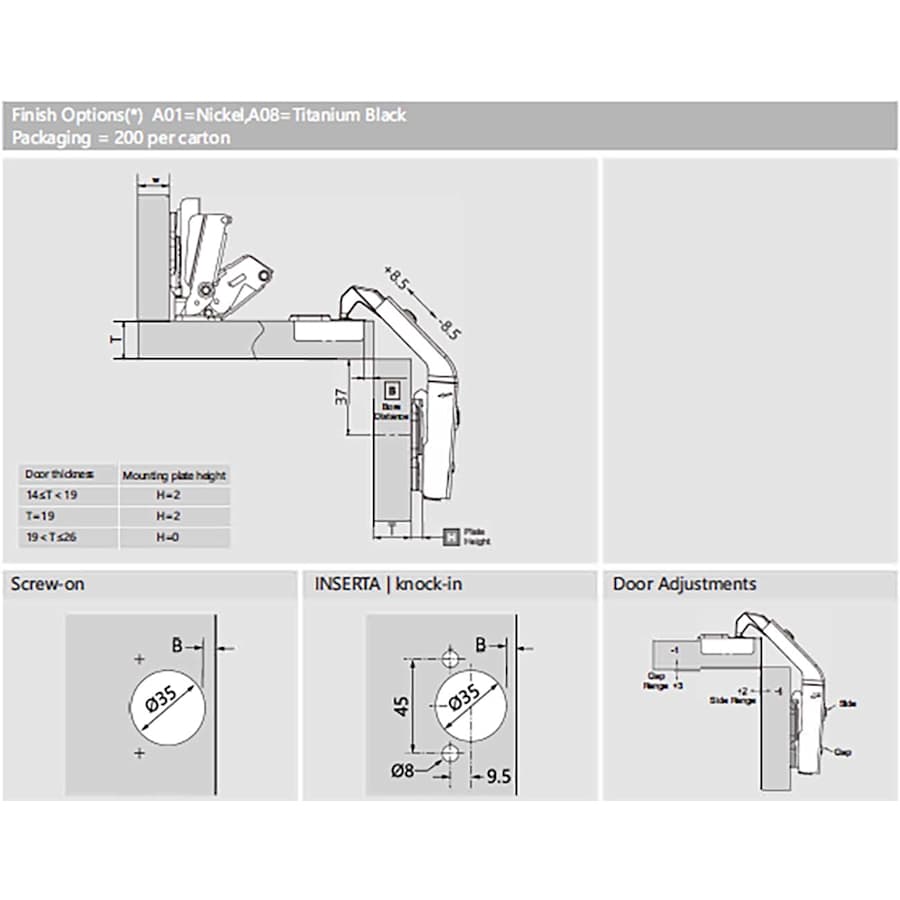

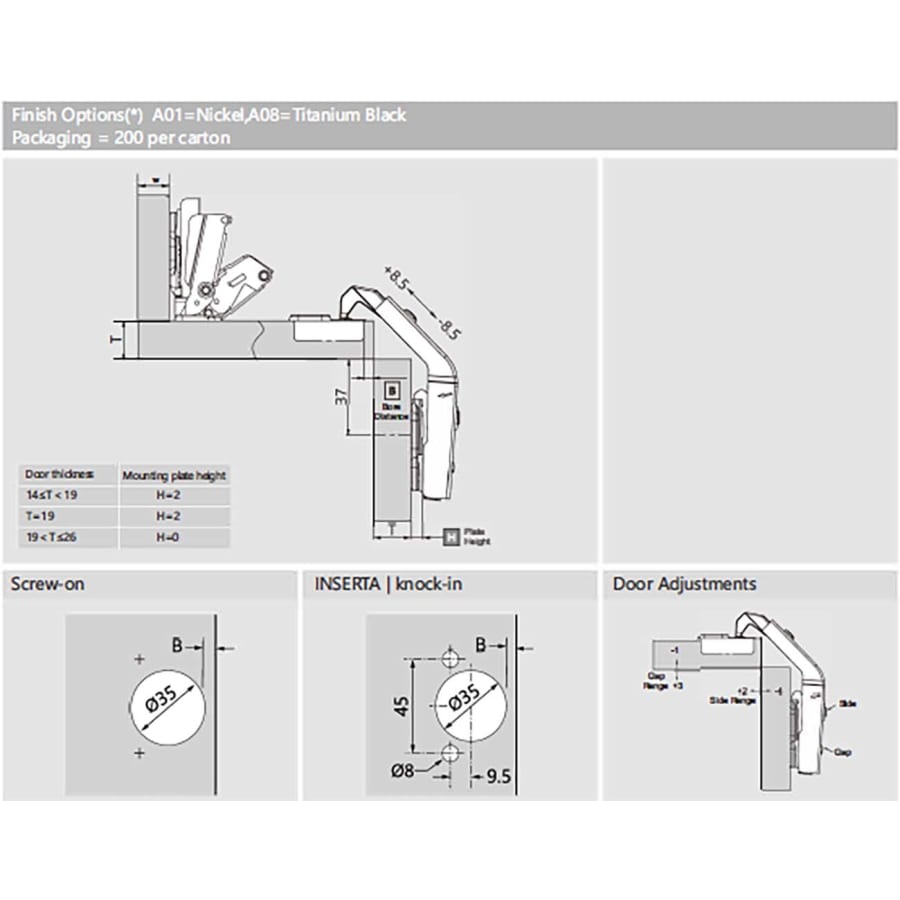

Cup Diameter: 1-3/8″
Bore Distance: 0.12, 0.28″
Cup Depth: 7/16″
Mount Centers: 1-11/16″
Additional DTC Links
DTC C80 Collection
Specifications
Warranty and Product Information
| Collection | 80 |
| Series | 80 |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
Dimensions and Measurements
| Product Weight | 0.16 lbs. |
| Quantity | 1 |
| Cup Depth | 0.45 in. |
| Cup Depth mm | 11.5 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Mount Centers | 1.675 in. |
| Mount Centers mm | 43 mm |
| Opening Angle | 135 |
| Bottom Diameter | 0.12, 0.28 mm |
| Max Cabinet Door Thickness | 1.02 in. |
| Overlay | Full |
Characteristics and Features
| Insulation Type | Screw |
| Material | Steel |
| Bulk Pack | No |
| Adjustable Height | No |

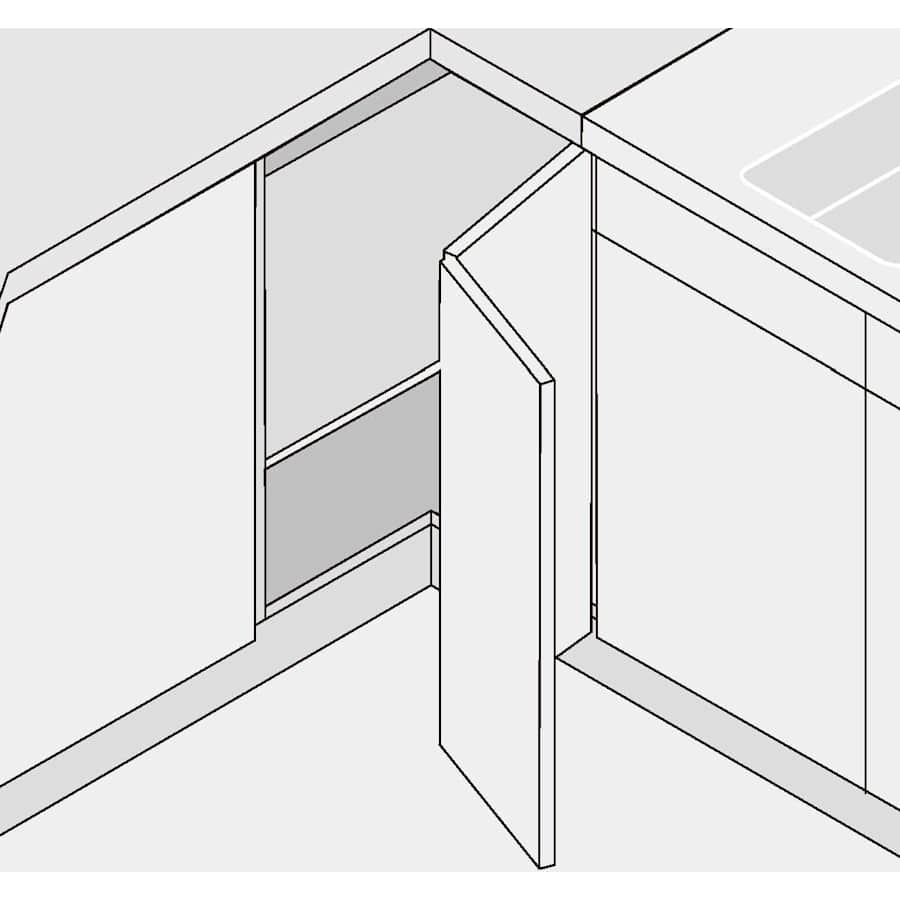

| Cabinet Type | Face Frame, Panel (Frameless) |
| Soft Close | No |
| Hinge Type | Concealed Euro |
| Self Closing | Yes |
| Arm Type | Straight Arm |
| 3-Way Adjustable | No |
| Adjustable Depth | No |
| Adjustable Side to Side | No |
| Demountable | No |
| Hinge Mount | Full Overlay |
Included Components
| Installation Hardware Included | No |
| Color | Nickel |
