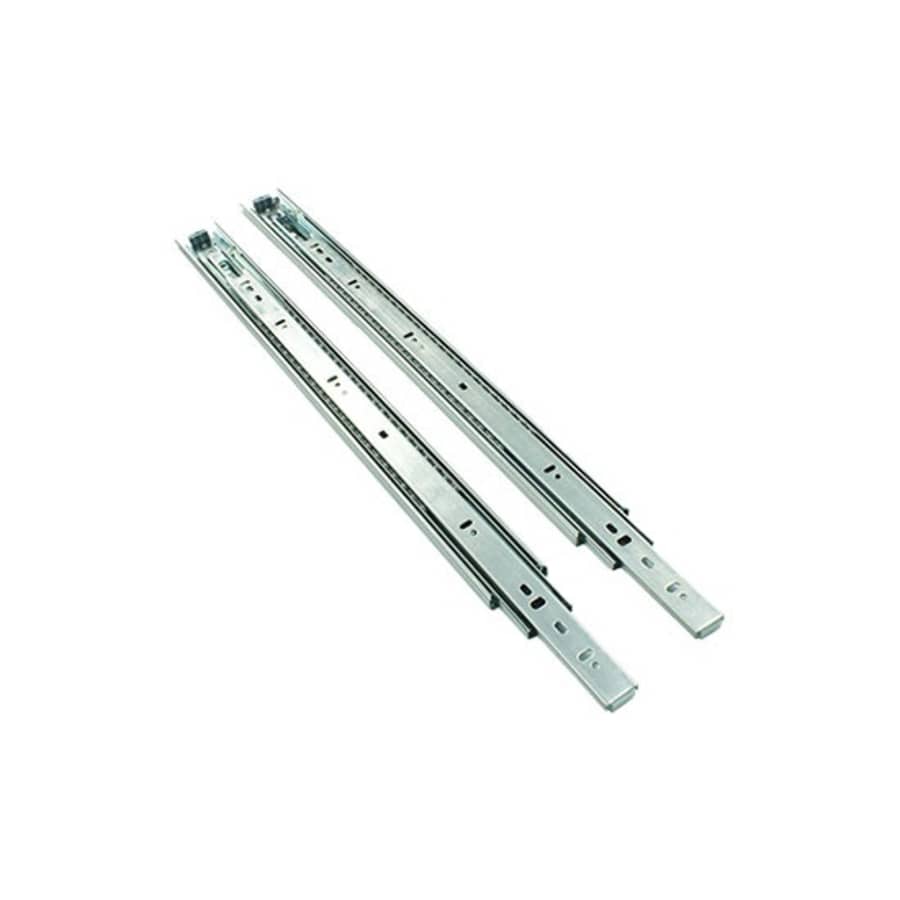

22″ Standard Full Extension Zinc Side Mount Ball Bearing Drawer Slide – 100 Lbs Weight Rating
Features:
Designed to support up to 100 pounds of weight
Provides easy access to the drawer with full extension slides
Lever allows for quick and easy removal of the drawer from the cabinet members
Intended for use in face frame and panel (frameless) cabinets
Covered by DTC’s limited lifetime manufacturer warranty
Specifications:
Drawer Length: 23″
Slide Length: 22″
Extension Type: Full Extension
Slide Type: Ball Bearing
Weight Capacity: 100 lbs.
Material: Steel
Quantity: 2
Country of Origin: China
Additional DTC Links
DTC D Collection
Specifications
Characteristics and Features
| Material | Steel |
| Insulation Type | Side Mount |
| Adjustable | No |
| Soft Close | No |
| Extension Type | Full Extension |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Disconnect Style | Lever |
| Push to Open | No |
| Self Closing | No |
| Slide Type | Ball Bearing |
| Detent | No |
Warranty and Product Information
| Approved for Commercial Use | No |
| Collection | Magic-Star Plus |
| Manufacturer Warranty | Limited Lifetime |
| Country Of Origin | China |
Dimensions and Measurements
| Quantity | 2 |
| Product Weight | 3.9 lbs. |
| Extension | 21.93 in. |
| Max Capacity (Pounds) | 100 lbs. |
| Length | 22 in. |
| Nominal Length | 22 in. |
| Drainboard Length | 23 in. |
| Color | Nickel |
| Color Tone | Nickel Tones |
