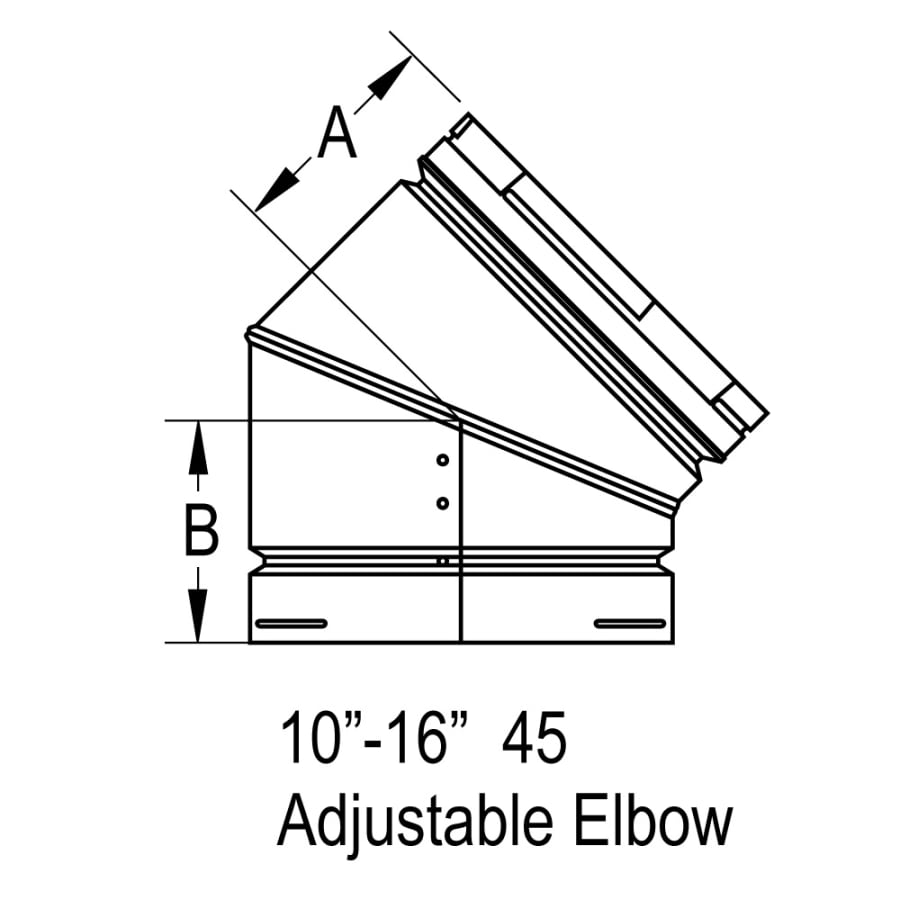

Round Gas Vent Collection Aluminum 45 Degree Adjustable Elbow with 10 Inch Inner Diameter
This Aluminum 45 Degree Adjustable Elbow with 10 Inch Inner Diameter from the Round Gas Vent series is a Type B gas component and consists of the duralock system for a tight seal. Offsets obstructions as needed. 45° Elbow in size 7”-30”. Elbows up to 10” are adjustable. Sizes 12” and larger are not adjustable. Elbows must be supported when installed.
Features:
Fuel Type: Gas, Liquid Propane
Inner Diameter: 10″
Height: 11.25″ to 11.75″
Elbow Angle: 45 Degrees
Offsets Obstructions as Needed
Double Wall Construction
UL Listed
DuraVent Type B Gas Vent is designed to meet the rugged demands of the job site. The inner wall is recessed to eliminate damage in handling. DuraVent’s innovative system for a lock-tight connection for Type B Gas Vent called DuraLock. See the alignment indicators meet; feel the ends grasp together; hear the snap as the connection firmly locks into place. Type B gas vents are not suitable for use with wood-burning or coal applications, industrial ovens, exhaust ranges and hoods, grease or pollution ducting, or as free-standing exhaust vents for high temperature applications. Type B Gas Vent has been engineered to heat up rapidly. It remains hot during the operation of the appliance with minimal condensation in the appliance and vent system. Pipe lengths are available in multiple lengths, 6 to 60 inches, with a full complement of adjustable and rigid fittings.
Looking for Simpson Dura-Vent? You found it! Simpson Dura-Vent has changed their name to DuraVent. DuraVent is a recognized technological leader in the venting industry. Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting. The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro. Scientifically proven materials and unequalled engineering make DuraVent products not only the best choice, or safest choice, but the only choice for professional quality venting products.
Additional DuraVent Links
View the Manufacturer Warranty
Browse all DuraVent Products
DuraVent 10 Inch Round Gas Vent Collection
Specifications
| Approved for Commercial Use | No |
| Collection | Round Gas Vent |
| Certifications | UL |
| Application | Boiler, Category I Appliances, Draft Hood Equipped Appliance, Fireplace, Furnace, Space Heater, Type B Appliance, Wall Heater, Water Heater |
| UL Listing Number | UL 441, ULC S605 |
| Height | 11.25, 11.75 in. |
| Product Weight | 3 lbs. |
| Inner Pipe Gauge | 26 |
| Outer Pipe Gauge | 26 |
| Pipe Inside Diameter | 10 in. |
| Elbow by Angle | 45 (degree) |
| Material | Aluminum |
| Configuration | Elbow |
| Inner Pipe Material | Aluminum |
| Outer Pipe Material | Galvanized Steel |
| Pipe Class | Type B |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
| Fuel Type | Gas |
| Color | Aluminum |
| Color Tone | Neutrals |
