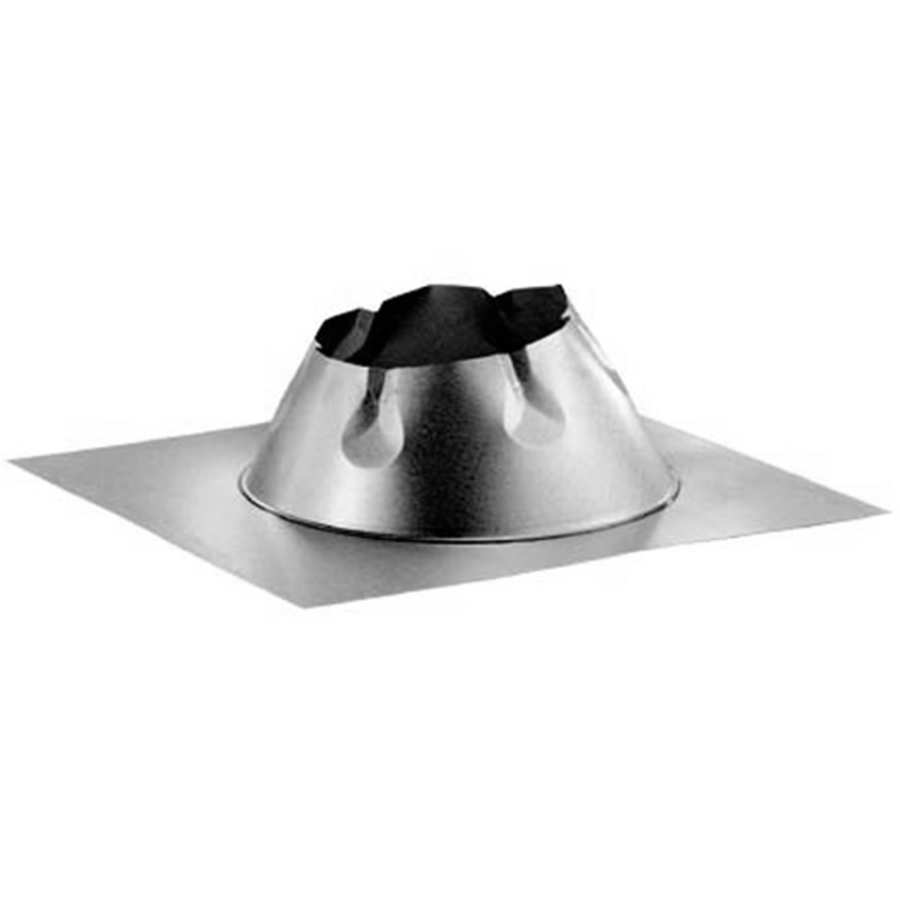

DuraTech Collection 16″ Class A Chimney Pipe Flat Roof Flashing
Warranty Notice: M&G DuraVent warranty applies to this professional grade product only when installed by a trained professional installer.
The DuraTech 16″ Class A Chimney Pipe Flat Roof Flashing Roof flashing is used to weather proof the penetration of chimney pipe through the roof. Storm Collar required. Select roof flashing based on pitch of roof. For example, a 6/12 pitch has a vertical rise of 6” over a horizontal distance of 12”. Made of galvalume. 6”-8” available with large base.
Features:
For Flat Roof
Inner Diameter: 16″
Outer Diameter: 18-1/2″
Height: 12″
Base Dimensions: 30″ x 30″
Storm Collar is Required
UL Listed
DuraVent now offers DuraTech in large diameters to vent large-scale residential fireplaces and building heating appliances. DuraTech chimney is tested and listed for continuous operation at 1000° F flue gas temperatures, one hour at 1400° F and ten minutes at 1700° F, in accordance with the UL 103 test standard. 10”-24” large diameter DuraTech is a 1” wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.
Looking for Simpson Dura-Vent? You found it! Simpson Dura-Vent has changed their name to DuraVent. DuraVent is a recognized technological leader in the venting industry. Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting. The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro. Scientifically proven materials and unequalled engineering make DuraVent products not only the best choice, or safest choice, but the only choice for professional quality venting products.
Additional DuraVent Links
View the Manufacturer Warranty
Browse all DuraVent Products
DuraVent 16 Inch DuraTech Collection
Specifications
| Product Weight | 6 lbs. |
| Length | 30 in. |
| Width | 30 in. |
| Height | 12 in. |
| Pipe Inside Diameter | 16 in. |
| Inner Pipe Gauge | 23 |
| Outer Pipe Gauge | 23 |
| Approved for Commercial Use | No |
| Collection | DuraTech |
| Certifications | UL |
| Application | Appliance, Boiler, Fireplace, Furnace, Ranges, Water Heater, Wood Stove |
| UL Listing Number | UL 103, ULC S604 |
| Configuration | Flashing |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Inner Pipe Material | 430 Stainless Steel |
| Insulation Type | Thermal Tech |
| Outer Pipe Material | 430 Stainless Steel |
| Fuel Type | All Fuel, Coal, Gas, Oil, Wood |
| Color | Stainless Steel |
