DuraTech Collection 20″ Class A Chimney Pipe Attic Insulation Shield
Warranty Notice: M&G DuraVent warranty applies to this professional grade product only when installed by a trained professional installer.

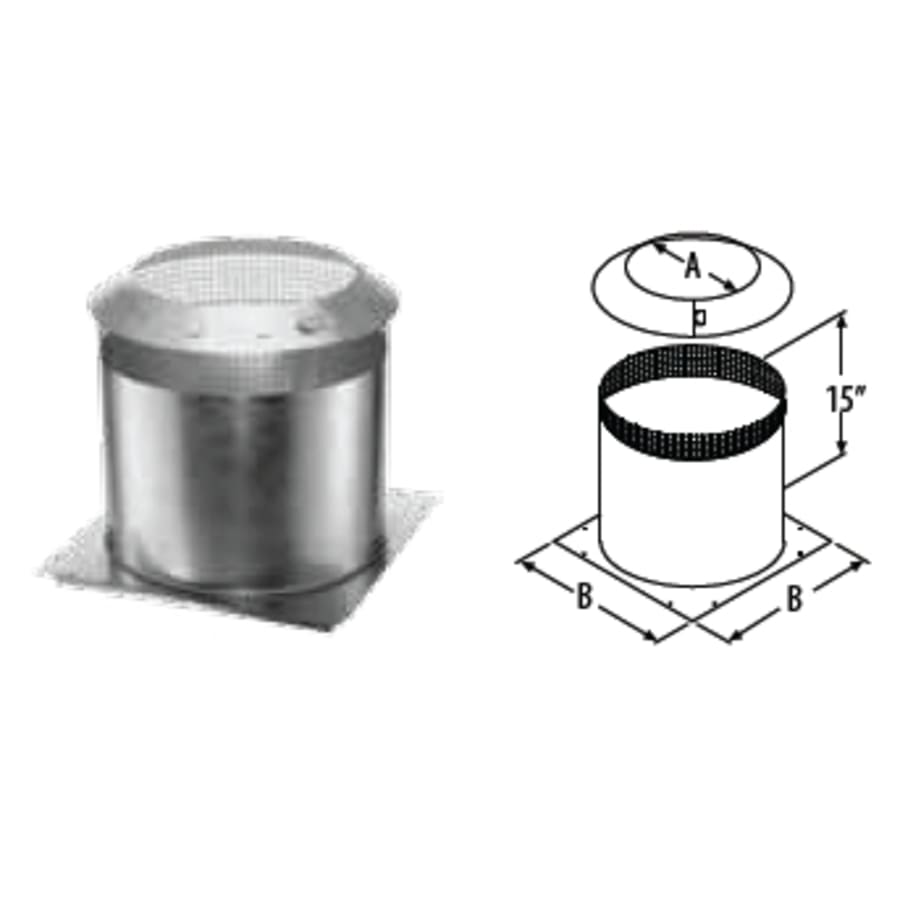

The DuraTech 20″ Class A Chimney Pipe Attic Insulation Shield is used in installations that pass through an attic to prevent insulation and debris from accumulating near the chimney, unless chimney is enclosed through attic. Fits over Firestop Radiation Shield or a support box. Consists of two parts – a collar and a base. The attic insulation shield also has a mesh sleeve around the top.
Features:
Inner Diameter: 20″
Outer Diameter: 22″
Height: 15″
Base Dimensions: 28″ x 28″
Fits Over Firestop Radiation Shield or a Support Box
Comes with Collar, Base, and Mesh Sleeve Around Top
UL Listed
DuraVent now offers DuraTech in large diameters to vent large-scale residential fireplaces and building heating appliances. DuraTech chimney is tested and listed for continuous operation at 1000° F flue gas temperatures, one hour at 1400° F and ten minutes at 1700° F, in accordance with the UL 103 test standard. 10”-24” large diameter DuraTech is a 1” wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.
Looking for Simpson Dura-Vent? You found it! Simpson Dura-Vent has changed their name to DuraVent. DuraVent is a recognized technological leader in the venting industry. Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting. The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro. Scientifically proven materials and unequalled engineering make DuraVent products not only the best choice, or safest choice, but the only choice for professional quality venting products.
Additional DuraVent Links
View the Manufacturer Warranty
Browse all DuraVent Products
DuraVent 20 Inch DuraTech Collection
Specifications
| Product Weight | 15.6 lbs. |
| Length | 32 in. |
| Width | 32 in. |
| Height | 15 in. |
| Pipe Inside Diameter | 20 in. |
| Inner Pipe Gauge | 23 |
| Outer Pipe Gauge | 23 |
| Material | Stainless Steel |
| Configuration | Shield |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
| Inner Pipe Material | 430 Stainless Steel |
| Insulation Type | Thermal Tech |
| Outer Pipe Material | 430 Stainless Steel |
| Approved for Commercial Use | No |
| Collection | DuraTech |
| Certifications | UL |
| Application | Appliance, Boiler, Fireplace, Furnace, Ranges, Water Heater, Wood Stove |
| UL Listing Number | UL 103, ULC S604 |
| Fuel Type | All Fuel, Coal, Gas, Oil, Wood |
| Color | Stainless Steel |
