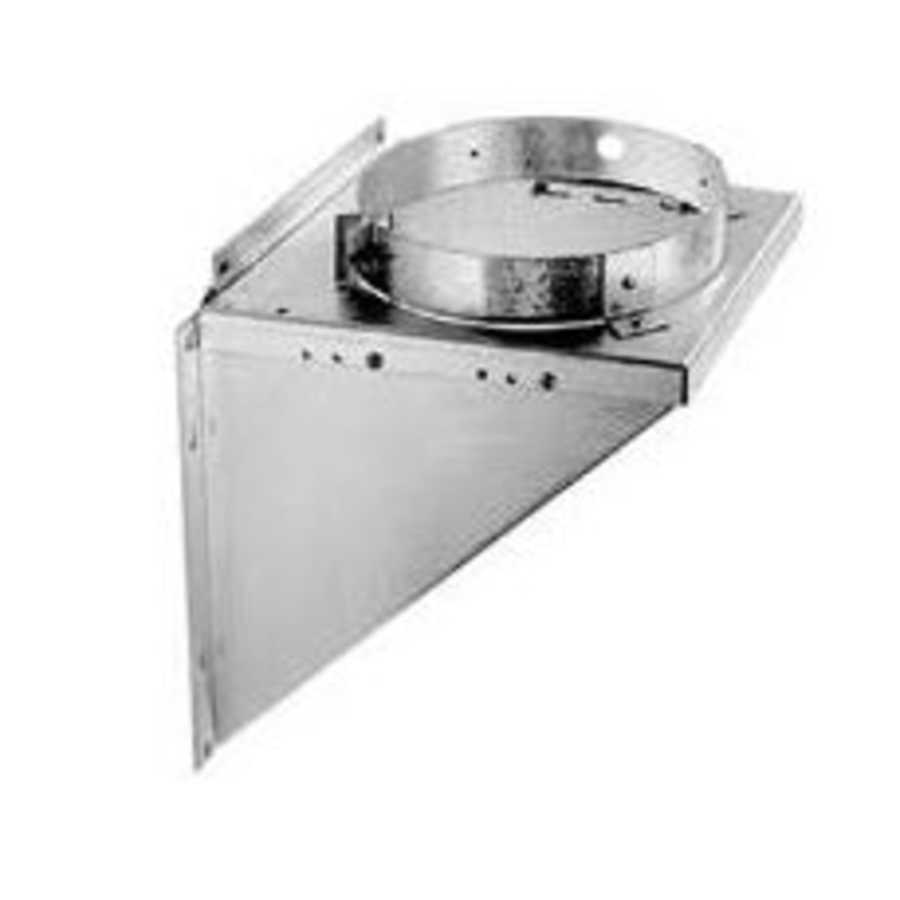

DuraTech Collection 5″ Class A Chimney Pipe Adjustable Galvanized Tee Support Bracket
Warranty Notice: M&G DuraVent warranty applies to this professional grade product only when installed by a trained professional installer.
The DuraTech 5″ Class A Chimney Pipe Adjustable Galvanized Tee Support Bracket Use as wall support for chimney system. Use of straps is optional. Supports up to 50’ of DuraTech Chimney without straps, and 70’ of DuraTech Chimney with straps. Attaches to chimney pipe. Can be installed above or below the Tee. If installed below the Tee, a short section of pipe is required. Adjustable base provides 2” to 6” clearance to wall.
Features:
Inner Diameter: 5″
Outer Diameter: 7″
Width: 10″
Depth: 11″
Height: 11-3/4″
Adjustable Base Provides 2″ to 6″ Clearance to Wall
Supports up to 50 Feet of DuraTech Chimney Pipe Without Straps and 70 Feet With Straps
UL Listed
Material: Galvanized Steel
With a Thermal Tech blanket insulation encased between dual walls, DuraTech offers the optimum in safety and performance. It keeps the outer wall of the chimney cool, while ensuring high flue gas temperatures for optimum draft performance. 5”-8” DuraTech is a double-wall, all-fuel chimney system for use withwood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces thatare factory-built.
Looking for Simpson Dura-Vent? You found it! Simpson Dura-Vent has changed their name to DuraVent. DuraVent is a recognized technological leader in the venting industry. Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting. The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro. Scientifically proven materials and unequalled engineering make DuraVent products not only the best choice, or safest choice, but the only choice for professional quality venting products.
Additional DuraVent Links
View the Manufacturer Warranty
Browse all DuraVent Products
DuraVent 5 Inch DuraTech Collection
Specifications
| Width | 12 in. |
| Product Weight | 14 lbs. |
| Depth | 13 in. |
| Inner Pipe Gauge | 25 |
| Outer Pipe Gauge | 26 |
| Pipe Inside Diameter | 5 in. |
| Material | Galvanized Steel |
| Configuration | Bracket |
| Inner Pipe Material | 430 Stainless Steel |
| Insulation Type | Thermal Tech |
| Outer Pipe Material | Galvalume |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
| Collection | DuraTech |
| Approved for Commercial Use | No |
| Certifications | UL |
| Application | Appliance, Boiler, Fireplace, Furnace, Ranges, Water Heater, Wood Stove, Zero-Clearance Fireplace |
| UL Listing Number | UL 103 HT, ULC S604 |
| Fuel Type | All Fuel, Coal, Gas, Oil, Wood |
| Color | Galvanized |
| Color Tone | Neutrals |
