Dura/Plus chimney is designed for appliances that are tested and listed for use with a 2100 degreeHT chimney system, such as wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas. Dura/Plus is tested to UL test procedures 103HT (2100 degree) and listed under UL re-examination service number MH 7399. You must use 100% Dura/Plus parts to obtain a Dura/Plus listed systemDura/Plus chimney pipe in 6 inch, 9 inch, and 12 inch lengths have a 1 inch insulating blanket. The 24 inch and 36 inch lengths have a 1/2 inch blanket.
To calculate the installed length of Dura/Plus pipe lengths, subtract 1 1/2″ from each length of chimney pipe.
Dura/Plus Chimney is the metal chimney that does the three things a firesafe chimney must do! Stay cool on the outside, provide a hot draft on the inside, with a firesafe design that protects both the chimney and building. Dura/Plus chimney is designed for appliances that are tested and listed for use with a 2100 degreeF HT chimney system, such as wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.

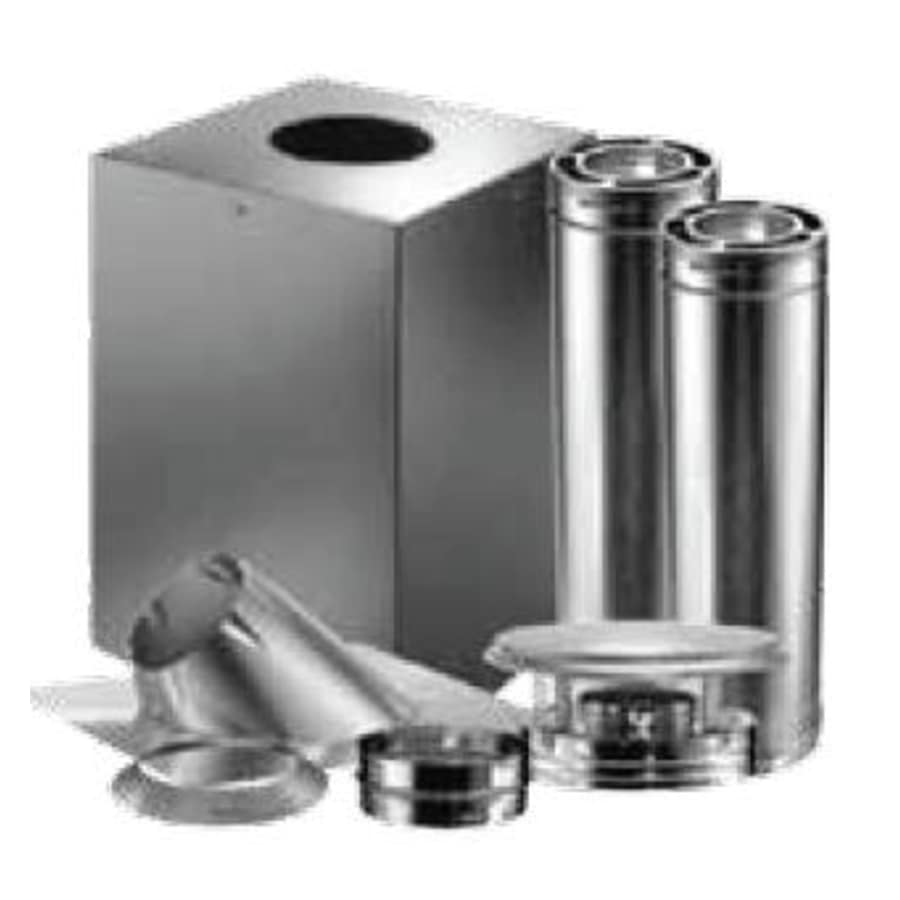

Kit Includes
24″ Square Ceiling Support Box with Trim
Adjustable Roof Flashing 0/12-6/12
Chimney Cap
Storm Collar
(2) DuraPlus Class A Chimney Pipe 24″ Lenght
Specifications
This product requires: 2″ air clearance to combustibles for all diameters
Connection Specs:
Joint/Connection Overlap: 1-1/2″
Joint/Connection Type: Twist-Lock standard on all diameters
Material Specifications:
Outer Wall: .016″ Thick Stainless Steel or .018″ Thick Galvanized Steel
Inner Wall: .018″ Stainless Steel
Intermediate Wall: .018 Aluminized Steel Liner
Insulation: Ceramic Blanket with Air Gap
Misc:
Maximum Temperature Rating: Rated for continuous use at 1000 degree, intermittent use at 2100 degree
Supported Fuels: Wood, Oil, and Coal
Warranty: 25 Years after date of installation
UL Listed: 103HT, 103
Please Note!! All performance specifications and Warranties are contingent upon installation by a Licensed Contractor or Chimney Professional.
Additional DuraVent Links
View the Manufacturer Warranty
Browse all DuraVent Products
DuraVent 6 Inch DuraPlus Collection
Specifications
| Product Weight | 43 lbs. |
| Pipe Inside Diameter | 6 in. |
| Inner Pipe Gauge | 27 |
| Outer Pipe Gauge | 28 |
| Pitch | 0/12 - 6/12 |
| Material | Galvanized Steel |
| Configuration | Kit |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Triple Wall |
| Inner Pipe Material | 430 Stainless Steel |
| Insulation Type | Air, Ceramic blanket |
| Outer Pipe Material | Galvanized Steel |
| Indicator Light | .018" Aluminized Steel |
| Approved for Commercial Use | No |
| Collection | DuraPlus |
| Certifications | UL |
| Application | Appliance, Boiler, Fireplace, Furnace, Ranges, Stove, Water Heater, Wood Stove |
| UL Listing Number | UL 103 HT |
| Fuel Type | All Fuel, Coal, Gas, Oil, Wood |
