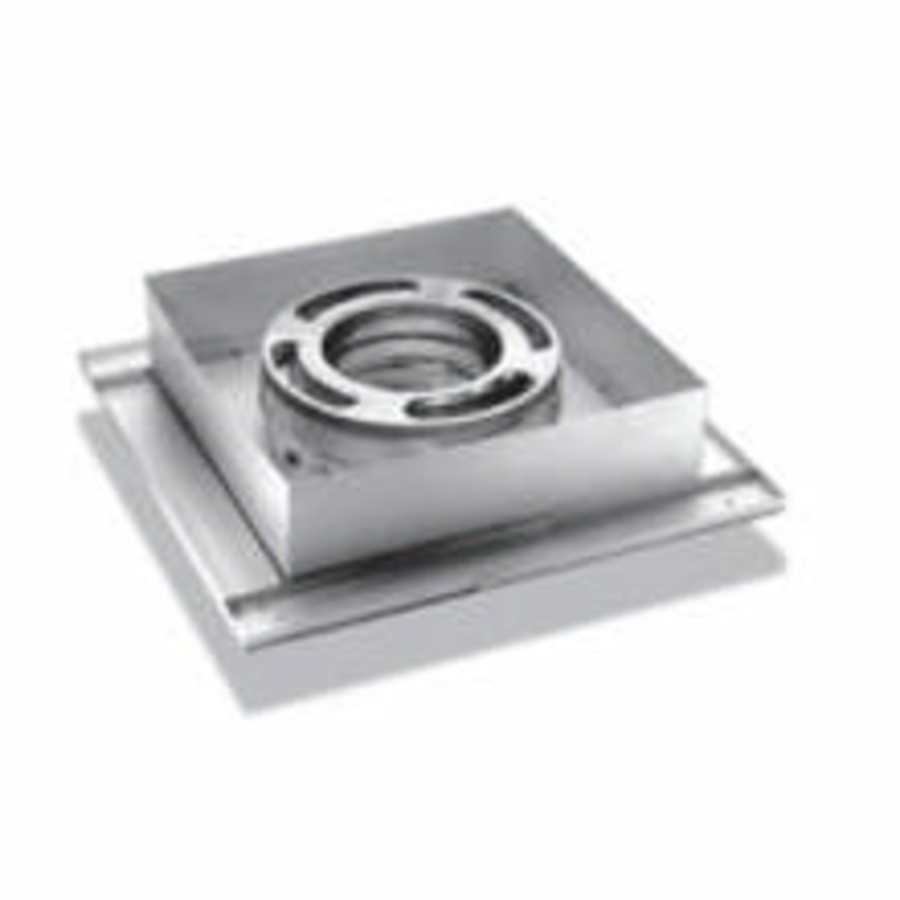

DuraPlus Collection 7″ Class-A Round Ceiling Support Box
The DuraPlus 7″ Class-A Round Ceiling Support Box from the DuraPlus Series is used to support chimney pipe and provides a positive connection between support box and chimney with a built-in twist-lock. Supports up to 35’ of DuraPlus Chimney. Use adapter to attach DVL or DuraBlack to the support box. Painted black. Trim collar included.
Features:
Dimensions: 18″ x 18″
Inner Diameter: 7″
Outer Diameter: 14″
Thickness: 3″
Built-In Twist-Lock
Supports Up To 35′ DuraPlus Chimney
UL Listed
DuraPlus is designed to stay cool on the outside, to provide a hot draft on the inside, to boost stove efficiency, and to provide for a fire-safe design that protects both the chimney and the building. This triple-wall chimney features two insulating layers (ceramic blanket, plus air space). The ceramic blanket insulation is held securely in position, eliminating hot spots common with loose-fill type insulations. In the event of a creosote fire, the compressible blanket insulation permits the chimney liner to expand outwardly in a radial direction. DuraPlus Chimney is a triple-wall, all-fuel chimney for use with wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.
Looking for Simpson Dura-Vent? You found it! Simpson Dura-Vent has changed their name to DuraVent. DuraVent is a recognized technological leader in the venting industry. Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting. The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro. Scientifically proven materials and unequalled engineering make DuraVent products not only the best choice, or safest choice, but the only choice for professional quality venting products.
Additional DuraVent Links
View the Manufacturer Warranty
Browse all DuraVent Products
DuraVent 7 Inch DuraPlus Collection
Specifications
| Height | 3 in. |
| Width | 18 in. |
| Length | 18 in. |
| Product Weight | 8.4 lbs. |
| Pipe Inside Diameter | 7 in. |
| Inner Pipe Gauge | 27 |
| Outer Pipe Gauge | 28 |
| Approved for Commercial Use | No |
| Collection | DuraPlus |
| Certifications | UL |
| Application | Appliance, Boiler, Fireplace, Furnace, Ranges, Stove, Water Heater, Wood Stove |
| UL Listing Number | UL 103 HT |
| Configuration | Support Box |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Triple Wall |
| Inner Pipe Material | 430 Stainless Steel |
| Insulation Type | Air, Ceramic blanket |
| Outer Pipe Material | Galvanized Steel |
| Indicator Light | .018" Aluminized Steel |
| Fuel Type | All Fuel, Coal, Gas, Oil, Wood |
| Color | Galvanized |
| Color Tone | Neutrals |
