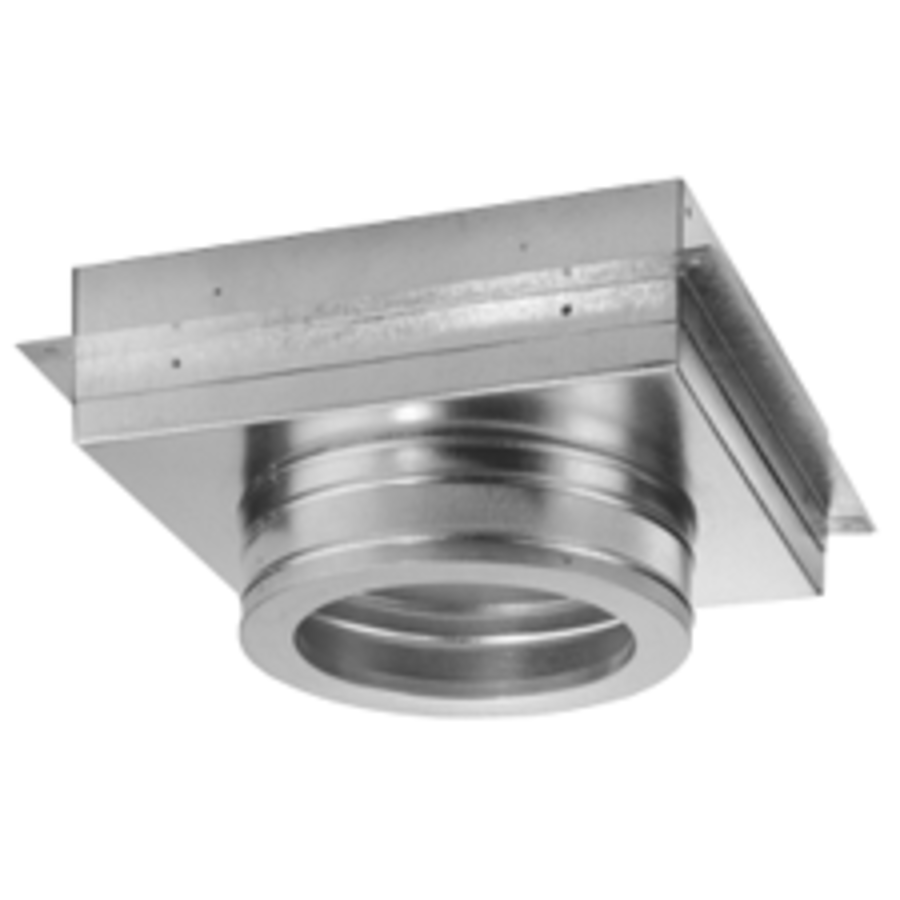

DuraTech Collection 7″ Class A Chimney Pipe Flat Ceiling Support Box
Warranty Notice: M&G DuraVent warranty applies to this professional grade product only when installed by a trained professional installer.
The DuraTech 7″ Class A Chimney Pipe Flat Ceiling Support Box is used to support chimney pipe and provides a positive connection between support box and chimney with a built-in twist-lock. It is designed for installation in flat ceilings only. Supports up to 60′ of DuraTech Chimney. Use adapter to attach DVL or DuraBlack to the support box. 3 A 2” wide trim collar is included. It is not painted, but can be painted with high temperature paint.
Features:
Box Thickness: 4″
Adapter Thickness: 3″
Inner Diameter: 7-1/4″
Outer Diameter: 11″
Dimensions: 13″ x 13″
UL Listed
With a Thermal Tech blanket insulation encased between dual walls, DuraTech offers the optimum in safety and performance. It keeps the outer wall of the chimney cool, while ensuring high flue gas temperatures for optimum draft performance. 5”-8” DuraTech is a double-wall, all-fuel chimney system for use withwood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces thatare factory-built.
Looking for Simpson Dura-Vent? You found it! Simpson Dura-Vent has changed their name to DuraVent. DuraVent is a recognized technological leader in the venting industry. Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting. The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro. Scientifically proven materials and unequalled engineering make DuraVent products not only the best choice, or safest choice, but the only choice for professional quality venting products.
Additional DuraVent Links
View the Manufacturer Warranty
Browse all DuraVent Products
DuraVent 7 Inch DuraTech Collection
Specifications
| Approved for Commercial Use | No |
| Collection | DuraTech |
| Certifications | UL |
| Application | Appliance, Boiler, Fireplace, Furnace, Ranges, Water Heater, Wood Stove, Zero-Clearance Fireplace |
| UL Listing Number | UL 103 HT, ULC S604 |
| Height | 7 in. |
| Width | 13 in. |
| Length | 13 in. |
| Product Weight | 7 lbs. |
| Depth | 13 in. |
| Inner Pipe Gauge | 25 |
| Outer Pipe Gauge | 26 |
| Pipe Inside Diameter | 7 in. |
| Configuration | Support Box |
| Inner Pipe Material | 430 Stainless Steel |
| Outer Pipe Material | Galvalume |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
| Insulation Type | Thermal Tech |
| Fuel Type | All Fuel, Coal, Gas, Oil, Wood |
| Color | Galvanized Steel |
| Color Tone | Steel Tones |
