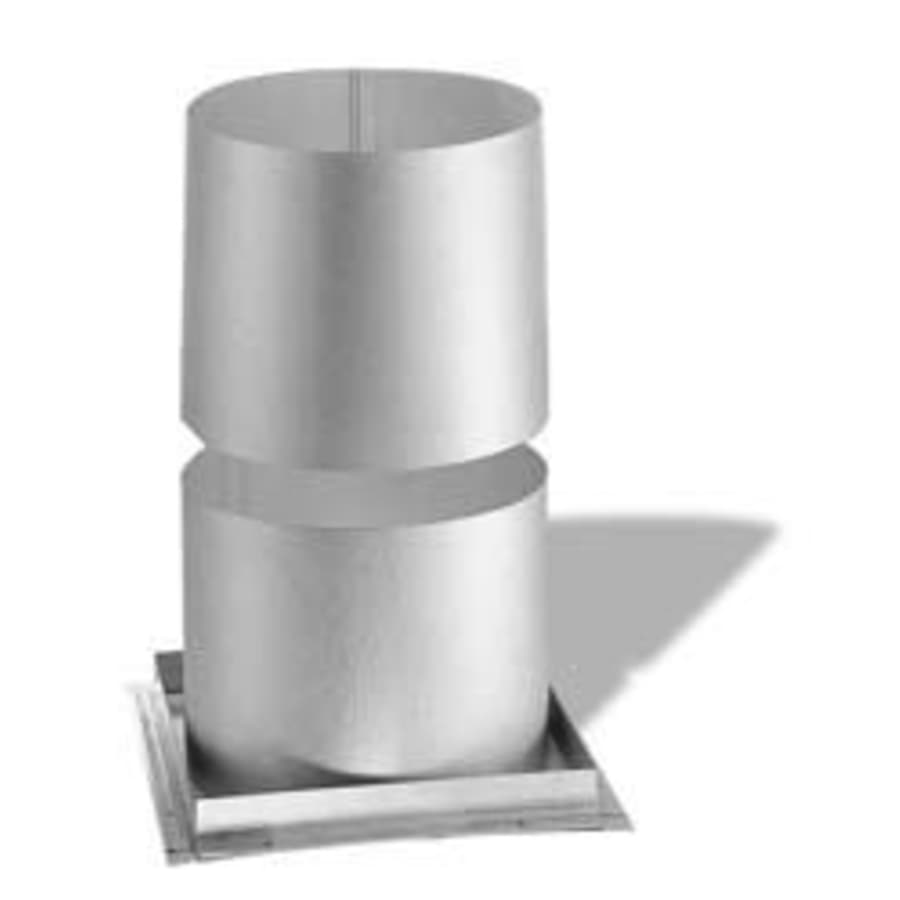

DuraTech Collection 8″ Class A Chimney Pipe Firestop Radiation Shield
Warranty Notice: M&G DuraVent warranty applies to this professional grade product only when installed by a trained professional installer.
The DuraTech 8″ Class A Chimney Pipe Firestop Radiation Shield is used in ceiling/floor penetrations when a ceiling support is not used. Not required when passing through the roof. Fits on underside of ceiling and adjusts to cover framing.
Features:
Inner Diameter: 8″
Dimensions: 16″ x 16″
Total Height: 21″
Bottom Diameter: 10-1/8″
Use in Ceiling/Floor Penetrations when Ceiling Support is not Used
UL Listed
With a Thermal Tech blanket insulation encased between dual walls, DuraTech offers the optimum in safety and performance. It keeps the outer wall of the chimney cool, while ensuring high flue gas temperatures for optimum draft performance. 5”-8” DuraTech is a double-wall, all-fuel chimney system for use withwood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces thatare factory-built.
Looking for Simpson Dura-Vent? You found it! Simpson Dura-Vent has changed their name to DuraVent. DuraVent is a recognized technological leader in the venting industry. Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting. The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro. Scientifically proven materials and unequalled engineering make DuraVent products not only the best choice, or safest choice, but the only choice for professional quality venting products.
Additional DuraVent Links
View the Manufacturer Warranty
Browse all DuraVent Products
DuraVent 8 Inch DuraTech Collection
Specifications
| Width | 16 in. |
| Height | 21 in. |
| Length | 16 in. |
| Product Weight | 7.7 lbs. |
| Inner Pipe Gauge | 25 |
| Outer Pipe Gauge | 26 |
| Pipe Inside Diameter | 8 in. |
| Approved for Commercial Use | No |
| Collection | DuraTech |
| Certifications | UL |
| Application | Appliance, Boiler, Fireplace, Furnace, Ranges, Water Heater, Wood Stove, Zero-Clearance Fireplace |
| UL Listing Number | UL 103 HT, ULC S604 |
| Configuration | Shield |
| Inner Pipe Material | 430 Stainless Steel |
| Outer Pipe Material | Galvalume |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
| Insulation Type | Thermal Tech |
| Fuel Type | All Fuel, Coal, Gas, Oil, Wood |
| Color | Galvanized |
| Color Tone | Neutrals |
