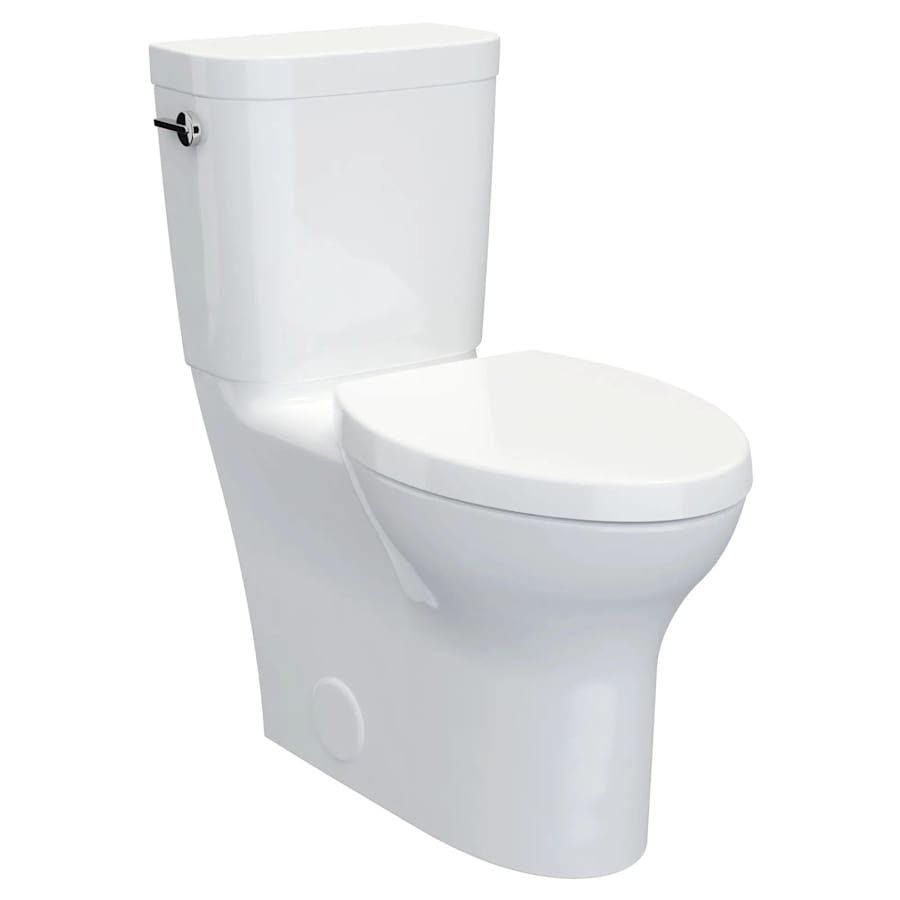

DXV D2210AA109 Features:
Covered under DXV’s Limited warranty
Coordinates with products from the Equility line seamlessly
Two-piece configuration allows for easier access to the area around the toilet
Installs in a floor mounted configuration
Elongated bowl provides extra comfort, extending out an extra 1-1/2″ compared to a round configuration
Constructed of vitreous china ensuring dependability and durability
Premier finishing process – finishes will resist corrosion and tarnishing through everyday use
Concealed trapway – provides a smoother and less utilitarian appearance, a built in skirt hides the discharge passageway from view

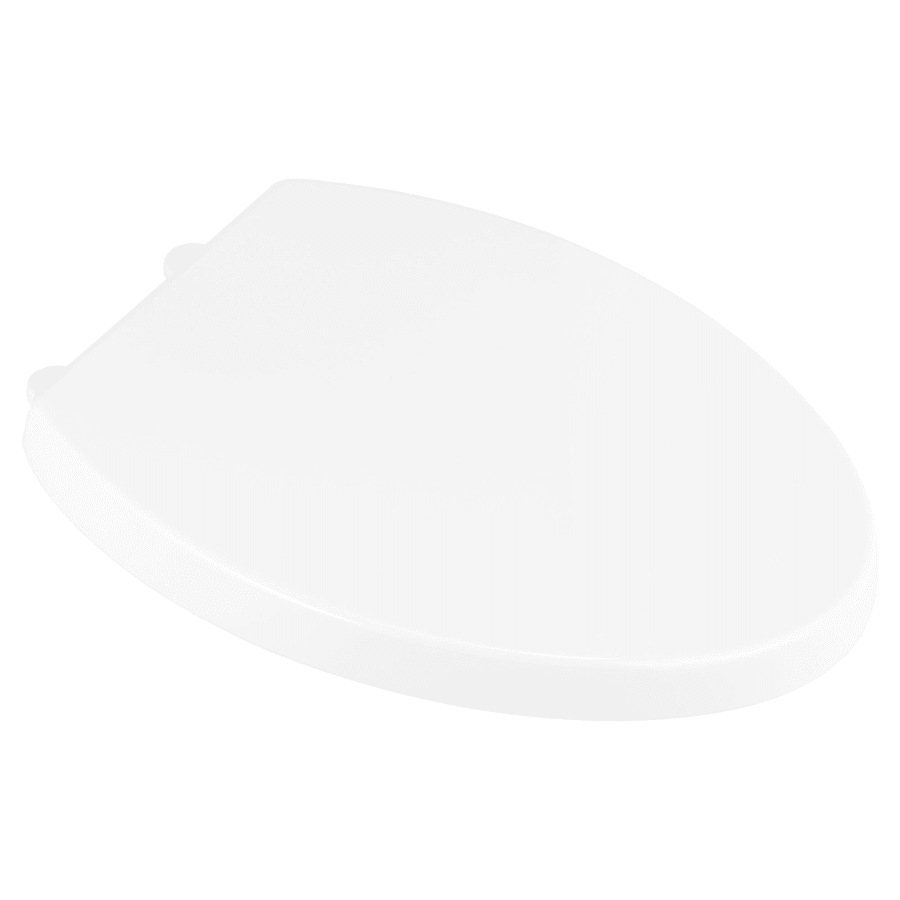

Toilet seat included with this product
WaterSense certified – toilet uses 20% less water than the current standard while maintaining superior performance
DXV D2210AA109 Technologies and Benefits:
Technology: EverClean – surface inhibits the growth of stain and odor causing bacteria, mold, and mildew on the surface
Technology: PowerWash – scrubs bowl with each flush
DXV D2210AA109 Specifications:
Overall Height: 31-9/16” (bottom of the base to the highest point on the toilet)
Overall Depth: 30-3/16” (furthest point back to front of toilet)
Overall Width: 15-1/8” (furthest point left to furthest point on the right)
Bowl Height: 16-1/2” (floor to the top of the bowl)
Flow Rate: 1.28 gallons-per-flush
Water Area: 18-1/2″ x 14″ (inner bowl dimensions length x width)
Trapway (Discharge Passageway) Size: 2-1/8”
Rough-In: 12”
Distance Between Toilet Seat Installation Holes: 5-1/2”
Additional DXV Links
Browse all DXV Products
DXV Equility Collection
Specifications
| Approved for Commercial Use | No |
| Collection | Equility |
| Certifications | ANSI, ASME, CSA |
| ADA | No |
| ANSI Certification | A112.19.2 |
| CA Drought Compliant | Yes |
| WaterSense Certified | Yes |
| TX Drought Compliant | Yes |
| ASSE Code | A112.19.2-2008 |
| CSA Code | B45.1-08 |
| Height | 31.5625 in. |
| Width | 15.125 in. |
| Product Weight | 97 lbs. |
| Depth | 30.1875 in. |
| Gallons Per Flush | 1.28 |
| Bowl Height | 16.5 in. |
| Hinge Center to Center | 5.5 in. |
| Flush Valve Size | 3 in. |
| Rough In | 12 in. |
| Trapway | 2.125 in. |
| Material | Vitreous China |
| Thermostat | Transitional |
| Configuration | Two Piece |
| Electronic | No |
| Insulation Type | Floor Mounted |
| Flush Type | Siphon Jet |
| Trip Lever Placement | Left |
| Water Efficient | Yes |
| Bowl Shape | Elongated |
| Design Features | Glazed Trapway, Concealed Trapway, Soft Close, Chair Height |
| Seat Front | Closed |
| Seat Included | Yes |
| Color | Canvas White |
| Color Tone | Whites |
