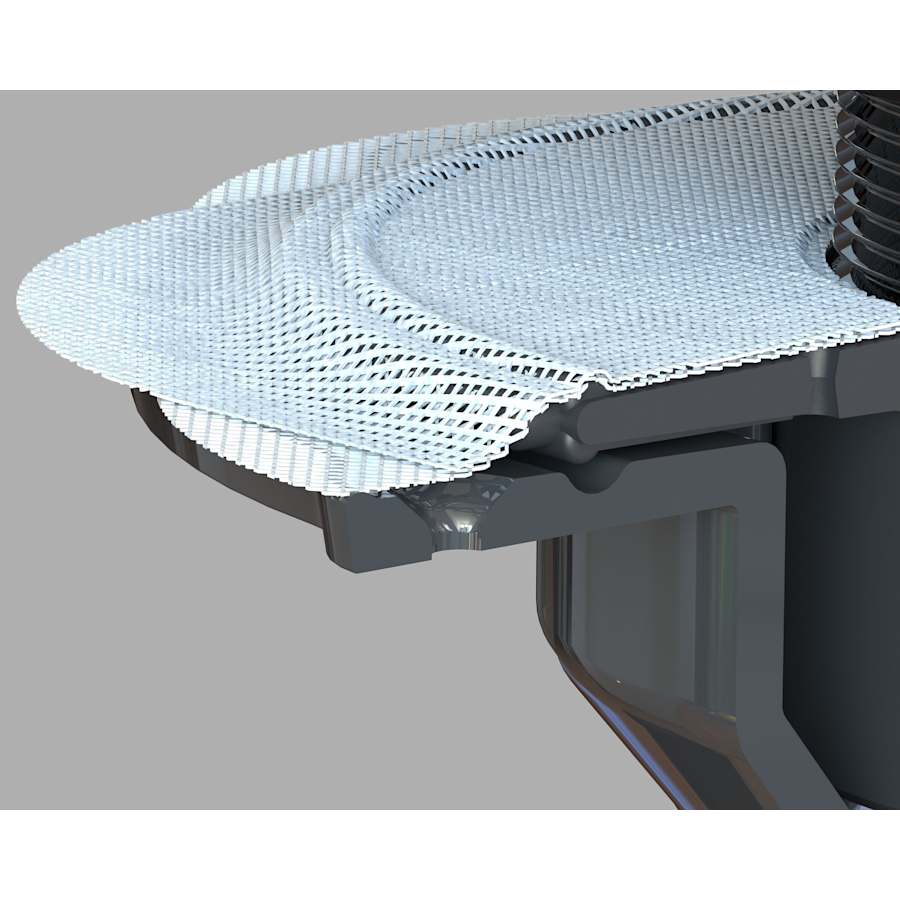

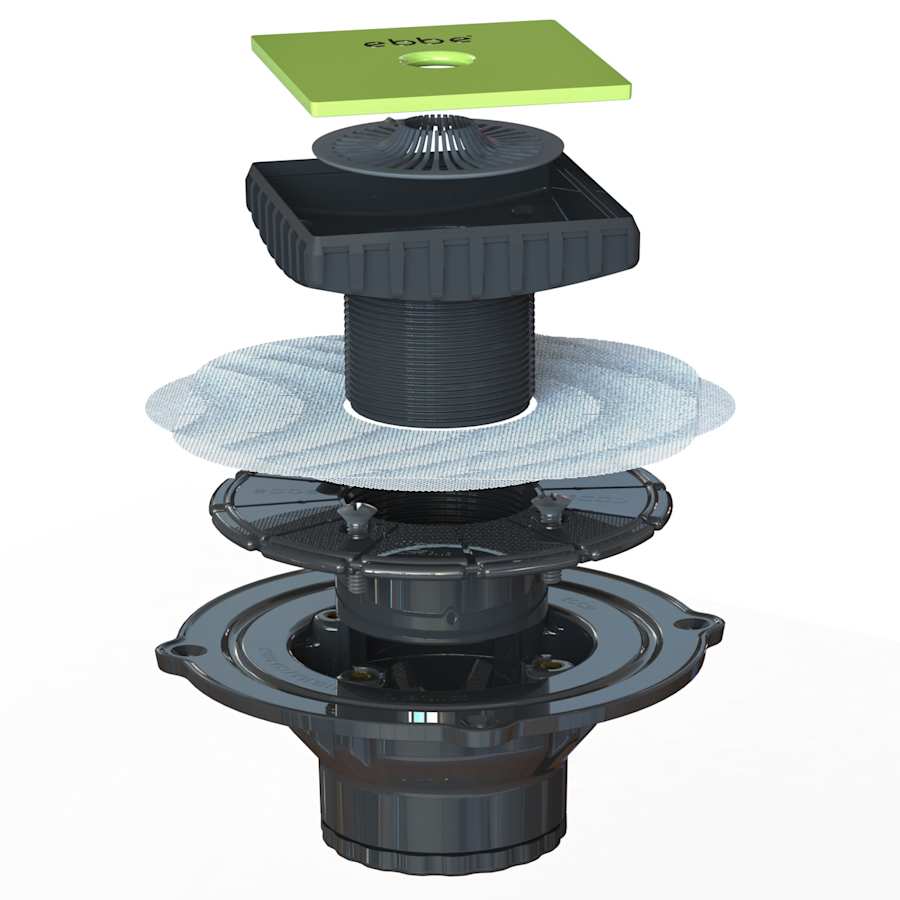

The Ebbe clamp collar drain bundle is the latest in drain technology. Not only does it combine all the best highlights from other drains, but includes original features for ease of installation and optimal function. Includes ABS drain base, clamp collar with screws, Ebbe square drain riser (E4400), and two fast weep mesh. Connects to 2″ or 3″ ABS waste pipe.
Ebbe America E4022 Features:
Covered under a limited lifetime residential manufacturer warranty
Made in America
Raised outer rim: the raised rim helps you screed the pre-slope without hitting obstructions
Clamp heels: clamp heels focus pressure on the outer edge of the clamping ring to provide the best clamp possible

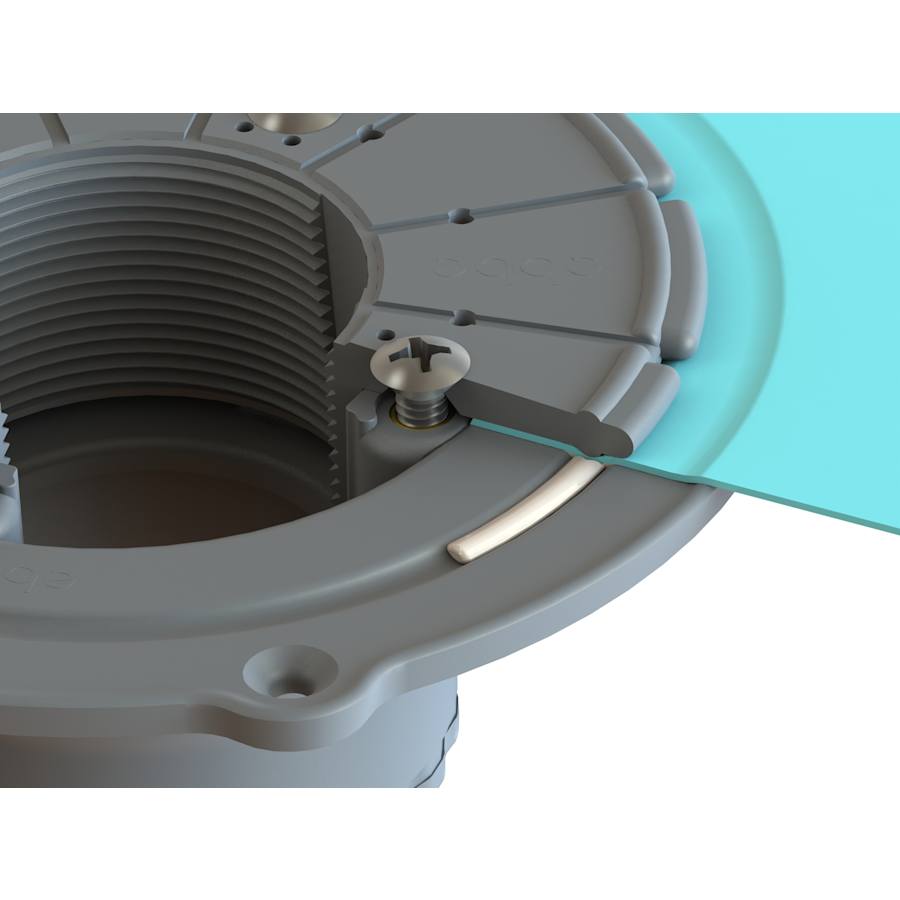

Internal screws: the clamping bolts are located at the inner circumference of the drain. No need to make extra cuts or search for the bolts through the membrane
Fits a 4″ subfloor cut: a 4-inch hole saw makes the perfect cut. No beveled edges, no odd shapes to chisel out
Thick mortar bed compatible: invert the clamping ring to accommodate mortar beds up to 4″
Easy subfloor mounting: a flat flange with 4 mounting holes allows the drain to be securely fixed to the floor
Ebbe America E4022 Specifications:
Drain Connection: 2, 3″
Height: 4″
Length: 7″
Width: 7″
Additional Ebbe America Links
Browse all Ebbe America Products
Ebbe America Ebbe Rough-Ins Collection
Specifications
| Length | 7 in. |
| Height | 4 in. |
| Product Weight | 0.9 lbs. |
| Width | 7 in. |
| Drain Connection | 2, 3 in. |
| Diameter | 7 in. |
| Material | ABS |
| Thermostat | Modern |
| Shape | Round |
| Manufacturer Warranty | Limited Lifetime Residential |
| Approved for Commercial Use | Yes |
| Collection | Ebbe Rough-Ins |
| Commercial Warranty | Yes |
| Country Of Origin | USA |
| Made in America | Yes |
| ASSE Code | A112.18.2 |
| CSA Code | B125.2 |
