The First wall-mounted hood with adjustable depth that guarantees the kitchen cabinet linearity, combining essential lines and cutting-edge materials that shapes your living space with a touch of distinctiveness.
Features:
Blower outputs up to 600 CFM to keep your kitchen free of cooking fumes and odors
Mesh filters effectively trap and filter out unwanted smoke, odors, and grease

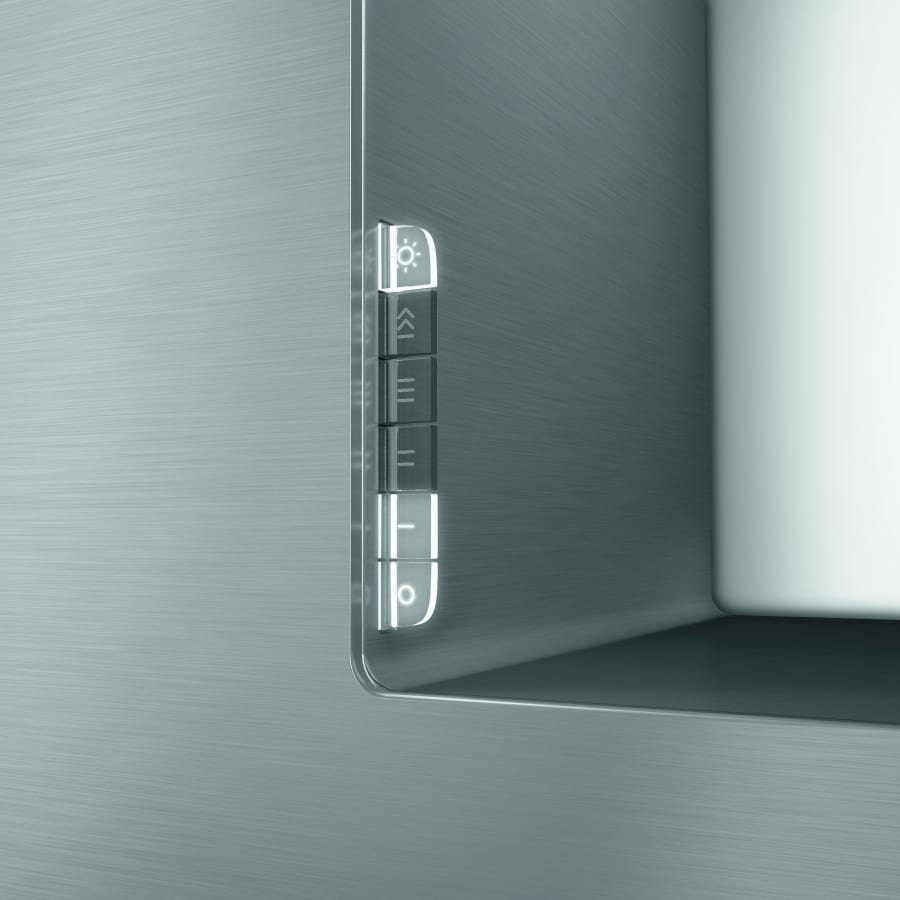

Touch controls allow you to easily set the power level of your range hood
4 available speeds provide just the right amount of ventilation
1 LED light illuminates the cooking area (bulbs included)
Complements items from the Haiku collection
Hood can be converted to ductless ventilation for improved efficiency and flexible installation options
Designed to offer an easy and safe experience during the filters maintenance, which is ensured by the locking system of the 3D casted grids that prevents their release, and allows to easily remove and clean them in the dishwasher
Haiku is the first hood that perfectly fits the linear kitchen style, without handles or linear alterations, providing an additional advantage in cleaning operations. Moreover, Haiku is characterized by its unique Adjustable depth system, that simplifies installation by adjusting the hood body depth (from 12 to 15″).
Covered under a 3 year limited parts and labor manufacturer warranty
Specifications:
CFM: 600
Sones: 6.8
Nominal Width: 48″
Width: 48″
Height: 32″
Depth: 12-5/8″
Duct Size: 6″ Round
Ceiling Height: 87″ – 121″
Height Above Cooktop: 30″
Amperage: 3.8A
Voltage: 120V
Wattage: 460W
Additional Elica Links
Browse all Elica Products
Elica Haiku Collection
Specifications
| Height | 32 in. |
| Width | 48 in. |
| Nominal Width | 48 in. |
| Depth | 12.6 in. |
| Product Weight | 75.618 lbs. |
| Duct Size | 6" Round |
| CFM | 600 |
| Ceiling Height (Max) | 121 in. |
| Ceiling Height (Min) | 87 in. |
| Height Above Cooktop | 30" |
| Height Above Cooktop (Min) | 30 in. |
| Height Above Cooktop (Max) | 36 in. |
| Certifications | AHAM, UL |
| Collection | Haiku |
| Approved for Commercial Use | No |
| ADA | No |
| Country Of Origin | Italy |
| Energy Star | No |
| Manufacturer Warranty | 3 Year Limited Parts and Labor |
| Outdoor Approved | No |
| Title 20 Compliant | Yes |
| Title 24 | Yes |
| Bulb Included | Yes |
| Light Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | No |
| Includes Remote | No |
| Number of Bulbs | 1 |
| Insulation Type | Full Installation |
| Material | Stainless Steel |
| Smart Home | No |
| Bubbler Type | LED |
| Control Type | Touch |
| Blower Type | Internal |
| Duct Discharge | Vertical |
| Filter Type | Mesh Filters |
| Panel Ready | No |
| Fingerprint Resistant | No |
| Wattage | 460 |
| Watts Per Bulb | 7 |
| Amperage | 3.8 |
| Voltage | 120 |
| Speeds | 4 |
| Frequency | 60 Hertz |
| Sones | 6.8 |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
