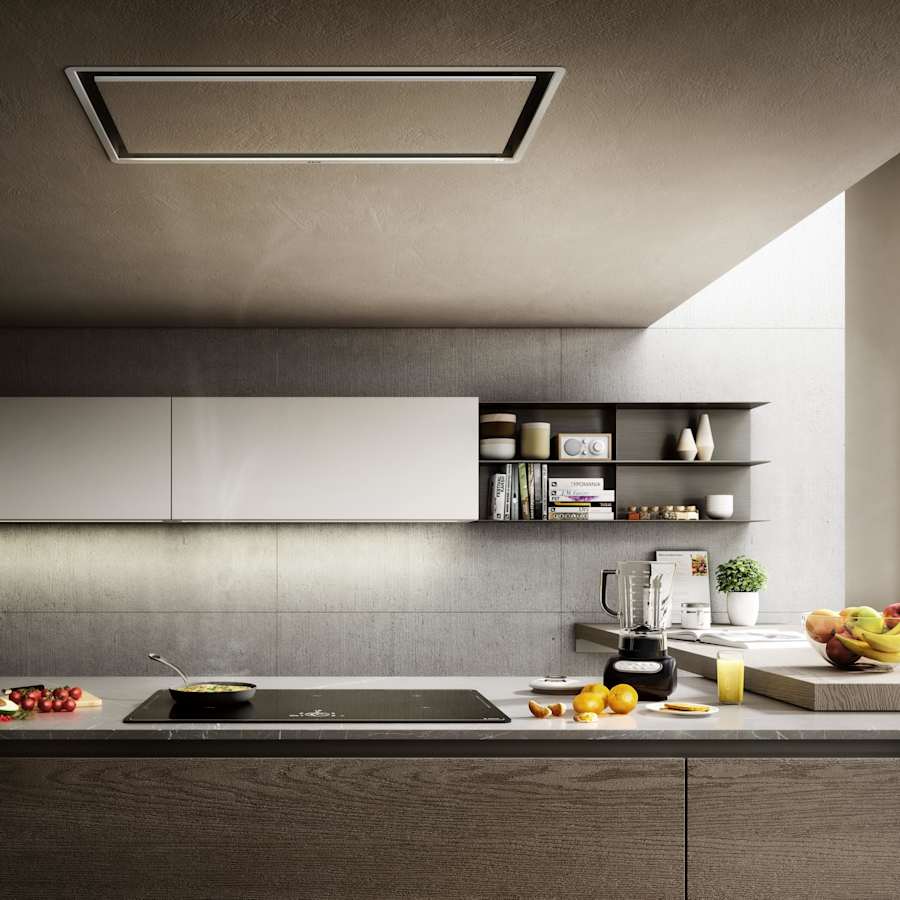

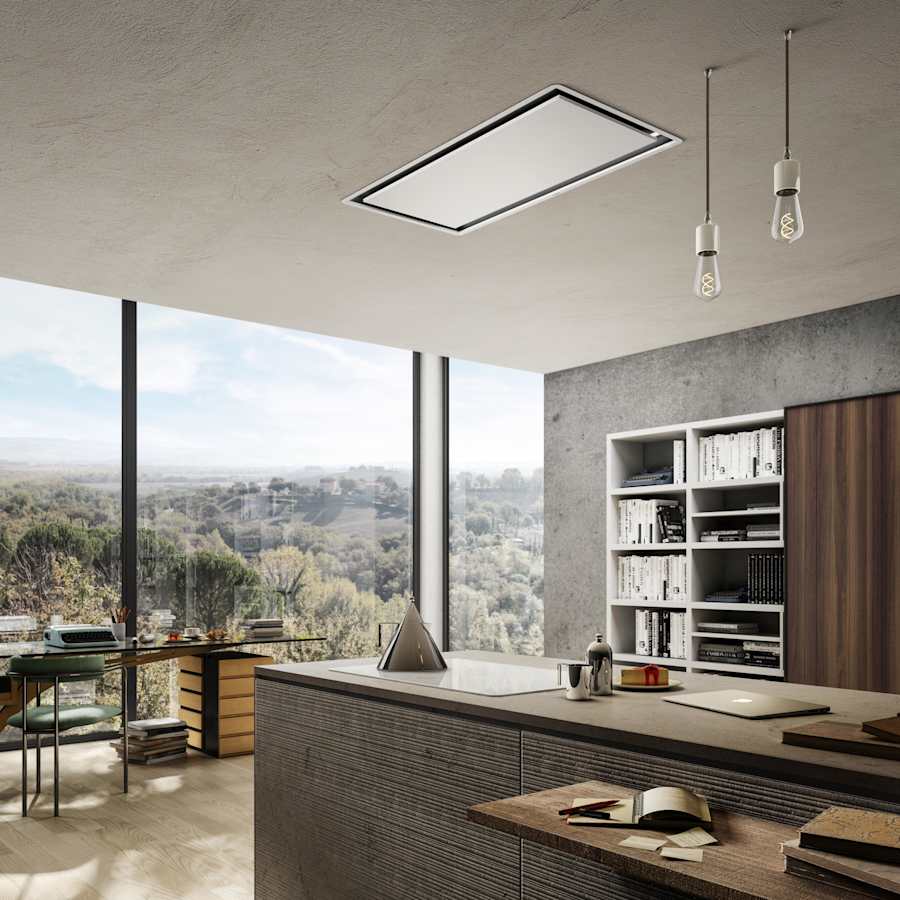

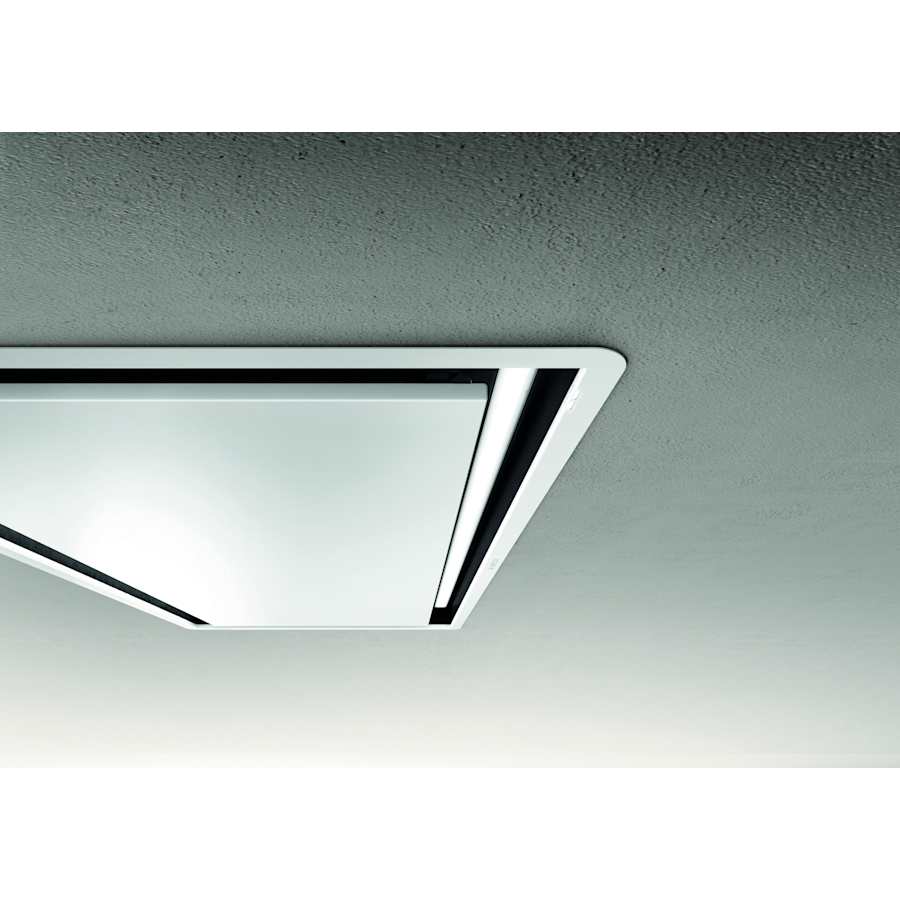

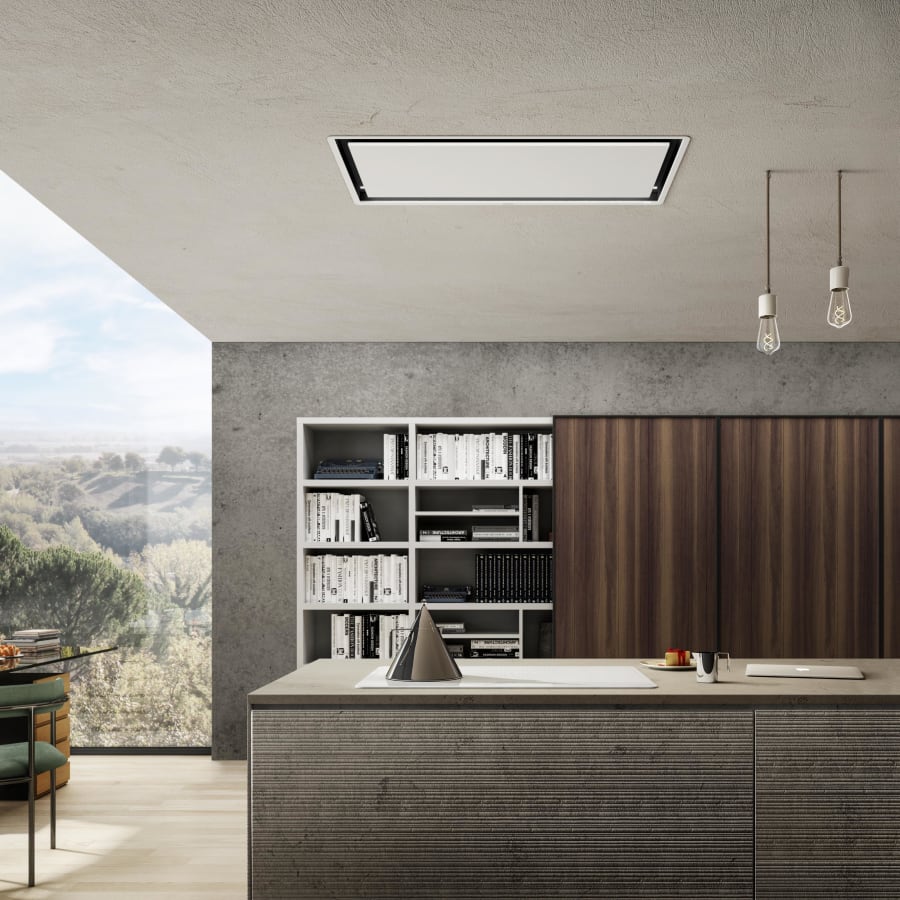

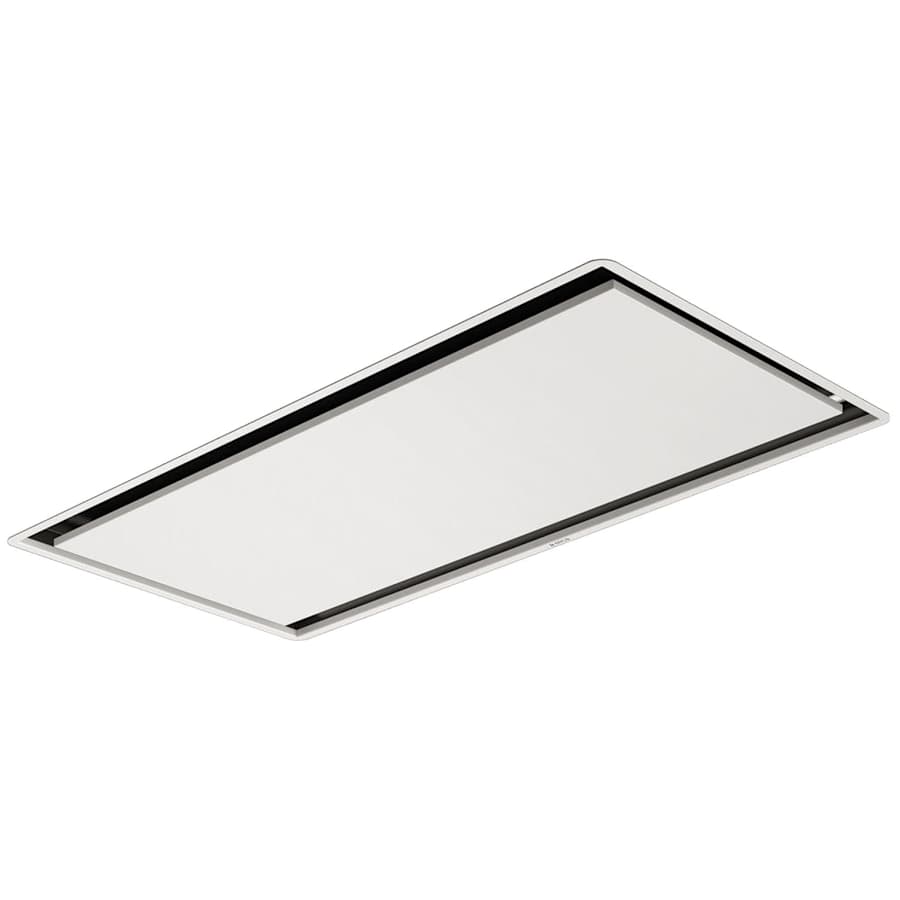

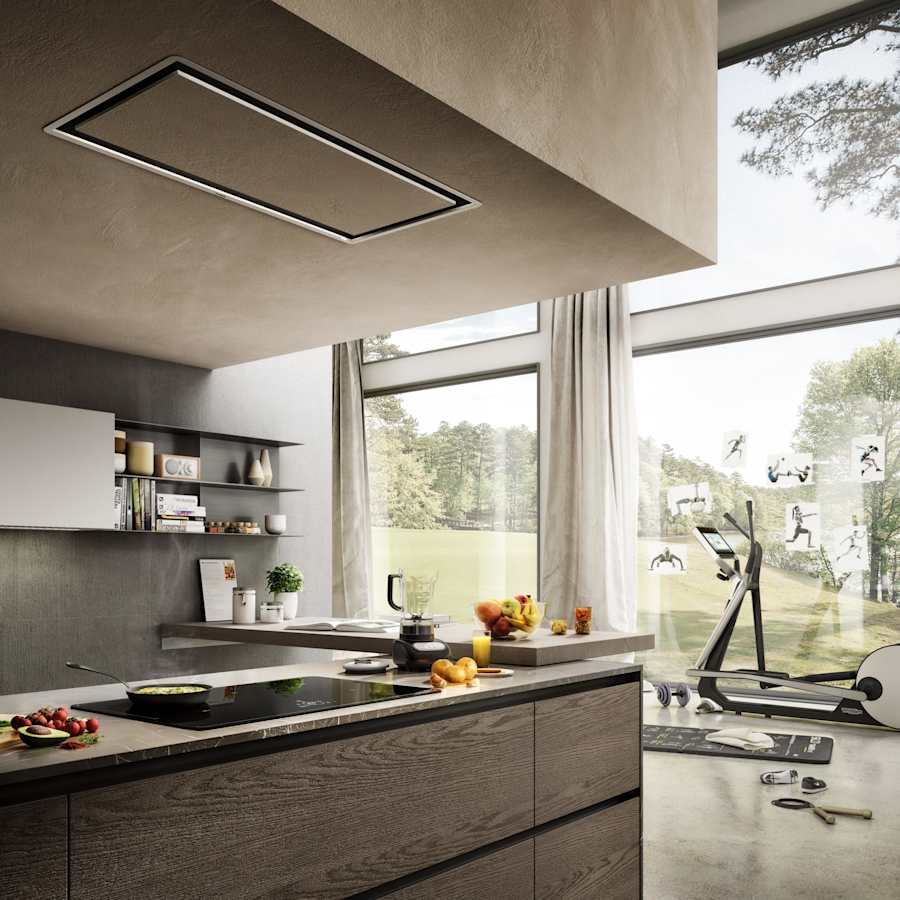

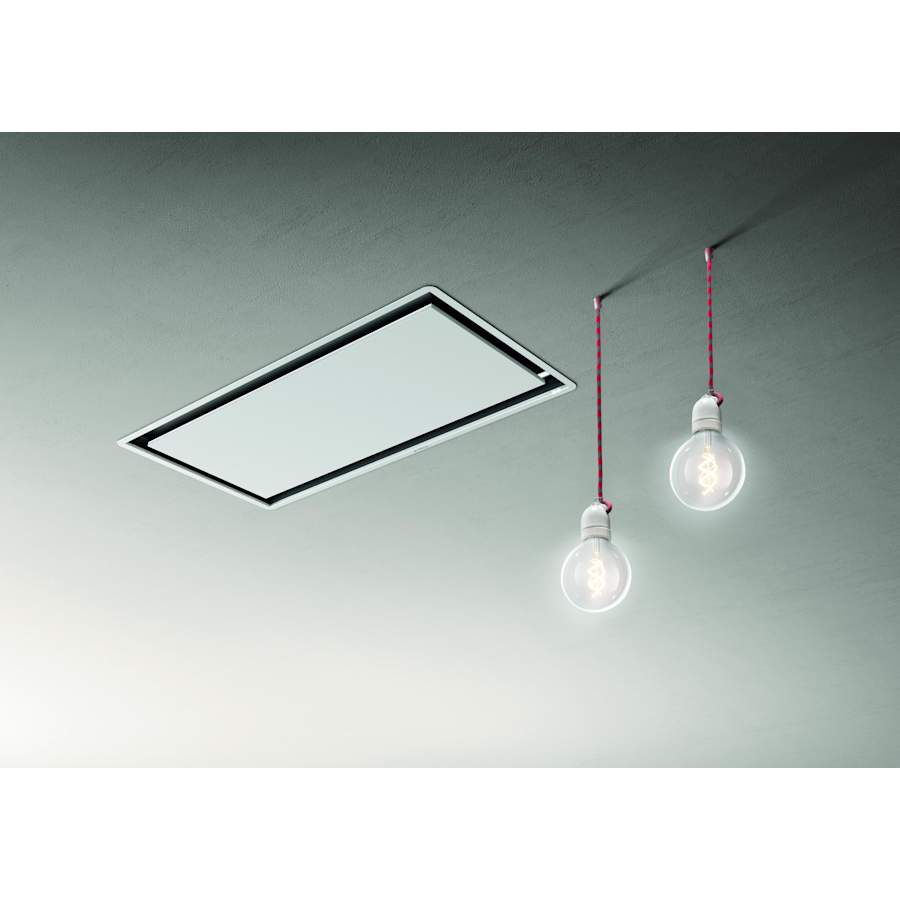

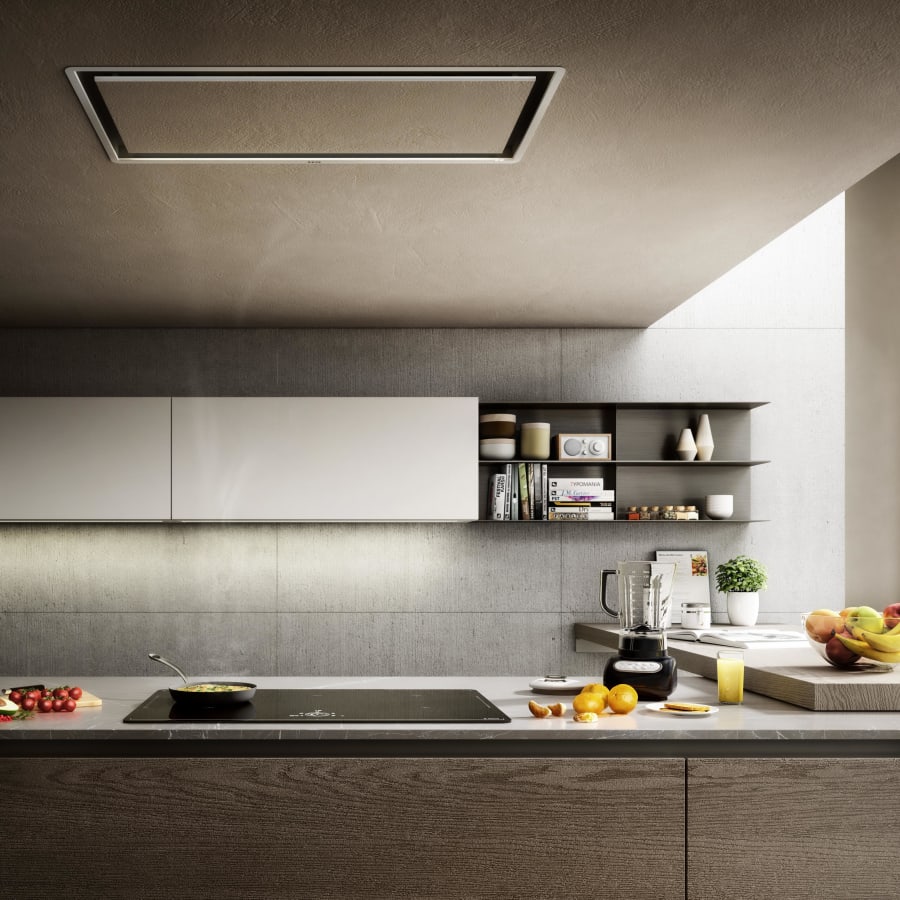

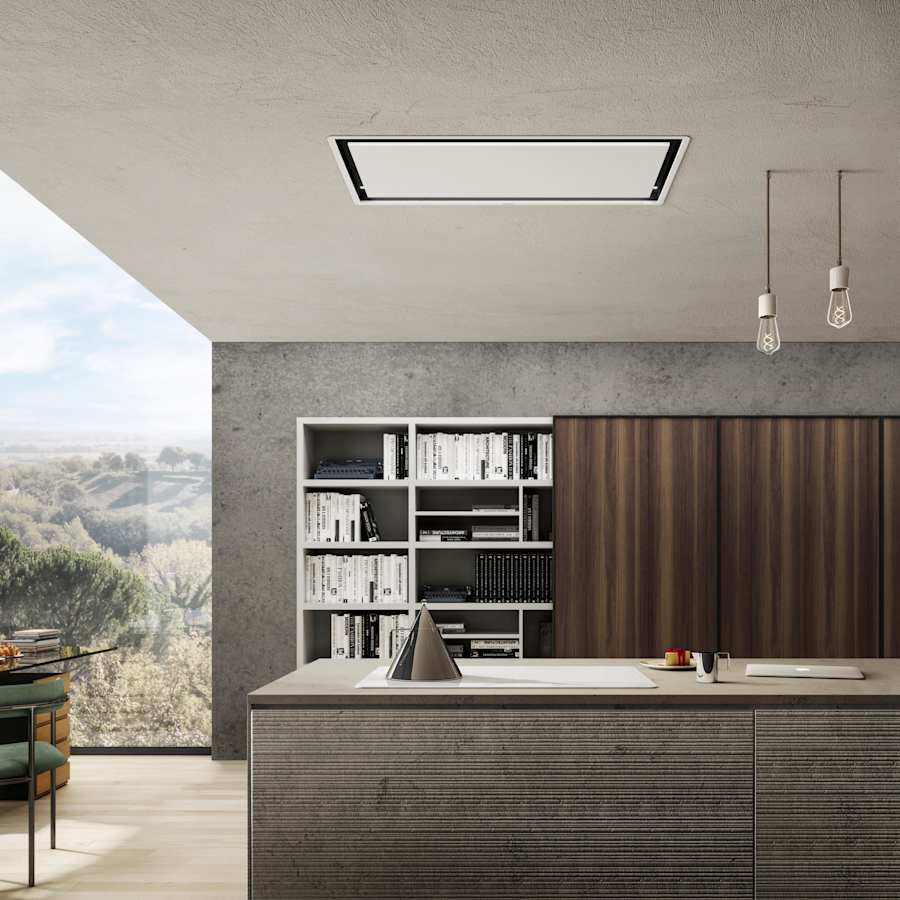

The first hood that totally disappears in the ceiling, perfectly fitting the ceiling texture of the living space. Created to be totally integrated in the living architecture, disappearing like a true illusion in the room ceiling.
Features:
Blower outputs up to 600 CFM to keep your kitchen free of cooking fumes and odors
Mesh filters effectively trap and filter out unwanted smoke, odors, and grease
Hood comes ready to accept a custom panel to blend seamlessly with your kitchen design
Included remote allows for easy control of the hood
Remote controls allow you to easily set the power level of your range hood
4 available speeds provide just the right amount of ventilation
2 LED lights illuminate the cooking area (bulbs included)
Complements items from the Illusion collection
Hood can be converted to ductless ventilation for improved efficiency and flexible installation options
Illusion naturally saves valuable kitchen space and frees the area of inconvenient obstructions cleverly hiding a powerful extraction system that guarantees always clean air in the living space
Combining discreet shapes and high performance, Illusion has been created for consumers who ask for an essential and bespoke style without compromises on functionality
Operated with an included remote control
All maintenance operations can be completed by opening the side panel without any effort, and in this way, the hood can be easily preserved clean and fully functional
Features Smart Installation
Covered under a 3 year limited parts and labor manufacturer warranty
Specifications:
CFM: 600
Sones: 6.8
Nominal Width: 40″
Width: 40″
Height: 11-15/16″
Depth: 19-11/16″
Duct Size: 6″ Round
Height Above Cooktop: 30″
Amperage: 4A
Voltage: 120V
Wattage: 578W
Additional Elica Links
Browse all Elica Products
Elica Illusion Collection
Specifications
| Material | Stainless Steel |
| Insulation Type | Full Installation |
| Panel Ready | Yes |
| Control Type | Remote |
| Bubbler Type | LED |
| Number of Bulbs | 2 |
| Fingerprint Resistant | No |
| Blower Type | Internal |
| Duct Discharge | Horizontal, Vertical |
| Filter Type | Mesh Filters |
| Smart Home | No |
| Approved for Commercial Use | No |
| Collection | Illusion |
| ADA | No |
| Manufacturer Warranty | 3 Year Limited Parts and Labor |
| Certifications | AHAM, UL |
| Title 20 Compliant | Yes |
| Country Of Origin | Italy |
| Outdoor Approved | No |
| Energy Star | No |
| Title 24 | Yes |
| Depth | 19.6875 in. |
| Height | 11.9375 in. |
| Nominal Width | 40 in. |
| Product Weight | 52.69 lbs. |
| Width | 40 in. |
| Ceiling Height (Max) | 120 in. |
| CFM | 600 |
| Duct Size | 6" Round |
| Height Above Cooktop | 30" |
| Height Above Cooktop (Max) | 39 in. |
| Height Above Cooktop (Min) | 30 in. |
| Light Included | Yes |
| Bulb Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | No |
| Includes Remote | Yes |
| Amperage | 4 |
| Voltage | 120 |
| Wattage | 578 |
| Watts Per Bulb | 14 |
| Speeds | 4 |
| Frequency | 60 Hertz |
| Sones | 6.8 |
| Color | Stainless Steel, White |
| Color Tone | Stainless Steel, Whites |
