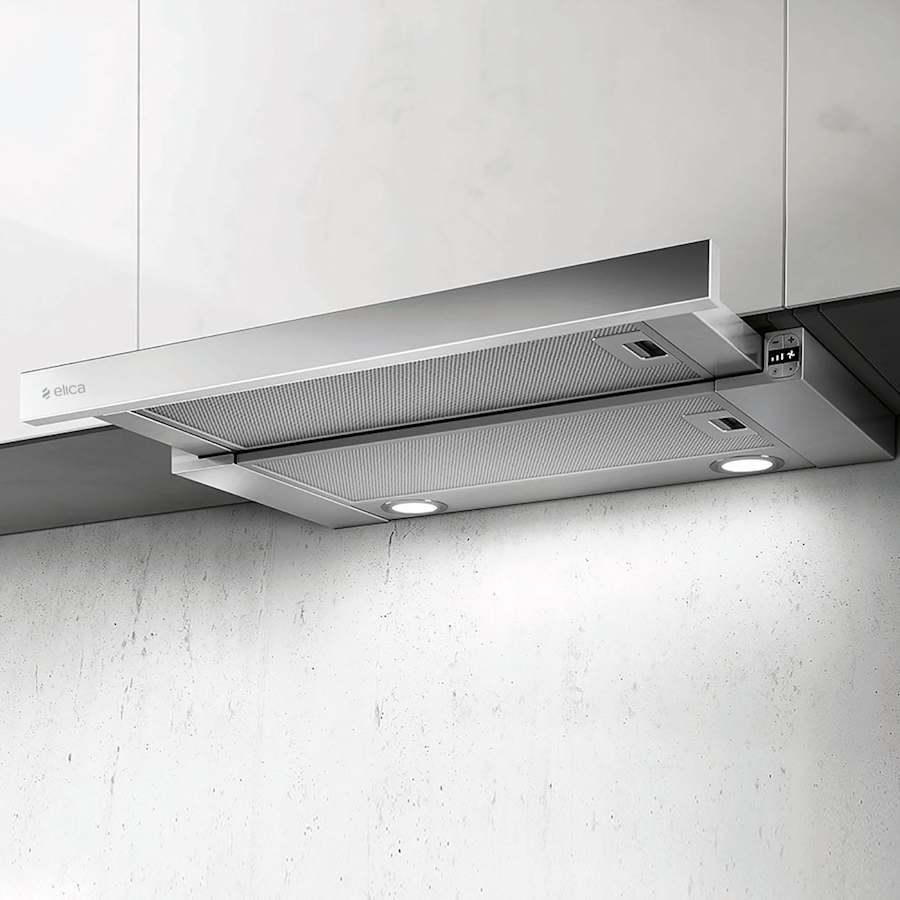

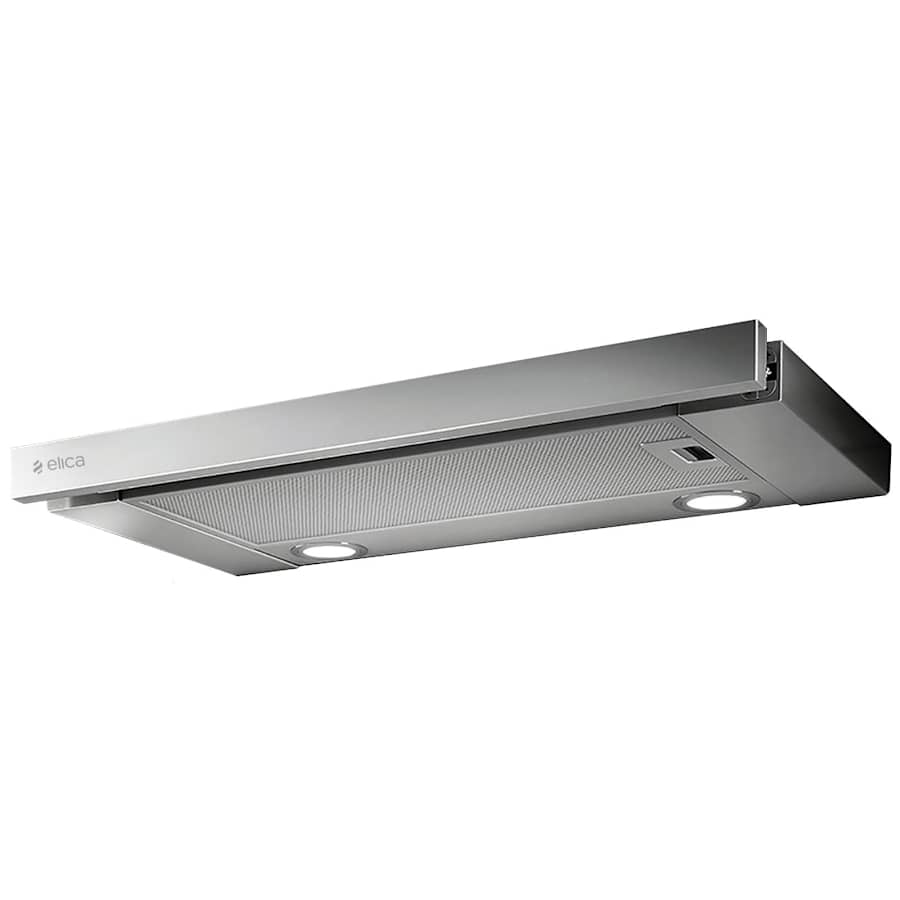

The ultra slim design of TT hides quietly within cabinetry and extends less than 2” below the edge. When called to action, the horizontal visor effortlessly pulls out to provide added air capture during cooking. TT design is ideal for smaller kitchens or where under-cabinet space is limited.
Features:
Blower outputs up to 400 CFM to keep your kitchen free of cooking fumes and odors
Mesh filters effectively trap and filter out unwanted smoke, odors, and grease

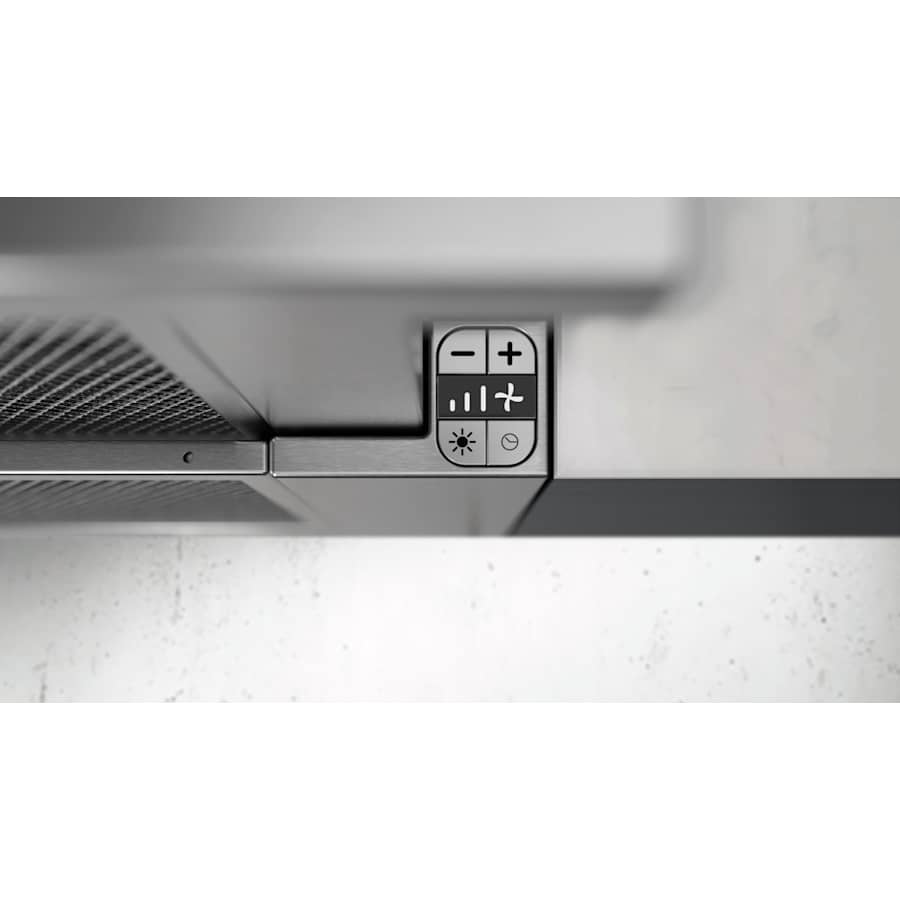

Touch controls allow you to easily set the power level of your range hood
3 available speeds provide just the right amount of ventilation
2 LED lights illuminate the cooking area (bulbs included)
Complements items from the TT collection
Hood can be converted to ductless ventilation for improved efficiency and flexible installation options
Covered under a 3 year limited parts and labor manufacturer warranty
Specifications:
CFM: 400
Sones: 5.9
Nominal Width: 30″
Width: 30″
Height: 11-3/4″
Depth: 17″
Duct Size: 6″ Round
Height Above Cooktop: 30″
Amperage: 2.3A
Voltage: 120V
Wattage: 245W
Additional Elica Links
Browse all Elica Products
Elica TT Collection
Specifications
| Depth | 17 in. |
| Nominal Width | 30 in. |
| Width | 30 in. |
| Height | 11.75 in. |
| Product Weight | 25.243 lbs. |
| CFM | 400 |
| Duct Size | 6" Round |
| Height Above Cooktop | 30" |
| Height Above Cooktop (Min) | 30 in. |
| Ceiling Height (Max) | 89.75 in. |
| Ceiling Height (Min) | 77.75 in. |
| Height Above Cooktop (Max) | 36 in. |
| Material | Stainless Steel |
| Insulation Type | Full Installation |
| Control Type | Touch |
| Number of Bulbs | 2 |
| Smart Home | No |
| Bubbler Type | LED |
| Panel Ready | No |
| Blower Type | Internal |
| Duct Discharge | Vertical |
| Filter Type | Mesh Filters |
| Fingerprint Resistant | No |
| ADA | No |
| Approved for Commercial Use | No |
| Collection | TT |
| Manufacturer Warranty | 3 Year Limited Parts and Labor |
| Certifications | AHAM, UL |
| Country Of Origin | Poland |
| Title 20 Compliant | Yes |
| Energy Star | No |
| Outdoor Approved | No |
| Light Included | Yes |
| Bulb Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | No |
| Includes Remote | No |
| Amperage | 2.3 |
| Voltage | 120 |
| Sones | 5.9 |
| Wattage | 245 |
| Watts Per Bulb | 2.1 |
| Frequency | 60 Hertz |
| Speeds | 3 |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
