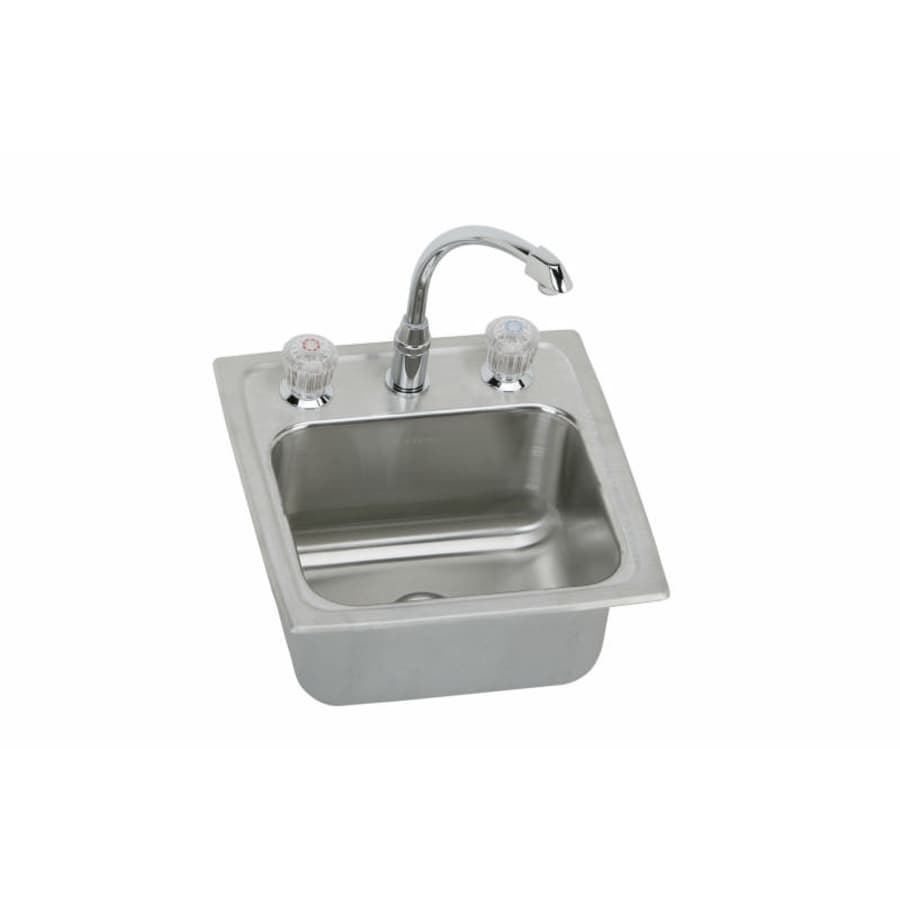

Elkay Gourmet Lustertone Stainless Steel 15″ Single Basin Top Mount Bar Sink Package with Three Hole Faucet Set
Highest quality Luster tone single sink bowl seamlessly drawn of #18 gauge nickel bearing stainless steel.
Product Features:
Sink:
Top mount
Stainless steel
Exposed surfaces are hand blended
Underside is fully protected by undercoating to dampen sound and prevent condensation
Coved corners: 1-3/4″ vertical and horizontal radius
Faucet:
Three holes Top mount installation
Dual handle mixing faucet
Clear crystalac handles
Tubular brass hi-arc 360° swing spout with restricted flow aerator finished in chrome plate
90° turn of the handle controls water from the drip-free off to full on
Requires 1/2” I.P. connections on 8” centers
Removable ceramic disc cartridge
Drain:
Nickel plated brass body
Removable deep basket insert
Fits 2″ opening
Polished finish
Type 304 Stainless steel 1-1/2″ x 4″ tailpiece

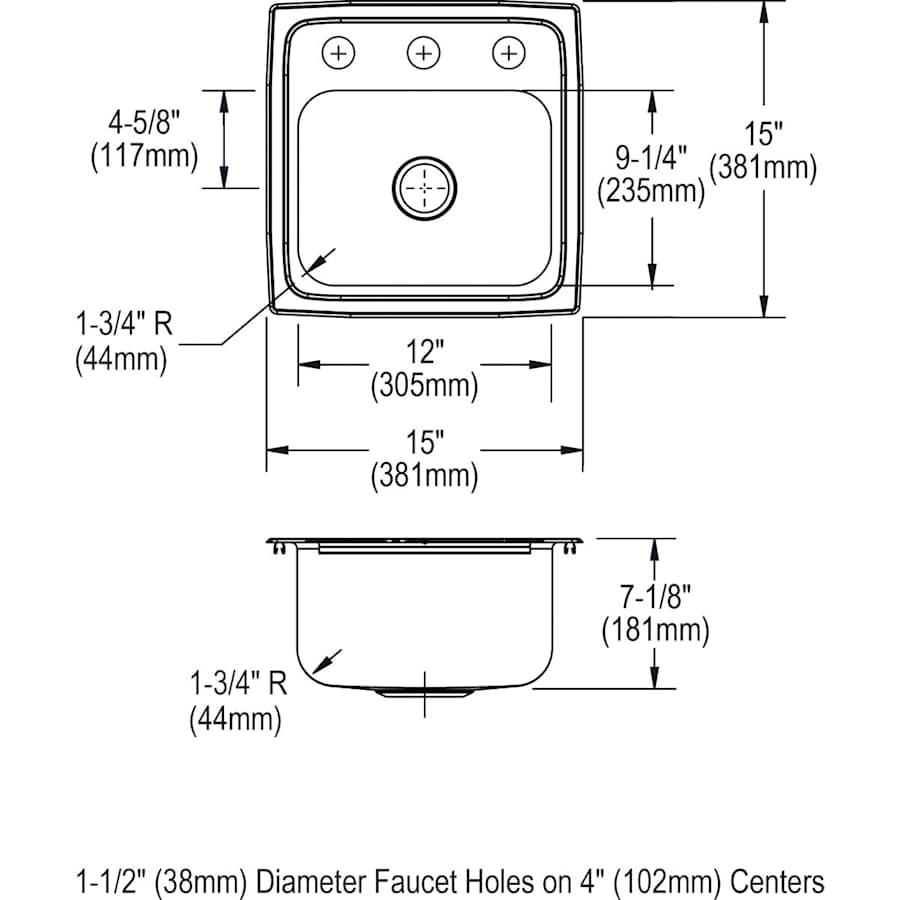

Product Specifications:
Sink:
Installation Type: Drop In (top mount)
Material: Stainless Steel
Number of Basins: 1
Minimum Cabinet Size: 18″
Sink Dimensions: 15″ L x 15″ W
Bowl Depth: 7-1/8″
Bowl Dimensions: 12″ L x 9-1/4″ W x 7-1/8″ D
Pre-Scored Holes: 3
Drain Size: 2″
Faucet:
Mounting Type: Deck
Handles: 2
Handles Included: Yes
Handle Type: Clear Crystal Handles
Holes Required: Three
Overall Height: 11″
Spout Height: 10″
Spout Reach: 6-1/2″
Material: Brass
Valve Type: Qtr Turn Ceramic
Valve Connection: 1/2″-14 NPSM
Flow Rate: 2.5 GPM
Ship Wt: 11.8 lbs
Product Certifications and Compliances:
ASME 112.18.1/CSA B125-01
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Gourmet Collection
Specifications
| Height | 7.13 in. |
| Width | 15 in. |
| Length | 15 in. |
| Backplate Depth | 7.13 in. |
| Bar Length | 9.25 in. |
| Base Width | 12 in. |
| Drain Connection | 2 in. |
| Faucet Centers | 8 in. |
| Nominal Length | 15 in. |
| Nominal Width | 15 in. |
| Gauge | 18 |
| Sink Length | 15 in. |
| Material | Stainless Steel |
| Thermostat | Contemporary |
| Faucet Holes | 3 |
| Insulation Type | Drop In |
| Sink Shape | Square |
| Number Of Bathers | 1 |
| Sound Dampening | Yes |
| Apron Front | No |
| Sink Material | Stainless Steel |
| Stainless Steel Grade | 304 |
| Undercoating | Yes |
| Approved for Commercial Use | No |
| Collection | Gourmet, Gourmet Lustertone, Gourmet Package |
| ADA | No |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Faucet Included | Yes |
| Soap Dispenser Included | No |
| Basin Rack Included | No |
| Basket Strainer Included | Yes |
| Cutting Board Included | No |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
