Product Features:
Single basin design provides maximum workspace
Covered under Elkay’s 5-year limited warranty
Elkay stainless steel sinks are made in the USA
Sink includes a single handle faucet with push button drinking faucet
Center drain location provides optimal drainage capability
All hardware needed for installation included
Product Specifications:

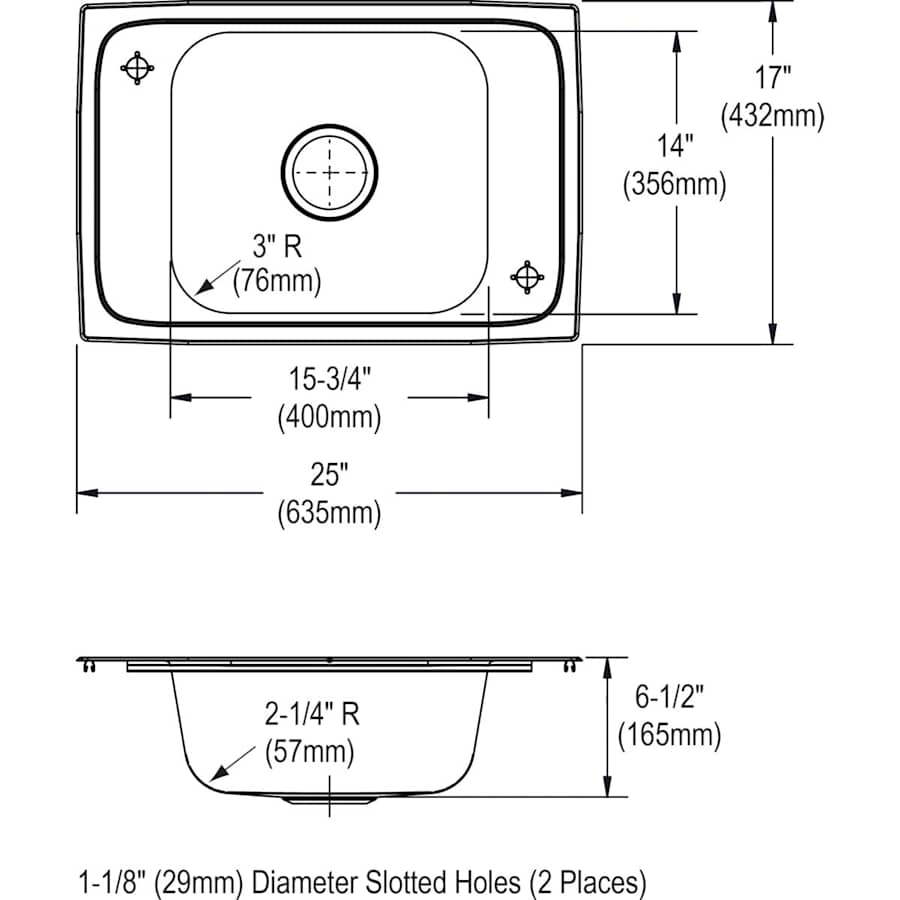

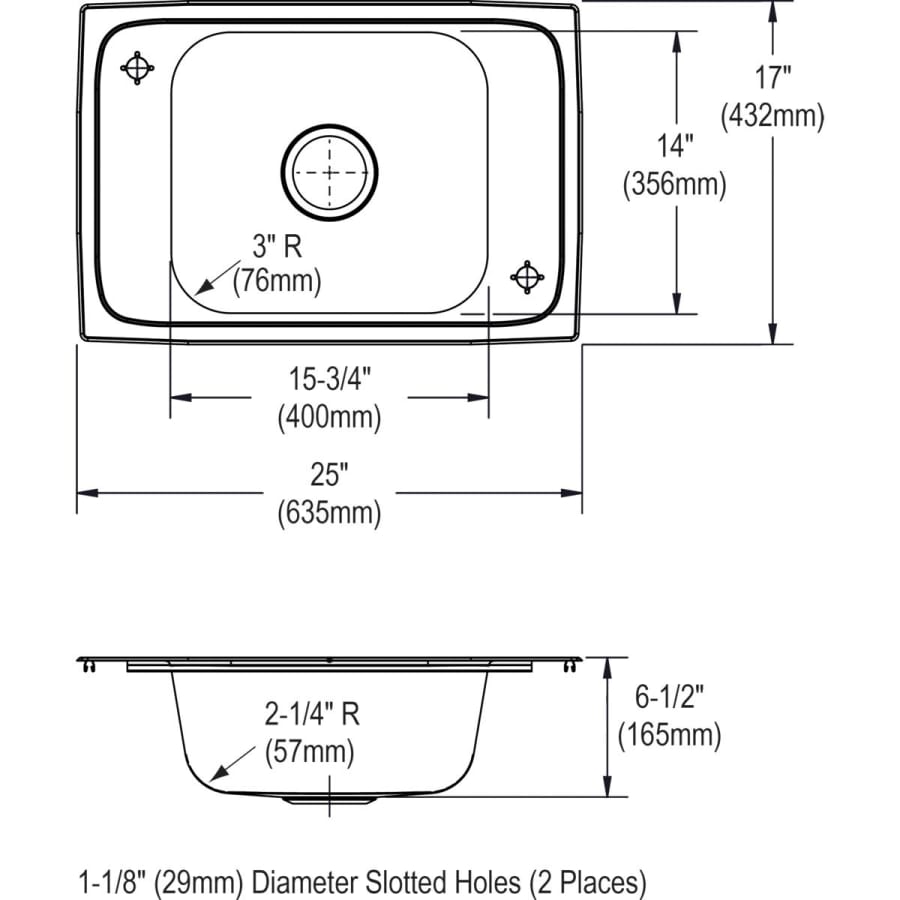

Sink Height: 6-1/2″ (measured from bottom of sink to the top of the rim)
Overall Width: 17″ (measured from back outer rim to the front outer rim)
Overall Length: 25″ (measured from left outer rim to the right outer rim)
Basin Width: 14″ (measured from the back inner rim to the front inner rim)
Basin Length: 15-3/4″ (measured form the left inner rim to the right inner rim)
Basin Depth: 6-1/2″ (measured from center of basin to the rim)
Installation Type: Drop-in
Number of Faucet Holes: 2
Minimum Base Cabinet Width: 30″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Celebrity Collection
Specifications
| Height | 6.5 in. |
| Length | 25 in. |
| Width | 17 in. |
| Backplate Depth | 6.5 in. |
| Bar Length | 15.75 in. |
| Base Width | 14 in. |
| Drain Connection | 3.5 in. |
| Faucet Centers | 0 in. |
| Nominal Length | 25 in. |
| Nominal Width | 17 in. |
| Flow Rate (GPM) | 2.5 |
| Faucet Hole Size | 1.125 in. |
| Gauge | 20 |
| Minimum Cabinet Size | 30 in. |
| Installation Hardware Included | Yes |
| Drain Assembly Included | Yes |
| Faucet Included | Yes |
| Soap Dispenser Included | No |
| Material | Stainless Steel |
| Drain Placement | Center |
| Faucet Holes | 2 |
| Insulation Type | Drop In |
| Sink Shape | Rectangular |
| Basin Split | Single Basin |
| Number Of Bathers | 1 |
| Sound Dampening | Yes |
| Sink Material | Stainless Steel |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| Country Of Origin | USA |
| Manufacturer Warranty | 5 Year Limited |
| Series | Classroom |
| CA Drought Compliant | No |
| Certifications | CSA, NSF, UPC, ASME |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Made in America | Yes |
| ASSE Code | A112.19.3 |
| CSA Code | B45.4 |
| Low Lead Compliant | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
