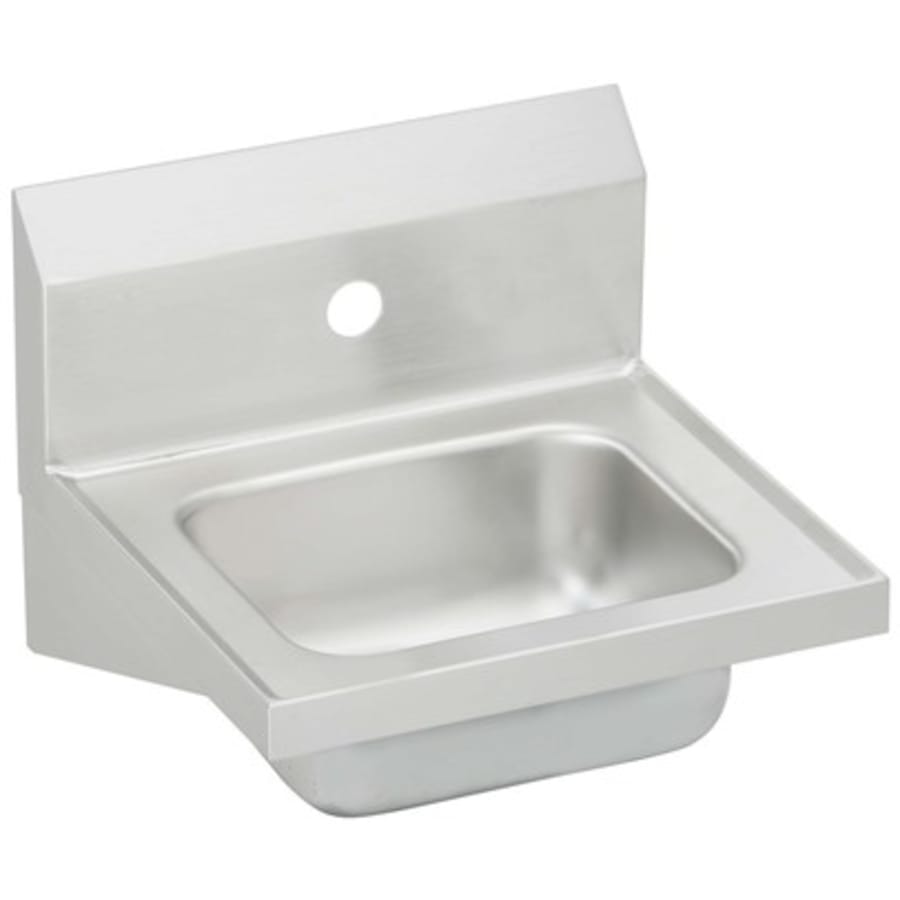

Elkay Wall Mount 18 Gauge Stainless Steel Handwash Sink
Product Features:
Wall mounted
Hand wash-up sink
Stainless steel
1-3/4″ radius coved corners
Full length 7″ high backsplash
Exposed surfaces have a brushed finish
Furnished with a wall hanger and integral Stainless steel support brackets
Faucet:
Two hole dual handle wall mount faucet
Quarter turn ceramic disc cartridge
1/2″ adjustable inlets
Solid brass construction
Chrome finish
Includes spout swing restriction pin
Drain:
Fits 2″ opening
Polished finish
Type 304 Stainless steel 1-1/2″ x 4″ tailpiece
Drain Fitting – P Trap:
Chrome plated cast brass
1-1/2″ O.D. “P” trap with cleanout plug
1-1/2″ O.D. tubing waste arm to wall and wall flange
12″ from center of drain inlet to wall
Product Specifications:
Sink:
Installation Type: Wall
Material: Stainless Steel
Number of Basins: 1
Sink Dimensions: 16-3/4″ L x 15-1/2″ W
Bowl Depth: 6″
Bowl Dimensions: 12″ L x 9-1/4″ W x 6″ D
Faucet Holes: 2
Drain Size: 2-3/16″
Faucet:
Mounting Type: Wall
Holes Required: Two
Overall Height: 11-5/16″
Spout Height: 8-7/8″
Spout Reach: 3-5/8″
Material: Brass
Flow Rate: 2.2 GPM
Ship Wt: 12 lbs
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Approved for Commercial Use | Yes |
| ADA | No |
| Certifications | NSF |
| Width | 15.5 in. |
| Length | 16.75 in. |
| Backplate Depth | 6 in. |
| Bar Length | 12 in. |
| Base Width | 9.25 in. |
| Faucet Hole Size | 1.25 in. |
| Gauge | 18 |
| Drain Hole | 2.19 in. |
| Material | Stainless Steel |
| Insulation Type | Wall Mounted |
| Faucet Holes | 1 |
| Sink Shape | Rectangular |
| Drain Placement | Center |
| Number Of Bathers | 1 |
| Sink Material | Stainless Steel |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
