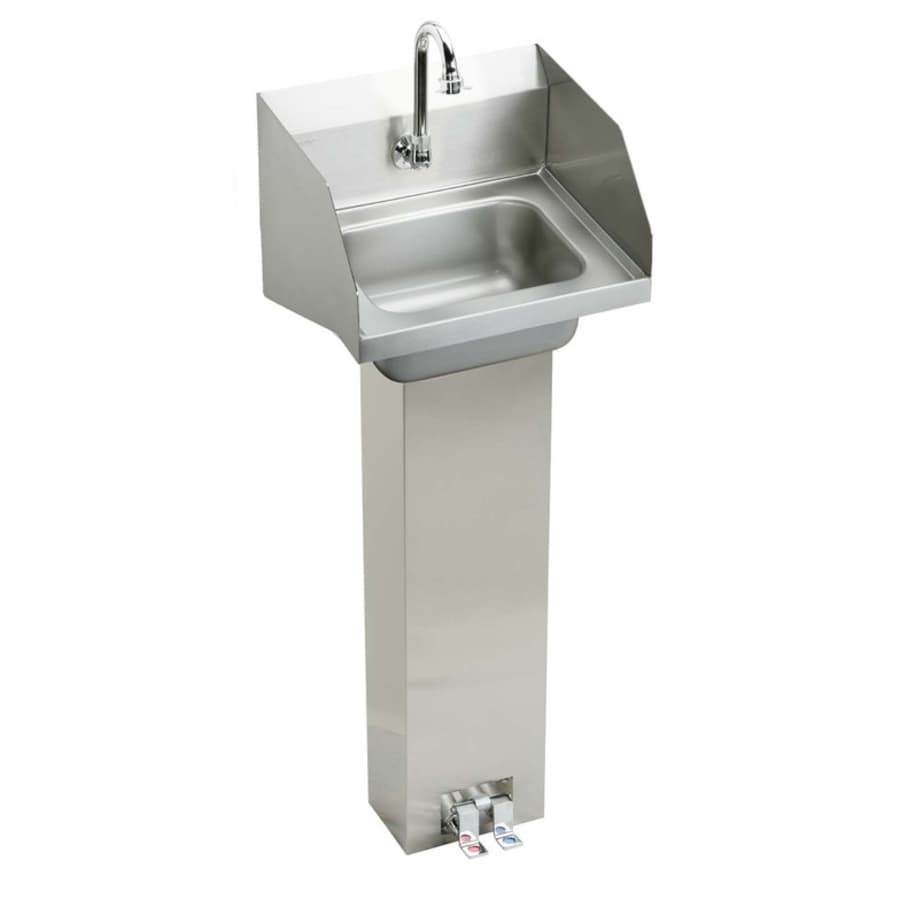

Elkay Stainless Steel Pedestal Mount Handwash Sink with Floor Mount Double Foot Valve and Side Splashes
Product Features:
Pedestal mount
Hand wash-up sink with 7″ high right and left side splashes
Stainless steel
1-3/4″ radius coved corners
Full length 7″ high backsplash
Exposed surfaces have a brushed finish
Supply:
Rough chrome plated
Floor mount
Double foot pedal valve
Pedals are smooth chrome plated and color indexed
1/2″ I.P.S. female inlets and outlet
Faucet:
Chrome plated back mount spout
High swing spout
Vandal-resistant anti-hose aerator
Flanged female 1/2″ IPS inlet with 1/2″ male thread by 1/2″ SWT brass elbow 1/2″ Nipple, washer and locknut
Drain:
Fits 2″ opening
Polished finish
Type 304 Stainless steel 1-1/2″ x 4″ tailpiece
Drain Fitting – P Trap:
Chrome plated cast brass
1-1/2″ O.D. “P” trap with cleanout plug
1-1/2″ O.D. tubing waste arm to wall and wall flange
12″ from center of drain inlet to wall
Product Specifications:
Sink:
Installation Type: Pedestal
Material: Stainless Steel
Number of Basins: 1
Sink Dimensions: 16-3/4″ L x 15-1/2″ W
Bowl Depth: 6″
Bowl Dimensions: 12″ L x 9-1/4″ W x 6″ D
Faucet Holes: 2
Drain Size: 2-3/16″
Faucet:
Mounting Type: Wall
Holes Required: One
Overall Height: 9-1/4″
Spout Height: 9-1/4″
Spout Reach: 3-9/16″
Material: Brass
Flow Rate: 2.2 GPM
Ship Wt: 30 lbs
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Height | 41.88 in. |
| Width | 15.5 in. |
| Length | 15.75 in. |
| Flow Rate (GPM) | 2.5 |
| Backplate Depth | 6 in. |
| Bar Length | 12 in. |
| Base Width | 9.25 in. |
| Faucet Hole Size | 1.25 in. |
| Spout Height | 5.56 in. |
| Spout Reach | 3.56 in. |
| Gauge | 18 |
| Faucet Height | 8.25 in. |
| Inside Diameter | .5 in. |
| Water Pressure (Max) | 80 PSI |
| Drain Hole | 2.19 in. |
| Water Pressure (Min) | 40 PSI |
| Material | Stainless Steel |
| Faucet Holes | 1 |
| Sink Shape | Rectangular |
| Drain Placement | Center |
| Number Of Bathers | 1 |
| Sink Material | Stainless Steel |
| Number of Pedals | 2 |
| Approved for Commercial Use | Yes |
| ADA | No |
| Certifications | NSF |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
