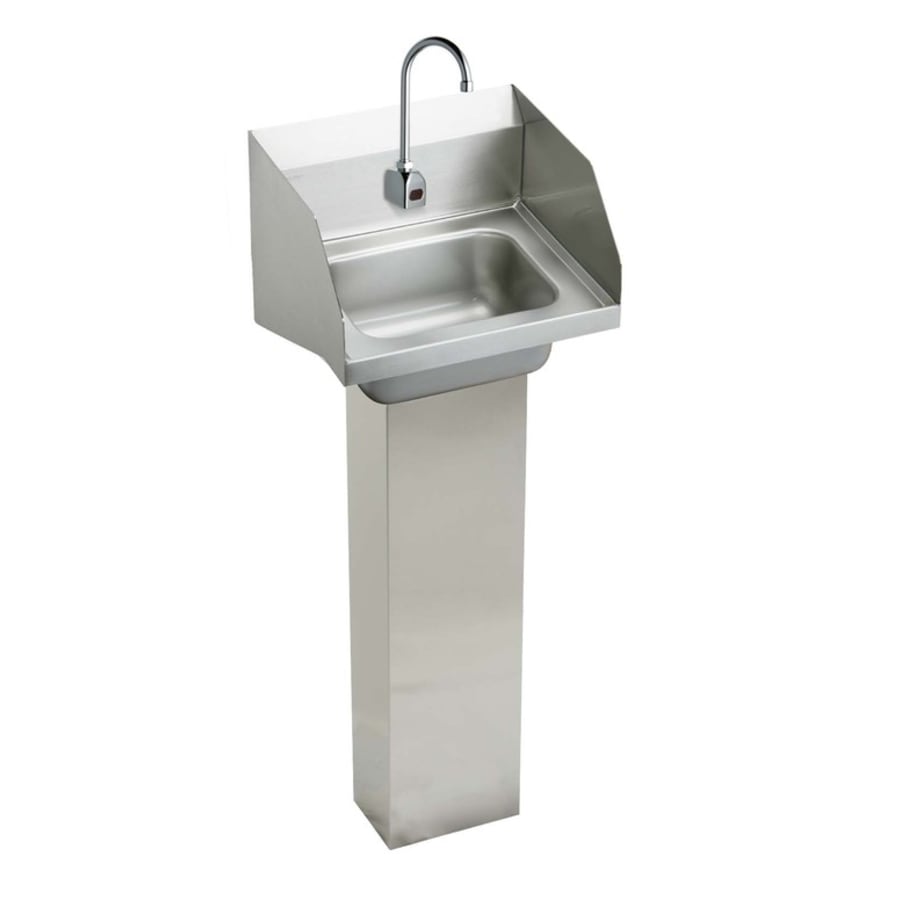

Elkay Stainless Steel Pedestal Mount Handwash Sink with Side Splashes, Anti-Scald Mixing Valve and Sensor Faucet
Product Features:
Pedestal mount
Hand wash-up sink with 7″ high right and left side splashes
Stainless steel
1-3/4″ radius coved corners
Full length 7″ high backsplash
Exposed surfaces have a brushed finish
Faucet:
Sensor-operated
Non-mixing
Backsplash-mounted gooseneck faucet
Adjustable sensor eyes
Chrome-plated Solid brass construction
2.0gpm laminar flow control on spout end
Includes water-resistant sensor control module and power cables
Features dual power options: AC plug-in and battery holder with four AA batteries
Slow-closing piston operated solenoid valve
In-line filter with clean out trap and flexible supply hose
Control circuit is solid state, has adjustable sensor range of 7/8″ to 6.75″
Shut off delay preset at 1 second and field adjustable to 2 seconds
Drain:
Fits 2″ opening
Polished finish
Type 304 Stainless steel 1-1/2″ x 4″ tailpiece
Drain Fitting – P Trap:
Chrome plated cast brass
1-1/2″ O.D. “P” trap with cleanout plug
1-1/2″ O.D. tubing waste arm to wall and wall flange
12″ from center of drain inlet to wall
Anti-Scald Mixing Valve:
Anti-scald thermostatic universal mixing valve
Forged bronze body
3/8″ compression type inlet and outlet connections
Contains a four port adapter to allow use for both touchless and two handle sink operations
Comes with internal check valves on inlets and mixed temperature range of 80-120°F
Product Specifications:
Sink:
Installation Type: Pedestal
Material: Stainless Steel
Number of Basins: 1
Sink Dimensions: 16-3/4″ L x 15-1/2″ W
Bowl Depth: 6″
Bowl Dimensions: 12″ L x 9-1/4″ W x 6″ D
Faucet Holes: 2
Drain Size: 2-3/16″
Faucet:
Mounting Type: Wall
Holes Required: One
Overall Height: 10-7/8″
Spout Height: 6-3/8″
Spout Reach: 7-3/16″
Material: Brass
Flow Rate: 0 GPM
Ship Wt: 43.9 lbs
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Height | 41.88 in. |
| Width | 15.5 in. |
| Length | 15.75 in. |
| Backplate Depth | 6 in. |
| Bar Length | 12 in. |
| Base Width | 9.25 in. |
| Faucet Hole Size | 1.25 in. |
| Spout Height | 8.75 in. |
| Spout Reach | 5.38 in. |
| Gauge | 18 |
| Faucet Height | 12.75 in. |
| Drain Hole | 2.19 in. |
| Material | Stainless Steel |
| Faucet Holes | 1 |
| Sink Shape | Rectangular |
| Drain Placement | Center |
| Number Of Bathers | 1 |
| Sink Material | Stainless Steel |
| Approved for Commercial Use | Yes |
| ADA | No |
| Certifications | NSF |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
