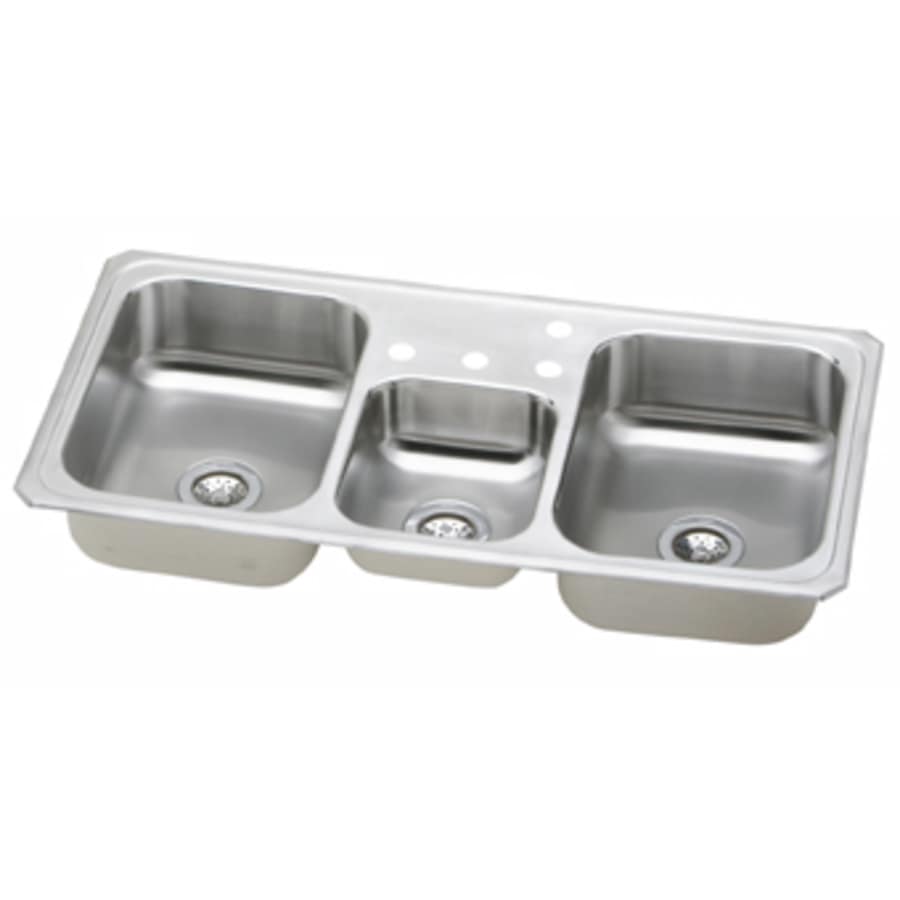

Elkay CMR4322 Features:
Constructed of 20-gauge T-304 grade stainless steel
Triple basin sink with a 35/30/35 split increases versatility
Designed for drop in installations
Basins are undercoated and padded to prevent dish clatter and cabinet condensation
Center drain location provides optimal drainage capability
Covered under Elkay’s limited lifetime residential warranty
Product Technologies / Benefits:
SoundGuard®: Elkay uses a non-toxic latex based material to undercoat sink bottoms and sides over sound pads which help absorb sound, maintain water temperature, reduce vibration and prevent condensation. The quietest stainless steel sink in the industry.

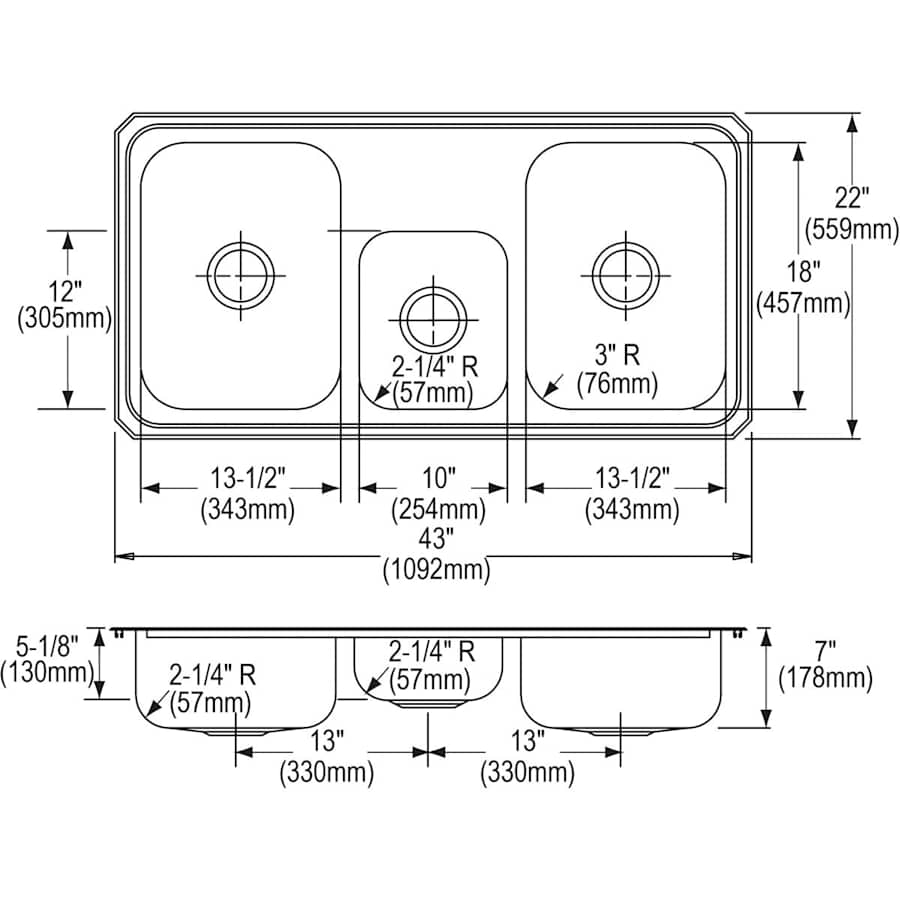

Elkay CMR4322 Specifications:
Height: 7″ (measured from bottom of sink to top of rim)
Length: 43″ (measured from left outer rim to right outer rim)
Width: 22″ (measured from back outer rim to front outer rim)
Basin Depth (left): 6-7/8″ (measured from center of basin to rim)
Basin Length (Left): 13-1/2″ (measured from left outer rim to right outer rim)
Basin Width (Left): 18″ (measured from back outer rim to front outer rim)
Basin Depth (Center): 5″ (measured from center of basin to rim)
Basin Length (Center): 10″ (measured from center of basin to rim)
Basin Width (Center): 12″ (measured from back outer rim to front outer rim)
Basin Depth (Right): 6-7/8″ (measured from center of basin to rim)
Basin Length (Right): 13-1/2″ (measured from left outer rim to right outer rim)
Basin Width (Right): 18″ (measured from back outer rim to front outer rim)
Installation Type: Drop In
Minimum Cabinet Size: 48″
Basin Split: 35/30/35
Faucet Holes: 0 – 6 (holes required for faucet installation)
Drain Connection: 3-1/2″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Gourmet Collection
Specifications
| Product Weight | 22.75 lbs. |
| Height | 7 in. |
| Width | 22 in. |
| Length | 43 in. |
| Basin Depth (Center) | 5 in. |
| Basin Length (Center) | 10 in. |
| Basin Width (Center) | 12 in. |
| Faucet Centers | 4, 8 in. |
| Nominal Length | 43 in. |
| Sink Length | 43 in. |
| Drain Connection | 3.5 in. |
| Nominal Width | 22 in. |
| Faucet Hole Size | 1.5 in. |
| Gauge | 20 |
| Minimum Cabinet Size | 48 in. |
| Basin Depth (Left) | 6.875 in. |
| Basin Depth (Right) | 6.875 in. |
| Basin Length (Left) | 13.5 in. |
| Basin Length (Right) | 13.5 in. |
| Basin Width (Left) | 18 in. |
| Basin Width (Right) | 18 in. |
| Material | Stainless Steel |
| Thermostat | Traditional |
| Drain Placement | Center |
| Faucet Holes | 0, 1, 2, 3, 4, 5, 6 |
| Insulation Type | Drop In |
| Number Of Bathers | 3 |
| Overflow | No |
| Sink Shape | Rectangular |
| Basin Split | 35/30/35 |
| Farmhouse | No |
| Sound Dampening | Yes |
| Apron Front | No |
| Undercoating | Yes |
| Stainless Steel Grade | 304 |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime Residential |
| Approved for Commercial Use | No |
| Collection | Gourmet |
| Series | Celebrity, Sound Guard |
| Certifications | UPC, ASME, CSA |
| Made in America | Yes |
| Drain Assembly Included | No |
| Installation Hardware Included | Yes |
| Faucet Included | No |
| Soap Dispenser Included | No |
| Basin Rack Included | No |
| Basket Strainer Included | No |
| Cutting Board Included | No |
| Color | 1 Faucet Hole, 2 Faucet Holes, 3 Faucet Holes, 4 Faucet Holes, 5 Faucet Holes, 6 Faucet Holes, No Faucet Holes |
| Color Tone | Whites |
