Package Includes:
Faucet
Sink
Bubbler
Drain
Product Technologies / Benefits:
Sound Deadening: Sound-deadening material minimizes sound and vibration for a quieter time at the sink.
Sink Features:

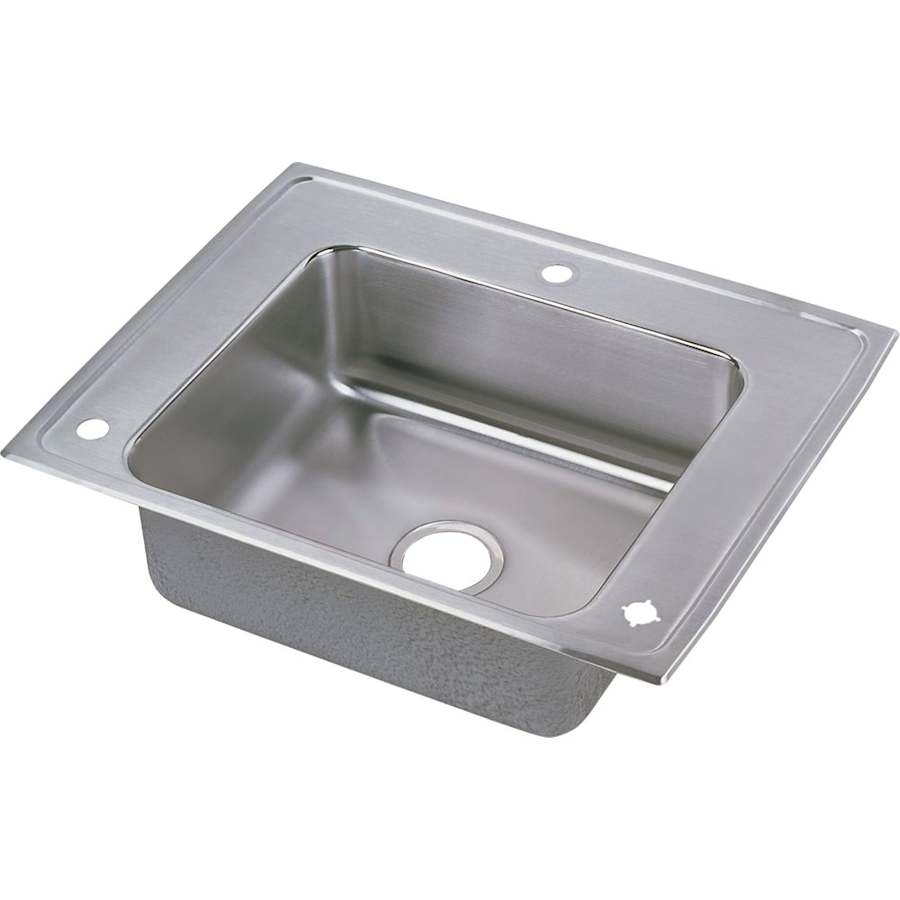

Single basin design provides maximum workspace
Covered under Elkay’s limited lifetime residential warranty
Constructed of 18 gauge premium grade stainless steel – guaranteed to never rust or corrode

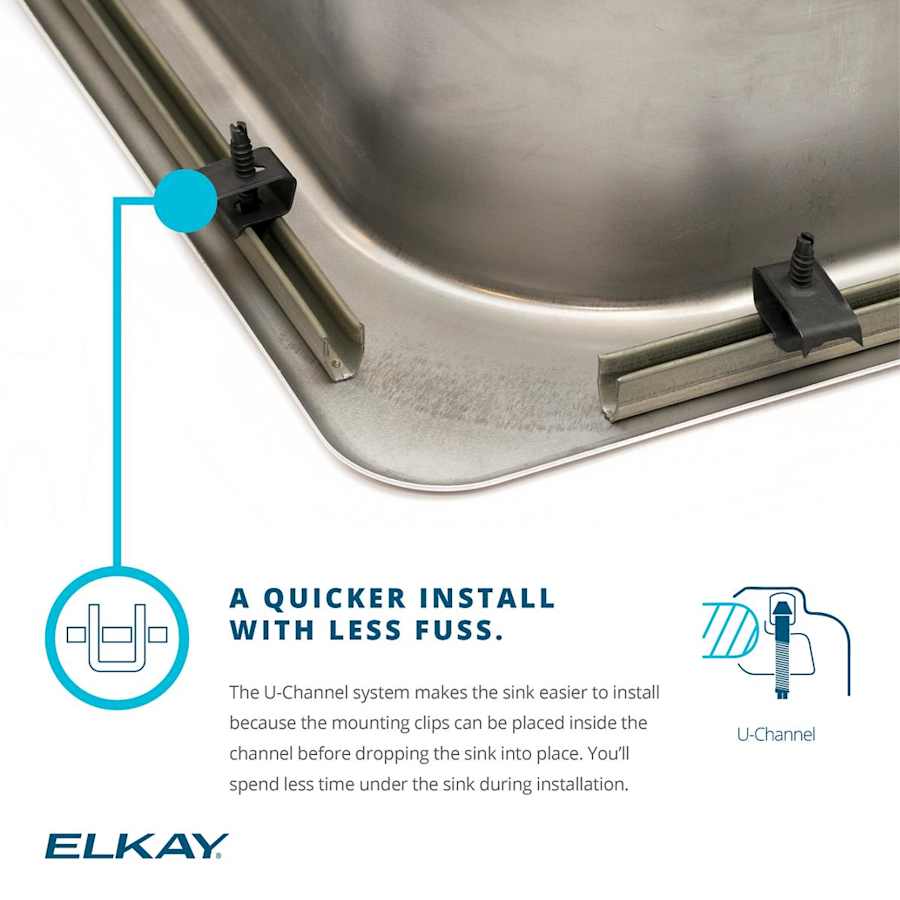

Drop in installation is a quick and simple process
Rear drain location increases workspace area in the sink as well as storage space underneath
Faucet Features:
Covered under Elkay’s limited lifetime warranty
Premier finishing process – finishes will resist corrosion and tarnishing through everyday use
Single handle operation
Spout swivels 360 degrees, providing greater access to more areas of the sink
High-arch gooseneck spout design provides optimal room under the faucet for any size task
ADA compliant – complies with the standards set forth by the Americans with Disabilities Act for kitchen faucets
Bubbler Features:
Push-button bubbler
Self closing with built-in adjustable volume control
Flow from 20 to 105 psi
Flexi-Guard bubbler

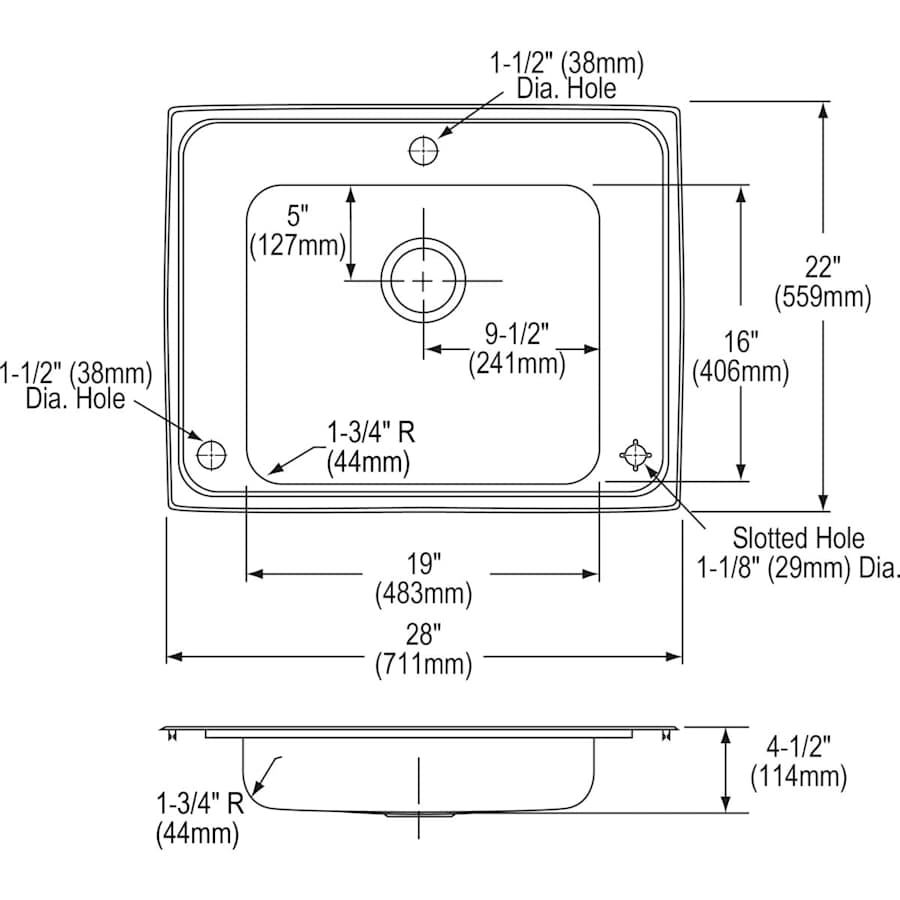

Sink Specifications:
Height: 4-1/2″ (measured from the bottom of sink to the top of the rim)
Overall Width: 22″ (measured from the back outer rim to the front outer rim)
Overall Length: 28″ (measured from the left outer rim to the right outer rim)
Basin Width: 16″ (measured from the back inner rim to the front inner rim)
Basin Length: 19″ (measured from the left inner rim to the right inner rim)
Basin Depth: 4-3/8″ (measured from the center of basin to the rim)
Installation Type: Drop In
Number of Faucet Holes: 3
Drain Outlet Connection: 3-1/2″
Minimum Base Cabinet Width: 33″
Faucet Specifications:
Overall Height: 11-1/2″ (measured from counter top to highest part of faucet)
Spout Height: 10-3/8″ (measured from counter top to spout outlet)
Spout Reach: 8″ (measured from center of faucet base to center of spout outlet)
Flow Rate: 1.5 GPM (gallons per minute)
Maximum Deck Thickness: 2-1/2″ (cannot mount to thicker decks without use of extension kit)
1 handle included with faucet
Designed for use with standard U.S. plumbing connections
Bubbler Specifications:
Height: 3-11/16″
Depth: 3-1/4″
Spout Height: 1-7/8″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Width | 22 in. |
| Height | 4.5 in. |
| Length | 28 in. |
| Nominal Length | 28 in. |
| Backplate Depth | 4.375 in. |
| Bar Length | 19 in. |
| Base Width | 16 in. |
| Drain Connection | 3.5 in. |
| Faucet Centers | 0 in. |
| Nominal Width | 22 in. |
| Flow Rate (GPM) | 1.5 |
| Water Connection | 1/2" |
| Faucet Hole Size | 1.125, 1.5 in. |
| Max Deck Thickness | 2.5 in. |
| Spout Height | 10.375 in. |
| Spout Reach | 8 in. |
| Gauge | 18 |
| Spout Swivel | 360 Degrees |
| Minimum Cabinet Size | 33 in. |
| Faucet Height | 11.5 in. |
| Sink Height | 6.25 in. |
| Thermostat | Traditional |
| Material | Stainless Steel |
| Insulation Type | Drop In |
| Valve Type | Ceramic Disc |
| Handle Material | Metal |
| Handle Style | Lever |
| Drain Placement | Rear |
| Faucet Holes | 3 |
| Overflow | No |
| Sink Shape | Rectangular |
| Water Efficient | Yes |
| Faucet Type | Kitchen Faucet |
| Number Of Handles | 1 |
| Spout Type | Swivel |
| Water Connection Type | IPS |
| Pre Rinse | No |
| Pullout Spray | No |
| Vandal Resistant | No |
| Number Of Bathers | 1 |
| Corner Sink | No |
| Farmhouse | No |
| Sound Dampening | Yes |
| Electronic | No |
| Touchless Faucet | No |
| Undercoating | Yes |
| Sink Material | Stainless Steel |
| Faucet Installation Type | Deck Mounted |
| Faucet Material | Brass |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | Limited Lifetime Residential |
| ADA | Yes |
| Low Lead Compliant | Yes |
| CA Drought Compliant | Yes |
| Eco Friendly | Yes |
| Lead Leaching Certified NSF/ANSI 61 | No |
| Handshower Included | Yes |
| Drain Assembly Included | Yes |
| Faucet Included | Yes |
| Valve Included | Yes |
| Escutcheon Included | No |
| Filtering | No |
| Sidespray | Yes |
| Soap Dispenser Included | No |
| Basket Strainer Included | Yes |
| Workstation Included | No |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
