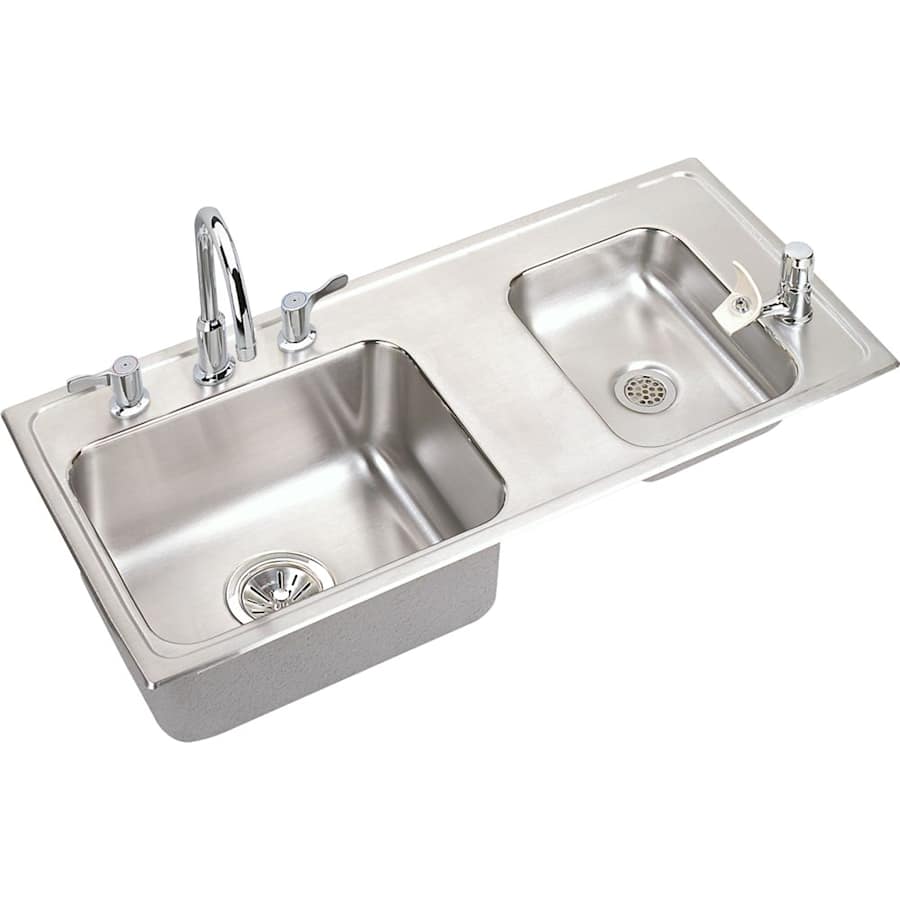

Package Includes:
Faucet
Sink
Bubbler
(1) Drain
(1) Strainer
Product Technologies / Benefits:
Sound Deadening: Sound-deadening material minimizes sound and vibration for a quieter time at the sink.
Sink Features:
Double basin sink with a 65/35 split provides increased versatility for any task
Covered under Elkay’s limited lifetime residential warranty

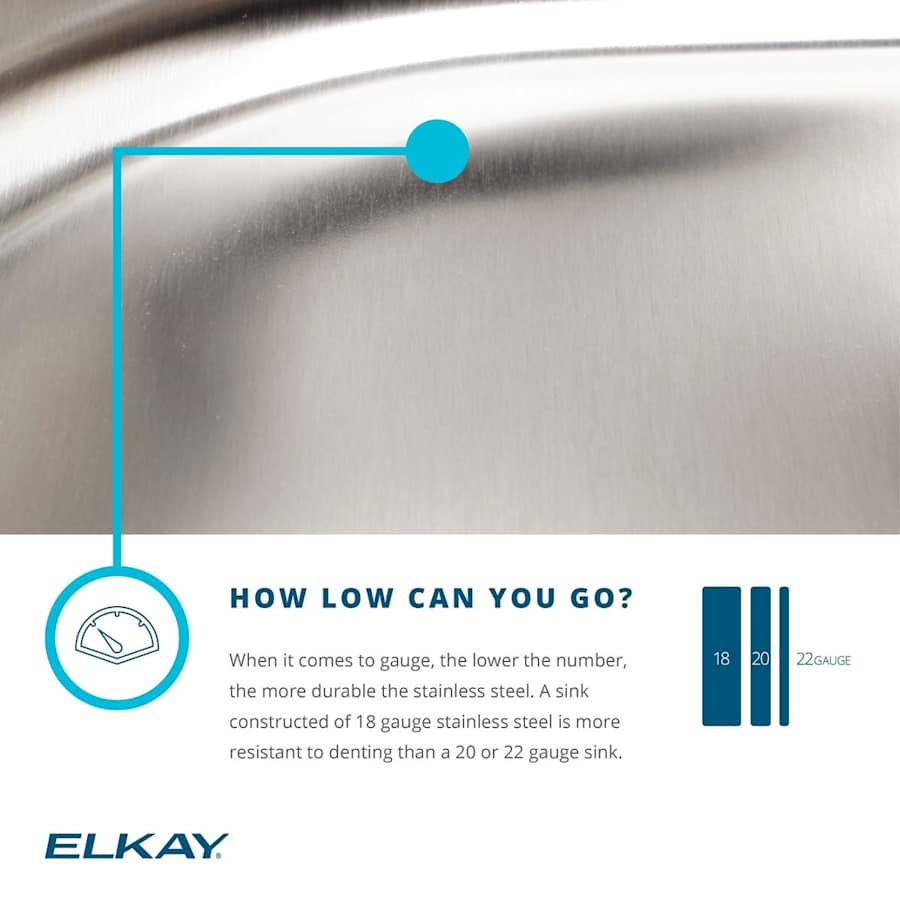

Constructed of 18 gauge premium grade stainless steel – guaranteed to never rust or corrode

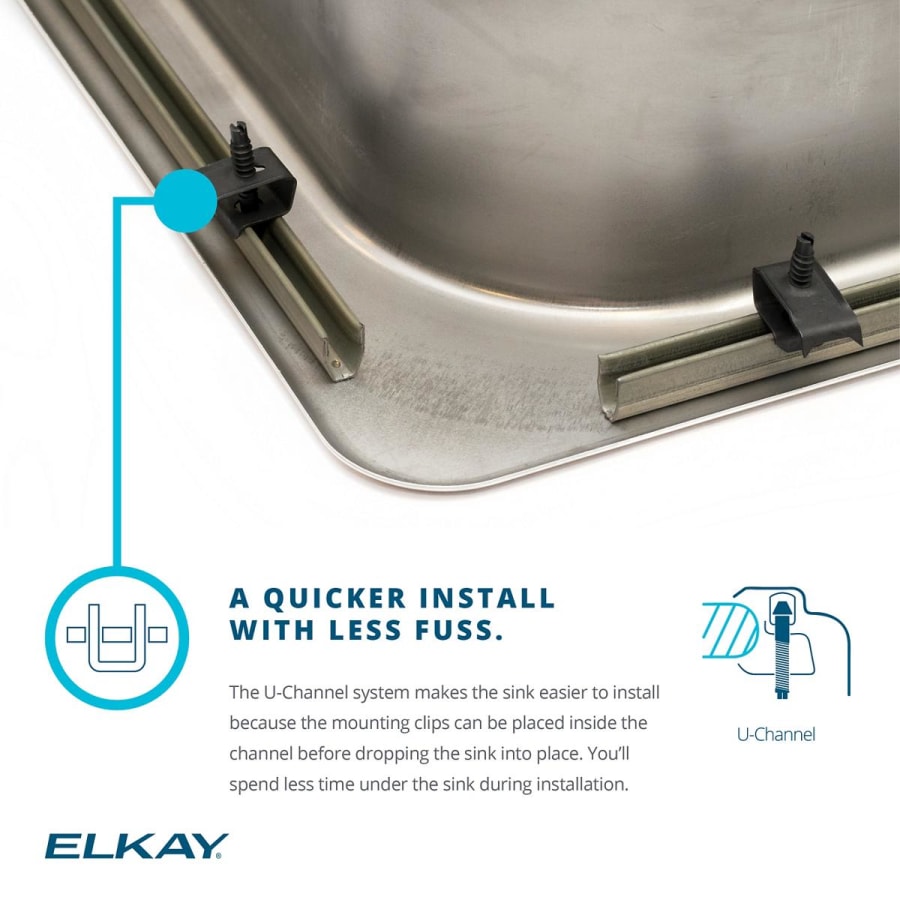

Drop in installation is a quick and simple process
Center drain location provides optimal drainage capability
Faucet Features:
Covered under Elkay’s limited lifetime warranty

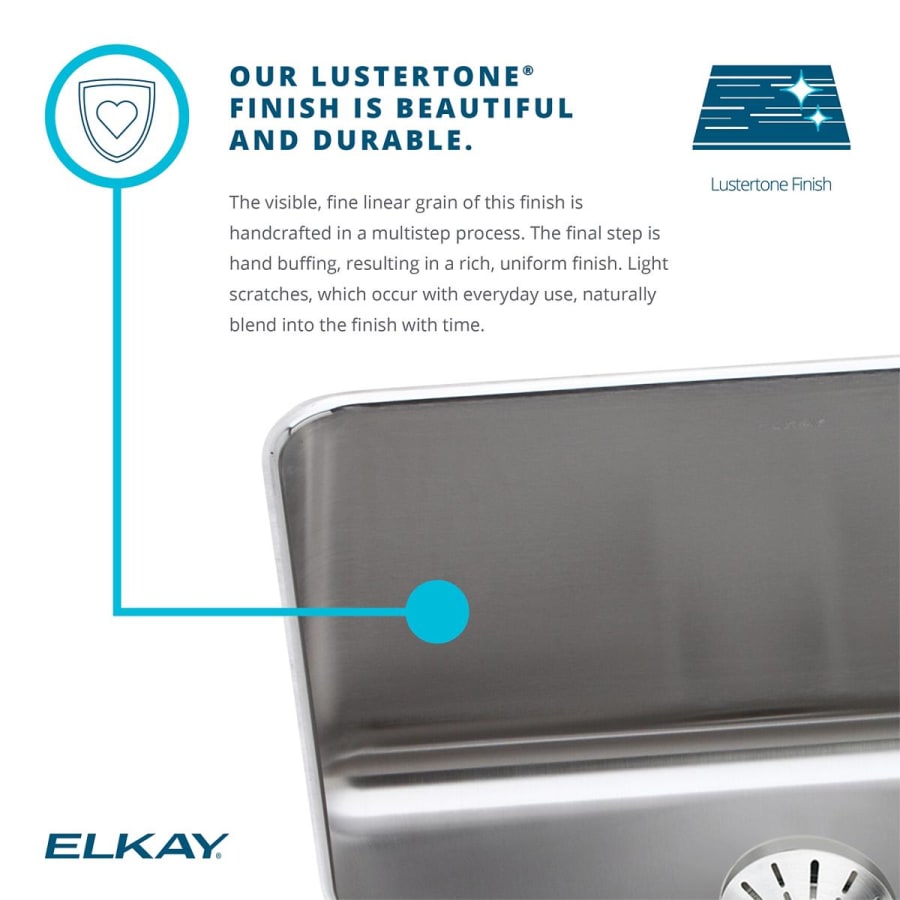

Premier finishing process – finishes will resist corrosion and tarnishing through everyday use
Double handle operation – handles rest on 1/4 turn valves
Spout swivels, providing greater access to more areas of the sink
High-arch gooseneck spout design provides optimal room under the faucet for any size task
ADA compliant – complies with the standards set forth by the Americans with Disabilities Act for kitchen faucets
Bubbler Features:
Push-button bubbler
Self closing with built-in adjustable volume control
Flow from 20 to 105 psi
Flexi-Guard bubbler

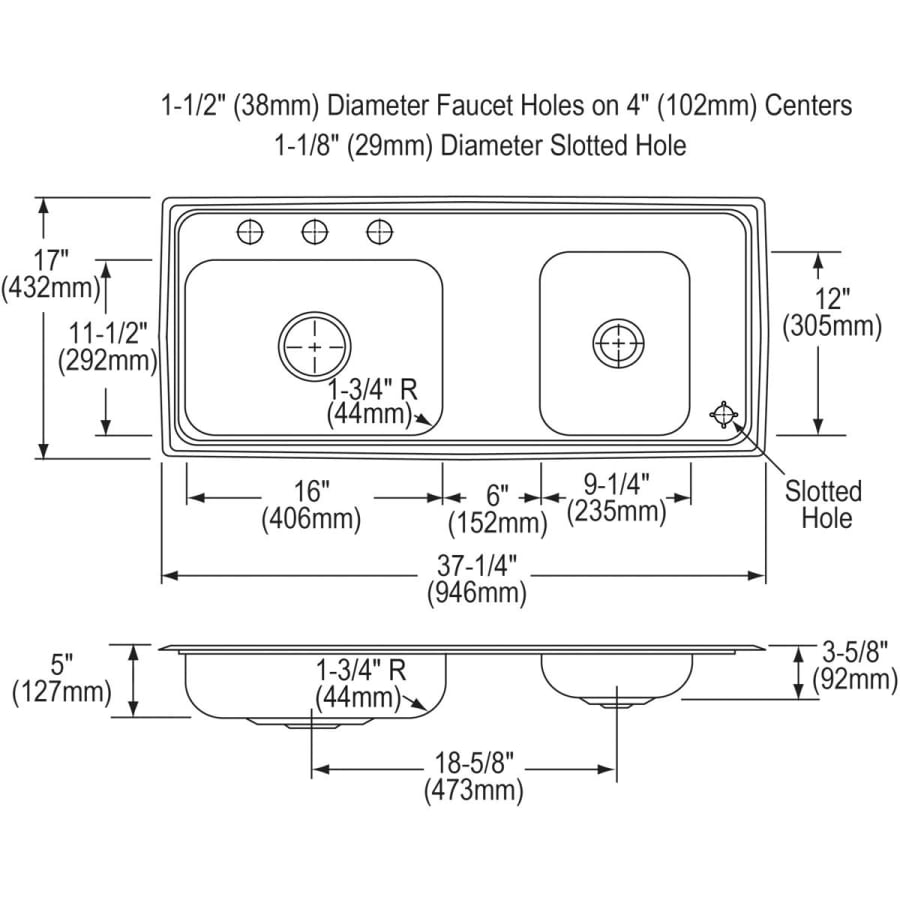

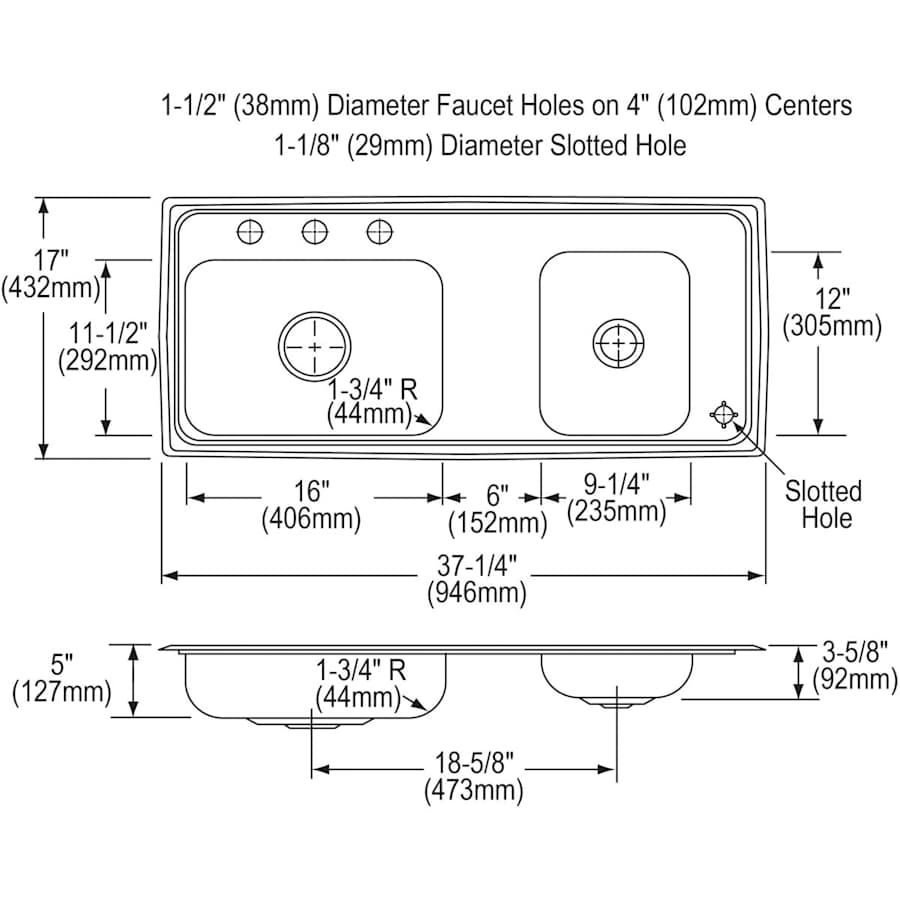

Sink Specifications:
Height: 5″ (measured from the bottom of sink to the top of the rim)
Overall Width: 17″ (measured from the back outer rim to the front outer rim)
Overall Length: 37-1/4″ (measured from the left outer rim to the right outer rim)
Basin Width: (measured from the back inner rim to the front inner rim)
Left: 11-1/2″
Right: 12″
Basin Length: (measured from the left inner rim to the right inner rim)
Left: 16″
Right: 9-1/4″
Basin Depth: (measured from the center of basin to the rim)
Left: 4-7/8″
Right: 3-1/2″
Installation Type: Drop In
Number of Faucet Holes: 4
Drain Outlet Connection: 3-1/2″
Minimum Base Cabinet Width: 42″
Faucet Specifications:
Overall Height: 11″ (measured from counter top to highest part of faucet)
Spout Height: 7″ (measured from counter top to spout outlet)
Spout Reach: 7″ (measured from center of faucet base to center of spout outlet)
Flow Rate: 2.5 GPM (gallons per minute)
Maximum Deck Thickness: 1-1/4″ (cannot mount to thicker decks without use of extension kit)
2 handles included with faucet
Designed for use with standard U.S. plumbing connections
Bubbler Specifications:
Height: 3-11/16″
Depth: 3-1/4″
Spout Height: 1-7/8″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Insulation Type | Drop In |
| Material | Stainless Steel |
| Thermostat | Traditional |
| Faucet Holes | 4 |
| Faucet Type | Kitchen Faucet |
| Handle Material | Metal |
| Handle Style | Lever |
| Number Of Handles | 2 |
| Pre Rinse | No |
| Pullout Spray | No |
| Spout Type | Swivel |
| Valve Type | Ceramic Disc |
| Water Efficient | No |
| Electronic | No |
| Drain Placement | Center |
| Basin Split | 65/35 |
| Farmhouse | No |
| Number Of Bathers | 2 |
| Sink Shape | Rectangular |
| Sound Dampening | Yes |
| Corner Sink | No |
| Overflow | No |
| Touchless Faucet | No |
| Water Connection Type | IPS |
| Sink Material | Stainless Steel |
| Vandal Resistant | No |
| Faucet Installation Type | Deck Mounted |
| Faucet Material | Brass |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | Limited Lifetime Residential |
| ADA | Yes |
| CA Drought Compliant | No |
| Eco Friendly | No |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Low Lead Compliant | Yes |
| Height | 5 in. |
| Width | 17 in. |
| Faucet Centers | 0 in. |
| Flow Rate (GPM) | 2.5 |
| Max Deck Thickness | 1.25 in. |
| Spout Height | 7 in. |
| Spout Reach | 7 in. |
| Water Connection | 1/2" |
| Length | 37.25 in. |
| Nominal Width | 17 in. |
| Nominal Length | 37 in. |
| Faucet Hole Size | 1.125, 1.5 in. |
| Drain Connection | 3.5 in. |
| Minimum Cabinet Size | 42 in. |
| Gauge | 18 |
| Faucet Height | 11 in. |
| Basin Depth (Left) | 4.875 in. |
| Basin Depth (Right) | 3.5 in. |
| Basin Length (Left) | 16 in. |
| Basin Length (Right) | 9.25 in. |
| Basin Width (Left) | 11.5 in. |
| Basin Width (Right) | 12 in. |
| Drain Assembly Included | Yes |
| Escutcheon Included | No |
| Filtering | No |
| Handshower Included | Yes |
| Sidespray | No |
| Soap Dispenser Included | No |
| Valve Included | Yes |
| Basket Strainer Included | Yes |
| Faucet Included | Yes |
| Workstation Included | No |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
