Product Features:
Single basin design provides maximum workspace
Covered under limited lifetime residential
Constructed of 18 gauge premium grade stainless steel – guaranteed to never rust or corrode
Drop in installation is a quick and simple process
Center drain location provides optimal drainage capability
Product Technologies / Benefits:
Sound Deadening: Sound-deadening material minimizes sound and vibration for a quieter time at the sink.

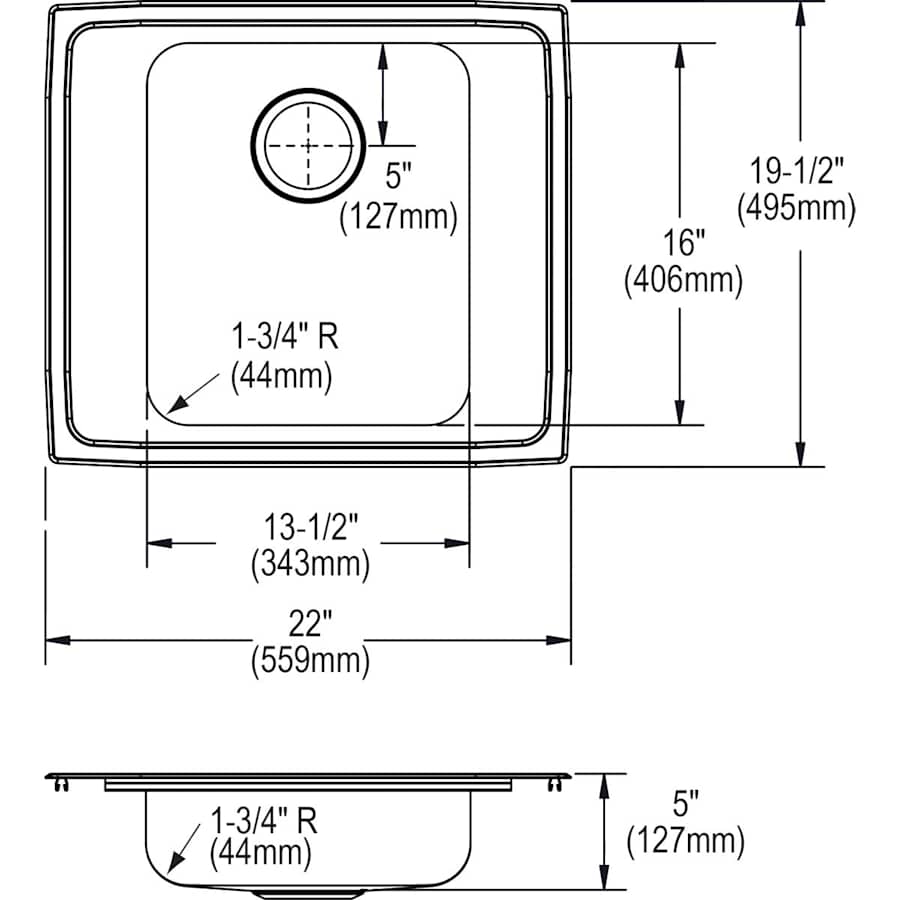

Specifications:
Height: 5″ (measured from the bottom of sink to the top of the rim)
Overall Width: 19-1/2″ (measured from the back outer rim to the front outer rim)
Overall Length: 22″ (measured from the left outer rim to the right outer rim)
Basin Width: 16″ (measured from the back inner rim to the front inner rim)
Basin Length: 13″ (measured from the left inner rim to the right inner rim)
Basin Depth: 4-7/8″ (measured from the center of basin to the rim)
Installation Type: Drop In
Number of Faucet Holes: 2, 4
Drain Outlet Connection: 3-1/2″
Minimum Base Cabinet Width: 27″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Height | 5 in. |
| Length | 22 in. |
| Width | 19.5 in. |
| Bar Length | 13 in. |
| Base Width | 16 in. |
| Gauge | 18 |
| Nominal Length | 22 in. |
| Nominal Width | 20 in. |
| Faucet Centers | 0, 8 in. |
| Backplate Depth | 4.875 in. |
| Faucet Hole Size | 1.125, 1.5 in. |
| Minimum Cabinet Size | 27 in. |
| Drain Connection | 3.5 in. |
| Manufacturer Warranty | Limited Lifetime Residential |
| Approved for Commercial Use | Yes |
| Country Of Origin | USA |
| Made in America | Yes |
| Faucet Included | No |
| Basket Strainer Included | No |
| Faucet Holes | 2, 4 |
| Insulation Type | Drop In |
| Material | Stainless Steel |
| Number Of Bathers | 1 |
| Overflow | No |
| Sink Shape | Rectangular |
| Thermostat | Traditional |
| Drain Placement | Center |
| Sound Dampening | Yes |
| Sink Material | Stainless Steel |
| Farmhouse | No |
| Corner Sink | No |
| Color | 2 Faucet Holes, 2 Faucet Holes (Hole Top Right), 2 Faucet Holes (Left Middle), 2 Faucet Holes (Right Middle), 4 Faucet Holes, 4 Faucet Holes (3 Faucet Holes Right) |
| Color Tone | Whites |
