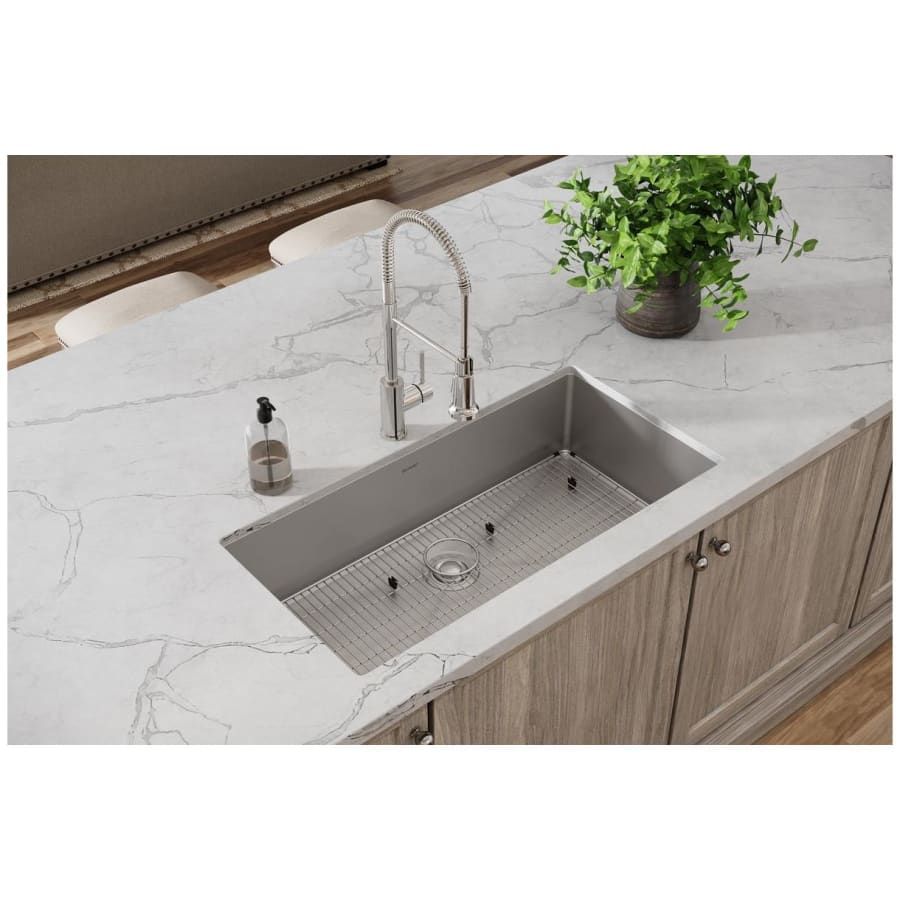

The Elkay Crosstown collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.

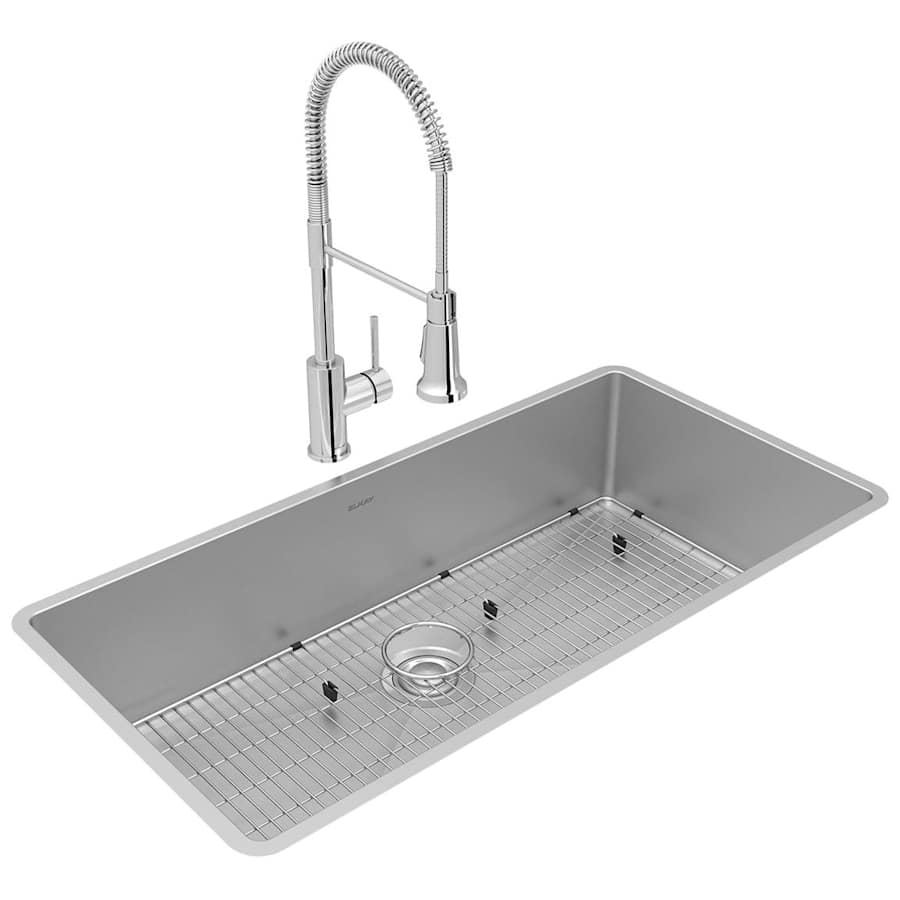

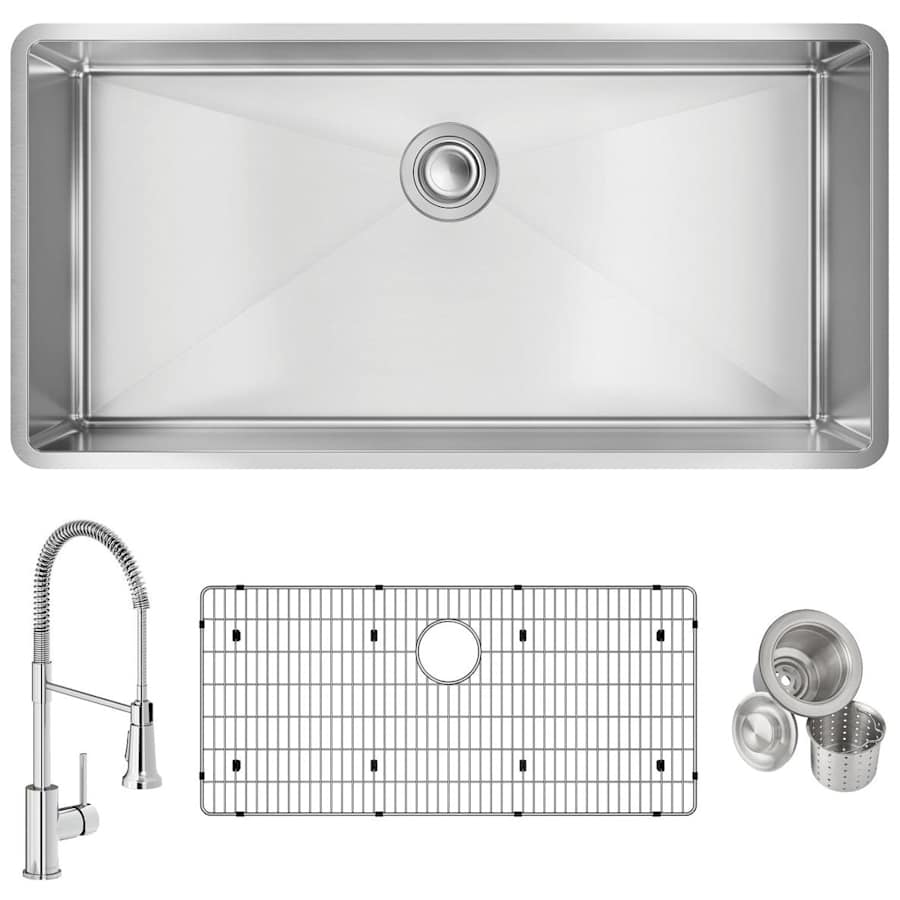

Elkay ECTRU35179TFCBC Included Components:

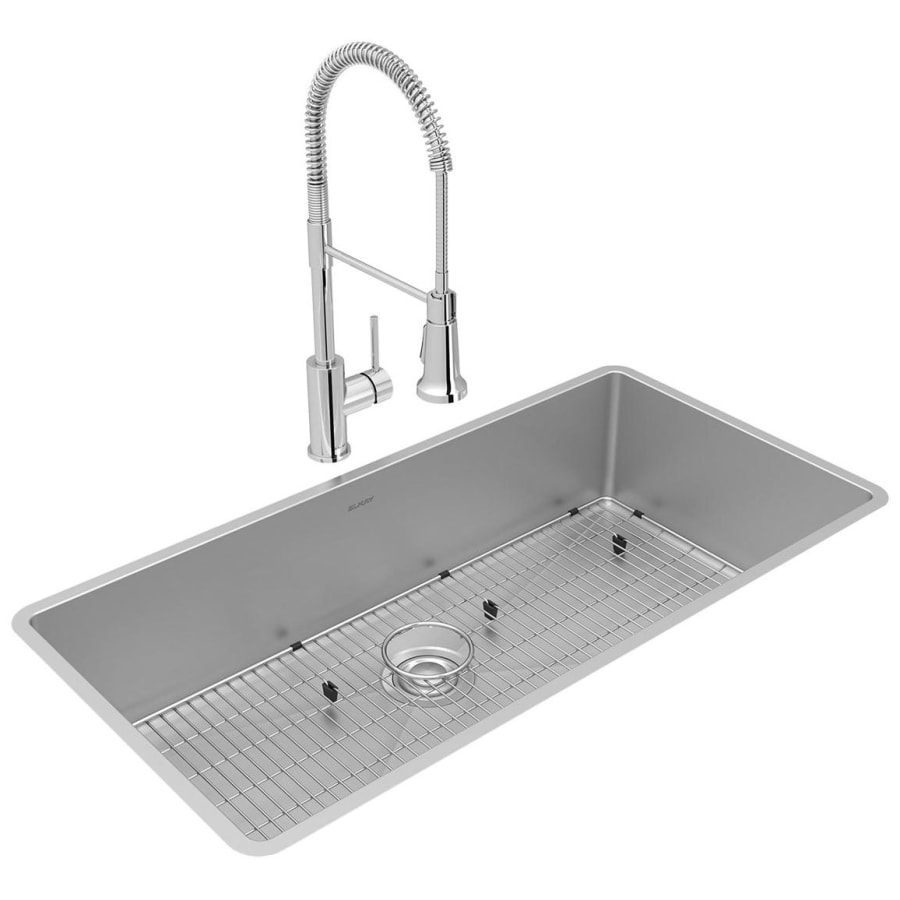

36-1/2″ undermount single basin stainless steel kitchen sink
Single hole pre-rinse kitchen faucet
Fitted basin rack
Coordinating basket strainer
Covered by Elkay’s limited lifetime manufacturer warranty
Elkay Sink Features:
Constructed of stainless steel
Undermount installation – sink will install under the counter top
Single basin design for maximum workspace

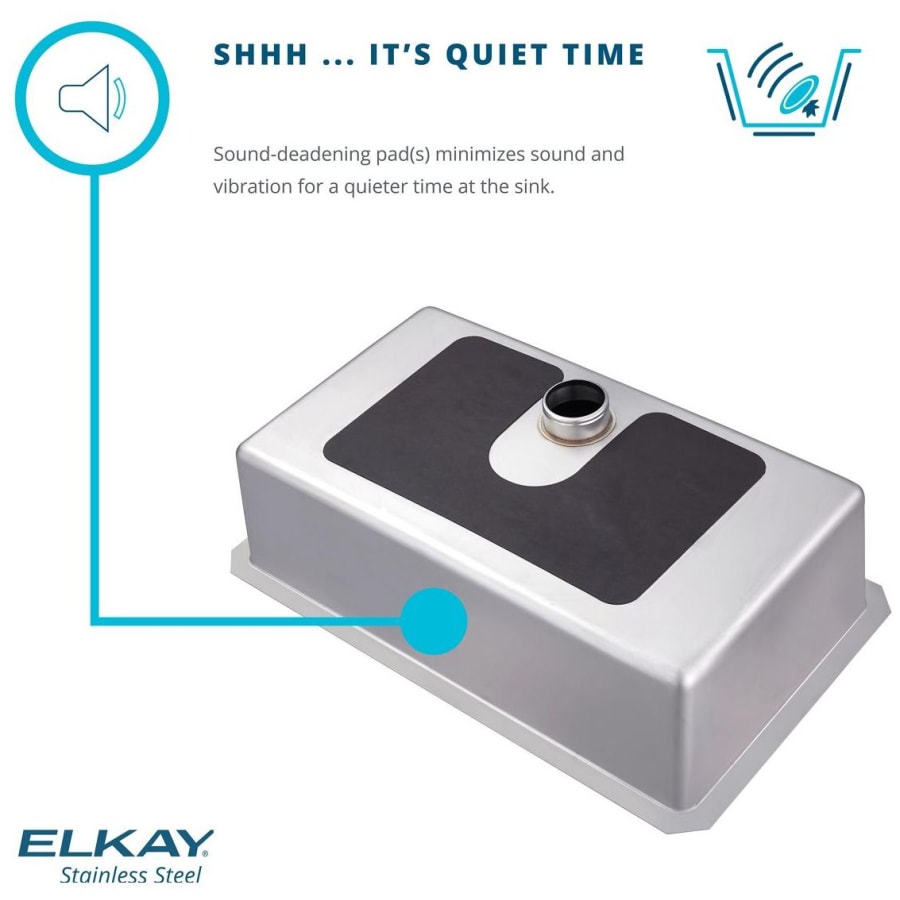

Sound absorbent construction to prevent dish clatter and under cabinet condensation

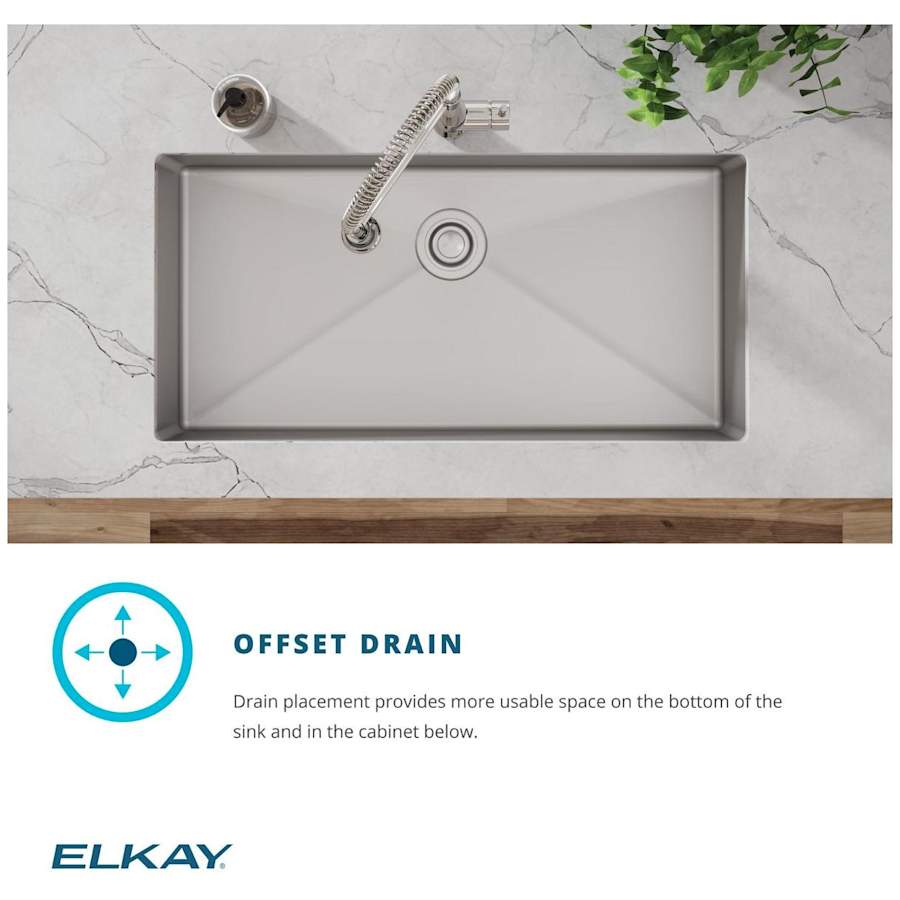

Rear drain location increases available space under the sink
Mounting hardware included
Elkay Faucet Features:
Faucet body constructed of brass
Coordinates beautifully with other items from the Crosstown series
Single hole installation
Pre-rinse design faucets are extremely flexible and versatile
Swivel spout rotates 360 degrees which allows for greater access to all areas of the sink
Single lever handle controls the flow and temperature of water
Includes ceramic disc cartridge

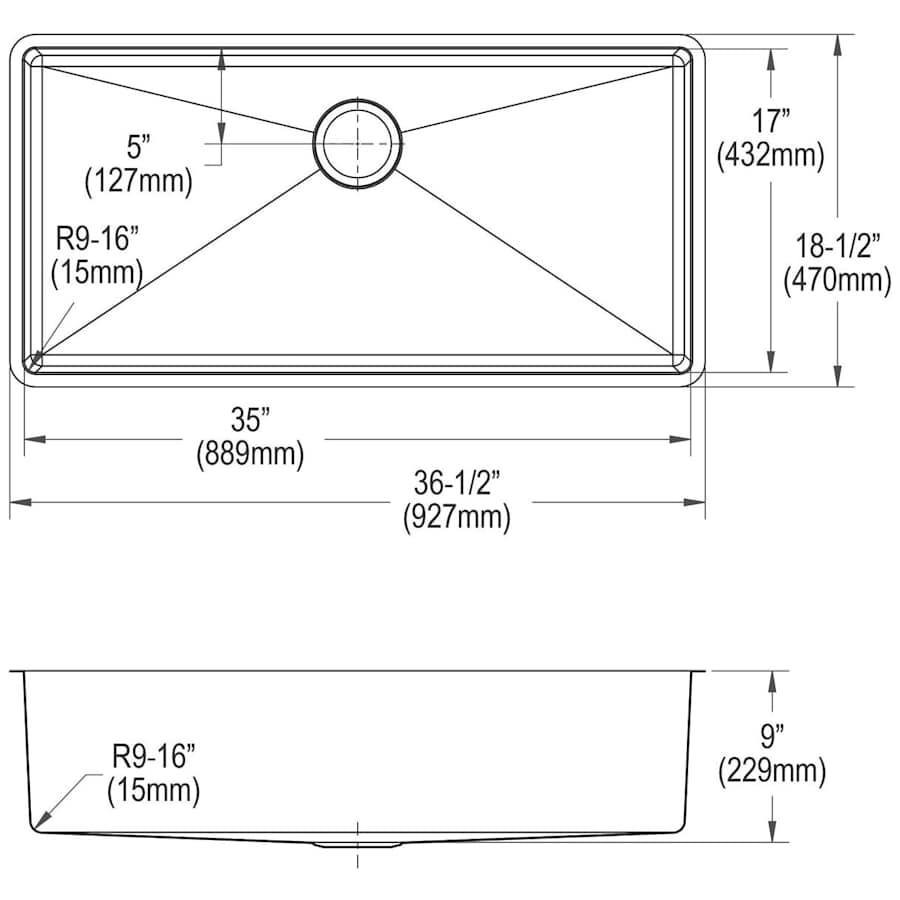

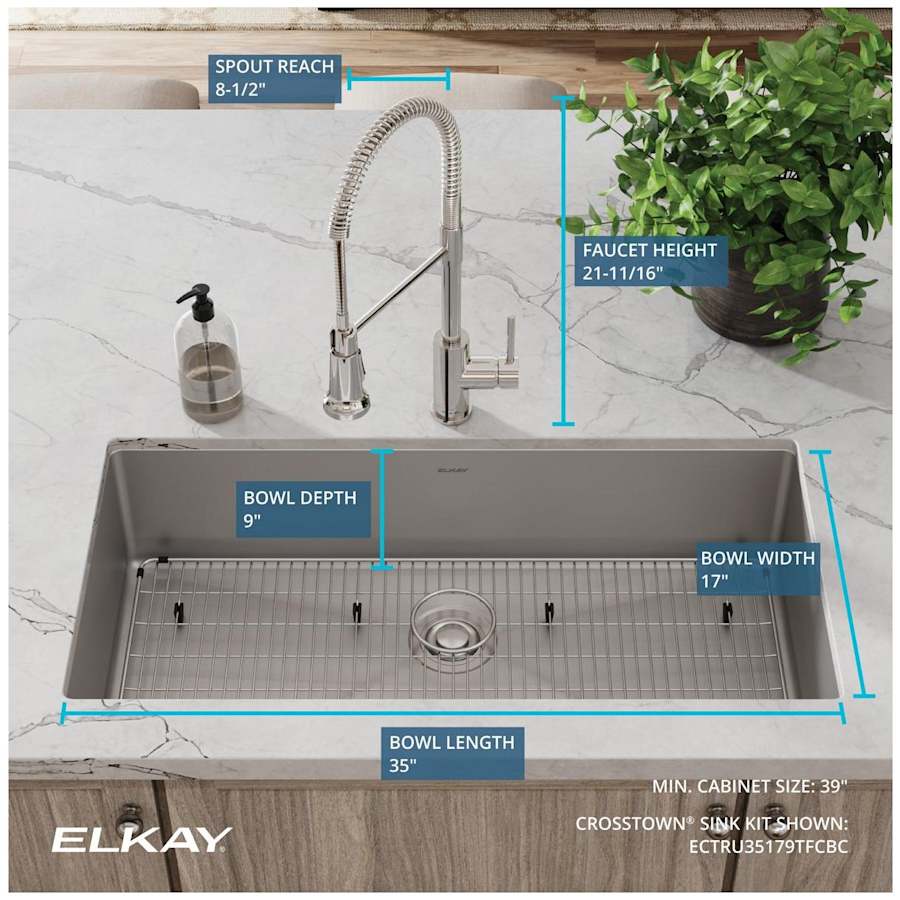

Elkay Sink Specifications:
Sink Length: 36-1/2″ (left to right)
Sink Width: 18-1/2″ (front to back)
Sink Height: 9″ (top to bottom)
Basin Dimensions: 35″ L x 17″ W x 9″ D

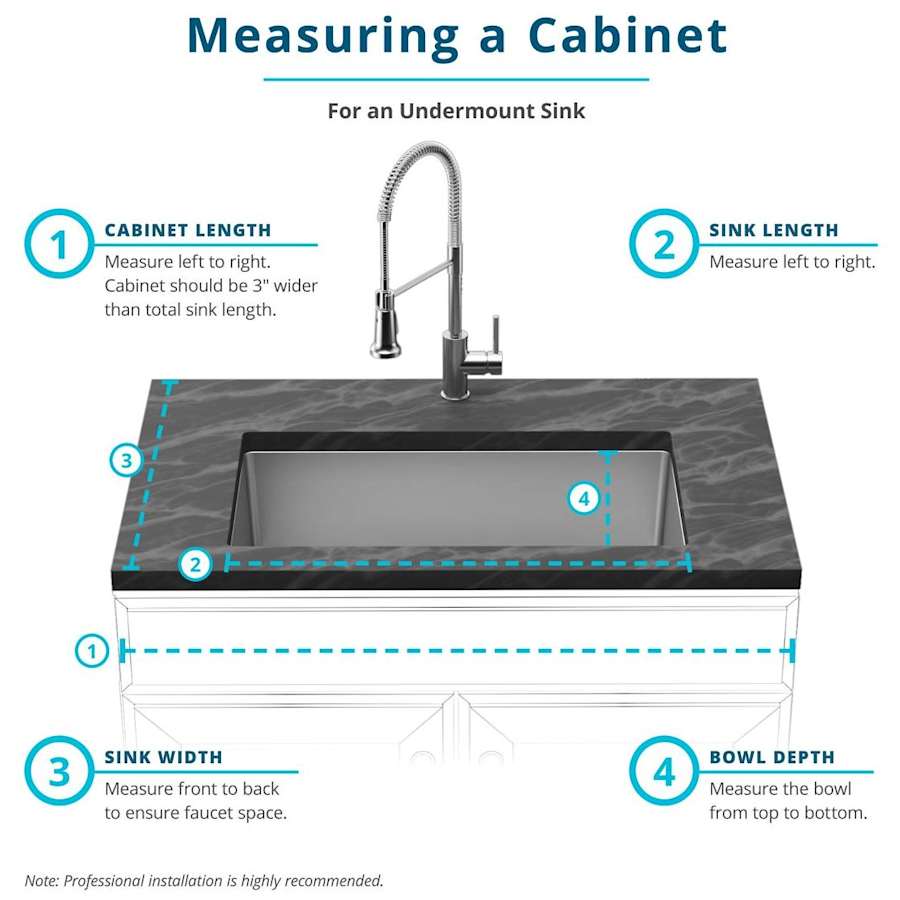

Minimum Cabinet Size: 39″
Drain Connection: 3-1/2″
Elkay Faucet Specifications:
Height: 9″ (deck to top of faucet)
Spout Height: 21-11/16″ (deck to spout outlet)
Spout Reach: 8-1/2″ (center of faucet body to center of spout outlet)
Flow Rate: 1.8 gallons-per-minute
Faucet Holes: Single Hole
Faucet Hole Size: 1-1/2″
Max Deck Thickness: 2-3/4″ (from deck bottom to top of deck)
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Crosstown Collection
Specifications
| Height | 9 in. |
| Width | 18.5 in. |
| Nominal Width | 19 in. |
| Length | 36.5 in. |
| Nominal Length | 37 in. |
| Drain Connection | 3.5 in. |
| Flow Rate (GPM) | 1.8 |
| Max Deck Thickness | 2.75 in. |
| Backplate Depth | 9 in. |
| Bar Length | 35 in. |
| Base Width | 17 in. |
| Minimum Cabinet Size | 39 in. |
| Faucet Centers | 0 in. |

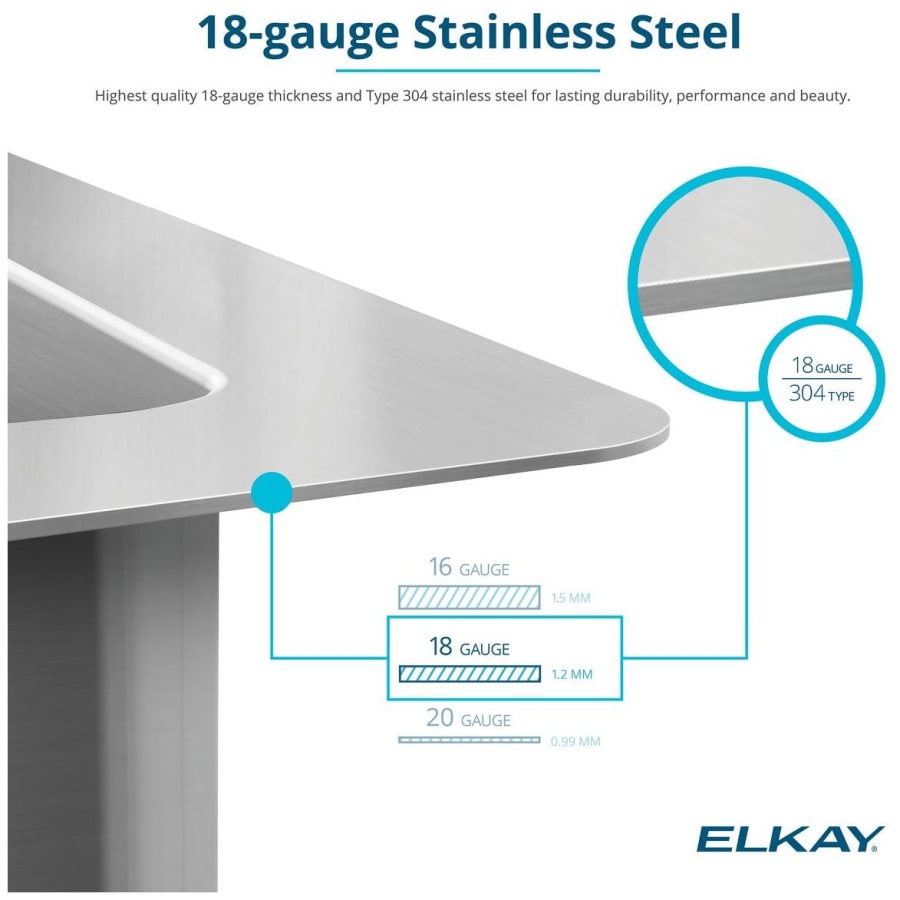

| Gauge | 18 |
| Faucet Hole Size | 1.5 in. |
| Spout Height | 21.69 in. |
| Spout Reach | 8.52 in. |
| Spout Swivel | 360 Degrees |
| Water Connection | 3/8" |
| Sink Height | 9 in. |
| Sink Length | 36.5 in. |
| Sink Width | 18.5 in. |
| Faucet Height | 21.69 in. |
| Thermostat | Transitional |
| Insulation Type | Undermount |
| Material | Stainless Steel |
| Stainless Steel Grade | 304 |
| Apron Front | No |
| Drain Placement | Rear |
| Faucet Holes | 1 |
| Sound Dampening | Yes |
| Handle Style | Lever |
| Number Of Handles | 1 |
| Corner Sink | No |
| Farmhouse | No |
| Number Of Bathers | 1 |
| Sink Shape | Rectangular |
| Spray Settings | 2 |
| Water Efficient | Yes |
| Electronic | No |
| Sink Material | Stainless Steel |
| Basin Split | Single Basin |
| Bridge Faucet | No |
| Pre Rinse | Yes |
| Pullout Direction | Down |
| Pullout Spray | Yes |
| Spout Type | Swivel |
| Valve Type | Ceramic Disc |
| Water Connection Type | Compression |
| Faucet Finish | Chrome |
| Faucet Installation Type | Deck Mounted |
| Faucet Material | Brass |
| Faucet Mounting Type | Single Hole |
| Certifications | ASME, CSA |
| Collection | Crosstown |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Lead Leaching Certified NSF/ANSI 61 | No |
| ASSE Code | A112.18.1, A112.18.2, A112.19.3 |
| CA Drought Compliant | Yes |
| CSA Code | B125.1, B125.2, B45.4 |
| Faucet Included | Yes |
| Basket Strainer Included | Yes |
| Colander Included | No |
| Cutting Board Included | No |
| Drainboard | No |
| Installation Hardware Included | Yes |
| Soap Dispenser Included | No |
| Basin Rack Included | Yes |
| Escutcheon Included | No |
| Filtering | No |
| Handshower Included | Yes |
| Sidespray | No |
| Valve Included | Yes |
| Color | Stainless Steel Sink / Chrome Faucet |
| Color Tone | Stainless Steel |
