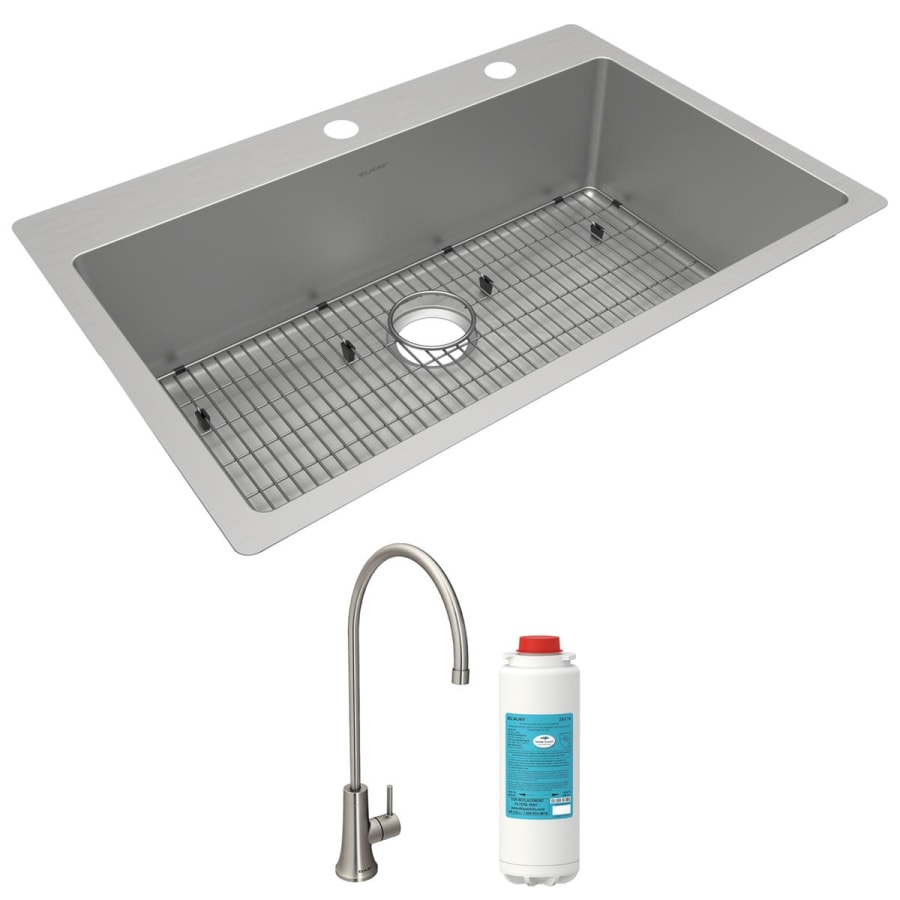

Elkay ECTSRS33229TFGB Included Components:
33″ drop in or undermount single basin stainless steel kitchen sink
Single hole cold water dispenser
Fitted basin rack
Covered under Elkay’s limited lifetime warranty

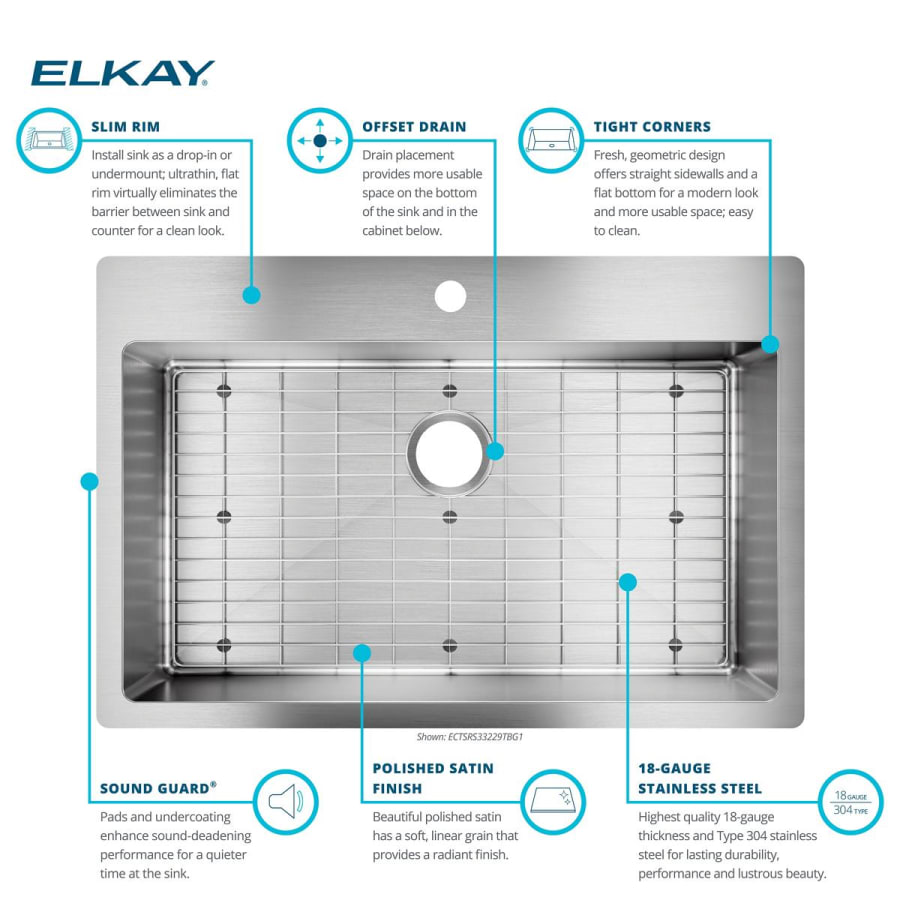

Elkay Sink Features:
Constructed of stainless steel
Undermount installation – sink will install under the counter top
Single basin design for maximum workspace
Sink comes pre-drilled with 1 faucet hole for use with a single hole faucet
Center drain location provides optimal draining capability
Mounting hardware included

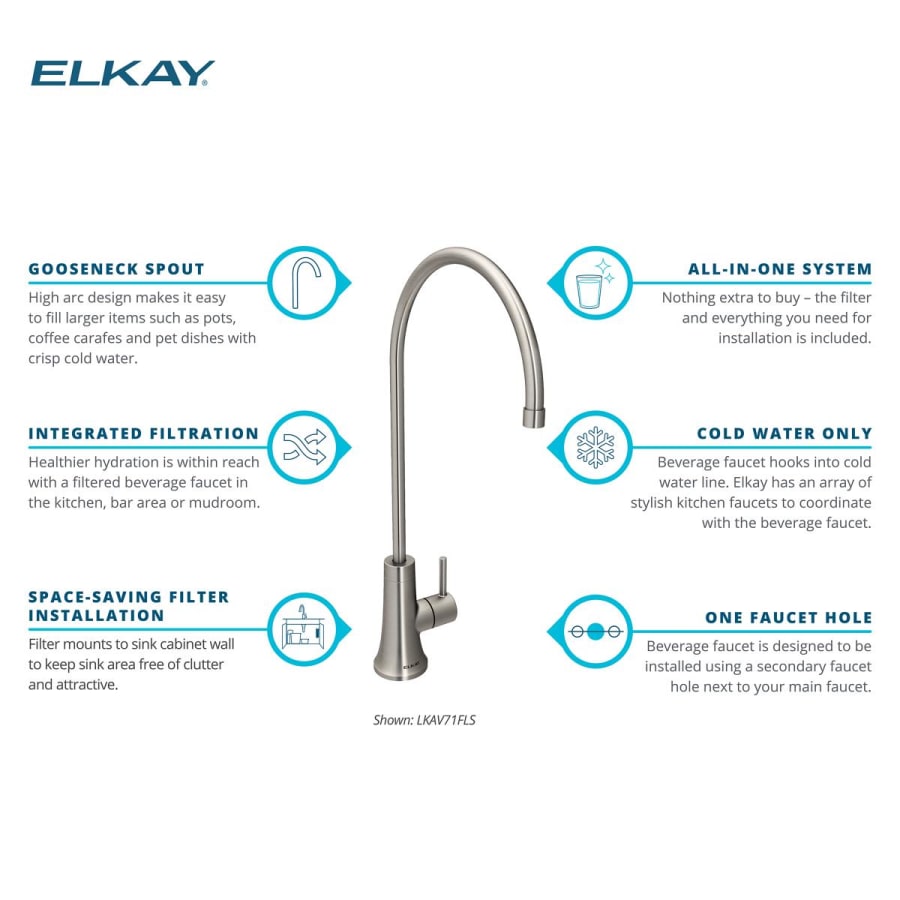

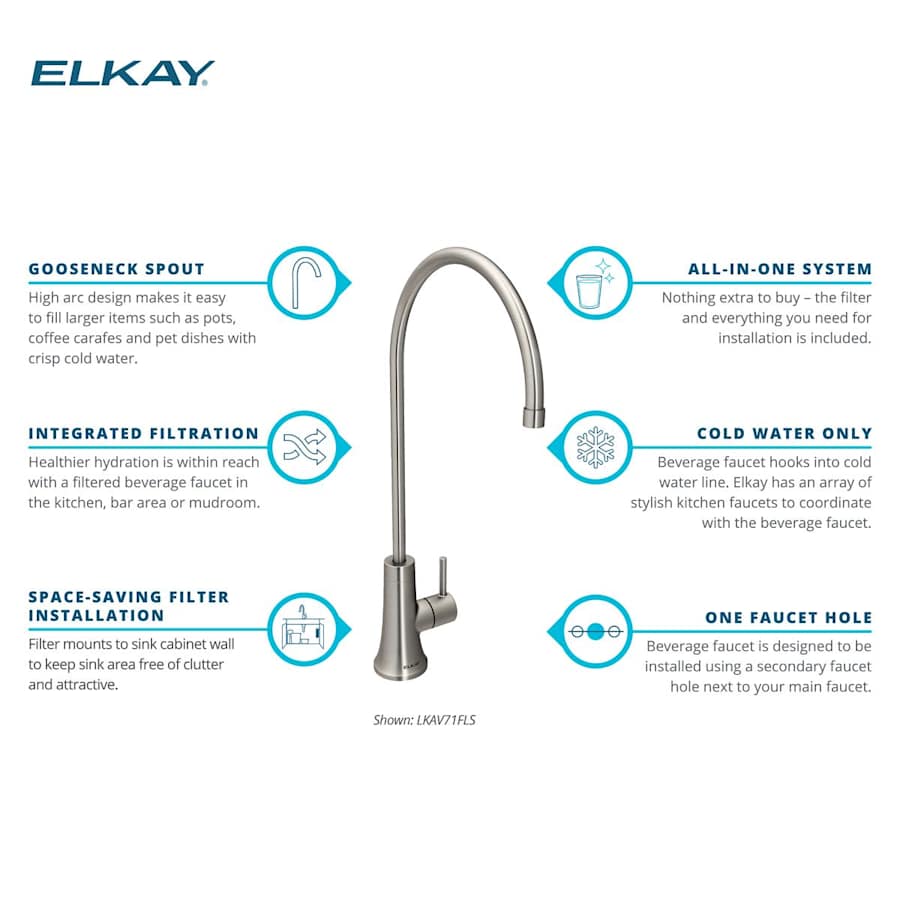

Elkay Faucet Features:
Faucet body constructed of brass
Coordinates with products from the Crosstown line
Single hole installation
Swivel spout rotates 360 degrees which allows for greater access
Single lever handle controls the flow of water
Includes ceramic disc cartridge

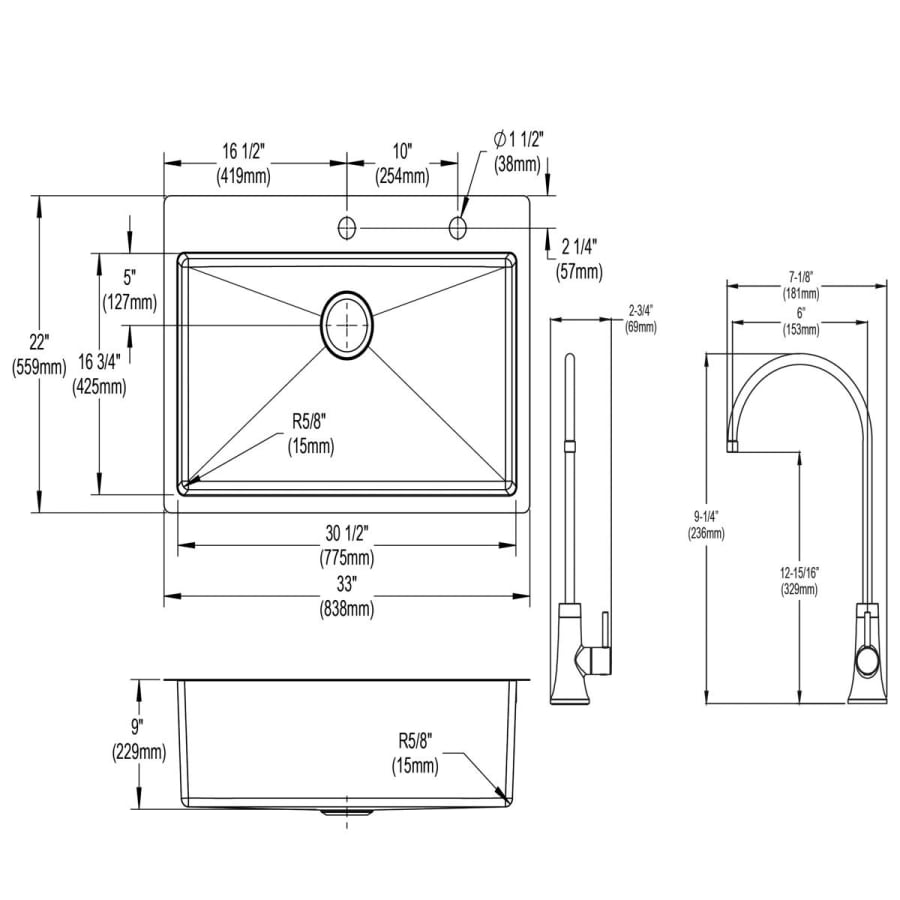

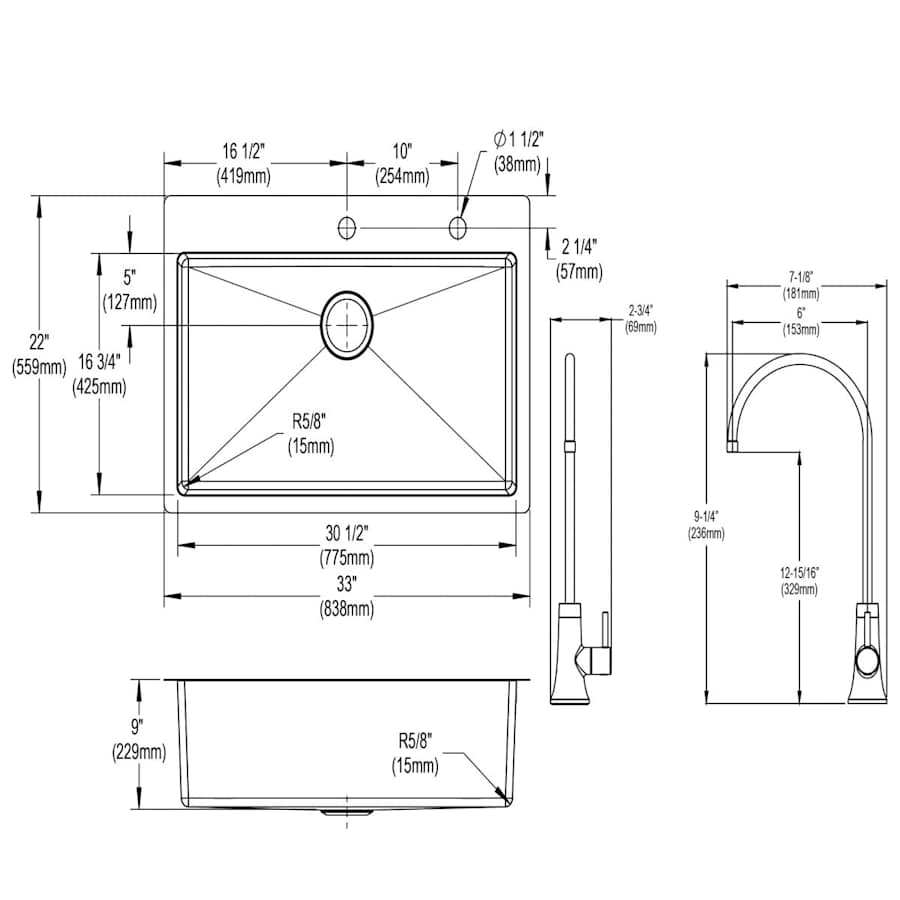

Elkay ECTSRS33229TFGB Sink Specifications:
Sink Length: 33″ (left to right)
Sink Width: 22″ (front to back)
Sink Height: 9″ (top to bottom)

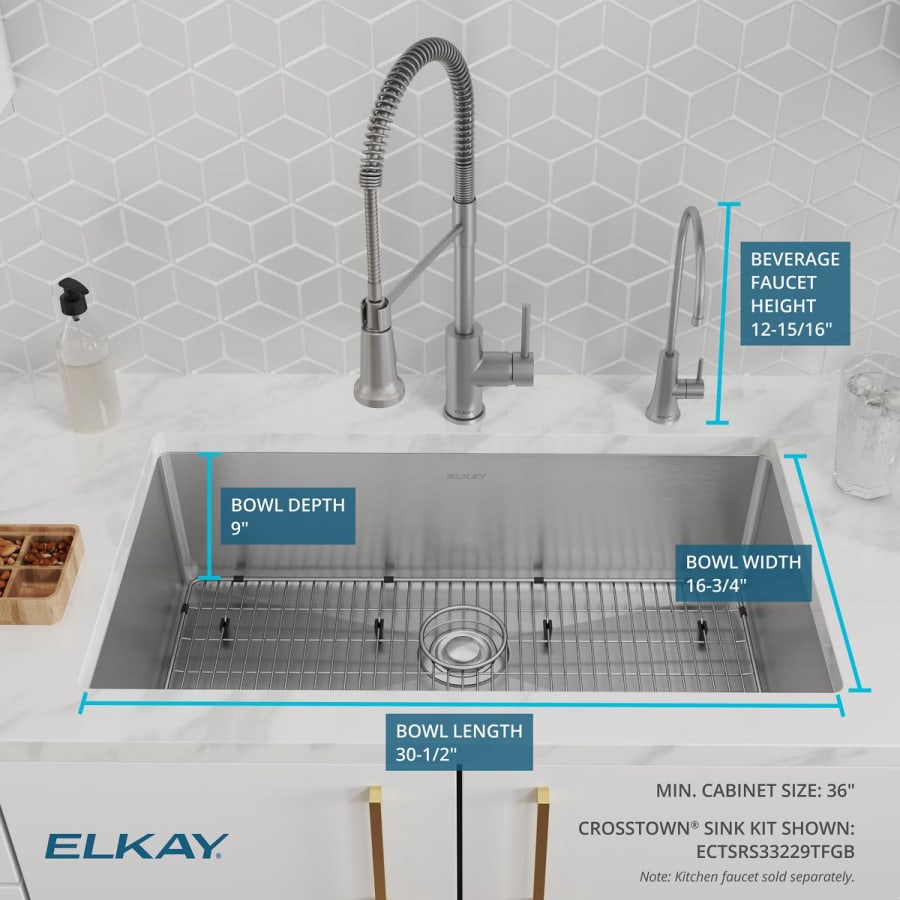

Basin Dimensions: 30-1/2″ L x 16-3/4″ W x 9″ D
Faucet Holes: 1
Faucet Hole Size: 1-1/2″

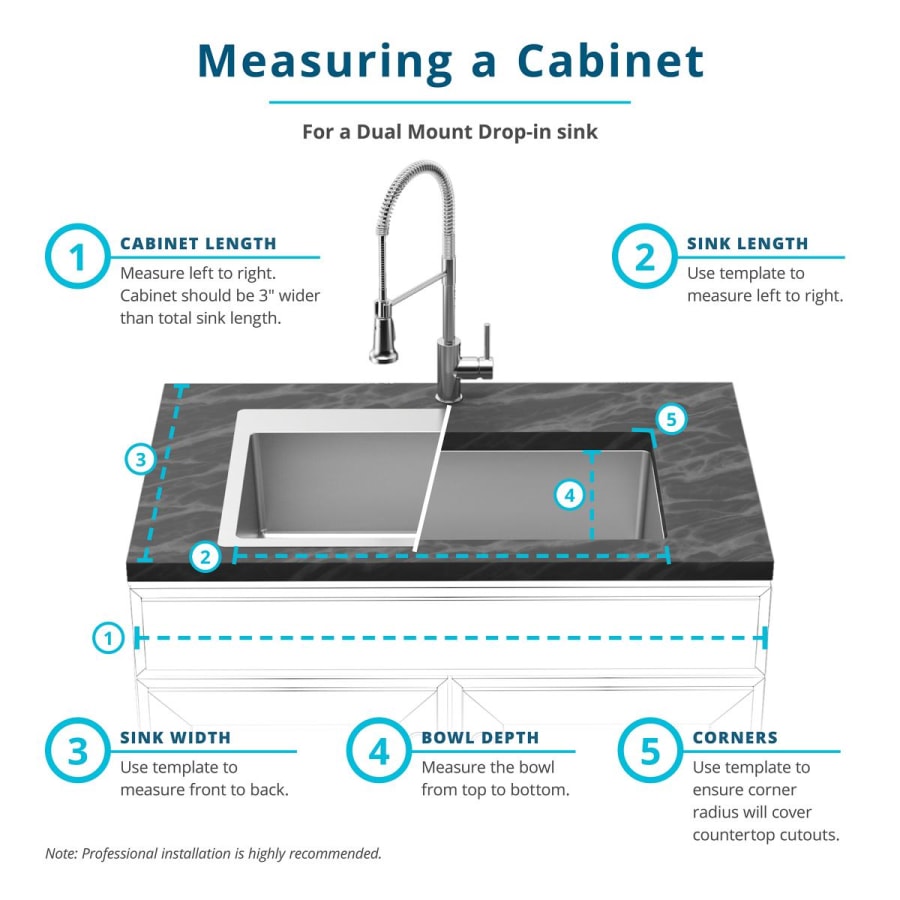

Minimum Cabinet Size: 36″
Drain Connection: 3-1/2″
Elkay ECTSRS33229TFGB Faucet Specifications:
Faucet Height: 12-15/16″ (deck to top of faucet)
Spout Height: 9-1/4″ (deck to spout outlet)
Spout Reach: 6″ (center of faucet body to center of spout outlet)
Flow Rate: 1.5 gallons-per-minute
Faucet Holes: Single Hole
Faucet Hole Size: 1.5″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Crosstown Collection
Specifications
| Height | 9 in. |
| Nominal Width | 22 in. |
| Width | 22 in. |
| Length | 33 in. |
| Backplate Depth | 9 in. |
| Bar Length | 30.5 in. |
| Base Width | 16.75 in. |
| Drain Connection | 3.5 in. |

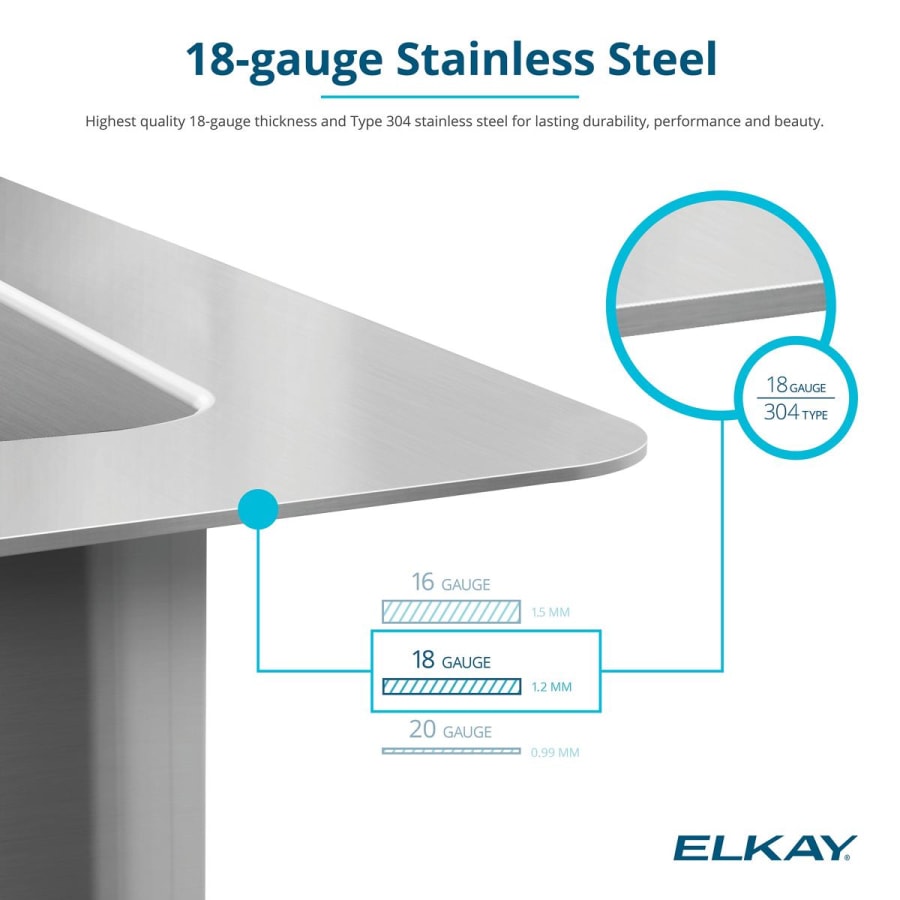

| Gauge | 16 |
| Minimum Cabinet Size | 36 in. |
| Nominal Length | 33 in. |
| Sink Length | 33 in. |
| Faucet Centers | 0 in. |
| Faucet Hole Size | 1.5 in. |
| Flow Rate (GPM) | 1.5 |
| Spout Height | 9.25 in. |
| Spout Reach | 6.02 in. |
| Spout Swivel | 360 Degrees |
| Sink Height | 9 in. |
| Sink Width | 22 in. |
| Faucet Height | 12.93 in. |
| Insulation Type | Undermount, Drop In |
| Thermostat | Transitional |
| Material | Stainless Steel |
| Basin Split | Single Basin |
| Drain Placement | Center |
| Farmhouse | No |
| Faucet Holes | 1 |
| Number Of Bathers | 1 |
| Sink Shape | Rectangular |
| Stainless Steel Grade | 304 |
| Handle Style | Lever |
| Number Of Handles | 1 |
| Faucet Mounting Type | Single Hole |
| Sink Material | Stainless Steel |
| Electronic | Yes |
| Spout Type | Swivel |
| Valve Type | Ceramic Disc |
| Water Efficient | Yes |
| Apron Front | No |
| Corner Sink | No |
| Pre Rinse | No |
| Pullout Spray | No |
| Faucet Installation Type | Deck Mounted |
| Faucet Finish | Stainless Steel |
| Faucet Material | Brass |
| ADA | No |
| Collection | Crosstown |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| ASSE Code | A112.18.1, A112.19.3 |
| CA Drought Compliant | Yes |
| CSA Code | B125.1, B45.4 |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Installation Hardware Included | Yes |
| Handshower Included | Yes |
| Basin Rack Included | Yes |
| Basket Strainer Included | No |
| Colander Included | No |
| Cutting Board Included | No |
| Faucet Included | Yes |
| Escutcheon Included | No |
| Valve Included | Yes |
| Drainboard | No |
| Soap Dispenser Included | No |

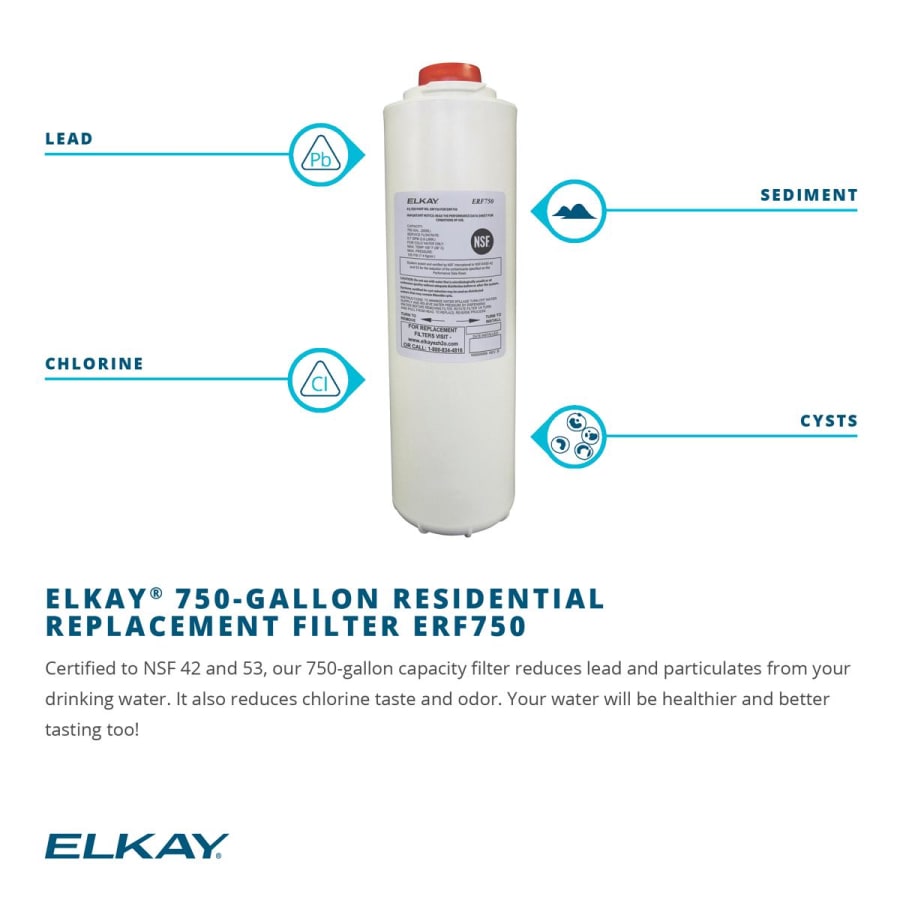

| Filtering | Yes |
| Sidespray | No |
| Color | Stainless Steel |
