Product Features:
Covered under Elkay’s 5 year limited warranty on any refrigeration systems or 12 month limited warranty for electrical/water system components

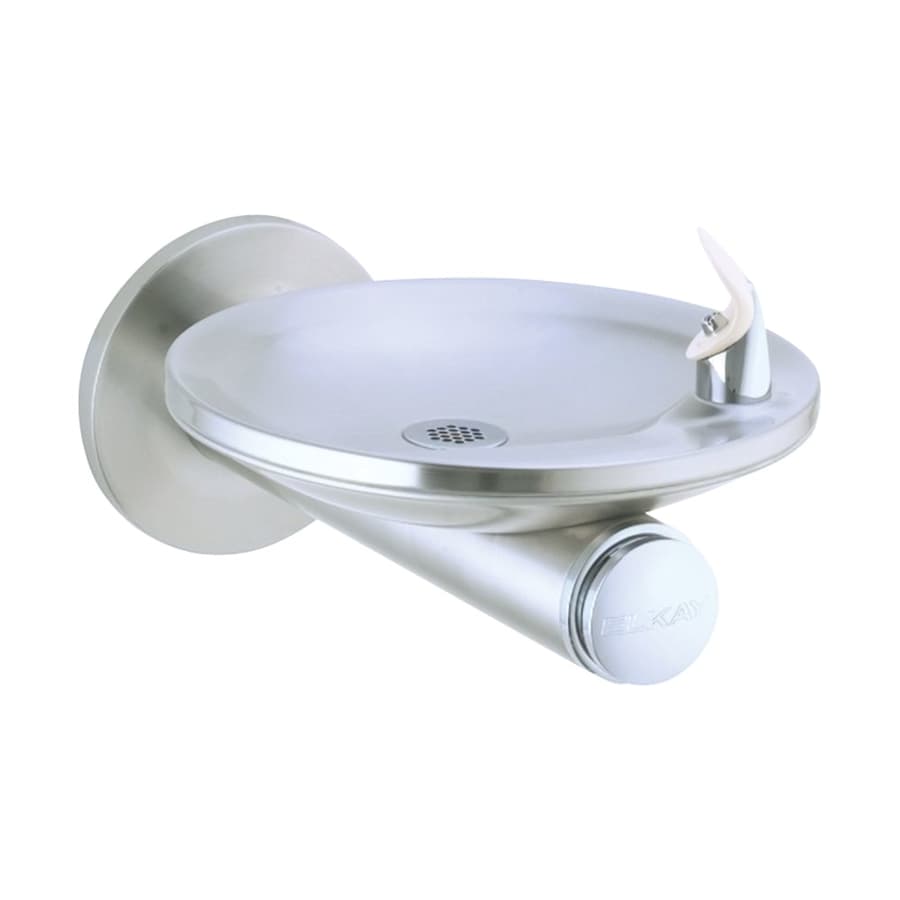

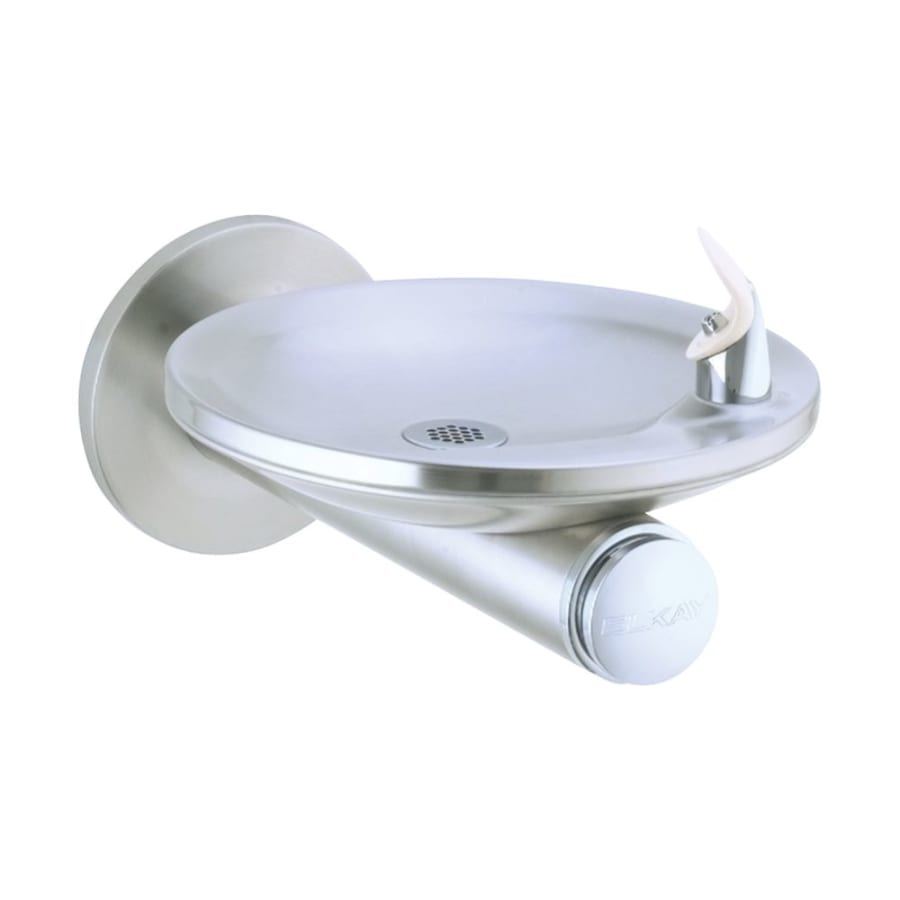

Single station non refrigerated drinking fountain
Integrated Silver Ion Anti-microbial Protection in key areas
Vandal-resistant, easy to operate front push-button control
Valve with built-in flow regulator to provide constant stream from 20 to 105 psi water pressure
Construction:
#18 gauge, 300 series nickel bearing stainless steel basin polished to a lustrous satin finish
Contoured basin offers large area to minimize splashing when in use
Vandal-Resistant bubbler is a heavy-duty chrome plated construction
Stainless Steel Basin – One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
Frame furnished to allow flush mounting to finished wall
Product Specifications:
Base Flow Capacity (GPH): 8
Fountain Type: Non-Refrigerated
Shipping Weight: 22
Height: 11-5/16″ (measured from lowest rim to top rim of fixture)
Length: 14″ (measured from most left to most right rim of fixture)
Depth: 18-3/8″ (measured from back to front of fixture)
Glass Filler: No
Vandal Resistant Bubbler: Yes
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay SwirlFlo Collection
Specifications
| Height | 11.3125 in. |
| Product Weight | 22 lbs. |
| Width | 18.375 in. |
| Flow Rate (GPM) | 0.13 |
| Length | 14 in. |
| Gauge | 18 |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 1.25 in. |
| Insulation Type | Wall Mounted |
| Material | Stainless Steel |
| Thermostat | Modern |
| Control Type | Push Button |
| Antimicrobial | Yes |
| Vandal Resistant | Yes |
| Bi-Level | No |
| Filtered | No |
| Freeze Resistant | No |
| Number of Stations | 1 |
| Pet Friendly | No |
| Approved for Commercial Use | Yes |
| Collection | SwirlFlo |
| Manufacturer Warranty | 5 Year Limited |
| Made in America | Yes |
| Location Rating | Dry Location |
| ADA | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Outdoor Approved | No |
| Certifications | NSF, ANSI, ASME, UL |
| ASSE Code | A112.19.3 |
| Bottle Filler Included | No |
| Cooling Unit | No |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
