Product Features:
Covered under Elkay’s 5 year limited warranty on any refrigeration systems or 12 month limited warranty for electrical/water system components

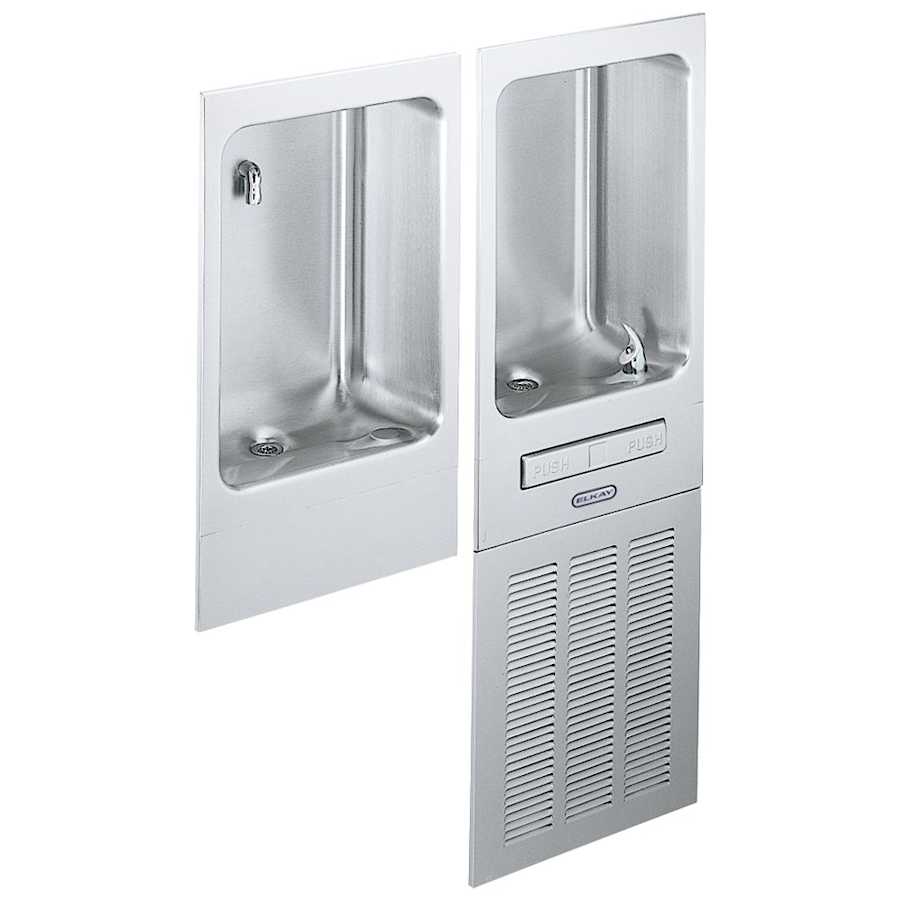

Single station drinking fountain with self contained cooler
Electric refrigeration is a combination tube-tank running single phase
Capacity of 50℉ drinking water, based upon 80℉ inlet water and 90℉ ambient
A cleanable strainer screen is provided to trap waterborne particulate of 140 microns or bigger prior to entering the cooler
Front push-bar control for faucet activation
Valve with built-in flow regulator to provide constant stream from 20 to 105 psi water pressure
Construction:
#16 gauge, 304 series nickel bearing stainless steel basin polished to a lustrous satin finish
Contoured basin offers large area to minimize splashing when in use
Flex-Guard bubbler® utilizes pliable polyester elastomer to prevent accidental mouth injury. Flexes on impact and returns to original position
Stainless Steel Basin – One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
Removable louvered ventilating encloses refrigeration unit and plumbing grill encloses refrigeration unit and plumbing
Frame furnished to allow flush mounting to finished wall
Cooling System:
Motor Compressor – Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
Condenser – Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
Cooling Unit – Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam (UL listed for self-extinguishing material)
Refrigerant Control – Refrigerant type HFC-134a is controlled by accurately calibrated capillary tube for positively trouble free performance
Temperature Control – Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements
Product Specifications:
Base Cooling Capacity (GPH): 12
Fountain Type: Refrigerated
Shipping Weight: 148
Voltage: 220
Height: 54-1/4″ (measured from lowest rim to top rim of fixture)
Length: 26-1/2″ (measured from most left to most right rim of fixture)
Depth: 1/2″ (measured from back to front of fixture)
Glass Filler: No
Vandal Resistant Bubbler: No
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Height | 54.25 in. |
| Width | 0.5 in. |
| Product Weight | 148 lbs. |
| Length | 26.5 in. |
| Flow Rate (GPM) | 0.2 |
| Gauge | 16 |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 1.25 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 12 GPH |
| Insulation Type | Recessed |
| Material | Stainless Steel |
| Thermostat | Modern |
| Control Type | Bar |
| Filtered | No |
| Number of Stations | 1 |
| Pet Friendly | No |
| Freeze Resistant | No |
| Vandal Resistant | No |
| Antimicrobial | Yes |
| Bi-Level | No |
| ADA | No |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 5 Year Limited |
| Certifications | NSF, ANSI, ASME, UL |
| ASSE Code | A112.19.3 |
| Made in America | Yes |
| Outdoor Approved | No |
| Voltage | 220 |
| Frequency | 50 Hertz |
| Electrical Phases | 1 |
| Bottle Filler Included | No |
| Cooling Unit | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
