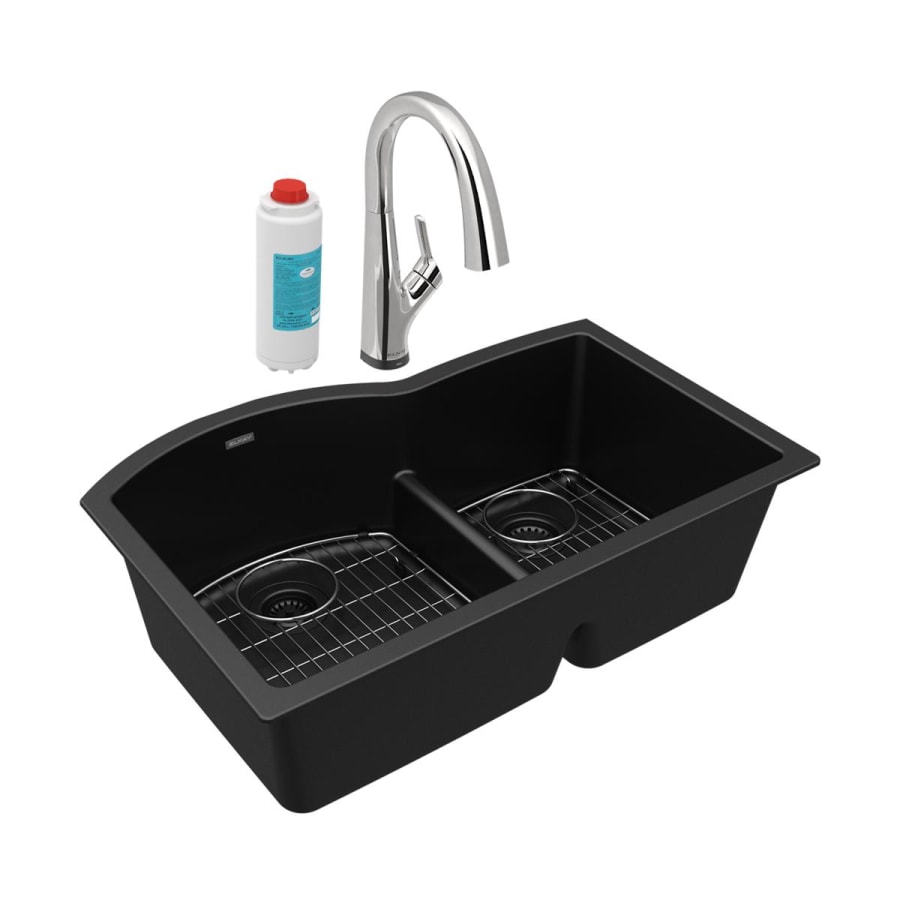

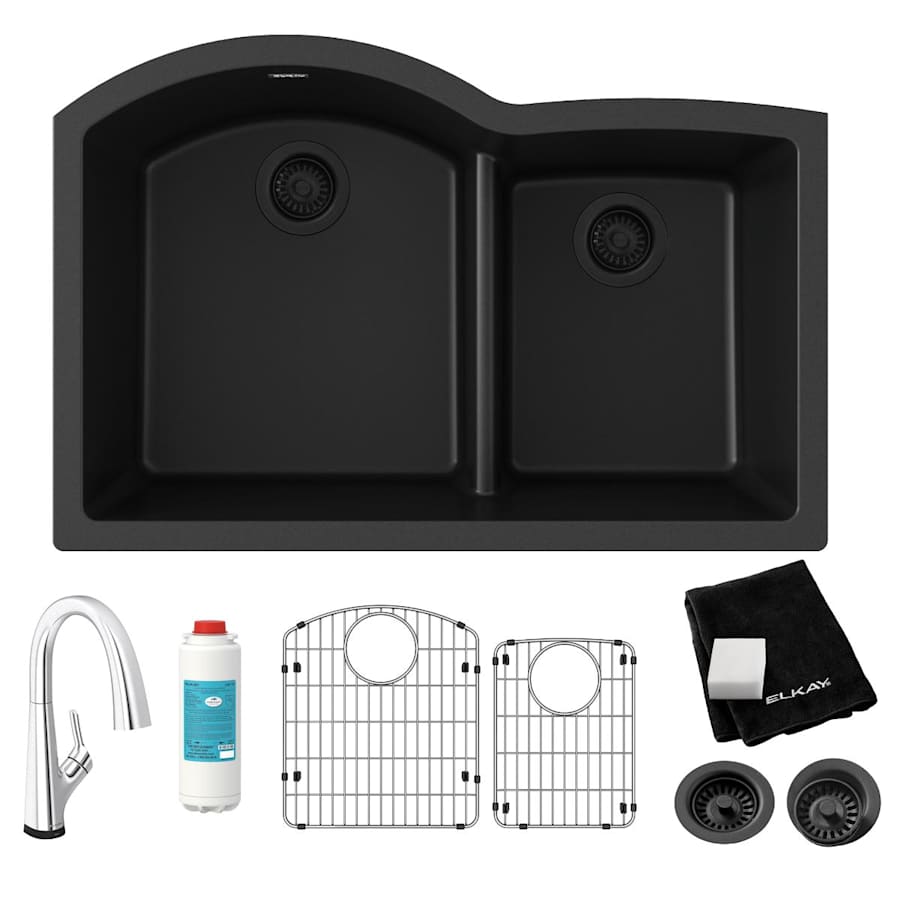

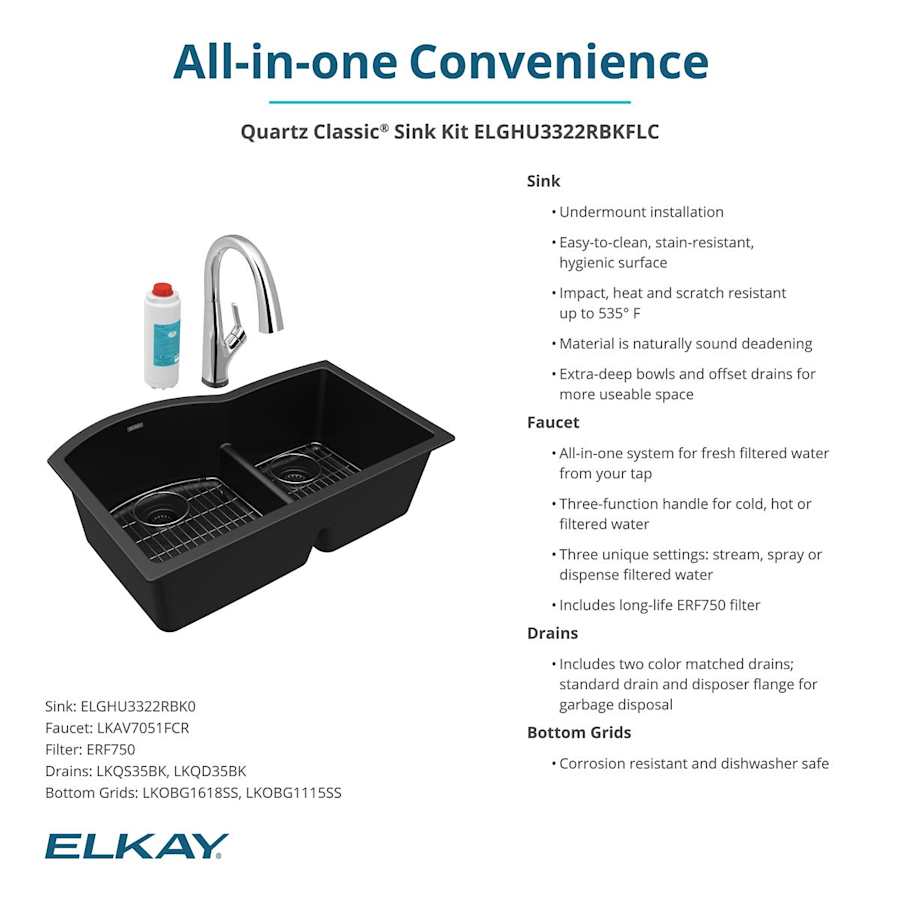

Elkay ELGHU3322RFLC Included Components:
33 undermount 2 basin quartz composite kitchen sink
Single Hole filtered kitchen faucet
Fitted basin rack
Coordinated basket strainers

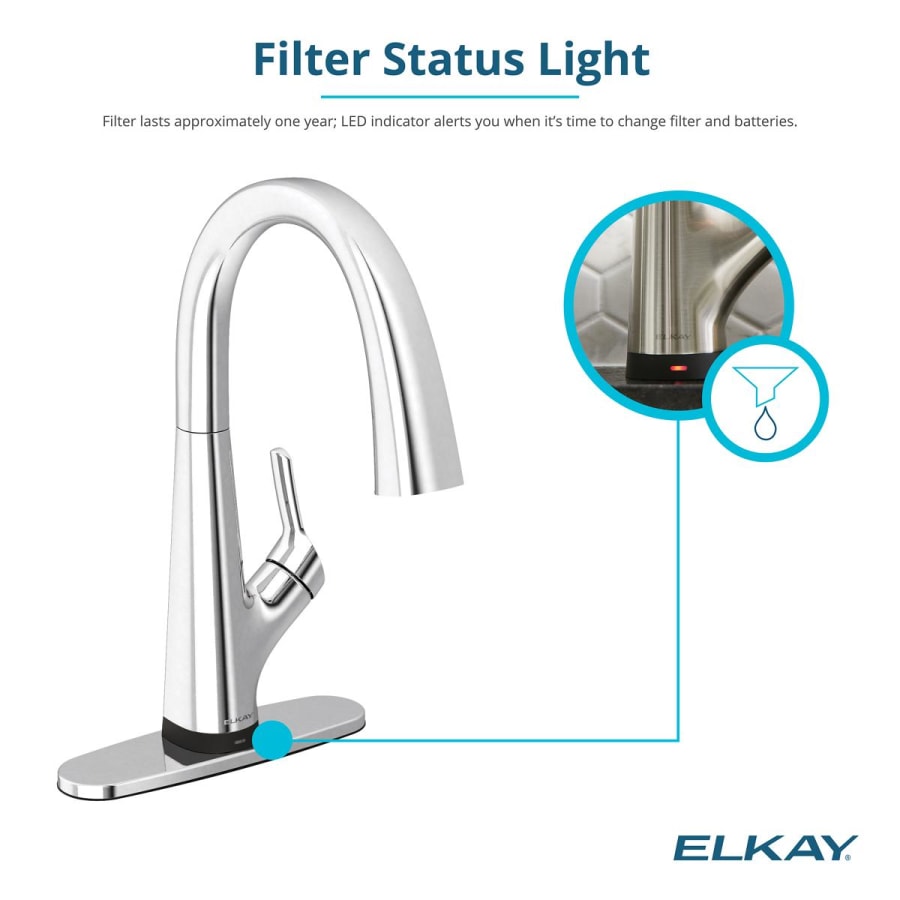

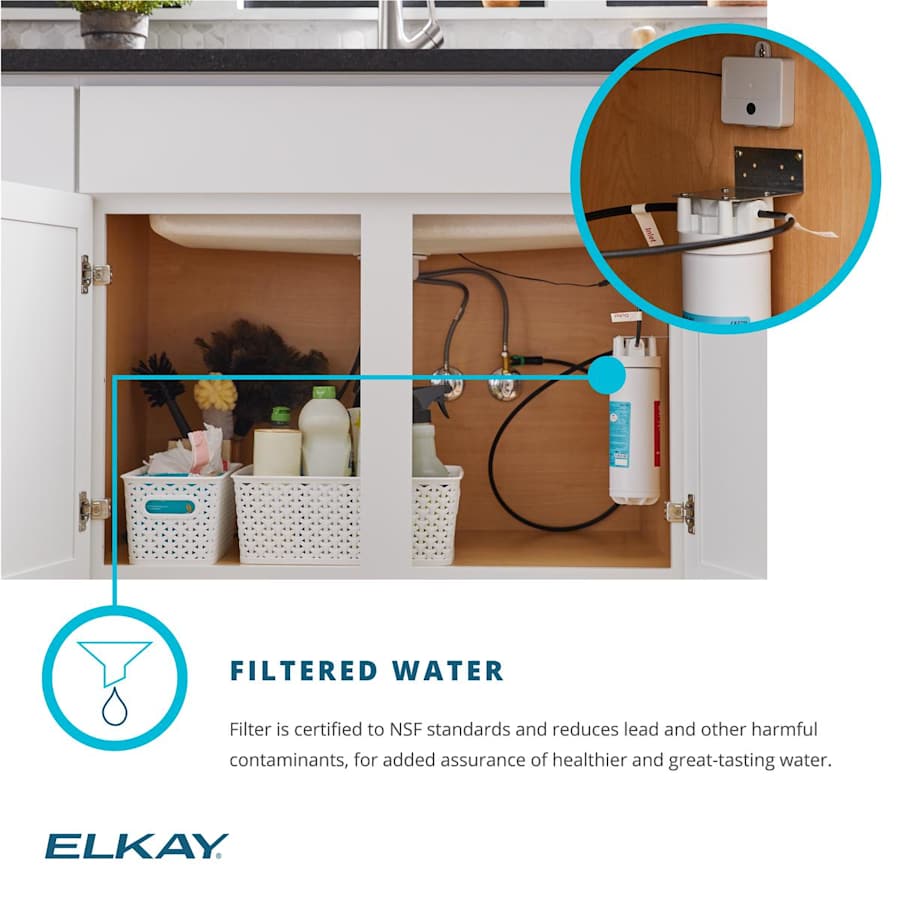

750 gallon residential water filter
Sink cleaning kit
Covered under Elkay’s limited lifetime warranty
Elkay Sink Features:

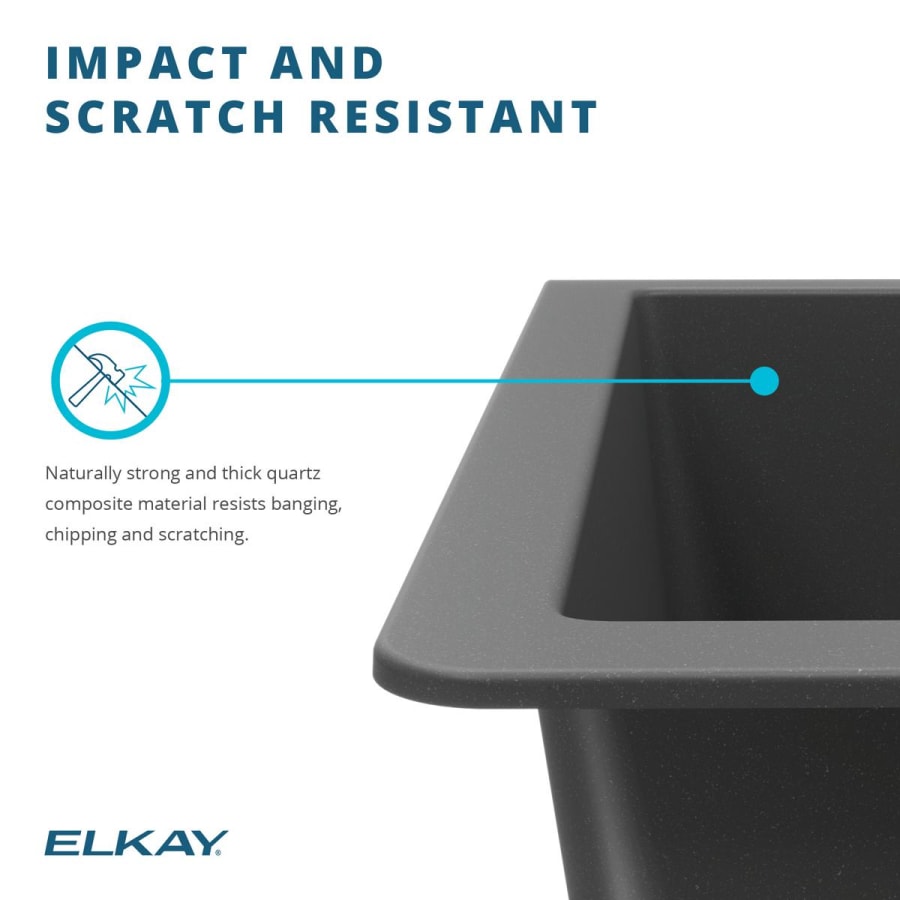

Constructed of quartz composite
Undermount installation – sink will install under the counter top
Double basins with a 60/40 split for increased versatility
Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink
Rear drain placement
Mounting hardware included

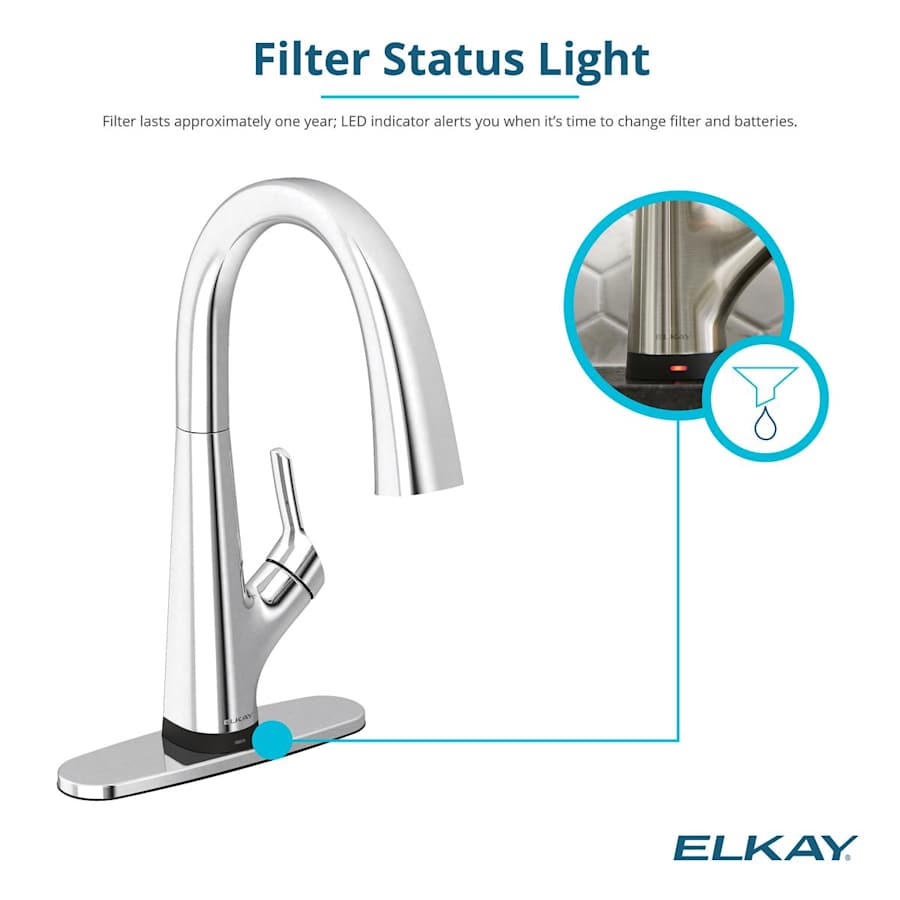

Elkay Faucet Features:
Faucet body constructed of Brass
Coordinates beautifully with other items from the Quartz Classic series
Single hole installation
Swivel spout allows for greater access to all areas of the sink
Single lever handle control the flow and temperature of water
Includes ceramic disc valve cartridge
Faucet includes escutcheon plate to cover additional faucet holes

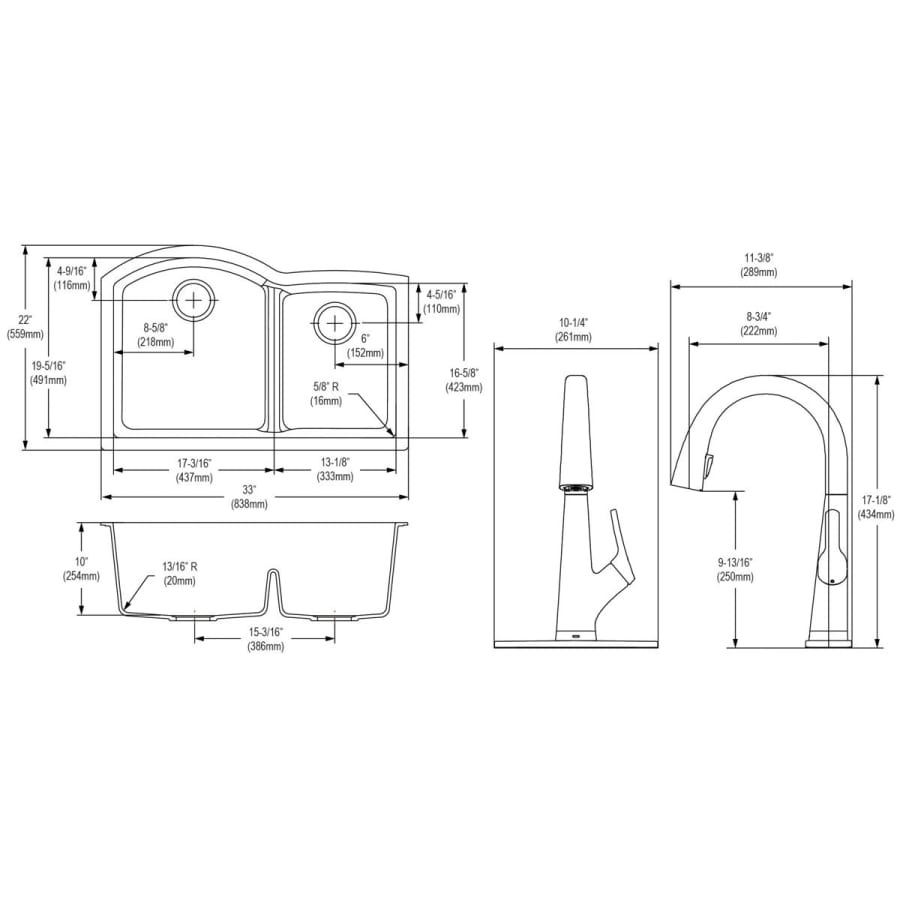

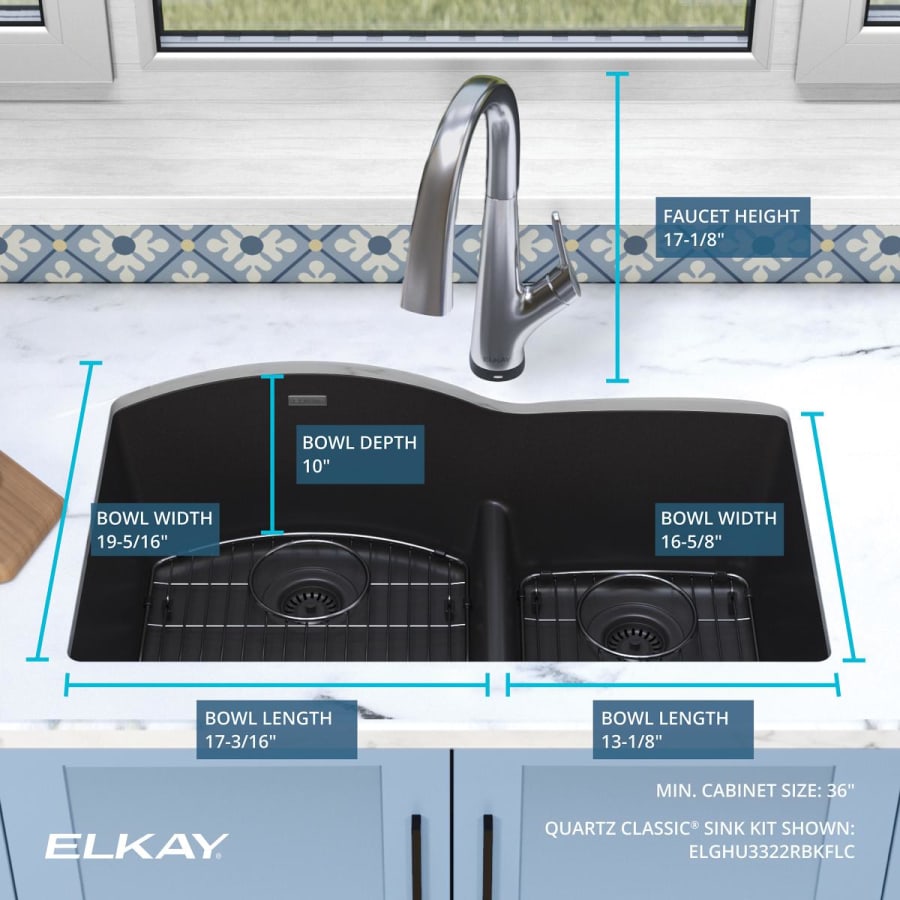

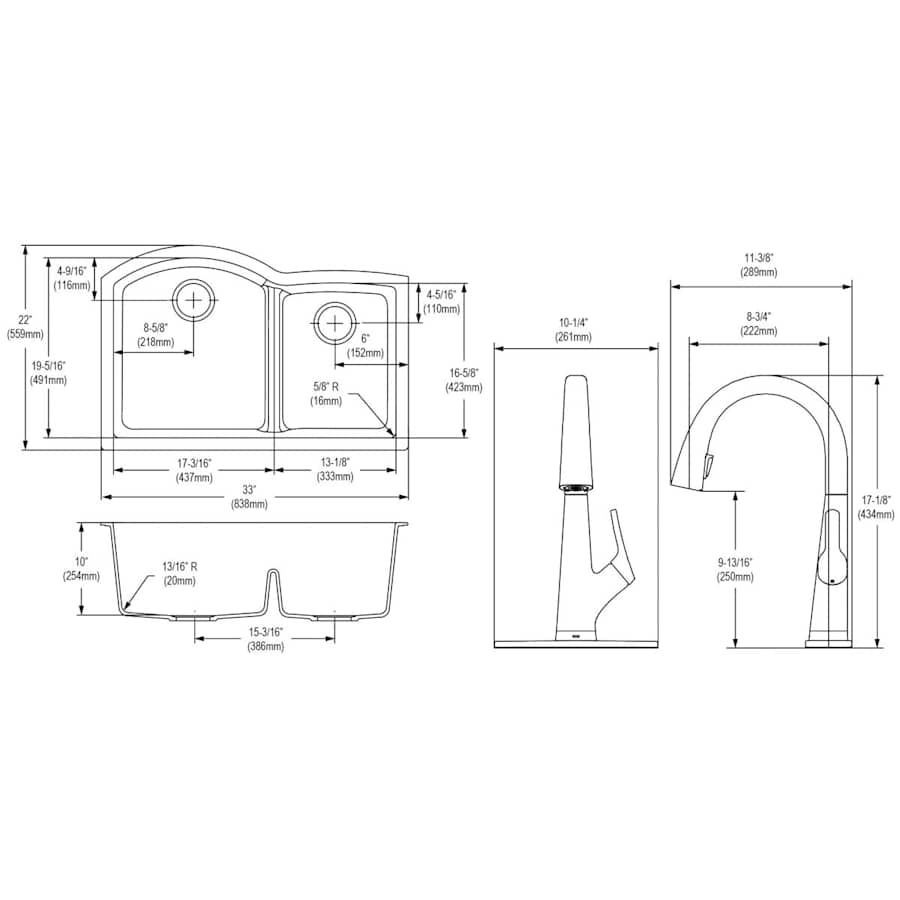

Elkay Sink Specifications:
Sink Length: 33″ (left to right)
Sink Width: 22″ (front to back)
Sink Height: 10″ (top to bottom)
Basin Dimensions (Left): 17-3/16″ L x 19-5/16″ W x 10″ D
Basin Dimensions (Right): 13-1/8″ L x 16-5/8″ W x 10″ D
Drain Connection: 3-1/2″
Elkay Faucet Specifications:
Faucet Height: 17-1/8″ (deck to top of faucet)
Spout Height: 17-1/8″ (deck to spout outlet horizontally)
Spout Reach: 8-3/4″ (center of faucet body to center of spout outlet)
Flow Rate: 1.5 gallons-per-minute
Faucet Centers: 0″ (distance between centers of outside faucet holes)
Faucet Hole Size: 1-1/2″
Max Deck Thickness: 2-1/2″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Quartz Classic Collection
Specifications
| Length | 33 in. |
| Height | 10 in. |
| Nominal Length | 33 in. |
| Nominal Width | 33 in. |
| Width | 22 in. |
| Drain Connection | 3.5 in. |
| Minimum Cabinet Size | 36 in. |
| Faucet Centers | 0 in. |
| Faucet Hole Size | 1.5 in. |
| Flow Rate (GPM) | 1.5 |
| Hose Length | 36 in. |
| Max Deck Thickness | 2.5 in. |
| Spout Height | 17.125 in. |
| Spout Reach | 8.75 in. |
| Spout Swivel | 180 Degrees |
| Sink Height | 10 in. |
| Sink Length | 33 in. |
| Sink Width | 22 in. |
| Basin Depth (Left) | 10 in. |
| Basin Depth (Right) | 10 in. |
| Basin Length (Left) | 17.217 in. |
| Basin Length (Right) | 13.125 in. |
| Basin Width (Left) | 19.34 in. |
| Basin Width (Right) | 16.625 in. |
| Faucet Height | 17.125 in. |
| Material | Quartz Composite |
| Thermostat | Traditional |
| Apron Front | No |
| Drain Placement | Rear |
| Insulation Type | Undermount |
| Sound Dampening | Yes |
| Faucet Installation Type | Deck Mounted |
| Corner Sink | No |
| Farmhouse | No |
| Number Of Bathers | 2 |
| Sink Shape | Rectangular |
| Workstation Sink | Yes |
| Bridge Faucet | No |
| Electronic | No |
| Handle Style | Lever |
| Number Of Handles | 1 |
| Pre Rinse | No |
| Pullout Spray | No |
| Spout Type | Swivel |
| Valve Type | Ceramic Disc |
| Water Efficient | Yes |
| Spray Settings | 3 |
| Pullout Direction | Down |
| Battery Quantity | 2 |
| Sink Material | Quartz Composite |
| Basin Split | 60/40 |
| Faucet Mounting Type | Single Hole |
| Faucet Finish | Chrome |
| Faucet Material | Brass |
| Manufacturer Warranty | Limited Lifetime |
| ADA | No |
| Collection | Quartz Classic |
| Country Of Origin | Germany |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| CA Drought Compliant | Yes |
| CSA Code | B45.5 |
| Faucet Included | Yes |
| Basin Rack Included | Yes |
| Basket Strainer Included | Yes |
| Colander Included | No |
| Cutting Board Included | No |
| Drainboard | No |
| Soap Dispenser Included | No |
| Escutcheon Included | Yes |
| Filtering | Yes |
| Handshower Included | Yes |
| Sidespray | No |
| Valve Included | Yes |
| Power Source | Battery |
| Battery Size | AA |
| Color | Black, Greystone, Mocha, White |
