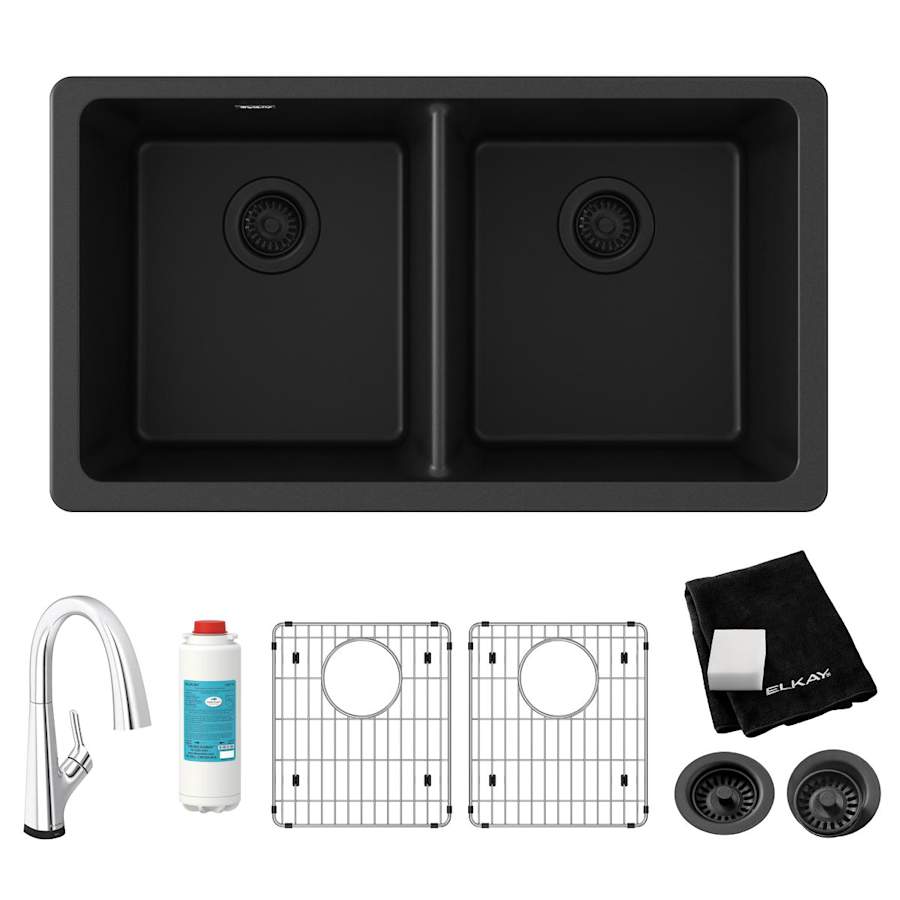

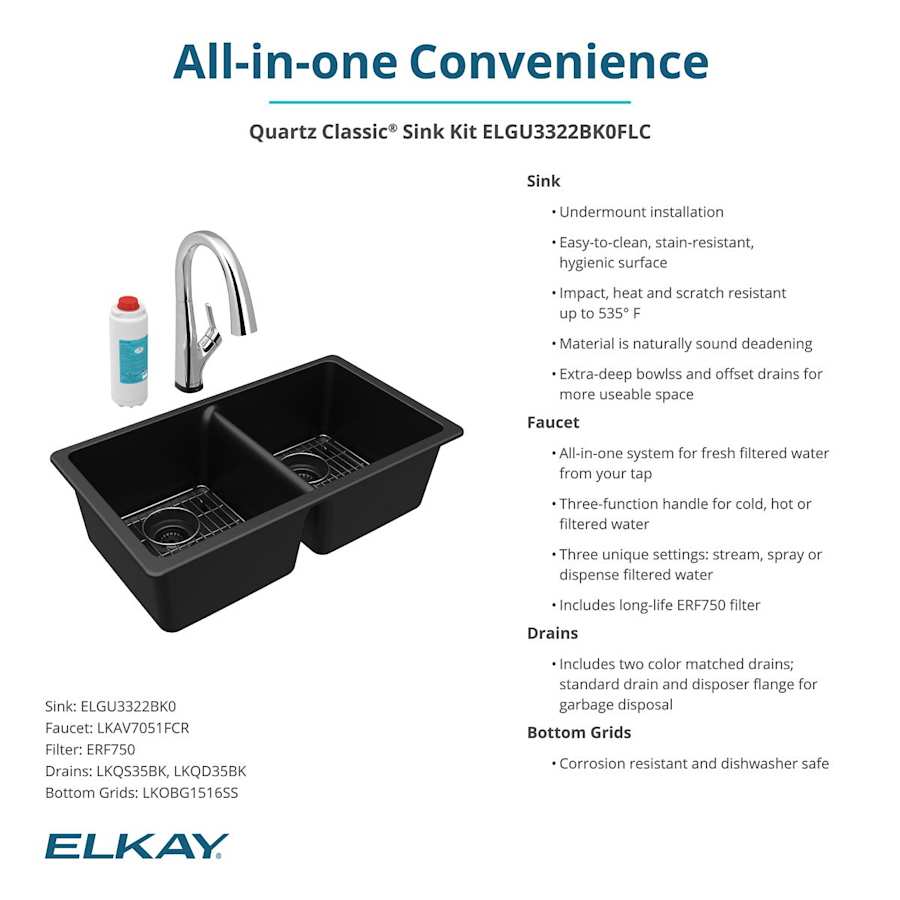

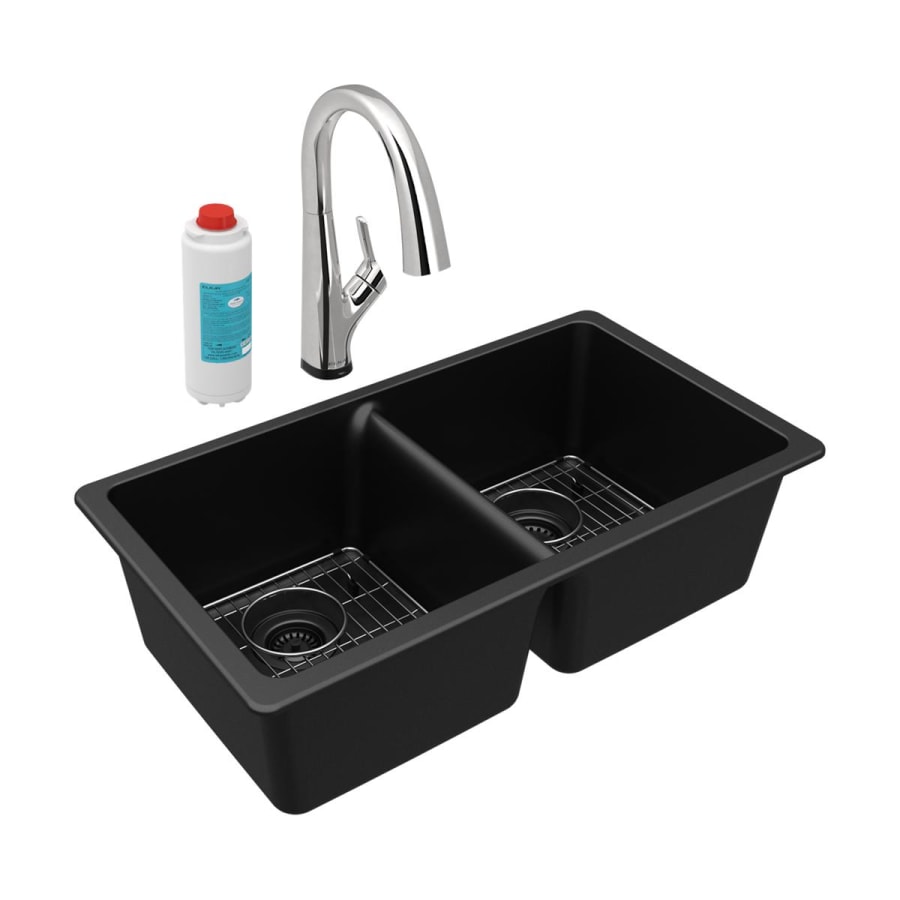

Elkay ELGU33220FLC Included Components:
33 undermount 2 basin quartz composite kitchen sink

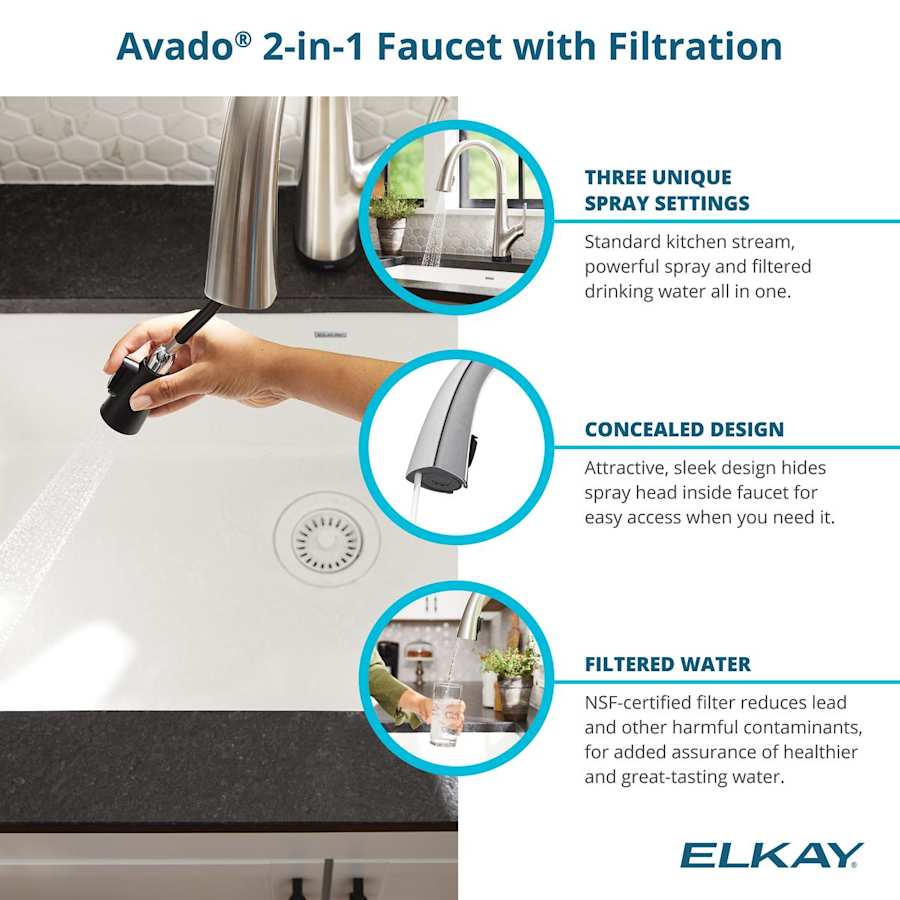

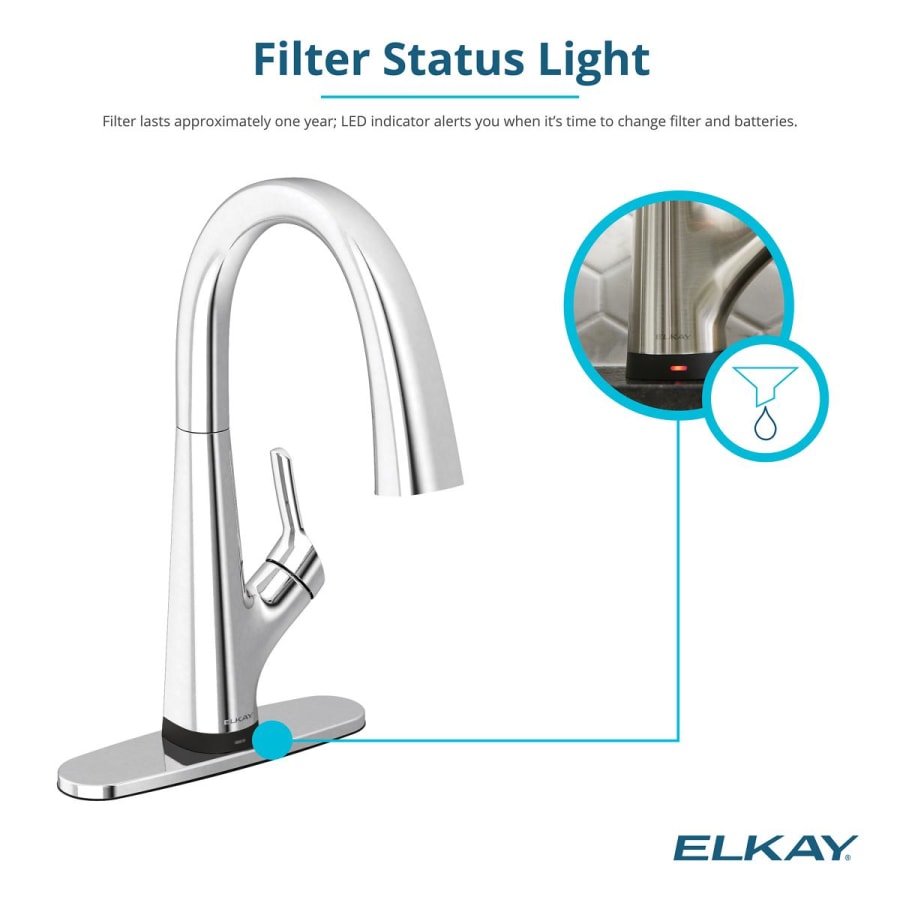

Single Hole filtered kitchen faucet
Fitted basin rack
Coordinated basket strainers

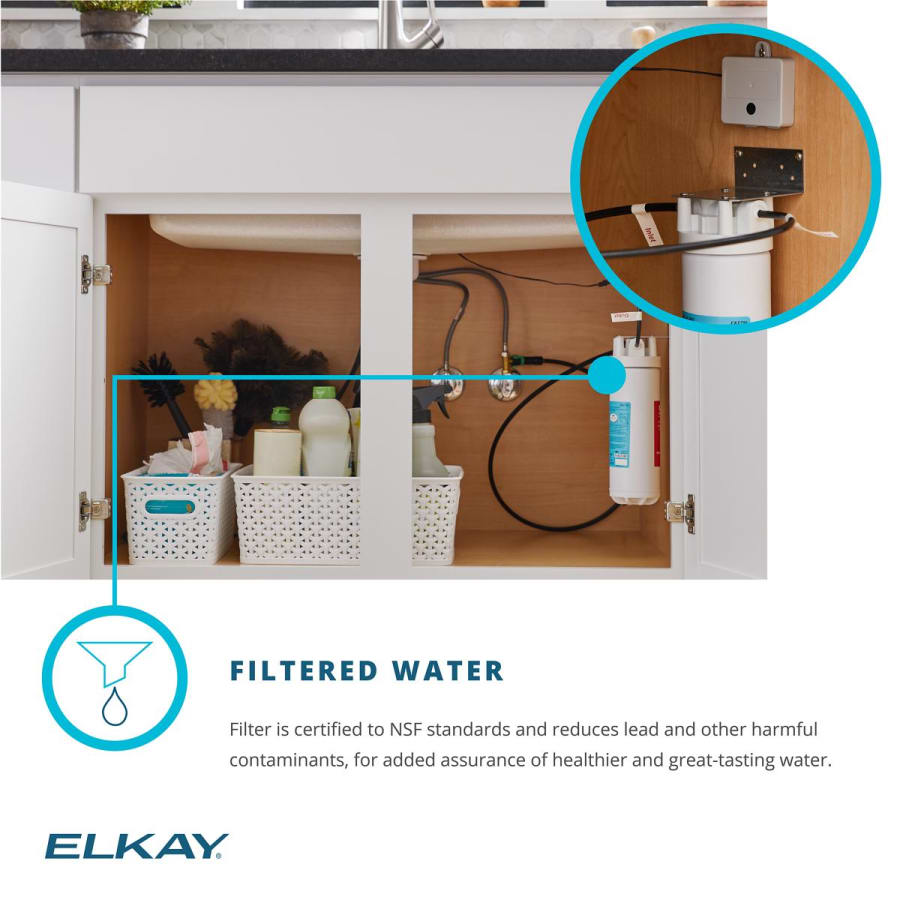

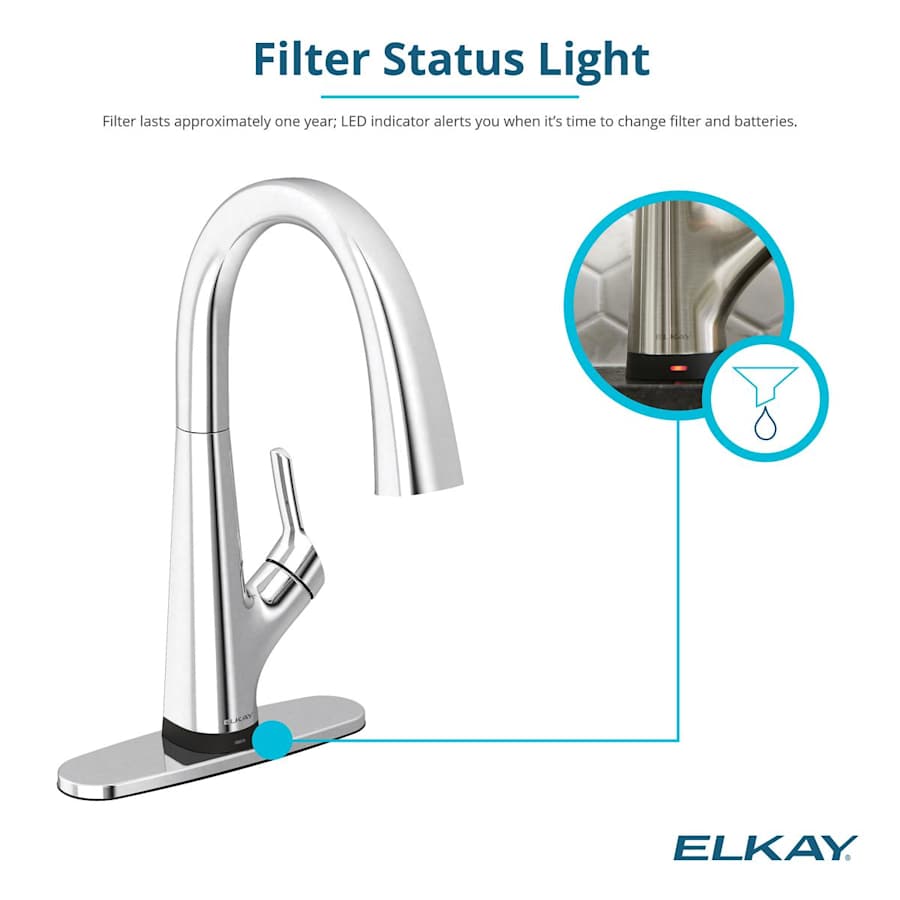

750 gallon residential water filter
Sink cleaning kit
Covered under Elkay’s limited lifetime warranty
Elkay Sink Features:

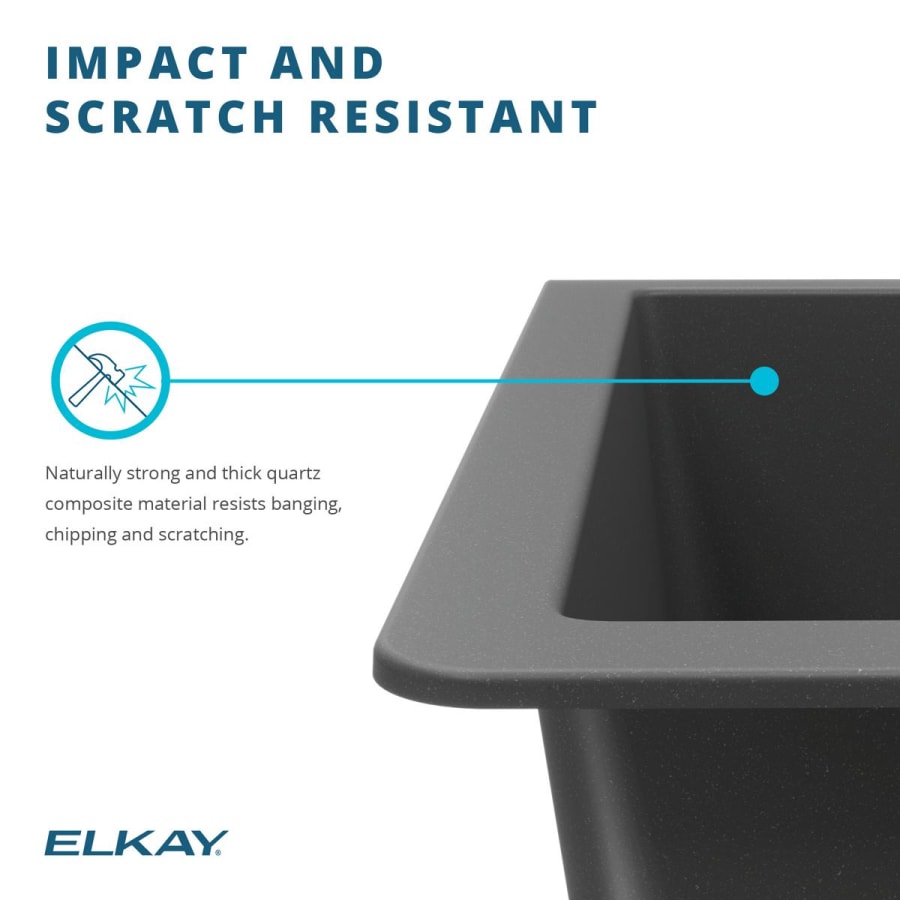

Constructed of quartz composite
Undermount installation – sink will install under the counter top

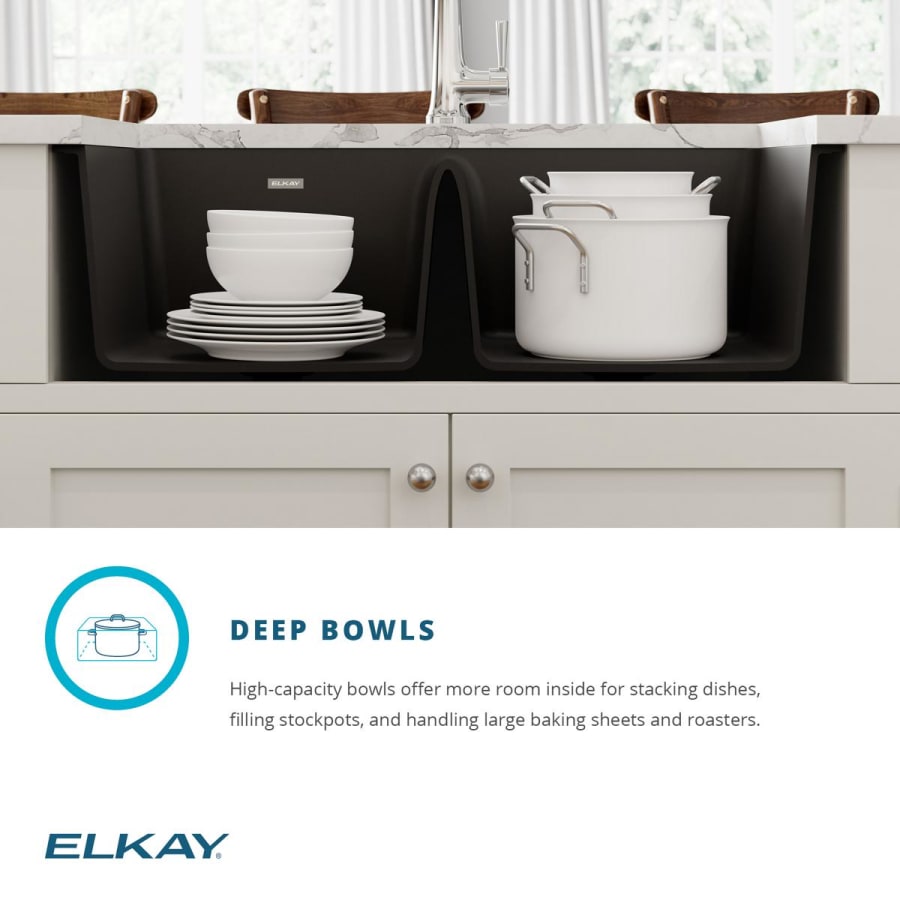

Double basins with a 50/50 split for increased versatility
Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink

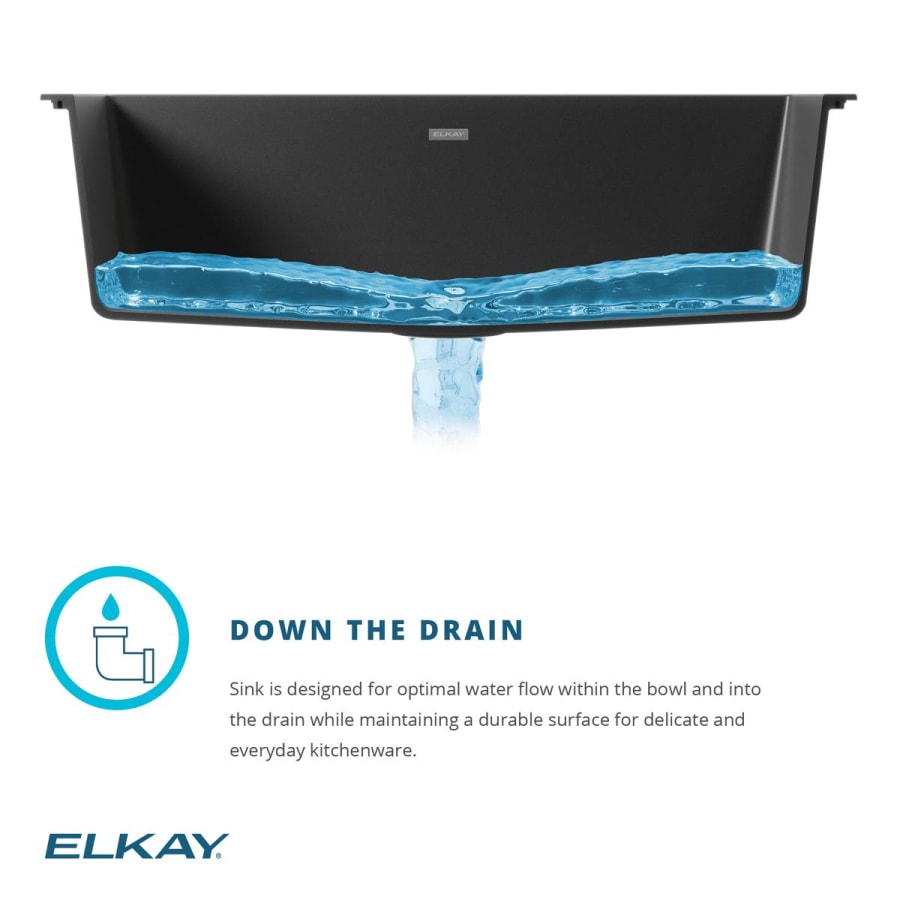

Rear drain placement
Mounting hardware included
Elkay Faucet Features:
Faucet body constructed of Brass
Coordinates beautifully with other items from the Quartz Classic series
Single hole installation
Swivel spout allows for greater access to all areas of the sink
Single lever handle control the flow and temperature of water
Includes ceramic disc valve cartridge
Faucet includes escutcheon plate to cover additional faucet holes

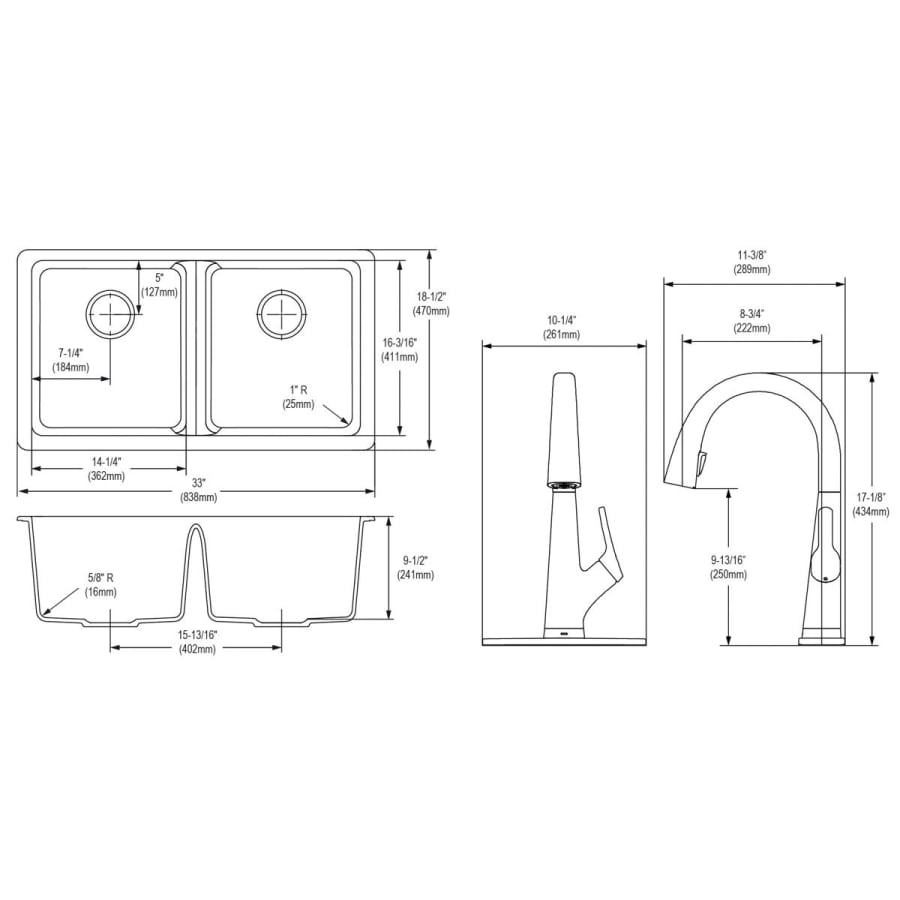

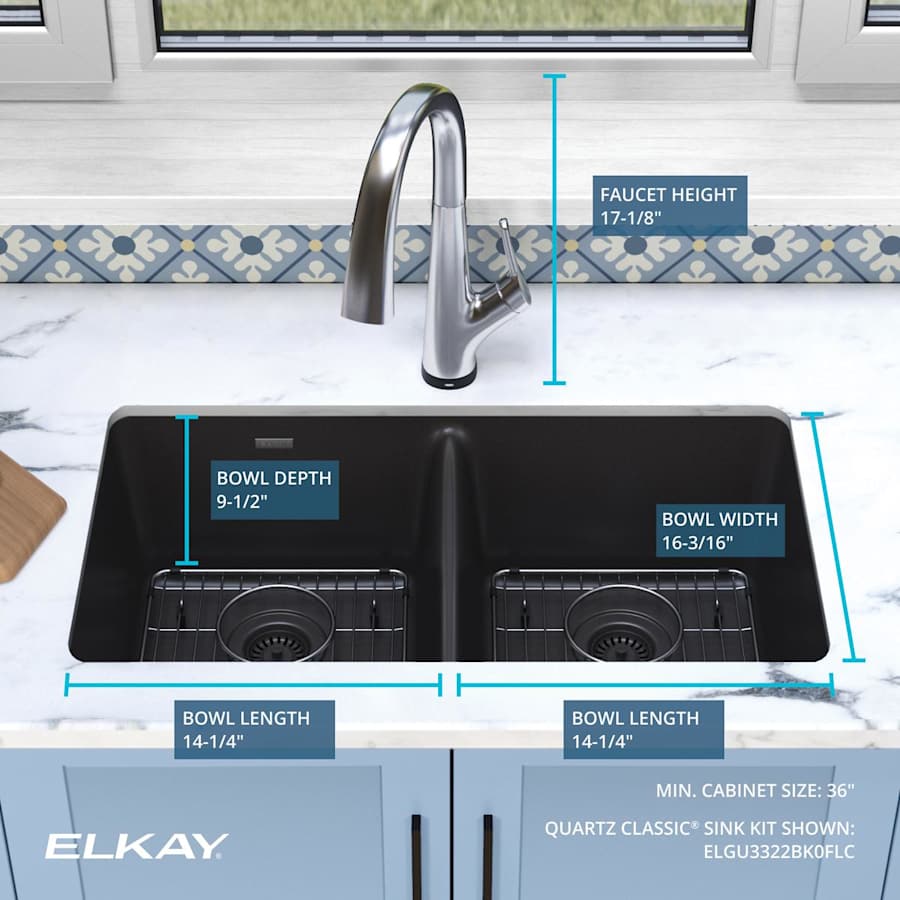

Elkay Sink Specifications:
Sink Length: 33″ (left to right)
Sink Width: 18-1/2″ (front to back)
Sink Height: 9-1/2″ (top to bottom)
Basin Dimensions (Left): 14-1/4″ L x 16-3/16″ W x 9-1/2″ D
Basin Dimensions (Right): 14-1/4″ L x 16-3/16″ W x 9-1/2″ D
Drain Connection: 3-1/2″
Elkay Faucet Specifications:
Faucet Height: 17-1/8″ (deck to top of faucet)
Spout Height: 17-1/8″ (deck to spout outlet horizontally)
Spout Reach: 8-3/4″ (center of faucet body to center of spout outlet)
Flow Rate: 1.5 gallons-per-minute
Faucet Centers: 0″ (distance between centers of outside faucet holes)
Faucet Hole Size: 1-1/2″
Max Deck Thickness: 2-1/2″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Quartz Classic Collection
Specifications
| Height | 9.5 in. |
| Width | 18.5 in. |
| Length | 33 in. |
| Nominal Width | 33 in. |
| Flow Rate (GPM) | 1.5 |
| Spout Height | 17.125 in. |
| Spout Reach | 8.75 in. |
| Faucet Centers | 0 in. |
| Faucet Hole Size | 1.5 in. |
| Max Deck Thickness | 2.5 in. |
| Spout Swivel | 180 Degrees |
| Hose Length | 36 in. |
| Nominal Length | 33 in. |
| Sink Length | 33 in. |
| Sink Width | 18.5 in. |
| Faucet Height | 17.125 in. |
| Sink Height | 9.5 in. |
| Minimum Cabinet Size | 36 in. |
| Basin Depth (Left) | 9.5 in. |
| Basin Depth (Right) | 9.5 in. |
| Basin Length (Left) | 14.254 in. |
| Basin Length (Right) | 14.254 in. |
| Basin Width (Left) | 16.1875 in. |
| Basin Width (Right) | 16.1875 in. |
| Drain Connection | 3.5 in. |
| Material | Quartz Composite |
| Thermostat | Traditional |
| Insulation Type | Undermount |
| Bridge Faucet | No |
| Handle Style | Lever |
| Spout Type | Swivel |
| Spray Settings | 3 |
| Valve Type | Ceramic Disc |
| Water Efficient | Yes |
| Number Of Handles | 1 |
| Electronic | No |
| Pre Rinse | No |
| Pullout Spray | No |
| Battery Quantity | 2 |
| Drain Placement | Rear |
| Number Of Bathers | 2 |
| Sink Material | Quartz Composite |
| Sink Shape | Rectangular |
| Sound Dampening | Yes |
| Corner Sink | No |
| Faucet Installation Type | Deck Mounted |
| Faucet Material | Brass |
| Faucet Mounting Type | Single Hole |
| Apron Front | No |
| Farmhouse | No |
| Pullout Direction | Down |
| Basin Split | 50/50 |
| Workstation Sink | Yes |
| Faucet Finish | Chrome |
| Power Source | Battery |
| Battery Size | AA |
| ADA | No |
| Collection | Quartz Classic |
| Country Of Origin | Germany |
| Manufacturer Warranty | Limited Lifetime |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| CA Drought Compliant | Yes |
| CSA Code | B45.5 |
| Handshower Included | Yes |
| Escutcheon Included | Yes |
| Filtering | Yes |
| Sidespray | No |
| Soap Dispenser Included | No |
| Valve Included | Yes |
| Faucet Included | Yes |
| Basket Strainer Included | Yes |
| Colander Included | No |
| Cutting Board Included | No |
| Drainboard | No |
| Basin Rack Included | Yes |

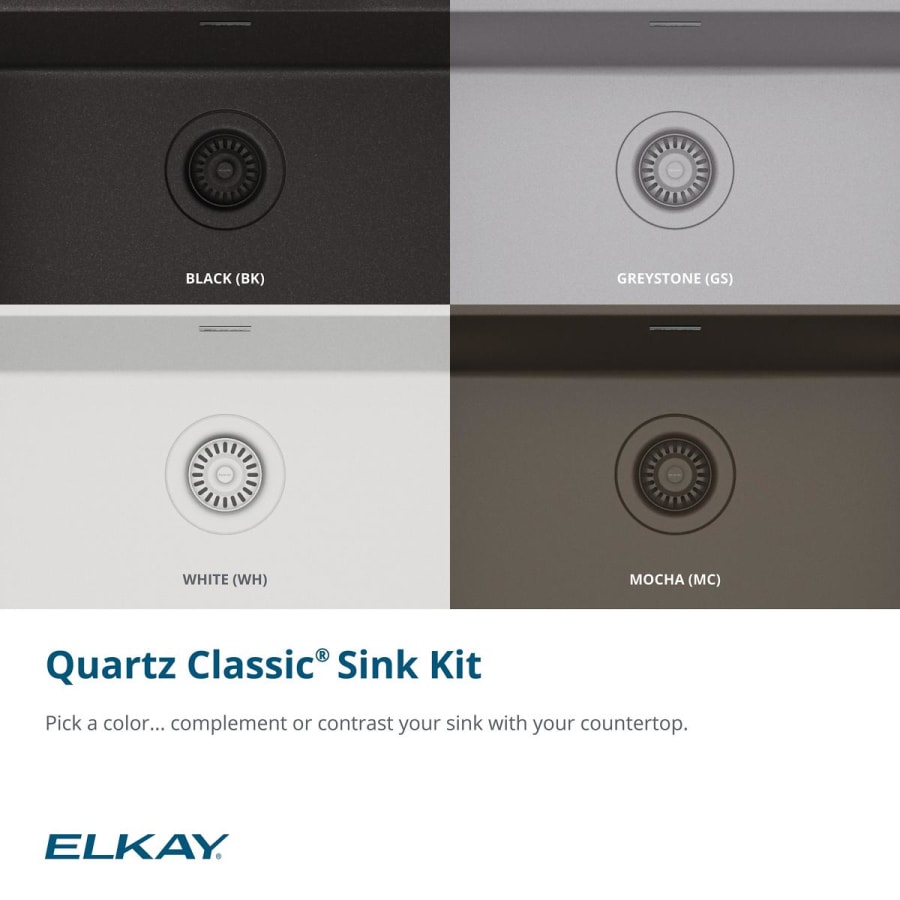

| Color | Black, Greystone, Mocha, White |
