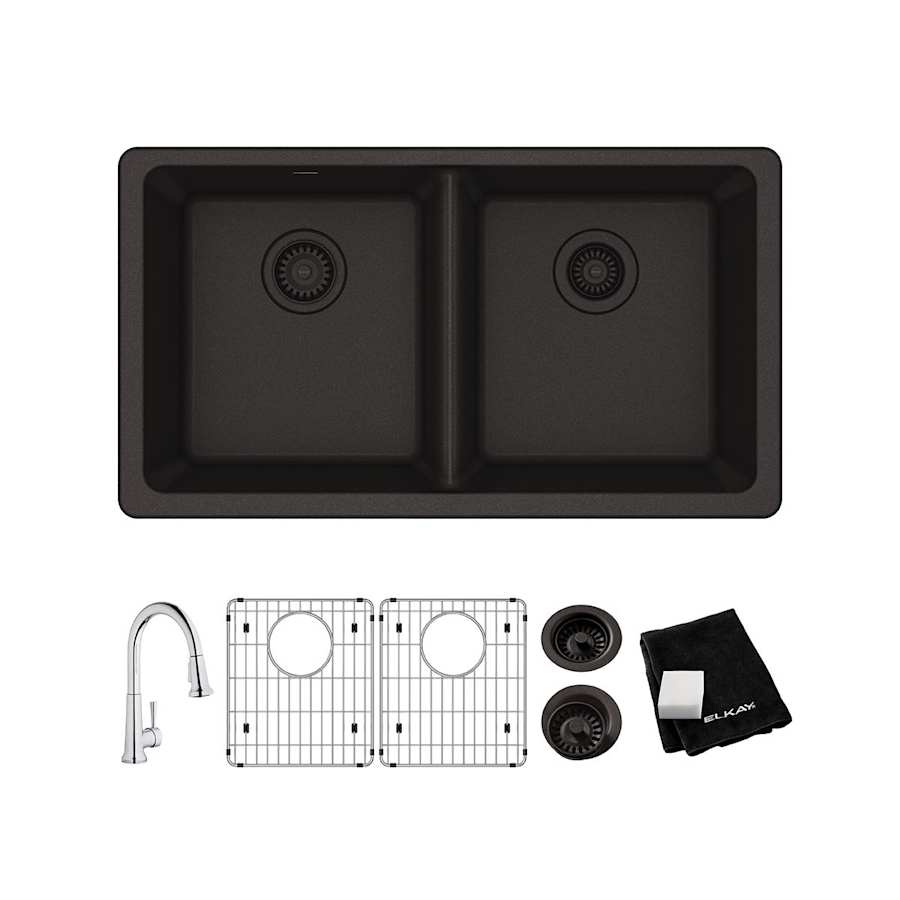

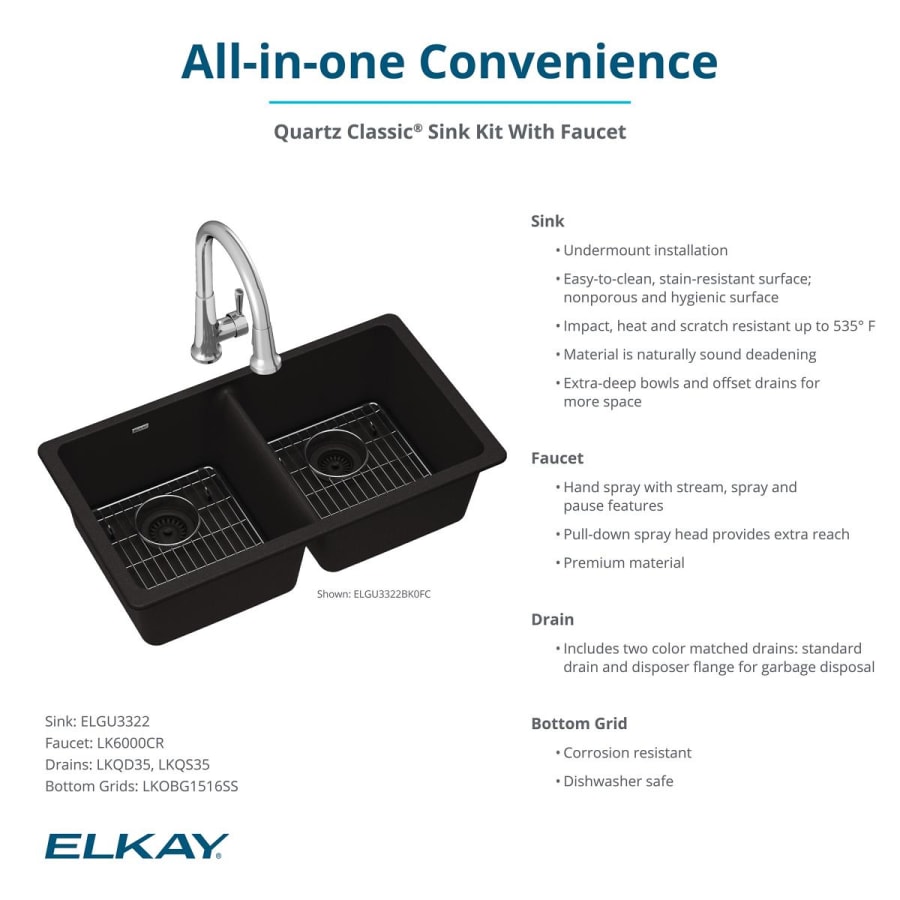

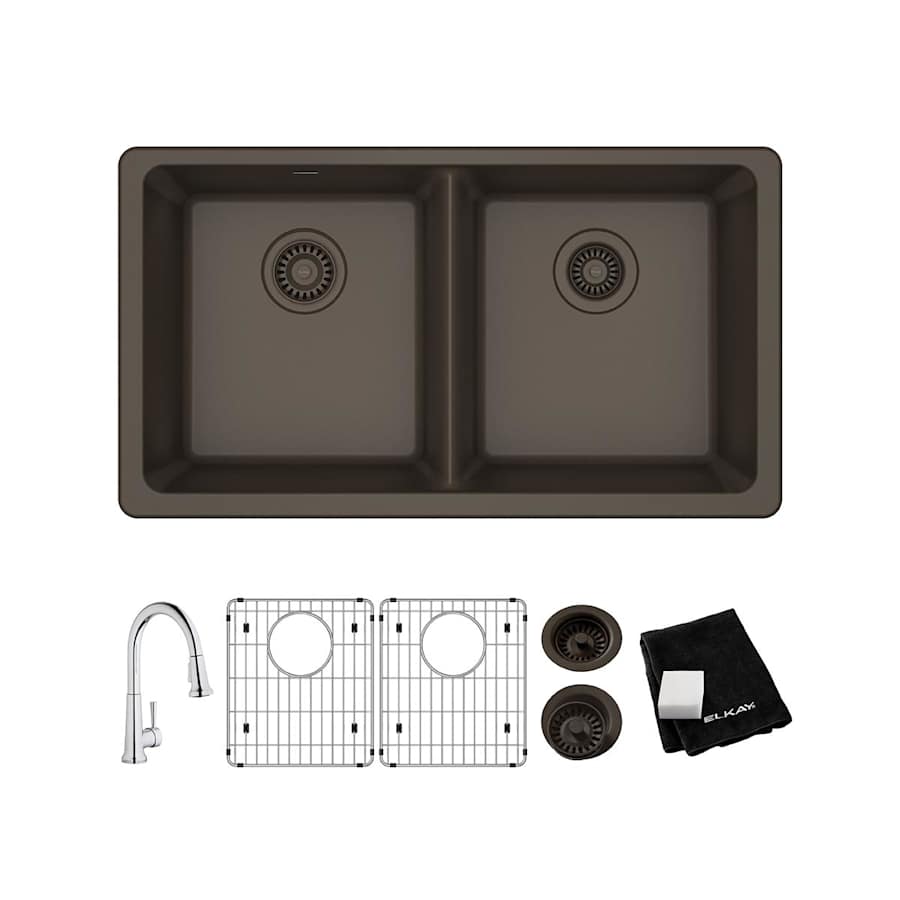

Elkay ELGU3322FC Included Components:

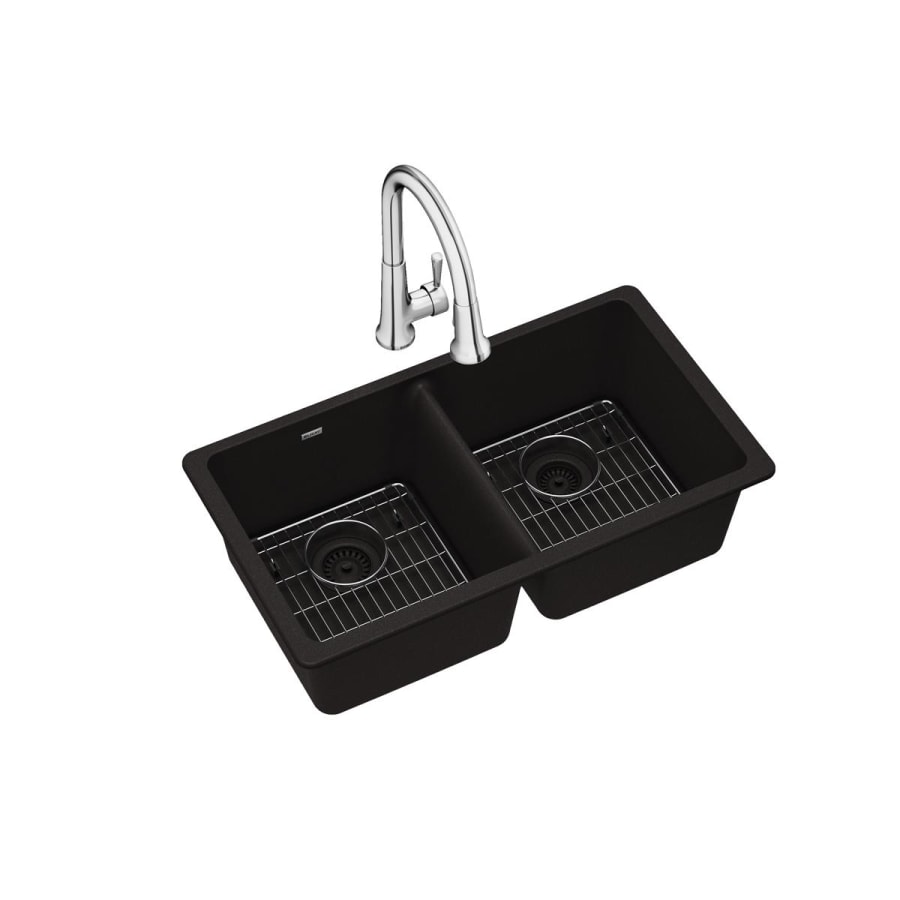

33″ undermount 2 quartz composite kitchen sink
Single hole kitchen faucet
Fitted basin rack
Coordinating basket strainers
Covered under Elkay’s limited lifetime residential warranty
Elkay ELGU3322FC Technologies and Benefits:
Quartz Classic™: Pre-assembled kitchen sink drain assembly with less parts than traditional drains, making assembly quick and easy.
Elkay Sink Features:
Constructed of quartz composite

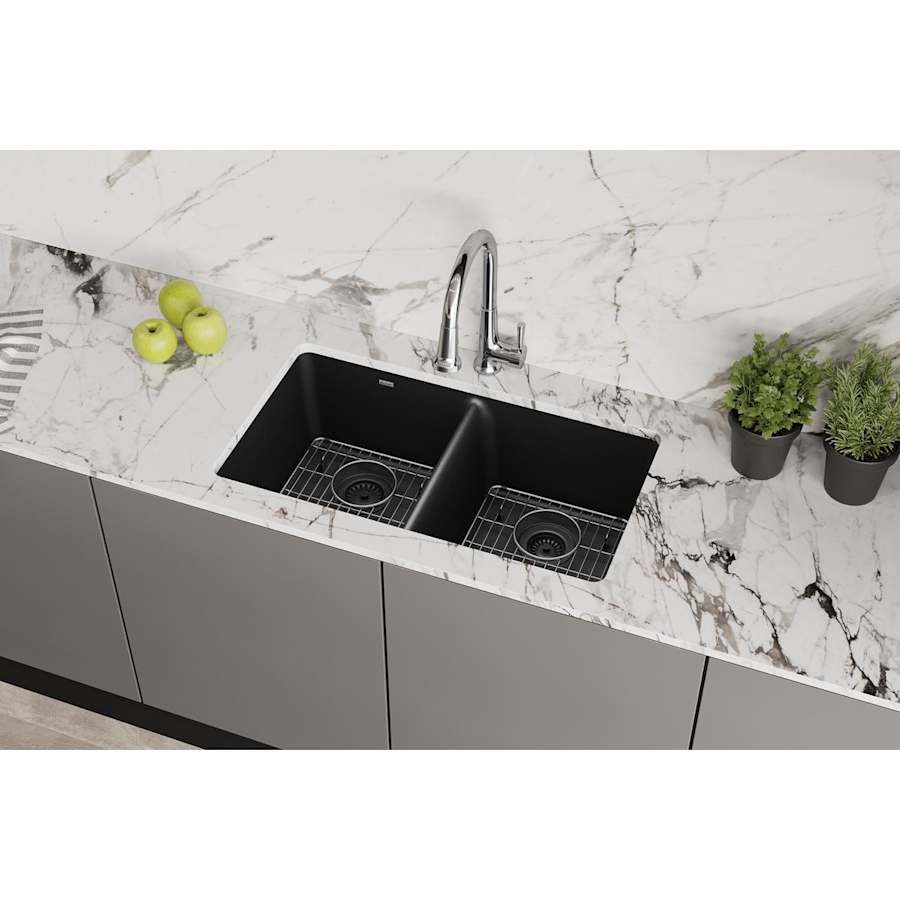

Undermount installation – sink will install under the counter top
Double basins with a 50/50 split for increased versatility
Rear drain location increases available space under the sink
Elkay Faucet Features:
Faucet body constructed of brass
Coordinates beautifully with other items from the Quartz Classic series
Single hole installation
Pull-down spray with 2 spray settings
Swivel spout allows for greater access to all areas of the sink
Single lever handle control the flow and temperature of water
Includes ceramic disc cartridge
Low lead compliant

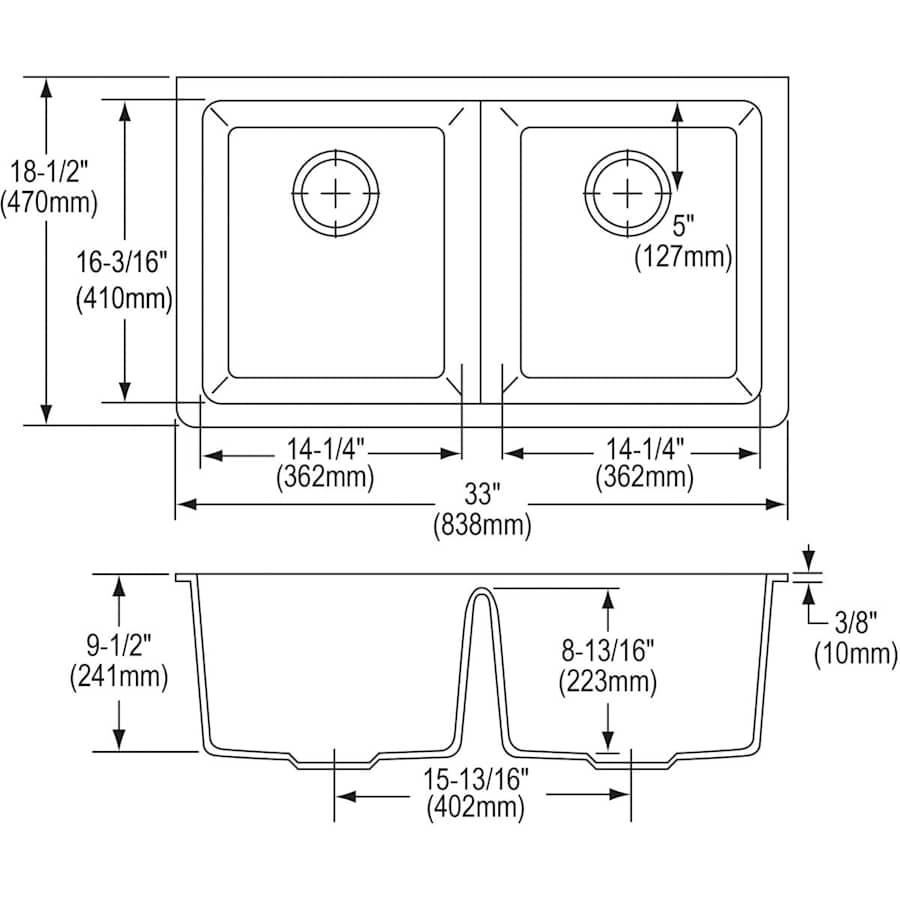

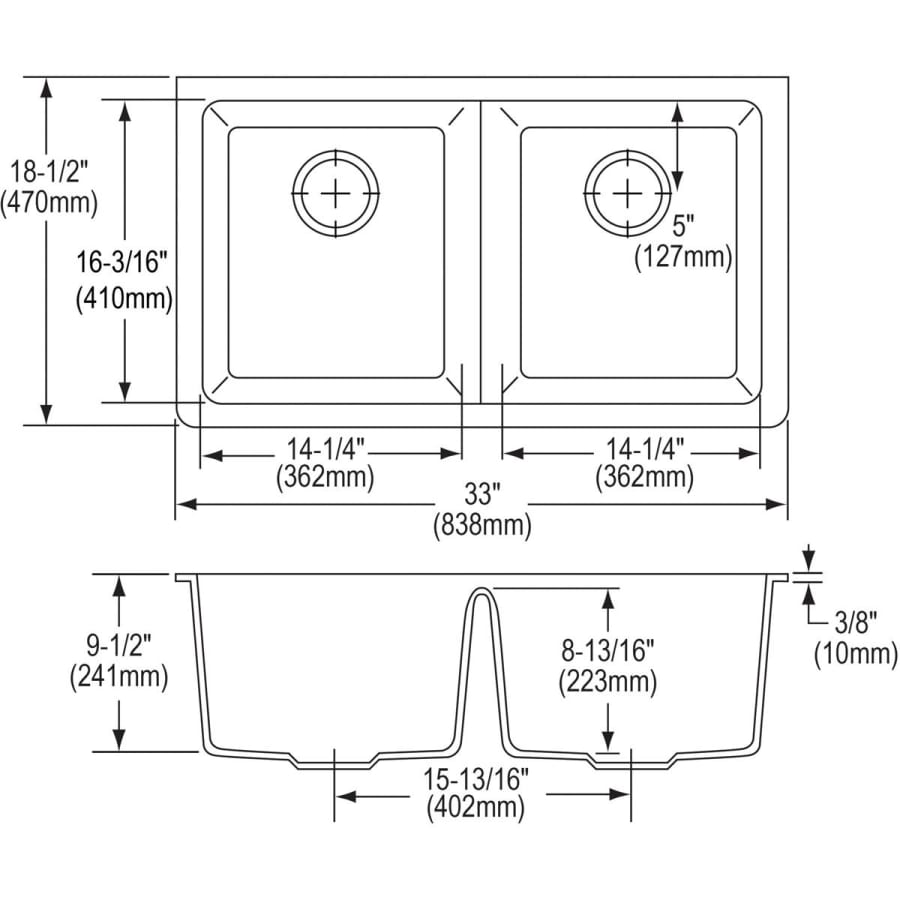

Elkay Sink Specifications:

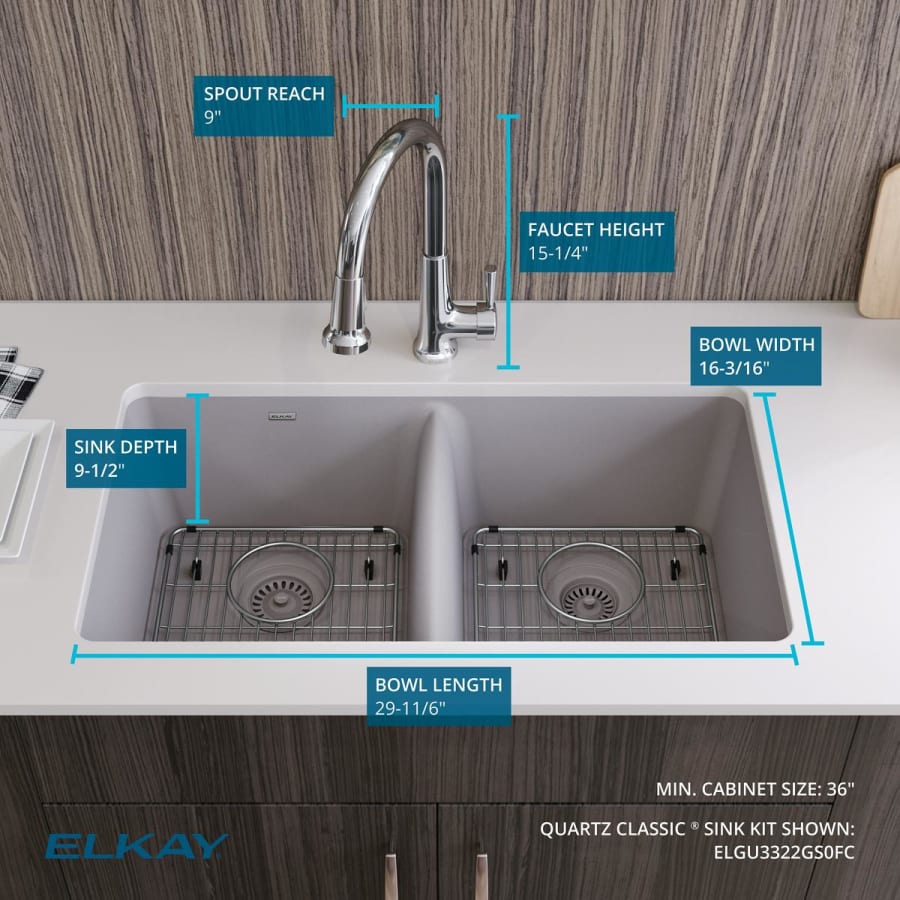

Sink Length: 33″ (left to right)
Sink Width: 18-1/2″ (front to back)
Sink Height: 9-1/2″ (top to bottom)
Basin Dimensions (Left): 14-1/4″ L x 16-3/16″ W x 9-1/2″ D
Basin Dimensions (Right): 14-1/4″ L x 16-3/16″ W x 9-1/2″ D
Faucet Holes: 0
Minimum Cabinet Size: 36″
Drain Connection: 3-5/8″
Elkay Faucet Specifications:
Faucet Height: 15-1/4″ (deck to top of faucet)
Spout Height: 7-3/8″ (deck to spout outlet horizontally)
Spout Reach: 9″ (center of faucet body to center of spout outlet)
Flow Rate: 1.5 gallons-per-minute
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Quartz Classic Collection
Specifications
| Height | 9.5 in. |
| Width | 18.5 in. |
| Nominal Width | 19 in. |
| Faucet Centers | 0 in. |
| Flow Rate (GPM) | 1.5 |
| Spout Height | 7.375 in. |
| Spout Reach | 9 in. |
| Spout Swivel | 360 Degrees |
| Water Connection | 3/8" |
| Length | 33 in. |
| Nominal Length | 33 in. |
| Drain Connection | 3.625 in. |
| Basin Depth (Left) | 9.5 in. |
| Basin Depth (Right) | 9.5 in. |
| Basin Length (Left) | 14.254 in. |
| Basin Length (Right) | 14.254 in. |
| Basin Width (Left) | 16.161 in. |
| Basin Width (Right) | 16.161 in. |
| Minimum Cabinet Size | 36 in. |
| Backplate Depth | 9.5 in. |
| Bar Length | 28.5 in. |
| Base Width | 16.1875 in. |
| Sink Height | 9.5 in. |
| Sink Length | 33 in. |
| Sink Width | 18.5 in. |
| Faucet Height | 15.25 in. |
| Approved for Commercial Use | Yes |
| Collection | Quartz Classic |
| Country Of Origin | Germany |
| Manufacturer Warranty | Limited Lifetime |
| ADA | No |
| ASSE Code | A112.18.1 |
| CA Drought Compliant | Yes |
| Certifications | ASME, CSA |
| Lead Leaching Certified NSF/ANSI 61 | No |
| Low Lead Compliant | Yes |
| CSA Code | B125.1, B45.5 |
| Installation Hardware Included | No |
| Escutcheon Included | No |
| Filtering | No |
| Handshower Included | Yes |
| Sidespray | No |
| Soap Dispenser Included | No |
| Valve Included | Yes |
| Faucet Included | Yes |
| Basin Rack Included | Yes |
| Basket Strainer Included | Yes |
| Colander Included | No |
| Cutting Board Included | No |
| Drainboard | No |
| Insulation Type | Undermount |
| Material | Quartz Composite |
| Thermostat | Transitional |
| Bridge Faucet | No |
| Electronic | No |
| Handle Style | Lever |
| Number Of Handles | 1 |
| Pre Rinse | No |
| Pullout Spray | Yes |
| Spout Type | Swivel |
| Valve Type | Ceramic Disc |
| Water Connection Type | Compression |
| Water Efficient | Yes |
| Apron Front | No |
| Drain Placement | Rear |
| Basin Split | 50/50 |
| Corner Sink | No |
| Farmhouse | No |
| Number Of Bathers | 2 |
| Sink Shape | Rectangular |
| Sound Dampening | No |
| Faucet Installation Type | Deck Mounted |
| Sink Material | Quartz Composite |
| Spray Settings | 2 |
| Pullout Direction | Down |
| Faucet Mounting Type | Single Hole |
| Faucet Finish | Chrome |
| Faucet Material | Brass |

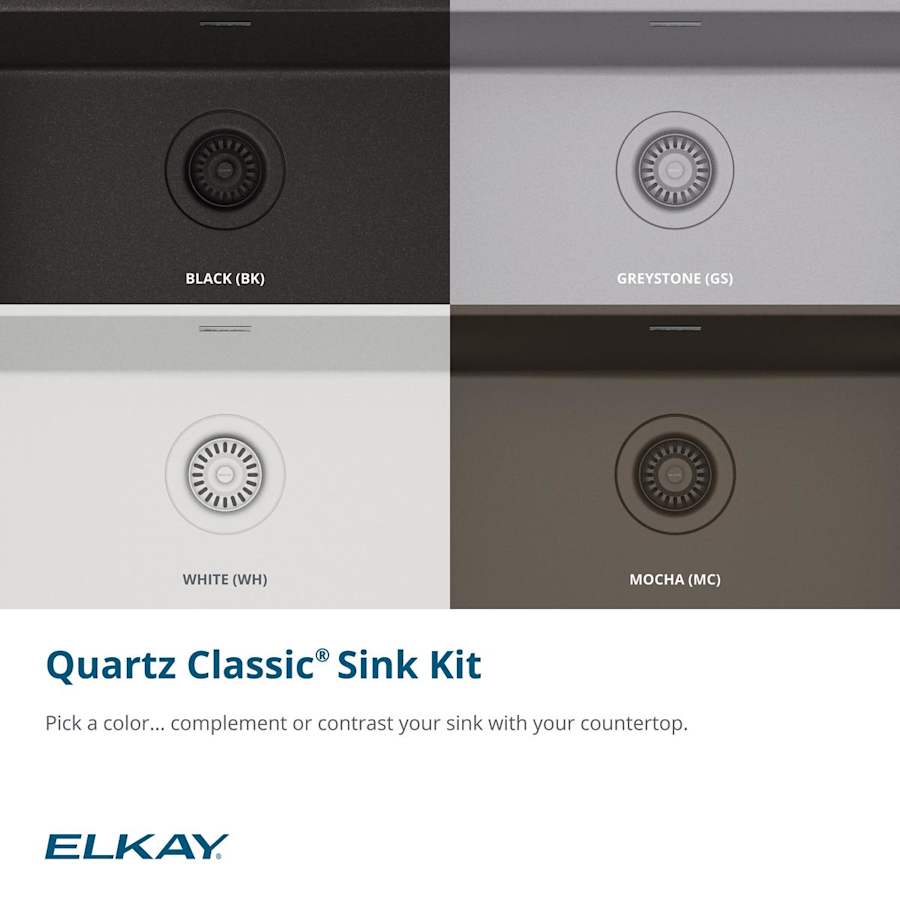

| Color | Black, Greystone, Mocha, White |
| Color Tone | Blacks, Greys, Neutrals, Whites |
