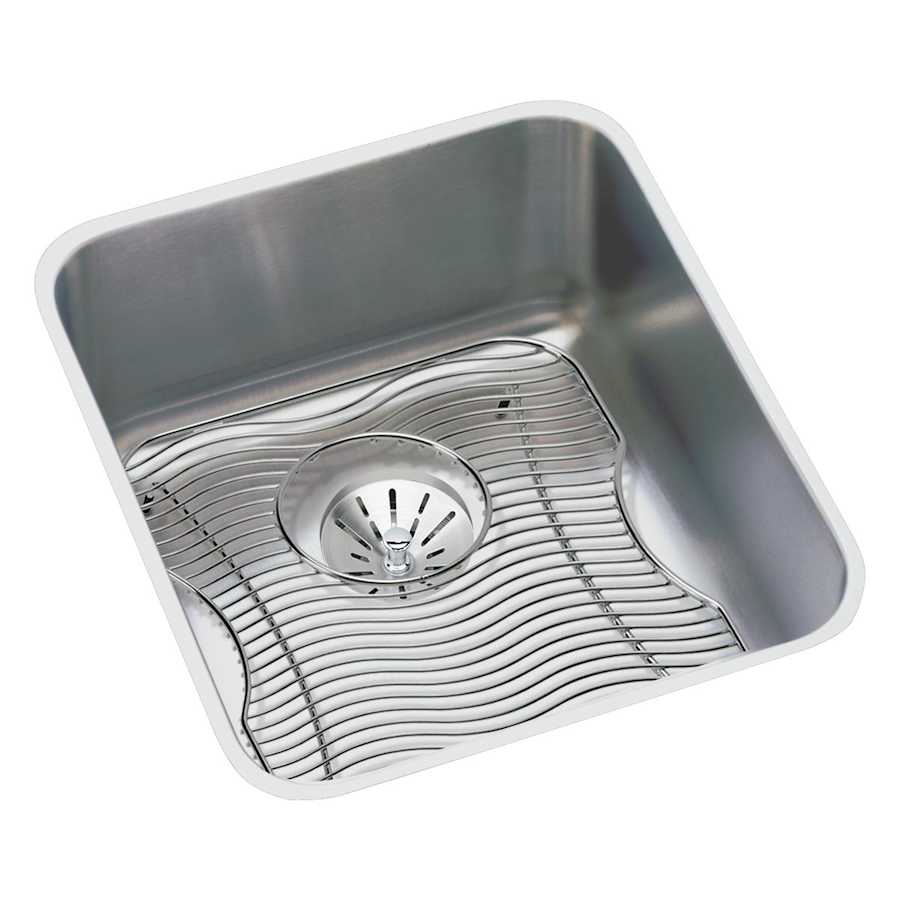

Elkay ELUH1316PDBG Features:
Constructed of 18-gauge T-304 grade stainless steel
Single basin design provides maximum workspace
Designed for undermount installations
Basin is undercoated and padded to prevent dish clatter and cabinet condensation
Rear drain location increases storage space underneath
Stainless steel basin rack and Perfect Drain assembly included
Covered under Elkay’s limited lifetime residential warranty
Product Technologies / Benefits:

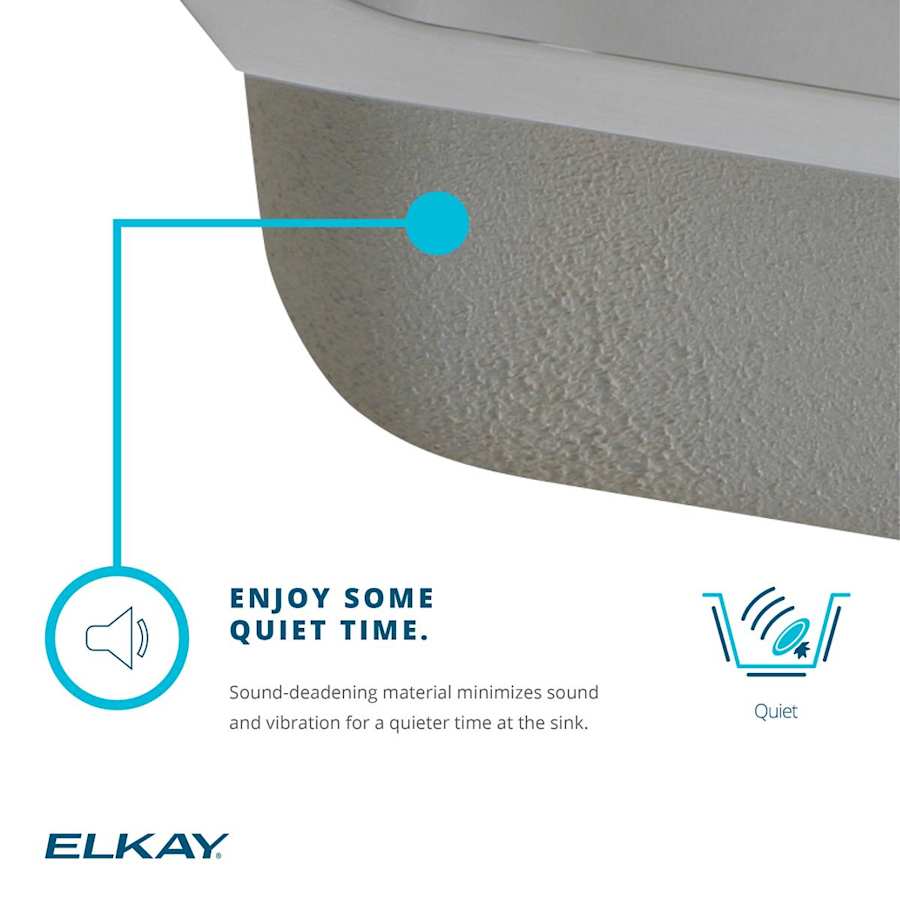

SoundGuard®: Elkay uses a non-toxic latex based material to undercoat sink bottoms and sides over sound pads which help absorb sound, maintain water temperature, reduce vibration and prevent condensation. The quietest stainless steel sink in the industry.

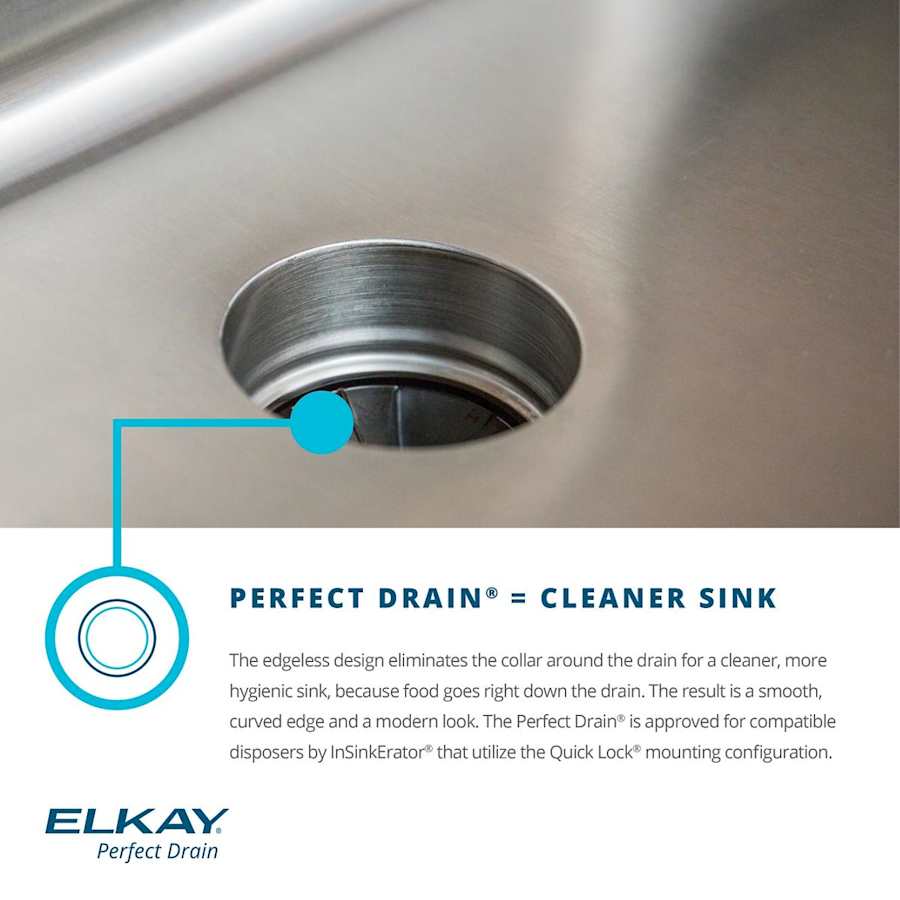

Perfect Drain: An edgeless drain that integrates seamlessly into the bottom of this sink. It eliminates the gap around the drain by doing away with the sink collar. This makes for a cleaner sink and expands your usable work space on the sink floor. Crumbs and gunk have nowhere to go but down the drain!
Lustertone™ Finish: Lustertone sinks provide a vibrant, lustrous, and dependable finish. A fine linear grain is created by machine, and then hand buffed in a multistep process, creating a long lasting and repairable finish.

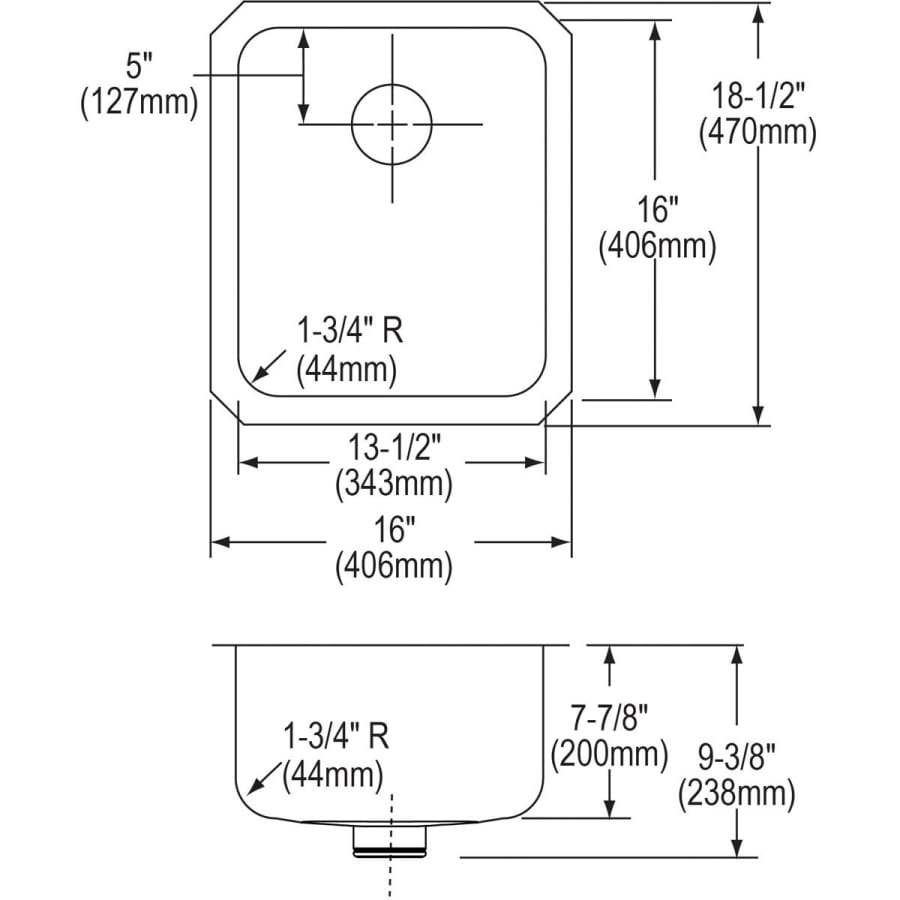

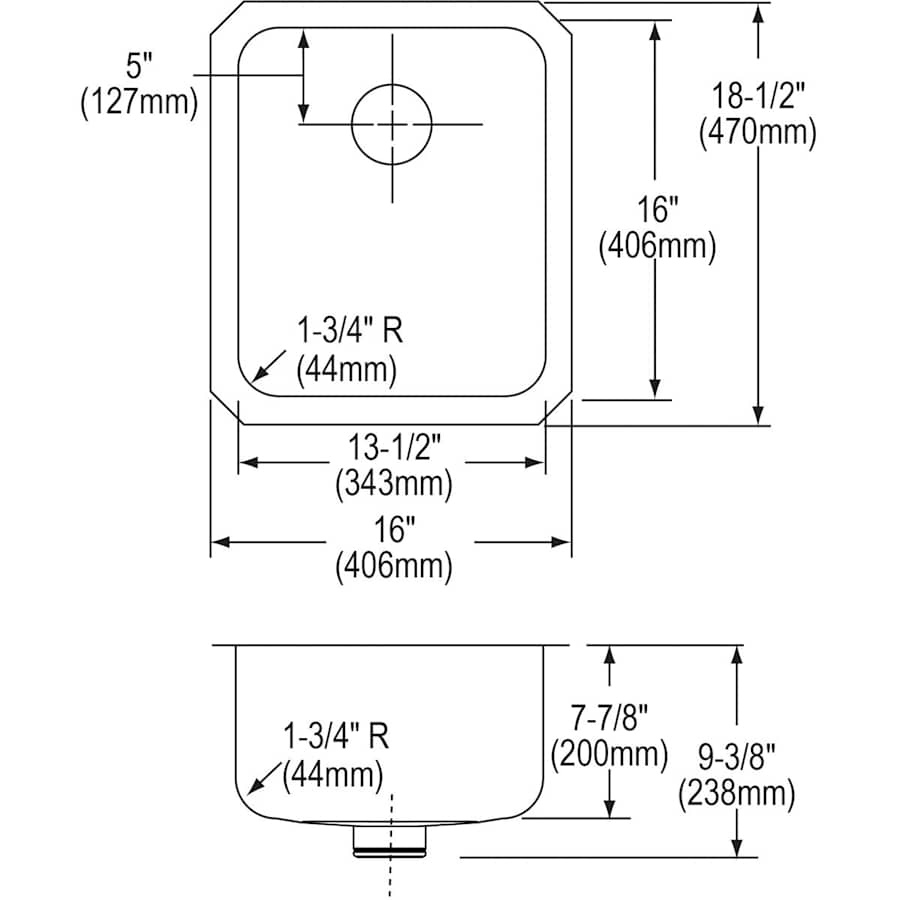

Elkay ELUH1316PDBG Specifications:
Height: 7-7/8″ (measured from bottom of sink to top of rim)
Length: 16″ (measured from left outer rim to right outer rim)
Width: 18-1/2″ (measured from back outer rim to front outer rim)
Installation Type: Undermount
Minimum Cabinet Size: 21″
Drain Connection: 3-3/8″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Gourmet Collection
Specifications
| Width | 18.5 in. |
| Height | 7.875 in. |
| Length | 16 in. |
| Nominal Length | 16 in. |
| Product Weight | 15.86 lbs. |
| Backplate Depth | 7.875 in. |
| Bar Length | 13.5 in. |
| Base Width | 16 in. |
| Faucet Centers | 0 in. |
| Sink Length | 16 in. |
| Drain Connection | 3.375 in. |
| Nominal Width | 19 in. |
| Gauge | 18 |
| Minimum Cabinet Size | 21 in. |
| Installation Hardware Included | No |
| Drain Assembly Included | Yes |
| Faucet Included | No |
| Soap Dispenser Included | No |
| Basin Rack Included | Yes |
| Basket Strainer Included | Yes |
| Colander Included | No |
| Cutting Board Included | No |
| Insulation Type | Undermount |
| Material | Stainless Steel |
| Thermostat | Traditional |
| Drain Placement | Center, Rear |
| Number Of Bathers | 1 |
| Overflow | No |
| Sink Shape | Rectangular |
| Sound Dampening | Yes |
| Apron Front | No |
| Basin Split | Single Basin |
| Stainless Steel Grade | 304 |
| Undercoating | Yes |
| Approved for Commercial Use | No |
| Collection | Gourmet |
| Manufacturer Warranty | Limited Lifetime Residential |
| ADA | No |
| Series | Lustertone, Perfect Drain, Sound Guard |
| Certifications | ASME, CSA |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
