Product Features:
Double basin sink with a 45/55 split provides increased versatility for any task
Covered under limited lifetime residential
Constructed of 18 gauge premium grade stainless steel – guaranteed to never rust or corrode
Undermount installation provides a seamless transition between countertop and sink
Rear drain location increases workspace area in the sink as well as storage space underneath
Product Technologies / Benefits:
SoundGuard®: Elkay uses a non-toxic latex based material to undercoat sink bottoms and sides over sound pads which help absorb sound, maintain water temperature, reduce vibration and prevent condensation. The quietest stainless steel sink in the industry.
Perfect Drain: An edgeless drain that integrates seamlessly into the bottom of many popular Elkay sink models. Crumbs and gunk have nowhere to go but down the drain.

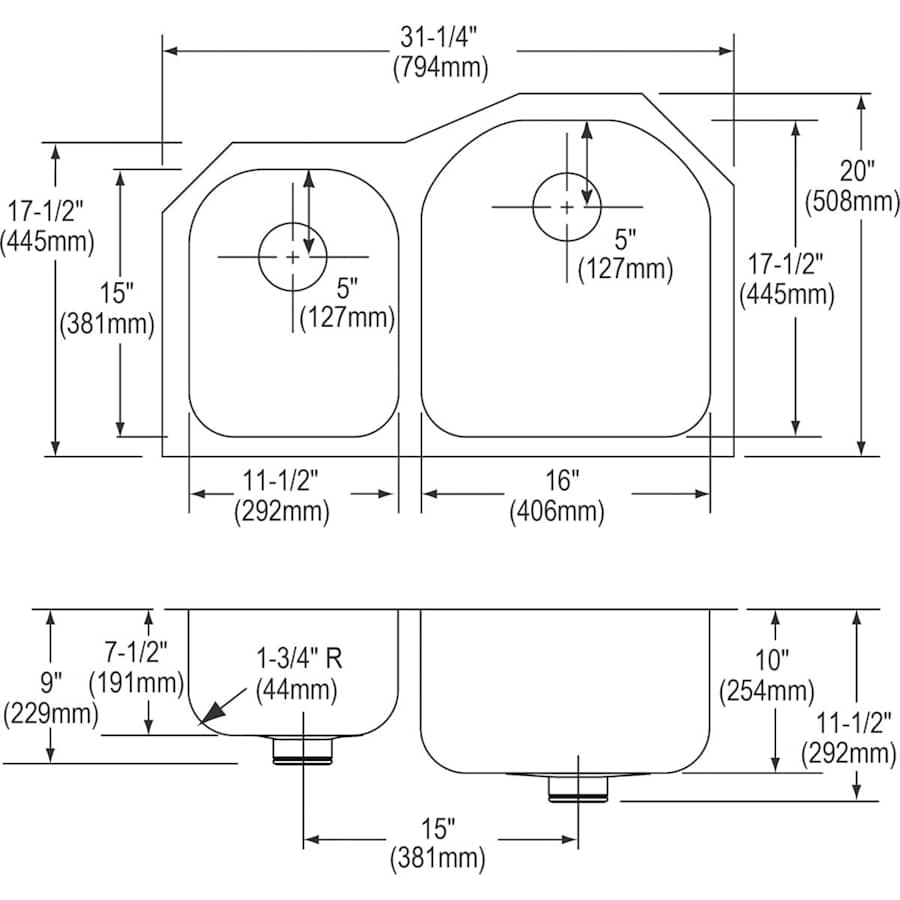

Specifications:
Height: 11-1/2″ (measured from the bottom of sink to the top of the rim)
Overall Width: 20″ (measured from the back outer rim to the front outer rim)
Overall Length: 31-1/4″ (measured from the left outer rim to the right outer rim)
Basin Width: (measured from the back inner rim to the front inner rim)
Left: 15″
Right: 17-1/2″
Basin Length: (measured from the left inner rim to the right inner rim)
Left: 11-1/2″
Right: 16″
Basin Depth: (measured from the center of basin to the rim)
Left: 7-1/2″
Right: 10″
Installation Type: Undermount
Drain Outlet Connection: 3-3/8″
Minimum Base Cabinet Width: 36″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Harmony Collection
Specifications
| Width | 20 in. |
| Height | 11.5 in. |
| Length | 31.25 in. |
| Nominal Length | 32 in. |
| Backplate Depth | 7.5, 10 in. |
| Drain Connection | 3.375 in. |
| Nominal Width | 20 in. |
| Gauge | 18 |
| Sink Length | 31.25 in. |
| Minimum Cabinet Size | 36 in. |
| Basin Depth (Left) | 7.5 in. |
| Basin Depth (Right) | 10 in. |
| Basin Length (Left) | 11.5 in. |
| Basin Length (Right) | 16 in. |
| Basin Width (Left) | 15 in. |
| Basin Width (Right) | 17.5 in. |
| Thermostat | Traditional |
| Material | Stainless Steel |
| Insulation Type | Undermount |
| Drain Placement | Rear |
| Overflow | No |
| Sink Shape | Specialty |
| Number Of Bathers | 2 |
| Corner Sink | No |
| Farmhouse | No |
| Sound Dampening | Yes |
| Basin Split | 45/55 |
| Manufacturer Warranty | Limited Lifetime Residential |
| Series | Perfect Drain |
| ADA | No |
| Faucet Included | No |
| Basin Rack Included | No |
| Basket Strainer Included | Yes |
| Colander Included | No |
| Cutting Board Included | No |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
