Elkay ELUH3120LDBG Features:
Constructed of 18-gauge T-304 grade stainless steel
Double basin sink with a 50/50 split increases versatility
Designed for undermount installations
Basins are undercoated and padded to prevent dish clatter and cabinet condensation
Rear drain location increases storage space underneath
Stainless steel basin rack and drain assembly included
Covered under Elkay’s limited lifetime residential warranty
Product Technologies / Benefits:
SoundGuard®: Elkay uses a non-toxic latex based material to undercoat sink bottoms and sides over sound pads which help absorb sound, maintain water temperature, reduce vibration and prevent condensation. The quietest stainless steel sink in the industry.
Lustertone™ Finish: Lustertone sinks provide a vibrant, lustrous, and dependable finish. A fine linear grain is created by machine, and then hand buffed in a multistep process, creating a long lasting and repairable finish.

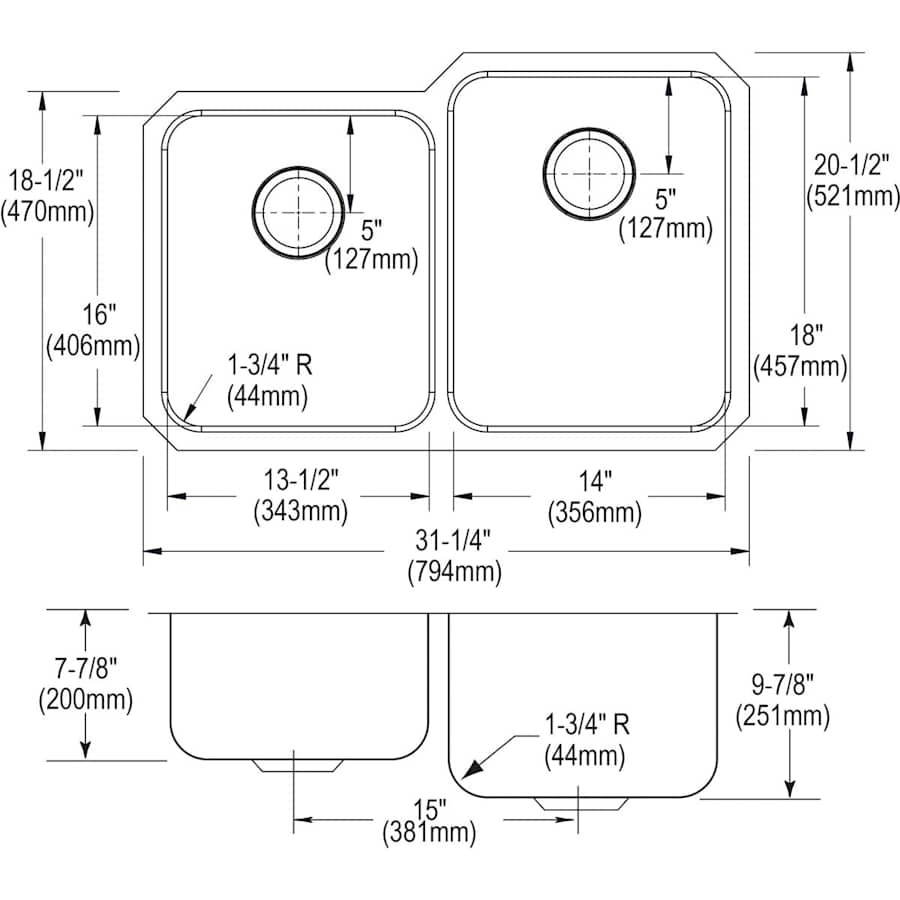

Elkay ELUH3120LDBG Specifications:
Height: 9-7/8″ (measured from bottom of sink to top of rim)
Length: 31-1/4″ (measured from left outer rim to right outer rim)
Width: 20-1/2″ (measured from back outer rim to front outer rim)
Basin Depth (left): 7-7/8″ (measured from center of basin to rim)
Basin Length (Left): 13-1/2″ (measured from left outer rim to right outer rim)
Basin Width (Left): 16″ (measured from back outer rim to front outer rim)
Basin Depth (Right): 9-7/8″ (measured from center of basin to rim)
Basin Length (Right): 14″ (measured from left outer rim to right outer rim)
Basin Width (Right): 18″ (measured from back outer rim to front outer rim)
Installation Type: Undermount
Minimum Cabinet Size: 36″
Basin Split: 50/50
Drain Connection: 3-1/2″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Gourmet Collection
Specifications
| Width | 20.5 in. |
| Height | 9.875 in. |
| Length | 31.25 in. |
| Nominal Length | 32 in. |
| Product Weight | 27.2 lbs. |
| Backplate Depth | 7.875, 9.875 in. |
| Drain Connection | 3.5 in. |
| Faucet Centers | 0 in. |
| Nominal Width | 21 in. |
| Gauge | 18 |
| Sink Length | 31.25 in. |
| Minimum Cabinet Size | 36 in. |
| Basin Depth (Left) | 7.875 in. |
| Basin Depth (Right) | 9.875 in. |
| Basin Length (Left) | 13.5 in. |
| Basin Length (Right) | 14 in. |
| Basin Width (Left) | 16 in. |
| Basin Width (Right) | 18 in. |
| Thermostat | Traditional |
| Material | Stainless Steel |
| Insulation Type | Undermount |
| Drain Placement | Center, Rear |
| Overflow | No |
| Sink Shape | Rectangular |
| Number Of Bathers | 2 |
| Farmhouse | No |
| Sound Dampening | Yes |
| Basin Split | 50/50 |
| Apron Front | No |
| Undercoating | Yes |
| Stainless Steel Grade | 304 |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime Residential |
| Collection | Gourmet |
| Series | Lustertone, Sound Guard |
| Certifications | CSA, ASME |
| ADA | No |
| Installation Hardware Included | No |
| Drain Assembly Included | Yes |
| Faucet Included | No |
| Soap Dispenser Included | No |
| Basin Rack Included | Yes |
| Basket Strainer Included | Yes |
| Cutting Board Included | No |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
